Cell Wall Endoplasmic Reticulum Ribosomes Cytoplasm Chromosomes Nucleus

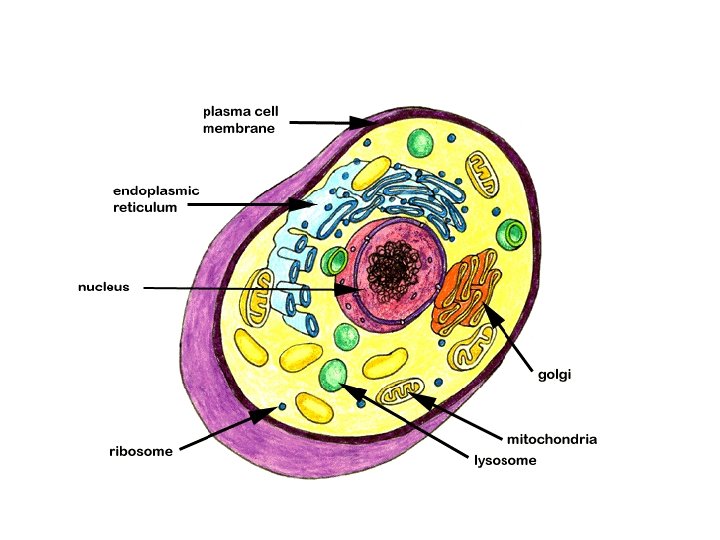

Cell Wall Endoplasmic Reticulum Ribosomes Cytoplasm Chromosomes Nucleus Mitochondria
Cell Division: 1) Mitosis-ordinary cell division 2) Meiosis-gamete cell division
Mitosis: Ordinary cell division

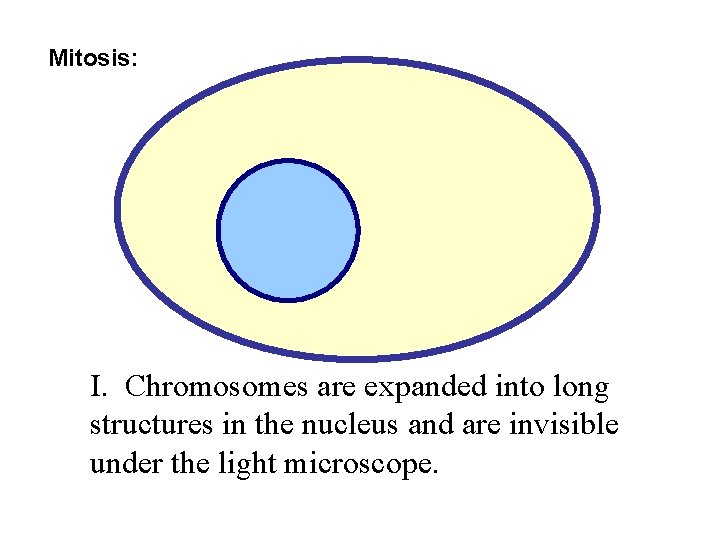

Mitosis: I. Chromosomes are expanded into long structures in the nucleus and are invisible under the light microscope.
Mitosis: II. Chromosomes replicate and condense. With appropriate staining, they can now be seen under a microscope.

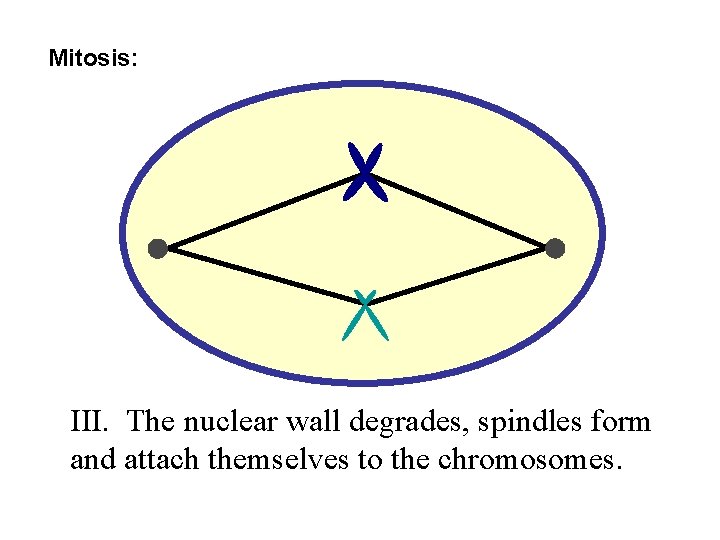

Mitosis: III. The nuclear wall degrades, spindles form and attach themselves to the chromosomes.
Mitosis: IV. Spindles pull the chromosome pairs apart, pulling them to opposite poles of the cell.

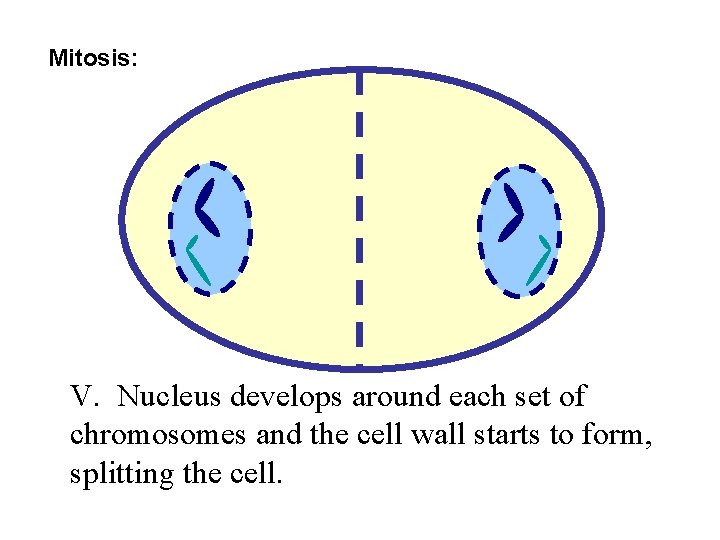

Mitosis: V. Nucleus develops around each set of chromosomes and the cell wall starts to form, splitting the cell.

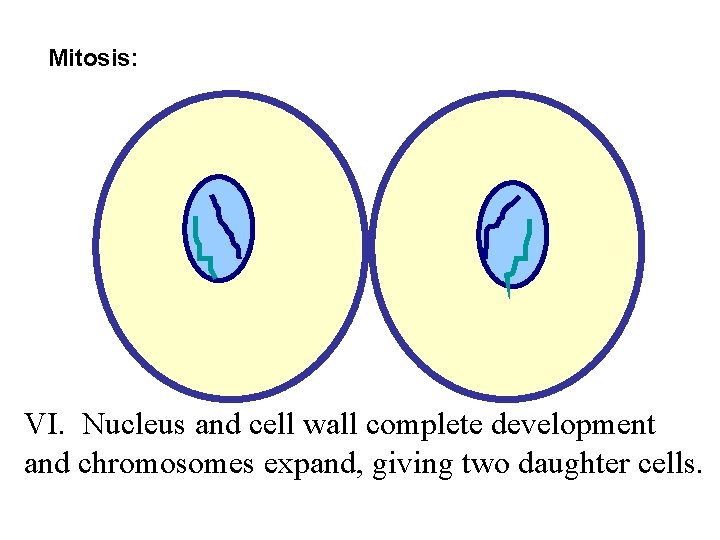

Mitosis: VI. Nucleus and cell wall complete development and chromosomes expand, giving two daughter cells.
Meiosis: Cell Division Generating Gametes
Meiosis: I. As in mitosis, chromosomes replicate and condense.
Meiosis: II. Unlike mitosis, the maternal (solid) and paternal (dotted) chromosomes pair up and exchange genetic material.

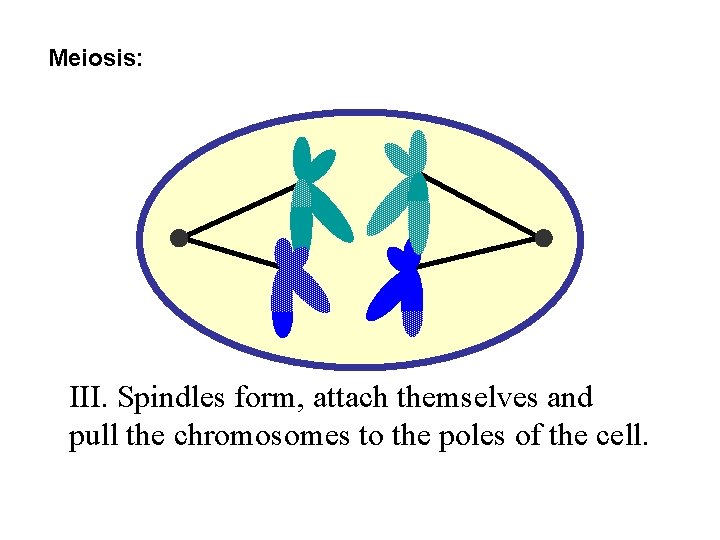

Meiosis: III. Spindles form, attach themselves and pull the chromosomes to the poles of the cell.

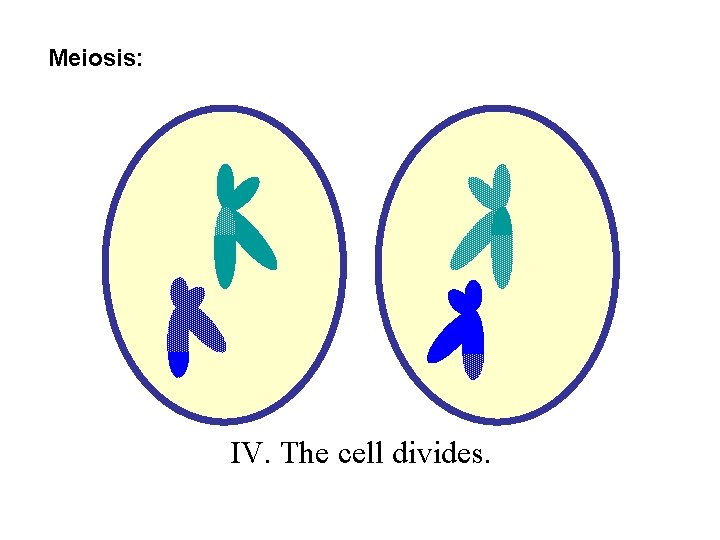

Meiosis: IV. The cell divides.

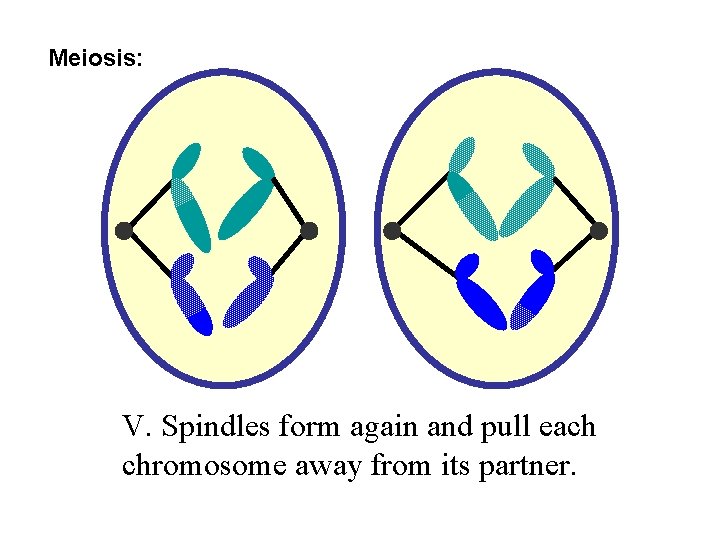

Meiosis: V. Spindles form again and pull each chromosome away from its partner.

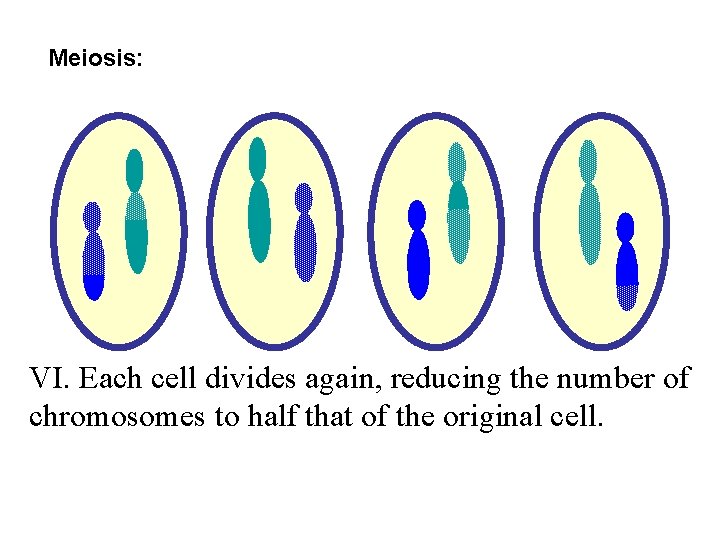

Meiosis: VI. Each cell divides again, reducing the number of chromosomes to half that of the original cell.
Cell Workings: Metabolism & Catabolism Key Concepts: 1) Lock & Key 2) Cut or Paste

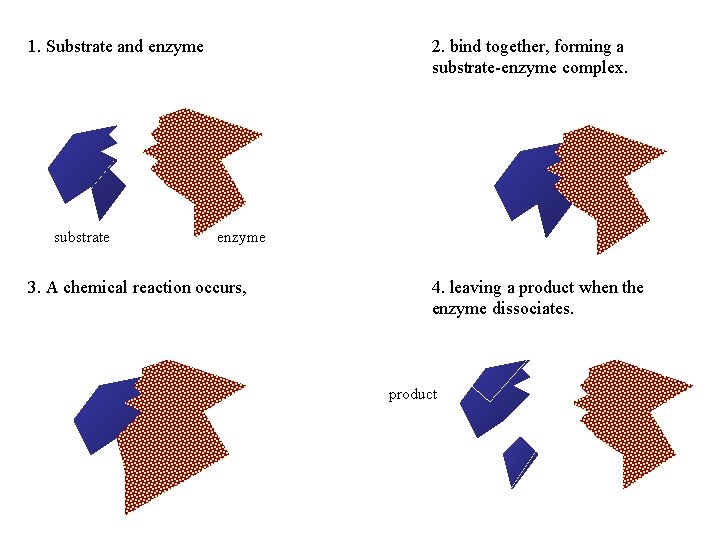

2. bind together, forming a substrate-enzyme complex. 1. Substrate and enzyme substrate enzyme 3. A chemical reaction occurs, 4. leaving a product when the enzyme dissociates. product
Tyrosine tyrosine hydroxylase DOPA (dihydroxyphenylalanine) DOPA decarboxylase DA (dopamine) dopamine b hydroxylase NE (norepinepherine)
Cell Communication: Key Concepts: 1) Lock (Receptor) & Key (Hormones, Neurotransmitters) 2) Turn on or turn off
The Neuron
Terminal Dendrites Cell Body Axon Nucleus Buttons
Glial Cell Neurons © Dennis. Kunkel: www. Dennis. Kunkel. com
Synaptic Button Vesicle Neurotransmitter molecules Receptor

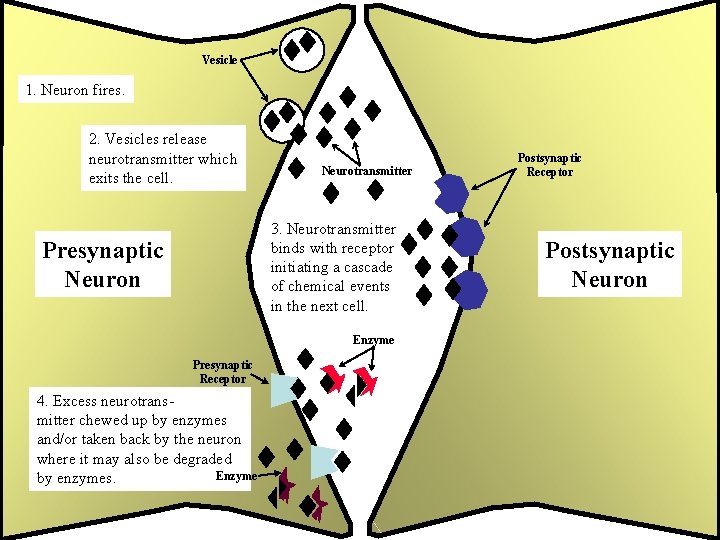

Vesicle 1. Neuron fires. 2. Vesicles release neurotransmitter which exits the cell. Neurotransmitter 3. Neurotransmitter binds with receptor initiating a cascade of chemical events in the next cell. Presynaptic Neuron Enzyme Presynaptic Receptor 4. Excess neurotransmitter chewed up by enzymes and/or taken back by the neuron where it may also be degraded Enzyme by enzymes. Postsynaptic Receptor Postsynaptic Neuron
http: //www. drugabuse. gov/pubs/teaching 4/largegifs/slide 10. gif

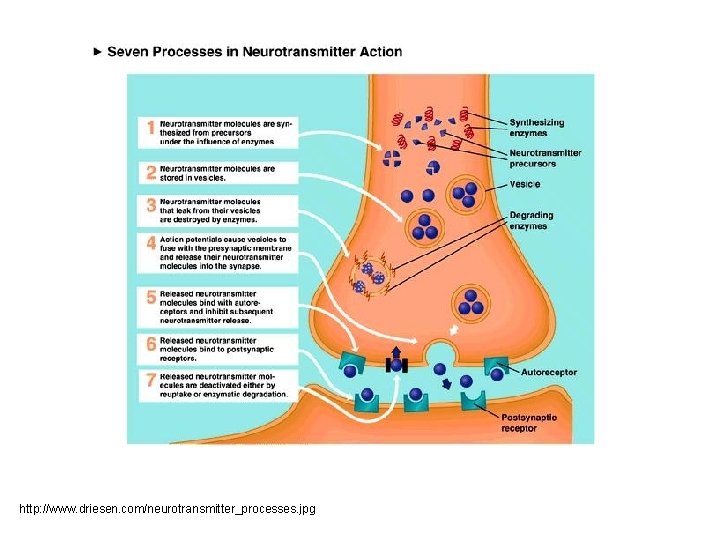

http: //www. driesen. com/neurotransmitter_processes. jpg
Effects of neurotransmission: 1) Short term = ion transfer (changes polarity of postsynaptic neuron) 2) Long term = second messenger system (changes proteins, turns genes on/off)

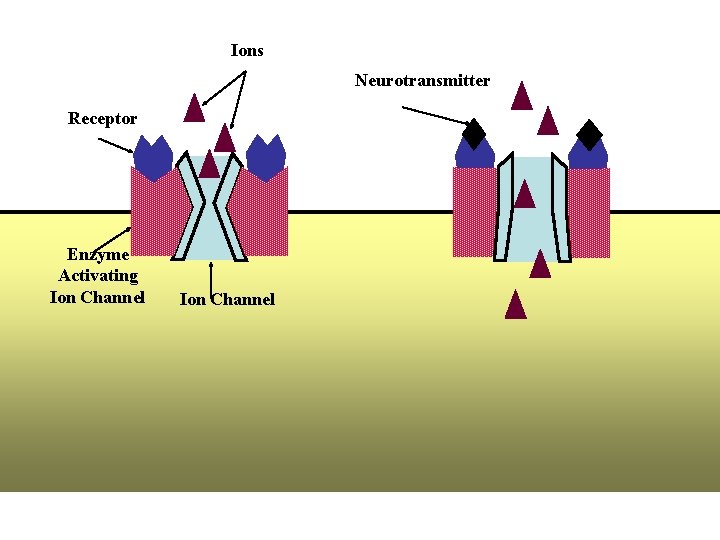

Ions Neurotransmitter Receptor Enzyme Activating Ion Channel
Ions Neurotransmitter Receptor Scaffolding Molecule Ion Channel Second Messenger Molecule Signal to Cell
