Cell Ultrastructure Membranes

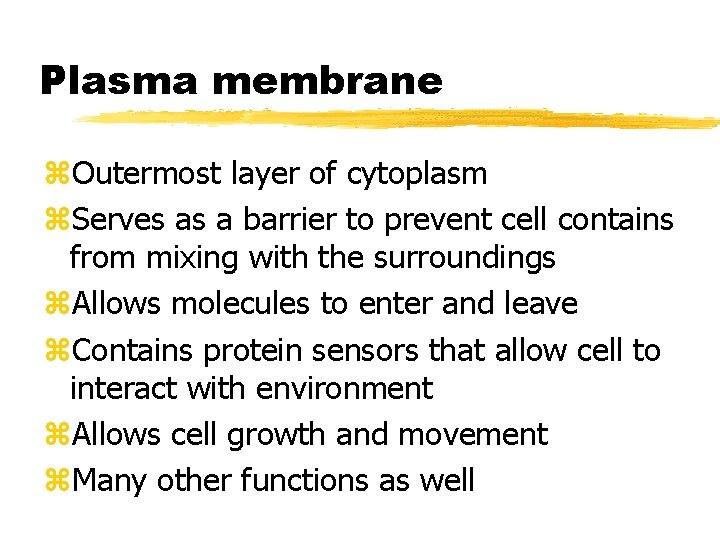

Plasma membrane z. Outermost layer of cytoplasm z. Serves as a barrier to prevent cell contains from mixing with the surroundings z. Allows molecules to enter and leave z. Contains protein sensors that allow cell to interact with environment z. Allows cell growth and movement z. Many other functions as well

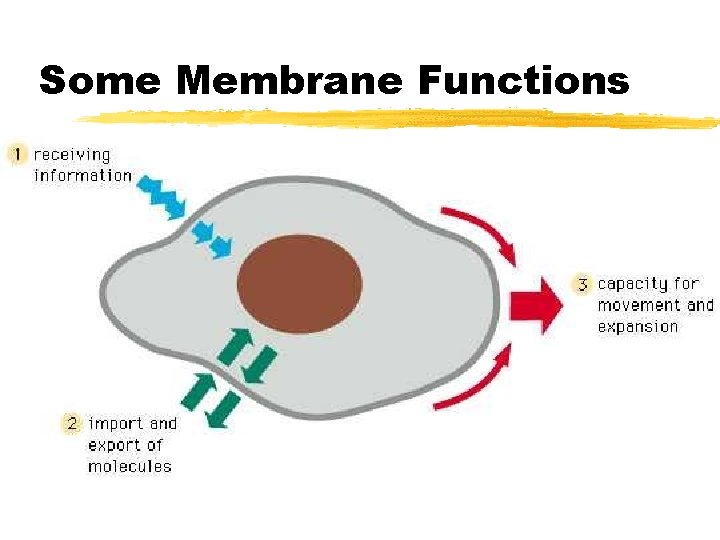

Some Membrane Functions
Membrane Distribution z. Prokaryotes have a single membrane - the plasma membrane z. Eukaryotes y. Plasma membrane y. Many internal membranes that enclose organelles

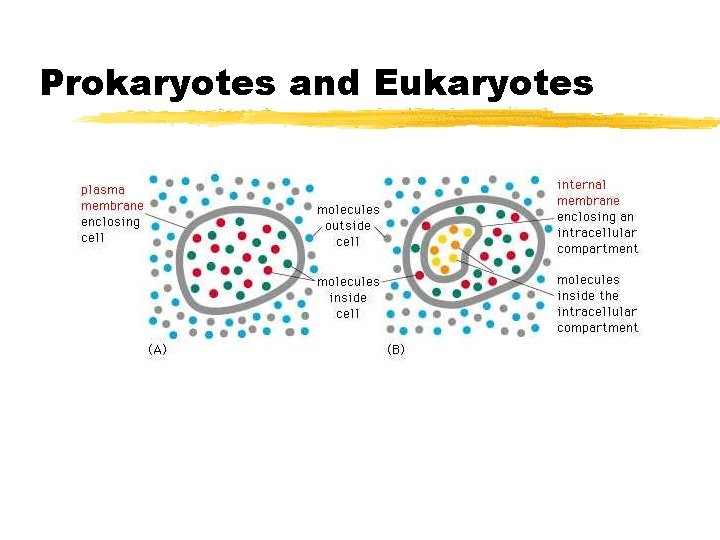

Prokaryotes and Eukaryotes

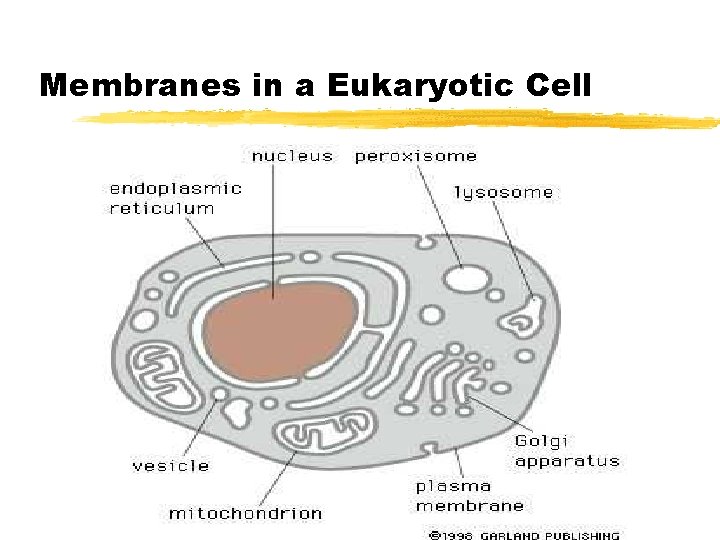

Membranes in a Eukaryotic Cell

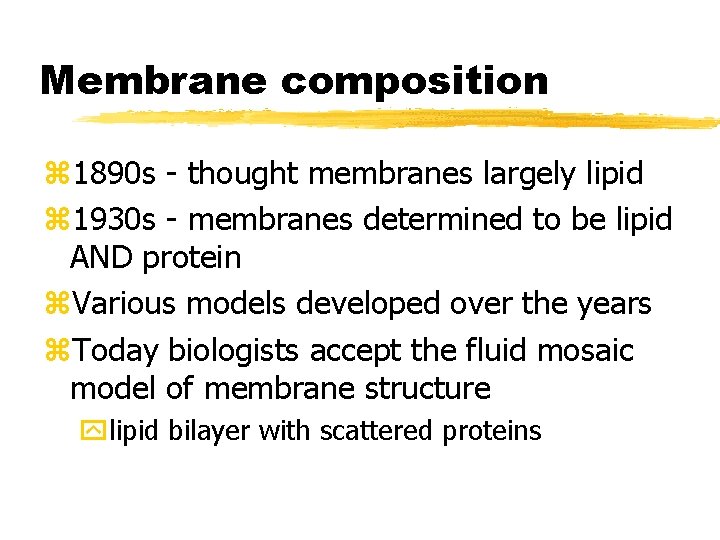

Membrane composition z 1890 s - thought membranes largely lipid z 1930 s - membranes determined to be lipid AND protein z. Various models developed over the years z. Today biologists accept the fluid mosaic model of membrane structure ylipid bilayer with scattered proteins

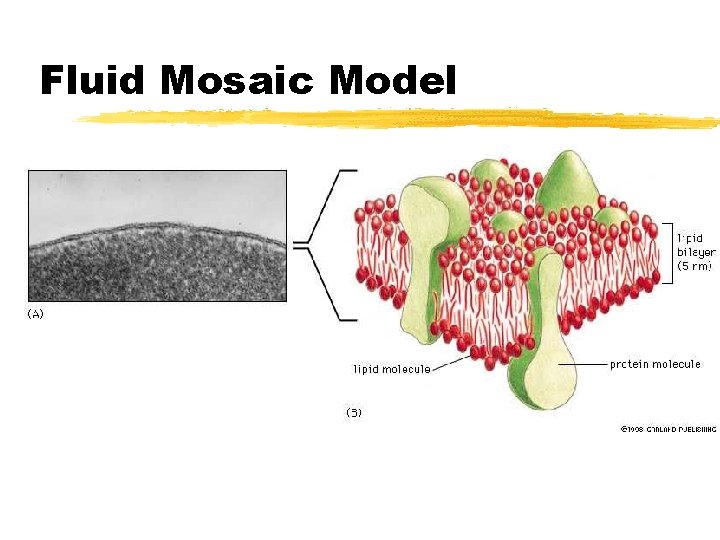

Fluid Mosaic Model

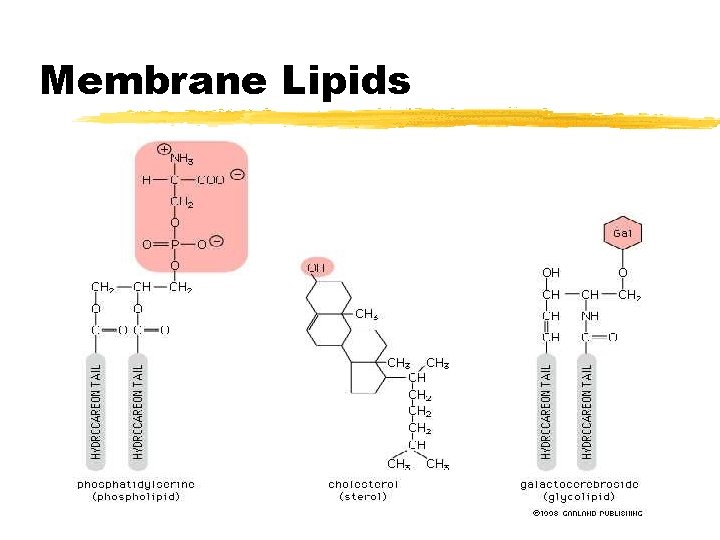

Membrane Lipids

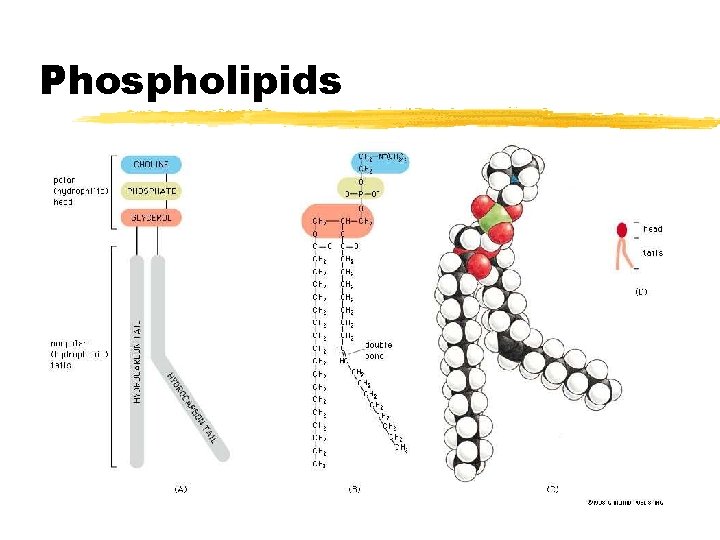

Phospholipids

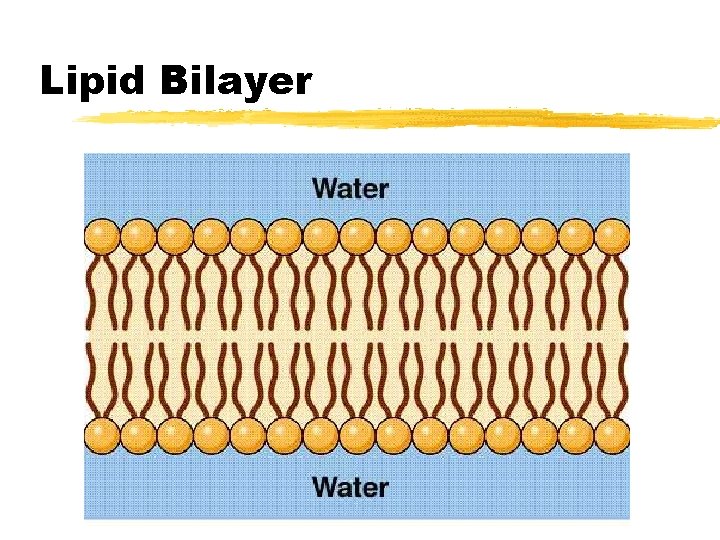

Lipid Bilayer

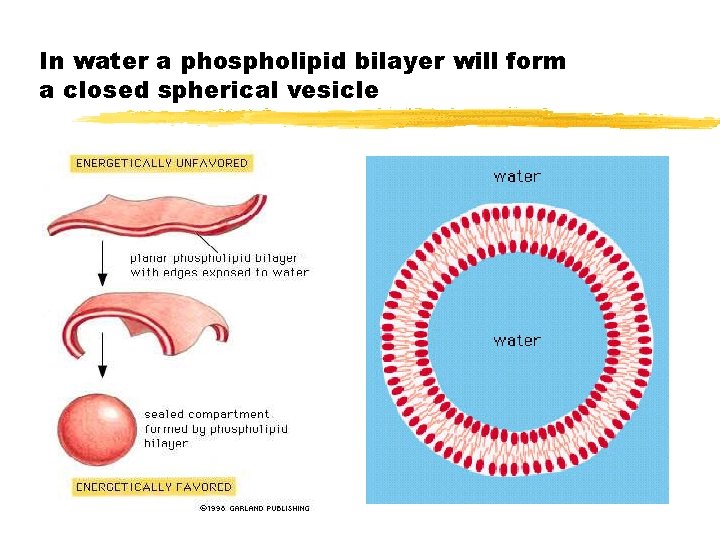

In water a phospholipid bilayer will form a closed spherical vesicle
Lipid Bilayer is Fluid z Lipid molecules in each monolayer can yrotate ymove laterally change position with neighbor z Fluidity due to unsaturated FA chains and cholesterol z Flip-flop does not occur

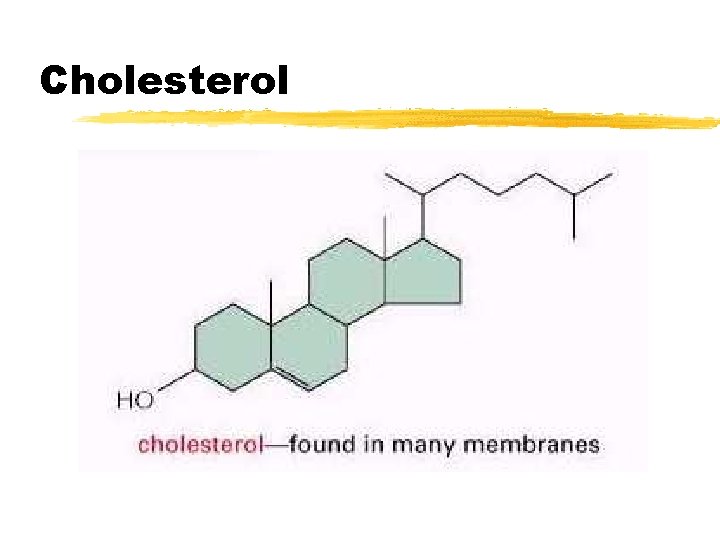

Cholesterol
Cholesterol and unsaturated FA prevent packing of phospholipids
Components of Model

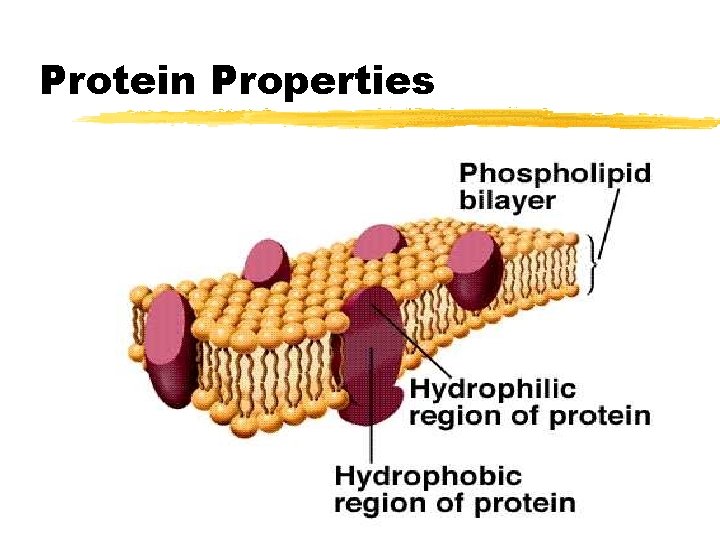

Protein Properties

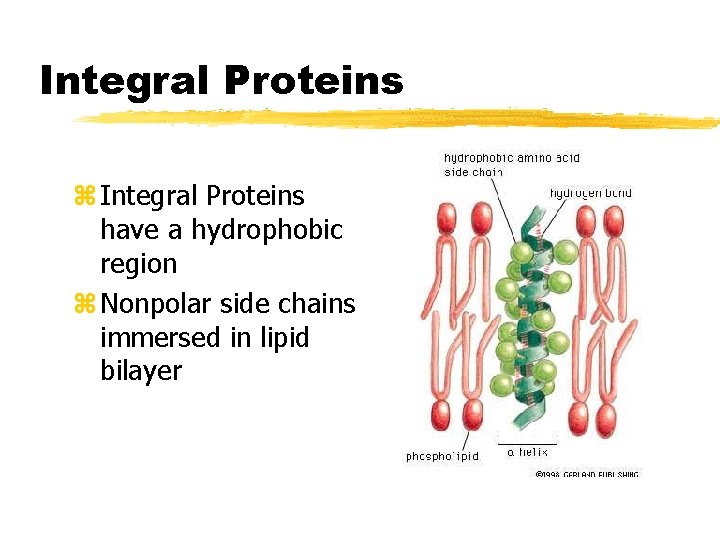

Integral Proteins z Integral Proteins have a hydrophobic region z Nonpolar side chains immersed in lipid bilayer

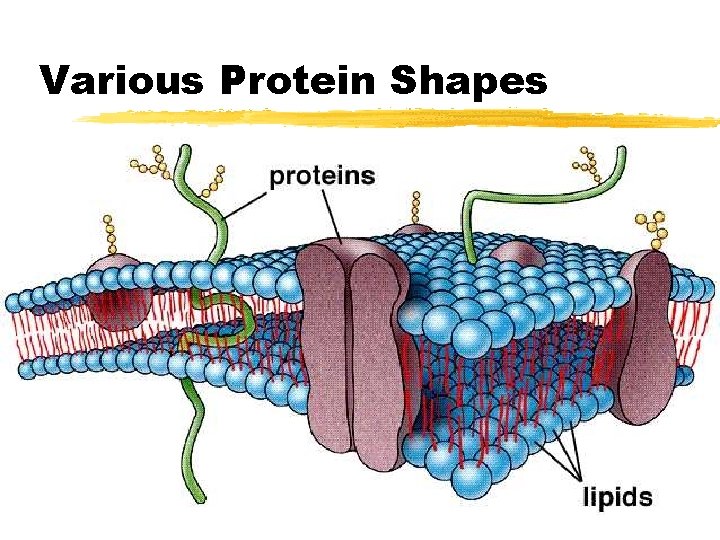

Various Protein Shapes
Examples of Plasma Membrane Proteins and Their Functions

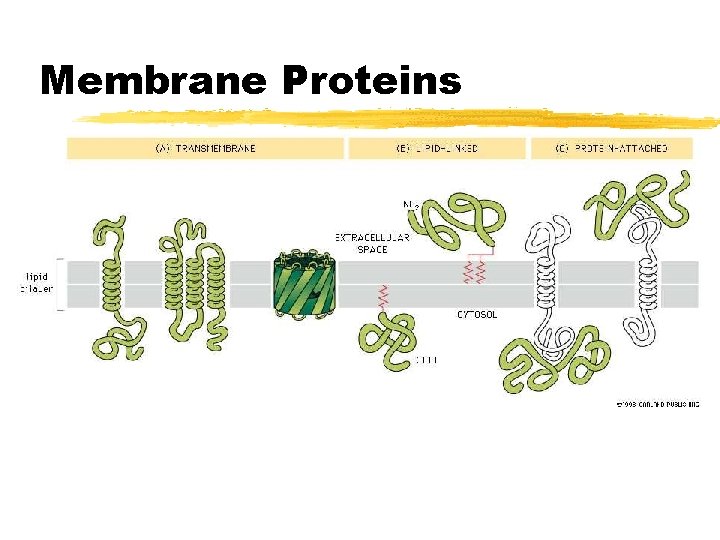

Membrane Proteins
Membrane Proteins

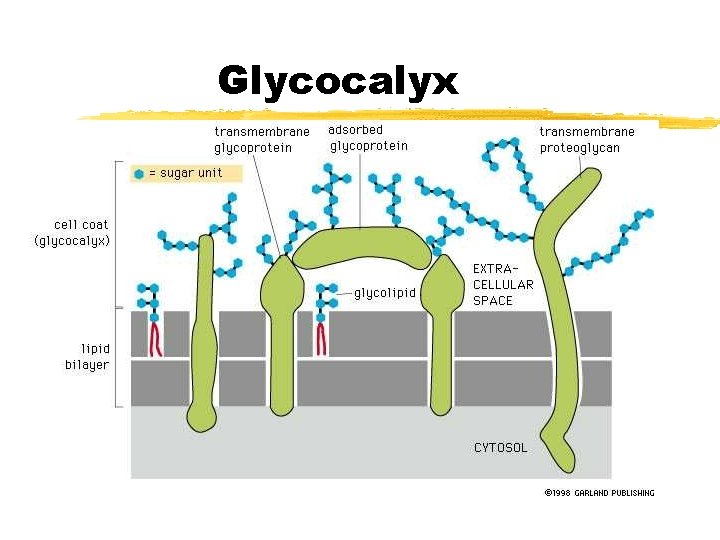

Glycocalyx

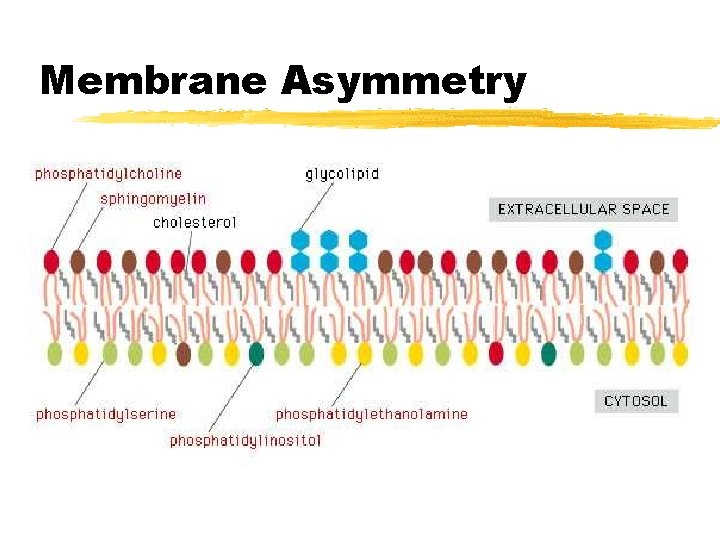

Membrane Asymmetry

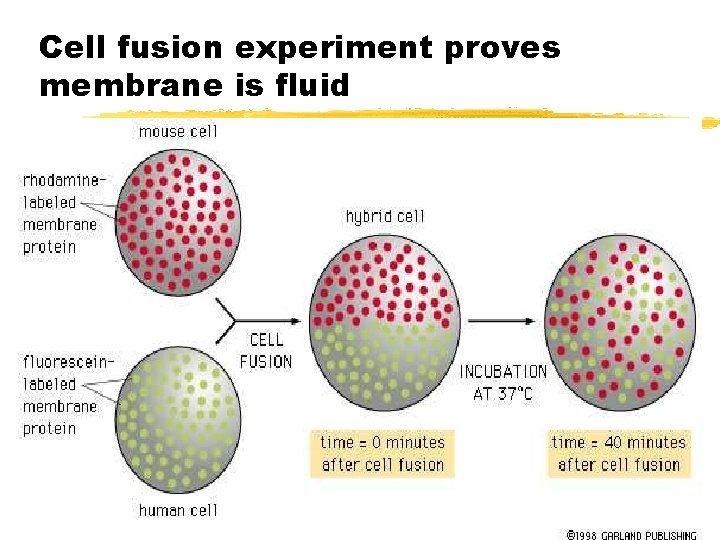

Cell fusion experiment proves membrane is fluid

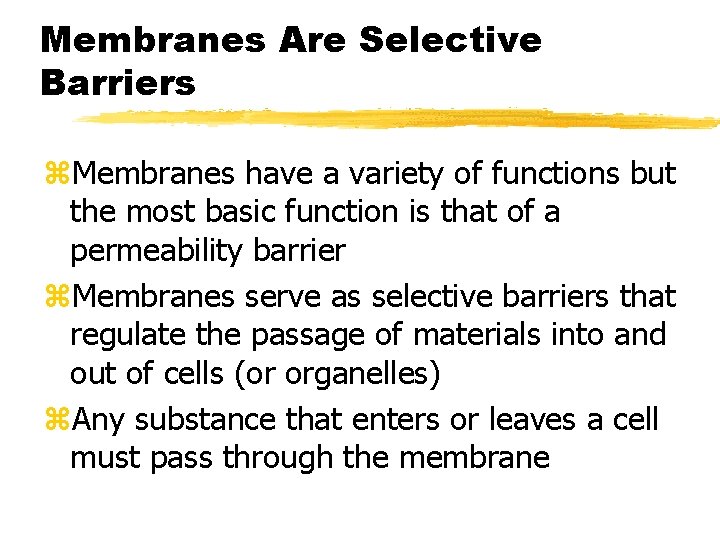

Membranes Are Selective Barriers z. Membranes have a variety of functions but the most basic function is that of a permeability barrier z. Membranes serve as selective barriers that regulate the passage of materials into and out of cells (or organelles) z. Any substance that enters or leaves a cell must pass through the membrane

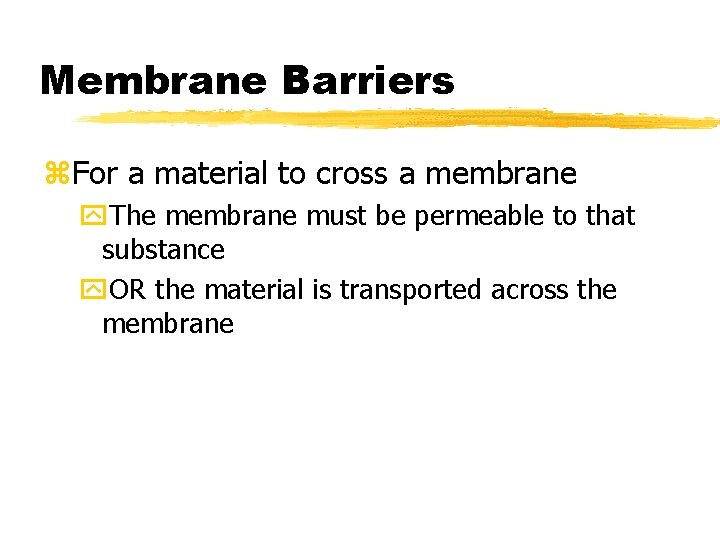

Membrane Barriers z. For a material to cross a membrane y. The membrane must be permeable to that substance y. OR the material is transported across the membrane
Membrane Permeability z. If a membrane is permeable to a substance that means that the substance is able to diffuse across or through the membrane

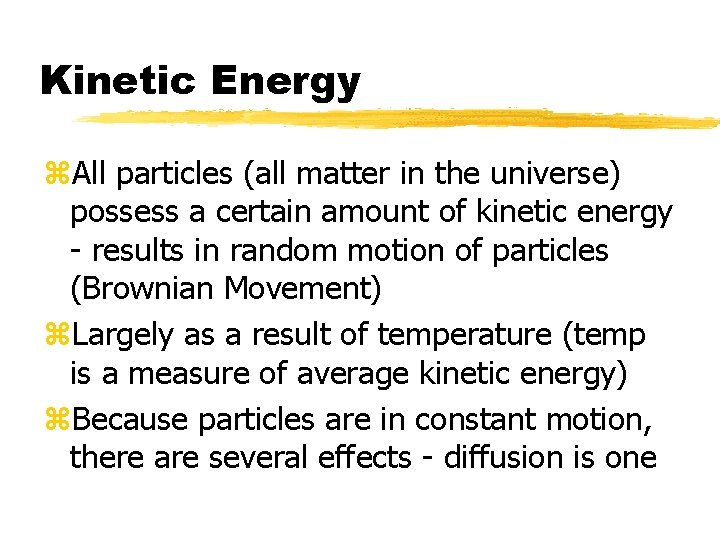

Kinetic Energy z. All particles (all matter in the universe) possess a certain amount of kinetic energy - results in random motion of particles (Brownian Movement) z. Largely as a result of temperature (temp is a measure of average kinetic energy) z. Because particles are in constant motion, there are several effects - diffusion is one

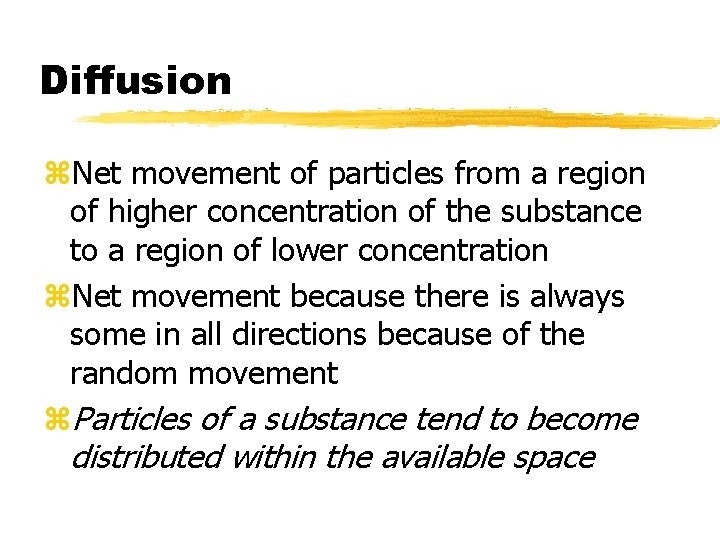

Diffusion z. Net movement of particles from a region of higher concentration of the substance to a region of lower concentration z. Net movement because there is always some in all directions because of the random movement z. Particles of a substance tend to become distributed within the available space

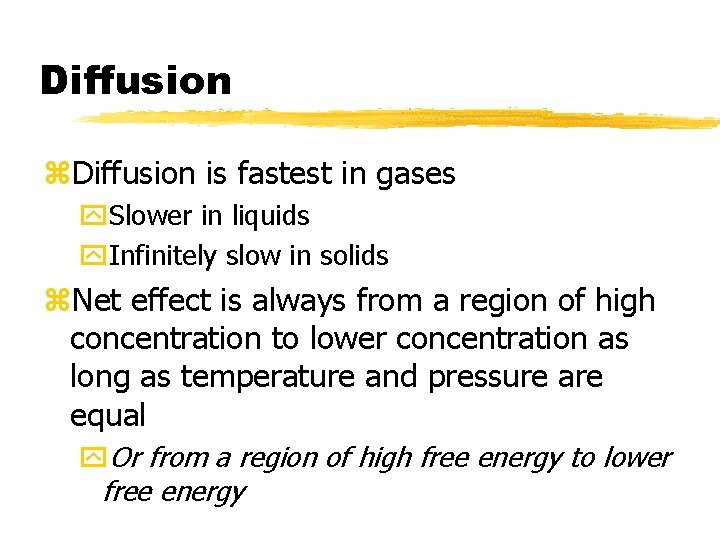

Diffusion z. Diffusion is fastest in gases y. Slower in liquids y. Infinitely slow in solids z. Net effect is always from a region of high concentration to lower concentration as long as temperature and pressure are equal y. Or from a region of high free energy to lower free energy

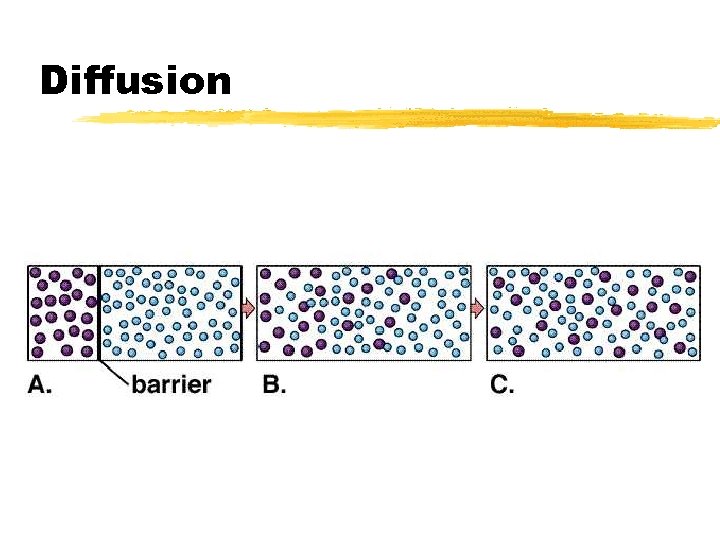

Diffusion

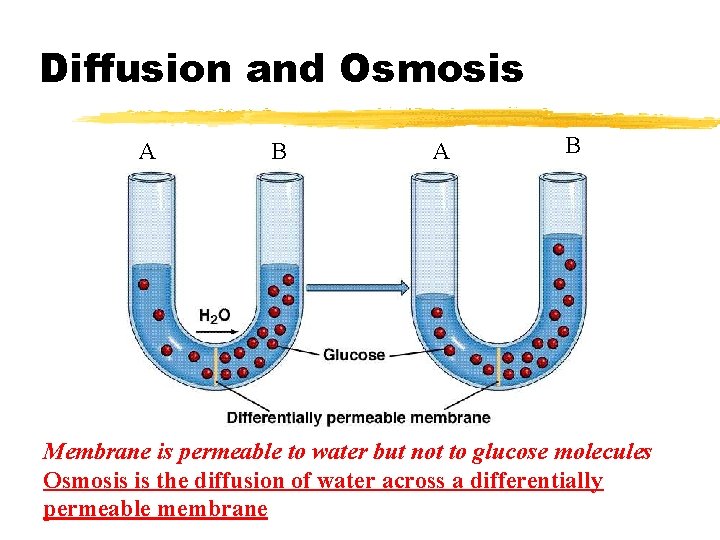

Diffusion and Osmosis A B Membrane is permeable to water but not to glucose molecules Osmosis is the diffusion of water across a differentially permeable membrane

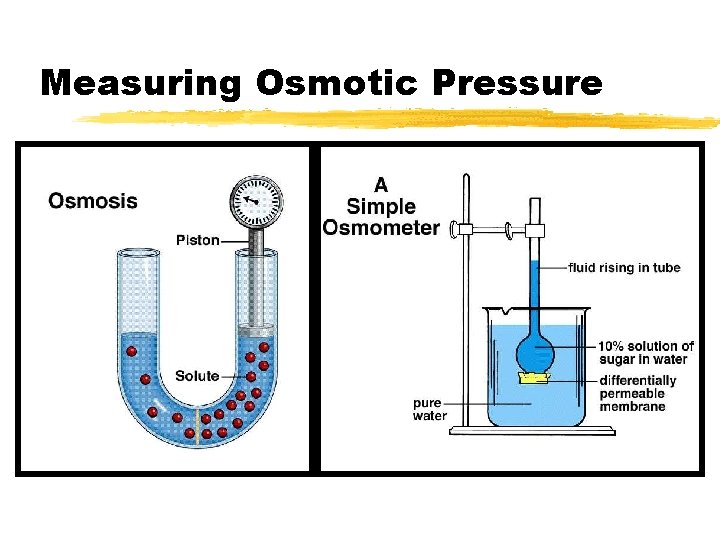

Measuring Osmotic Pressure
Osmosis in Animal Cells Area outside cell is Hypotonic or Hypo-osmotic

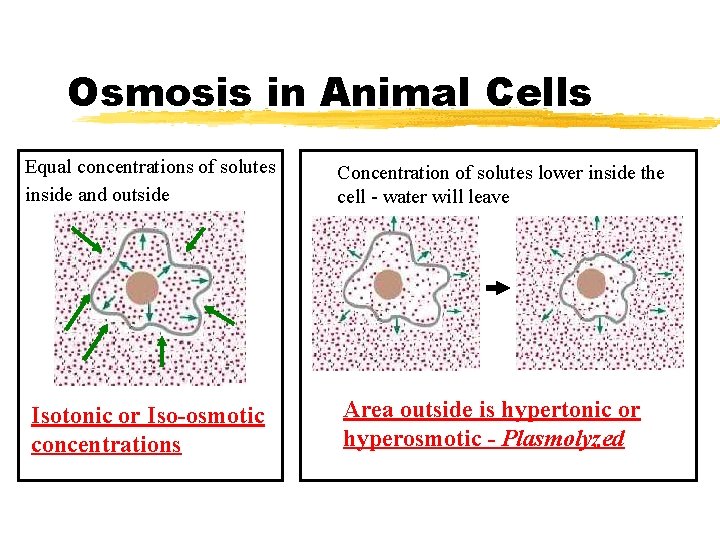

Osmosis in Animal Cells Equal concentrations of solutes inside and outside Concentration of solutes lower inside the cell - water will leave Isotonic or Iso-osmotic concentrations Area outside is hypertonic or hyperosmotic - Plasmolyzed
Plant Cells Iso-osmotic Hyperosmotic
