Cell Theory Plant And Animal Cells Transport History
- Slides: 90
Cell Theory Plant And Animal Cells Transport
History of the Cell Theory • 1500 s-Eyeglass makers-several lenses magnifies objects • Anton van Leeuwenhoek: First to describe cells. “Animalcules” (bacteria) • Robert Hooke: Studied cork (dead cells of oak tree); monastery; cells born. • Robert Brown (1833): Dark structure near the center of the cell (nucleus) • Matthias Schleiden(1838): Plants made of cells • Theodore Schwann (1839): Animals are made of cells. • Rudolf Virchow (1855): Cells come from pre-existing cells
Hooke
Cell Theory • All organisms are composed of one or more cells. • Basic unit of organization of organisms. • All cells come from pre-existing cells.
Modern Cell Theory The cell contains hereditary information which is passed on from cell to cell during cell division. All cells are basically the same in chemical composition and metabolic activities.
Cell Size • 5 to 50 micrometers in diameter – Smallest Mycoplasma bacteria (0. 2 micrometers across) – Giant amoebas Chaos chaos (1000 micrometers/1 mm) in diameter; unaided eye
Cell membrane/plasma membrane • Thin flexible barrier • Many cells in direct contact with fluid portion of blood called plamsa.
Nucleus (plural: nuclei) Large membrane enclosed structure that contains genetic material in the form of DNA and controls cell’s activities.
Prokaryotic vs. Eukaryotic PROKARYOTES PRO- “Before” EUKARYOTES EU- “True” • Generally smaller and simpler (exceptions) • Do not separate genetic material in a nucleus. • All characteristics of life. • Single Cells • Lack organelles • Ex. bacteria • • • Larger, more complex Dozens of structures Internal membranes Highly specialized Genetic material in nucleus • Single celled, multicellular • Ex. Plants, animals, fungi
Eukaryotic and Prokaryotic Cells Organelles: Membrane bound structures.
Microscopes-use lenses to magify the image of an object by focusing light or electrons
Compound Light Microscope: Uses two or more lenses that lets light throught to magnify objects. Used to examine living cells, small organisms and preserved cells. See cells and structures as small as 1 millionth of a meter Magnification: Up to 1500 x
Compound Microscope • Objective lens-just above specimen-enlarges image • Ocular lens-eyepiece-further magnifies image • Most living things nearly transparent : : use dyes. – Toluidine blue-cell boundaries and nuclei – Fluorescent-give off light of a particular color when viewed under specific wavelengths of light. • Fluorescence microscopy-identify locations of molecules and watch movement.
Electron Microscope: beam of electrons that are focused by a magnetic field Magnify object up to 500, 000 x Produce realistic, 3 -D pictures.

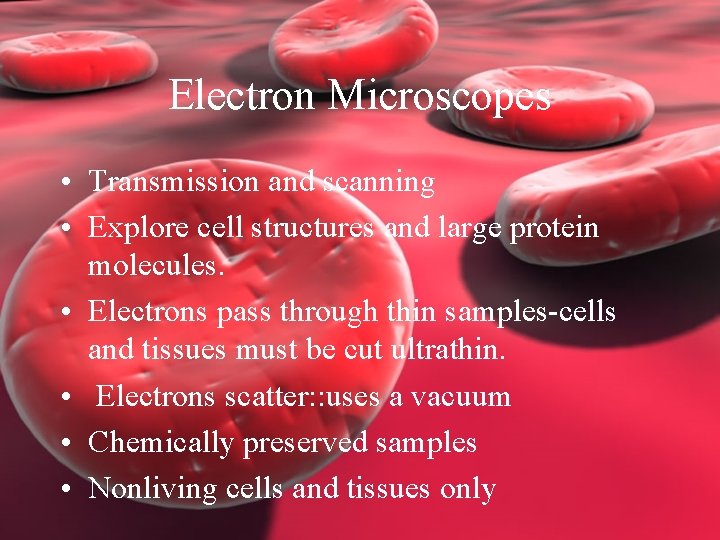

Electron Microscopes • Transmission and scanning • Explore cell structures and large protein molecules. • Electrons pass through thin samples-cells and tissues must be cut ultrathin. • Electrons scatter: : uses a vacuum • Chemically preserved samples • Nonliving cells and tissues only
Scanning Tunneling Microscope: Probe is brought near specimen. Electrons flow between the tip of the probe and atoms on the specimen’s surface. As probe follows surface contours, 3 -D image is created on a computer. Magnification: hundred million times
Transmission Electron Microscope: Aims a beam of electrons through a specimen. Denser objects allow fewer electrons to pass through. Magnification: hundreds of thousands of times
Cell structures and functions
Cell Boundaries Cell Membrane Cell Wall (PLANTS ONLY)

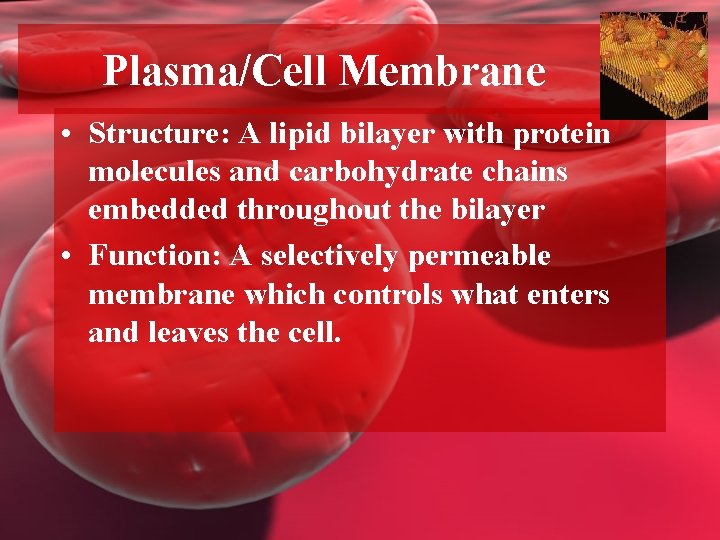

Plasma/Cell Membrane • Structure: A lipid bilayer with protein molecules and carbohydrate chains embedded throughout the bilayer • Function: A selectively permeable membrane which controls what enters and leaves the cell.
FLUID MOSAIC 1. Flexible 2. Phospholipids move like water molecules in a current of a lake
Selective Permeability: Process by which the plasma membrane of a cell allows some molecules into the cell while keeping others out.

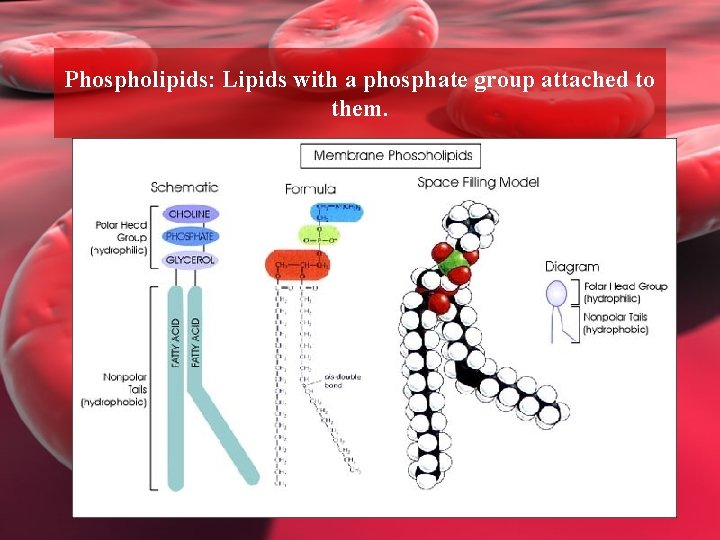

Phospholipids: Lipids with a phosphate group attached to them.
Phospholipids • Glycerol backbone • Two fatty acid chains • Phospate group
Cholesterol • Stabilize phospholipids • Prevents fatty acid chains from phospholipids from sticking together
Transport Proteins • Allows substances and waste to move through the plasma membrane. • Examples: Protein Channels and Carrier Proteins
Proteins and Carbohydrates • Stick out of cells to help cells identify one another
Cell Wall • Structure: Fairly rigid structure located outside the plasma membrane. • Function: Shape, support and protection. • Found in plants cells, fungi, most bacteria, and some protists. • Cellulose.
Cilia And Flagella Cilia • Structure: Short, numerous, hairlike projections, that move in a wavelike motion. • Function: Aid in locomotion and feeding. Flagella • Structure: Long projections that move in a whip-like motion. • Function: Major means of cell locomotion— unicellular organisms.
Cellular Control Center Nucleus
Nucleus • Structure: Center of the Cell • Function : Control center of the cell; Contains the direction to make proteins and other important molecules (DNA). • Prokaryotes: DNA in cytoplasm • Plant and animal cells

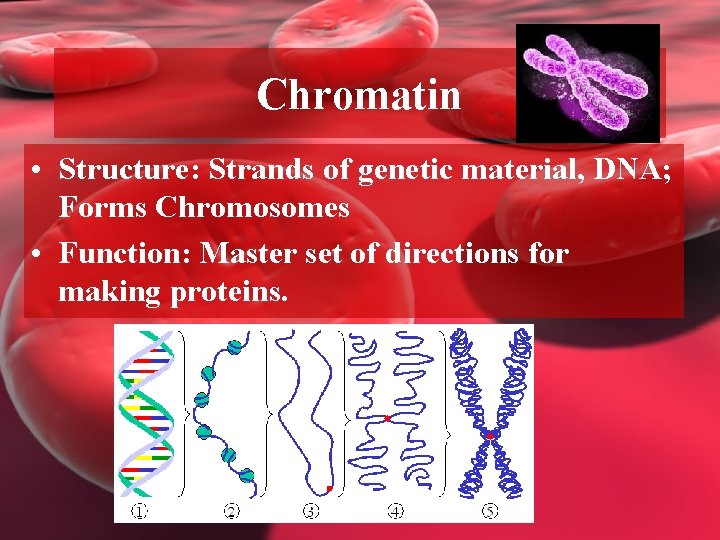

Chromatin • Structure: Strands of genetic material, DNA; Forms Chromosomes • Function: Master set of directions for making proteins.
Nucleolus • Structure: Prominent structure in the nucleus. • Function: Make Ribosomes (RNA and Proteins)
Nuclear Envelope • Structure : Separates the nucleus from the cytoplasm; Double membrane made of two phospholipid bilayers contain pores for substances to pass through. • Function: Allow materials in and out of nucleus.

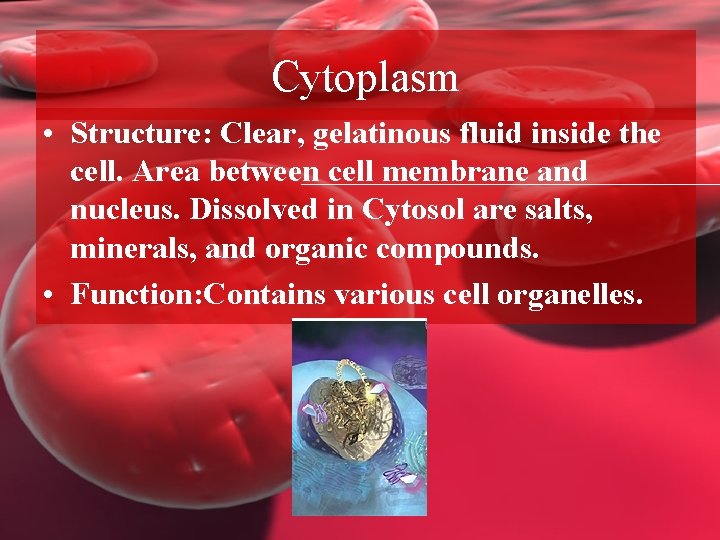

Cytoplasm • Structure: Clear, gelatinous fluid inside the cell. Area between cell membrane and nucleus. Dissolved in Cytosol are salts, minerals, and organic compounds. • Function: Contains various cell organelles.
• Organelles that Build Proteins Ribosomes Endoplasmic Reticulum Golgi Apparatus
Ribosomes • Structure: Most numerous in cell; no membrane; found free and attached; among smallest of organelles; Made up of RNA and Proteins • Function: Protein Assembly (DNA directions)

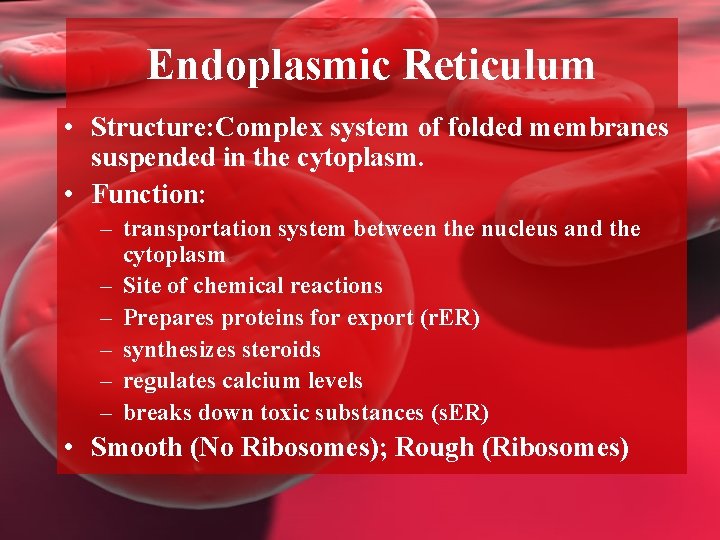

Endoplasmic Reticulum • Structure: Complex system of folded membranes suspended in the cytoplasm. • Function: – transportation system between the nucleus and the cytoplasm – Site of chemical reactions – Prepares proteins for export (r. ER) – synthesizes steroids – regulates calcium levels – breaks down toxic substances (s. ER) • Smooth (No Ribosomes); Rough (Ribosomes)
Golgi Apparatus/Body • Flattened system of tubular membranes. Flattened stack of pancakes. • Modifies, sorts, and packages proteins and lipids for storage and transport (Cell’s Post Office)
Organelles that Store, Clean-UP, and Support Vacuoles/Vesicles Lysosomes Cytoskeleton Centrioles

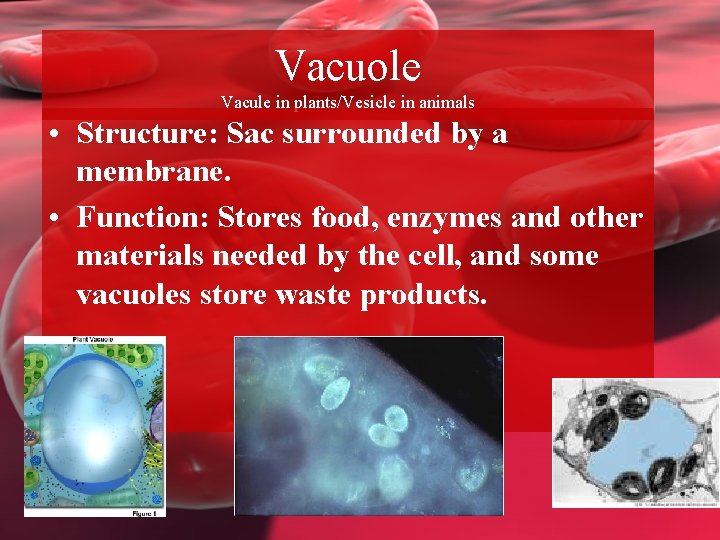

Vacuole Vacule in plants/Vesicle in animals • Structure: Sac surrounded by a membrane. • Function: Stores food, enzymes and other materials needed by the cell, and some vacuoles store waste products.
Plastids • Function: Stores starches and lipids; • Example chloroplast (one type) transfers energy from light to organic compounds.
In plants, plastids may differentiate into several forms, depending upon which function they need to play in the cell. Chloroplasts: for photosynthesis Chromoplasts: for pigment synthesis and storage Amyloplasts: for starch storage Statoliths: for detecting gravity Elaioplasts: for storing fat Proteinoplasts: for storing and modifying protein

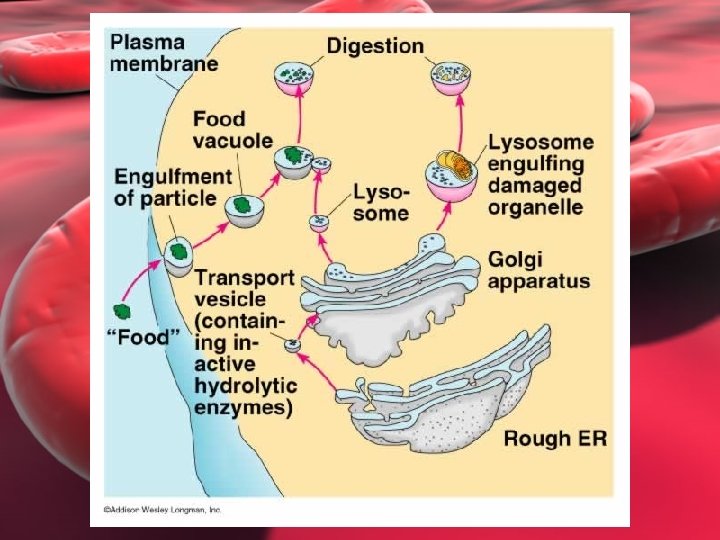

Lysosomes • Structure: Small spherical organelles that enclose hydrolytic enzymes within a single membrane. • Function: Digest molecules, old organelles, and foreign substances (engulfs viruses or bacteria)
Cytoskeleton • Structure: Support structure made of tiny rods and filaments. • Function: Form a framework for the cell.
Microtubules and Microfilaments Assist in cell shape and assist organelles in moving from place to place within the cell. Microtubules: Thin hollow cylinders made of proteins. Microfilaments: Thin, solid protein fibers.
Centrioles • Pair of cylinder-shaped bodies found in the cells • Organize cell division • Animal Cells ONLY

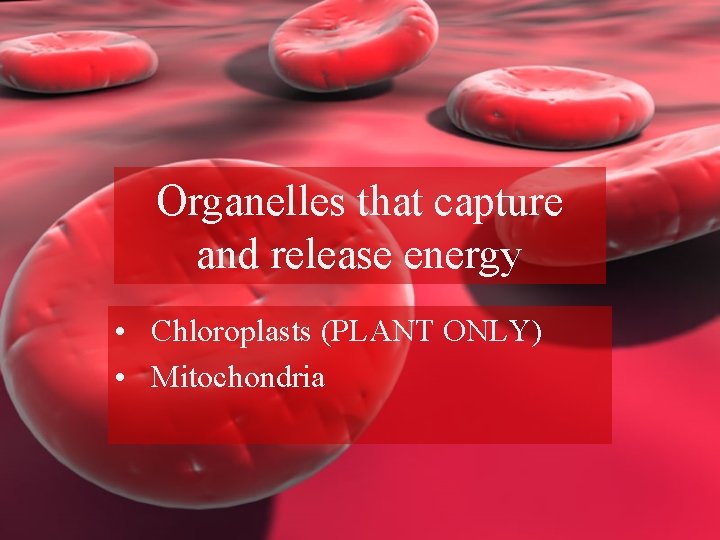

Organelles that capture and release energy • Chloroplasts (PLANT ONLY) • Mitochondria
Chloroplast (PLANTS ONLY) • Structure: Disc shaped (ability to change shape and position in the cell as light intensity changes) Contains pigment in the inner series of thylakoid membranes. • Function: Convert solar energy to chemical energy stored in food.
Chlorophyll • Function: Traps light energy and gives leaves and stems their green color.
Mitochondria • Structure: Granular and rod shaped, with an inner membrane that forms long, narrow folds. • Function: Convert chemical energy in food to usable compounds (ATP).
Animal Cell
Diffusion—Movement of particles from an area of higher concentration to an area of lower concentration

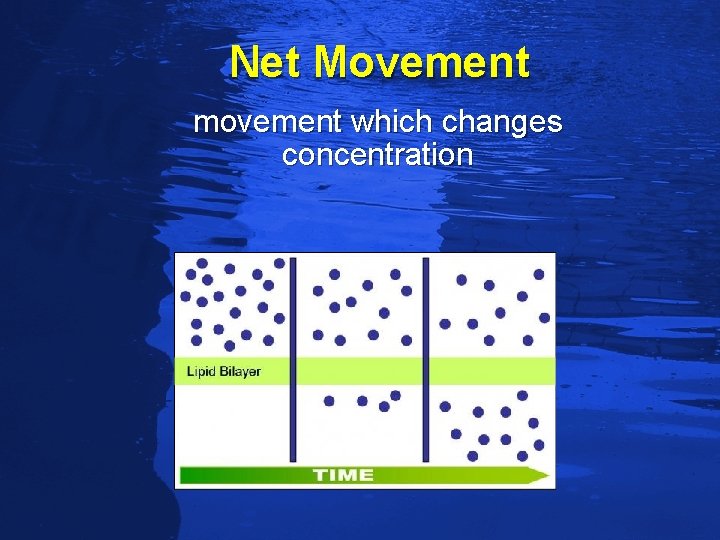

Slide 59 Net Movement movement which changes concentration
Slide 60
Slide 61 Factors that affect diffusion l Particle size and shape l Temperature l Concentration gradient—Difference in concentration. l Cytoplasmic streaming—Continuous movement of materials in cytoplasm.
Slide 62 Diffuse in Membranes 1. Passive Transport Moving of materials across cell membrane without using cellular energy. • Diffusion (phospholipids) • Facilitated Diffusion (transport proteins) Uses Channel Proteins Active Transport Moving of materials across cell membrane using cellular energy Uses Carrier Proteins
Slide 63 Osmotic Pressure Force produced by the net movement of water out of or into a cell • Water moves from an area of HIGH water concentration (low solute) to an area of LOW water concentration (high solute) •
Slide 64 Aquaporins Water channel proteins
Slide 65 Osmosis
Slide 66 Osmotic Pressure Force produced by the net movement of water out of or into cell. Result: Turgid pressure-plants straight up Water purification (reverse osmosis) Desalinates Salt Water
Slide 67 Osmotic Condition—Cell concentrations versus environmental solution concentrations. Isotonic Hypertonic
Slide 68 Solution concentrations inside is the same as outside. No net movement of water. Animal cells: Normal Plant Cells: Flaccid Isotonic “Iso” means same

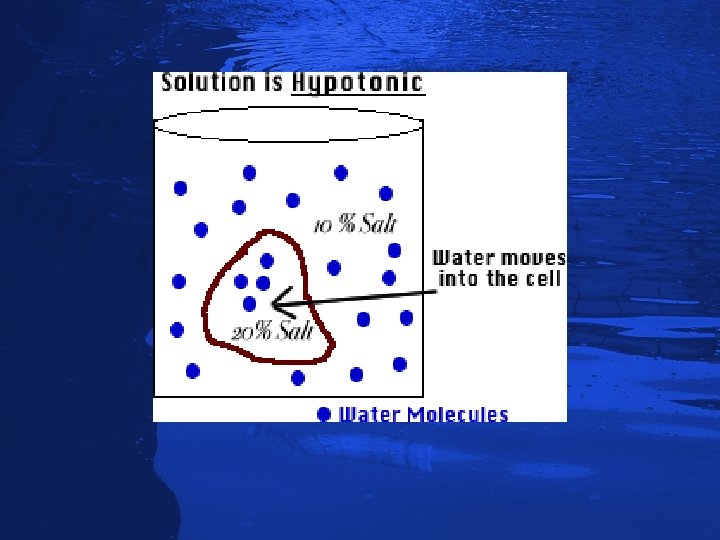

Slide 69 Solute concentrations outside is less than cell concentration. Animal Cell : Lysed Plant Cell: Turgid “Hypo” - under
Slide 70
Slide 71 Solute concentration outside is greater than cell concentration. Animal Cell: Shrink Plant Cell: Plasmolyzed “Hyper” - above
Slide 72 This is why it is dangerous to drink sea water - its a myth that drinking sea water will cause you to go insane, but people marooned at sea will speed up dehydration (and death) by drinking sea water. This is also why "salting fields" was a common tactic during war, it would kill the crops in the field, thus causing food shortages.
Slide 73

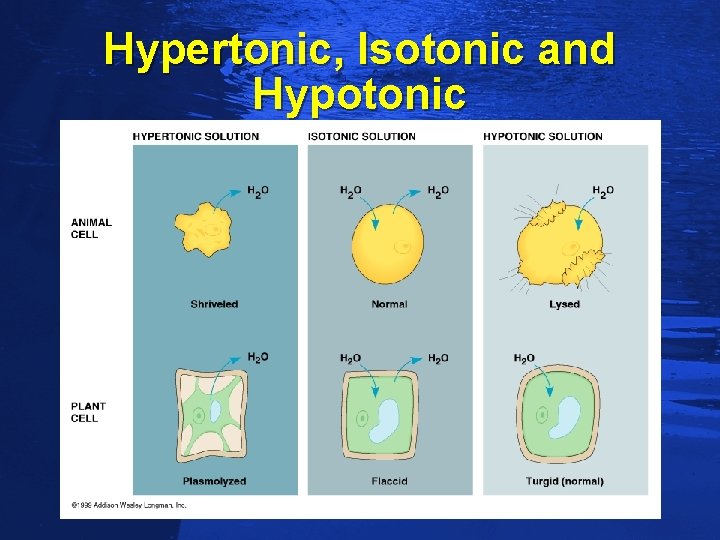

Slide 74 Hypertonic, Isotonic and Hypotonic

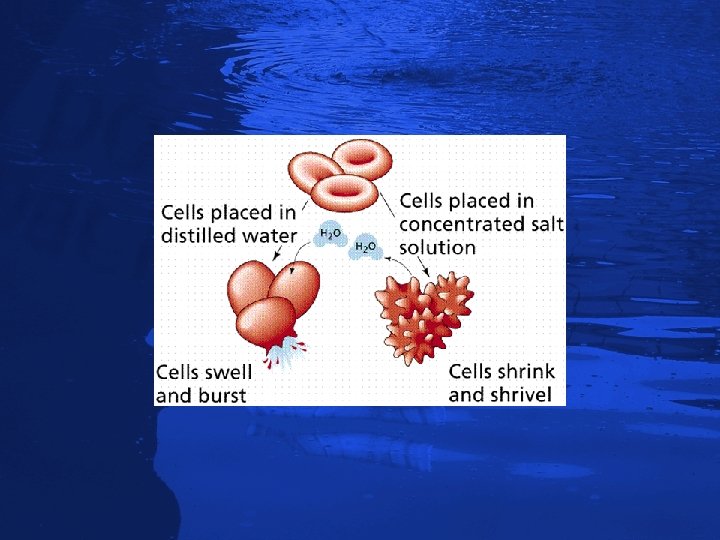

Slide 75
Slide 76

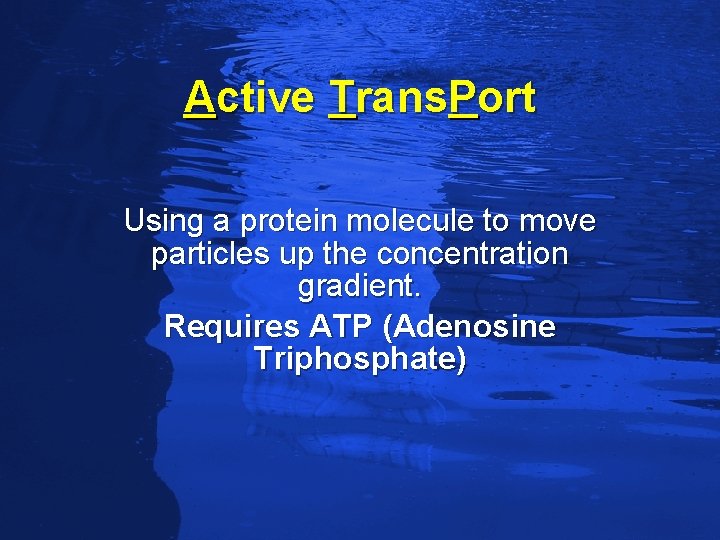

Slide 77 Active Trans. Port Using a protein molecule to move particles up the concentration gradient. Requires ATP (Adenosine Triphosphate)
Slide 78 Example of how the cell uses Active Transport Pump—Proteins that use active transport to move particles between the interior and exterior of the cell. e. g. Sodium/Potassium pump: Used to move sodium and potassium ions across nerve membranes.
Slide 79 Active Transport Versus Passive Transport
Slide 80 Large Molecules
Slide 81 Endocytosis: Cell membrane indents around molecule and forms a vesicle. l Pinocytosis—Uptaking fluid molecules l Phagocytosis—Uptaking solid molecules
Slide 82 Pinocytosis and Phagocytosis

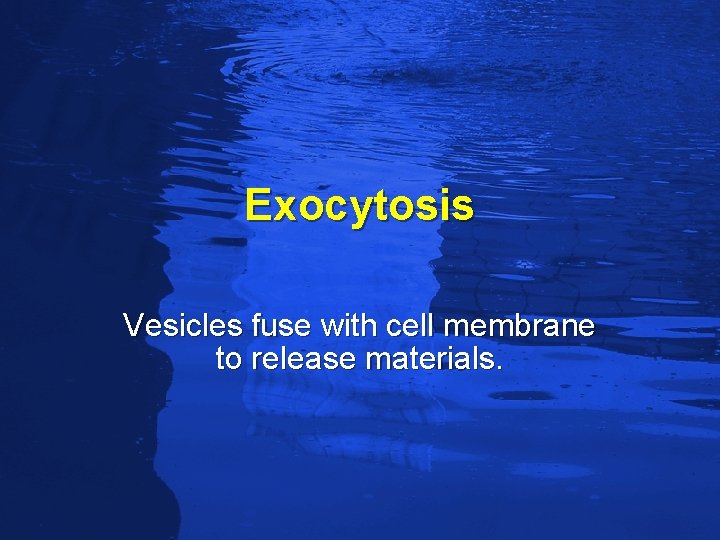

Slide 83 Exocytosis Vesicles fuse with cell membrane to release materials.
Slide 84 Endocytosis and Exocytosis
Slide 85
Homeostasis maintain internal physical and chemical conditions
Unicellular organisms • • Grow Respond to environment Transform energy Reproduce
Multicellular organisms • Cells become specialized (move, react, produce substances) – particular tasks – communicate with one another
Levels of Organization • Cell-basic unit of life (muscle cell) • Tissue-Cells working together to perform particular function (smooth muscle tissue) • Organ-Group of tissues working together (heart, stomach) • Organ System-organs working together to perform specific function (stomach, pancreas, intestines form digestive system) • Organism-organisms working together; division of labor
Cellular Communication • Receptors-on or in cell, a specific protein to whose shape fits that of a specific molecular messenger (hormone)
