Cell Structure Unit 4 – Lesson 1

Cell Structure Unit 4 – Lesson 1

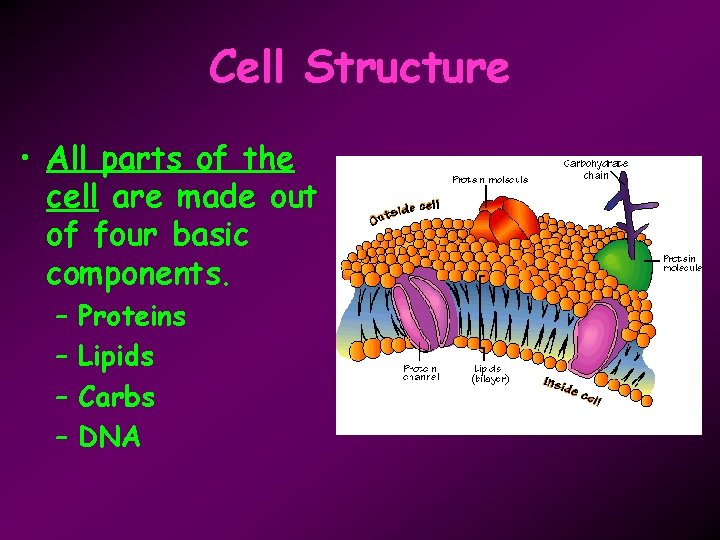

Cell Structure • All parts of the cell are made out of four basic

Cell Structure • All parts of the cell are made out of four basic components. – – Proteins Lipids Carbs DNA

Cell Structure • Each cell has a job to do. It needs structures in

Cell Structure • Each cell has a job to do. It needs structures in order to function. • Cells rely on structures called ORGANELLES. Looks like miniorgans!

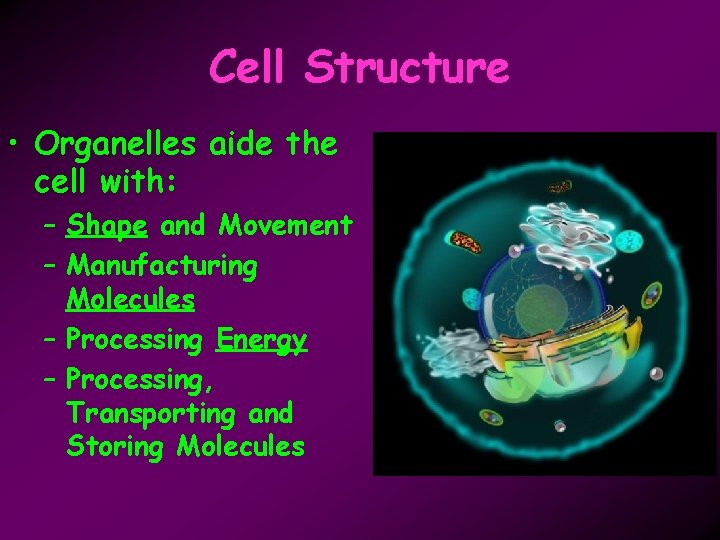

Cell Structure • Organelles aide the cell with: – Shape and Movement – Manufacturing

Cell Structure • Organelles aide the cell with: – Shape and Movement – Manufacturing Molecules – Processing Energy – Processing, Transporting and Storing Molecules

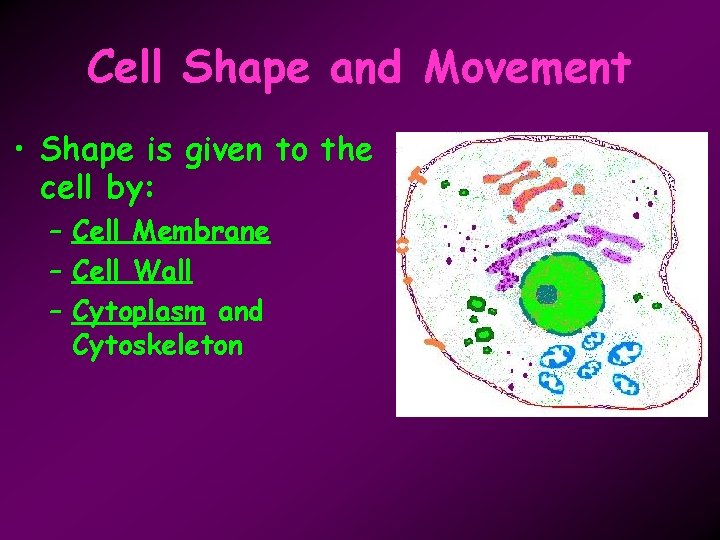

Cell Shape and Movement • Shape is given to the cell by: – Cell

Cell Shape and Movement • Shape is given to the cell by: – Cell Membrane – Cell Wall – Cytoplasm and Cytoskeleton

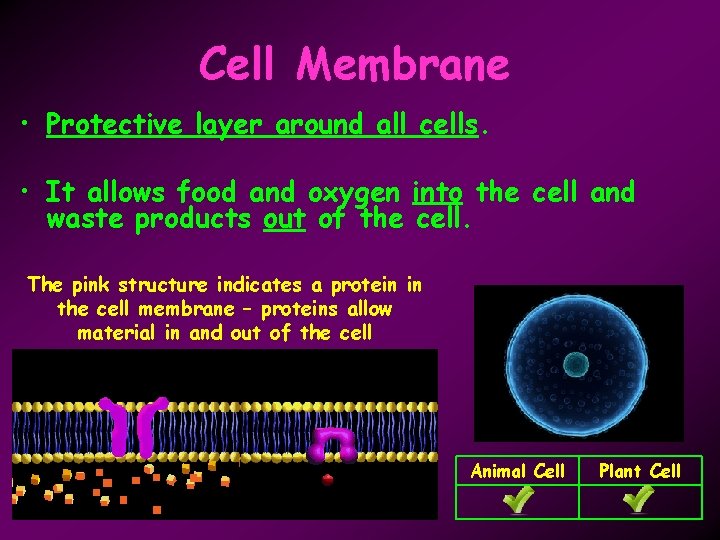

Cell Membrane • Protective layer around all cells. • It allows food and oxygen

Cell Membrane • Protective layer around all cells. • It allows food and oxygen into the cell and waste products out of the cell. The pink structure indicates a protein in the cell membrane – proteins allow material in and out of the cell Animal Cell Plant Cell

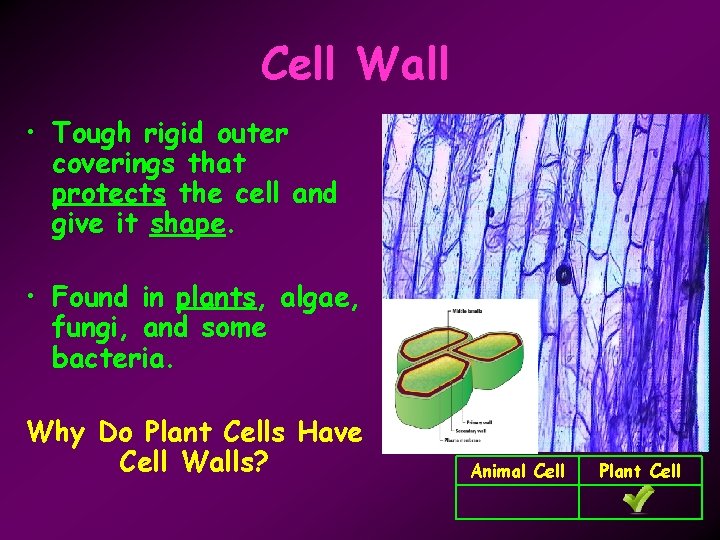

Cell Wall • Tough rigid outer coverings that protects the cell and give it

Cell Wall • Tough rigid outer coverings that protects the cell and give it shape. • Found in plants, algae, fungi, and some bacteria. Why Do Plant Cells Have Cell Walls? Animal Cell Plant Cell

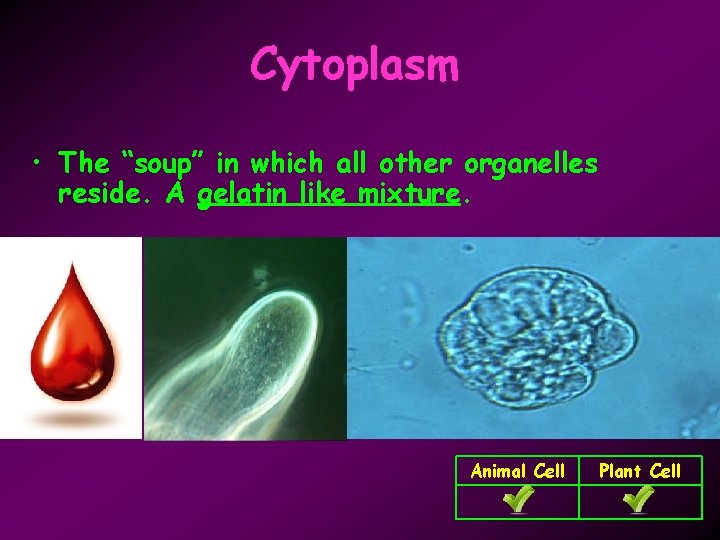

Cytoplasm • The “soup” in which all other organelles reside. A gelatin like mixture.

Cytoplasm • The “soup” in which all other organelles reside. A gelatin like mixture. Animal Cell Plant Cell

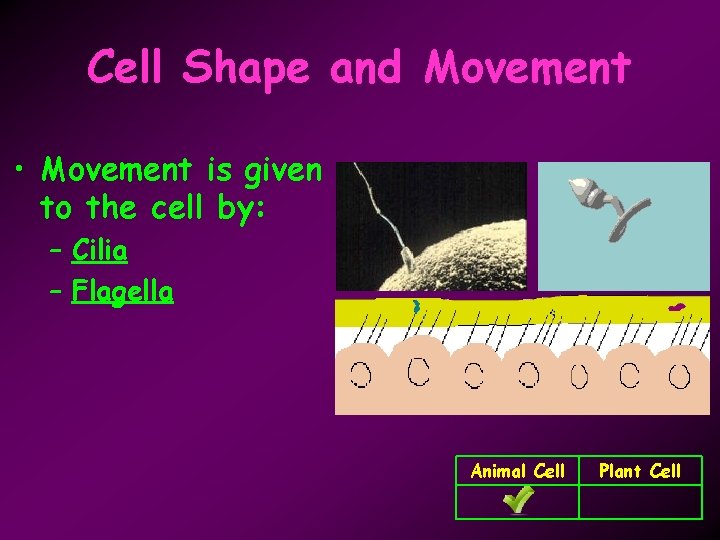

Cell Shape and Movement • Movement is given to the cell by: – Cilia

Cell Shape and Movement • Movement is given to the cell by: – Cilia – Flagella Animal Cell Plant Cell

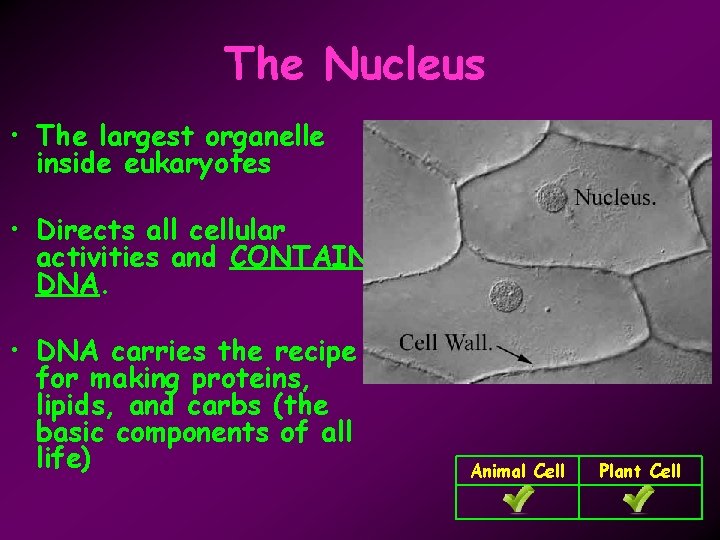

The Nucleus • The largest organelle inside eukaryotes • Directs all cellular activities and

The Nucleus • The largest organelle inside eukaryotes • Directs all cellular activities and CONTAINS DNA. • DNA carries the recipe for making proteins, lipids, and carbs (the basic components of all life) Animal Cell Plant Cell

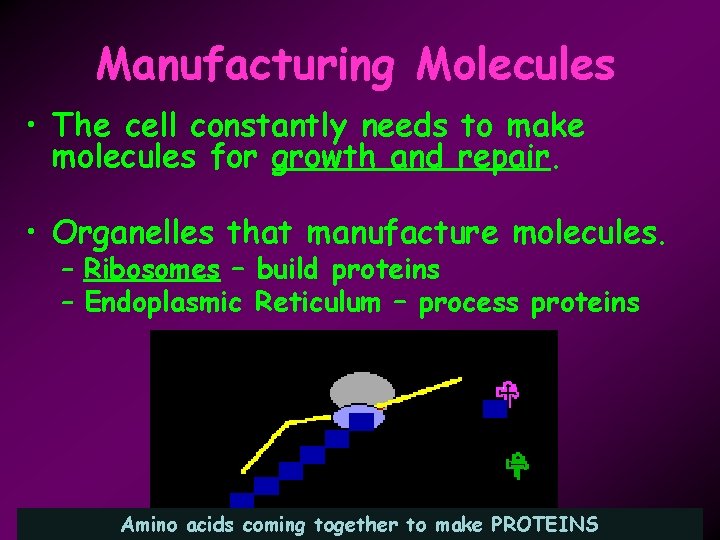

Manufacturing Molecules • The cell constantly needs to make molecules for growth and repair.

Manufacturing Molecules • The cell constantly needs to make molecules for growth and repair. • Organelles that manufacture molecules. – Ribosomes – build proteins – Endoplasmic Reticulum – process proteins Amino acids coming together to make PROTEINS

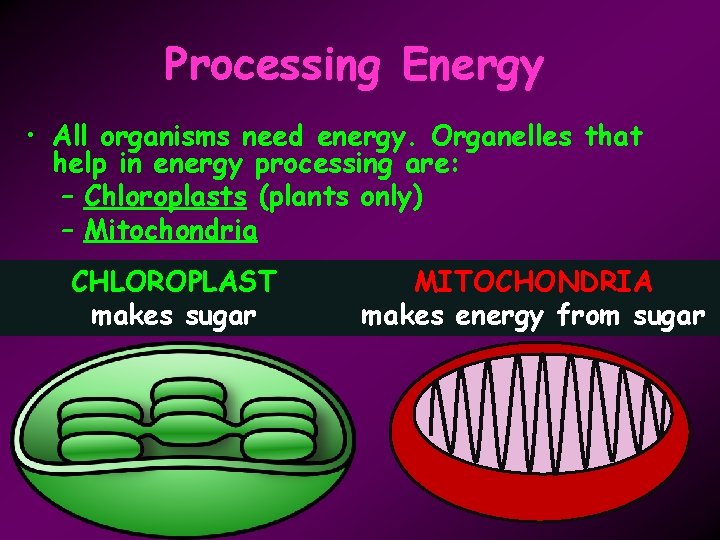

Processing Energy • All organisms need energy. Organelles that help in energy processing are:

Processing Energy • All organisms need energy. Organelles that help in energy processing are: – Chloroplasts (plants only) – Mitochondria CHLOROPLAST makes sugar MITOCHONDRIA makes energy from sugar

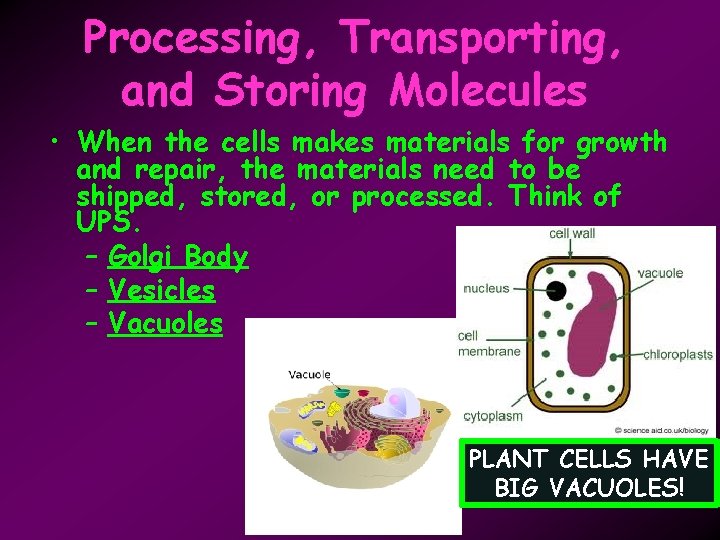

Processing, Transporting, and Storing Molecules • When the cells makes materials for growth and

Processing, Transporting, and Storing Molecules • When the cells makes materials for growth and repair, the materials need to be shipped, stored, or processed. Think of UPS. – Golgi Body – Vesicles – Vacuoles PLANT CELLS HAVE BIG VACUOLES!

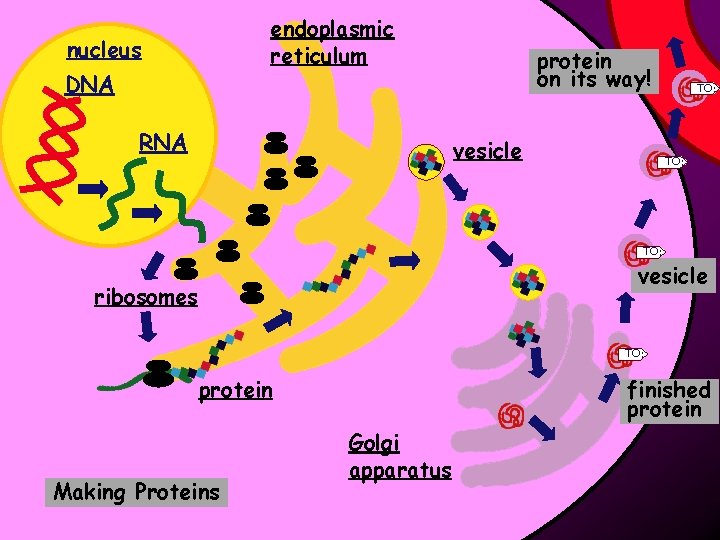

endoplasmic reticulum nucleus DNA RNA protein on its way! vesicle TO: vesicle ribosomes TO:

endoplasmic reticulum nucleus DNA RNA protein on its way! vesicle TO: vesicle ribosomes TO: protein Making Proteins finished protein Golgi apparatus
