Cell Membranes The Cell Membrane Cell Membrane At

Cell Membranes

The Cell Membrane

Cell Membrane: At Very High Magnification & in color

Membrane Structure http: //users. rcn. com/jkimball. ma. ultranet/Biology. Pages/C/Cell. Membranes. html

Cell Membrane Every cell is encircled by a membrane and most cells contain an extensive intracellular membrane system. Membranes fence off the cell's interior from its surroundings. Membranes let in water, certain ions and substrates and they excrete waste substances. They act to protect the cell. Without a membrane the cell contents would diffuse into the surroundings, information containing molecules would be lost and many metabolic pathways would cease to work: The cell would die! www. biologie. uni-hamburg. de/b-online/e 22/22. htm

Cell Membranes: • Surround all cells • Fluid-like composition…like soap bubbles • Composed of: – Lipids in a bilayer – Proteins embedded in lipid layer (called transmembrane proteins) – And, Proteins floating within the lipid sea (called integral proteins) – And Proteins associated outside the lipid bilayer (peripheral).

Membrane Lipids • Composed largely of phospholipids • Phospholipids composed of…. glycerol and two fatty acids + PO 4 group • P-Lipids are polar molecules… P-Lipids are represented like this

Phospholipid Molecule Model phosphate (hydro philic) polar glycerol fatty acids (hydro phobic) nonpolar

Membrane Lipids form a Bilayer Outside layer Inside Layer

Fluid Mosaic Membrane

Membrane Proteins • Integral: embedded within bilayer • Peripheral: reside outside hydrophobic region of lipids

Membrane Proteins Text pg 80

Integral membrane proteins

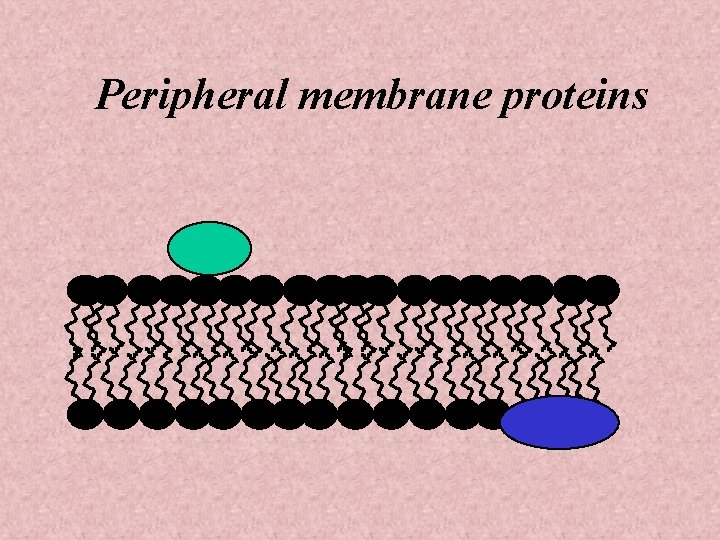

Peripheral membrane proteins

Membrane Models Fluid Mosaic Model - lipids arranged in bilayer with proteins embedded or associated with the lipids.

Fluid Mosaic Membrane

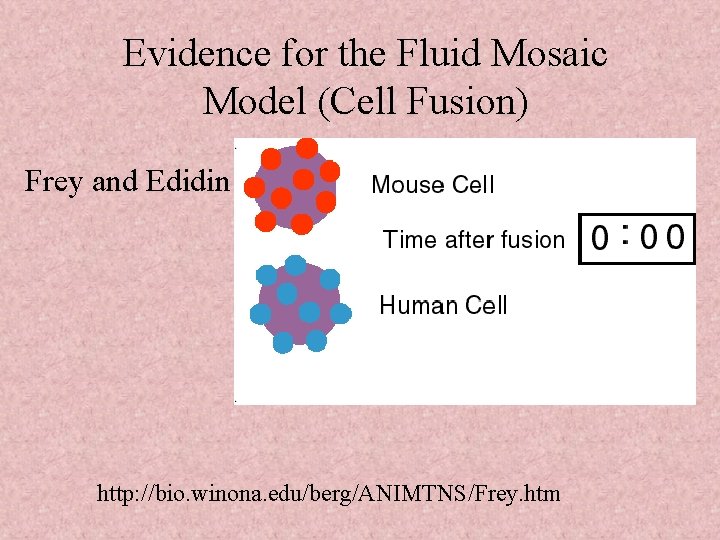

Evidence for the Fluid Mosaic Model (Cell Fusion) Frey and Edidin http: //bio. winona. edu/berg/ANIMTNS/Frey. htm

Lateral Diffusion of Proteins

Membrane Functions • allows for different conditions between inside and outside of cell • subdivides cell into compartments with different internal conditions • allows release of substances from cell via vesicle fusion with outer membrane: http: //www. emc. maricopa. edu/faculty/farabee/BIOBK/exocyt. gif

Membrane Permeability • Biological membranes are physical barriers. . but which allow small uncharged molecules to pass… • And, lipid soluble molecules pass through • Big molecules and charged ones do NOT pass through • Semi-permeable / selectively permeable

How to get other molecules across membranes? ? There are two ways that the molecules typically move through the membrane: passive transport and active transport • Active transport requires that the cell use energy that it has obtained from food to move the molecules (or larger particles) through the cell membrane. • Passive transport does not require such an energy expenditure, and occurs spontaneously.

Membrane Transport Mechanisms I. Passive Transport • Diffusion- simple movement from regions of high concentration to low concentration • Osmosis- diffusion of water across a semipermeable membrane • Facilitated diffusion- protein transporters which assist in diffusion

Membrane Transport Mechanisms II. Active Transport • Active transport- proteins which transport against concentration gradient. • Requires energy input – Endo cytosis – Exo cytosis

Diffusion Movement generated by random motion of particles. Caused by internal thermal energy. Movement always from region of high free energy(high concentration) to regions of low free energy (low conc. ) How Diffusion Works

Osmosis Movement of water across a semi-permeable barrier. Example: Salt in water, cell membrane is barrier. Salt will NOT move across membrane, water will. How Osmosis Works

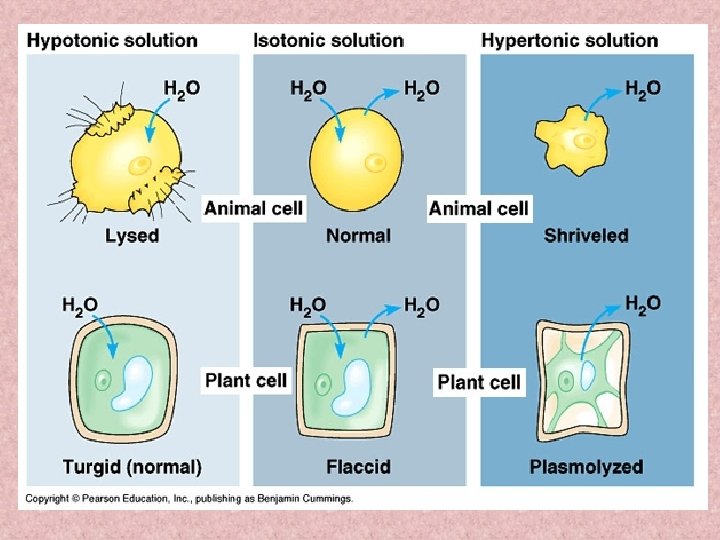

Osmosis in Hypertonic medium cell • Hypertonic solutions- shrink cells

Osmosis in Hypotonic medium • Hypotonic solutions- swell cells “Hypos make hippos”

For more animations view: http: //www. tvdsb. on. ca/westmin/science/sbi 3 a 1/Cells/Osmosis. htm

For Osmosis in Action View frozen frogs at: http: //www. pbs. org/wgbh/nova/sciencenow/ 3209/05. html How did the frog use the principles of osmosis and diffusion to survive the winter? Make sure you use the following terms appropriately in your description: hypertonic, hypotonic, solute, solvent, diffusion, osmosis, cytolysis, crenation, isotonic and semi-permeable membrane.

Endocytosis • Transports macromolecules and large particles into the cell. • Part of the membrane engulfs the particle and folds inward to “bud off. ” • Phagocytosis • Pinocytosis

Endocytosis • Receptor Mediated Endocytosis

Putting Out the Garbage • Vesicles (lysosomes, other secretory vesicles) can fuse with the membrane and open up the outside…

Exocytosis (Cellular Secretion) http: //bio. winona. edu/berg/ANIMTNS/Secrtion. htm

Membrane Permeability 1) lipid soluble solutes go through faster 1) smaller molecules go faster 1) uncharged & weakly charged go faster 2) Channels or pores may also exist in membrane to allow transport 1 2

Types of Protein Transporters: Ion Channels • work by facilitated diffusion No E! • deal with small molecules. . . ions • open pores are “gated”- Can change shape. – How? – How much gets in? • important in cell communication Receptors Linked to a Channel Protein

Ion Channels • Work fast: No conform. changes needed • Not simple pores in membrane: – specific to different ions (Na, K, Ca. . . ) – gates control opening – Toxins, drugs may affect channels • saxitoxin, tetrodotoxin • cystic fibrosis

Ion Channels • Channel proteins or carrier proteins allow the facilitated diffusion of solutes down their concentration gradients or electrochemical gradients. • Carrier proteins allow the active transport of solutes up their concentration gradients or electrochemical gradients.

Cystic Fibrosis • Fatal genetic disorder • Mucus build-up results in lung and liver failure • Patients die between 4 and 30 yrs. • Single gene defect • 1 in 25 Caucasians carry 1 bad gene copy • 1 in 2500 kids has it in Canada • Testing

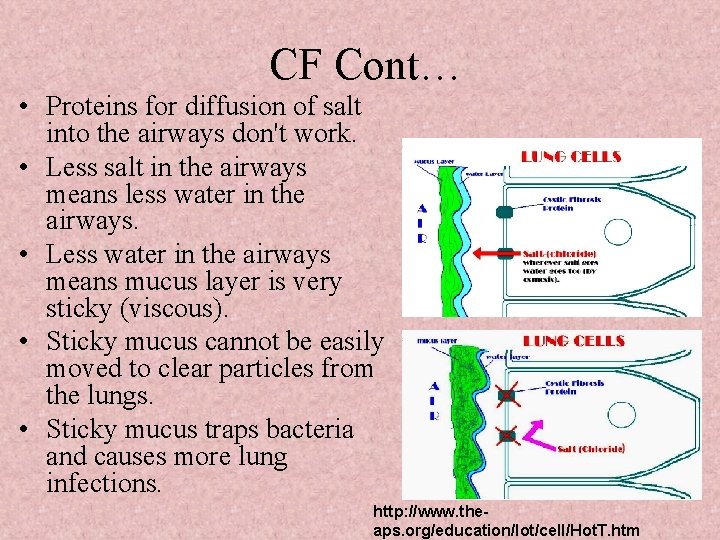

CF Cont… • Proteins for diffusion of salt into the airways don't work. • Less salt in the airways means less water in the airways. • Less water in the airways means mucus layer is very sticky (viscous). • Sticky mucus cannot be easily moved to clear particles from the lungs. • Sticky mucus traps bacteria and causes more lung infections. http: //www. theaps. org/education/lot/cell/Hot. T. htm

Transport Proteins Facilitated Diffusion & Active Transport • move solutes faster across membrane • highly specific to specific solutes • can be inhibited by drugs

Types of Protein Transporters A. Facilitated Diffusion Assist in diffusion process. Solutes go from High conc to Low conc. Examples: Glucose transporters http: //bio. winona. msus. edu/berg/ANIMTNS/Fac. Diff. htm

Facilitated Diffusion The Glucose Transporters • Transport of glucose into cells mediated by proteins in the GLUT (GLUcose Transport) family of transporters. There are 7 different, but related, proteins. But, only four (GLUT 1 -4) are known to be involved in glucose transport. • All GLUT proteins share a set of similar structural features and are all about 500 amino acids in length (giving them a predicted molecular weight of about 55, 000 Daltons) • Glucose uptake shows saturation and glucose uptake can be inhibited by drugs A classic Membrane Transport protein How Facilitated Diffusion Works

Glucose Transporter Characteristics: • integral protein: spans the membrane • 12 alpha helices woven into membrane • 55, 000 mol. wt.

Glucose Transporter: How it works. . • glucose binds to outside of transporter (exterior side with higher glucose conc. ) • glucose binding causes a conform. change in protein • glucose drops off inside cell • protein reassumes 1 st configuration

Types of Protein Transporters: Active Transport • carrier proteins • go against the concentration gradients Low to High • require Energy to function (ATP, PEP, light energy, electron transport)

Membrane Transport: Active transport • Movement from region of low free energy(low concentration) to regions of high free energy (high conc. ) • Requires energy input Cotransport Sodium-Potassium Exchange Pump Endocytosis and Exocytosis Proton Pump

Active Transport: Sodium-Potassium Pump Na+ high Na+ low K+ high Balance of the two ions goes hand-in-hand ATP required for maintenance of the pump

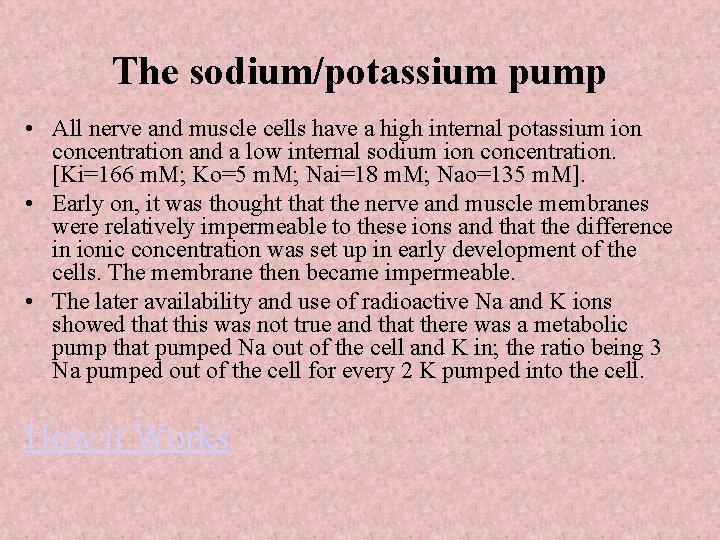

The sodium/potassium pump • All nerve and muscle cells have a high internal potassium ion concentration and a low internal sodium ion concentration. [Ki=166 m. M; Ko=5 m. M; Nai=18 m. M; Nao=135 m. M]. • Early on, it was thought that the nerve and muscle membranes were relatively impermeable to these ions and that the difference in ionic concentration was set up in early development of the cells. The membrane then became impermeable. • The later availability and use of radioactive Na and K ions showed that this was not true and that there was a metabolic pump that pumped Na out of the cell and K in; the ratio being 3 Na pumped out of the cell for every 2 K pumped into the cell. How it Works

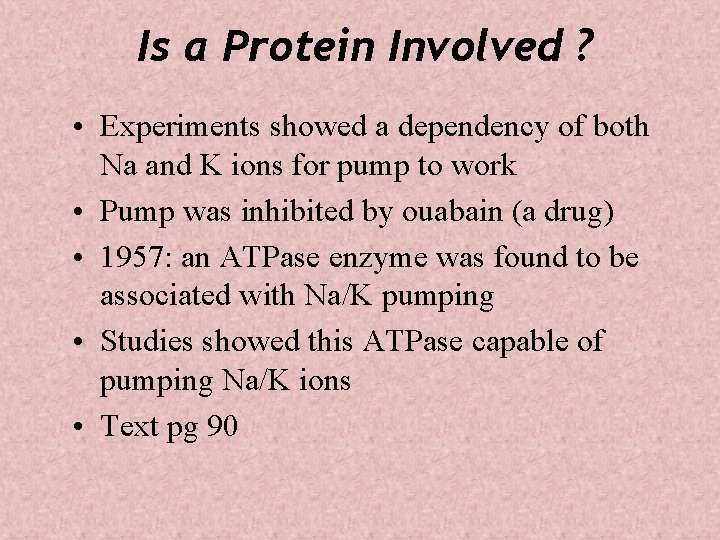

Is a Protein Involved ? • Experiments showed a dependency of both Na and K ions for pump to work • Pump was inhibited by ouabain (a drug) • 1957: an ATPase enzyme was found to be associated with Na/K pumping • Studies showed this ATPase capable of pumping Na/K ions • Text pg 90

Sodium/Potassium ATPase Protein • Made of 2 large and 2 small subunits • 2 large units span membrane – inside region: contains ATP binding site – inside: binding sites for Na – outside: binding site for K • How does it work? ?

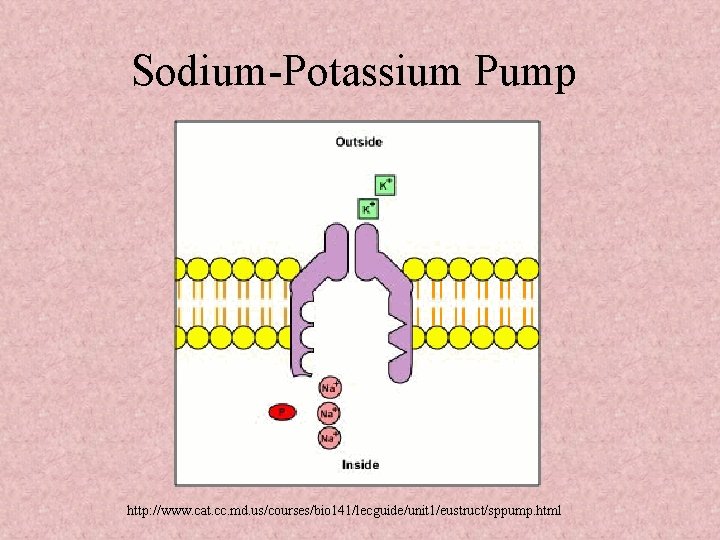

Sodium-Potassium Pump http: //www. cat. cc. md. us/courses/bio 141/lecguide/unit 1/eustruct/sppump. html

Na-K Pump Model: Part I • 3 Na+ bind to inner region of protein • Na+ binding triggers phosphorylation of protein. ATP ADP + Pi • Phosphorylation causes conformation change and Na+ binding site faces outside • 3 Na+ released to outside

Na-K Active Pump: Part II • 2 K+ ions on outside are able to bind • K+ binding causes dephosphorylation and new conformation change • 2 K+ ions exposed to inside and released Cyclic process uses ATP energy to drive Na & K ion transport against conc. Gradient

Na/Cl Pump

Cell Junctions • Allow specific types of cells to stay together to perform special jobs • Layers of these types of cells… – Line body cavities – Cover body surfaces

4 Types of Cell Junctions 1. Tight Junctions 2. Desmosomes 3. Gap Junctions 4. Plasmodesmata

Tight Junctions • intimate physical connections linking cells that line the inner or outer surface of organs or body cavities • leakproof barriers that prevent the movement of molecules through the spaces located b/t cells, must diffuse to get by and are therefore subject to the precise control mechanisms inherent to tranpsort through cell mem • e. g. bladder

Desmosomes • junctions exhibiting mechanical strength • found in organs/tissues exposed to mechanical forces that subject cells to much stretching and distortion • maintains integrity of cell

Gap Junctions • permit small molecules to move b/t cells w/o passing thru mem • Communication nerve & muscle • six dumbell shaped protein units in mem, adjacent in the cells

Put Them All Together…

Plasmodesmata • similar to gap juntions, but in plant cells • allow conitnous flow of cytoplasm through cells

Resources • Directory of Animations: http: //bio. winona. edu/berg/ANIMTNS/Directry. htm • http: //www. aber. ac. uk/gwyddcym/cellbiol/transport/index. htm • Anatomy & Physiology Chapter 3 Animations
