Cell Membrane Passive Transport EQ What are the

Cell Membrane & Passive Transport: EQ: What are the basic parts of cell membranes, and what is the job of each part? Can I diagram diffusion of oxygen, facilitated diffusion of glucose, and osmosis across a cell membrane?

BOUNDARY OF THE CELL: Cell: smallest unit that can carry out all the activities for life. (the “atom” of biology) Cell Membrane Diagram: Outside of cell Carbohydrate chains Proteins Cell membrane Protein channel Lipid bilayer Inside of cell (cytoplasm)

Membrane Descriptives: • Semi-Permeable—certain molecules can pass through the membrane, but not all molecules can Fluid Mosaic Model— Proteins “float” in a fluid or moveable layer of phospholipids

Components of the Cell Membrane ***Reference the image on slide #2*** • Phospholipid bilayer— • phospholipids have a phosphate head (yellow circle) • lipid tails (the brown tails). • The phosphate heads line up on the outside because they are hydrophilic (water-loving). • The lipid tails line up on the inside because they are hydrophobic (water-hating). • Proteins—act as channels or pumps to help molecules pass through the membrane • Carbohydrate chains—help cells recognize and communicate with each other

Solution terms: we discussed this during basic chemistry notes… �Solution – mixture of solute and solvent (Ex. Kool-Aid = powder + water) �Solute – substance being dissolved (ex. Kool-Aid powder, Salt, or sugar) �Solvent – substance dissolving solute (ex. Water, which is a universal Solvent)

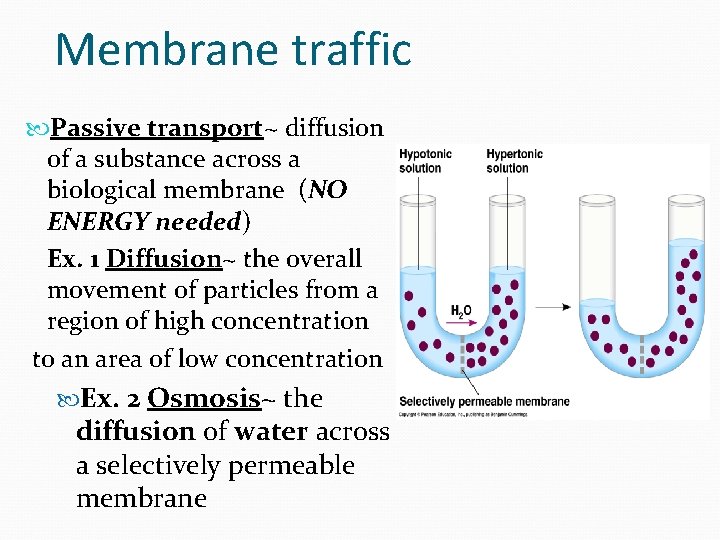

Membrane traffic Passive transport~ diffusion of a substance across a biological membrane (NO ENERGY needed) Ex. 1 Diffusion~ the overall movement of particles from a region of high concentration to an area of low concentration Ex. 2 Osmosis~ the diffusion of water across a selectively permeable membrane

Concentration: the relative amount of a given substance contained within a solution or in a particular volume of space; the amount of solute per unit volume of solution.

Results of Diffusion �Dynamic equilibrium Once diffusion has evenly distributed the solute throughout the solvent, movement of particles continues with no change in concentration �Homeostasis �Preservation of equilibrium

Diffusion depends on concentration gradient: �Concentration gradient: the difference in concentration of a substance across space �Diffusion is said to move down a concentration gradient �Diffusion continues until there is NO concentration gradient �Ex: O 2 diffuses into oxygen depleted blood

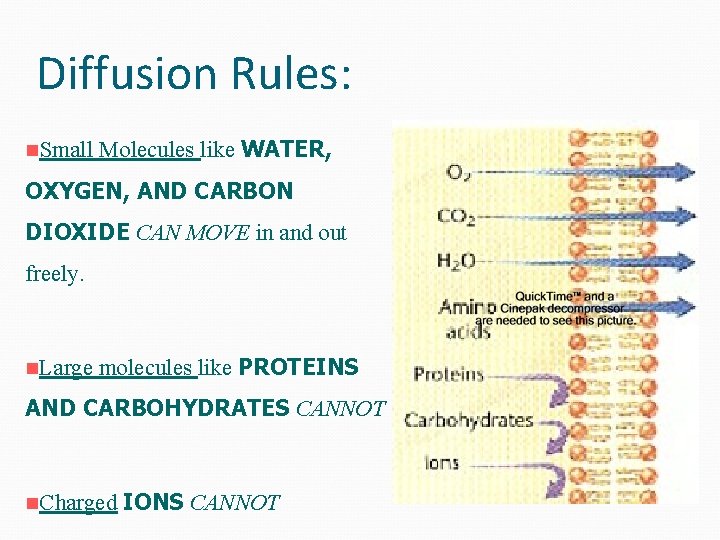

Diffusion Rules: n. Small Molecules like WATER, OXYGEN, AND CARBON DIOXIDE CAN MOVE in and out freely. n. Large molecules like PROTEINS AND CARBOHYDRATES CANNOT n. Charged IONS CANNOT

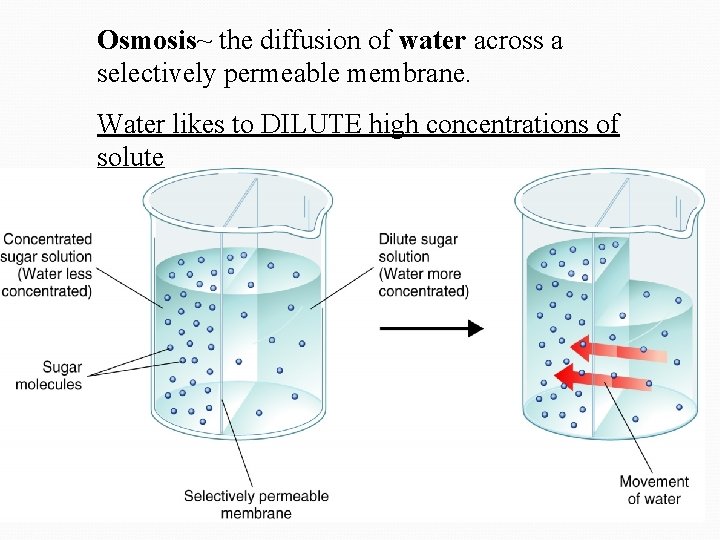

Osmosis~ the diffusion of water across a selectively permeable membrane. Water likes to DILUTE high concentrations of solute

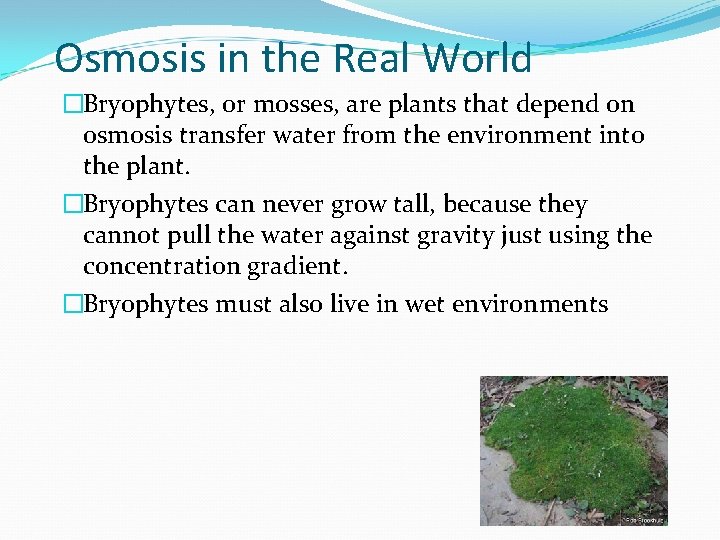

Osmosis in the Real World �Bryophytes, or mosses, are plants that depend on osmosis transfer water from the environment into the plant. �Bryophytes can never grow tall, because they cannot pull the water against gravity just using the concentration gradient. �Bryophytes must also live in wet environments

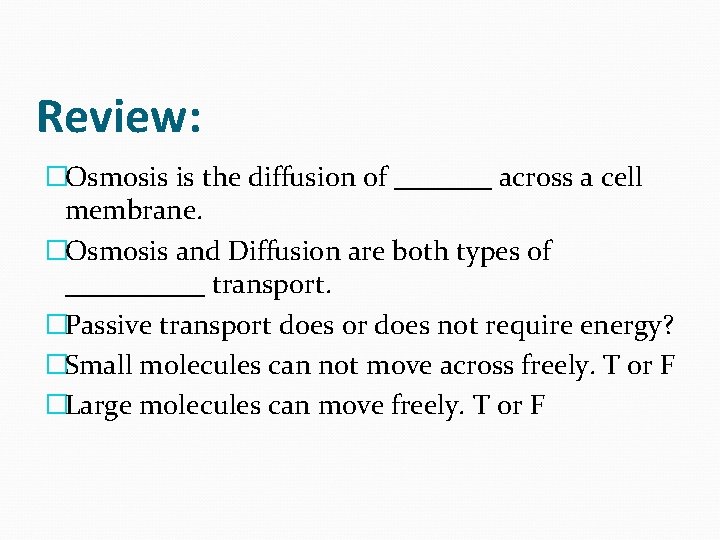

Review: �Osmosis is the diffusion of _______ across a cell membrane. �Osmosis and Diffusion are both types of _____ transport. �Passive transport does or does not require energy? �Small molecules can not move across freely. T or F �Large molecules can move freely. T or F

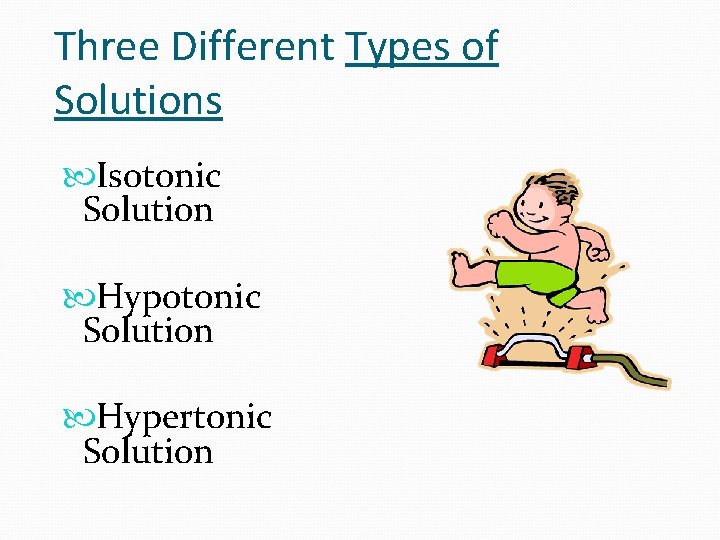

Three Different Types of Solutions Isotonic Solution Hypertonic Solution

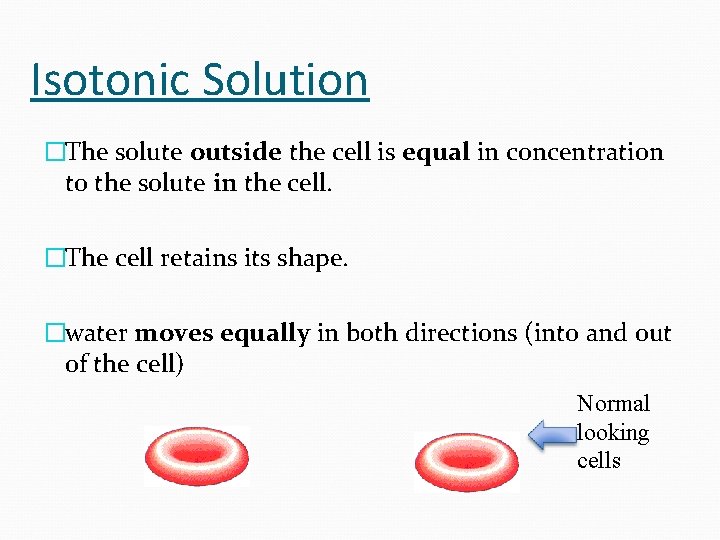

Isotonic Solution �The solute outside the cell is equal in concentration to the solute in the cell. �The cell retains its shape. �water moves equally in both directions (into and out of the cell) Normal looking cells

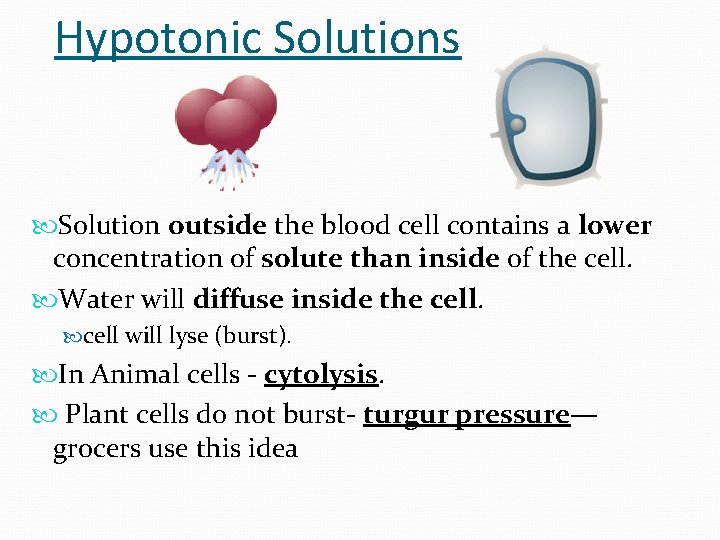

Hypotonic Solutions Solution outside the blood cell contains a lower concentration of solute than inside of the cell. Water will diffuse inside the cell will lyse (burst). In Animal cells - cytolysis. Plant cells do not burst- turgur pressure— grocers use this idea

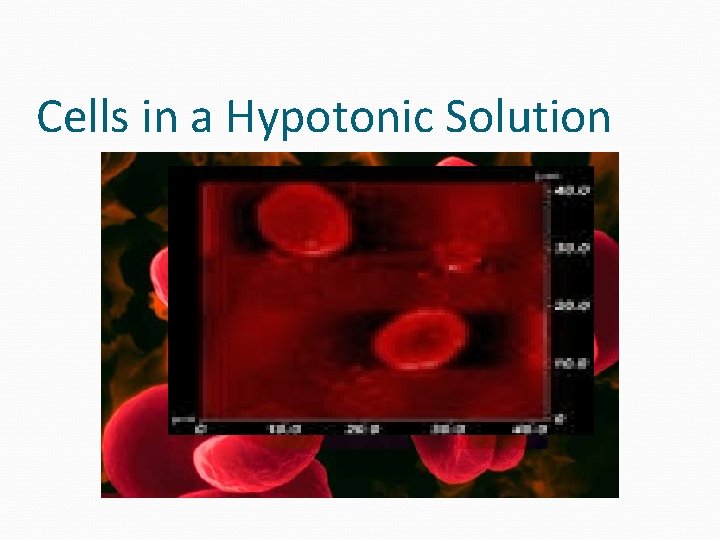

Cells in a Hypotonic Solution

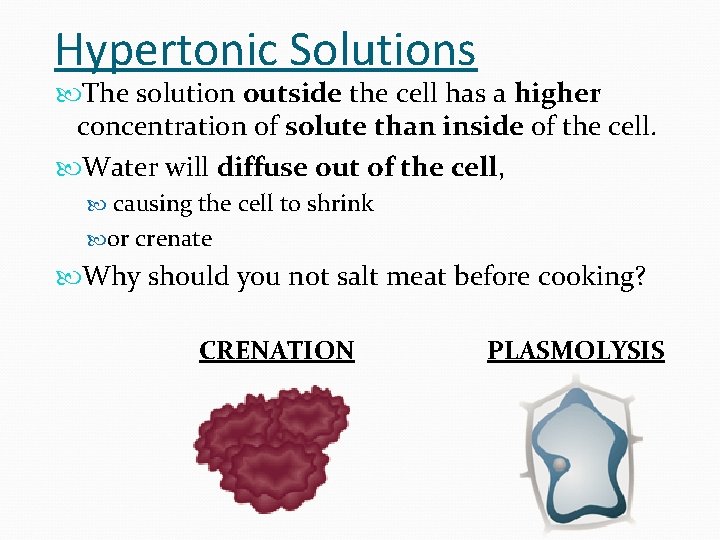

Hypertonic Solutions The solution outside the cell has a higher concentration of solute than inside of the cell. Water will diffuse out of the cell, causing the cell to shrink or crenate Why should you not salt meat before cooking? CRENATION PLASMOLYSIS

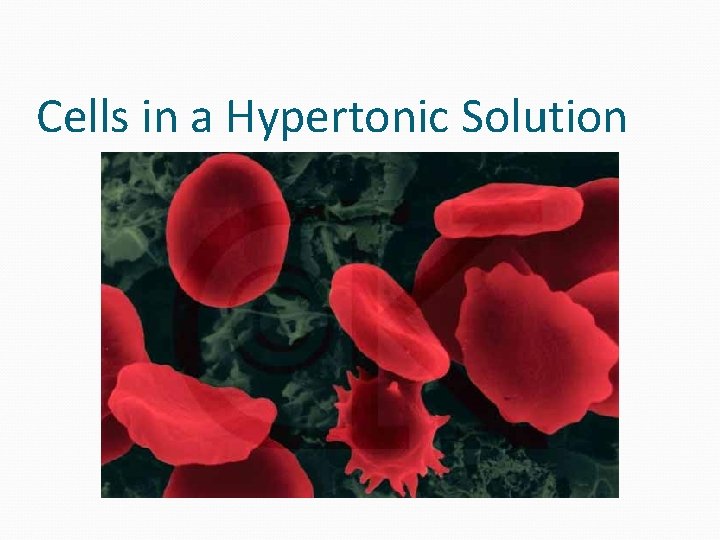

Cells in a Hypertonic Solution

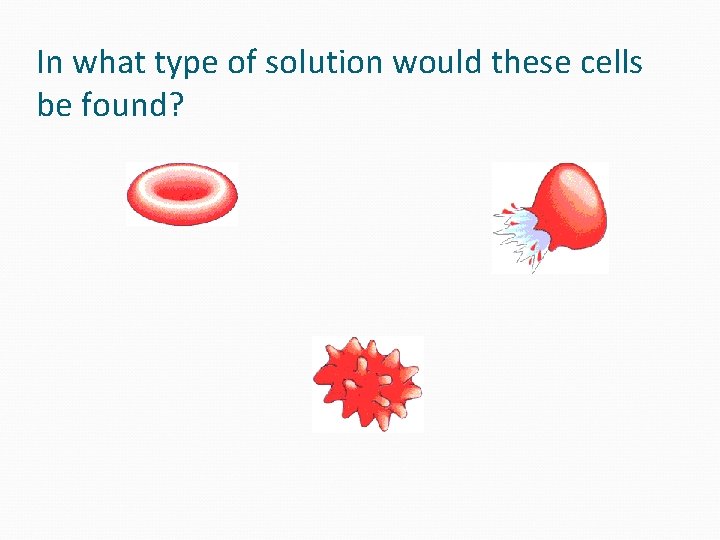

In what type of solution would these cells be found?

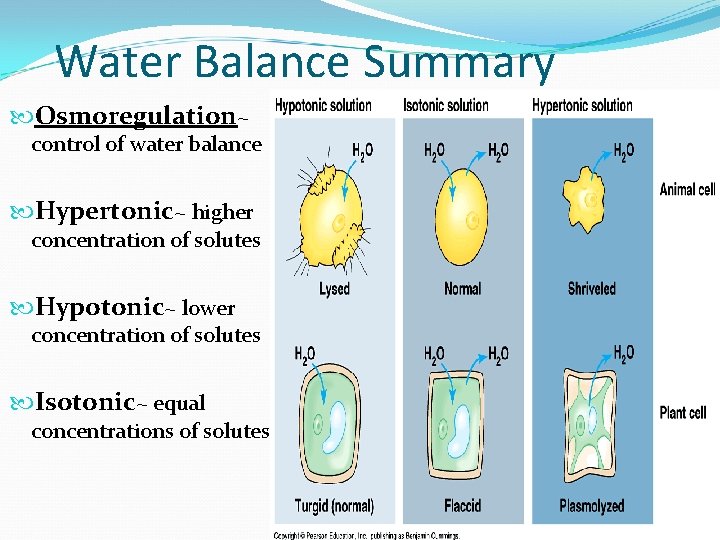

Water Balance Summary Osmoregulation~ control of water balance Hypertonic~ higher concentration of solutes Hypotonic~ lower concentration of solutes Isotonic~ equal concentrations of solutes

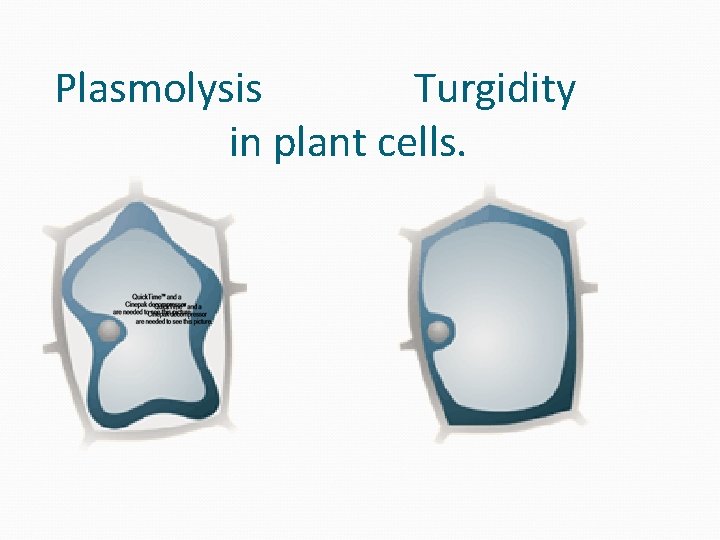

Plasmolysis Turgidity in plant cells.

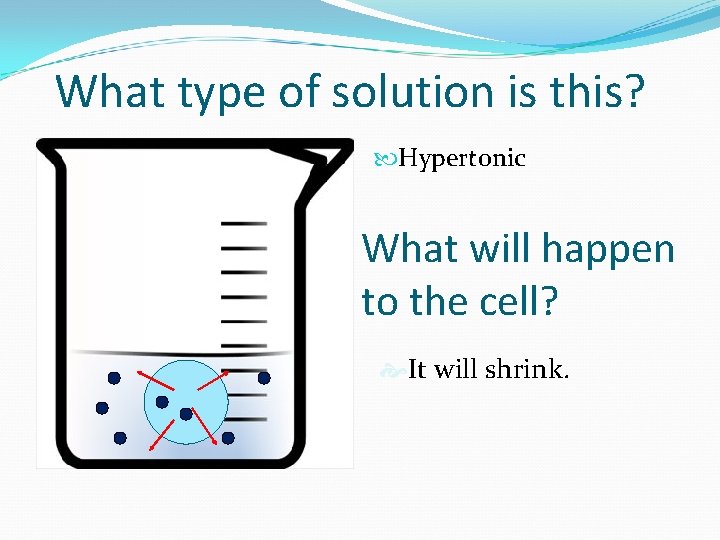

What type of solution is this? Hypertonic What will happen to the cell? It will shrink.
