Cell Membrane and Transport Mechanism Cell Membrane Fluid

Cell Membrane and Transport Mechanism

Cell Membrane • Fluid Mosaic Model - proteins embedded in a phospholipid bilayer.

Cell Membrane • Phospholipid: 1 head and 2 tails – Polar head attract water - hydrophilic – Non-polar tails repel water -hydrophobic

Cell Membrane • Bilayer: 2 layers of phospholipids – The polar heads stay on the outside and the tails stay on the inside.

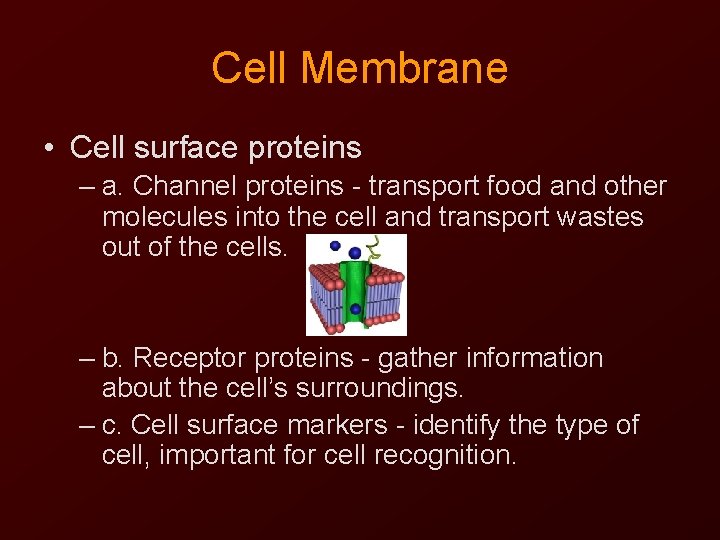

Cell Membrane • Cell surface proteins – a. Channel proteins - transport food and other molecules into the cell and transport wastes out of the cells. – b. Receptor proteins - gather information about the cell’s surroundings. – c. Cell surface markers - identify the type of cell, important for cell recognition.

Cell Membrane • Permeability of the cell membrane – 1. Semi permeable/selectively permeable only certain substances can pass across the membrane. – 2. Factors that determine whether a molecule can pass through a membrane or not: • a. size • b. type (polar, non-polar)

Transport Mechanisms • Transport Mechanisms - moving material in and out of the cell • Concentration gradient - the difference in the amount of a substance inside and outside of the cell – 1. Going “with the gradient”-moving from high to low concentration – 2. Going “against the gradient”-moving from low to high concentration – 3. Equilibrium exists when the concentration of molecules is the same throughout a space (inside and outside the cell)

Transport Mechanisms • Two categories of transport based on concentration gradient and the need for energy – 1. Passive transport that does not require energy, goes with the gradient. • Example = diffusion and osmosis – 2. Active transport requires energy, goes against the gradient.

Passive Transport Mechanisms • Diffusion - movement from an area of high concentration to an area of low concentration – Example: smoke across a room, food coloring dropped into water, oxygen in lungs

Passive Transport Mechanisms • Diffusion -

Passive Transport Mechanisms • Osmosis - diffusion of water – Direction of osmosis-the direction of water flow depends upon the concentration of solute and solvent (water) – Tonicity-term used to compare 2 solutions (usually the inside and the outside of the cell) • a. Hypotonic - less solute (more water) • b. Hypertonic - more solute (less water) • c. Isotonic - equal amounts of solute and water

Passive Transport Mechanisms • Osmosis - diffusion of water – Water will flow from a hypotonic solution to a hypertonic solution – Will water move in an isotonic solution? Yes, but it won’t be noticeable-equilibrium is established

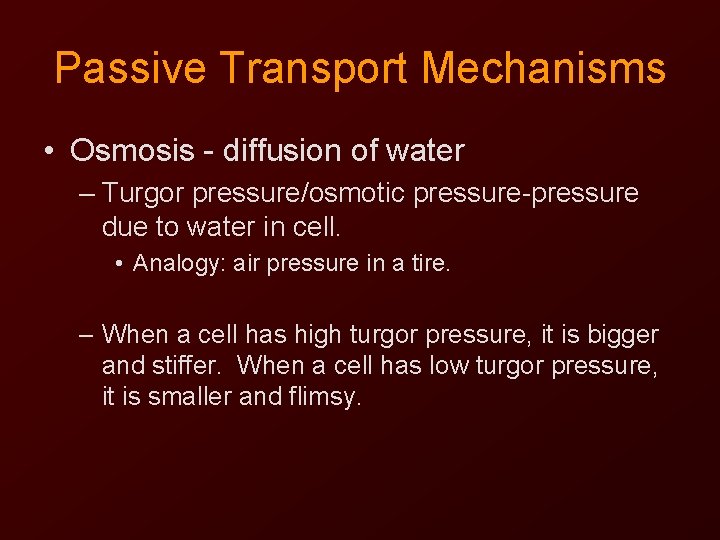

Passive Transport Mechanisms • Osmosis - diffusion of water – Turgor pressure/osmotic pressure-pressure due to water in cell. • Analogy: air pressure in a tire. – When a cell has high turgor pressure, it is bigger and stiffer. When a cell has low turgor pressure, it is smaller and flimsy.

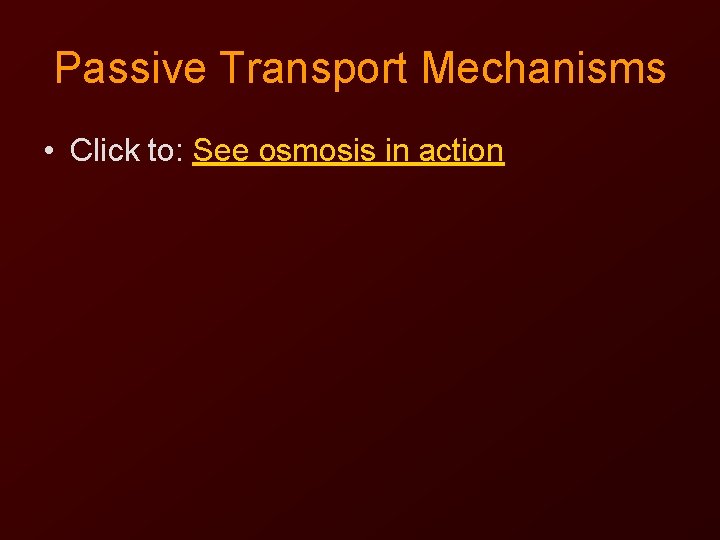

Passive Transport Mechanisms • Click to: See osmosis in action

Passive Transport Mechanisms • Plasmolysis - wilting of a cell due to loss of turgor pressure • Cytolysis - bursting of a cell due to an increase in turgor pressure. – How do plant cells avoid cytolysis? Cell walls – How do unicellular freshwater organisms avoid bursting? Contractile vacuoles.

Passive Transport Mechanisms

Passive Transport Mechanisms

Passive Transport Mechanisms • Facilitated diffusion - transport of specific molecules across a membrane with the help of a channel protein – An example of a molecule that is often transported in this manner is glucose

Passive Transport Mechanisms • Click to: see facilitated diffusion

Passive Transport Mechanisms • Click below to: Go to the passive transport animation!!!

Active Transport Mechanism • Active Transport Mechanism (requires energy in the form of ATP) • Sodium-potassium pump - pumps sodium ions out and forces potassium ions in. Important for conducting nerve impulses and muscle contraction.

Active Transport Mechanism • Sodium-potassium pump 1. 4. 2. 3.

Active Transport Mechanism • Click to: Check out the animation of the Sodium – Potassium Pump

Active Transport Mechanism • Proton pump-transport protons through membranes of chloroplasts and mitochondria

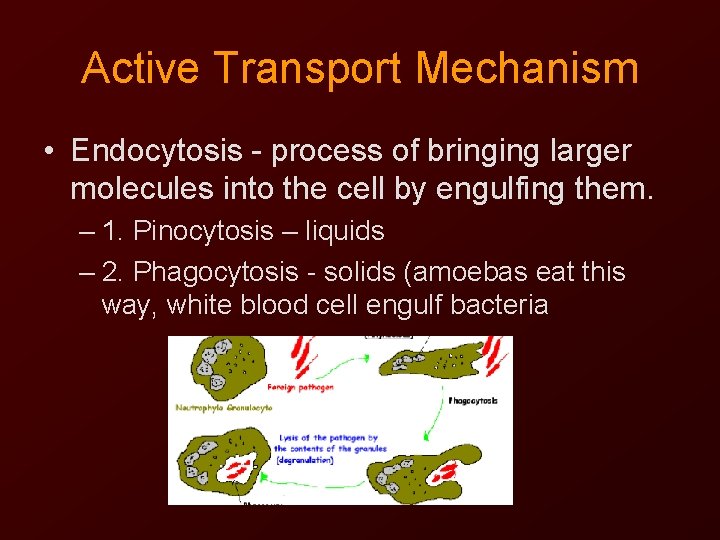

Active Transport Mechanism • Endocytosis - process of bringing larger molecules into the cell by engulfing them. – 1. Pinocytosis – liquids – 2. Phagocytosis - solids (amoebas eat this way, white blood cell engulf bacteria

Active Transport Mechanism • Click to: see phagocytosis

Active Transport Mechanism • Excocytosis - discharge of wastes, hormones or other larger molecules out of the cell (opposite of endocytosis)

Active Transport Mechanism • Click to: see exocytosis

How Cells Communicate • Organ system involved in communication – 1. Endocrine system - releases hormones (protein) for communication – 2. Nervous system - releases neurotransmitters to other nerve cells or to muscle cells.

How Cells Communicate • Receptors – 1. Receptors - are proteins that are or the cell membrane surface - they send messages to the inside of the cell when they encounter certain molecules outside of the cell. – 2. Chemically gated channels - a chemical trigger transmits information. – 3. Voltage gated channel - an electrical signal transmits information along nerve cells.

Active Transport Mechanisms • Click below to: Go to the active transport animation!!!

Unit 4, Part 2 Notes Cell Membrane and Transport Mechanisms
