CEE 320 Winter 2006 Traffic Concepts CEE 320
- Slides: 26
CEE 320 Winter 2006 Traffic Concepts CEE 320 Steve Muench
Outline 1. Basic Concepts a. b. c. d. e. Flow Rate Spacing Headway Speed Density CEE 320 Winter 2006 2. Relationships 3. Example
Concepts • Definitions • Volume, Speed, Density relationships • Speed CEE 320 Winter 2006 – Space mean speed – Time mean speed
Flow Rate (q) • The number of vehicles (n) passing some designated roadway point in a given time interval (t) CEE 320 Winter 2006 • Units are typically vehicles/hour • Flow rate is different than volume
Spacing CEE 320 Winter 2006 • The distance (ft) between successive vehicles in a traffic stream, as measured from front bumper to front bumper
Headway (h) CEE 320 Winter 2006 • The time (in seconds) between successive vehicles, as their front bumpers pass a given point.

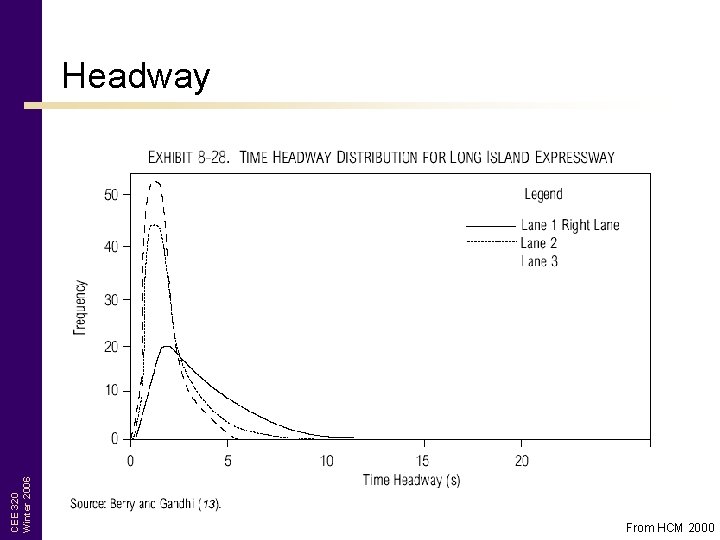

CEE 320 Winter 2006 Headway From HCM 2000
Speed • Time mean speed (spot speed) – Arithmetic mean of all instantaneous vehicle speeds at a given “spot” on a roadway section • Space mean speed (u) CEE 320 Winter 2006 – The mean travel speed of vehicles traversing a roadway segment of a known distance (d) – More useful for traffic applications
Space Mean Speed • It is the harmonic mean (1/H = 1/a + 1/b + …) CEE 320 Winter 2006 • Space mean speed is always less than time mean speed

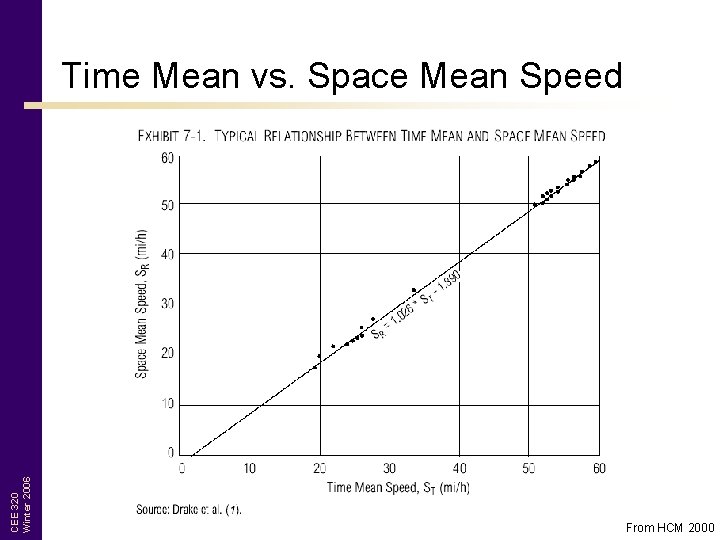

CEE 320 Winter 2006 Time Mean vs. Space Mean Speed From HCM 2000

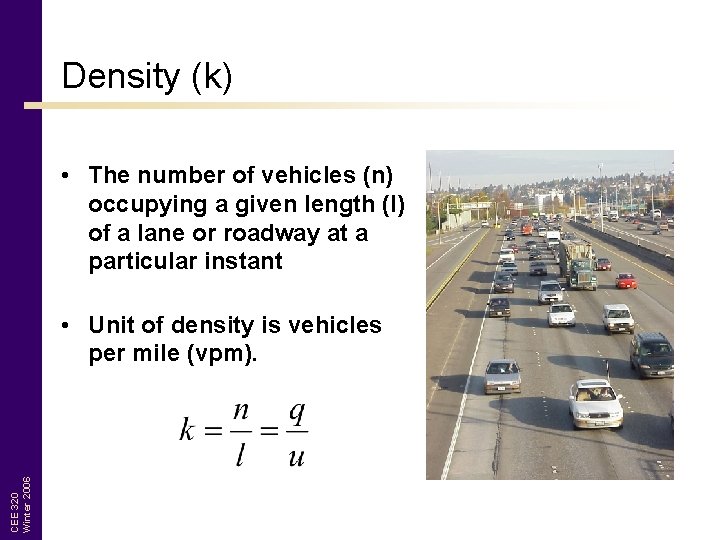

Density (k) • The number of vehicles (n) occupying a given length (l) of a lane or roadway at a particular instant CEE 320 Winter 2006 • Unit of density is vehicles per mile (vpm).
Other Concepts CEE 320 Winter 2006 • Free-flow speed (uf) • Jam density (kj) • Capacity (qm)
Speed vs. Density CEE 320 Winter 2006 Speed (mph) uf Free Flow Speed Density (veh/mile) kj Jam Density
Flow vs. Density Congested Flow CEE 320 Winter 2006 FLow (veh/hr) Optimal flow, capacity, qm Uncongested Flow km Optimal density Density (veh/mile) kj Jam Density
Speed vs. Flow Speed (mph) uf Free Flow Speed Uncongested Flow um CEE 320 Winter 2006 Congested Flow Optimal flow, Flow (veh/hr) capacity, qm
CEE 320 Winter 2006 3 -D Model
Example CEE 320 Winter 2006 I-5 over the ship canal bridge has 4 lanes in each direction. The northbound capacity is 8200 veh/hr/lane and the free-flow speed is 65 mph. What is the maximum flow rate, maximum density, jam density? If a one-hour vehicle count in the northbound direction for the outside lane gives 7034 vehicles in a noncongested condition, what is the estimated space mean speed of these 7034 vehicles?
CEE 320 Winter 2006 Traffic – Time of Day Patterns
From WSDOT 2003 Annual Traffic Report
From WSDOT 2003 Annual Traffic Report
SR 520 Traffic Profile General Purpose Lanes 1997 Weekday Average Westbound Eastbound NE 60 th St. 148 th Ave. 405 B’vue. Way 92 nd Ave. 84 th Ave. 520 Lk. Wash. re bo Ar Blvd. m tu Montlake 5 0 2 4 6 8 10 12 2 AM Time 4 6 8 10 12 PM Uncongested, near speed limit Restricted movement but near speed limit 0 2 4 6 8 10 12 2 AM Time More heavily congested, 45 - 55 mph 4 6 8 10 12 PM Extremely congested, unstable flow
CEE 320 Winter 2006 Primary References • Mannering, F. L. ; Kilareski, W. P. and Washburn, S. S. (2005). Principles of Highway Engineering and Traffic Analysis, Third Edition. Chapter 5 • Transportation Research Board. (2000). Highway Capacity Manual 2000. National Research Council, Washington, D. C.
