CECR Seeker Centralized Event Correlation and Response Ramon
- Slides: 36
CECR (“Seeker”) Centralized Event Correlation and Response Ramon Kagan, Chris Russel York University, Toronto

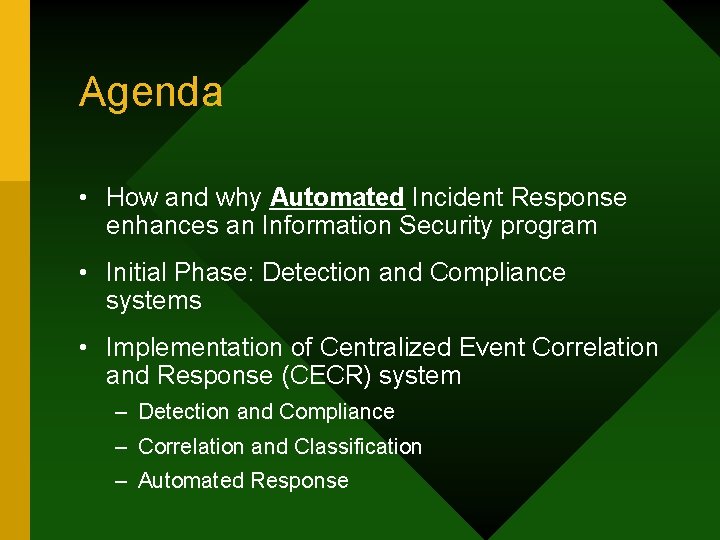

Agenda • How and why Automated Incident Response enhances an Information Security program • Initial Phase: Detection and Compliance systems • Implementation of Centralized Event Correlation and Response (CECR) system – Detection and Compliance – Correlation and Classification – Automated Response
Context: York University • Located in Toronto • Canada’s third largest University – 60, 000+ students – 10, 000+ staff and faculty – 25, 000+ network drops • In 2003, 2 FT information security staff positions (now 3)

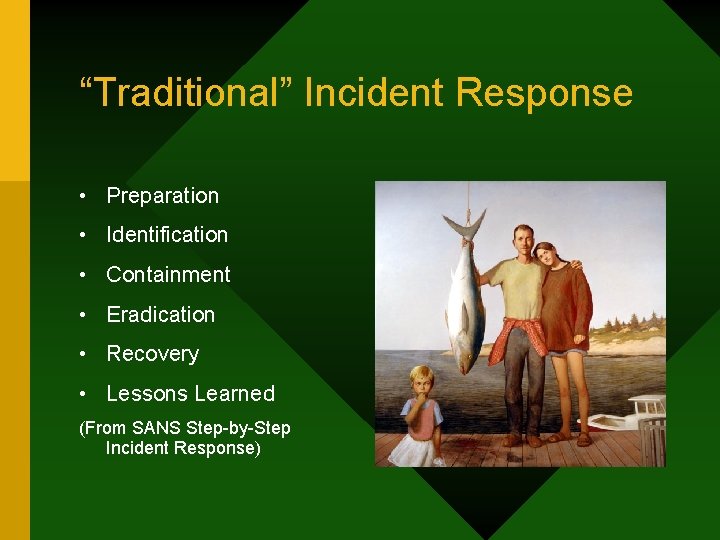

“Traditional” Incident Response • Preparation • Identification • Containment • Eradication • Recovery • Lessons Learned (From SANS Step-by-Step Incident Response)

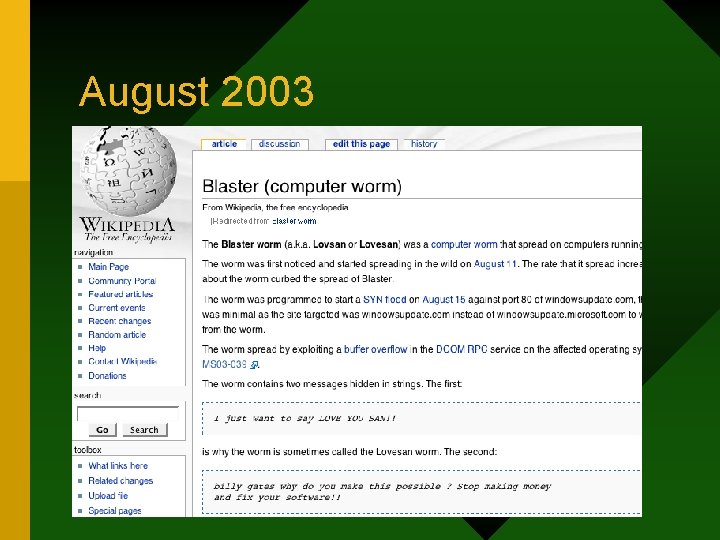

August 2003
Short-Circuited Incident Response • Information Security becomes “Worm Management Services” • No time for normal response procedures • We adapted and made it through, but… – Is this really security? – What are we missing in the noise and mayhem of constant worm attacks?
Prevention • Don’t let these things happen in the first place • Lots of products to buy – Firewalls, IPS, Anti-Virus, Silver Bullets, etc. • These are all good things but not without their challenges
Prevention Challenges in the Academic Environment • Porous and increasingly fuzzy perimeter – Dialup, Wireless, VPN, Mobile devices, etc. Where does the firewall go now? • Political hurdles to implement controls – I want my dancing pigs! • Increase in operational management overhead • $$$++

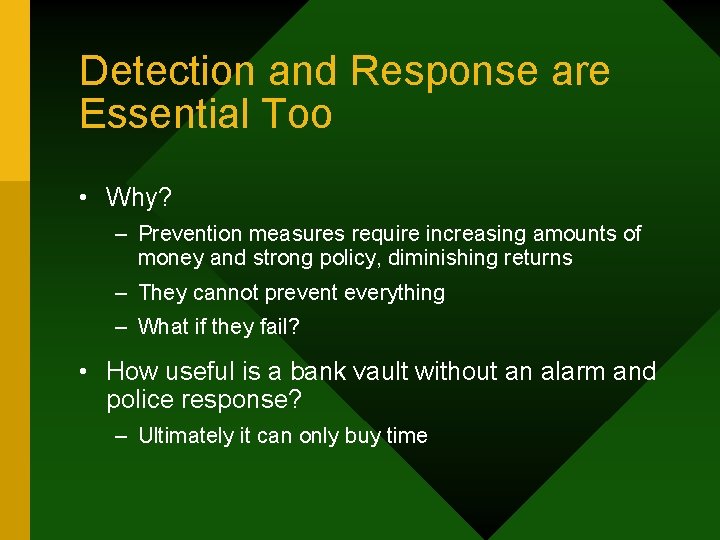

Detection and Response are Essential Too • Why? – Prevention measures require increasing amounts of money and strong policy, diminishing returns – They cannot prevent everything – What if they fail? • How useful is a bank vault without an alarm and police response? – Ultimately it can only buy time

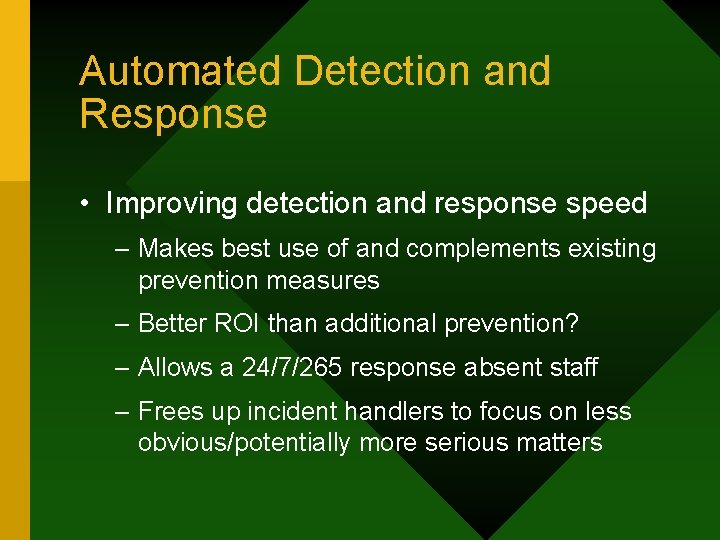

Automated Detection and Response • Improving detection and response speed – Makes best use of and complements existing prevention measures – Better ROI than additional prevention? – Allows a 24/7/265 response absent staff – Frees up incident handlers to focus on less obvious/potentially more serious matters

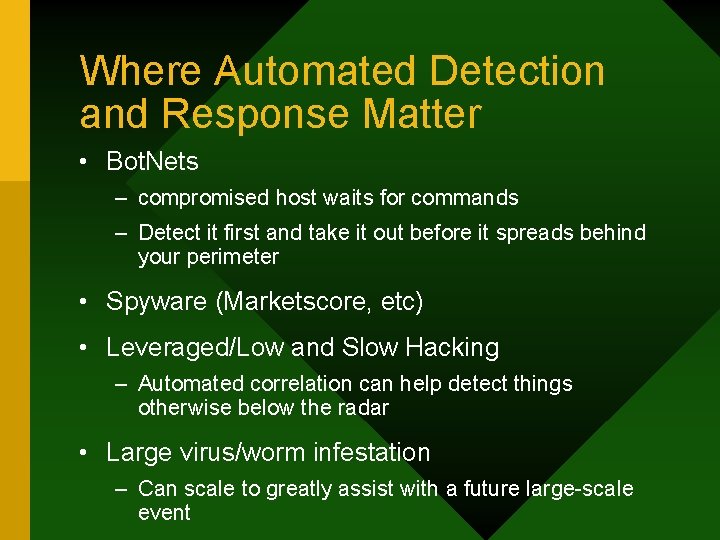

Where Automated Detection and Response Matter • Bot. Nets – compromised host waits for commands – Detect it first and take it out before it spreads behind your perimeter • Spyware (Marketscore, etc) • Leveraged/Low and Slow Hacking – Automated correlation can help detect things otherwise below the radar • Large virus/worm infestation – Can scale to greatly assist with a future large-scale event

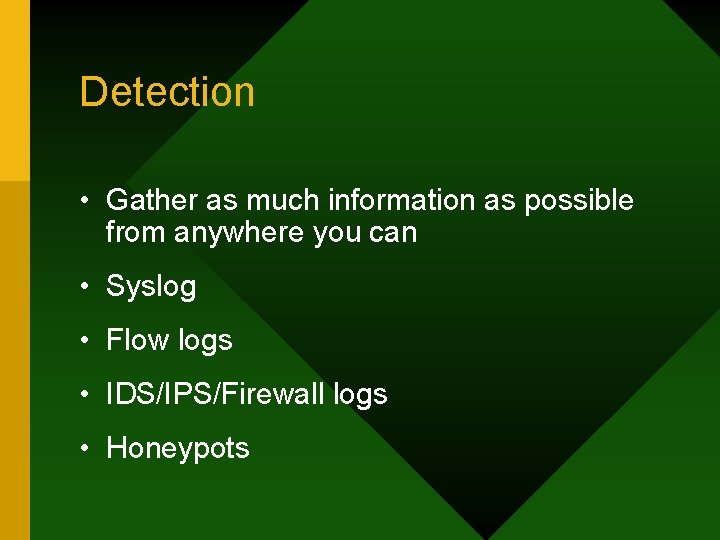

Detection • Gather as much information as possible from anywhere you can • Syslog • Flow logs • IDS/IPS/Firewall logs • Honeypots

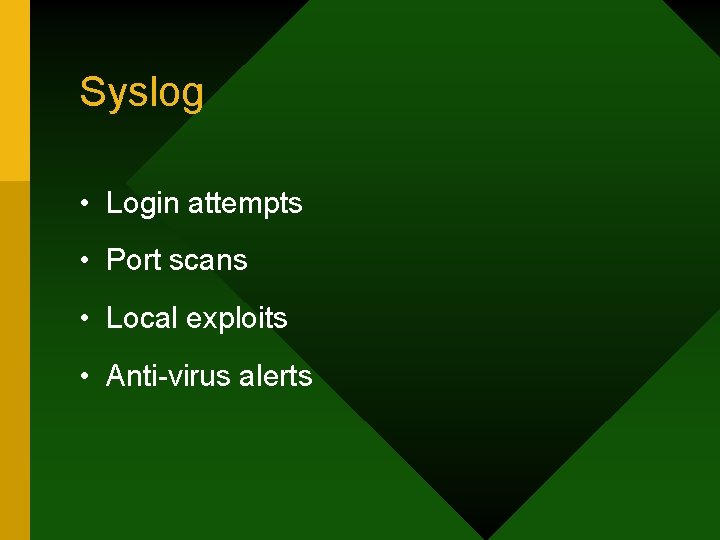

Syslog • Login attempts • Port scans • Local exploits • Anti-virus alerts

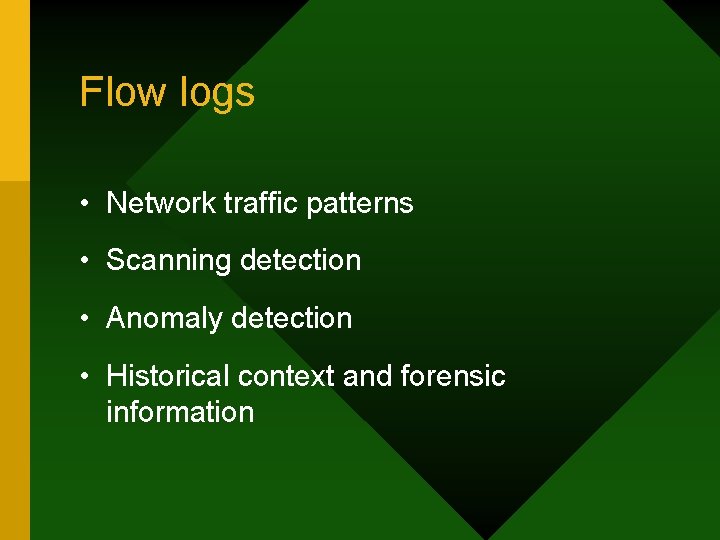

Flow logs • Network traffic patterns • Scanning detection • Anomaly detection • Historical context and forensic information
IDS/IPS/Firewall Logs • Scanning • Invalid access • Hacking attempts

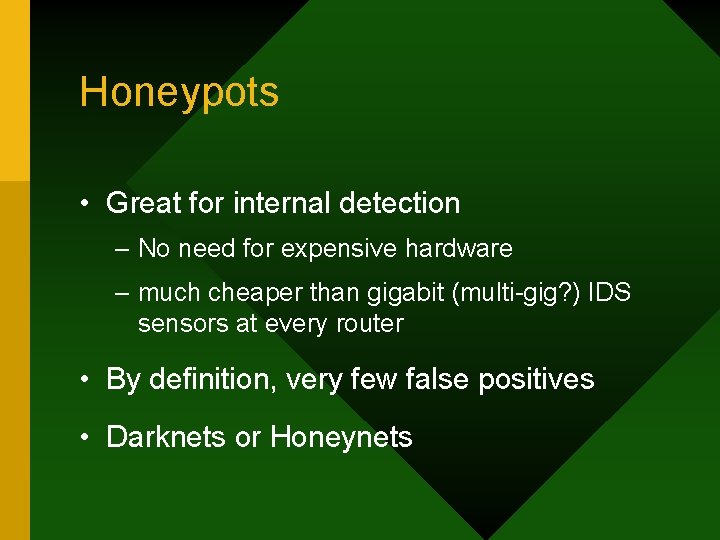

Honeypots • Great for internal detection – No need for expensive hardware – much cheaper than gigabit (multi-gig? ) IDS sensors at every router • By definition, very few false positives • Darknets or Honeynets
Compliance • Agent-based compliance detection • Network-side vulnerability scanning – Nessus or other commercial tools – NOXscan: FAST scanner for Microsoft vulnerabilities used by many worms (MS 04007, MS 04 -011, MS 05 -039) http: //infosec. yorku. ca/tools/
Correlation and Reaction • Map events to an IP or MAC • Map IP or MAC to user, support group, network drop, etc. • Initiate a response as appropriate to the incident type, severity and context • Do this very fast! • Enter CECR… large drop in incidents within 3 months after implementation
Implementation
Lots of info, so what • All this great information being gathered • How to sift through it • How to react to it • How to record our actions
Manual Handling • Manual correlation • Manually enter each incident (ELOG) • Basic reporting available • Very time consuming to enter all the tickets
Manual Handling • Needed to increase correlation speed • Needed better reporting • Needed a way to distinguish incident types more easily • Needed a tool that portrayed a process • Needed a way to enter incidents automatically

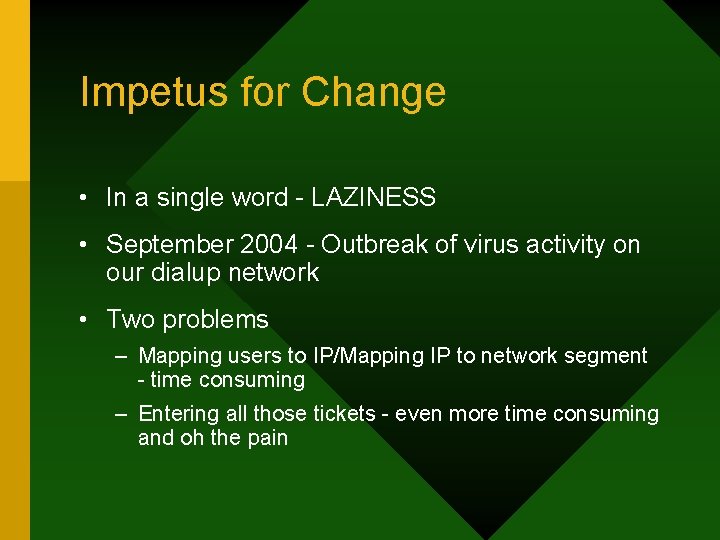

Impetus for Change • In a single word - LAZINESS • September 2004 - Outbreak of virus activity on our dialup network • Two problems – Mapping users to IP/Mapping IP to network segment - time consuming – Entering all those tickets - even more time consuming and oh the pain
CECR v 1. 0 • Shell script designed to accomplish two menial tasks – Correlate incidents to users – Submit tickets to RTIR automagically • Great first step for dealing with mass breakouts – Allowed for initial automation of specific triggers
CECR v 1. 0 • Limitations – Not abstracted and difficult to manipulate for extension – Haphazard script to ease the pain – Wasn’t really designed for more central usage – Unable to effectively take actions based on incident severity
CECR v 2. 0 • Rewritten in Perl • Designed for extension and real-time updating • Able to conduct many more tasks – Different actions depending on severity – Plugins can be added at any time – Exclusions now possible – Repeat notification removed - limited to once daily – Automated contact to end-users/support groups

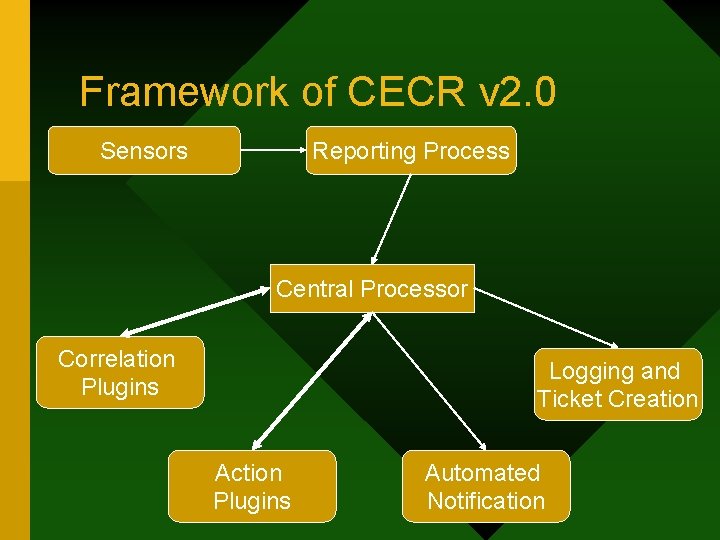

Framework of CECR v 2. 0 Sensors Reporting Process Central Processor Correlation Plugins Logging and Ticket Creation Action Plugins Automated Notification
Components of CECR v 2. 0 • Reporting Process – Wrapping scripts around some IDS sources • Argus not “tail-able” • Vulnerability scanner results – Logsurfer+ for real-time processing of others • Pix log trends - context cognition • snort

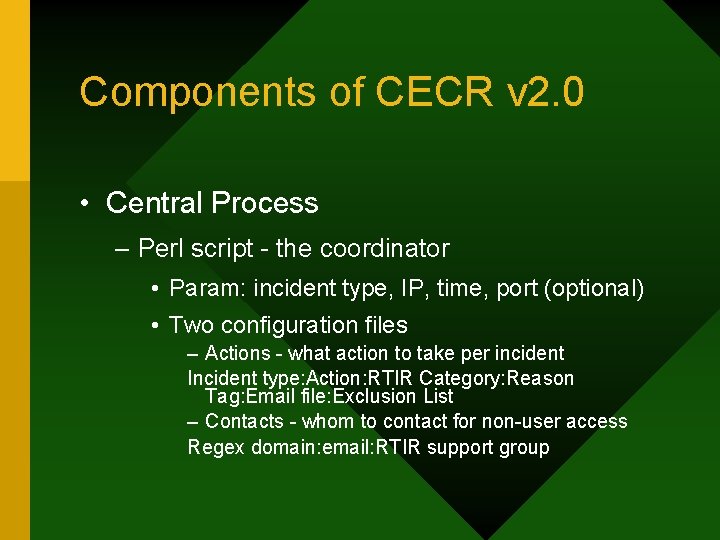

Components of CECR v 2. 0 • Central Process – Perl script - the coordinator • Param: incident type, IP, time, port (optional) • Two configuration files – Actions - what action to take per incident Incident type: Action: RTIR Category: Reason Tag: Email file: Exclusion List – Contacts - whom to contact for non-user access Regex domain: email: RTIR support group
Components of CECR v 2. 0 • Correlation plugins – 6 plugins – Correlate IP (depending on connection): • Username • MAC • Port • TTY (dialup)

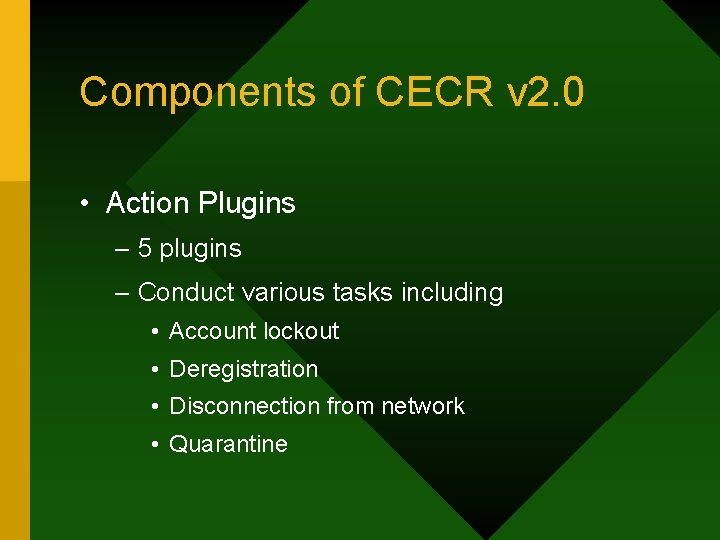

Components of CECR v 2. 0 • Action Plugins – 5 plugins – Conduct various tasks including • Account lockout • Deregistration • Disconnection from network • Quarantine
Components of CECR v 2. 0 • Automated notification – Template based emails by incident type – Contact either username (LDAP verified) or contact listed in contacts file – Notification sent to infosec group of incident • In event of no contact information, infosec email states as such
Components of CECR v 2. 0 • Logging & Ticket Creation – All actions and decisions are logged via syslog for audit purposes – E-mail notification to RTIR to automagically create tickets in appropriate queues – Time based record of event maintained to limit repeat notification
RTIR • CERT sponsored add-on to RT from Best Practical - opensource with support availability • Queues helped define process • Manual insertion still required, but contributions existed for e-mail ticket creation - the light!!

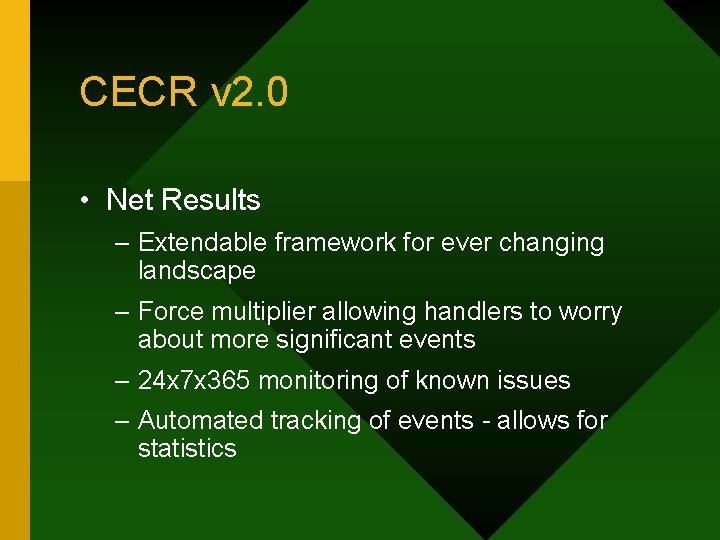

CECR v 2. 0 • Net Results – Extendable framework for ever changing landscape – Force multiplier allowing handlers to worry about more significant events – 24 x 7 x 365 monitoring of known issues – Automated tracking of events - allows for statistics
Questions?
