CE 463 Lecture 02 Highways and Highway Components
- Slides: 17
CE 463 Lecture 02 Highways and Highway Components CE 463 Highway Transportation Characteristics Civil Engineering Purdue University
Outline Functional classification of roads Road functions Hierarchical structure of road networks Mobility vs. accessibility Mobility vs. transportation mode Highway components Cross-sections Highway plan and profile Interchanges Rural and urban intersections
Road Functions Mobility Accessibility
Local Arterial Hierarchical Structure of Road Networks Collector Rural Urban
Mobility vs. Accessibility Road Class Road Function Freeways Through movement exclusively Surface Arterials Through movement primary and some land access Collectors Local Roads Traffic movement to higher rank roads, access to abutting properties Access to abutting land local traffic movement

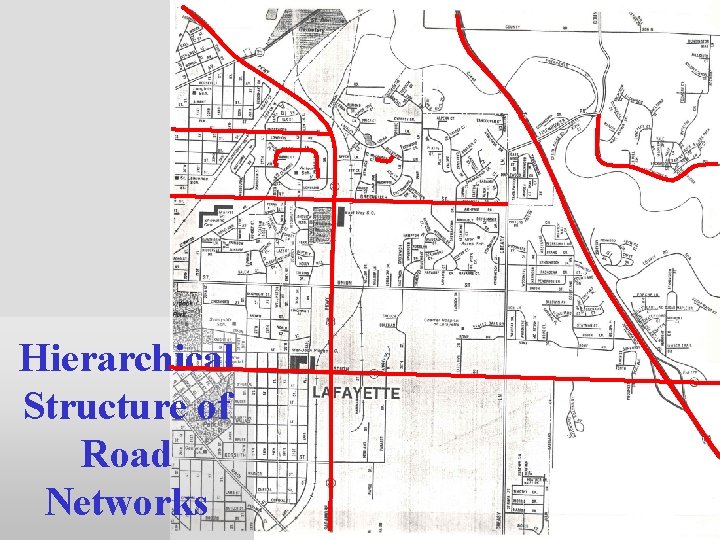

Hierarchical Structure of Road Networks
Mobility vs. Accessibility
Mobility vs. Transportation Mode
Mobility vs. Transportation Mode

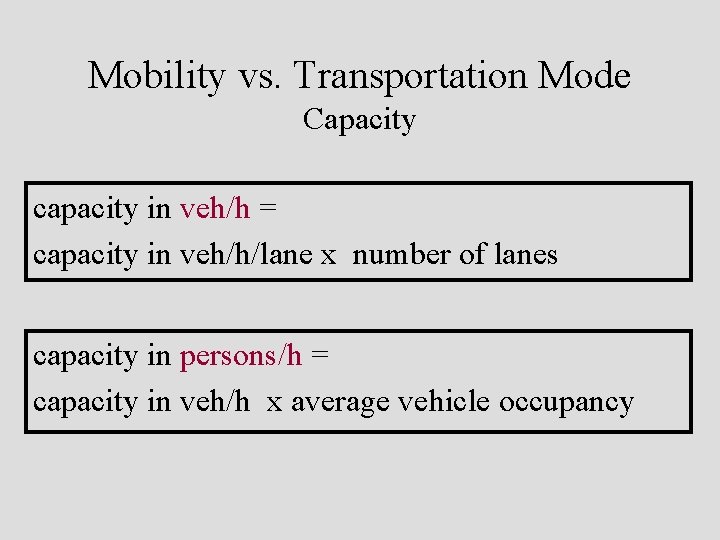

Mobility vs. Transportation Mode Capacity capacity in veh/h = capacity in veh/h/lane x number of lanes capacity in persons/h = capacity in veh/h x average vehicle occupancy

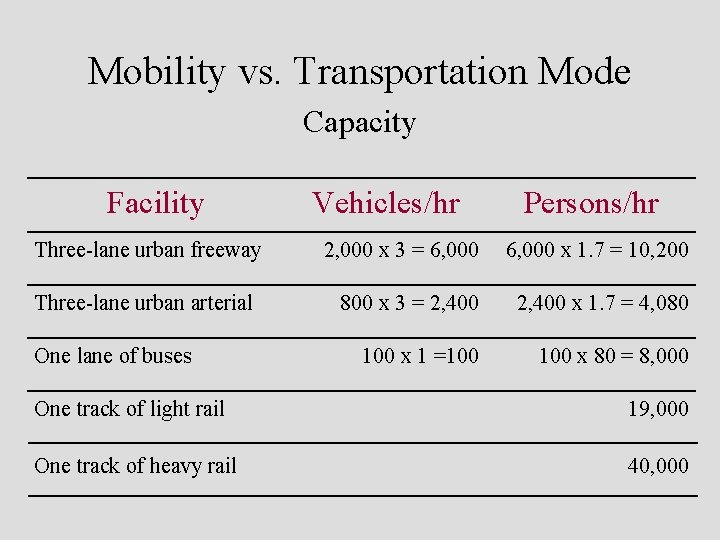

Mobility vs. Transportation Mode Capacity Facility Three-lane urban freeway Three-lane urban arterial One lane of buses Vehicles/hr Persons/hr 2, 000 x 3 = 6, 000 x 1. 7 = 10, 200 800 x 3 = 2, 400 x 1. 7 = 4, 080 100 x 1 =100 x 80 = 8, 000 One track of light rail 19, 000 One track of heavy rail 40, 000
Mobility vs. Transportation Mode Capacity
Highway Components Cross-section
Highway Components Highway plan and profile
Highway Components Urban Intersections Picture

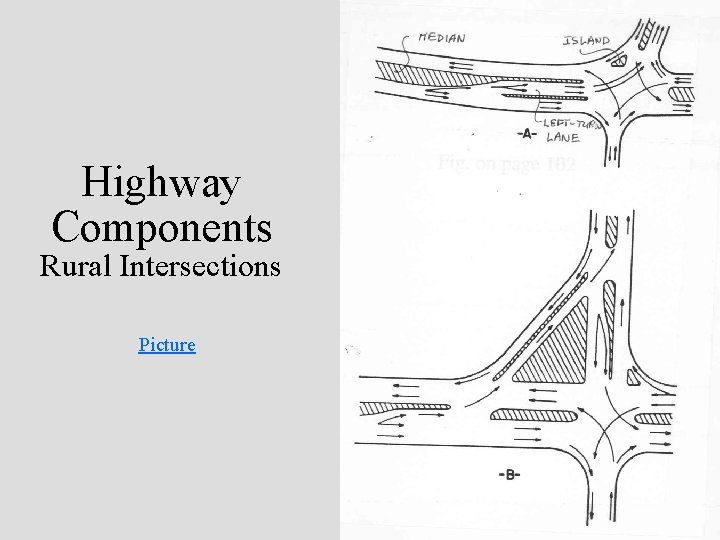

Highway Components Rural Intersections Picture

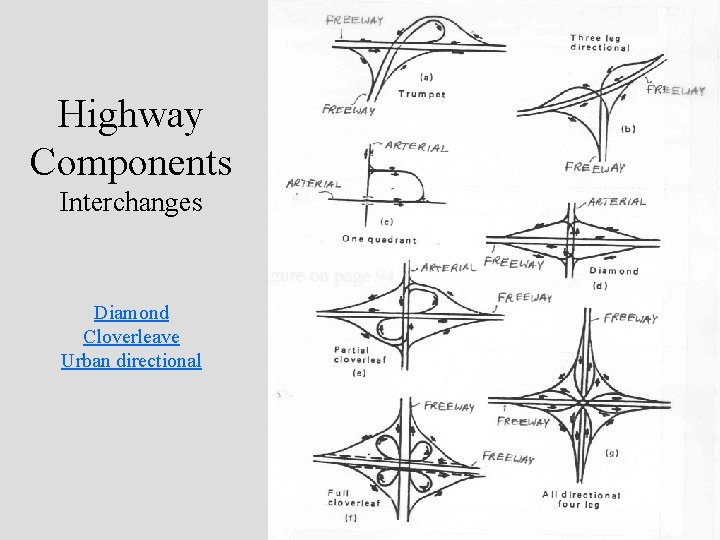

Highway Components Interchanges Diamond Cloverleave Urban directional
