CDS Bayonets & U-tubes Layout Andrew Dalesandro Cryogenic Integrated Workshop Review 11 Feb 2021 A Partnership of: US/DOE India/DAE Italy/INFN UK/UKRI-STFC France/CEA, CNRS/IN 2 P 3 Poland/WUST

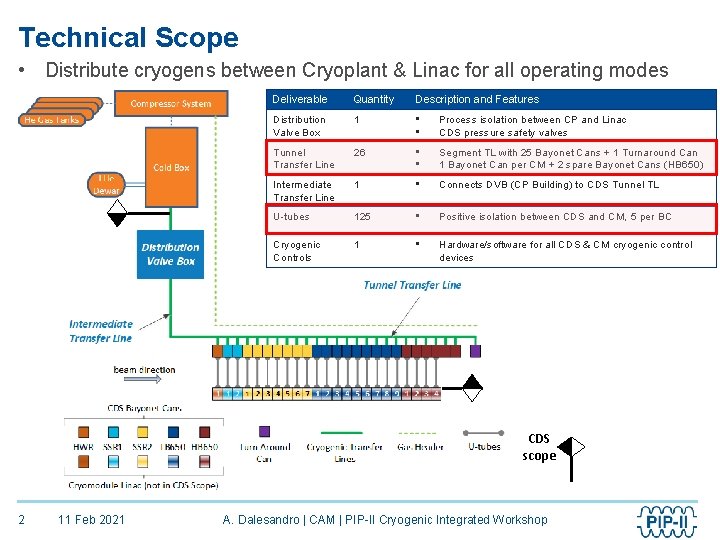

Technical Scope • Distribute cryogens between Cryoplant & Linac for all operating modes Deliverable Quantity Description and Features Distribution Valve Box 1 • • Process isolation between CP and Linac CDS pressure safety valves Tunnel Transfer Line 26 • • Segment TL with 25 Bayonet Cans + 1 Turnaround Can 1 Bayonet Can per CM + 2 spare Bayonet Cans (HB 650) Intermediate Transfer Line 1 • Connects DVB (CP Building) to CDS Tunnel TL U-tubes 125 • Positive isolation between CDS and CM, 5 per BC Cryogenic Controls 1 • Hardware/software for all CDS & CM cryogenic control devices CDS scope 2 11 Feb 2021 A. Dalesandro | CAM | PIP-II Cryogenic Integrated Workshop
Tunnel Transfer Line (Bayonet Cans) QTY DESCRIPTION TOTALS 1 BAYONET CAN / CM 23 2 HB 650 ACTIVE ‘SPARES’ 2 Total CDS BC MODULES 25 3 11 Feb 2021 A. Dalesandro | CAM | PIP-II Cryogenic Integrated Workshop
CDS U-tubes & connection locations QTY DESCRIPTION TOTALS 5 U-TUBES PER HWR BAYONET CAN (1) 5 5 U-TUBES PER SSR 1 BAYONET CAN (2) 10 5 U-TUBES PER SSR 2 BAYONET CAN (7) 35 5 U-TUBES PER LB 650 BAYONET CAN (9) 45 5 U-TUBES PER HB 650 BAYONET CAN (6) 30 TOTAL CDS U-TUBES 125 4 11 Feb 2021 A. Dalesandro | CAM | PIP-II Cryogenic Integrated Workshop

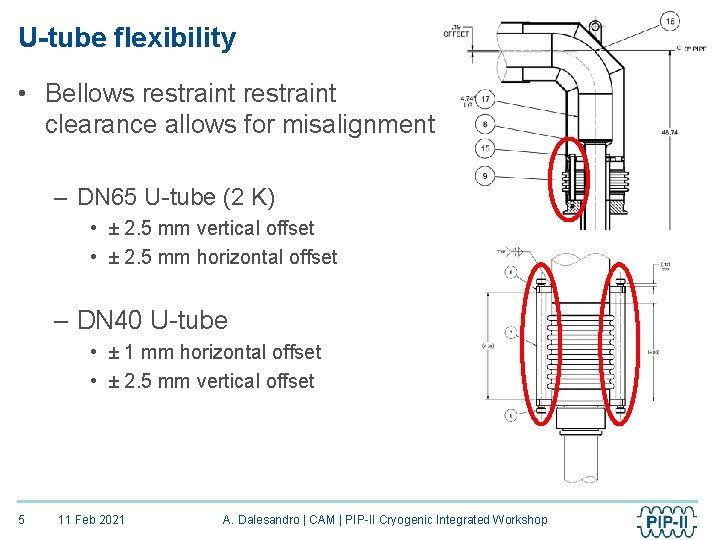

U-tube flexibility • Bellows restraint clearance allows for misalignment – DN 65 U-tube (2 K) • ± 2. 5 mm vertical offset • ± 2. 5 mm horizontal offset – DN 40 U-tube • ± 1 mm horizontal offset • ± 2. 5 mm vertical offset 5 11 Feb 2021 A. Dalesandro | CAM | PIP-II Cryogenic Integrated Workshop
![HWR Bayonet Interface drawing [F 10144716] 6 11 Feb 2021 A. Dalesandro | CAM](http://slidetodoc.com/presentation_image_h2/71bee800a0796e3e319f6d28035c3a1f/image-6.jpg "HWR Bayonet Interface drawing [F 10144716] 6 11 Feb 2021 A. Dalesandro | CAM")

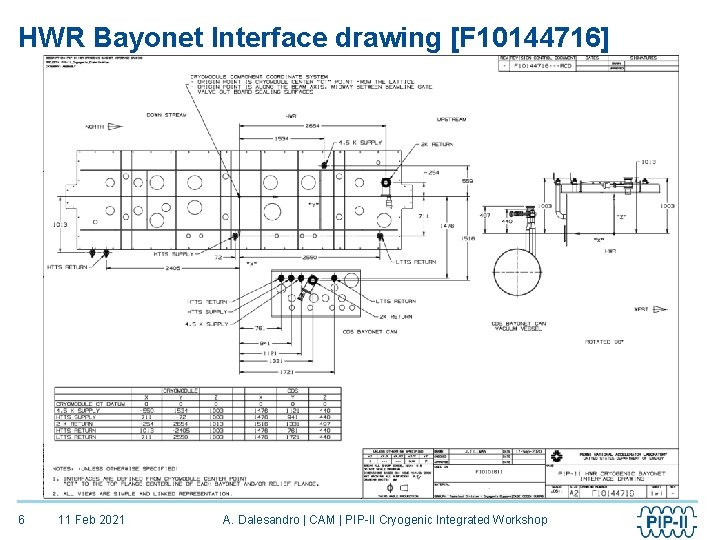

HWR Bayonet Interface drawing [F 10144716] 6 11 Feb 2021 A. Dalesandro | CAM | PIP-II Cryogenic Integrated Workshop
![SSR 1 Bayonet Interface drawing [F 10144877] 7 11 Feb 2021 A. Dalesandro |](http://slidetodoc.com/presentation_image_h2/71bee800a0796e3e319f6d28035c3a1f/image-7.jpg "SSR 1 Bayonet Interface drawing [F 10144877] 7 11 Feb 2021 A. Dalesandro |")

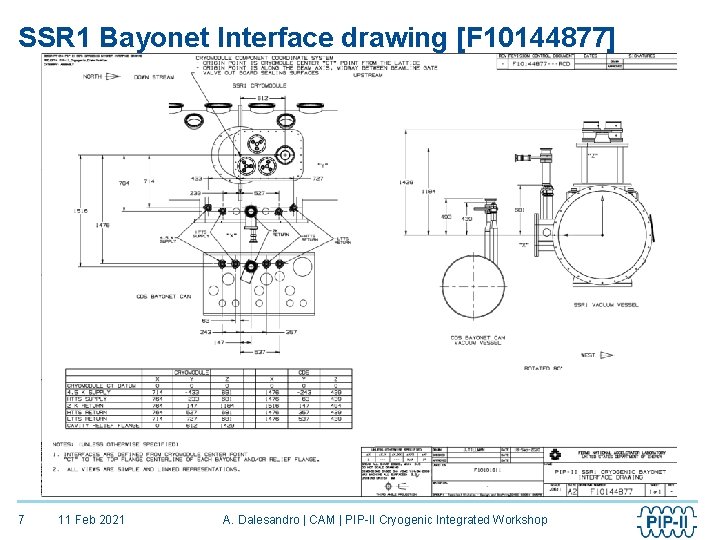

SSR 1 Bayonet Interface drawing [F 10144877] 7 11 Feb 2021 A. Dalesandro | CAM | PIP-II Cryogenic Integrated Workshop
![SSR 2 Bayonet Interface drawing [F 10144843] 8 11 Feb 2021 A. Dalesandro |](http://slidetodoc.com/presentation_image_h2/71bee800a0796e3e319f6d28035c3a1f/image-8.jpg "SSR 2 Bayonet Interface drawing [F 10144843] 8 11 Feb 2021 A. Dalesandro |")

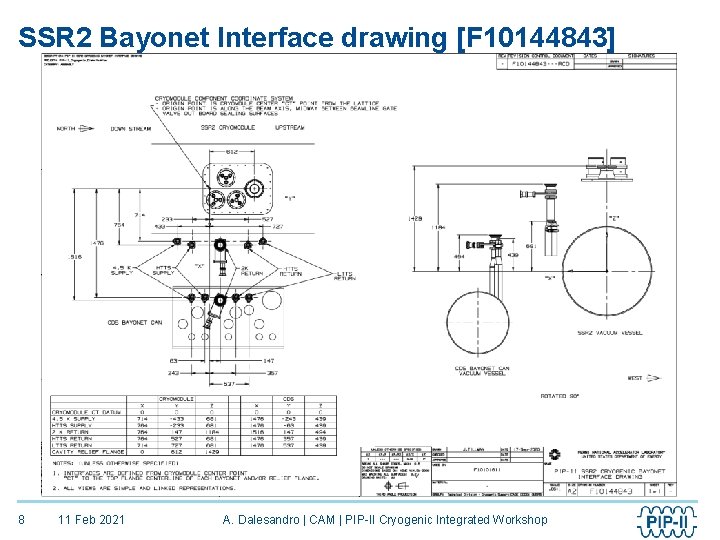

SSR 2 Bayonet Interface drawing [F 10144843] 8 11 Feb 2021 A. Dalesandro | CAM | PIP-II Cryogenic Integrated Workshop
![LB 650 Bayonet Interface drawing [F 10144867] 9 11 Feb 2021 A. Dalesandro |](http://slidetodoc.com/presentation_image_h2/71bee800a0796e3e319f6d28035c3a1f/image-9.jpg "LB 650 Bayonet Interface drawing [F 10144867] 9 11 Feb 2021 A. Dalesandro |")

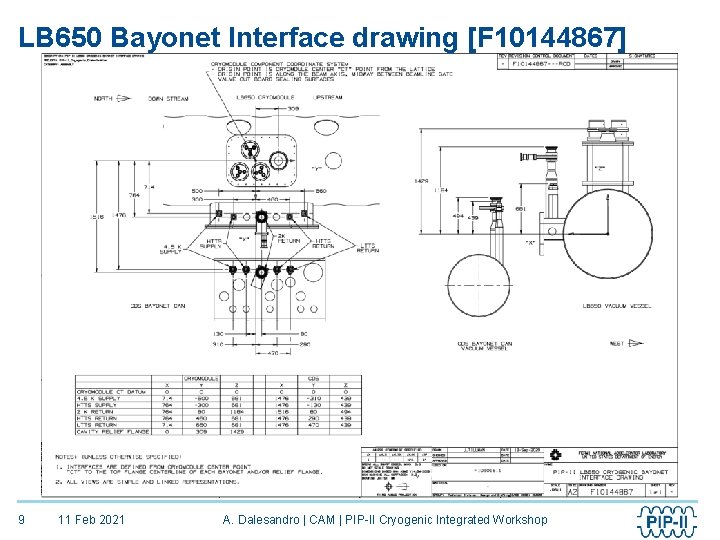

LB 650 Bayonet Interface drawing [F 10144867] 9 11 Feb 2021 A. Dalesandro | CAM | PIP-II Cryogenic Integrated Workshop
![HB 650 Bayonet Interface drawing [F 10142479] 10 11 Feb 2021 A. Dalesandro |](http://slidetodoc.com/presentation_image_h2/71bee800a0796e3e319f6d28035c3a1f/image-10.jpg "HB 650 Bayonet Interface drawing [F 10142479] 10 11 Feb 2021 A. Dalesandro |")

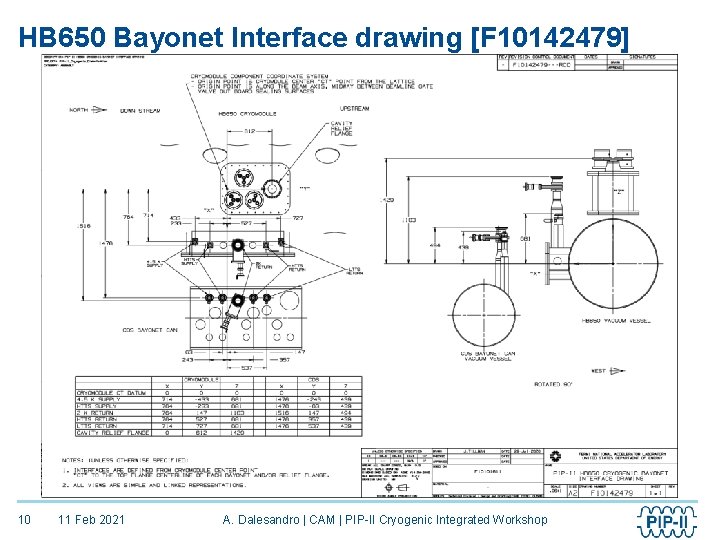

HB 650 Bayonet Interface drawing [F 10142479] 10 11 Feb 2021 A. Dalesandro | CAM | PIP-II Cryogenic Integrated Workshop
Thank You 11 11 Feb 2021 A. Dalesandro | CAM | PIP-II Cryogenic Integrated Workshop
