CDG - Family CDG 020 D CDG 025 D CDG 045 -200 D CDG 045 -100 D Porter The Worker High Value precision For Price SKY unheated, high precision EDGE high precision 45 to 200°C CDS 500 D CDG 045 -100 Dhs STRIPE Temperature controlled small fast 45 to 100°C CDG 045 Dsci CUBE highest 45°C CDS 550 D SPOT – sensors for integration CDG Selection Guide 3

CDG 020 D - Porter • Stable and reliable pressure measurement • Easy to use • High Value-for-Price relation • Either 0. 5% or 1% of reading • Protected against corrosive gases CDG Selection Guide 4

CDG 025 D - Room Temperature CDG High precision Excellent temperature compensated Choose from standard CDG 025 D and Process CDG (harsh SEMI-processes) CDG 025 D-X 3 CDG Selection Guide 5

CDG 045 D - CDG 200 D SKY • Temperature controlled 45°C to 200°C • High precision • Avoid any condensation of process gas • Protected against process-by-products CDG Selection Guide 6

CDG 045 / 100 D 2 - EDGE • Temperature controlled 45°C to 100°C • High precision • Avoid any condensation of process gas • Protected against process-by-products • Smaller footprint compared to SKY CDG Selection Guide 7

CDG 045 / 100 Dhs - Stripe Fast measuring – short responsetime: less than 2 ms Temperature controlled 45°C to 100°C, High precision Option: lowest full scale 10 m. Torr Avoid any condensation of process gas Protected against process-by-products Ether. CAT interface This is fast: CDG Selection Guide 8

CDG 045 Dsci - CUBE • Highest precision [0. 025% of R] – for calibration labs • pure reference for vacuum systems • Temperature controlled 45°C • Instrument for scientists and quality gurus • 20 Bit output - analog, RS 232 TCP/IP HTML Ethernet, wired and wireless CDG Selection Guide 9

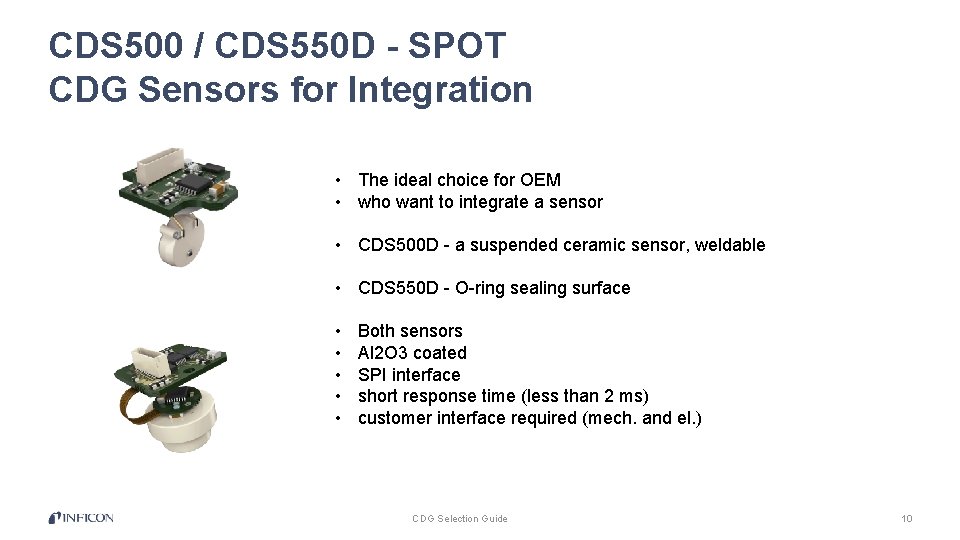

CDS 500 / CDS 550 D - SPOT CDG Sensors for Integration • The ideal choice for OEM • who want to integrate a sensor • CDS 500 D - a suspended ceramic sensor, weldable • CDS 550 D - O-ring sealing surface • • • Both sensors Al 2 O 3 coated SPI interface short response time (less than 2 ms) customer interface required (mech. and el. ) CDG Selection Guide 10
