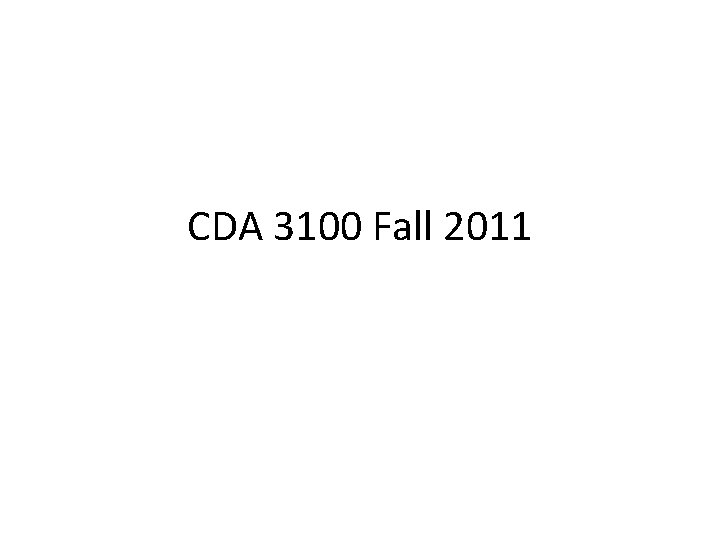

CDA 3100 Fall 2011
Special Thanks • Thanks to Dr. Xiuwen Liu for letting me use his class slides and other materials as a base for this course
About Me • My name is Zhenghao Zhang – Why I am teaching this course: I worked for two years as an embedded system engineer, writing codes for embedded controllers. 9/15/2020 CDA 3100 3

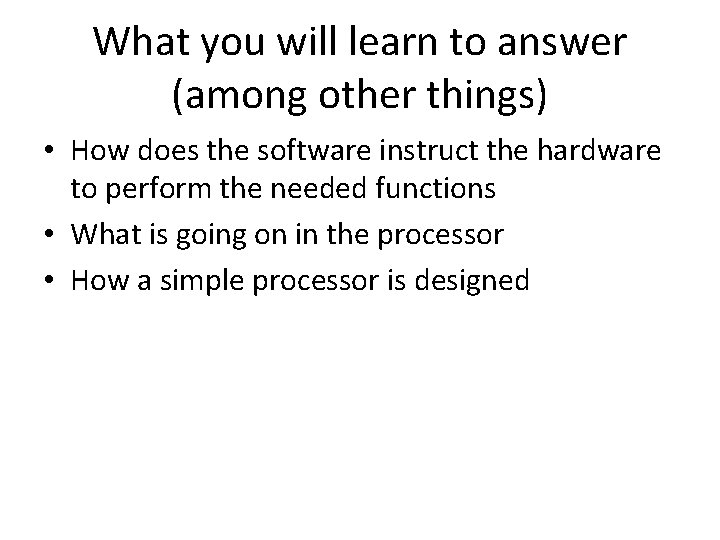

What you will learn to answer (among other things) • How does the software instruct the hardware to perform the needed functions • What is going on in the processor • How a simple processor is designed
Why This Class Important? • If you want to create better computers – It introduces necessary concepts, components, and principles for a computer scientist – By understanding the existing systems, you may create better ones • If you want to build software with better performance • If you want to have a good choice of jobs • If you want to be a real computer scientist 9/15/2020 CDA 3100 5
Career Potential for a Computer Science Graduate http: //www. jobweb. com/studentarticles. asp x? id=904&terms=starting+salary 9/15/2020 CDA 3100 6
Career Potential for a Computer Science Graduate Source: NACE Fall 2005 Report (http: //www. jobweb. com/resources/library/Careers_In/Starting_Salary_51_01. htm) 9/15/2020 CDA 3100 7
Required Background • Based on years of teaching this course, I find that you will suffer if you do not have the required C/C++ programming background. • We will need assembly coding, which is more advanced than C/C++. • If you do not have a clear understanding at this moment of array and loop , it is recommended that you take this course at a later time, after getting more experience with C/C++ programming.
Array – What Happens? #include <stdio. h> int main (void) { int A[5] = {16, 2, 77, 40, 12071}; A[A[1]] += 1; return 0; }
Loop – What Happens? #include <stdio. h> int main () { int A[5] = {16, 20, 77, 40, 12071}; int result = 0; int i = 0; while (result < A[i]) { result += A[i]; i++; } return 0; }
Class Communication • This class will use class web site to post news, changes, and updates. So please check the class website regularly • Please also make sure that you check your emails on the account on your University record • Blackboard will be used for posting the grades 9/15/2020 CDA 3100 11
Required Textbook • The required textbook for this class is – “Computer Organization and Design” • The hardware/software interface – By David A. Patterson and John L. Hennessy – Fourth Edition 9/15/2020 CDA 3100 12
Lecture Notes and Textbook • All the materials that you will be tested on will be covered in the lectures – Even though you may need to read the textbook for review and further detail explanations – The lectures will be based on the textbook and handouts distributed in class 9/15/2020 CDA 3100 13
Decimal Numbering System • We humans naturally use a particular numbering system 9/15/2020 CDA 3100 14
Decimal Numbering System • For any nonnegative integer value is given by , its – Here d 0 is the least significant digit and dn is the most significant digit 9/15/2020 CDA 3100 15
General Numbering System – Base X • Besides 10, we can use other bases as well – In base X, – Then, the base X representation of this number is defined as dndn-1…d 2 d 1 d 0. – The same number can have many representations on many bases. For 23 based 10, it is 9/15/2020 • 23 ten • 10111 two CDA 3100 • 17 , often written as 0 x 17. 16
Commonly Used Bases Base Common Name Representation Digits 10 Decimal 5023 ten or 5023 0 -9 2 Binary 10011111 two 0 -1 8 Octal 11637 eight 0 -7 16 Hexadecimal 139 Fhex or 0 x 139 F 0 -9, A-F – Note that other bases are used as well including 12 and 60 • Which one is natural to computers? – Why? 9/15/2020 CDA 3100 17
Meaning of a Number Representation • When we specify a number, we need also to specify the base – For example, 10 presents a different quantity in a different base • – There are 10 kinds of mathematicians. Those who can think binarily and those who can't. . . http: //www. math. ualberta. ca/~runde/jokes. html 9/15/2020 CDA 3100 18
Question • How many different numbers that can be represented by 4 bits? • Always 16 (24), because there are this number of different combinations with 4 bits, regardless of the type of the number these 4 bits are representing. • Obviously, this also applies to other number of bits. With n bits, we can represent 2 n different numbers. If the number is unsigned integer, it is from 0 to 2 n-1.

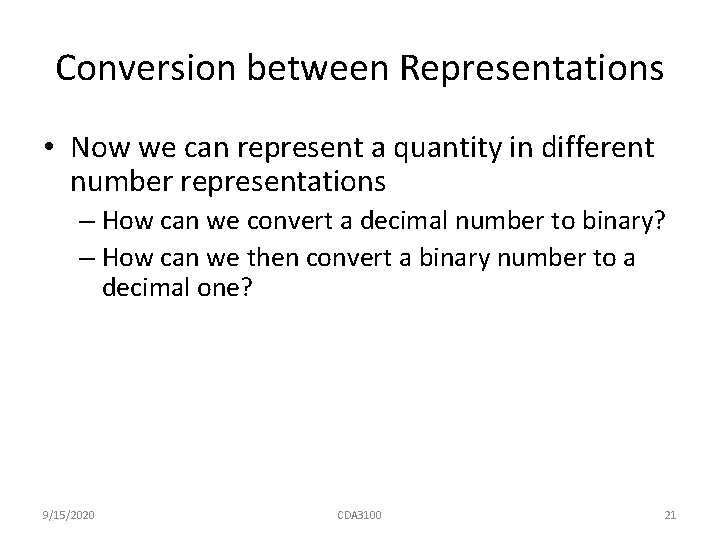

Conversion between Representations • Now we can represent a quantity in different number representations – How can we convert a decimal number to binary? – How can we then convert a binary number to a decimal one? 9/15/2020 CDA 3100 21
Conversion Between Bases • From binary to decimal example 15 10 9 8 7 6 5 4 3 2 1 0 215 214 213 212 211 210 29 28 27 26 25 24 23 22 21 20 1 1 1 0 9/15/2020 14 0 13 0 12 1 11 0 0 CDA 3100 22
Converting from binary to decimal • Converting from binary to decimal. This conversion is also based on the formula: d = dn-12 n-1 + dn-22 n-2 +…+ d 222 + d 121 + d 020 while remembering that the digits in the binary representation are the coefficients. • For example, given 101011 two, in decimal, it is 25 + 23 + 21 + 20 = 43.
Conversion Between Bases • Converting from decimal to binary: – given a number in decimal, repeatedly divide it by 2, and write down the remainder from right to the left, until the quotient is 0 – Example: 11. Quotient Remainder 5 1 2 1 1 0 0 1
Digging a little deeper • Why can a binary number be obtained by keeping on dividing by 2, and why should the last remainder be the first bit? • Note that – Any integer can be represented by the summation of the powers of 2: d = dn-12 n-1 + dn-22 n-2 +…+ d 222 + d 121 + d 020 – For example, 19 = 16 + 2 + 1 = 1 * 24 + 0 * 23 + 0 * 2 2 + 1 * 2 1 + 1 * 2 0. – The binary representation is the binary coefficients. So 19 ten in binary is 10011 two.
Digging a little deeper • In fact, any integer can be represented by the summation of the powers of some base, where the base is either 10, 2 or 16 in this course. For example, 19 = 1 * 101 + 9 * 100. How do you get the 1 and 9? You divide 19 by 10 repeatedly until the quotient is 0, same as binary! • In fact, the dividing process is just an efficient way to get the coefficients. • How do you determine whether the last bit is 0 or 1? You can do it by checking whether the number is even or odd. Once this is determined, you go ahead to determine the next bit, by checking (d - d 020)/2 is even or odd, and so on, until you don’t have to check any more (when the number is 0).
Conversion between Base 16 and Base 2 • Extremely easy. – From base 2 to base 16: divide the digits in to groups of 4, then apply the table. – From base 16 to base 2: replace every digit by a 4 bit string according to the table. • Because 16 is 2 to the power of 4.
Addition in binary • 39 ten + 57 ten = ? • How to do it in binary?
Addition in Binary • First, convert the numbers to binary forms. We are using 8 bits. – 39 ten -> 001001112 – 57 ten -> 001110012 • Second, add them. 00100111001 01100000
Addition in binary • The addition is bit by bit. • We will run in at most 4 cases, where the leading bit of the result is the carry: 1. 2. 3. 4. 0+0+0=00 1+0+0=01 1+1+0=10 1+1+1=11
Subtraction in Binary • 57 ten – 39 ten = ?
Subtraction in Binary 00111001 00100111 00010010
Subtraction in binary • Do this digit by digit. • No problem if – 0 - 0 = 0, – 1 -0=1 – 1 = 0. • When encounter 0 - 1, set the result to be 1 first, then borrow 1 from the next more significant bit, just as in decimal. – Borrow means setting the borrowed bit to be 0 and the bits from the bit following the borrowed bit to the bit before the current bit to be 1. – Think about, for example, subtracting 349 from 5003 (both based 10). The last digit is first set to be 4, and you will be basically subtracting 34 from 499 from now on.
