CD Innovation Maestro control centre Maestro Product Line
- Slides: 24
CD Innovation Maestro control centre
Maestro Product Line
MS 3 -2 R - Maestro Server Main functions: n Visualization n Web Server n Function Blocks Controller n Macro manager n Schedule manager n KNXnet/IP n Video streaming from IP cameras (M-JPEG) n External systems integration/KNX gateway through: n IR: through external GC 100 n RS 232: 2 x integrated RS 232 ports + extension through GC 100 n IP: TCP and UDP. n VGA and USB interface to VGA tabletop touch screen (MT 104) n Logger
MS 3 -2 R – Specifications n n n n Processor Geode LX 800 Memory 1 G Flash, 512 M RAM Operating System: Linux VGA: Display Resolution: 800 x 600, Colors: 262 K Low power ~5 watt, no moving parts KNX bus connector USB 2. 0 10/100 Base. T Ethernet x 2 RS 232 x 2 Control Buttons: Power button AC/DC adapter: Input: 100– 240 VAC, Output: 12 VDC Regulatory: CE, Ro. HS Operating Temperature: 0° – 40°C Dimensions : 260 mmx 47 mmx 115 mm, (W x H x D) Mounting: Desk Top/Wall.
MT 104 T Table Top Touch screen § 10. 4 inch TFT LCD + Touch screen § 800 x 600 pixels § Colors 262 K § Hardwired (VGA+USB) to Maestro Server § Regulatory: FCC Class B, CE, UL, Ro. HS
MTS 3 -104 W - Maestro Touch Server Same as MS 3 and additional: n Integrated Touch screen: Size: 10. 4 inch n Resolution 800 x 600 n n Colors: 262 K n Speakers and microphone n SIP IP video intercom (MTS 3 -104 W-S model) n In wall n Glass bezel + wall box (ordered separately)
MTS 3 104 W specification n n n n Processor Geode LX 800 Memory 1 G Flash, 512 M RAM Operating System: Linux Display Resolution: 800 x 600 Low power, no moving parts KNX bus connector USB 2. 0 Port RS 232: 2 ports 10/100 Base. T Ethernet 2 ports VGA Control Buttons: Power button. AC/DC adapter: Input: 100– 240 VAC, Output: 12 VDC Regulatory: CE, Ro. HS Operating Temperature: 0° – 40°C Mounting dimensions (cut out required) 220× 282× 65 mm (Hx. Wx. D) Outline dimensions, visible after mounting: 242× 309× 11 mm (Hx. Wx. D)
GC-100 -12 Extends the number of Maestro’s communication ports n 2 SR 232 ports, 1, 200 to 57. 6 Kbaud n 6 IR ports n 3 dray contact relay n IP based, communication extender n Including web server for parameters set up n Including 12 VDC power adaptor n Regulatory: FCC Class B, CE, Ro. Hs
GC-100 -6 Extends the number of Maestro’s communication ports n 1 SR 232 ports, 1, 200 to 57. 6 Kbaud n 3 IR ports n IP based, communication extender n Including web server for parameters set up n Including 12 VDC power adaptor n Emitter supplied for each IR port
Maemo. Maestro on Nokia N 900 n Client for Maestro Server. n The same user friendly Maestro panel design Functions of the N 900: n n n n Wi. Fi / GPRS, 3. 5 G Smartphone 800 x 480 pixels, 16 M colors 3. 5 inch touch screen Internet browser Internet calling with video E-Mail Media player Internet radio
System overview

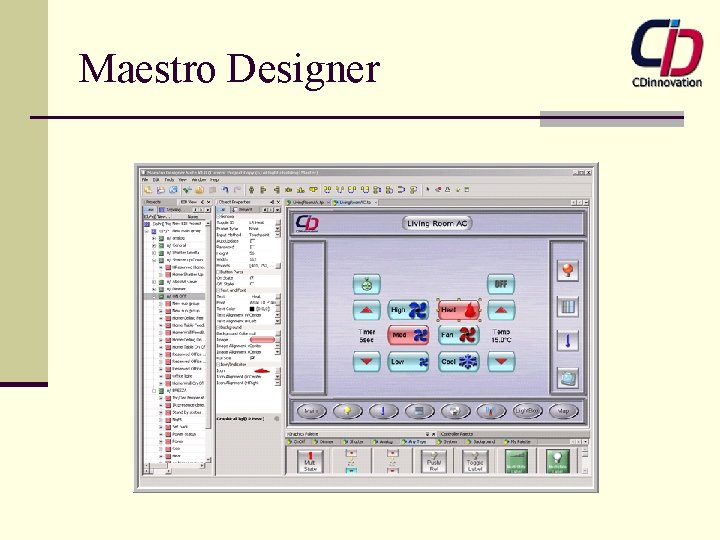

Maestro Designer
Maestro Designer - Main features n Import of ETS database. n Intuitive Drag and drop interface, no programming knowledge is n n n n required. Run mode - simulate the device on your PC screen Over 20 different button types (Dimmer, Shatter, Toggle, Push/Release. . . ) More then 80 Pre-designed buttons: just place them on the screen and link to Group Address Unlimited choice for screen Background pictures (any jpg or PNG files) Unlimited graphics design of buttons appearance and button size. No practical limitation - thousands of Buttons, EIB Group Addresses, schedules, Macro/Scenes, function Blocks. . and dozens of pages. Real time logger.
Schedule Manager n Weekly and Date schedules n Including sunrise and sun set related events. n easily set by the end user using the touch screen interface.
Macro Manager n Friendly macro editor, lets the end user setting Scenes and Macros (events activated in sequence) using the touch screen interface.
Virtual Buttons n Button Graphics structure is n n modular and (typically) includes: - 3 areas: Up, Center, Low - 5 layers: frame, text, icon, image color - 2 states: On, Off Graphic elements are fully editable, so customized buttons can be created
Function Blocks Controller Over 50 different function blocks designed to meet the characteristics of the KNX system. No limitation on number of function blocks in a project. Can act as central control unit for the KNX system, perform highly complex Logic operations Calculations, Track status of KNX loads Update external display and signal devices. n Expression functions block – enables to create your own function-blocks using script code. n n n
Web Server n Same excellent functionality and graphics on your PC (or Mac). Just type the Maestro IP address on your favorite web browser. n Edit and activate Schedules and Macros from remote locations, using the Internet.
External systems Control and KNX gateway n Control external systems: IR – learn or use public IR code databases n IP and RS 232 – use Maestro script language to handle serial communication protocols n
Logger & alarms n Logger – the maestro logs the event on your automation system. This enables you to analyze historical events and optimize both system performance and energy consumption. n Alarms – the maestro monitors your systems and immediately alerts you to important information when it arrives.
KNXnet. IP n Enables to use the Maestro to tunnel KNXnet/IP communication from a local ETS software to remote KNX devices using IP. n Enables to use the Maestro as KNXnet/IP Gateway for external devices/software.
IP CAM n Show M-JPAG video streaming of IP cameras n Video Image is resizable n Show stream from few cameras on a single page.
IP SIP Videophone n Supports real-time audio and video. n Based on IP, SIP, H. 263 and the G 711 standards. n Interoperability with 3 rd party SIP products. n IP video phone/IP Video intercom n Outdoor weatherproof version. enables the implementation of whole building, IP based, video intercom system.

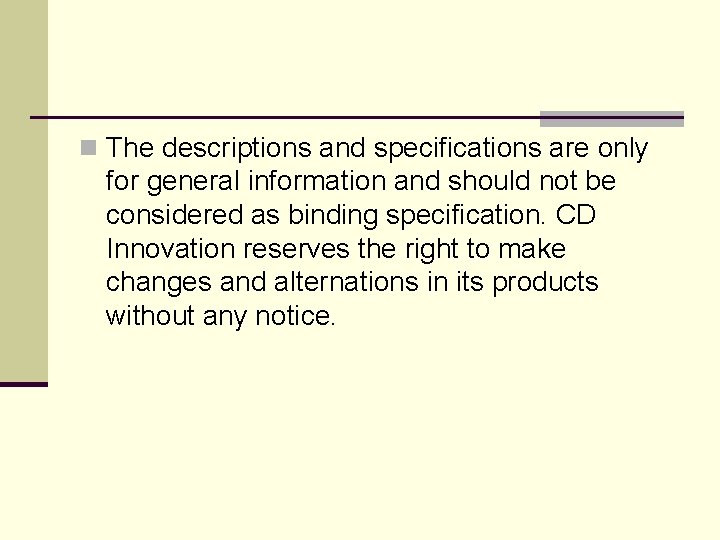

n The descriptions and specifications are only for general information and should not be considered as binding specification. CD Innovation reserves the right to make changes and alternations in its products without any notice.
