UV Lenses H 2520 -UVM, B 2528 -UV, B 7838 -UV

What are UV rays? [nm] 0. 001 0. 01 100 nm Cosmic rays Gamma rays 1000 *Absorbed by ozone. *Sterilizing action UV-C UV-B　（280～ 315 nm） X rays 380 UV rays 760 UV-C　（100～ 280 nm） 280 nm IR rays *Generation of vitamin D 3 UV-B Visible rays 315 nm 380 nm Visible rays UV-A　（315～ 380 nm） *Aging of skin UV-A Electric wave *Suntan

H 2520 -UVM, B 2528 -UV, B 7838 -UV 100 nm 25 mm F 2. 0 Wavelength range stay in focus: UV-C 　280 to 365 nm 250 nm 280 nm UV-B (Mega-pixel) and 250 nm to 450 nm (High resolution) 315 nm UV-A H 2520 -UVM ***nm 380 nm 450 nm Visible rays B 2528 -UV and B 7838 -UV 25 mm F 2. 8 and 78 mm F 3. 8 Wavelength range stay in focus: 　***nm +/- 5 nm (***: from 230 nm to 800 nm)

H 2520 -UVM　（UV Lens） *High performance UV lens corresponding with mega-pixel camera. *Compact in design and ideal for integration into machine vision systems. *Focus and iris locking screws against vibration and shock. *Extended wavelength range (280 nm to 365 nm) by introduction of fluorite. High resolution High contrast Focal length 25 mm Iris range F 2. 0 to F 16 Format 1/2 Locking screws Angle of view 14. 6 degrees Mega pixel Dimensions 29. 5 x 46 mm Weight 78 grams Mount C mount Low distortion Compact & light weight 280 to 365 nm High resolution 250 to 450 nm

H 2520 -UVM　Transmission factor －H 2520 -UVM (UV lens) －Ordinary lens 　280 to 356 nm: Ideal for mega pixel UV cameras 250 to 450 nm: Ideal for high resolution UV cameras 230 to 1000 nm: Working wavelength range by attaching band-pass filters

B 2528 -UV and B 7838 -UV (Near UV Lenses) + For 1 inch format near UV cameras + Adopting optical quartz + Working wavelength range from 230 nm to 800 nm by attaching bandpass filters having bandwidth of 10 nm B 7838 -UV B 2528 -UV B 7838 -UV Focal length 25 mm 78 mm Iris range F 2. 8 to F 16 F 3. 8 to F 22 Format 1 1 Angle of view 29. 7 degrees 9. 5 degrees Dimensions 30 x 25. 4 mm 62. 5 x 109. 3 mm Weight 36 grams 450 grams Mount C mount

Scattering of rays Rays having long wavelength Atoms & molecules UV rays having short wavelength are likely to hit atoms and molecules and tend to scatter.

Scattering of rays Near IR rays UV rays (Long wavelength) (Short wavelength) Scattering UV rays are short in wavelength and tend to scatter. Ideal to see surface of objects Easy to see details of surface, objects and scratches

Application examples of UV camera and lens + Surface inspection of circuits and soldering condition: Clearer to detect damage, dust or stain + Manufacturing and quality control of semiconductors: Leaves no damage nor effect on the objects + Usages with microscope in medical applications + Detection of forgery, falsified documents, bills and credit cards: *Genuine U. S. dollar bill does not emit light *Transparent stamp appears on latest credit card + Inspection of fiber optics + Inspection of oil contamination and leakage

Example 1: LCD display ＵＶ lens Dust Ordinary lens Scratch UV camera: SONY XC-EU 50 Std. Camera: SONY XC-ES 50 Cordial thanks to SONY Corp. for the image data

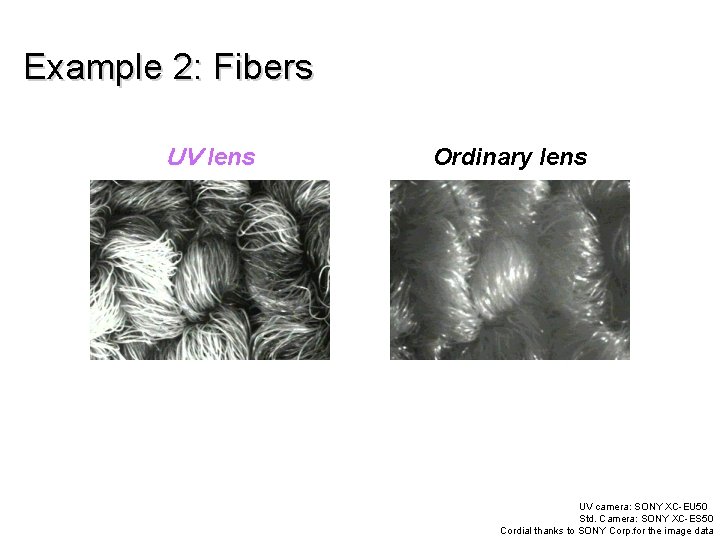

Example 2: Fibers ＵＶ lens Ordinary lens UV camera: SONY XC-EU 50 Std. Camera: SONY XC-ES 50 Cordial thanks to SONY Corp. for the image data

Example 3: P. C. board UV lens Ordinary lens Easy to see on-board parts and soldering conditions. UV camera: SONY XC-EU 50 Std. Camera: SONY XC-ES 50 Cordial thanks to SONY Corp. for the image data

Example 4: Uneven surface UV lens Ordinary lens UV camera: SONY XC-EU 50 Std. Camera: SONY XC-ES 50 Cordial thanks to SONY Corp. for the image data

Example 5: Surface layer UV lens Ordinary lens UV camera: SONY XC-EU 50 Std. Camera: SONY XC-ES 50 Cordial thanks to SONY Corp. for the image data
