CCTV Training 08 Network CCTV System CCTV Training

CCTV Training ’ 08 - Network CCTV System

CCTV Training ’ 08 - Network CCTV System Capturing Panasonic Production Storage Panasonic NEW IP Viewing NEW 3 rd Party Management Software Network Camera Network Matrix Network Digital Recorder Monitor PC Display etc.

CCTV Training ’ 08 - Network CCTV System Example IP camera L 2 SW 100 Base. T • Large amount of data • Dedicated for video 100 Base. T Camera PORT • Large amount of data • Dedicated for video Camera PORT WJ-ND 300 A Client PORT L 2 SW Router Client PC: IE, ASM 100 Remote client: IE, ASM 100 • Leased line: T 1, T 2 • Public line: Internet (VPN) Route r WAN • Only selected video due to limited bandwidth

CCTV Training ’ 08 - Network CCTV System Example Analogue Cameras Analogue PTZ Camera I-Pro Camera Video servers Client PCs Video server LAN I-Pro Cameras WAN /Internet Client PC Net. AVIS Server Client PCs

CCTV Training ’ 08 - Network Flow Chart for System Design Step. 1 Capturing 1. Choose Camera 2. Choose Lenses 3. Choose Bracket or Housing Step. 2 Storage Production 1. Choose NDR or Management Software 2. Calculate Storage Size Step. 3 Viewing 1. Choose View PC or Decoder 2. Choose Monitor Size

CCTV Training ’ 08 - Network Camera Selection

CCTV Training ’ 08 - Network Panasonic Camera Line-up Outdoor use Indoor use High-end WV-NW 960 WV-NS 950 Adaptive Black Stretch D o m e WV-NW 484 ABF WV-NF 302 WV-NS 202 A Leader High-end WV-NF 284 Adaptive Black Stretch ABF WV-NP 1000 Box WV-NP 304 Leader WV-NP 240

CCTV Training ’ 08 - Network Indoor Fixed Box Camera WV-NP 1000 u Super Dynamic III u Auto Back Focus u Built-in hybrid signal output (Analog & Digital) u Dual MPEG 4 & JPEG digital signal Mega pixel (JPEG: 1280 x 960) support VGA image size with up to 30 ips support u 600 TV line (Full scanning), 540 TV lines (Partial scanning) u Day/Night (Minimum illumination): 1. 0 lux at color mode, 0. 06 lux at B/W mode u Sensitivity up: Up to 32 x

CCTV Training ’ 08 - Network Indoor Fixed Box Camera WV-NP 240 u Dual MPEG 4 & JPEG digital signal VGA image size with up to 30 ips support u Minimum illumination: 1. 1 lux at color mode u Sensitivity up: Up to 16 x u Po. E support

CCTV Training ’ 08 - Network Indoor Fixed Box Camera WV-NP 304 u Adaptive Black Stretch u Focus assist function u Dual MPEG 4 & JPEG digital signal Mega pixel (JPEG: 1280 x 960) support VGA image size with up to 30 ips support u Day/Night (Minimum illumination): 1. 5 lux at color mode, 0. 9 lux at B/W mode u Sensitivity up: Up to 16 x u Po. E support

CCTV Training ’ 08 - Network Indoor Fixed Dome Camera WV-NF 302 u Adaptive Black Stretch u Focus assist function u Dual MPEG 4 & JPEG digital signal Mega pixel (JPEG: 1280 x 960) support VGA image size with up to 30 ips support u Day/Night (Minimum illumination): 1. 5 lux at color mode, 0. 9 lux at B/W mode u Sensitivity up: Up to 16 x u Po. E support

CCTV Training ’ 08 - Network Indoor Fixed Dome Camera WV-NF 284 u Dual MPEG 4 & JPEG digital signal VGA image size with up to 30 ips support u Minimum illumination: 1. 5 lux at color mode u Sensitivity up: Up to 16 x u Built-in x 3. 6 variable-focal lens (2. 8 – 10 mm) u Po. E support

CCTV Training ’ 08 - Network Indoor Fixed Dome Camera WV-NS 202 A u Super Dynamic III u Dual MPEG 4 & JPEG digital signal VGA image size with up to 30 ips support u Day/Night (Minimum illumination): 0. 7 lux at color mode, 0. 5 lux at B/W mode u Sensitivity up: Up to 32 x u Auto focus lens u Built-in 22 x optical zoom lens (3. 79 – 83. 4 mm) u Panning Range: 0 - 350 degree Tilting Range: - 30 degree – 90 degree u Preset function & Auto panning function u Po. E support

CCTV Training ’ 08 - Network Indoor PTZ Dome Camera WV-NS 950 Series u Super Dynamic III u Dual MPEG 4 & JPEG digital signal VGA image size with up to 30 ips support u Day/Night (Minimum illumination): 0. 5 lux at color mode, 0. 04 lux at B/W mode u Sensitivity up: Up to 32 x u Auto focus lens u Built-in 30 x optical zoom lens (3. 8 – 114 mm) u Panning Range: 360 degree endless Tilting Range: - 5 degree – 185 degree u Patrol Learn function & Auto panning function

CCTV Training ’ 08 - Network Indoor/Outdoor Fixed Dome Camera WV-NW 484 S u Super Dynamic III u Auto Back Focus u IP 66 standard approved for water & dust proof. u Dual MPEG 4 & JPEG digital signal VGA image size with up to 30 ips support u Day/Night (Minimum illumination): 0. 6 lux at color mode, 0. 08 lux at B/W mode u Sensitivity up: Up to 32 x u Built-in x 2 variable-focal lens (3. 8 – 8 mm) u Po. E support

CCTV Training ’ 08 - Network Outdoor PTZ Dome Camera WV-CW 960 Series u Super Dynamic III u IP 66 standard approved for outdoor application u Dual MPEG 4 & JPEG digital signal VGA image size with up to 30 ips support u Day/Night (Minimum illumination): 0. 5 lux at color mode, 0. 04 lux at B/W mode u Sensitivity up: Up to 32 x u Auto focus lens u Built-in 30 x optical zoom lens (3. 8 – 114 mm) u Panning Range: 360 degree endless Tilting Range: - 5 degree – 185 degree u Patrol Learn function & Auto panning function

CCTV Training ’ 08 - Network Video Encoder with AVMD WJ-NT 314 u Intruder Detection u Object Detection (Removed/Abandoned) u Frame indication and track display on the browser u 3 D automatic object size calculation

CCTV Training ’ 08 - Network Lens Selection

CCTV Training ’ 08 - Network Panasonic Lens Line-up 1/3 -type Auto Iris Lens u WV-LA 2 R 8 C 3 B u WV-LA 4 R 5 C 3 B u WV-LA 9 C 3 B 1/3 -type Zoom Lens u WV-LZ 61/15 1/3 -type Variable Focal Lens u WV-LZA 61/2 S

CCTV Training ’ 08 - Network Panasonic Lens Line-up 1/2 -type Zoom Lens u WV-LZ 81/6 A u WV-LZ 81/10 1/2 -type Variable Focal Lens u WV-LZ 80/2

CCTV Training ’ 08 - Network Panasonic Camera/Lens Combination Chart

CCTV Training ’ 08 - Network Bracket/Housing Selection

CCTV Training ’ 08 - Network Bracket/Housing Line-up Fixed Box Camera u Panasonic Standard u 3 rd Party Indoor/Outdoor Housing (Videolarm, Dennard etc. ) Videolarm: http: //www. videolarm. com/ Dennard : http: //www. dedicatedmicros. com/

CCTV Training ’ 08 - Network Bracket/Housing Line-up Fixed/PTZ Dome Camera u Panasonic Standard u 3 rd Party Indoor/Outdoor Housing (Videolarm, Videotec etc. ) Videolarm: http: //www. videolarm. com/, Videotec: http: //www. videotec. com/

CCTV Training ’ 08 - Network NDR or Management Software Selection

CCTV Training ’ 08 - Network Panasonic NDR Line-up WJ-ND 300 A u Up to 32 camera inputs u Multi format: JPEG and MPEG 4 u High speed throughput: 3 dedicated ports: camera port, client port and setup port u MPEG 4 rate control recording u Data stream control: live/recording u Accept major manufacturer’s cameras: AXIS u 500 GB to 1 TB data storage u Expandable storage: 6 WJ-HDE 300 Units in Cascade, Each WJ-HDE 300 have 4 drive bays u Optional Raid 5 board (WJ-NDB 301)

CCTV Training ’ 08 - Network Basic System Example IP camera L 2 SW 100 Base. T • Large amount of data • Dedicated for video Camera PORT WJ-ND 300 A Client PORT L 2 SW Client PC: IE, ASM 100 Router • Leased line: T 1, T 2 • Public line: Internet (VPN) Remote client: IE, ASM 100 Route r WAN • Only selected video due to limited bandwidth

CCTV Training ’ 08 - Network Storage Capacity Up to 6 WJ-HDE 300 s can be connected through USB cable WJ-HDE 300 NVR WJ-HD 316 Up to 6 units Up to 7 units NVR WJ-HD 316 Up to 4 HDD’s Up to 2 HDD’s Single system with WJ-HDE 300 s. Up to 28 HDD’s Up to 30 HDD’s RAID 5 system with WJ-HDE 300 s. Up to 28 HDD’s WJ-HDE 300 extension units Total number of disk Main unit Up to 28 HDD’s (no HDD on main unit)

CCTV Training ’ 08 - Network Panasonic DVR Line-up WJ-ND 200 u Up to 16 camera inputs u Multi format: JPEG and MPEG 4 u MPEG 4 rate control recording u Data stream control: live/recording u Accept major manufacturer’s cameras: AXIS u HDD exchange without stop recording u Mirror recording Easy Play-Back

CCTV Training ’ 08 - Network Basic System Example Audio recording X *1 Audio playback *2 Audio live WJ-ND 200 browser (Audio playback)*3 *4 HDD Viewer Camera browser (Live Audio)*3 <Conditions of audio recording & playback> *1 When using SD back up, audio cannot be recorded. *2 When displaying multi-screen, only the audio from the upper left camera can be heard. *3 WJ-ND 200 browser supports only for audio playback. (As for live audio, use camera browser. ) *4 Supports 32 kbps audio only.

CCTV Training ’ 08 - Network Panasonic NDR Line-up WJ-ND 400 u Up to 64 camera inputs u Multi format: JPEG and MPEG 4 u High speed throughput: 3 dedicated ports: camera port, client port and setup port u MPEG 4 rate control recording u Data stream control: live/recording u Accept major manufacturer’s cameras: AXIS u Max 4. 5 TB, Max 27 TB with expansion units u Hot plug, RAID 5、RAID 6 u VMD search

CCTV Training ’ 08 - Network Basic System Example ⇒ Ｇ -⇒ Ｅ Ｐ ＥＧ Ｊ Ｐ Ｍ Up to 64 network cameras can be recorded simultaneously Client PC can monitor image and control WJ-ND 400 Ｎｅｔｗｏｒ ｋ Up to 64 cameras

CCTV Training ’ 08 - Network Storage Capacity WJ-ND 400 9 x 500 GB Max 4. 5 TB Expansion Unit ＷＪ-ＨＤＥ 400 4. 5ＴＢ 6 x 4. 5ＴＢ = Max 27Ｔ Ｂ l RAID 5, RAID 6 supported for data security l Hot plug: HDD can be replaced during the operation

CCTV Training ’ 08 - Network NDR Disk Calculation

CCTV Training ’ 08 - Network Panasonic DVR Disk Calculation WJ-ND 300/ND 200 Original Calculation Software

CCTV Training ’ 08 - Network Panasonic Management Software WV-ASM 100 u Up to 100 recorders, 64 encoders and 256 directly connected cameras can be controlled. u Multi monitor flexible operation u Hybrid NDR & DVR support

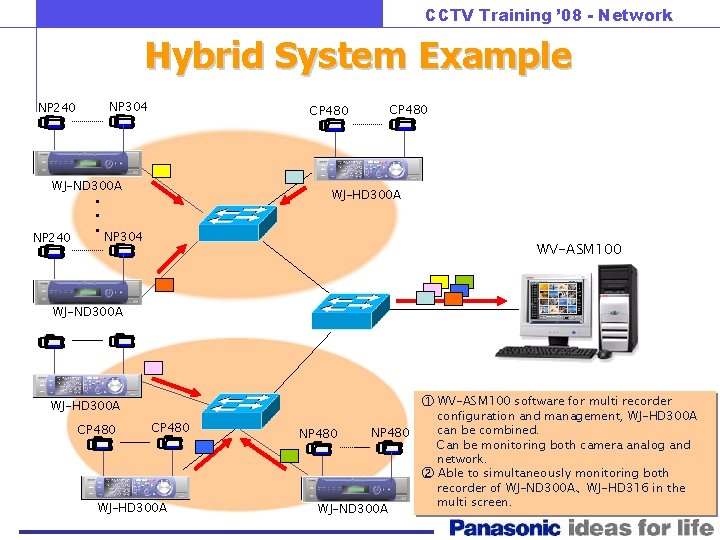

CCTV Training ’ 08 - Network Hybrid System Example NP 240 NP 304 CP 480 WJ-ND 300 A ・ ・ ・ NP 304 NP 240 WJ-HD 300 A WV-ASM 100 WJ-ND 300 A WJ-HD 300 A CP 480 WJ-HD 300 A NP 480 WJ-ND 300 A ① WV-ASM 100 software for multi recorder configuration and management, WJ-HD 300 A can be combined. Can be monitoring both camera analog and network. ② Able to simultaneously monitoring both recorder of WJ-ND 300 A、WJ-HD 316 in the multi screen.

CCTV Training ’ 08 - Network 3 rd Party Management Software Net. AVIS u 100% Web compatibility u Highest availability (Linux and Java) u Map display u Utilizes standard hardware components u Provides highest safety by password protected access u Scalable archive capacity by hardware configuration u Alarm function by SMS, MMS or e-Mail

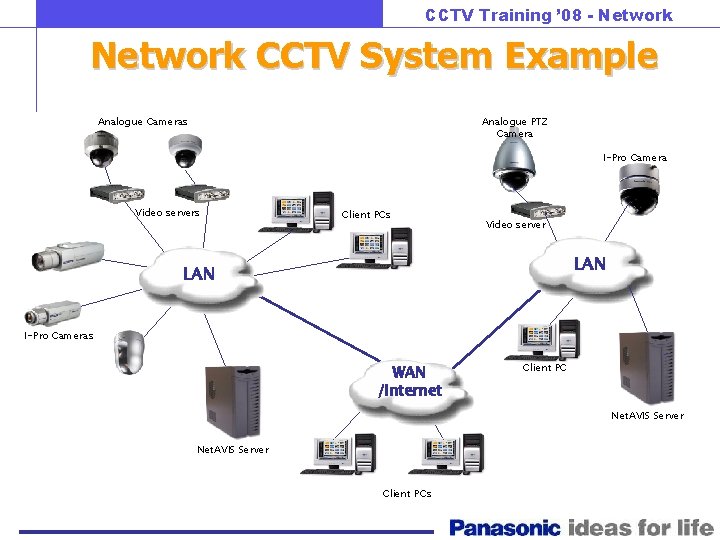

CCTV Training ’ 08 - Network CCTV System Example Analogue Cameras Analogue PTZ Camera I-Pro Camera Video servers Client PCs Video server LAN I-Pro Cameras WAN /Internet Client PC Net. AVIS Server Client PCs

CCTV Training ’ 08 - Network Panasonic Video Decoder WJ-GXD 400 u Equipped with a HDMI interface 1, 920 x 1080 display size u 1 x 4 VGA (1, 280 x 960) image with 2 x VGA images in 3 split screen u 6 x VGA images at 30 or 25 frames/sec. Display mode 1 Display mode 2
