CCTV Passive CCTV Baluns (500000, 500007, 500009, 500023, 500031, 500037) • Allows a CCTV camera to be connected to a DVR or multiplexer via Cat 5 twisted pair instead of coax. • Up to 2, 200 ft (670 m)* * Less distance with DVR. Typical 1, 000 -1, 500 ft (305 -457 m) 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

Campus Application 500000 500009 500023 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

CCTV Cat 5 e Optimization with 500000, 500009, 500023 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

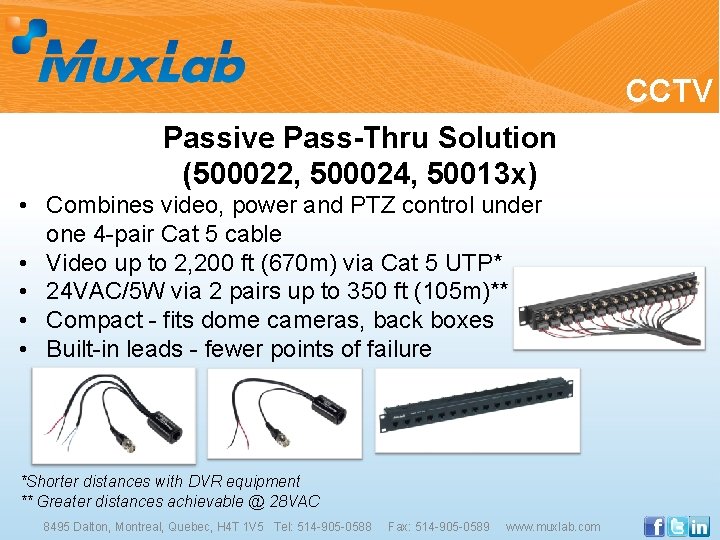

CCTV Passive Pass-Thru Solution (500022, 500024, 50013 x) • Combines video, power and PTZ control under one 4 -pair Cat 5 cable • Video up to 2, 200 ft (670 m) via Cat 5 UTP* • 24 VAC/5 W via 2 pairs up to 350 ft (105 m)** • Compact - fits dome cameras, back boxes • Built-in leads - fewer points of failure *Shorter distances with DVR equipment ** Greater distances achievable @ 28 VAC 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

CCTV Passive CCTV Cabling Solution Short Distance 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

CCTV Hybrid Analog/IP CCTV Cabling Solution 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

CCTV Passive CCTV Power Integrator Hub, 24 VAC 500136 -US, 500136 -UK, 500136 -Eur The Passive CCTV Power Integrator Hub allows video, remote power and PTZ control to be transmitted via one Cat 5 e/6 cable between the CCTV camera and the DVR/IP encoder in the security video environment. • Built-in 16 -channel 350 VA PSU • Voltage selector switch per port: 24 VAC or 28 VAC • Port configuration: Power-Thru or Pass-Thru mode • 2 U rack height • Auto-resettable fuses on each port • Seamless integration with 500130, 500022, 500024 • 5 year warranty 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

CCTV Passive CCTV Power Integrator Hub Solution 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

CCTV Ground Loop Isolation (500132, 500133) • Combines video, power and PTZ control under one 4 -pair Cat 5 cable • Ground Loop Isolation • Power-Thru and Pass-Thru Modes *Shorter distances with DVR equipment ** Greater distances achievable @ 28 VAC 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

CCTV Passive CCTV Cabling Solution with Ground Loop Isolation 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

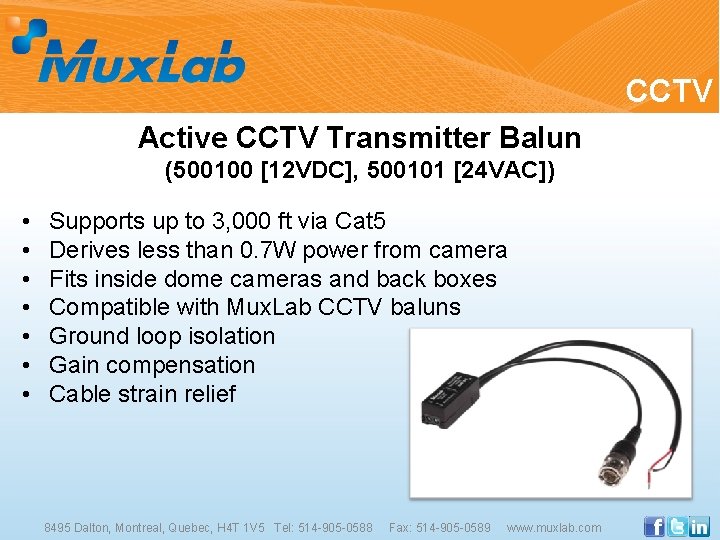

CCTV Active CCTV Transmitter Balun (500100 [12 VDC], 500101 [24 VAC]) • • Supports up to 3, 000 ft via Cat 5 Derives less than 0. 7 W power from camera Fits inside dome cameras and back boxes Compatible with Mux. Lab CCTV baluns Ground loop isolation Gain compensation Cable strain relief 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

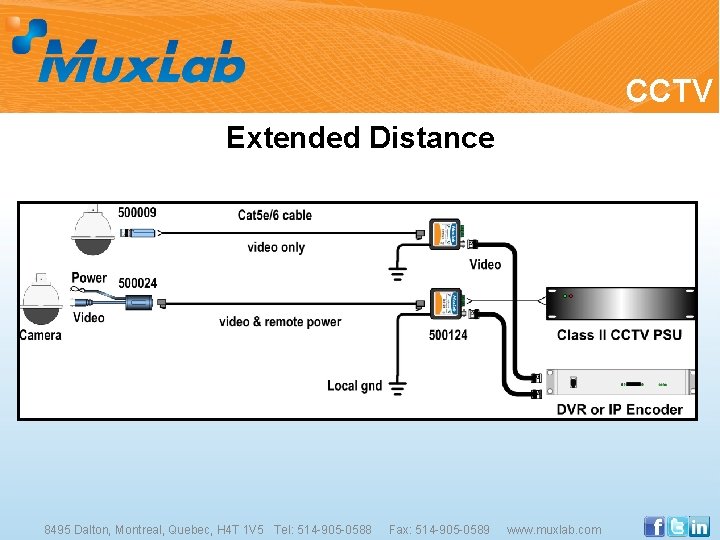

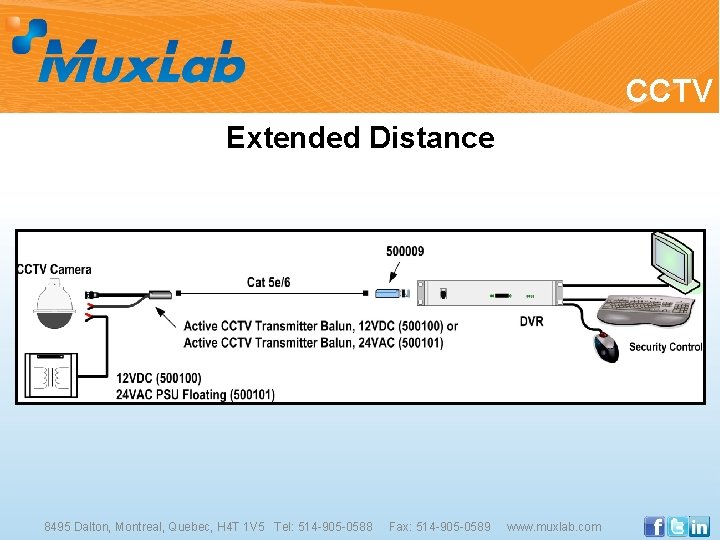

CCTV Extended Distance 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

CCTV Long. Reach II Active CCTV Balun (500124) • Up to 5, 000 feet (1. 5 km) via Cat 5 e/6 • Up to 7, 000 feet (2. 1 km) via Cat 5 e/6 with 500100/101 at camera • Auto Gain Control (AGC) • Video, power and PTZ over one Cat 5 e/6 • Supports Mux. Lab mounting accessories (500900/902/910/915) • Auto Polarity Correction • Ground Loop Isolation (GLI) • LED diagnostics 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

CCTV Extended Distance 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

Part II - CCTV 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

CCTV Extended Distance 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

CCTV Long. Reach II Active CCTV Receiver Hub (500126 [8 p], 500127 [16 p]) 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

CCTV IP Extender Kit (500110) • Extend distance between CCTV IP camera and 10/100 Base. T LAN • Supports up to two (2) IP cameras • Cat 5 e/6 or coax link • Up to 650 ft (200 m) @ 100 Mbps • Up to 1 mile (1. 6 km) @ 25 Mbps • Includes Tx/Rx, 2 psu 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

CCTV IP Extender (500110) 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

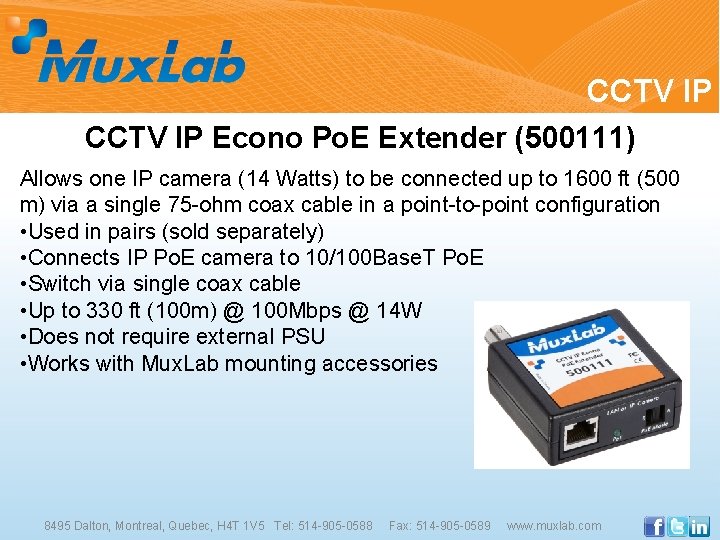

CCTV IP Econo Po. E Extender (500111) Allows one IP camera (14 Watts) to be connected up to 1600 ft (500 m) via a single 75 -ohm coax cable in a point-to-point configuration • Used in pairs (sold separately) • Connects IP Po. E camera to 10/100 Base. T Po. E • Switch via single coax cable • Up to 330 ft (100 m) @ 100 Mbps @ 14 W • Does not require external PSU • Works with Mux. Lab mounting accessories 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

CCTV IP Econo Po. E Extender (500111) 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com
