CCTV OVERVIEW Basic training Out Line CCTV Training

CCTV OVERVIEW Basic training

Out Line CCTV Training • • Video Surveillance Timeline About Honeywell Basic Knowledge Specification © 2015 by Honeywell International Inc. All rights reserved.

Video Surveillance Timeline © 2015 by Honeywell International Inc. All rights reserved.

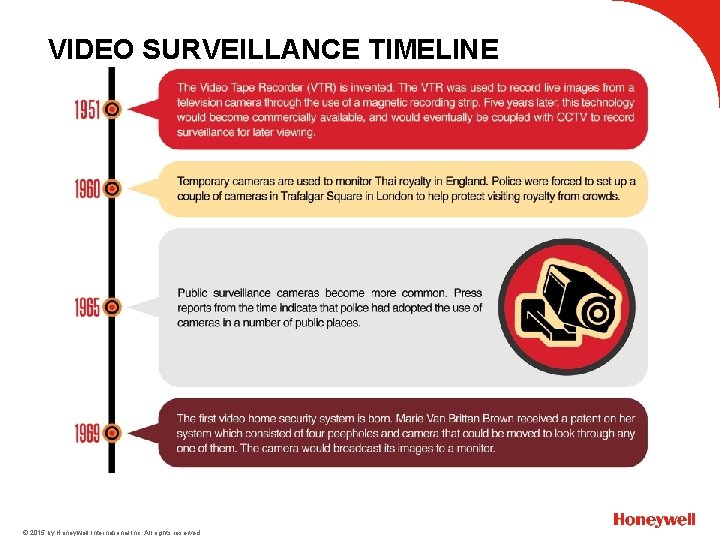

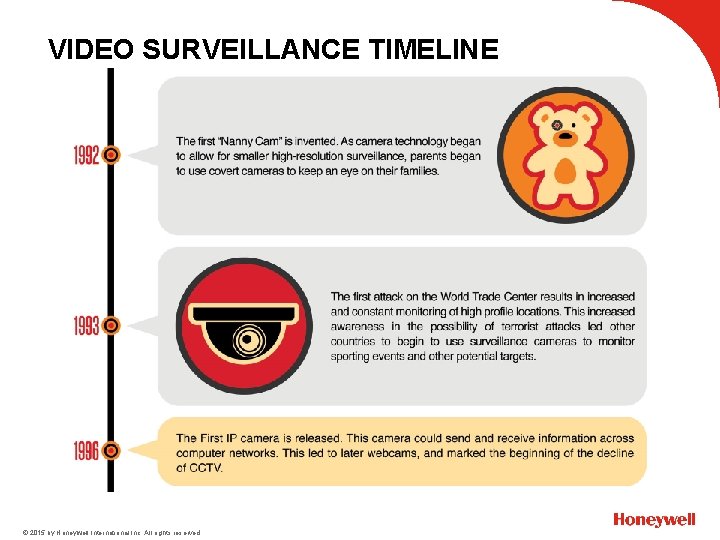

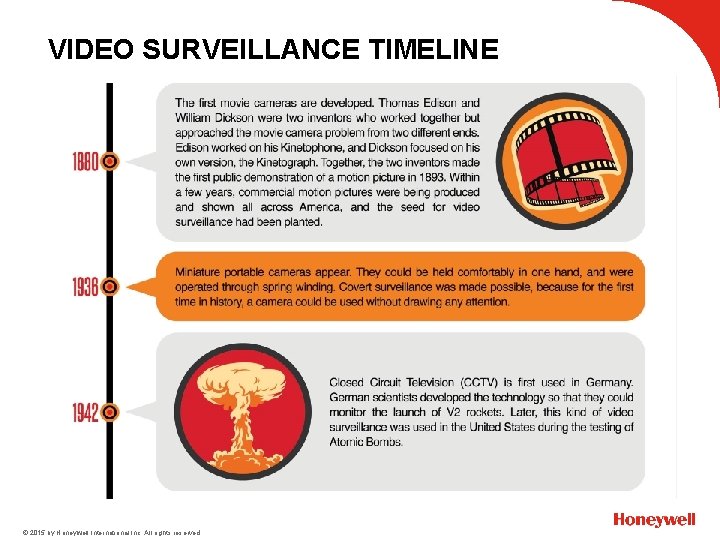

VIDEO SURVEILLANCE TIMELINE © 2015 by Honeywell International Inc. All rights reserved.

VIDEO SURVEILLANCE TIMELINE © 2015 by Honeywell International Inc. All rights reserved.

VIDEO SURVEILLANCE TIMELINE © 2015 by Honeywell International Inc. All rights reserved.

VIDEO SURVEILLANCE TIMELINE © 2015 by Honeywell International Inc. All rights reserved.

VIDEO SURVEILLANCE TIMELINE © 2015 by Honeywell International Inc. All rights reserved.

About Honeywell © 2015 by Honeywell International Inc. All rights reserved.

Honeywell's story • Honeywell's story stretches back more than 125 years https: //www. honeywell. com/who-we-are/our-history © 2015 by Honeywell International Inc. All rights reserved.

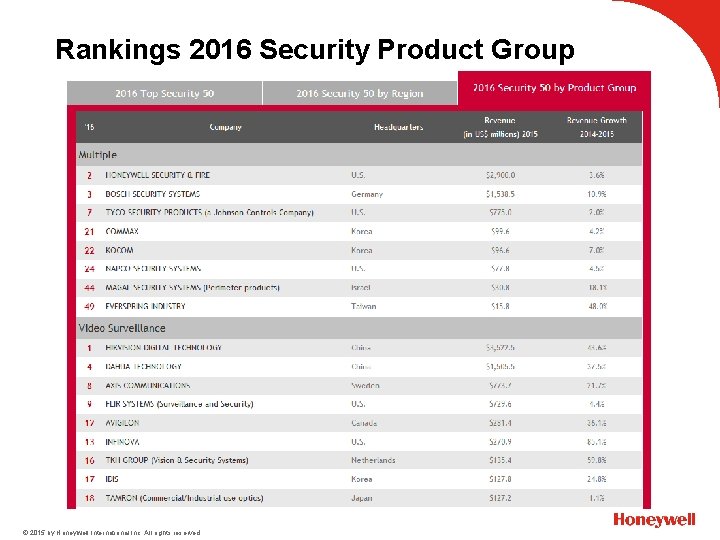

Rankings 2016 Security Product Group © 2015 by Honeywell International Inc. All rights reserved.

Basic Knowledge © 2015 by Honeywell International Inc. All rights reserved.

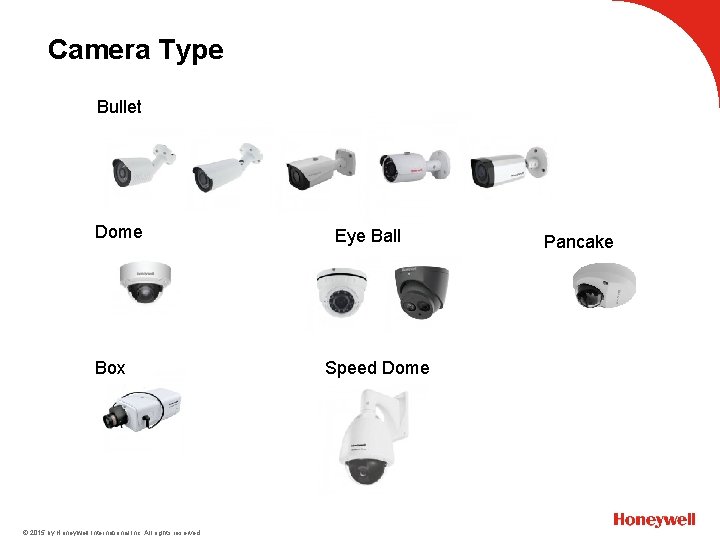

Camera Type Bullet Dome Box © 2015 by Honeywell International Inc. All rights reserved. Eye Ball Speed Dome Pancake

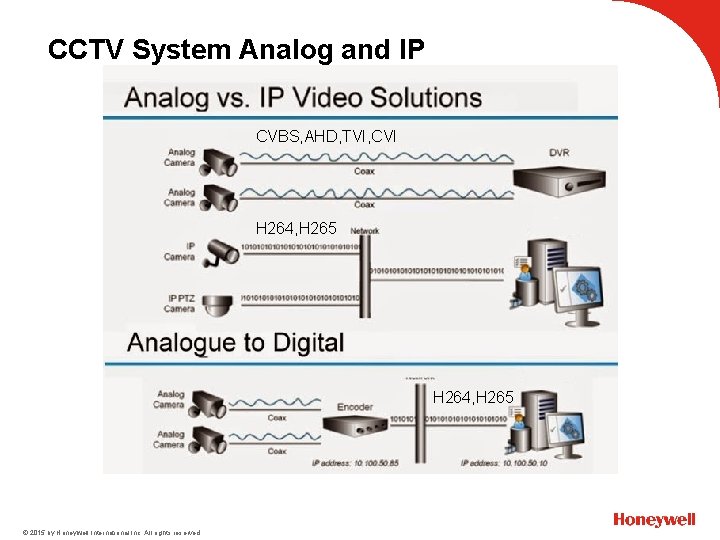

CCTV System Analog and IP CVBS, AHD, TVI, CVI H 264, H 265 © 2015 by Honeywell International Inc. All rights reserved.

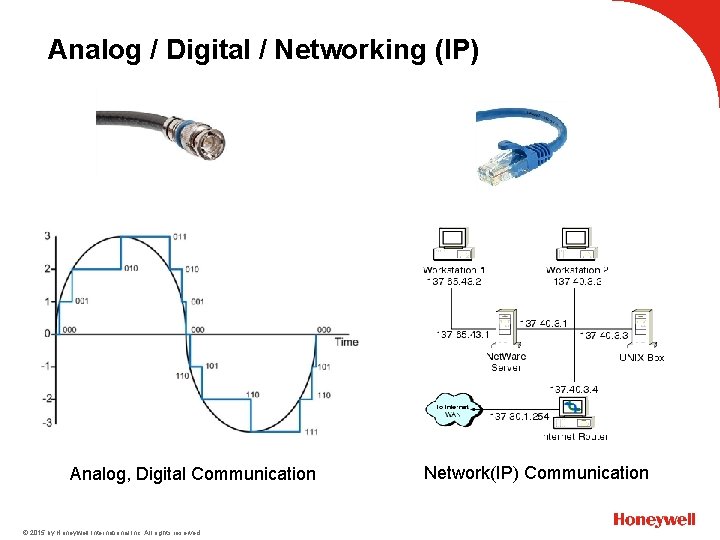

Analog / Digital / Networking (IP) Analog, Digital Communication © 2015 by Honeywell International Inc. All rights reserved. Network(IP) Communication

Video Compression © 2015 by Honeywell International Inc. All rights reserved.

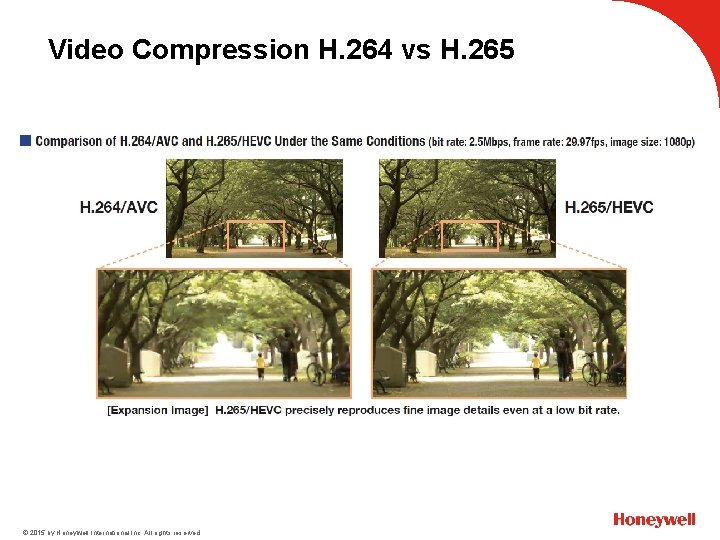

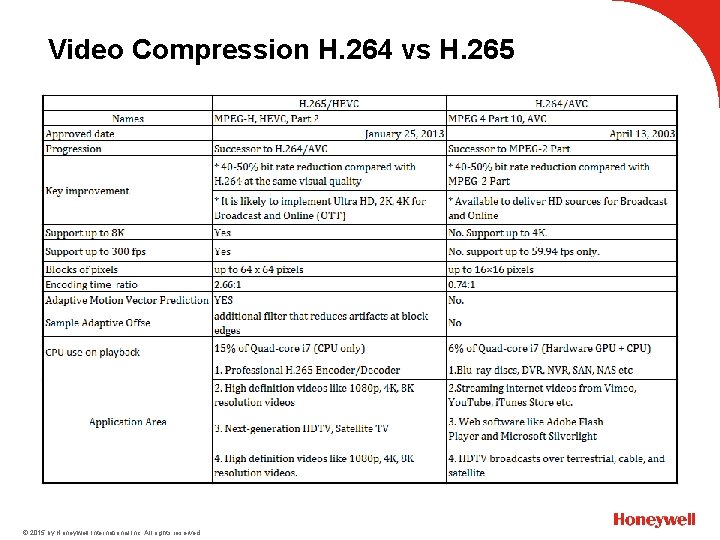

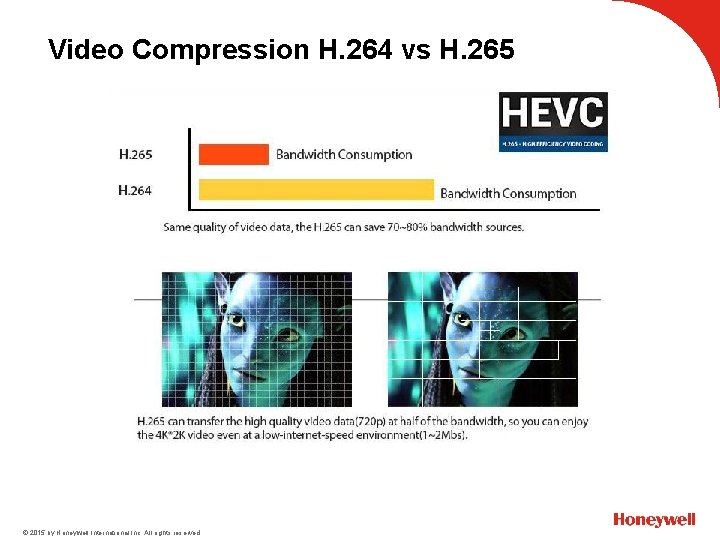

Video Compression H. 264 vs H. 265 © 2015 by Honeywell International Inc. All rights reserved.

Video Compression H. 264 vs H. 265 © 2015 by Honeywell International Inc. All rights reserved.

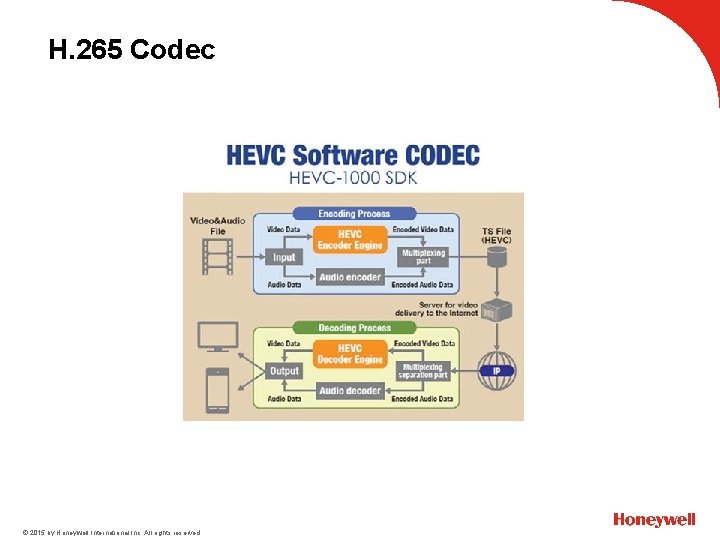

H. 265 Codec © 2015 by Honeywell International Inc. All rights reserved.

Video Compression H. 264 vs H. 265 © 2015 by Honeywell International Inc. All rights reserved.

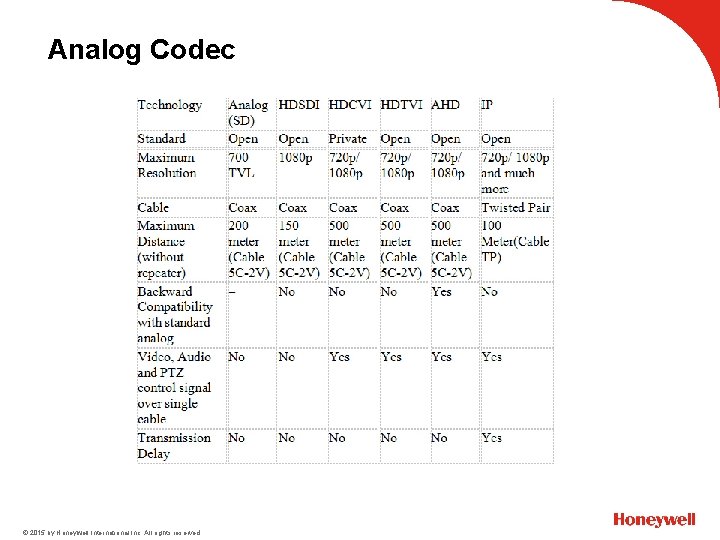

Analog Codec © 2015 by Honeywell International Inc. All rights reserved.

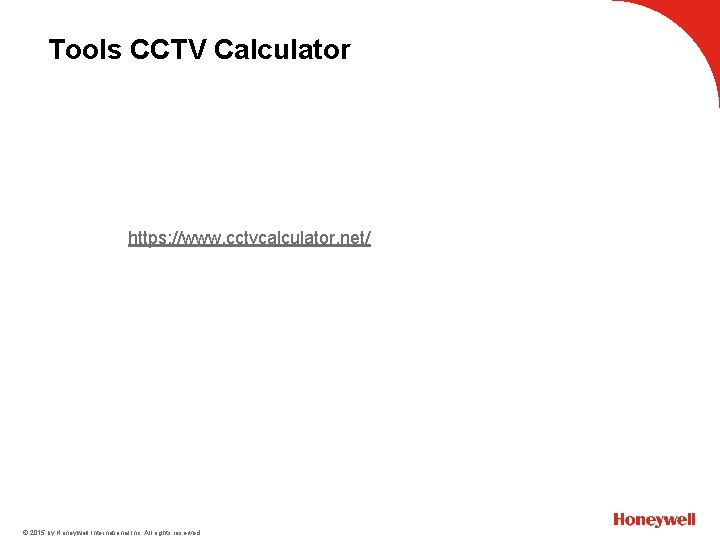

Tools CCTV Calculator https: //www. cctvcalculator. net/ © 2015 by Honeywell International Inc. All rights reserved.

Sensor Size © 2015 by Honeywell International Inc. All rights reserved.

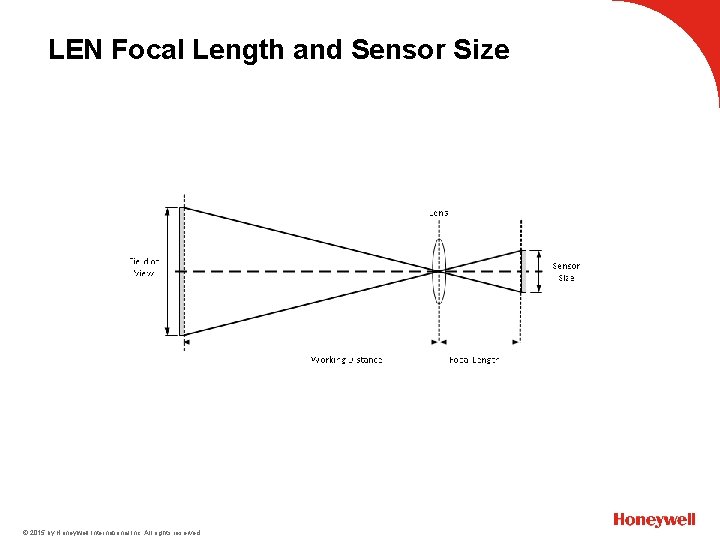

LEN Focal Length and Sensor Size © 2015 by Honeywell International Inc. All rights reserved.

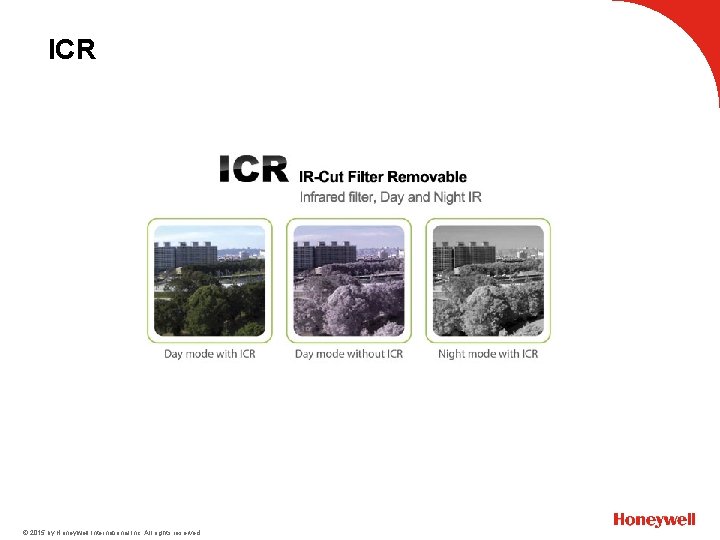

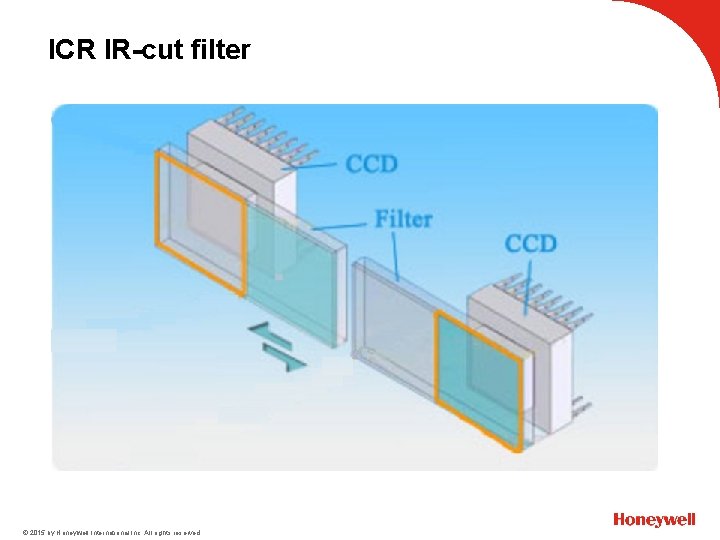

ICR IR-cut filter © 2015 by Honeywell International Inc. All rights reserved.

ICR © 2015 by Honeywell International Inc. All rights reserved.

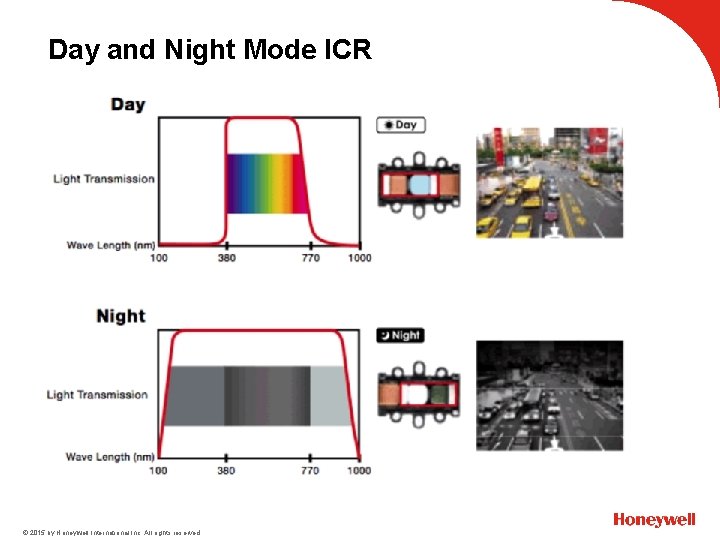

Day and Night Mode ICR © 2015 by Honeywell International Inc. All rights reserved.

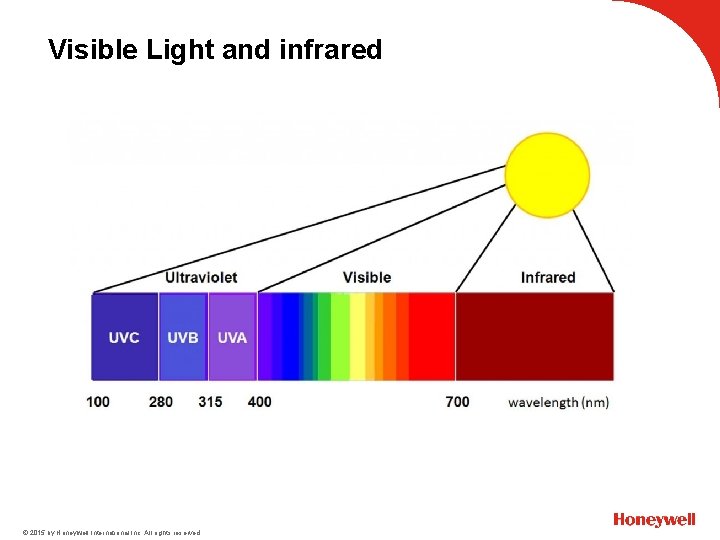

Visible Light and infrared © 2015 by Honeywell International Inc. All rights reserved.

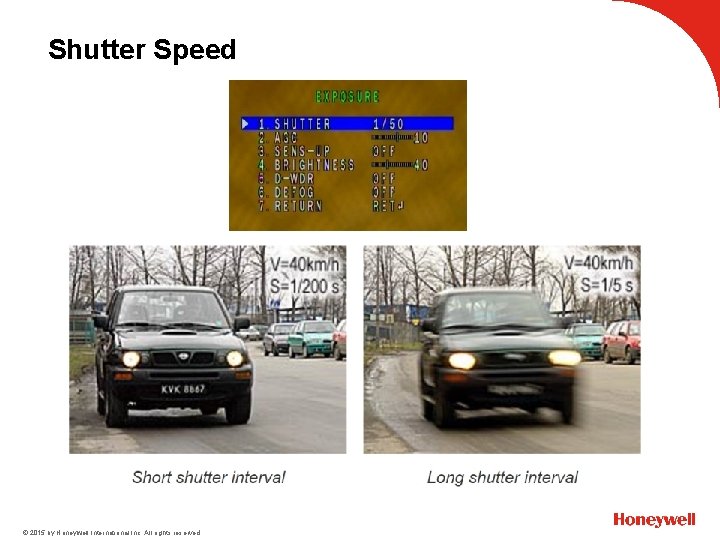

Shutter Speed © 2015 by Honeywell International Inc. All rights reserved.

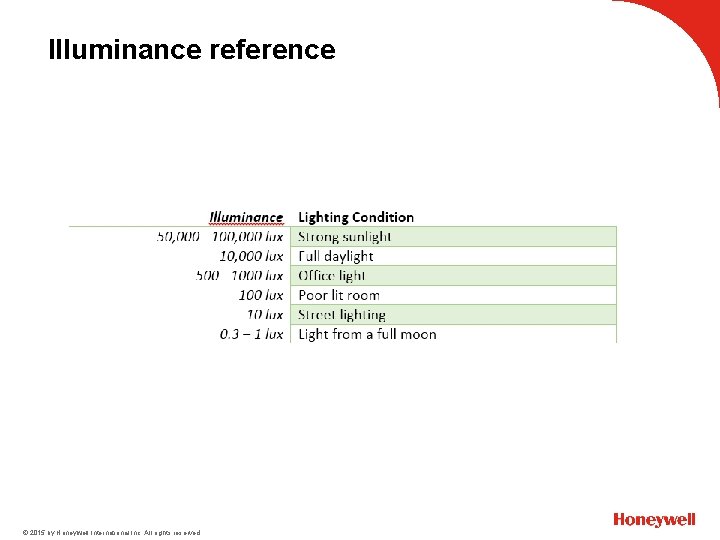

Illuminance reference © 2015 by Honeywell International Inc. All rights reserved.

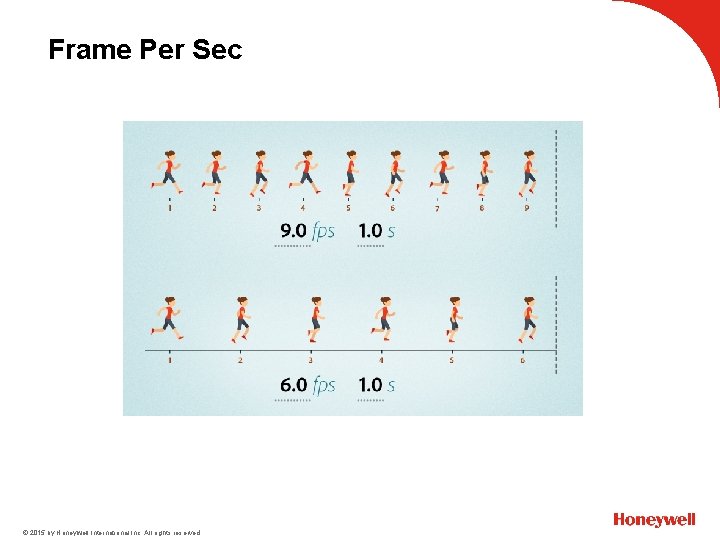

Frame Per Sec © 2015 by Honeywell International Inc. All rights reserved.

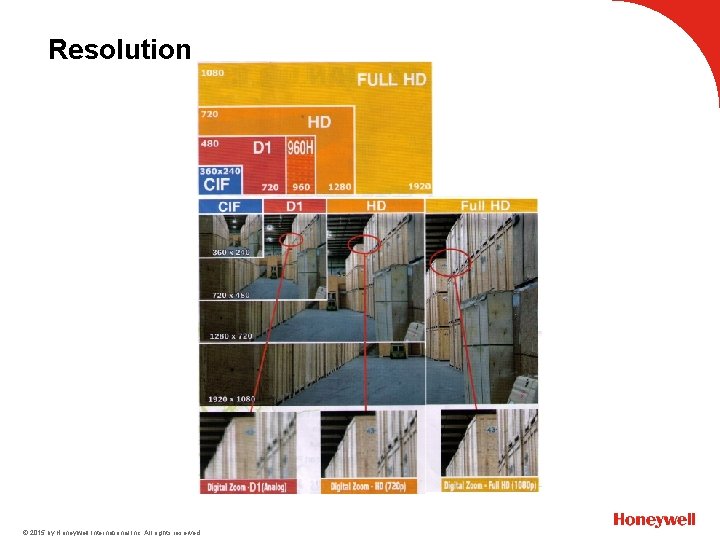

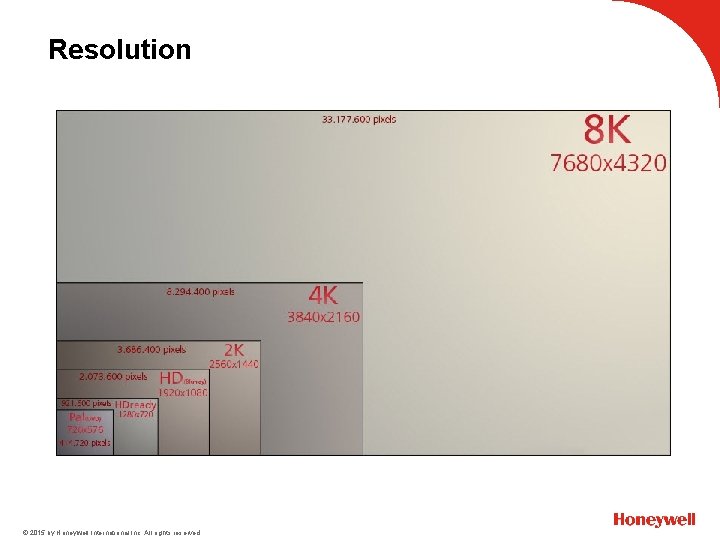

Resolution © 2015 by Honeywell International Inc. All rights reserved.

Resolution © 2015 by Honeywell International Inc. All rights reserved.

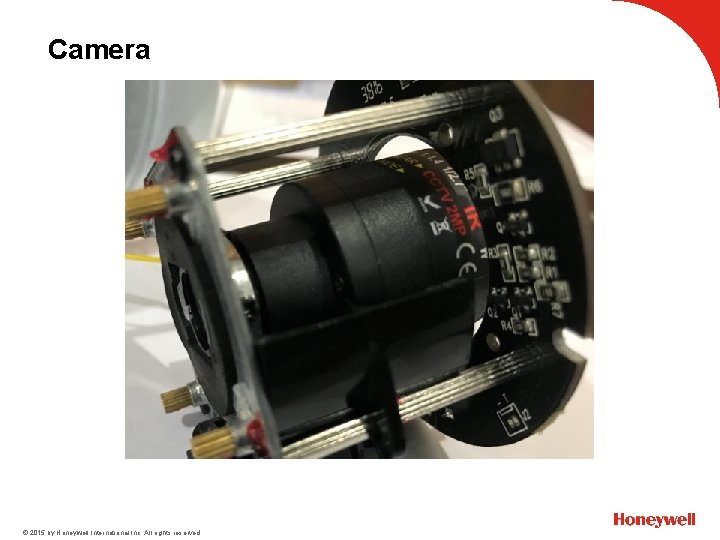

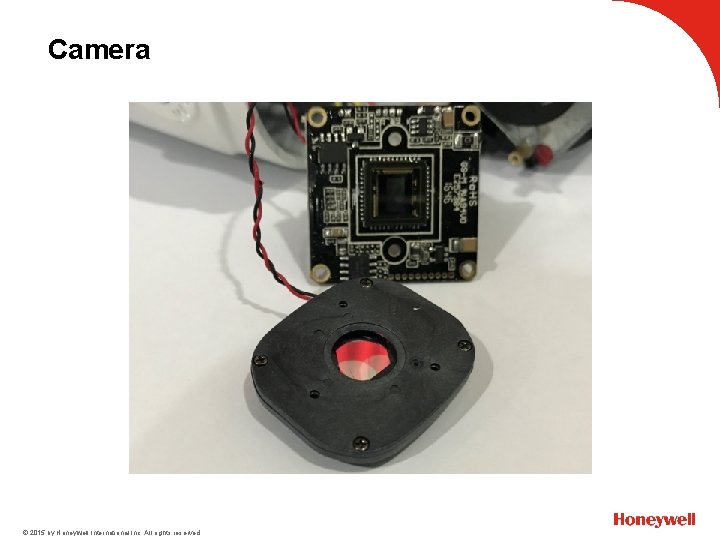

Camera © 2015 by Honeywell International Inc. All rights reserved.

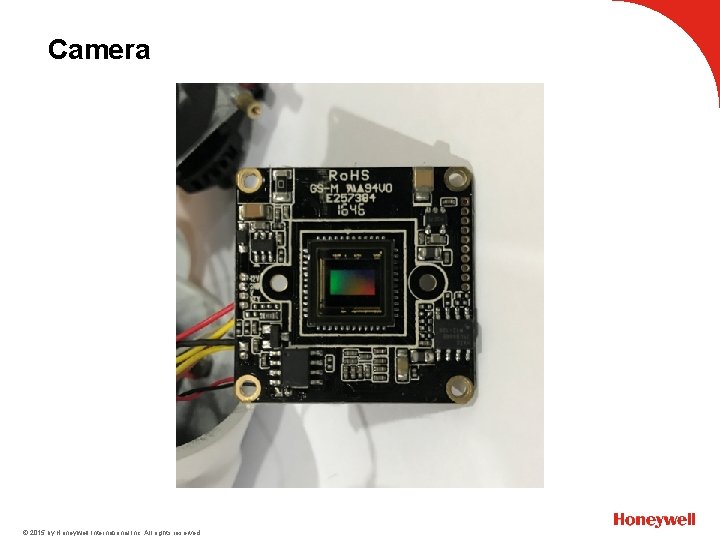

Camera © 2015 by Honeywell International Inc. All rights reserved.

Camera © 2015 by Honeywell International Inc. All rights reserved.

Specification © 2015 by Honeywell International Inc. All rights reserved.

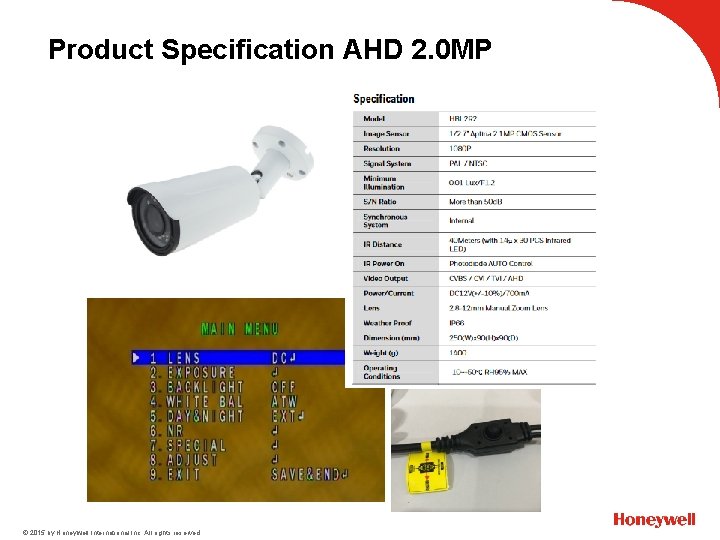

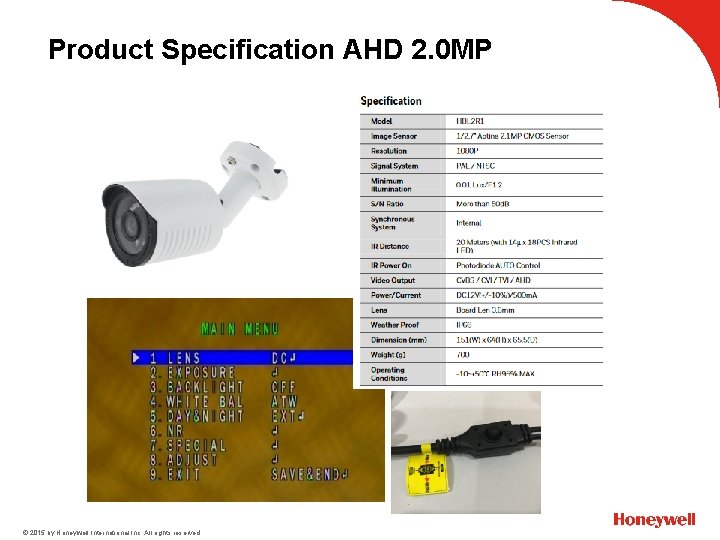

Product Specification AHD 2. 0 MP © 2015 by Honeywell International Inc. All rights reserved.

Product Specification AHD 2. 0 MP © 2015 by Honeywell International Inc. All rights reserved.

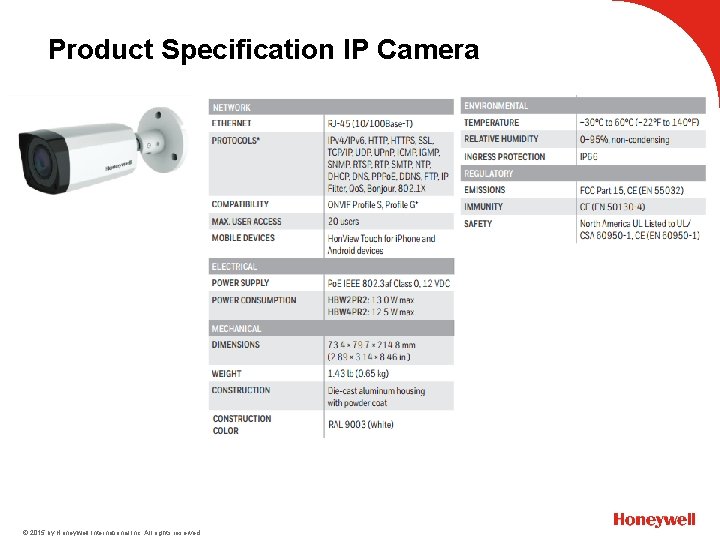

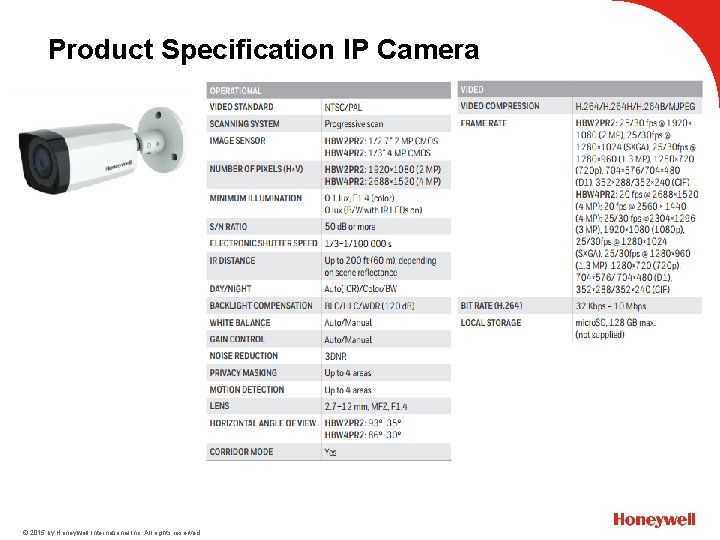

Product Specification IP Camera © 2015 by Honeywell International Inc. All rights reserved.

Product Specification IP Camera © 2015 by Honeywell International Inc. All rights reserved.

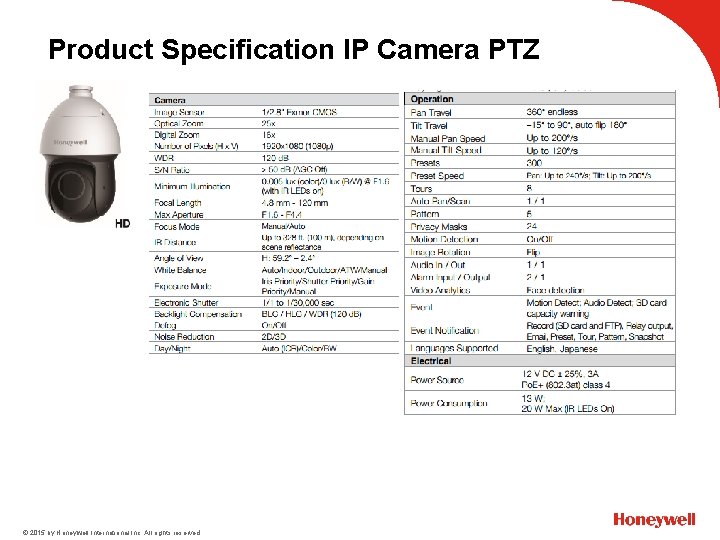

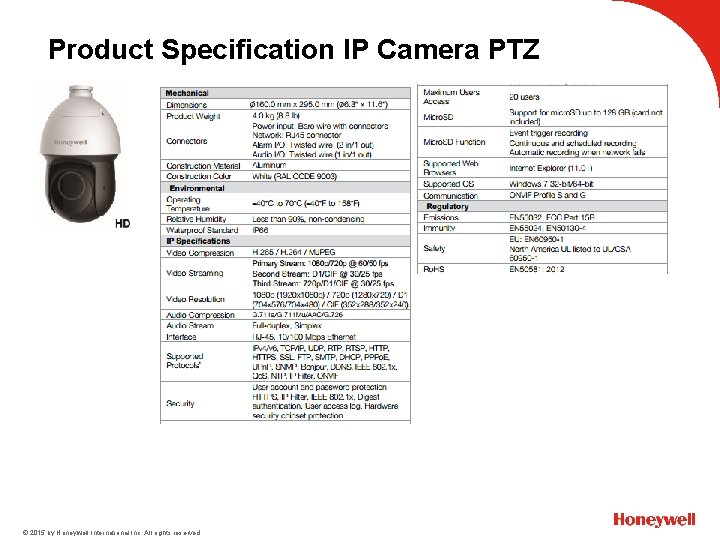

Product Specification IP Camera PTZ © 2015 by Honeywell International Inc. All rights reserved.

Product Specification IP Camera PTZ © 2015 by Honeywell International Inc. All rights reserved.

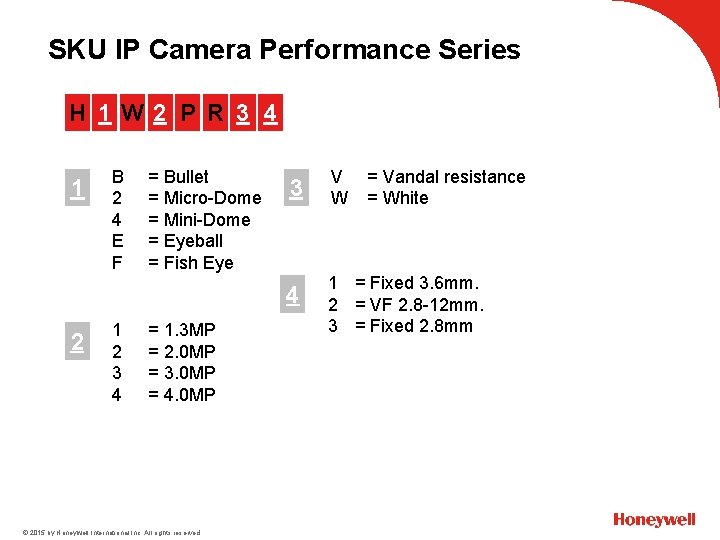

SKU IP Camera Performance Series H 1 W 2 P R 3 4 1 2 B 2 4 E F 1 2 3 4 = Bullet = Micro-Dome = Mini-Dome = Eyeball = Fish Eye = 1. 3 MP = 2. 0 MP = 3. 0 MP = 4. 0 MP © 2015 by Honeywell International Inc. All rights reserved. 3 V W = Vandal resistance = White 4 1 = Fixed 3. 6 mm. 2 = VF 2. 8 -12 mm. 3 = Fixed 2. 8 mm

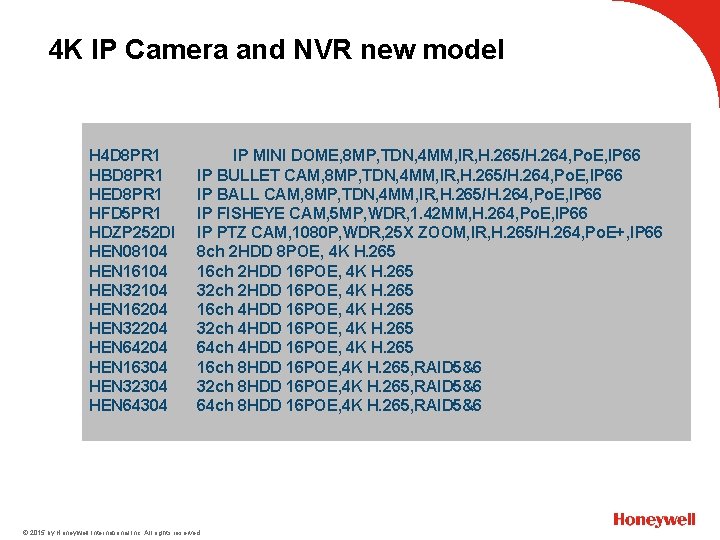

4 K IP Camera and NVR new model H 4 D 8 PR 1 HBD 8 PR 1 HED 8 PR 1 HFD 5 PR 1 HDZP 252 DI HEN 08104 HEN 16104 HEN 32104 HEN 16204 HEN 32204 HEN 64204 HEN 16304 HEN 32304 HEN 64304 IP MINI DOME, 8 MP, TDN, 4 MM, IR, H. 265/H. 264, Po. E, IP 66 IP BULLET CAM, 8 MP, TDN, 4 MM, IR, H. 265/H. 264, Po. E, IP 66 IP BALL CAM, 8 MP, TDN, 4 MM, IR, H. 265/H. 264, Po. E, IP 66 IP FISHEYE CAM, 5 MP, WDR, 1. 42 MM, H. 264, Po. E, IP 66 IP PTZ CAM, 1080 P, WDR, 25 X ZOOM, IR, H. 265/H. 264, Po. E+, IP 66 8 ch 2 HDD 8 POE, 4 K H. 265 16 ch 2 HDD 16 POE, 4 K H. 265 32 ch 2 HDD 16 POE, 4 K H. 265 16 ch 4 HDD 16 POE, 4 K H. 265 32 ch 4 HDD 16 POE, 4 K H. 265 64 ch 4 HDD 16 POE, 4 K H. 265 16 ch 8 HDD 16 POE, 4 K H. 265, RAID 5&6 32 ch 8 HDD 16 POE, 4 K H. 265, RAID 5&6 64 ch 8 HDD 16 POE, 4 K H. 265, RAID 5&6 © 2015 by Honeywell International Inc. All rights reserved.
