CCS HUNGARY Baggage Reconciliation System Optimal baggage handling

CCS HUNGARY Baggage Reconciliation System

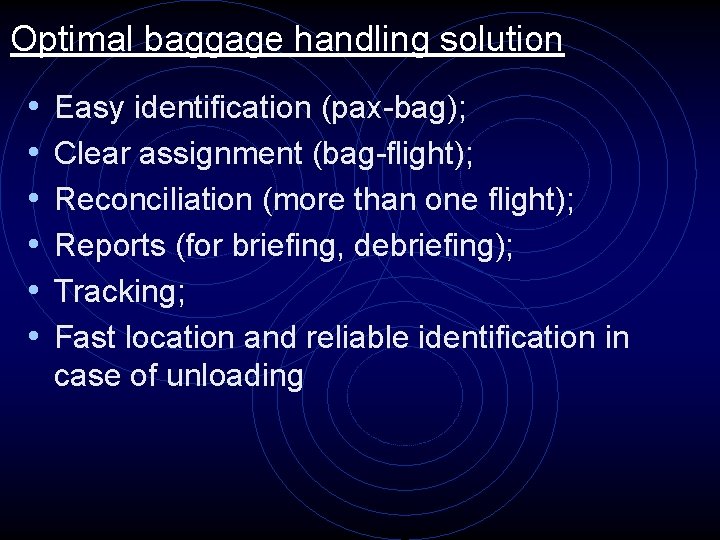

Optimal baggage handling solution • • • Easy identification (pax-bag); Clear assignment (bag-flight); Reconciliation (more than one flight); Reports (for briefing, debriefing); Tracking; Fast location and reliable identification in case of unloading

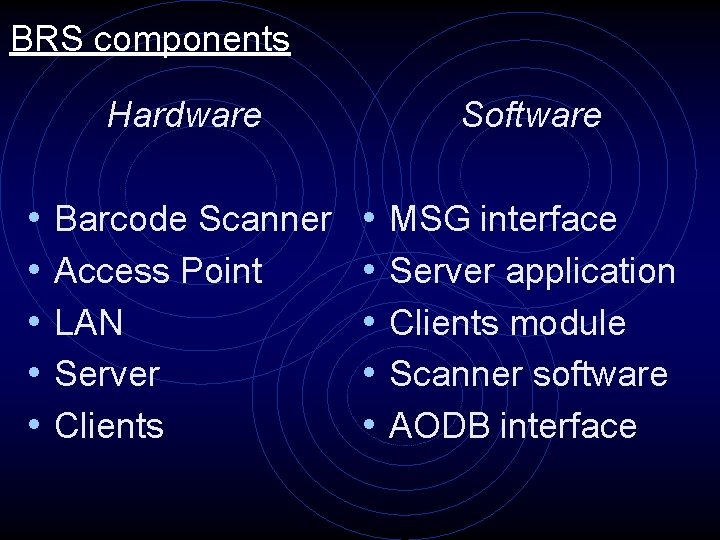

BRS components Hardware • • • Barcode Scanner Access Point LAN Server Clients Software • • • MSG interface Server application Clients module Scanner software AODB interface

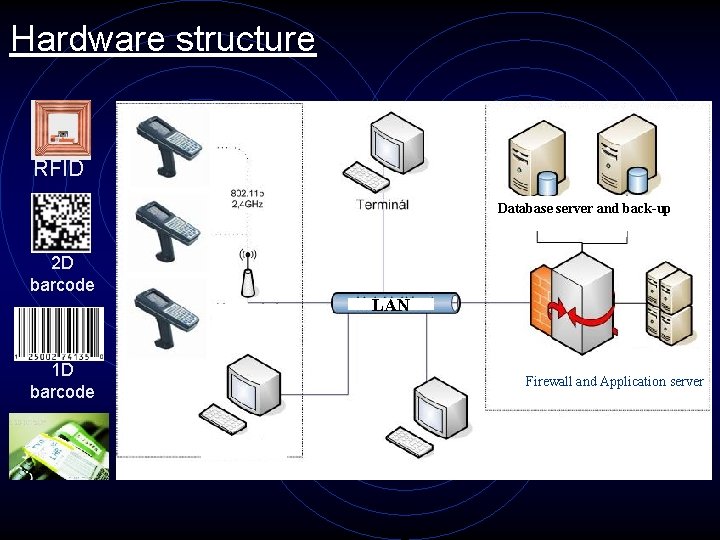

Hardware structure RFID Database server and back-up 2 D barcode 1 D barcode LAN Firewall and Application server

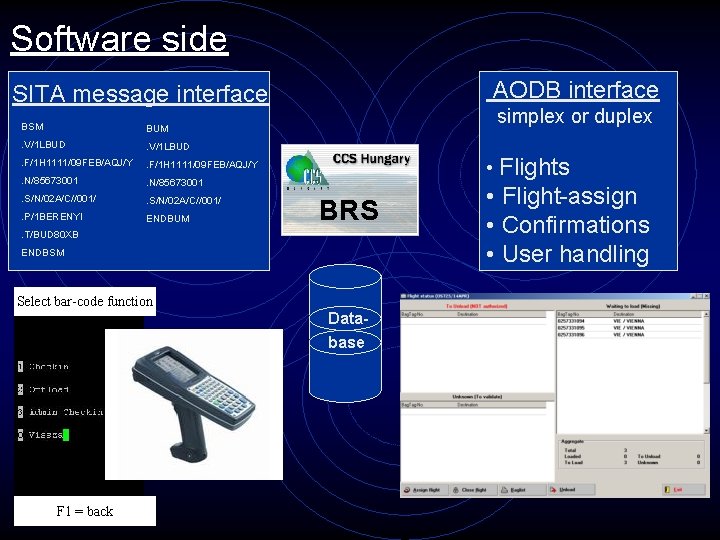

Software side AODB interface SITA message interface BSM BUM . V/1 LBUD . F/1 H 1111/09 FEB/AQJ/Y . N/85673001 . S/N/02 A/C//001/ . P/1 BERENYI ENDBUM simplex or duplex • Flights BRS . T/BUD 80 XB ENDBSM Select bar-code function Database F 1 = back • Flight-assign • Confirmations • User handling

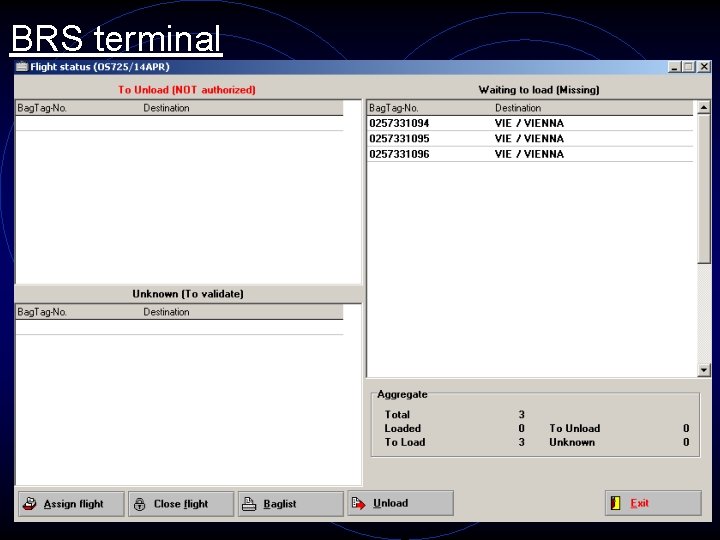

BRS terminal

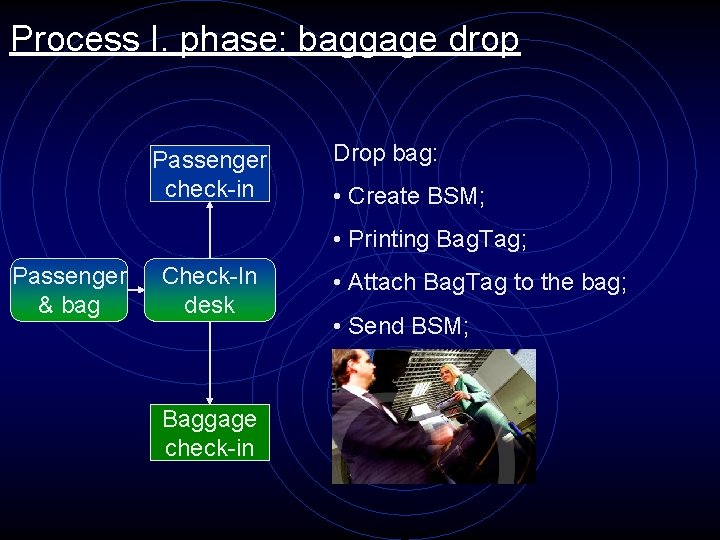

Process I. phase: baggage drop Passenger check-in Drop bag: • Create BSM; • Printing Bag. Tag; Passenger & bag Check-In desk Baggage check-in • Attach Bag. Tag to the bag; • Send BSM;

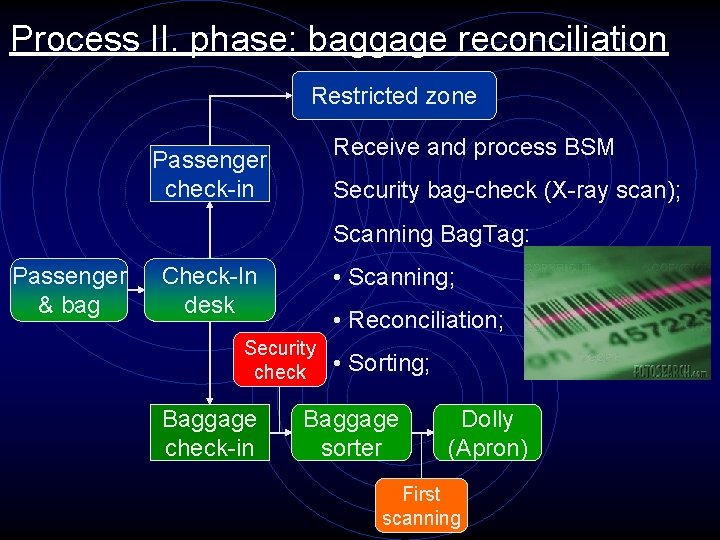

Process II. phase: baggage reconciliation Restricted zone Receive and process BSM Passenger check-in Security bag-check (X-ray scan); Scanning Bag. Tag: Passenger & bag • Scanning; Check-In desk • Reconciliation; Security check Baggage check-in • Sorting; Baggage sorter Dolly (Apron) First scanning

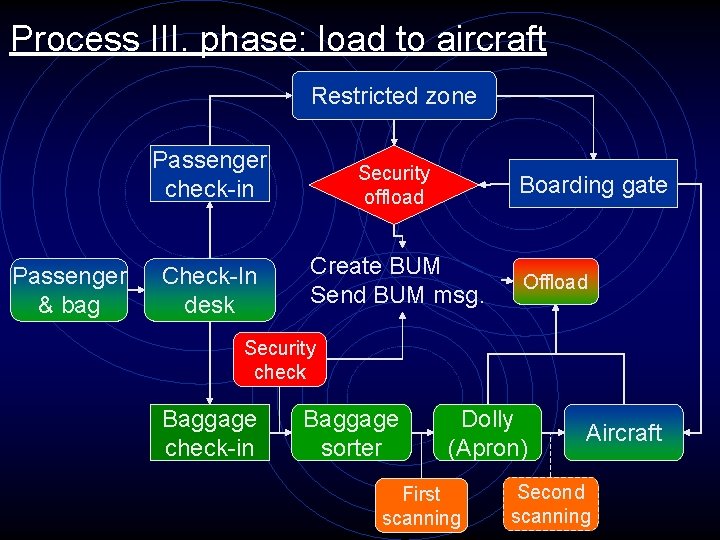

Process III. phase: load to aircraft Szigorított Restrictedterület zone Passenger & bag Passenger check-in Security offload Check-In desk Create BUM Send BUM msg. Boarding gate Offload Security check Baggage check-in Baggage sorter Targonca Dolly (Apron) (előtér) Első First leolvasás scanning Aircraft Second scanning

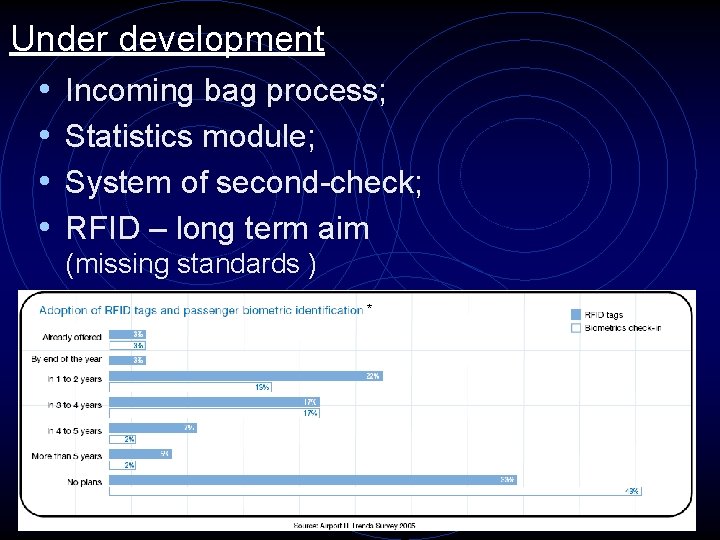

Under development • Incoming bag process; • Statistics module; • System of second-check; • RFID – long term aim (missing standards ) *
