Causes and Consequences of Inbreeding: a Livestock Genomic Perspective Christian Maltecca North Carolina State University Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics
Finding a common thread… Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 2

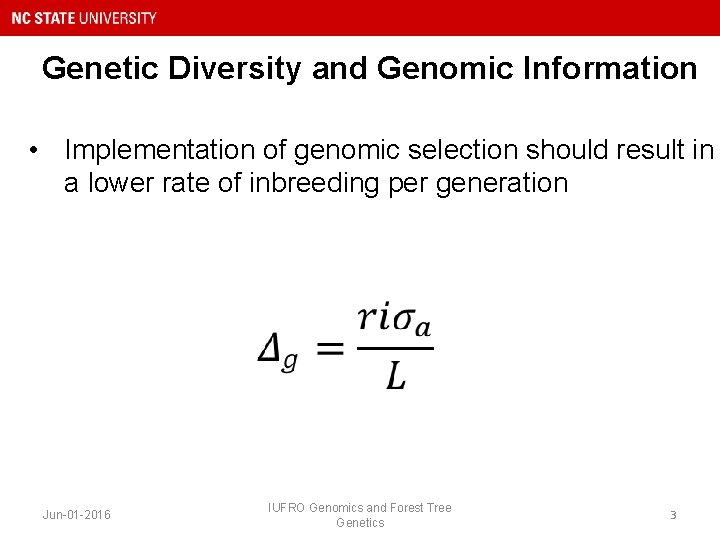

Genetic Diversity and Genomic Information • Implementation of genomic selection should result in a lower rate of inbreeding per generation Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 3

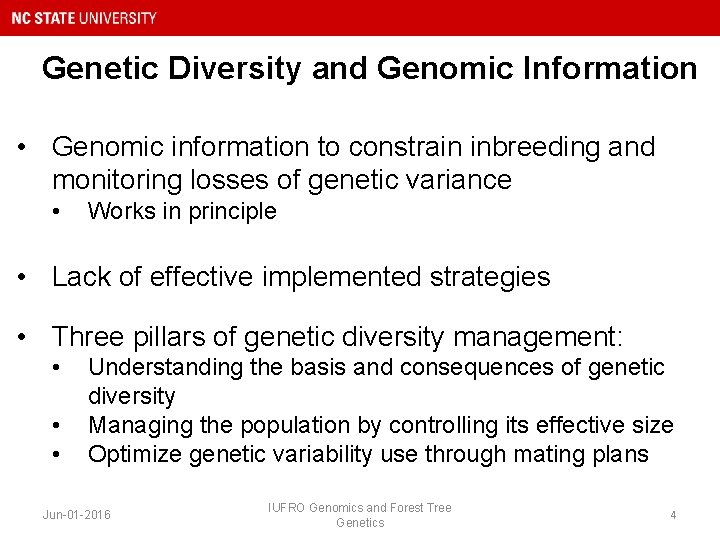

Genetic Diversity and Genomic Information • Genomic information to constrain inbreeding and monitoring losses of genetic variance • Works in principle • Lack of effective implemented strategies • Three pillars of genetic diversity management: • • • Understanding the basis and consequences of genetic diversity Managing the population by controlling its effective size Optimize genetic variability use through mating plans Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 4

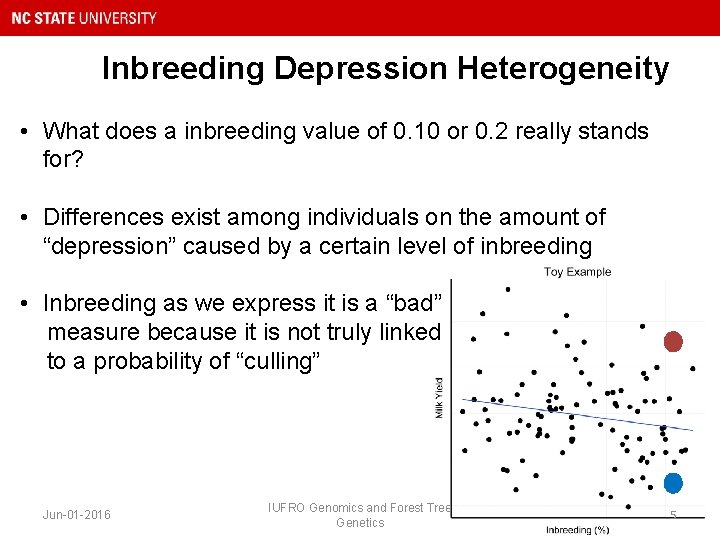

Inbreeding Depression Heterogeneity • What does a inbreeding value of 0. 10 or 0. 2 really stands for? • Differences exist among individuals on the amount of “depression” caused by a certain level of inbreeding • Inbreeding as we express it is a “bad” measure because it is not truly linked to a probability of “culling” Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 5

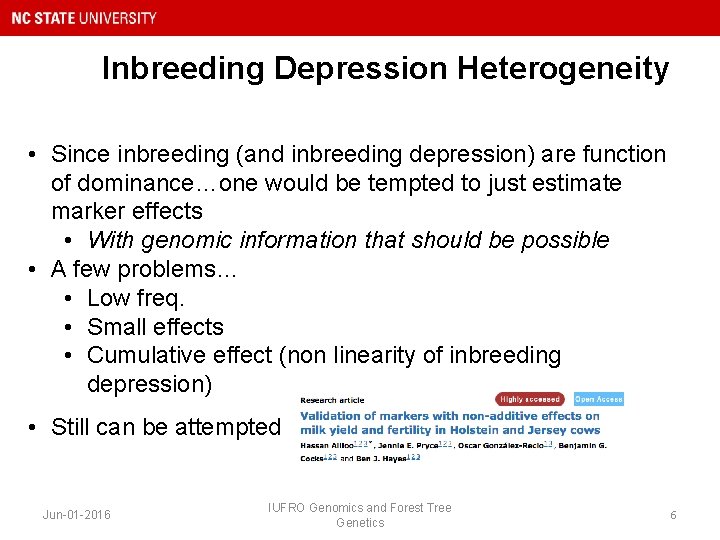

Inbreeding Depression Heterogeneity • Since inbreeding (and inbreeding depression) are function of dominance…one would be tempted to just estimate marker effects • With genomic information that should be possible • A few problems… • Low freq. • Small effects • Cumulative effect (non linearity of inbreeding depression) • Still can be attempted Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 6

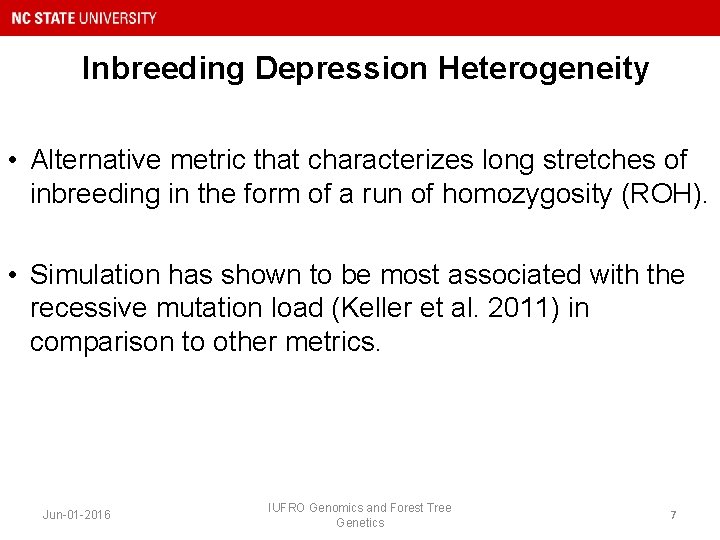

Inbreeding Depression Heterogeneity • Alternative metric that characterizes long stretches of inbreeding in the form of a run of homozygosity (ROH). • Simulation has shown to be most associated with the recessive mutation load (Keller et al. 2011) in comparison to other metrics. Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 7

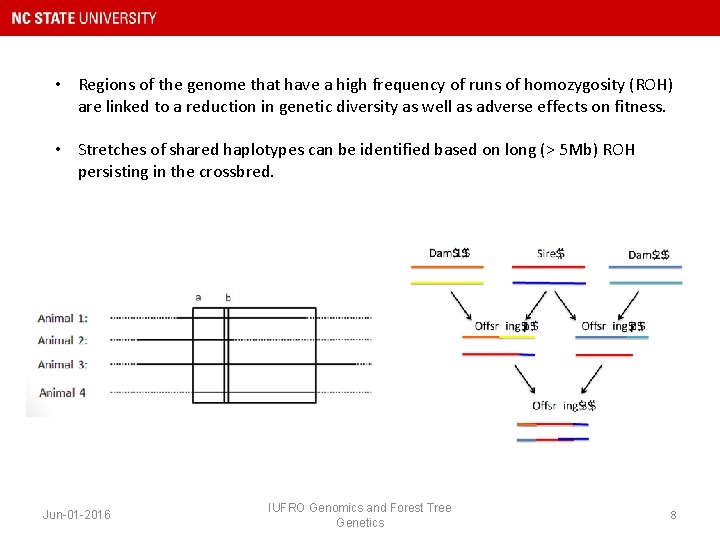

• Regions of the genome that have a high frequency of runs of homozygosity (ROH) are linked to a reduction in genetic diversity as well as adverse effects on fitness. • Stretches of shared haplotypes can be identified based on long (> 5 Mb) ROH persisting in the crossbred. Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 8

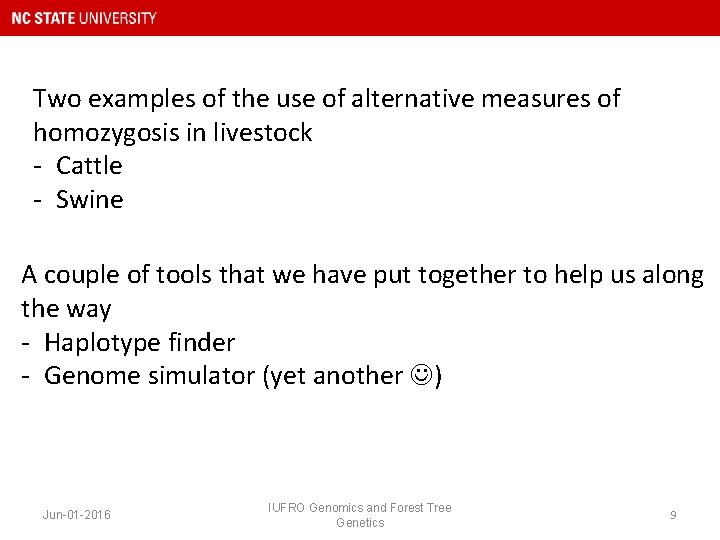

Two examples of the use of alternative measures of homozygosis in livestock - Cattle - Swine A couple of tools that we have put together to help us along the way - Haplotype finder - Genome simulator (yet another ) Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 9

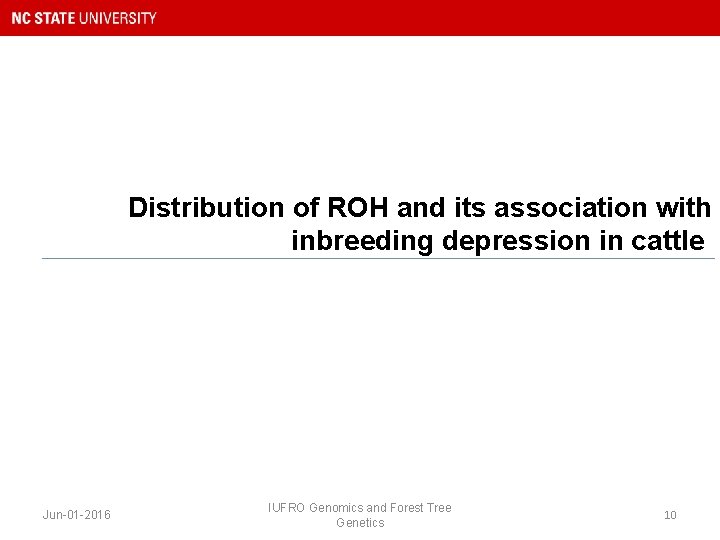

Distribution of ROH and its association with inbreeding depression in cattle Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 10

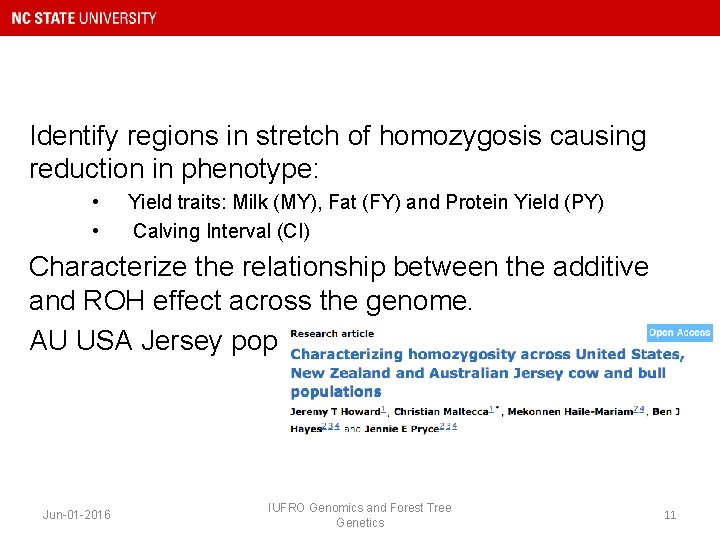

Identify regions in stretch of homozygosis causing reduction in phenotype: • • Yield traits: Milk (MY), Fat (FY) and Protein Yield (PY) Calving Interval (CI) Characterize the relationship between the additive and ROH effect across the genome. AU USA Jersey pop Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 11

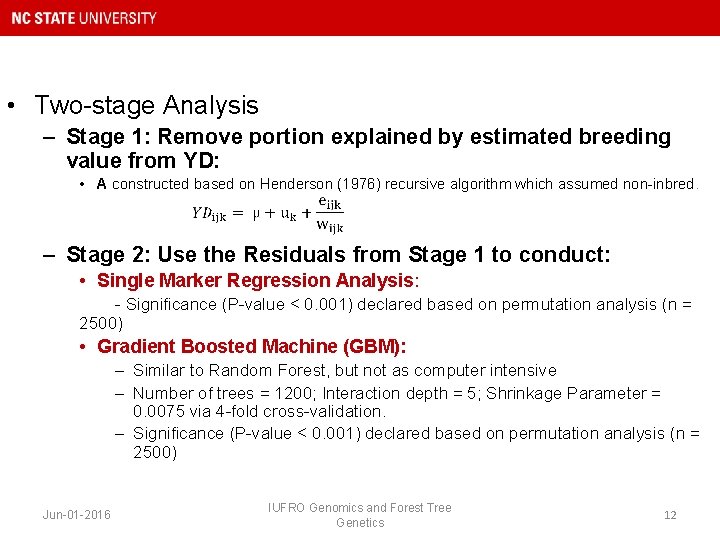

• Two-stage Analysis – Stage 1: Remove portion explained by estimated breeding value from YD: • A constructed based on Henderson (1976) recursive algorithm which assumed non-inbred. – Stage 2: Use the Residuals from Stage 1 to conduct: • Single Marker Regression Analysis: - Significance (P-value < 0. 001) declared based on permutation analysis (n = 2500) • Gradient Boosted Machine (GBM): – Similar to Random Forest, but not as computer intensive – Number of trees = 1200; Interaction depth = 5; Shrinkage Parameter = 0. 0075 via 4 -fold cross-validation. – Significance (P-value < 0. 001) declared based on permutation analysis (n = 2500) Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 12

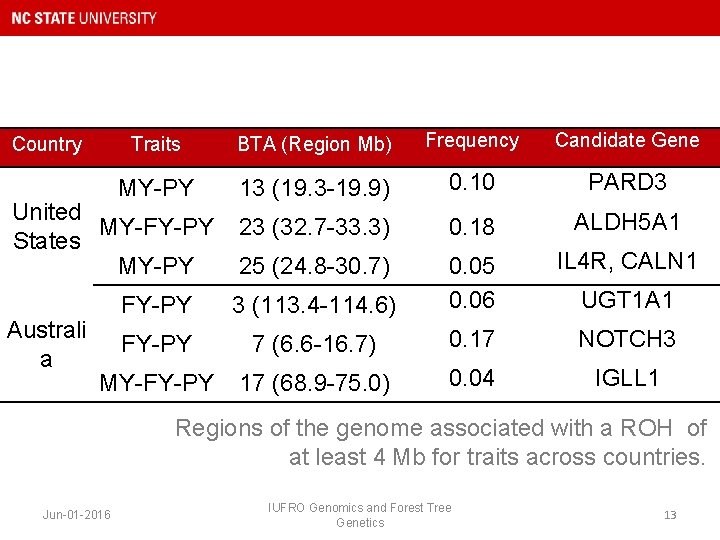

Country Traits BTA (Region Mb) Frequency Candidate Gene MY-PY 13 (19. 3 -19. 9) 0. 10 PARD 3 23 (32. 7 -33. 3) 0. 18 ALDH 5 A 1 25 (24. 8 -30. 7) IL 4 R, CALN 1 United MY-FY-PY States MY-PY Australi a FY-PY 3 (113. 4 -114. 6) 0. 05 0. 06 FY-PY 7 (6. 6 -16. 7) 0. 17 NOTCH 3 MY-FY-PY 17 (68. 9 -75. 0) 0. 04 IGLL 1 UGT 1 A 1 Regions of the genome associated with a ROH of at least 4 Mb for traits across countries. Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 13

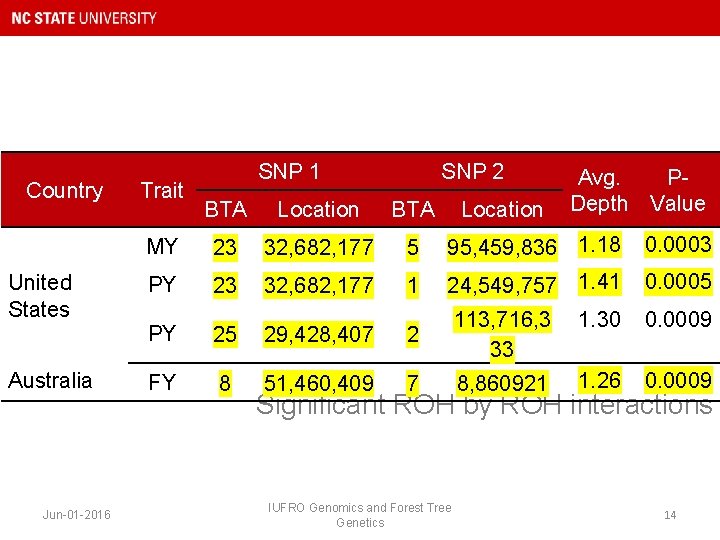

Country United States Australia Jun-01 -2016 Trait SNP 1 SNP 2 Location Avg. PDepth Value BTA Location BTA MY 23 32, 682, 177 5 95, 459, 836 1. 18 0. 0003 PY 23 32, 682, 177 1 24, 549, 757 1. 41 0. 0005 1. 30 0. 0009 1. 26 0. 0009 PY 25 29, 428, 407 2 113, 716, 3 33 FY 8 51, 460, 409 7 8, 860921 Significant ROH by ROH interactions IUFRO Genomics and Forest Tree Genetics 14

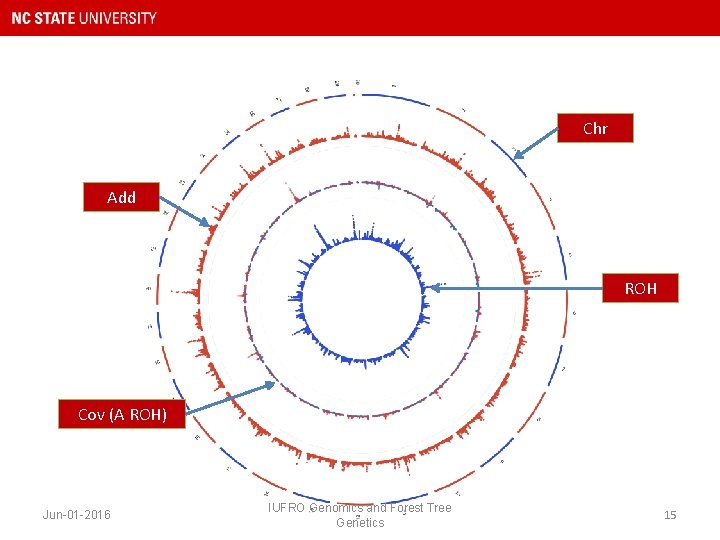

Chr Add ROH Cov (A ROH) Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 15

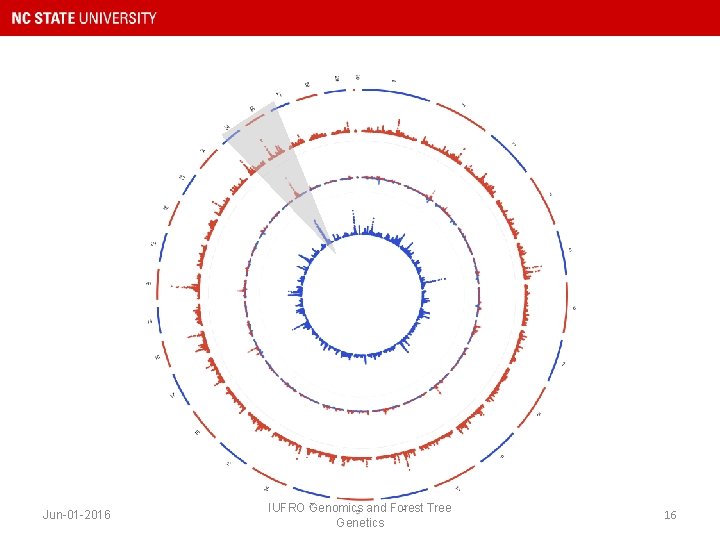

Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 16

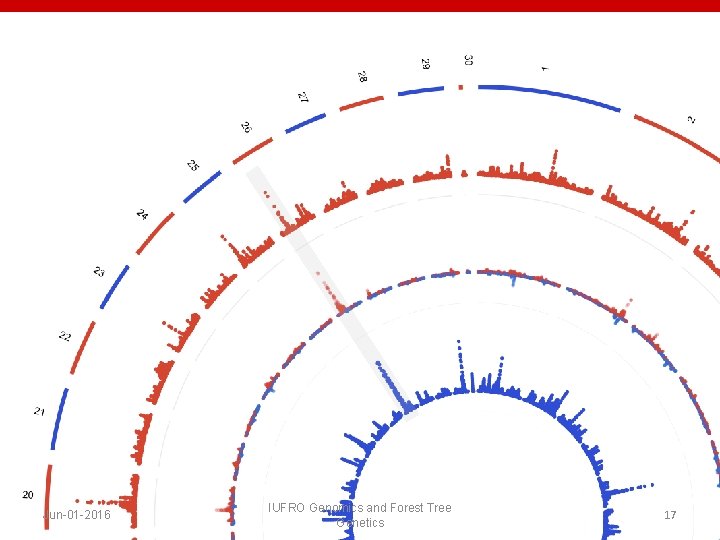

Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 17

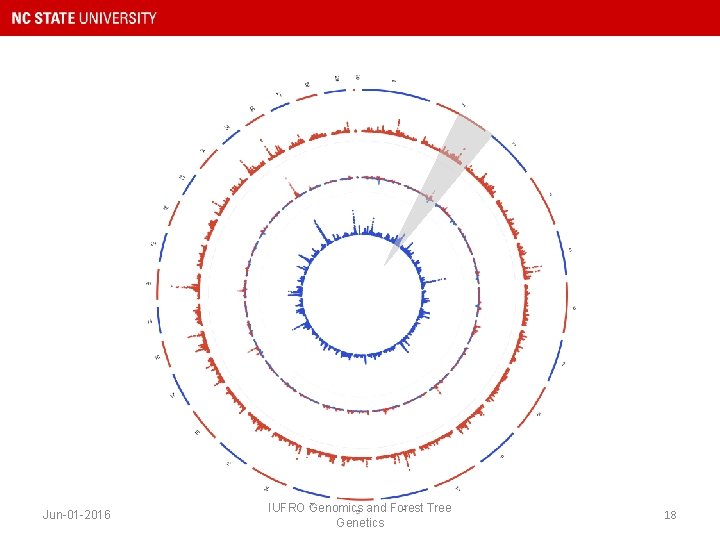

Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 18

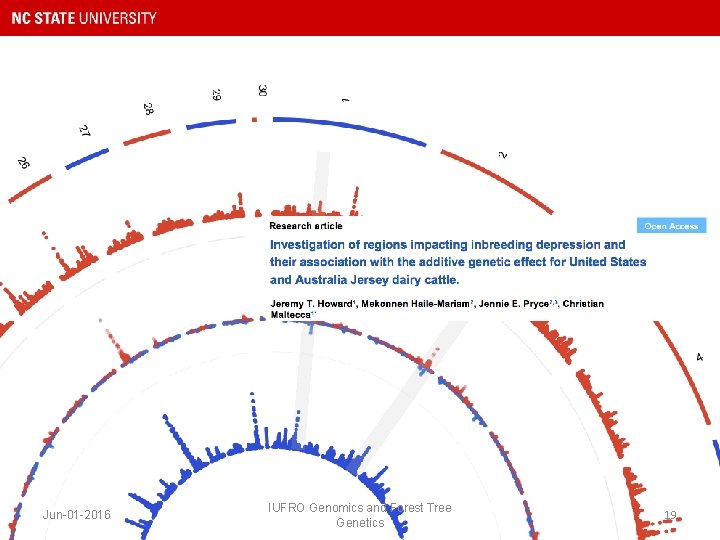

Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 19

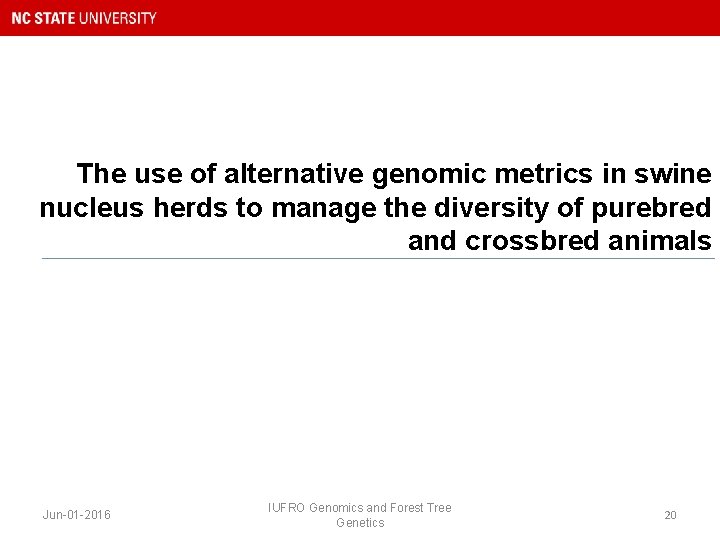

The use of alternative genomic metrics in swine nucleus herds to manage the diversity of purebred and crossbred animals Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 20

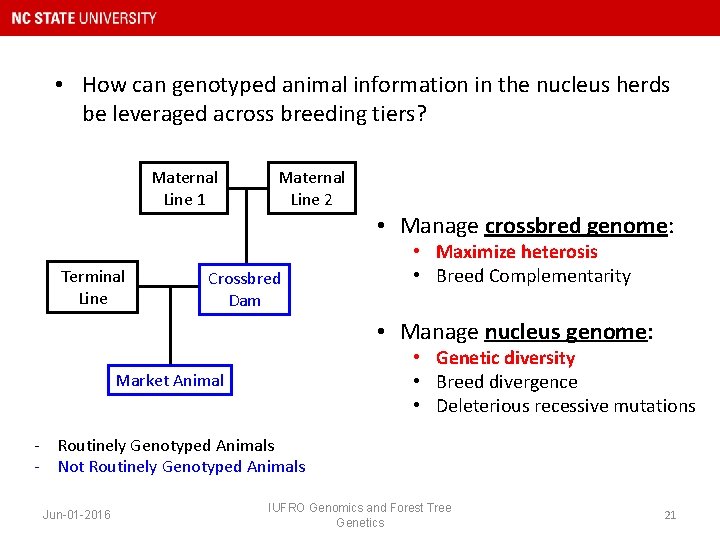

• How can genotyped animal information in the nucleus herds be leveraged across breeding tiers? Maternal Line 1 Maternal Line 2 • Manage crossbred genome: Terminal Line Crossbred Dam • Maximize heterosis • Breed Complementarity • Manage nucleus genome: • Genetic diversity • Breed divergence • Deleterious recessive mutations Market Animal - Routinely Genotyped Animals - Not Routinely Genotyped Animals Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 21

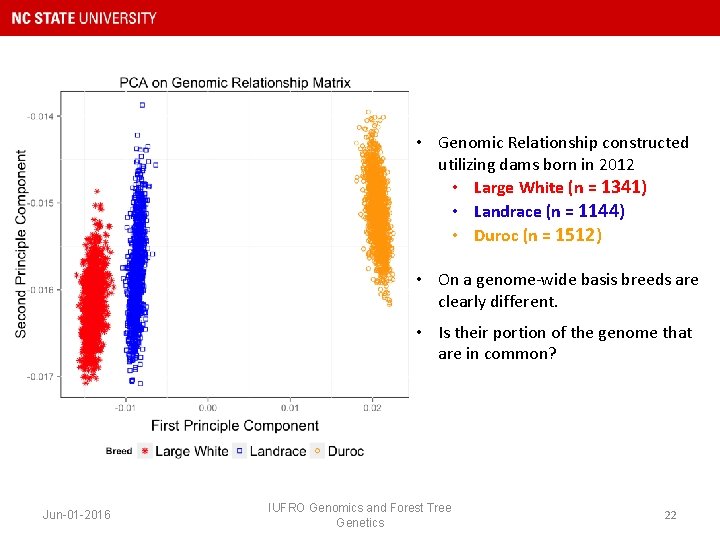

• Genomic Relationship constructed utilizing dams born in 2012 • Large White (n = 1341) • Landrace (n = 1144) • Duroc (n = 1512) • On a genome-wide basis breeds are clearly different. • Is their portion of the genome that are in common? Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 22

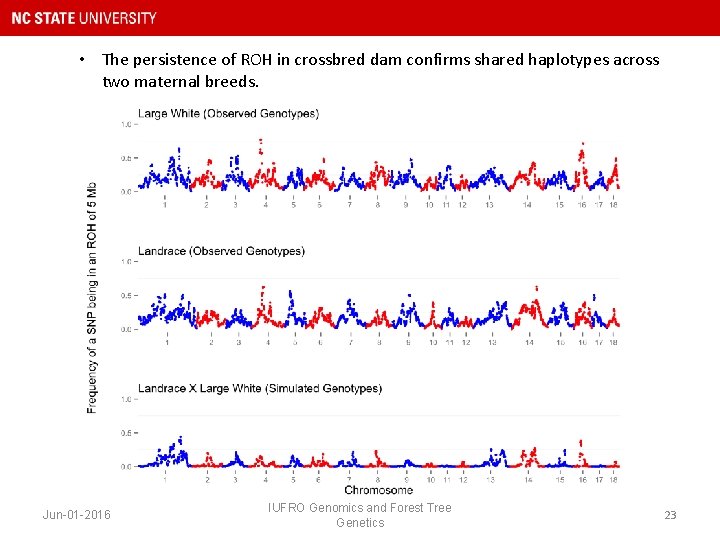

• The persistence of ROH in crossbred dam confirms shared haplotypes across two maternal breeds. Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 23

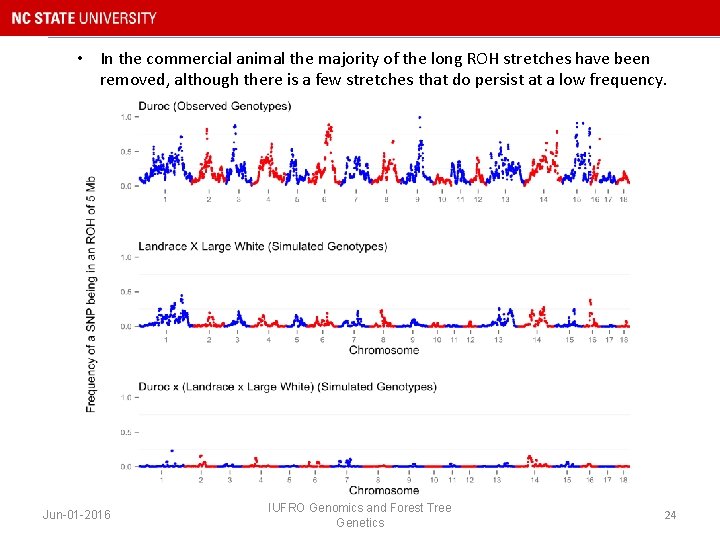

• In the commercial animal the majority of the long ROH stretches have been removed, although there is a few stretches that do persist at a low frequency. Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 24

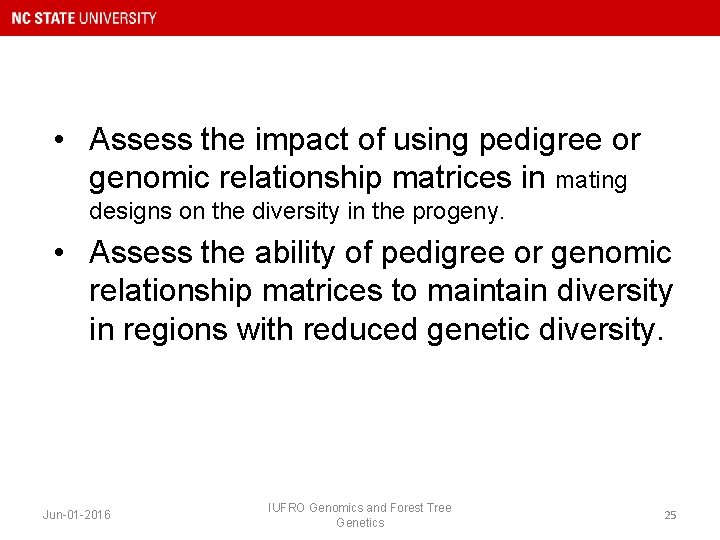

• Assess the impact of using pedigree or genomic relationship matrices in mating designs on the diversity in the progeny. • Assess the ability of pedigree or genomic relationship matrices to maintain diversity in regions with reduced genetic diversity. Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 25
Duroc Landrace Large White Females (n=1512) Females (n=1144) Females (n=1341) Males (n=538) Males (n=81) Males (n=99) SNP (n=34, 904) SNP (n=41, 489) SNP (n=39, 671) SNP ROH 5 (n=34, 179) SNP ROH 5 (n=41, 272) SNP ROH 5 (n=39, 488) Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 26

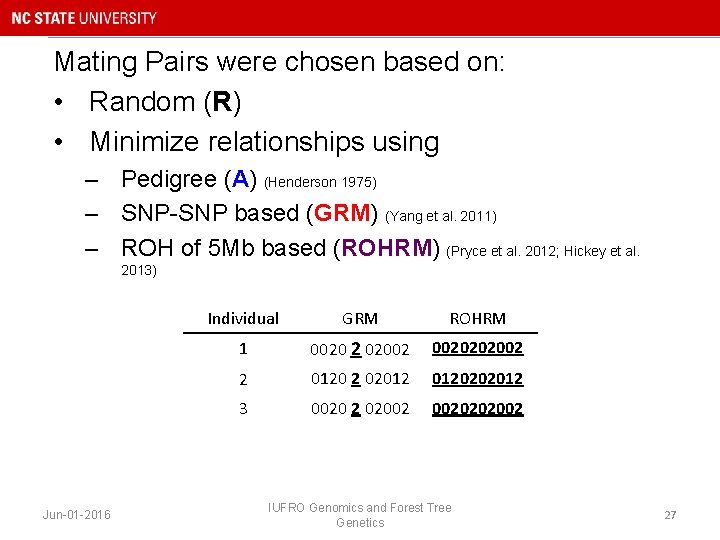

Mating Pairs were chosen based on: • Random (R) • Minimize relationships using – Pedigree (A) (Henderson 1975) – SNP-SNP based (GRM) (Yang et al. 2011) – ROH of 5 Mb based (ROHRM) (Pryce et al. 2012; Hickey et al. 2013) Jun-01 -2016 Individual GRM ROHRM 1 0020 2 02002 0020202002 2 0120 2 02012 0120202012 3 0020 2 02002 0020202002 IUFRO Genomics and Forest Tree Genetics 27

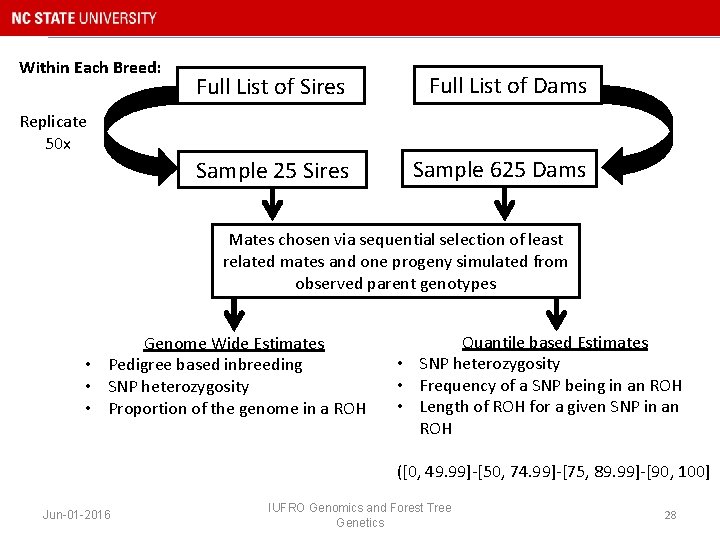

Within Each Breed: Full List of Sires Full List of Dams Sample 25 Sires Sample 625 Dams Replicate 50 x Mates chosen via sequential selection of least related mates and one progeny simulated from observed parent genotypes Genome Wide Estimates • Pedigree based inbreeding • SNP heterozygosity • Proportion of the genome in a ROH Quantile based Estimates • SNP heterozygosity • Frequency of a SNP being in an ROH • Length of ROH for a given SNP in an ROH ([0, 49. 99]-[50, 74. 99]-[75, 89. 99]-[90, 100] Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 28

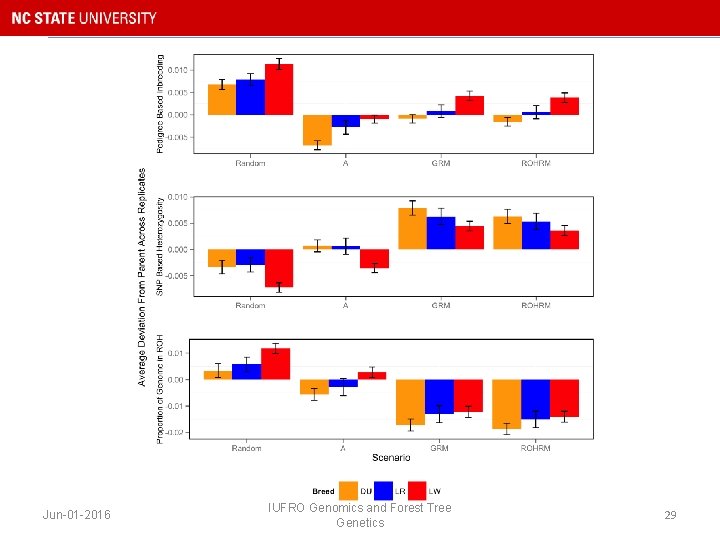

Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 29

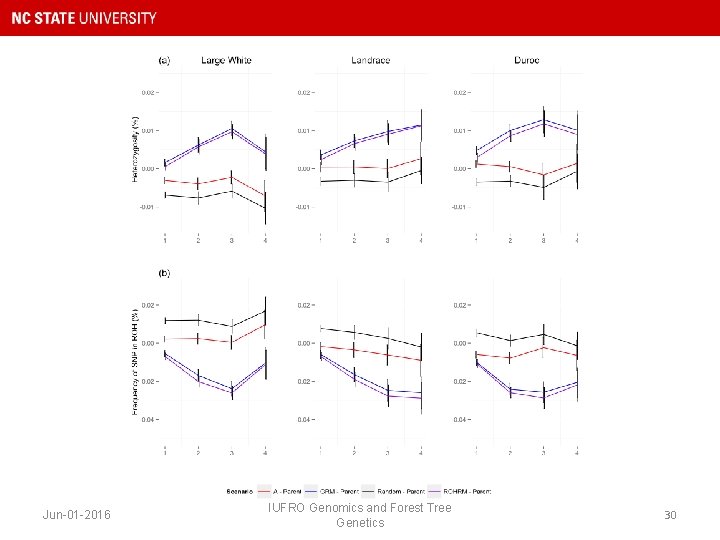

Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 30

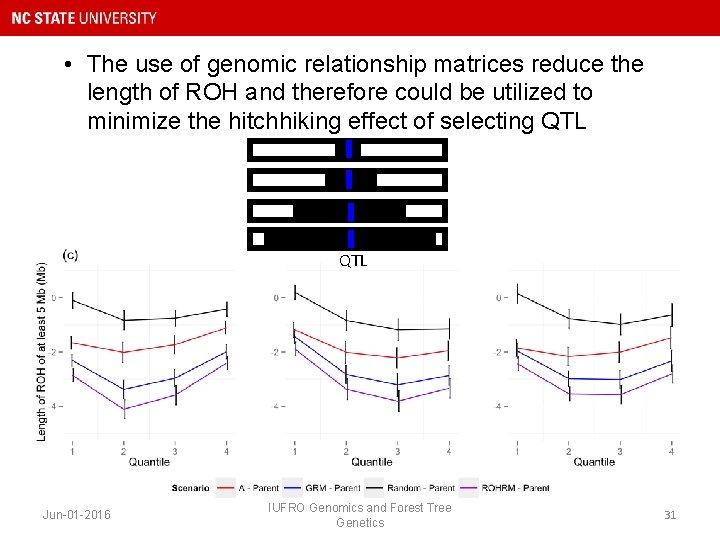

• The use of genomic relationship matrices reduce the length of ROH and therefore could be utilized to minimize the hitchhiking effect of selecting QTL Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 31

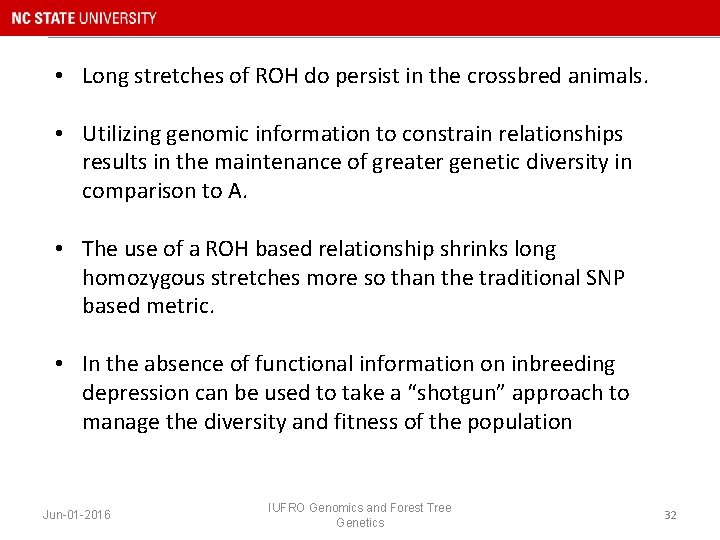

• Long stretches of ROH do persist in the crossbred animals. • Utilizing genomic information to constrain relationships results in the maintenance of greater genetic diversity in comparison to A. • The use of a ROH based relationship shrinks long homozygous stretches more so than the traditional SNP based metric. • In the absence of functional information on inbreeding depression can be used to take a “shotgun” approach to manage the diversity and fitness of the population Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 32

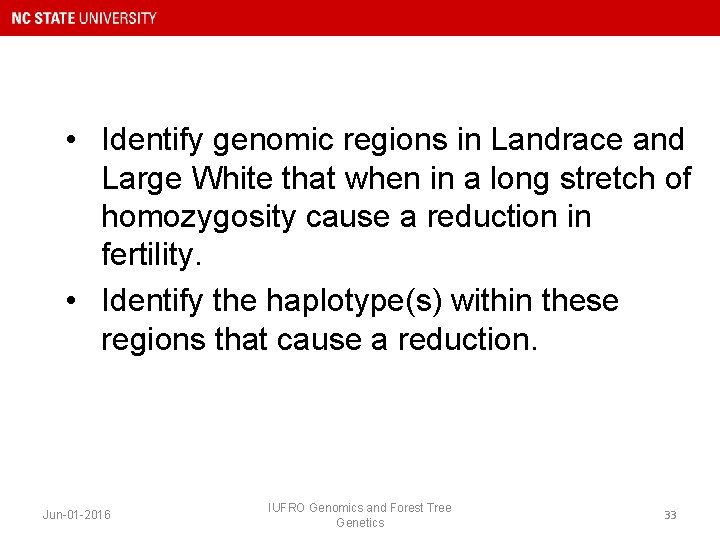

• Identify genomic regions in Landrace and Large White that when in a long stretch of homozygosity cause a reduction in fertility. • Identify the haplotype(s) within these regions that cause a reduction. Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 33

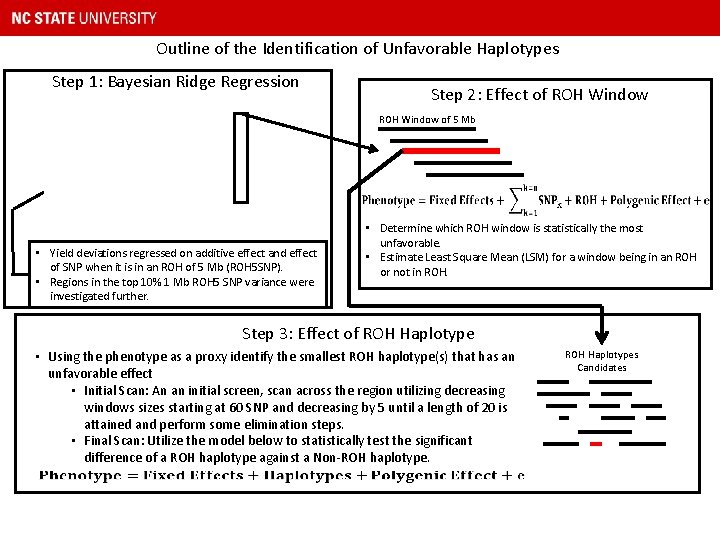

Outline of the Identification of Unfavorable Haplotypes Step 1: Bayesian Ridge Regression Step 2: Effect of ROH Window of 5 Mb • Yield deviations regressed on additive effect and effect of SNP when it is in an ROH of 5 Mb (ROH 5 SNP). • Regions in the top 10% 1 Mb ROH 5 SNP variance were investigated further. • Determine which ROH window is statistically the most unfavorable. • Estimate Least Square Mean (LSM) for a window being in an ROH or not in ROH. Step 3: Effect of ROH Haplotype • Using the phenotype as a proxy identify the smallest ROH haplotype(s) that has an unfavorable effect • Initial Scan: An an initial screen, scan across the region utilizing decreasing windows sizes starting at 60 SNP and decreasing by 5 until a length of 20 is attained and perform some elimination steps. • Final Scan: Utilize the model below to statistically test the significant difference of a ROH haplotype against a Non-ROH haplotype. ROH Haplotypes Candidates

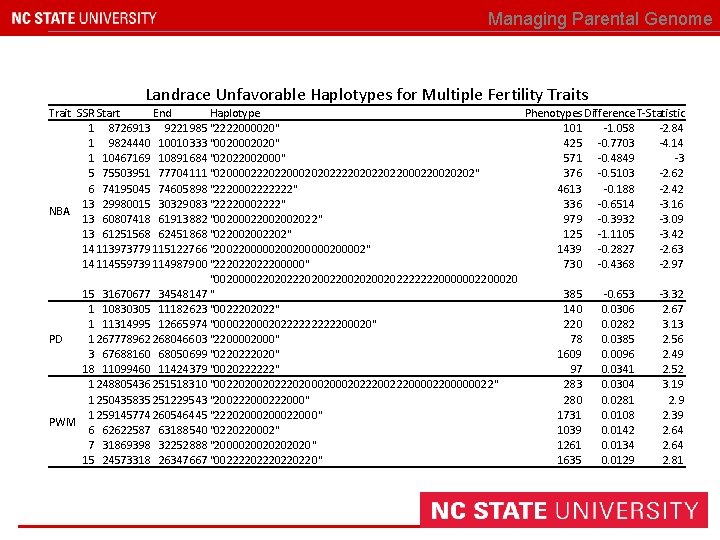

Managing Parental Genome Landrace Unfavorable Haplotypes for Multiple Fertility Traits Trait SSR Start End Haplotype Phenotypes Difference T-Statistic 1 8726913 9221985 "2222000020" 101 -1. 058 -2. 84 1 9824440 10010333 "002020" 425 -0. 7703 -4. 14 1 10467169 10891684 "02022002000" 571 -0. 4849 -3 5 75503951 77704111 "02000022202200020202222020220220020202" 376 -0. 5103 -2. 62 6 74195045 74605898 "2220002222222" 4613 -0. 188 -2. 42 13 29980015 30329083 "22220002222" 336 -0. 6514 -3. 16 NBA 13 60807418 61913882 "00200022002002022" 979 -0. 3932 -3. 09 13 61251568 62451868 "022002002202" 125 -1. 1105 -3. 42 14 113973779 115122766 "2002200000200002" 1439 -0. 2827 -2. 63 14 114559739 114987900 "222022022200000" 730 -0. 4368 -2. 97 "0020000220202220200202002022222220000002200020 15 31670677 34548147 " 385 -0. 653 -3. 32 1 10830305 11182623 "0022202022" 140 0. 0306 2. 67 1 11314995 12665974 "000022000202222200020" 220 0. 0282 3. 13 PD 1 267778962 268046603 "2200002000" 78 0. 0385 2. 56 3 67688160 68050699 "022020" 1609 0. 0096 2. 49 18 11099460 11424379 "0020222222" 97 0. 0341 2. 52 1 248805436 251518310 "0022020020222020002022200002200000022" 283 0. 0304 3. 19 1 250435835 251229543 "200222000" 280 0. 0281 2. 9 1 259145774 260546445 "2220200022000" 1731 0. 0108 2. 39 PWM 6 62622587 63188540 "0220220002" 1039 0. 0142 2. 64 7 31869398 32252888 "200002002020" 1261 0. 0134 2. 64 15 24573318 26347667 "0022220220220" 1635 0. 0129 2. 81

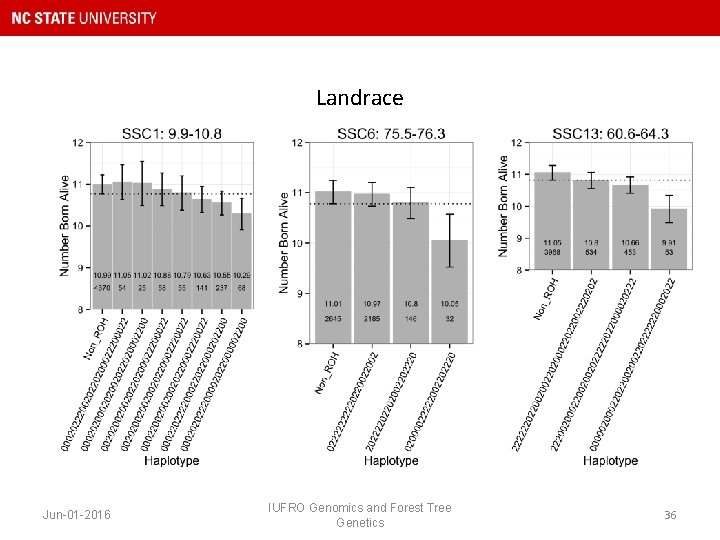

Landrace Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 36

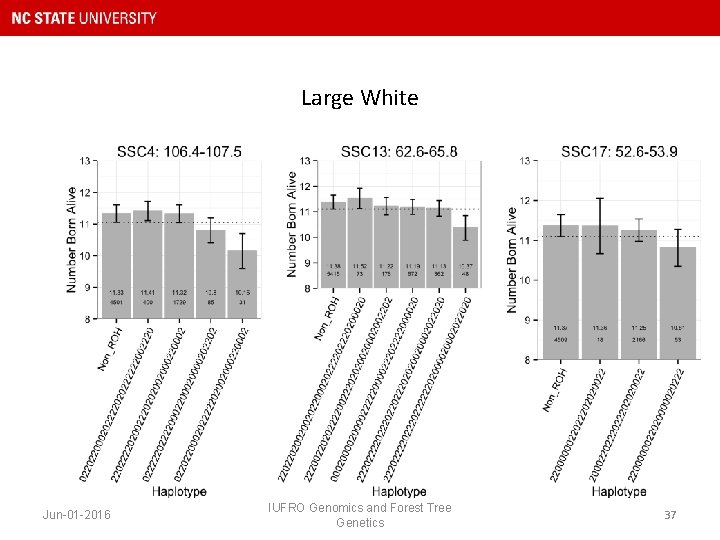

Large White Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 37

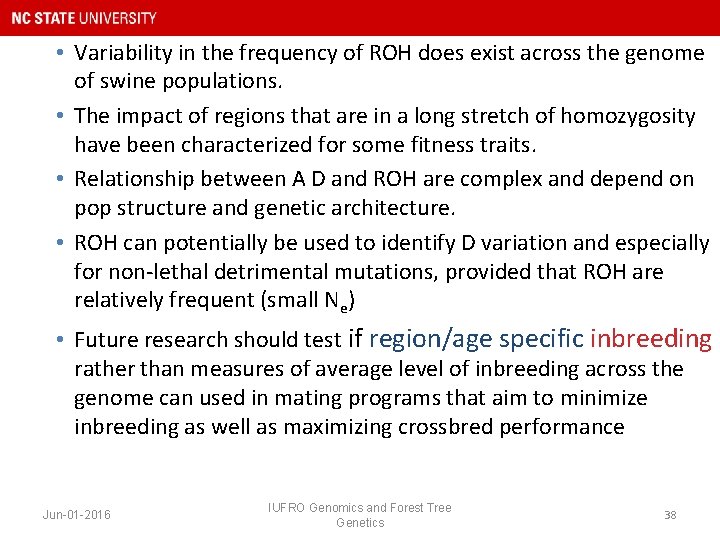

• Variability in the frequency of ROH does exist across the genome of swine populations. • The impact of regions that are in a long stretch of homozygosity have been characterized for some fitness traits. • Relationship between A D and ROH are complex and depend on pop structure and genetic architecture. • ROH can potentially be used to identify D variation and especially for non-lethal detrimental mutations, provided that ROH are relatively frequent (small Ne) • Future research should test if region/age specific inbreeding rather than measures of average level of inbreeding across the genome can used in mating programs that aim to minimize inbreeding as well as maximizing crossbred performance Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 38

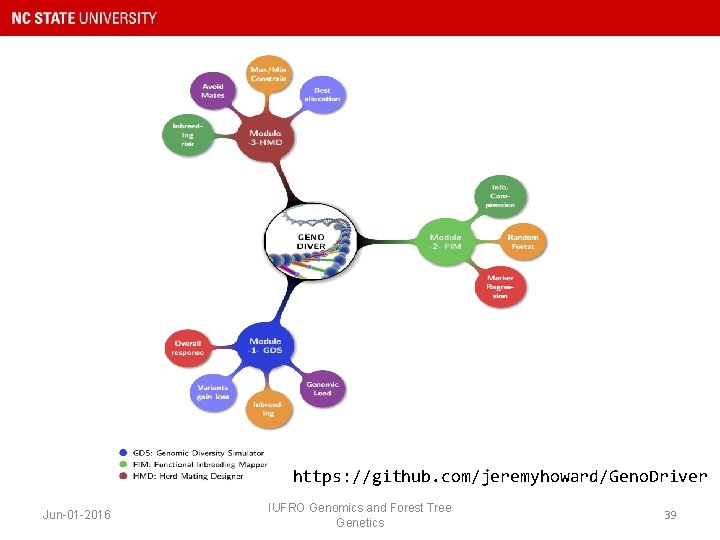

https: //github. com/jeremyhoward/Geno. Driver Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 39

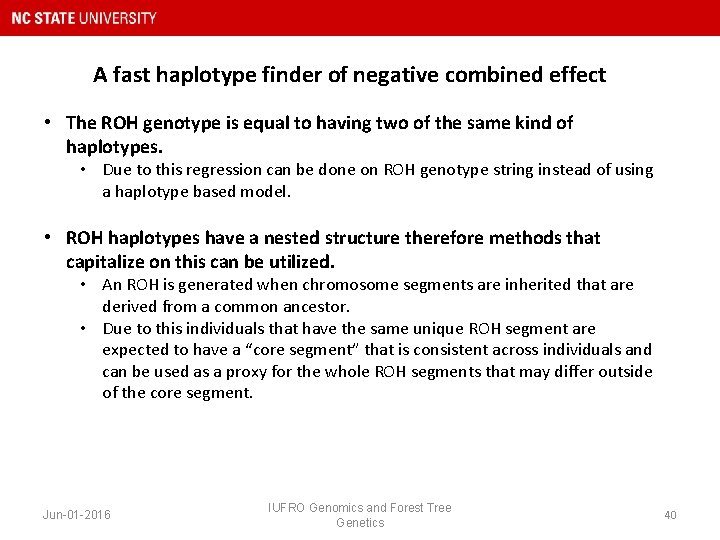

A fast haplotype finder of negative combined effect • The ROH genotype is equal to having two of the same kind of haplotypes. • Due to this regression can be done on ROH genotype string instead of using a haplotype based model. • ROH haplotypes have a nested structure therefore methods that capitalize on this can be utilized. • An ROH is generated when chromosome segments are inherited that are derived from a common ancestor. • Due to this individuals that have the same unique ROH segment are expected to have a “core segment” that is consistent across individuals and can be used as a proxy for the whole ROH segments that may differ outside of the core segment. Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 40

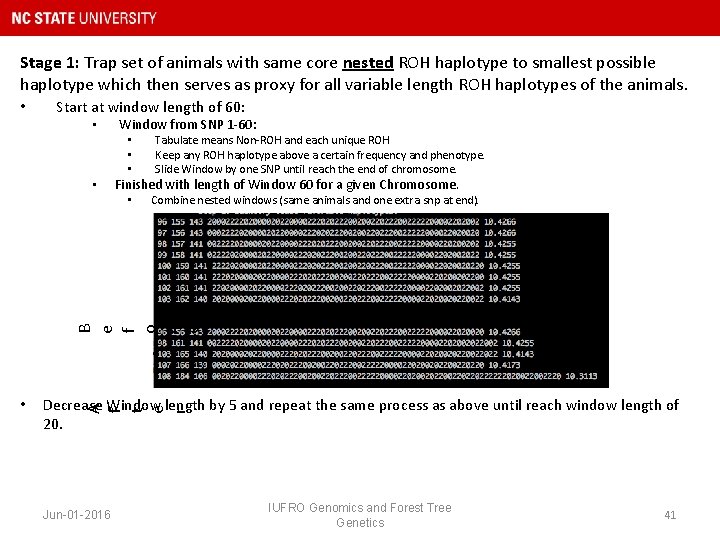

Stage 1: Trap set of animals with same core nested ROH haplotype to smallest possible haplotype which then serves as proxy for all variable length ROH haplotypes of the animals. • Start at window length of 60: • Window from SNP 1 -60: • • Tabulate means Non-ROH and each unique ROH Keep any ROH haplotype above a certain frequency and phenotype. Slide Window by one SNP until reach the end of chromosome. Finished with length of Window 60 for a given Chromosome. Combine nested windows (same animals and one extra snp at end). B e f o r e • Decrease Window length by 5 and repeat the same process as above until reach window length of 20. A f t e r • Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 41

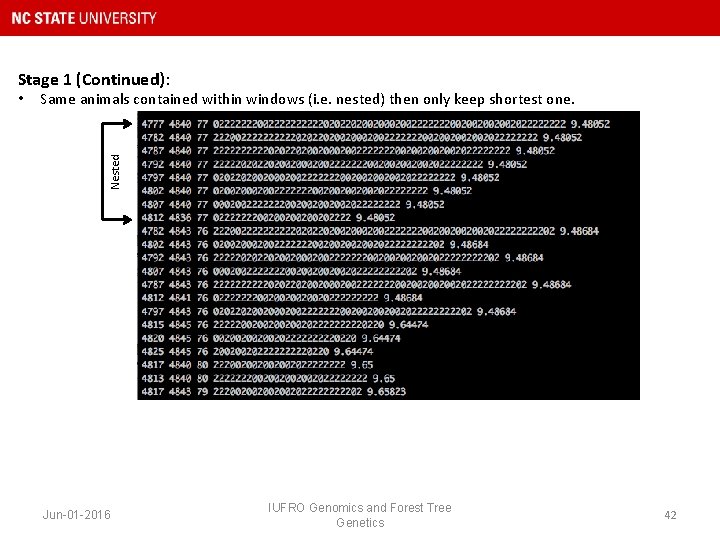

Stage 1 (Continued): Same animals contained within windows (i. e. nested) then only keep shortest one. Nested • Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 42

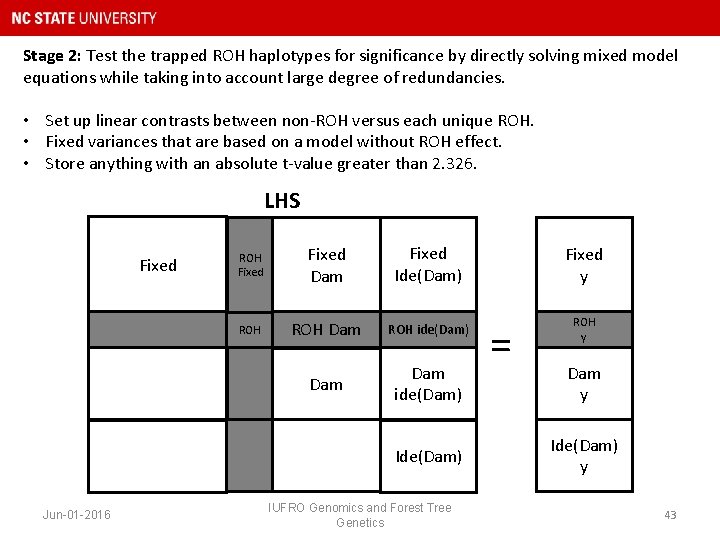

Stage 2: Test the trapped ROH haplotypes for significance by directly solving mixed model equations while taking into account large degree of redundancies. • Set up linear contrasts between non-ROH versus each unique ROH. • Fixed variances that are based on a model without ROH effect. • Store anything with an absolute t-value greater than 2. 326. LHS Fixed ROH Fixed Dam Fixed Ide(Dam) Fixed y ROH Dam ROH ide(Dam) ROH y Dam ide(Dam) Ide(Dam) Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics = Dam y Ide(Dam) y 43

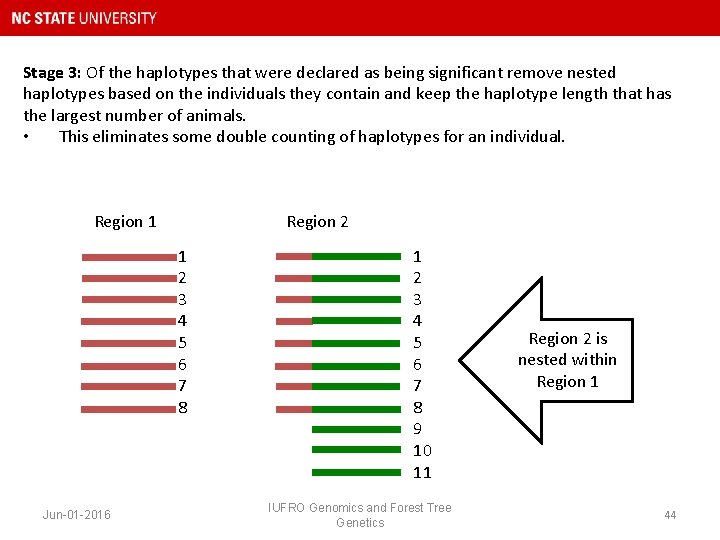

Stage 3: Of the haplotypes that were declared as being significant remove nested haplotypes based on the individuals they contain and keep the haplotype length that has the largest number of animals. • This eliminates some double counting of haplotypes for an individual. Region 1 Region 2 1 2 3 4 5 6 7 8 Jun-01 -2016 1 2 3 4 5 6 7 8 9 10 11 IUFRO Genomics and Forest Tree Genetics Region 2 is nested within Region 1 44

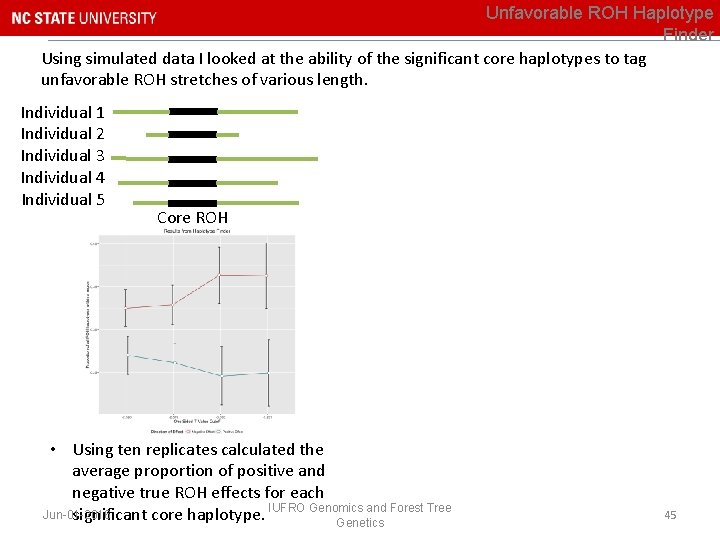

Unfavorable ROH Haplotype Finder Using simulated data I looked at the ability of the significant core haplotypes to tag unfavorable ROH stretches of various length. Individual 1 Individual 2 Individual 3 Individual 4 Individual 5 Core ROH • Using ten replicates calculated the average proportion of positive and negative true ROH effects for each and Forest Tree Jun-01 -2016 significant core haplotype. IUFRO Genomics Genetics 45
Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 46

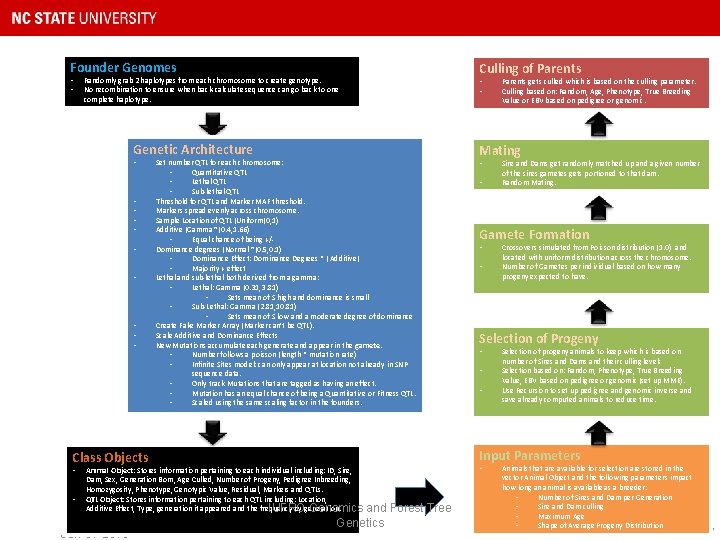

Founder Genomes • • Randomly grab 2 haplotypes from each chromosome to create genotype. No recombination to ensure when back-calculate sequence can go back to one complete haplotype. Genetic Architecture • • • Set number QTL for each chromosome: • Quantitative QTL • Lethal QTL • Sub-lethal QTL Threshold for QTL and Marker MAF threshold. Markers spread evenly across chromosome. Sample Location of QTL (Uniform(0, 1) Additive (Gamma ~(0. 4, 1. 66) • Equal chance of being +/Dominance degrees (Normal ~(0. 5, 0. 1) • Dominance Effect: Dominance Degrees * |Additive| • Majority + effect Lethal and sub-lethal both derived from a gamma: • Lethal: Gamma (0. 31, 3. 81) • Sets mean of S high and dominance is small • Sub-Lethal: Gamma (2. 81, 10. 81) • Sets mean of S low and a moderate degree of dominance Create Fake Marker Array (Marker can’t be QTL). Scale Additive and Dominance Effects New Mutations accumulate each generate and appear in the gamete. • Number follows a poisson (length * mutation rate) • Infinite Sites model: can only appear at location not already in SNP sequence data. • Only track Mutations that are tagged as having an effect. • Mutation has an equal chance of being a Quantitative or Fitness QTL. • Scaled using the same scaling factor in the founders. • Animal Object: Stores information pertaining to each individual including: ID, Sire, Dam, Sex, Generation Born, Age Culled, Number of Progeny, Pedigree Inbreeding, Homozygosity, Phenotype, Genotypic Value, Residual, Markers and QTLs. QTL Object: Stores information pertaining to each QTL including: Location, Additive Effect, Type, generation it appeared and the frequency by generation. IUFRO Genomics Jun-01 -2016 • • Parents gets culled which is based on the culling parameter. Culling based on: Random, Age, Phenotype, True Breeding Value or EBV based on pedigree or genomic. Mating • • Sire and Dams get randomly matched up and a given number of the sires gametes gets portioned to that dam. Random Mating. Gamete Formation • • Crossovers simulated from Poisson distribution (1. 0) and located with uniform distribution across the chromosome. Number of Gametes per individual based on how many progeny expected to have. Selection of Progeny • • • Selection of progeny animals to keep which is based on number of Sires and Dams and their culling levels Selection based on: Random, Phenotype, True Breeding Value, EBV based on pedigree or genomic (set up MME). Use Recursion to set up pedigree and genomic inverse and save already computed animals to reduce time. Input Parameters Class Objects • Culling of Parents and Forest Tree Genetics • Animals that are available for selection are stored in the vector Animal Object and the following parameters impact how long an animal is available as a breeder: • Number of Sires and Dam per Generation • Sire and Dam culling • Maximum Age • Shape of Average Progeny Distribution 47

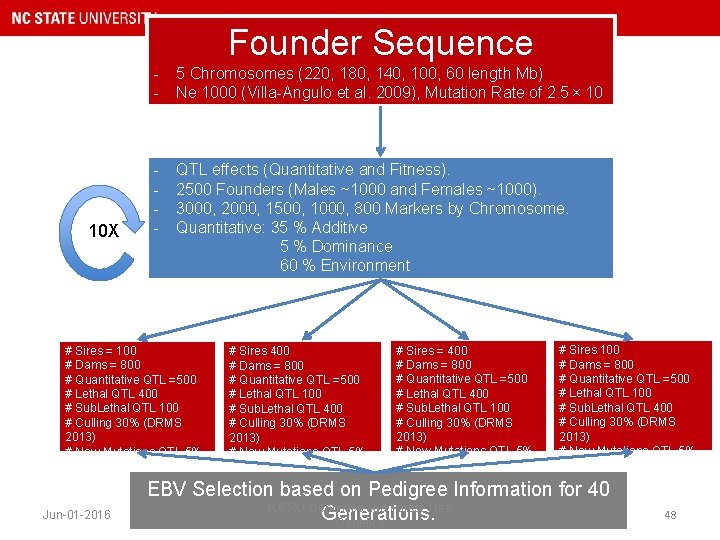

Founder Sequence 10 X - 5 Chromosomes (220, 180, 140, 100, 60 length Mb) Ne 1000 (Villa-Angulo et al. 2009), Mutation Rate of 2. 5 × 10 - QTL effects (Quantitative and Fitness). 2500 Founders (Males ~1000 and Females ~1000). 3000, 2000, 1500, 1000, 800 Markers by Chromosome. Quantitative: 35 % Additive 5 % Dominance 60 % Environment # Sires = 100 # Dams = 800 # Quantitative QTL =500 # Lethal QTL 400 # Sub. Lethal QTL 100 # Culling 30% (DRMS 2013) # New Mutations QTL 5% Jun-01 -2016 # Sires 400 # Dams = 800 # Quantitative QTL =500 # Lethal QTL 100 # Sub. Lethal QTL 400 # Culling 30% (DRMS 2013) # New Mutations QTL 5% # Sires = 400 # Dams = 800 # Quantitative QTL =500 # Lethal QTL 400 # Sub. Lethal QTL 100 # Culling 30% (DRMS 2013) # New Mutations QTL 5% # Sires 100 # Dams = 800 # Quantitative QTL =500 # Lethal QTL 100 # Sub. Lethal QTL 400 # Culling 30% (DRMS 2013) # New Mutations QTL 5% EBV Selection based on Pedigree Information for 40 IUFRO Genomics and Forest Tree Generations. Genetics 48

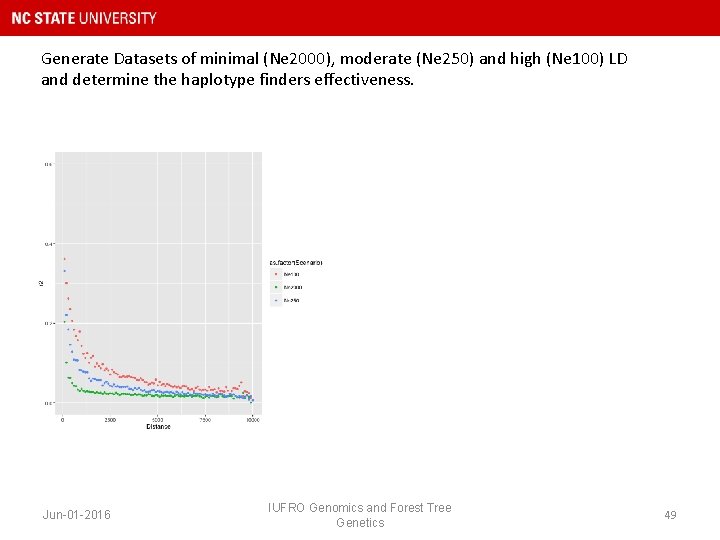

Generate Datasets of minimal (Ne 2000), moderate (Ne 250) and high (Ne 100) LD and determine the haplotype finders effectiveness. Jun-01 -2016 IUFRO Genomics and Forest Tree Genetics 49
Acknowledgements People: • Jeremy Howard (NCSU) • J. Pryce (DEDJTR) • F. Tiezzi (NCSU) Funding: • • • Jun-01 -2016 Smithfield Premium Genetics North Carolina Pork Council The Maschhoffs USDA NIFA DEDJTR National Pork Board IUFRO Genomics and Forest Tree Genetics 50
