Catmull-Rom Splines: Combining B-splines and Interpolation Dr. Scott Schaefer 1

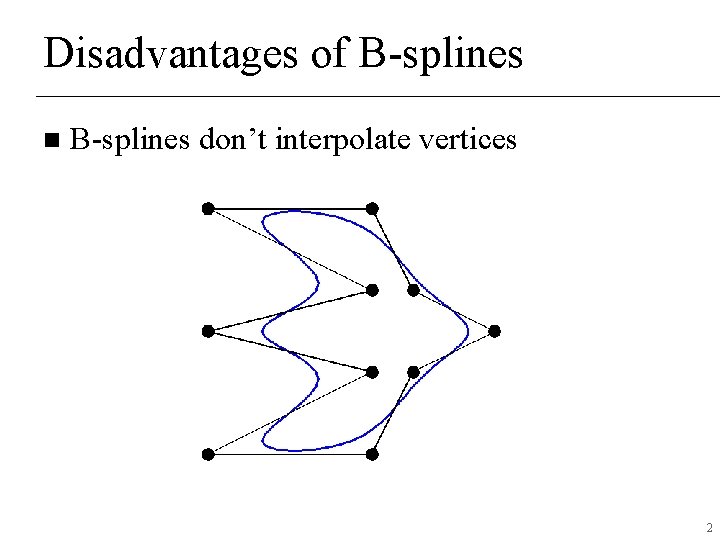

Disadvantages of B-splines n B-splines don’t interpolate vertices 2

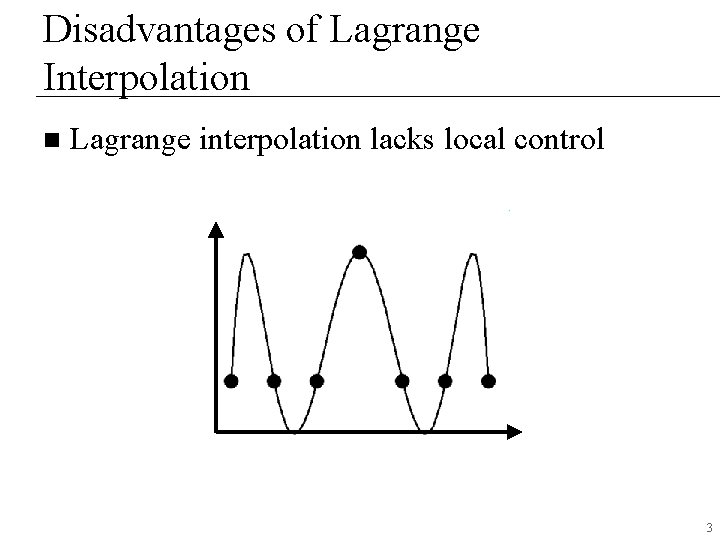

Disadvantages of Lagrange Interpolation n Lagrange interpolation lacks local control 3

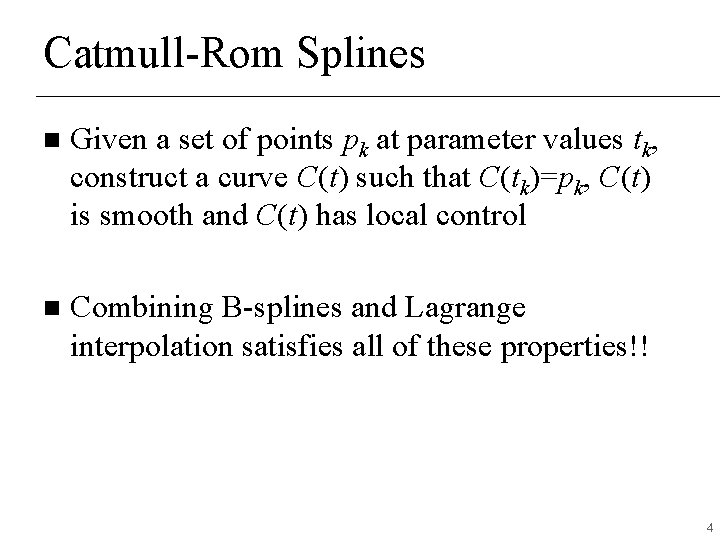

Catmull-Rom Splines n Given a set of points pk at parameter values tk, construct a curve C(t) such that C(tk)=pk, C(t) is smooth and C(t) has local control n Combining B-splines and Lagrange interpolation satisfies all of these properties!! 4

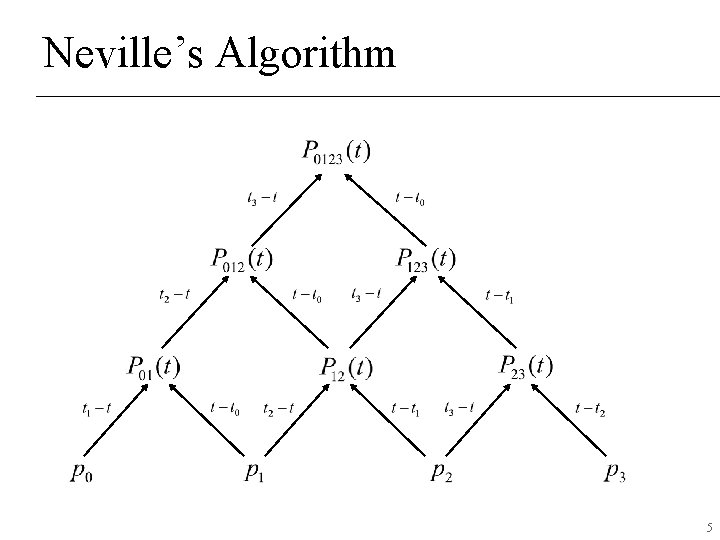

Neville’s Algorithm 5

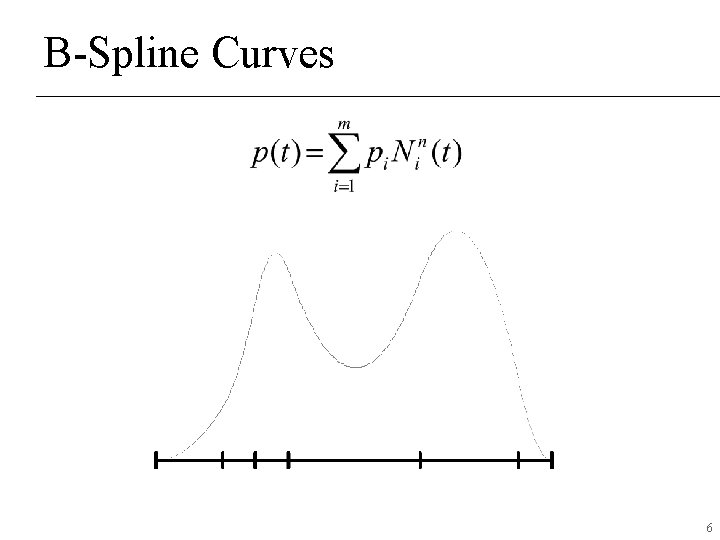

B-Spline Curves 6

Catmull-Rom Splines 7

Catmull-Rom Splines 8

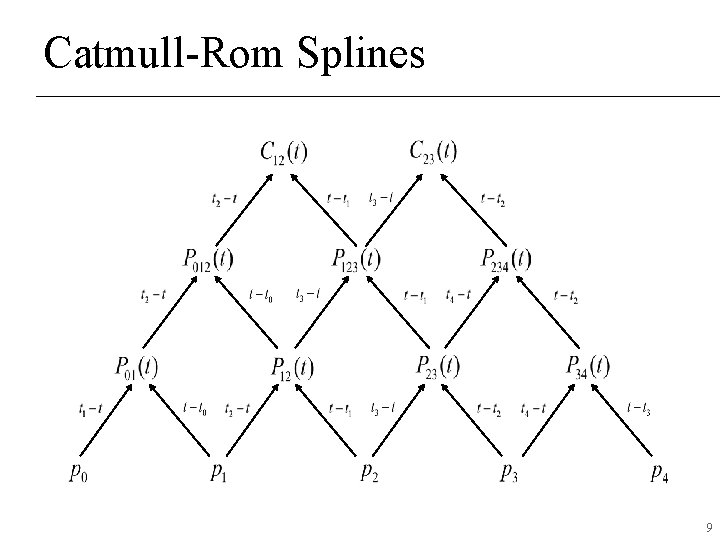

Catmull-Rom Splines 9

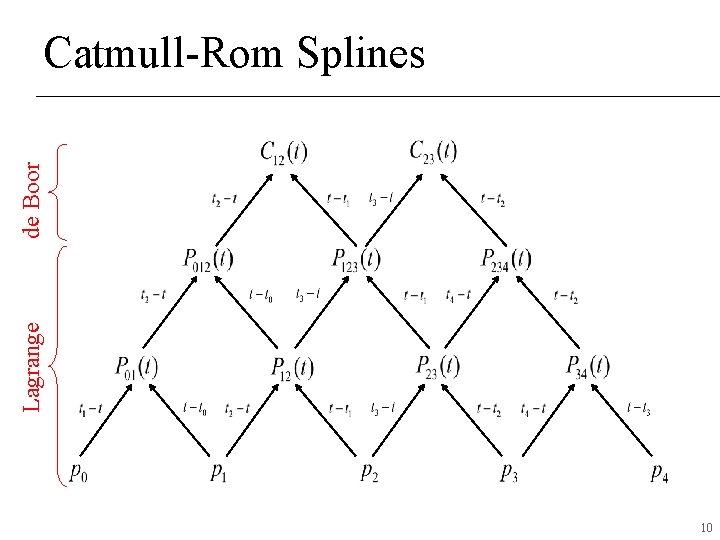

Lagrange de Boor Catmull-Rom Splines 10

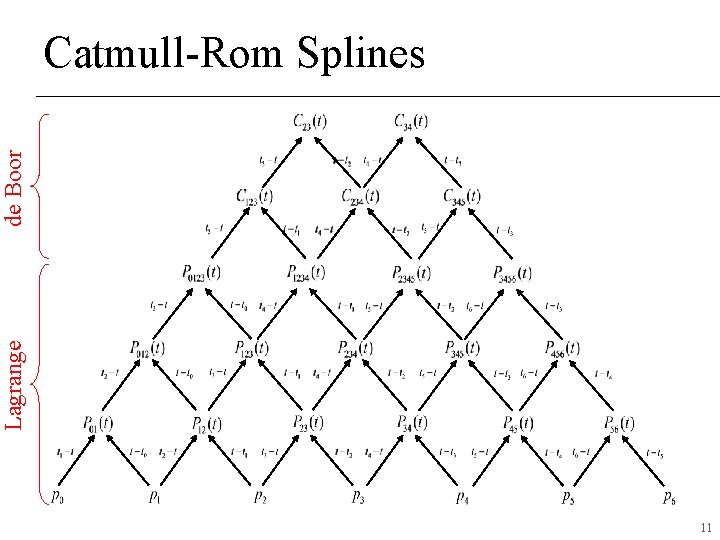

Lagrange de Boor Catmull-Rom Splines 11

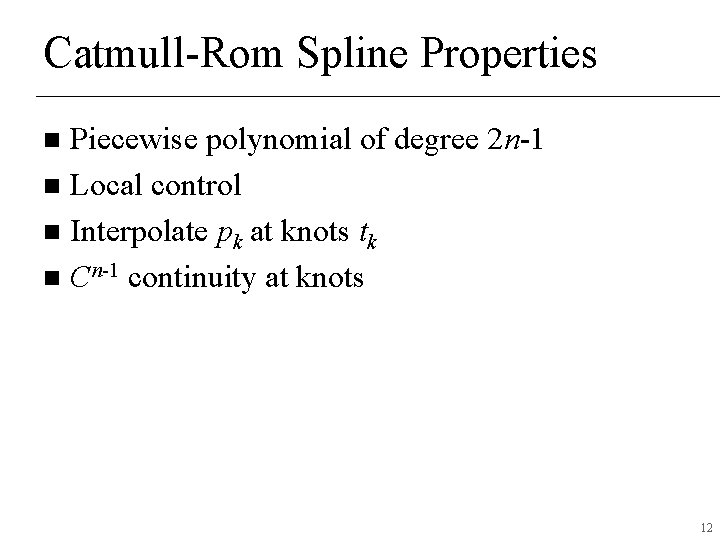

Catmull-Rom Spline Properties Piecewise polynomial of degree 2 n-1 n Local control n Interpolate pk at knots tk n Cn-1 continuity at knots n 12

Catmull-Rom Spline Properties Piecewise polynomial of degree 2 n-1 n Local control n Interpolate pk at knots tk n Cn-1 continuity at knots n 13

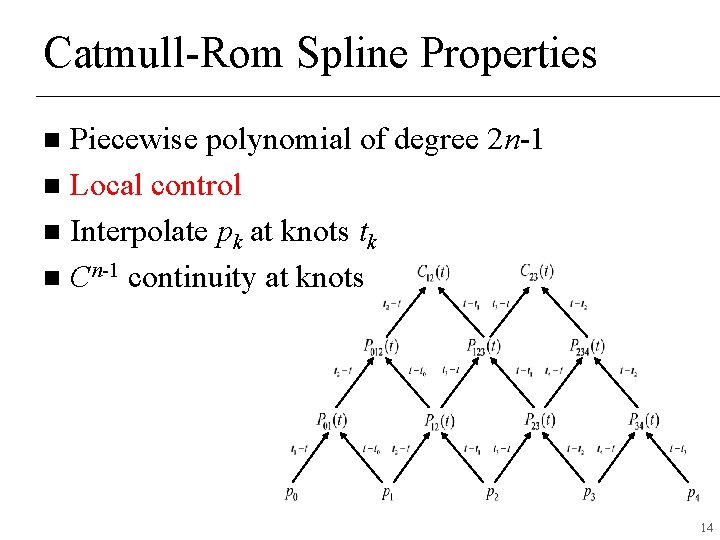

Catmull-Rom Spline Properties Piecewise polynomial of degree 2 n-1 n Local control n Interpolate pk at knots tk n Cn-1 continuity at knots n 14

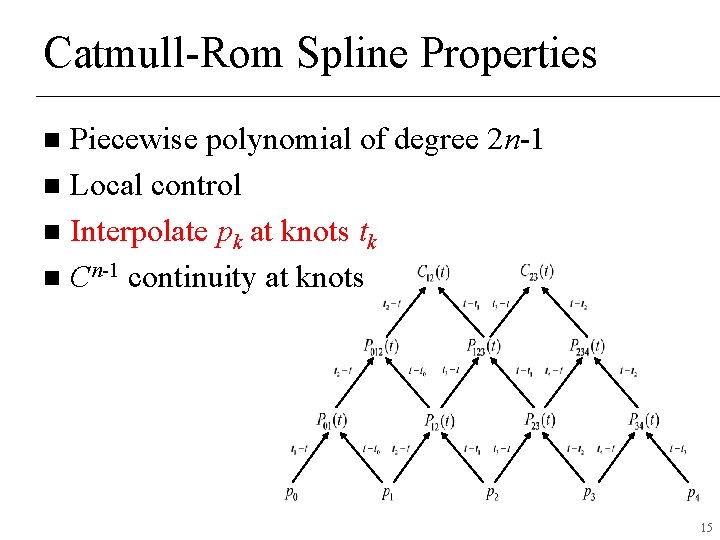

Catmull-Rom Spline Properties Piecewise polynomial of degree 2 n-1 n Local control n Interpolate pk at knots tk n Cn-1 continuity at knots n 15

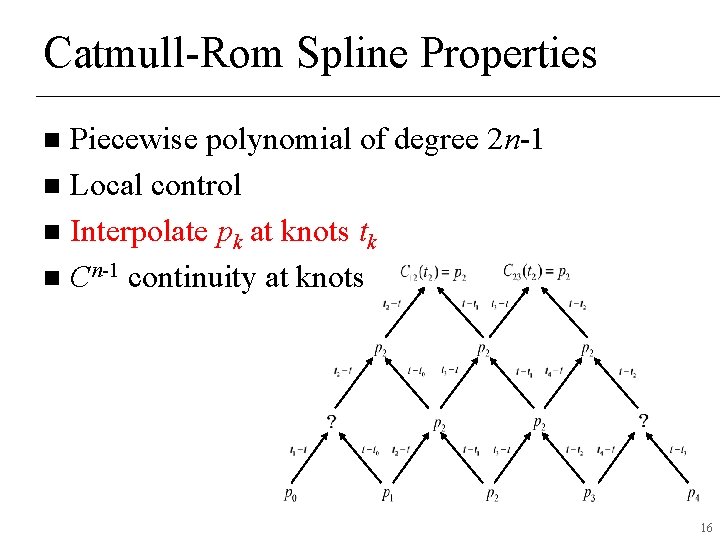

Catmull-Rom Spline Properties Piecewise polynomial of degree 2 n-1 n Local control n Interpolate pk at knots tk n Cn-1 continuity at knots n 16

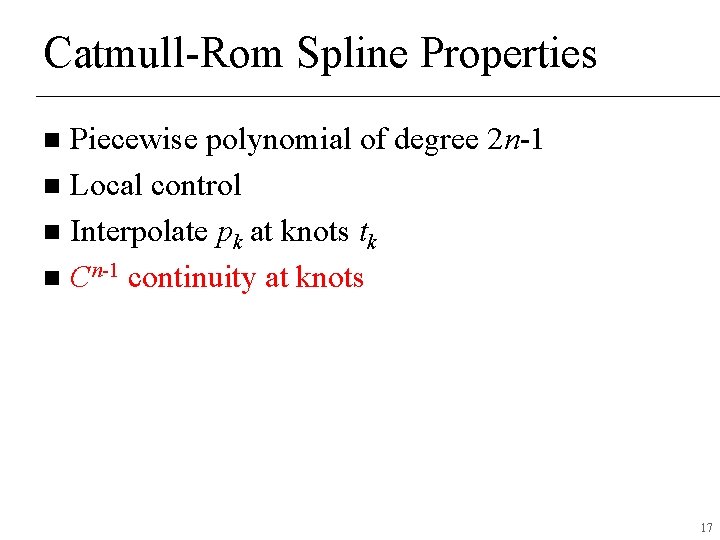

Catmull-Rom Spline Properties Piecewise polynomial of degree 2 n-1 n Local control n Interpolate pk at knots tk n Cn-1 continuity at knots n 17

Smoothness of Catmull-Rom Splines n Cn-1 continuity at knots 18

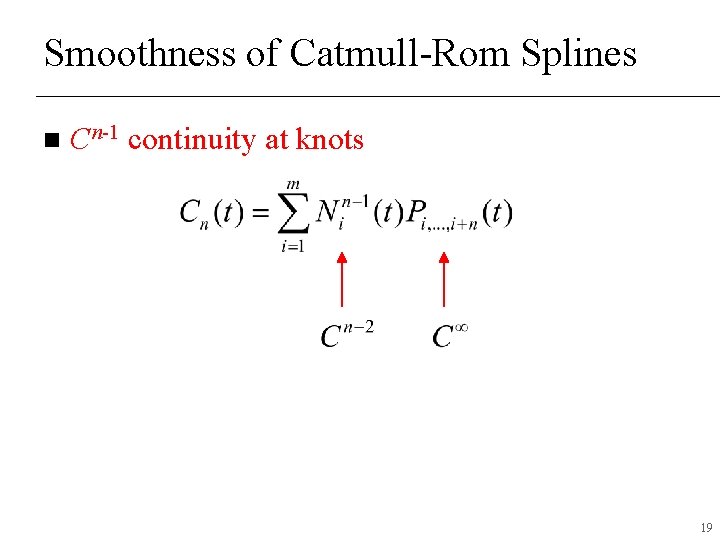

Smoothness of Catmull-Rom Splines n Cn-1 continuity at knots 19

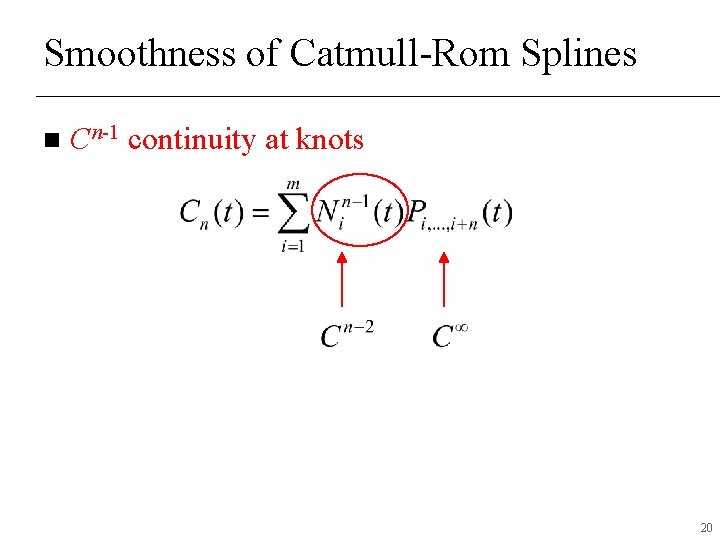

Smoothness of Catmull-Rom Splines n Cn-1 continuity at knots 20

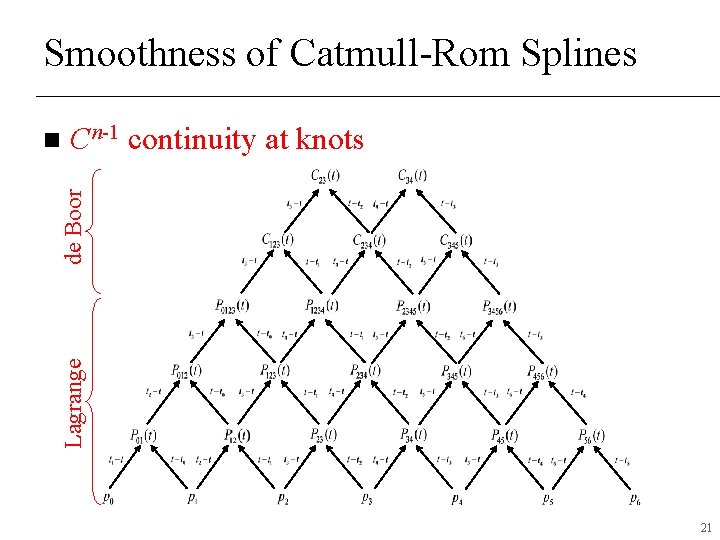

Smoothness of Catmull-Rom Splines Cn-1 continuity at knots Lagrange de Boor n 21

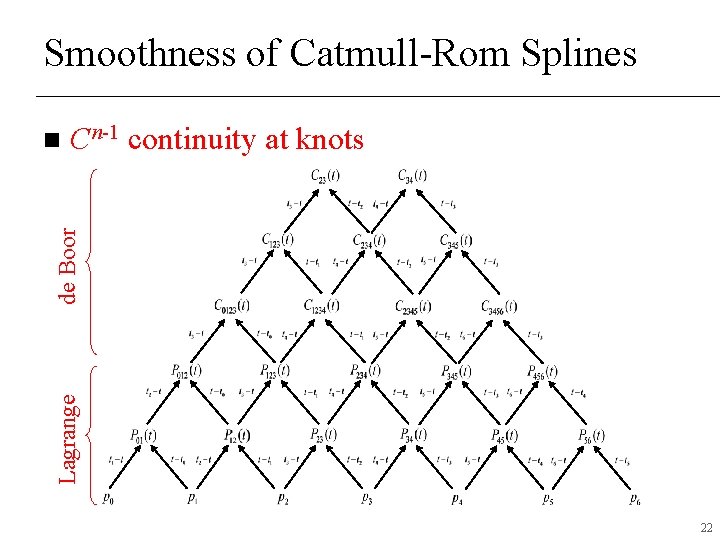

Smoothness of Catmull-Rom Splines Cn-1 continuity at knots Lagrange de Boor n 22

Smoothness of Catmull-Rom Splines n Cn-1 continuity at knots 23

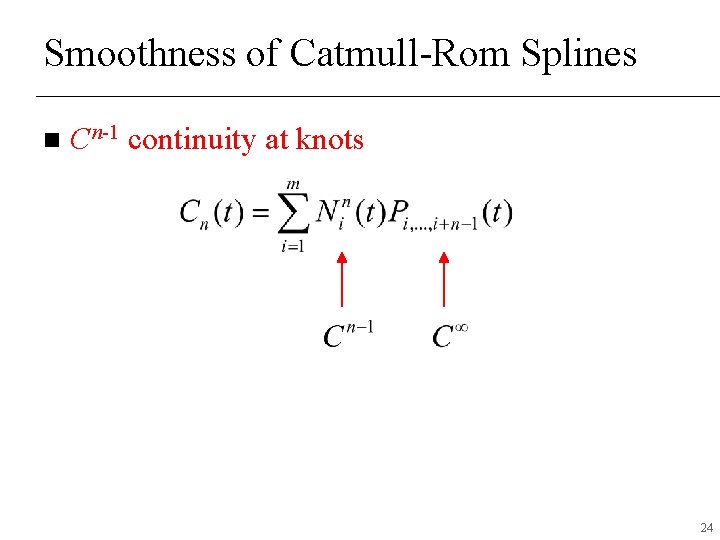

Smoothness of Catmull-Rom Splines n Cn-1 continuity at knots 24

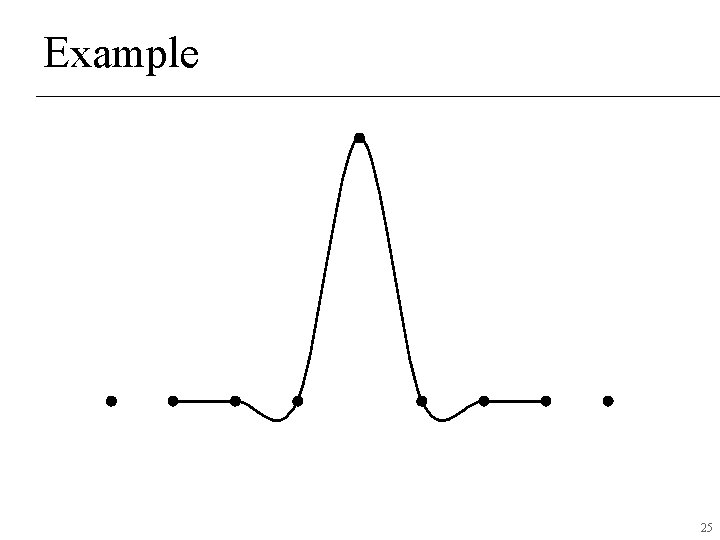

Example 25

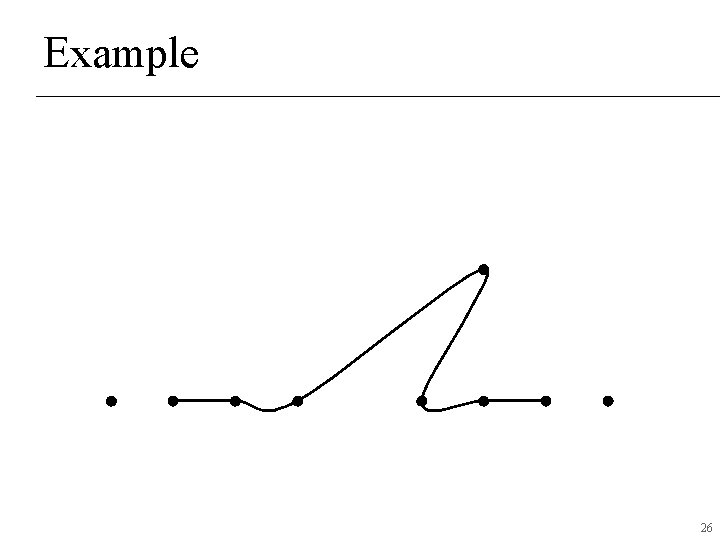

Example 26

Example Uniform Parameterization 27

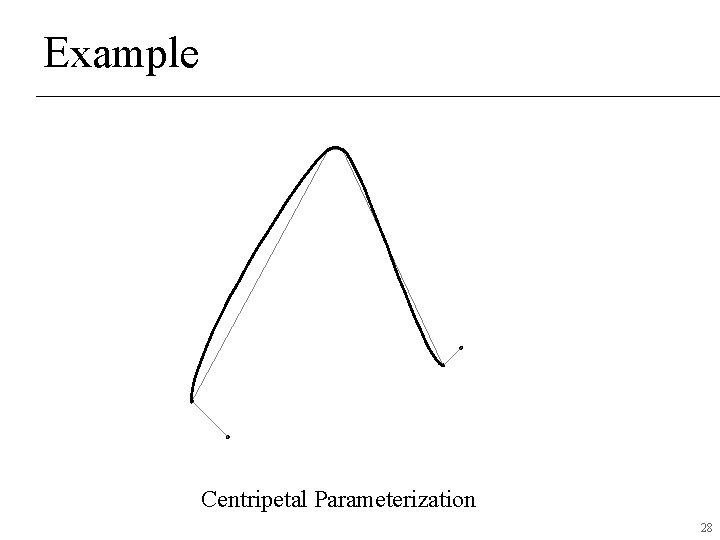

Example Centripetal Parameterization 28

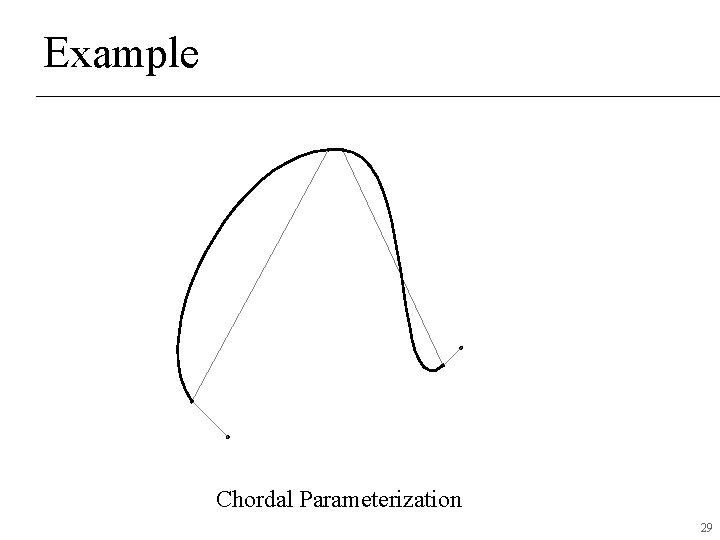

Example Chordal Parameterization 29
