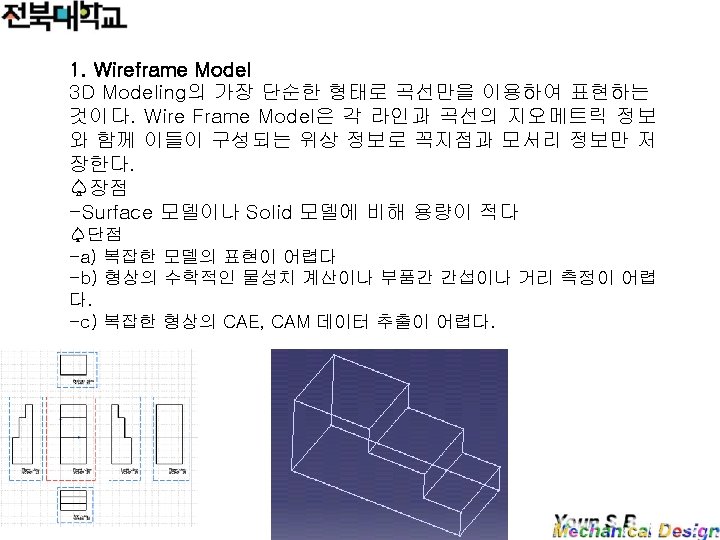

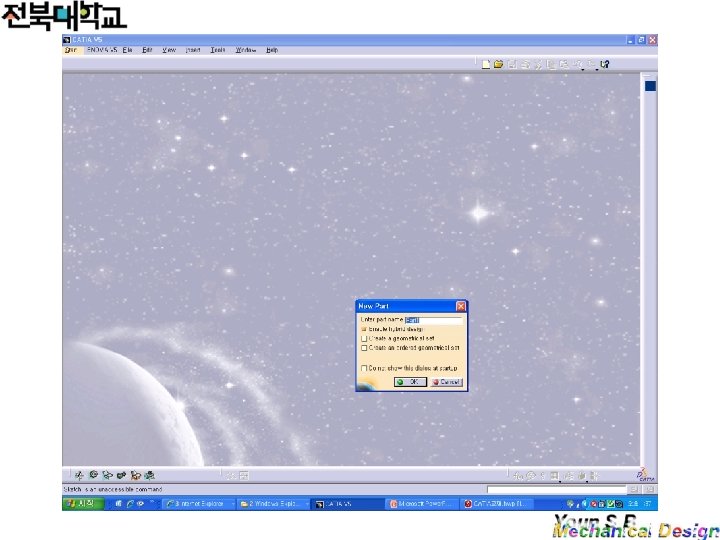

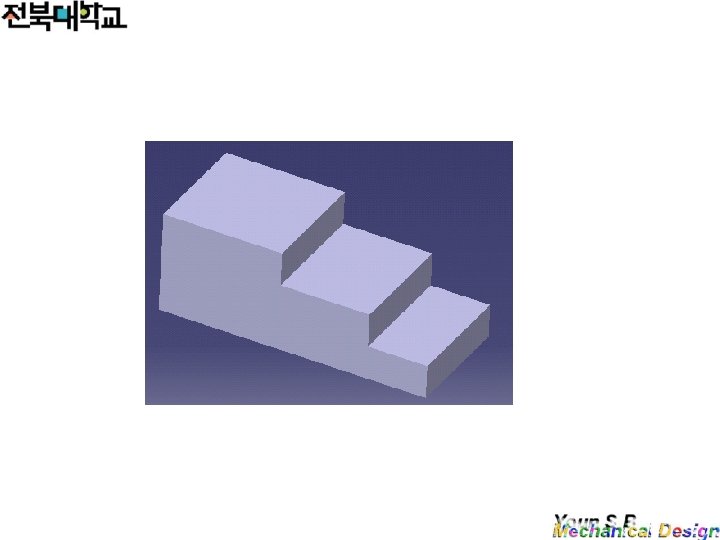

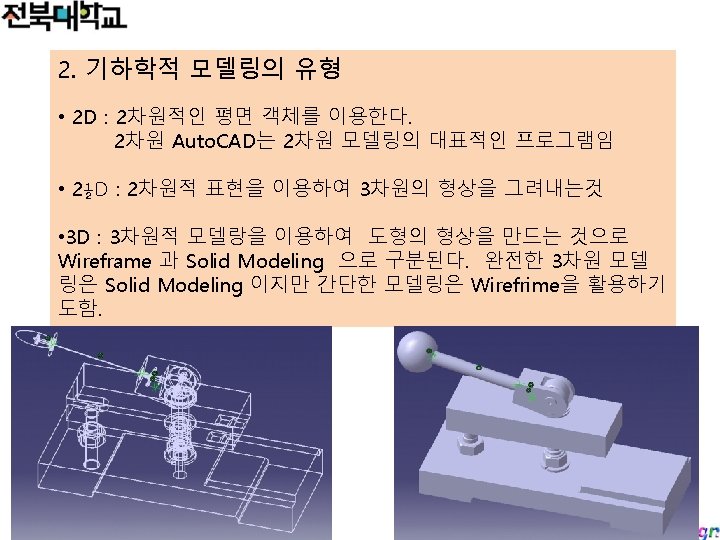

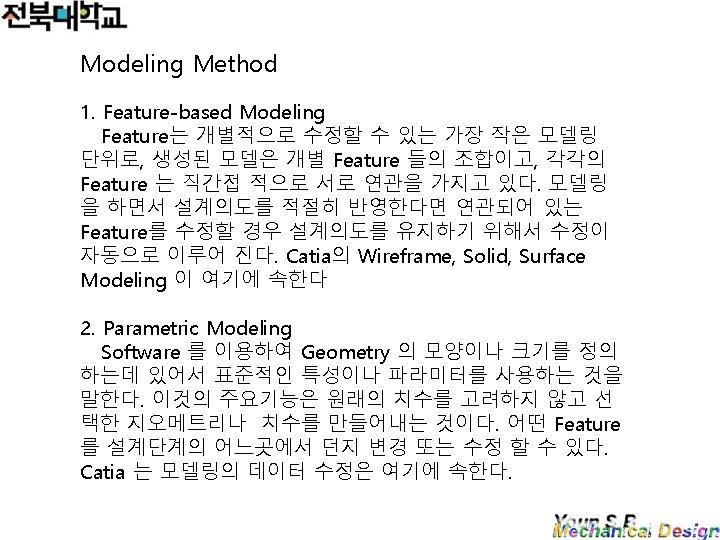

Mechanical Design Catia V 5 모델링 Shape Design • Sketcher • Part Design •

Mechanical Design Catia V 5 모델링 Shape Design • Sketcher • Part Design • Assembly Design • Weld Design • Mold Tooling Design • Structure Design • Drafting • Core & Cativty Design • Sheet Metal Design • Wireframe & Surface Design • Free Style • Sketch Tracer • Digitizer Shape Editor • Generative Shape Design • Quick Surface Reconstruction

4. 공학해석 CAD System을 이용하여 만들어진 형상에 적당한 Mesh를 입혀 FEM(Finite Element Method), FVM(Finite

4. 공학해석 CAD System을 이용하여 만들어진 형상에 적당한 Mesh를 입혀 FEM(Finite Element Method), FVM(Finite Volume Method) 등의 기 법을 상용하여 응력-변형 계산, 진동 등의 문제를 해결하는 것을 말 한다. Catia 분석용 Tool - Advanced Meshing Tools -Generative Analysis - Analysis Connection
