CATIA Catalogs New Stainless Steel Item Names 2014 -06 -03 R. Leuxe 17 th CATIA FORUM – EDMS 1388501 Page 1/15

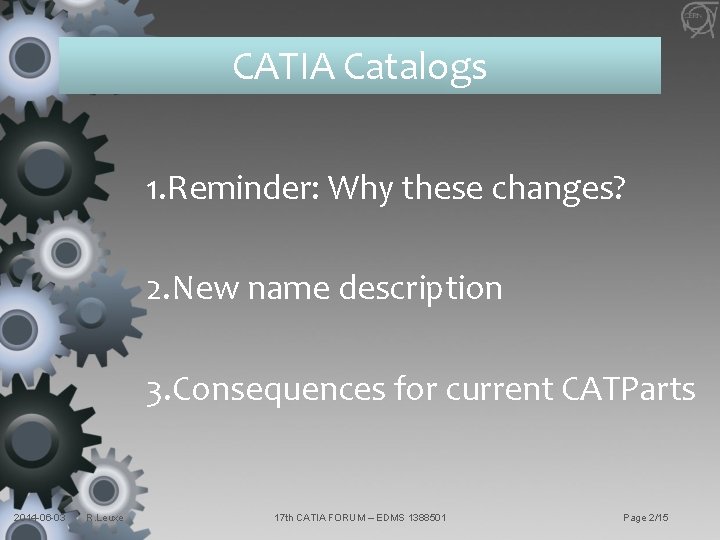

CATIA Catalogs 1. Reminder: Why these changes? 2. New name description 3. Consequences for current CATParts 2014 -06 -03 R. Leuxe 17 th CATIA FORUM – EDMS 1388501 Page 2/15
1. Reminder: Why these changes? ü Before 2014 -06: CATIA names decided with metallurgy service ü A working group (Metals Raw Materials – F. Léaux – EN-MME) worked on it ü CERN uses: AISI norm, lack of accuracy for us AISI norm Lack of detail of AISI: Some Examples of 316 L used at CERN EN norm 1. 4404 316 L 1. 4432 1. 4435 CERN EDMS 790771 2014 -06 -03 R. Leuxe 17 th CATIA FORUM – EDMS 1388501 Page 3/15

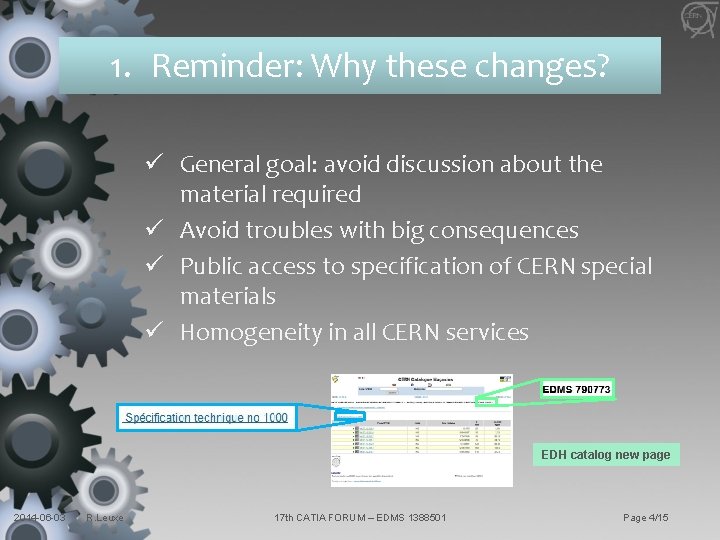

1. Reminder: Why these changes? ü General goal: avoid discussion about the material required ü Avoid troubles with big consequences ü Public access to specification of CERN special materials ü Homogeneity in all CERN services EDH catalog new page 2014 -06 -03 R. Leuxe 17 th CATIA FORUM – EDMS 1388501 Page 4/15
2. New name description ü Highlight the EN norm ü Keep additional informations to help (St. Steel, 304 L) ü CERN specification: EDMS number ü Limits: characters lenght in CATIA/ST LAST IN N W O H S Y ALREAD 2014 -06 -03 R. Leuxe 17 th CATIA FORUM – EDMS 1388501 FORUM Page 5/15
2. New name description ü Example of St. Steel 304 L (1. 4306): Before: New Name: ALR UM ST FOR A L IN N W O H EADY S New CATIA name CARTWEB Line «Material (english)» CARTWEB Line «Material (french)» 2014 -06 -03 R. Leuxe 17 th CATIA FORUM – EDMS 1388501 Page 6/15
2. New name description ü Example of St. Steel 304 L CERN: Before: New Name: UM AST FOR L IN N W O H S LREADY A New CATIA name CARTWEB Line «Material (english)» CARTWEB Line «Material (french)» 2014 -06 -03 R. Leuxe 17 th CATIA FORUM – EDMS 1388501 Page 7/15
2. New name description ü Before /New Table: EDMS 1385396 2014 -06 -03 R. Leuxe 17 th CATIA FORUM – EDMS 1388501 Page 8/15
3. Consequences for current CATParts ü What will happen with your CATParts already created? 3 cases: A. "Material Silent" CATPart B. Reused CATPart but it needn’t be modified C. CATPart which has to be modified in 3 D 2014 -06 -03 R. Leuxe 17 th CATIA FORUM – EDMS 1388501 Page 9/15
3. Consequences for current CATParts A. "Material Silent" CATPart: CATPart only used in old assemblies No manufacture again No modification in 3 D (no check out) You can keep the old name material No error message displayed 2014 -06 -03 R. Leuxe 17 th CATIA FORUM – EDMS 1388501 Page 10/15

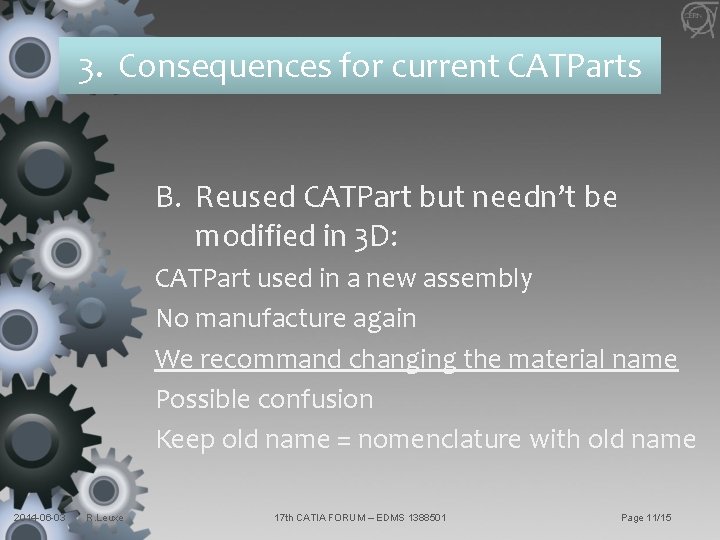

3. Consequences for current CATParts B. Reused CATPart but needn’t be modified in 3 D: CATPart used in a new assembly No manufacture again We recommand changing the material name Possible confusion Keep old name = nomenclature with old name 2014 -06 -03 R. Leuxe 17 th CATIA FORUM – EDMS 1388501 Page 11/15
3. Consequences for current CATParts C. Your CATPart has to be modified in 3 D: You have to update with a new material Otherwise: you’ll get an error message each time you do a «Save» operation If really needed, you can keep old name, but you’ll have to live with error message. LLEAG PROMOTE TO YOUR CO 2014 -06 -03 R. Leuxe 17 th CATIA FORUM – EDMS 1388501 UES Page 12/15
CATIA Catalogs ü Mail to all users will be sent when it’s available ü FAQ will be created by CAD Support ü In few weeks… 2014 -06 -03 R. Leuxe 17 th CATIA FORUM – EDMS 1388501 Page 13/15
CATIA Catalogs Problem? Contact CAD Support tel: 160660 – mail: catia. support@cern. ch Please add in CC catia-catalogs@cern. ch 2014 -06 -03 R. Leuxe 17 th CATIA FORUM – EDMS 1388501 Page 14/15
CATIA Catalogs Thanks with help of: F. Léaux, R. Betemps, M. Garcia Carnero, P. O Friman Catia-catalogs@cern. ch 2014 -06 -03 R. Leuxe 17 th CATIA FORUM – EDMS 1388501 Page 15/15
