CATIA Catalogs Commercial Normalized Components in 3 D

CATIA Catalogs Commercial & Normalized Components in 3 D + Materials News and Reminders 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 1/24

CATIA Catalogs Reminders: 1. Where can a 3 D catalog model be? 2. What’s a Catalog template model? 3. How to improve catalog content? News: 4. Last Important Updates 5. Last New Families Created 6. Last New Materials 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 2/24

1. Where Can a 3 D Catalog Model Be? ü 1 st, look in Smarteam Catalog (3 ways to do it) 1 2 FAQ Link 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 3/24

1. Where Can a 3 D Catalog Model Be? ü 1 st, look in Smarteam Catalog (3 ways to do it) FAQ Link 3 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 4/24

1. Where Can a 3 D Catalog Model Be? ü Result of the 3 ways: FAQ Link 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 5/24

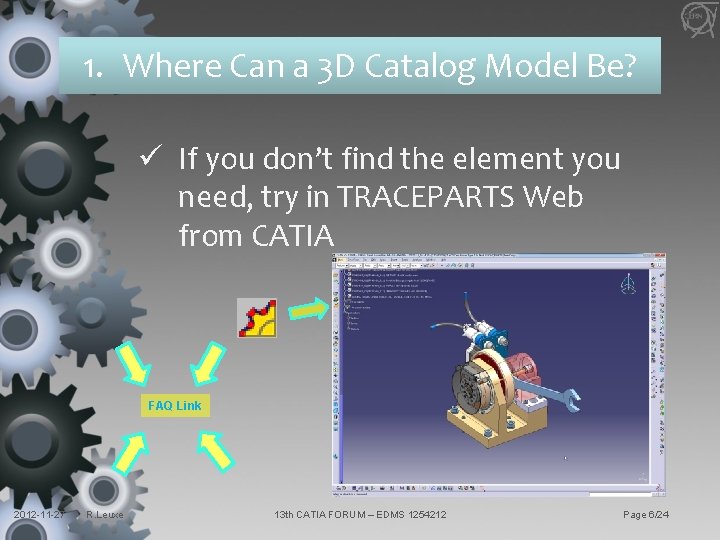

1. Where Can a 3 D Catalog Model Be? ü If you don’t find the element you need, try in TRACEPARTS Web from CATIA FAQ Link 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 6/24

1. Where Can a 3 D Catalog Model Be? ü If TRACEPARTS Web doesn’t help you: ü Try in the provider’s website ü Draw your model in CATIA or find something similar with the Smarteam general search… FAQ Link SE PLEA 2012 -11 -27 R. Leuxe US D N E S LOG A T A UR C (S) L E D MO ! YO 13 th CATIA FORUM – EDMS 1254212 Page 7/24

2. What’s a catalog Template model? ü ü 2012 -11 -27 R. Leuxe Help Users to generate their 3 D models Several templates in Smarteam Most of them have CATIA Parameters Submit yours! 13 th CATIA FORUM – EDMS 1254212 Page 8/24

2. What’s a catalog Template model? ü Example of O-RING 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 9/24

2. What’s a catalog Template model? ü Example of O-RING Only 2 Parameters Publications: Axis + 2 Contact Planes + Middle Plane 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 10/24

2. What’s a catalog Template model? ü Example of O-RING Only 2 dimensions to define: Internal Ø + core Ø 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 11/24

2. What’s a catalog Template model? ü Example of O-RING Effect of «Compress. Z» parameter (here = 0. 2 mm) z y 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 12/24

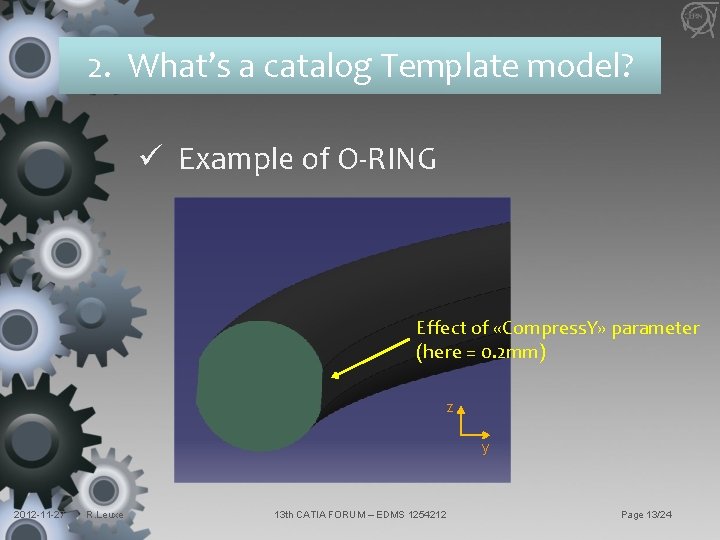

2. What’s a catalog Template model? ü Example of O-RING Effect of «Compress. Y» parameter (here = 0. 2 mm) z y 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 13/24

2. What’s a catalog Template model? ü Example of O-RING Result of the 2 parameters z y 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 14/24

2. What’s a catalog Template model? ü O-RING Template 1. 2. 3. 4. 2012 -11 -27 R. Leuxe Customize the 3 D model “Smarteam Save As” the file Fill Profile Cards (doc+ITEM) Exception: NO NEED TO SEND TO CATALOGS (too many references, too many configurations per reference) 13 th CATIA FORUM – EDMS 1254212 Page 15/24

3. How To Improve Catalog Content? ü Use good 3 D models (Q-Checker) ü Use Publications (simple names, same names if family’s element already exists) ü Fill Profile Cards: doc+ITEM ü Submit Templates ü Send error report! Toolbar in CATIA & Smarteam 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 16/24

3. How To Improve Catalog Content? ü Examples of User Improvements: O RING (L. Sermeus) DIN 7984 Screws (E. Chaudet, L. Gentini) SCEM Tubes (P. F Marcillac) SCEM Vacuum Gaskets (E. Chaudet) Screws modifications (P. Perret, N. Chritin) End Fits (J. Mouleyre) N TUR R U O Y ’S NOW IT 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 17/24

4. Last Important Updates UHV Flanges: (L. Faisandel - S. Tournadre) S R E B UM N D D C blinds, opened, tapped NEW 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 18/24

4. Last Important Updates Hexagonal Screws: ISO 4017 (CAD Support – M. Garcia Carnero) ü Threaded area shown ü All dimensions according to SCEM, Bossard and ISO Now Before 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 19/24

4. Last Important Updates Screws Projects: Sort per Ø (Common Screws): 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 20/24

4. Last Important Updates ISO 4014 names & materials: (CAD Support – P. G. JONSSON - M. Garcia Carnero) Grade A/B removed Stainless Steel A 4 -100 replaced by A 4 Shapes and appearence updates coming soon… 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 21/24

5. Last Families Created (Lucas R. – Summer Student) ü UHV Flange Gaskets (SCEM 18. 60. 55) ü ISO-K Flange Gaskets ü Welding Curved Ends (SCEM 41. 03. 06) ü UHV Studs (SCEM 47. 33. 51) ü UHV Plain Washers (SCEM 47. 78. 15) ü Hexagonal Nuts UHV Flanges (SCEM 47. 43. 78) ü Forged Blank UHV Rings 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 22/24

6. Last Materials Added (CAD Support – M. Garcia Carnero) ü Polymers: Vulkollan®, PETg ü Other: Heliums & Nitrogens ü Ceramics: MACOR® ü Stainless Steel: St. Steel Vacuum (LO-GE 1003 & 1004) 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 23/24

CATIA Catalogs Thanks for your help Catia-catalogs@cern. ch 2012 -11 -27 R. Leuxe 13 th CATIA FORUM – EDMS 1254212 Page 24/24
