Catalyst What is Newtons 3 rd Law Give

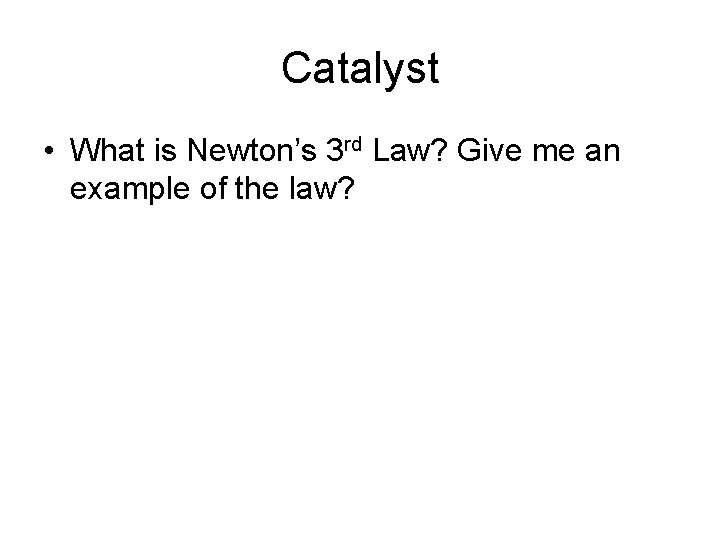

Catalyst • What is Newton’s 3 rd Law? Give me an example of the law?

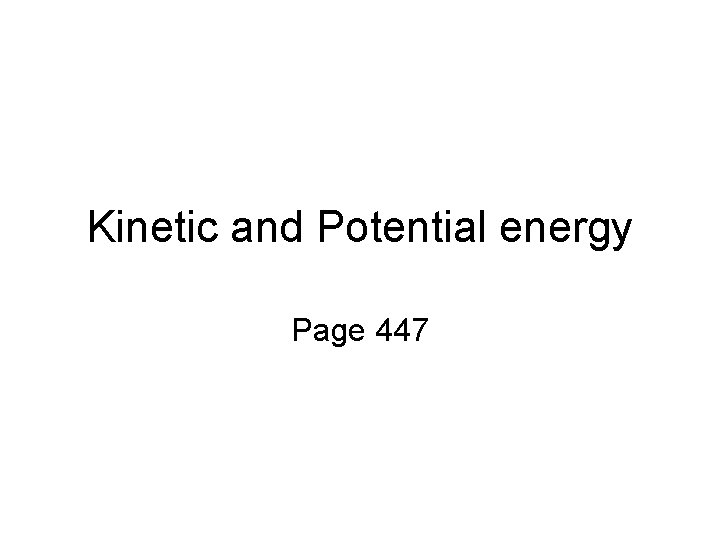

Kinetic and Potential energy Page 447

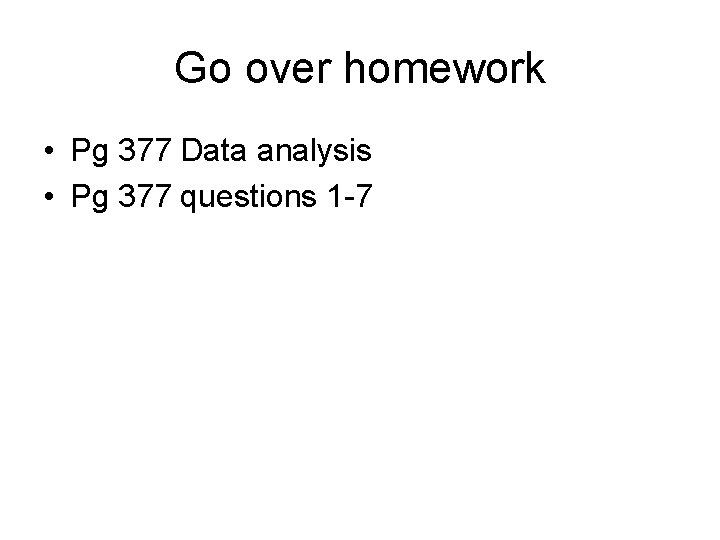

Go over homework • Pg 377 Data analysis • Pg 377 questions 1 -7

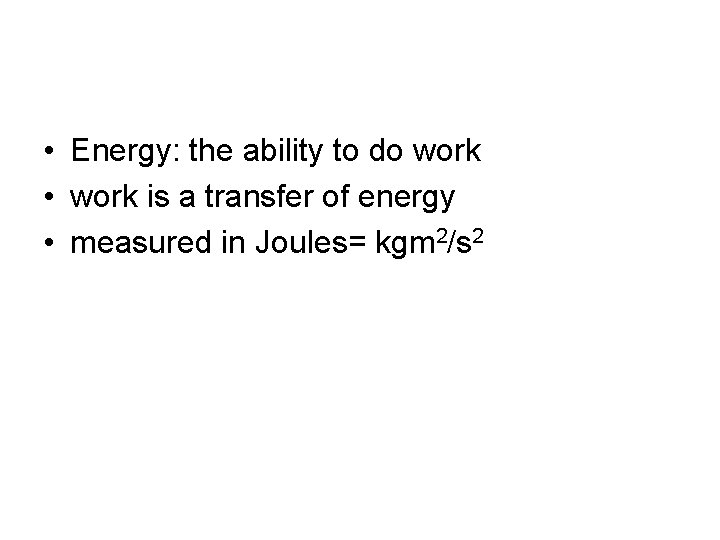

• Energy: the ability to do work • work is a transfer of energy • measured in Joules= kgm 2/s 2

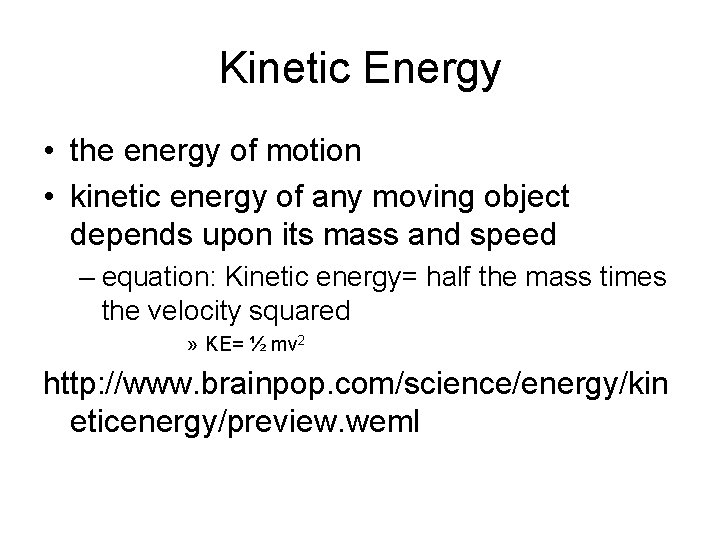

Kinetic Energy • the energy of motion • kinetic energy of any moving object depends upon its mass and speed – equation: Kinetic energy= half the mass times the velocity squared » KE= ½ mv 2 http: //www. brainpop. com/science/energy/kin eticenergy/preview. weml

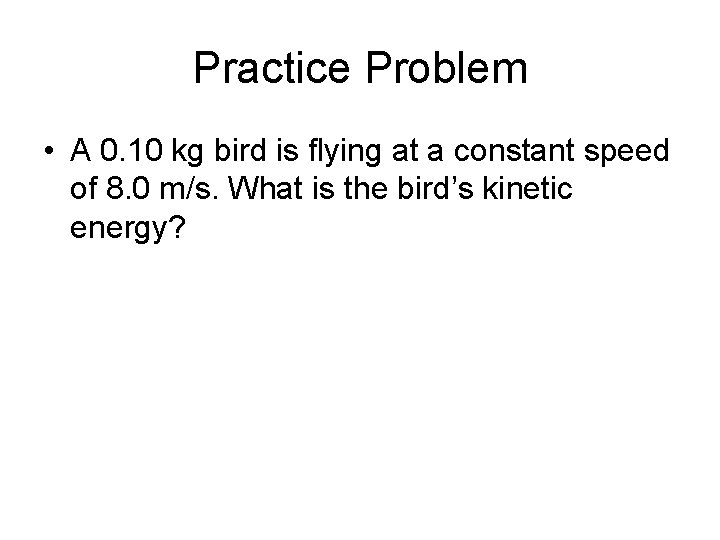

Practice Problem • A 0. 10 kg bird is flying at a constant speed of 8. 0 m/s. What is the bird’s kinetic energy?

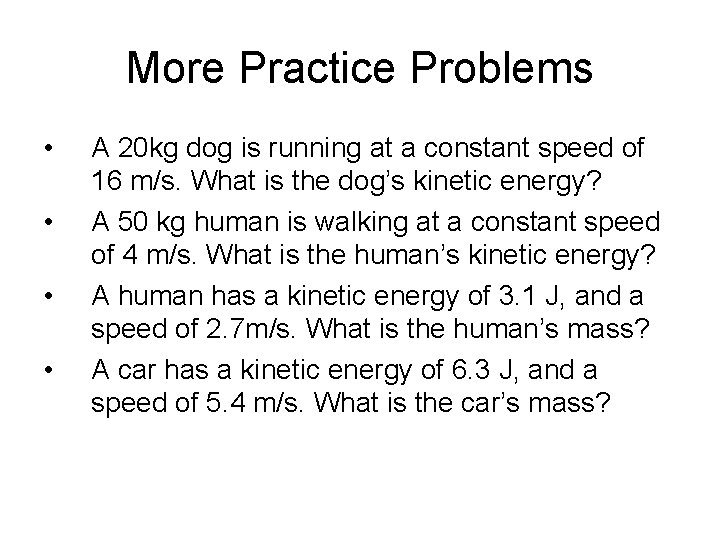

More Practice Problems • • A 20 kg dog is running at a constant speed of 16 m/s. What is the dog’s kinetic energy? A 50 kg human is walking at a constant speed of 4 m/s. What is the human’s kinetic energy? A human has a kinetic energy of 3. 1 J, and a speed of 2. 7 m/s. What is the human’s mass? A car has a kinetic energy of 6. 3 J, and a speed of 5. 4 m/s. What is the car’s mass?

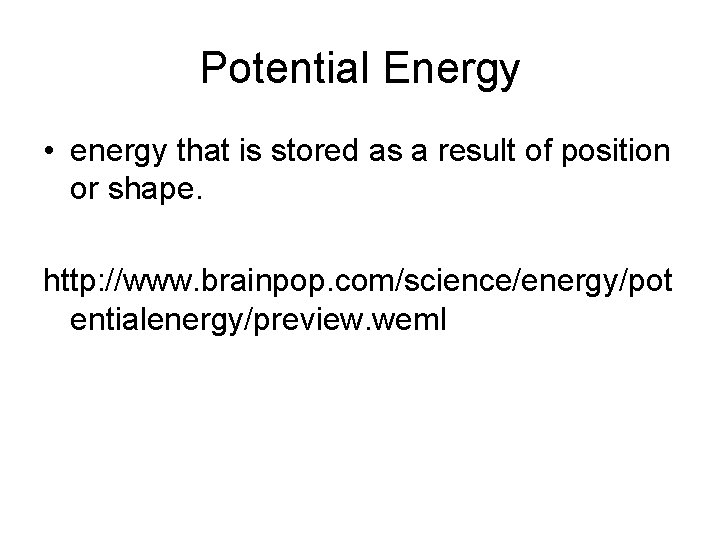

Potential Energy • energy that is stored as a result of position or shape. http: //www. brainpop. com/science/energy/pot entialenergy/preview. weml

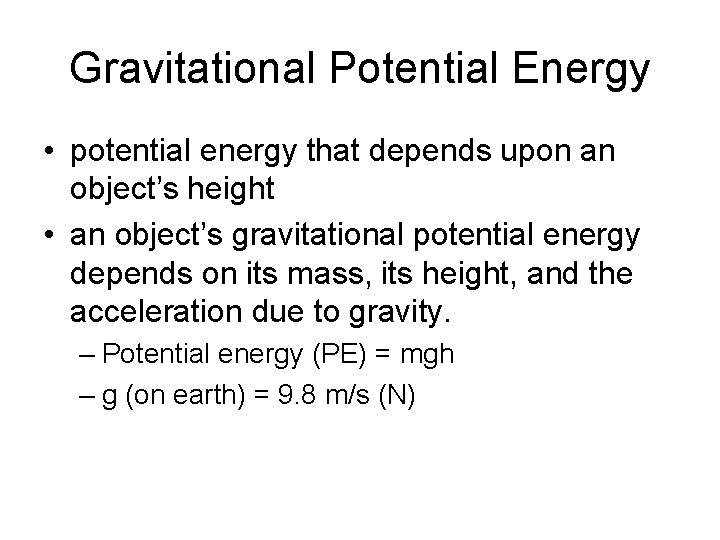

Gravitational Potential Energy • potential energy that depends upon an object’s height • an object’s gravitational potential energy depends on its mass, its height, and the acceleration due to gravity. – Potential energy (PE) = mgh – g (on earth) = 9. 8 m/s (N)

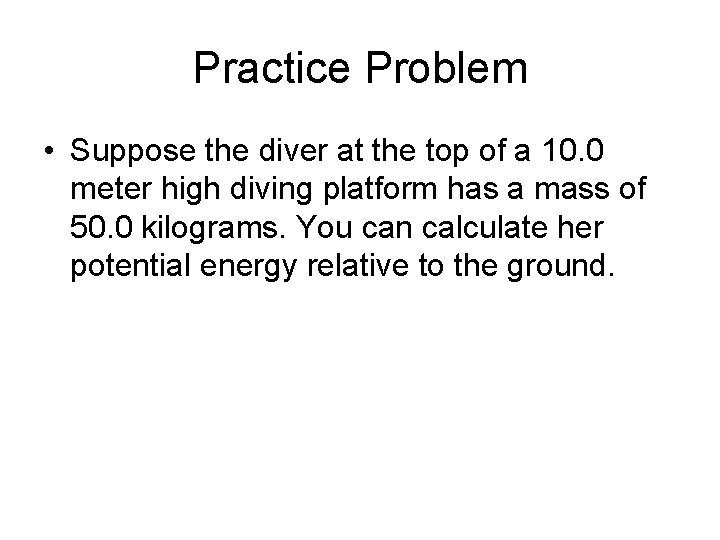

Practice Problem • Suppose the diver at the top of a 10. 0 meter high diving platform has a mass of 50. 0 kilograms. You can calculate her potential energy relative to the ground.

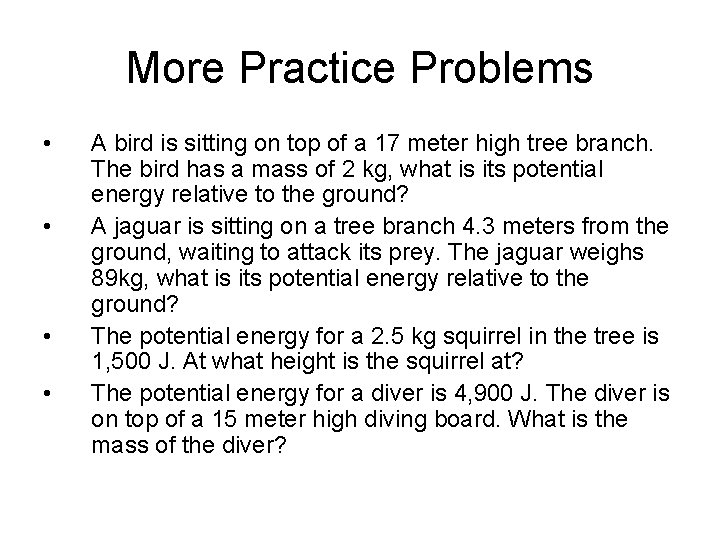

More Practice Problems • • A bird is sitting on top of a 17 meter high tree branch. The bird has a mass of 2 kg, what is its potential energy relative to the ground? A jaguar is sitting on a tree branch 4. 3 meters from the ground, waiting to attack its prey. The jaguar weighs 89 kg, what is its potential energy relative to the ground? The potential energy for a 2. 5 kg squirrel in the tree is 1, 500 J. At what height is the squirrel at? The potential energy for a diver is 4, 900 J. The diver is on top of a 15 meter high diving board. What is the mass of the diver?

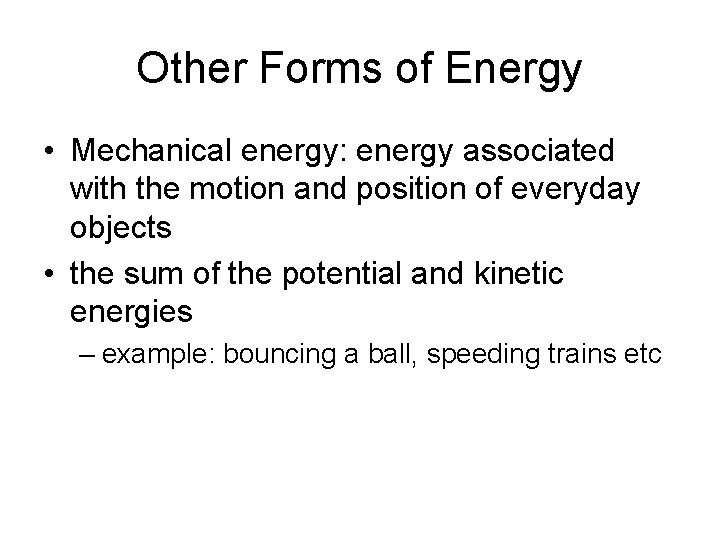

Other Forms of Energy • Mechanical energy: energy associated with the motion and position of everyday objects • the sum of the potential and kinetic energies – example: bouncing a ball, speeding trains etc

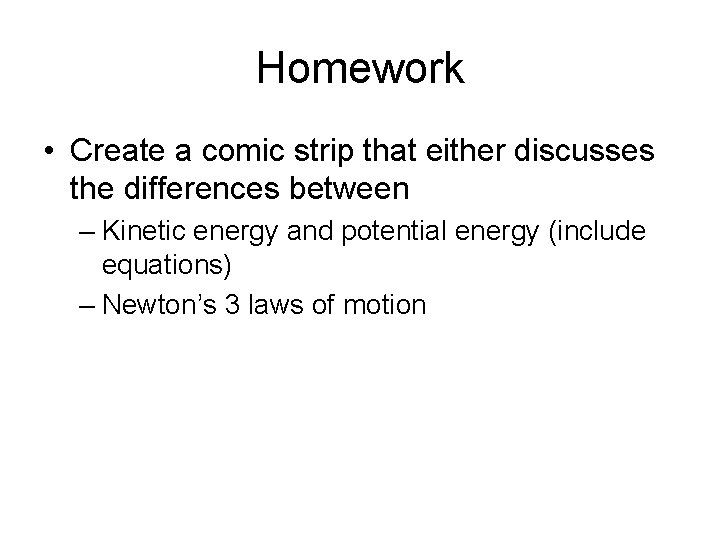

Homework • Create a comic strip that either discusses the differences between – Kinetic energy and potential energy (include equations) – Newton’s 3 laws of motion

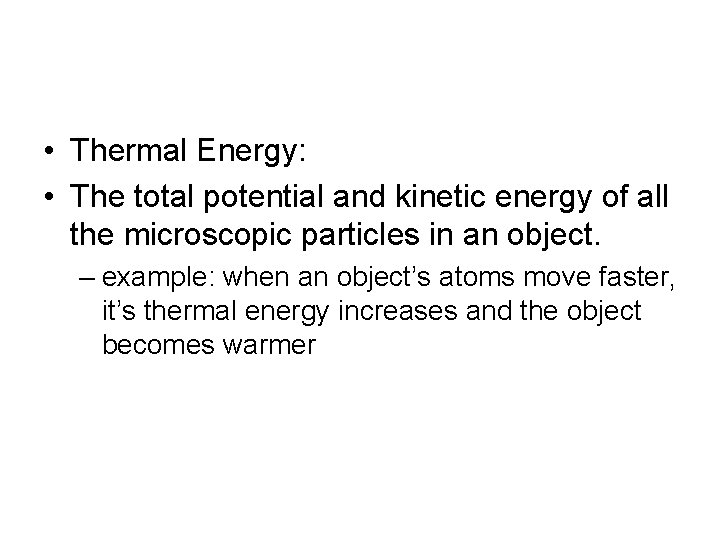

• Thermal Energy: • The total potential and kinetic energy of all the microscopic particles in an object. – example: when an object’s atoms move faster, it’s thermal energy increases and the object becomes warmer

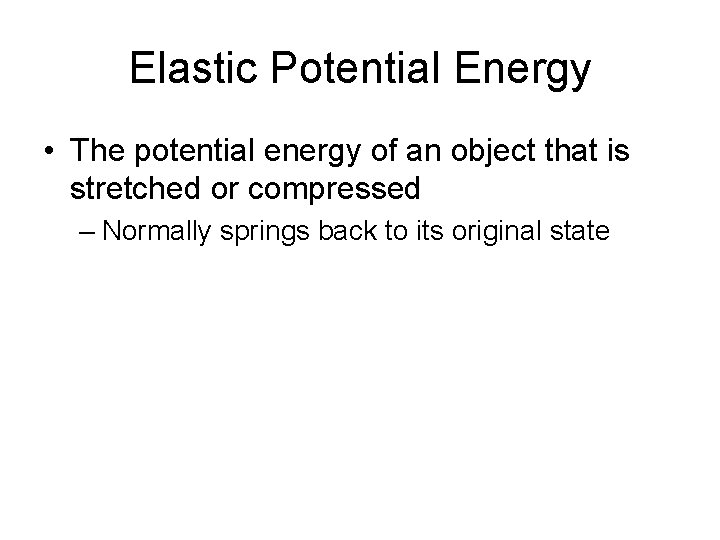

Elastic Potential Energy • The potential energy of an object that is stretched or compressed – Normally springs back to its original state

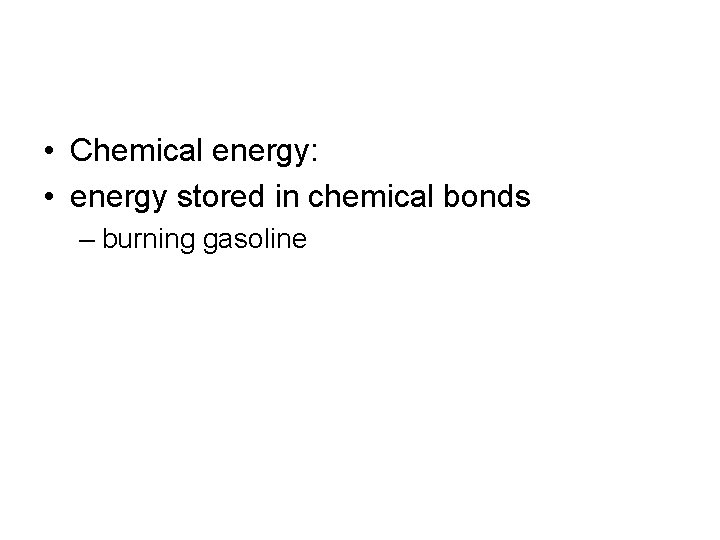

• Chemical energy: • energy stored in chemical bonds – burning gasoline

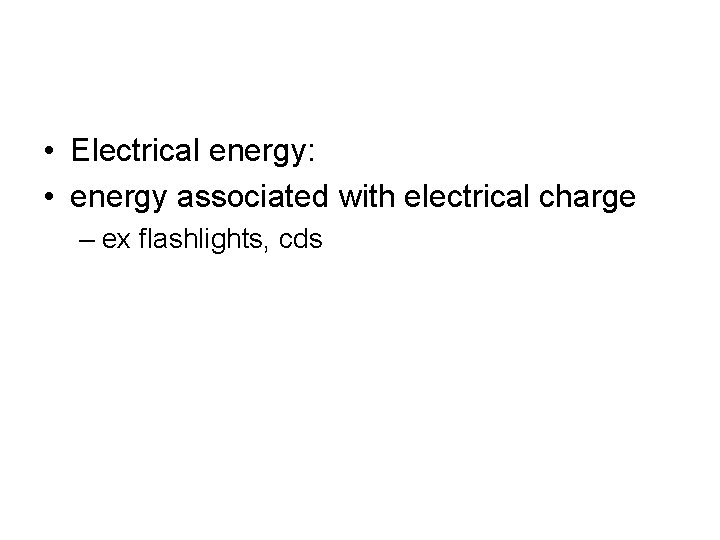

• Electrical energy: • energy associated with electrical charge – ex flashlights, cds

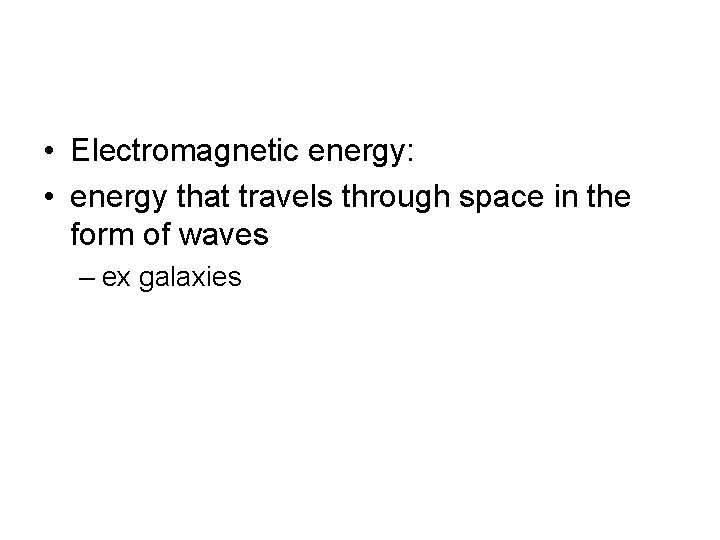

• Electromagnetic energy: • energy that travels through space in the form of waves – ex galaxies

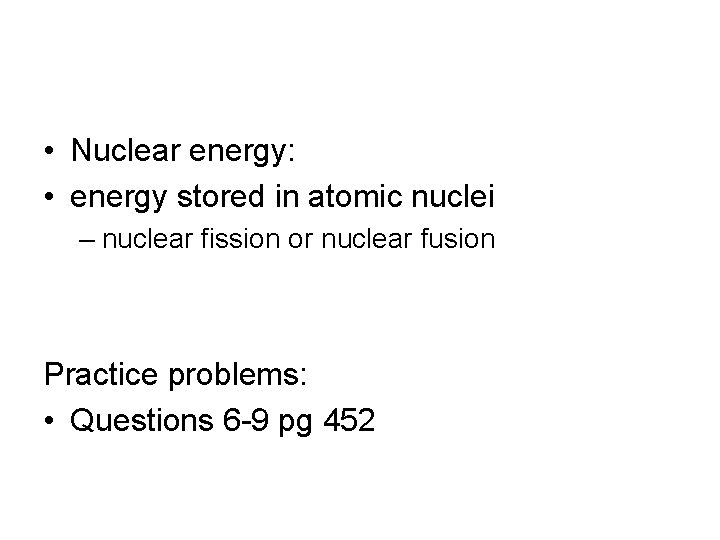

• Nuclear energy: • energy stored in atomic nuclei – nuclear fission or nuclear fusion Practice problems: • Questions 6 -9 pg 452

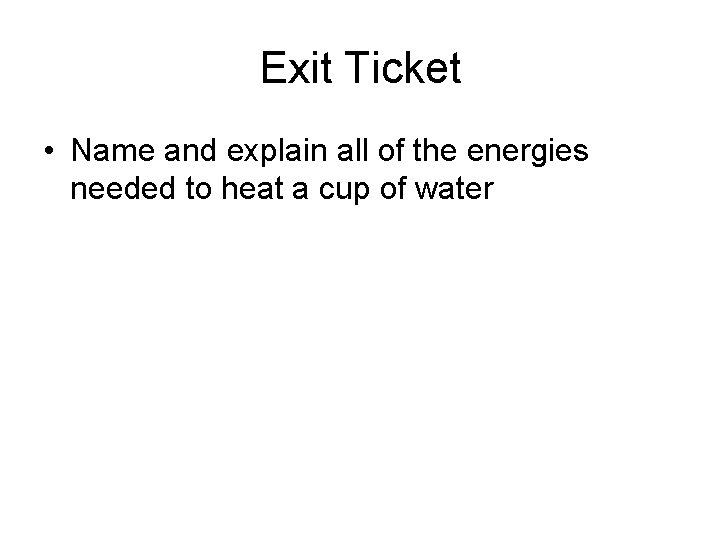

Exit Ticket • Name and explain all of the energies needed to heat a cup of water

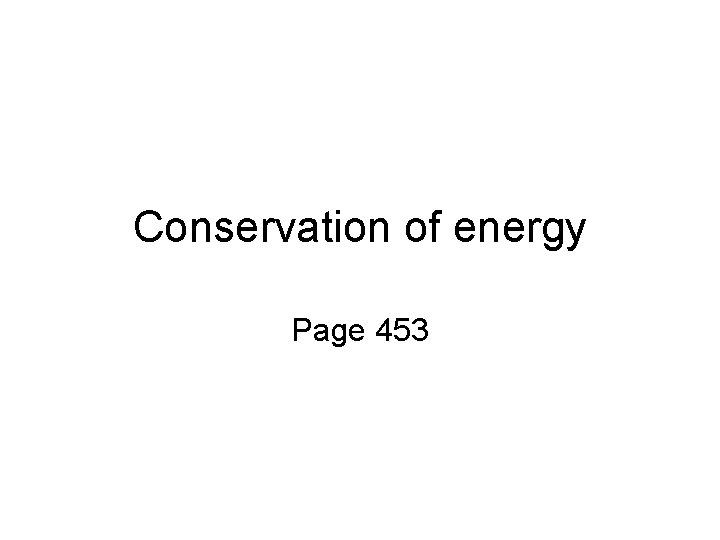

Conservation of energy Page 453

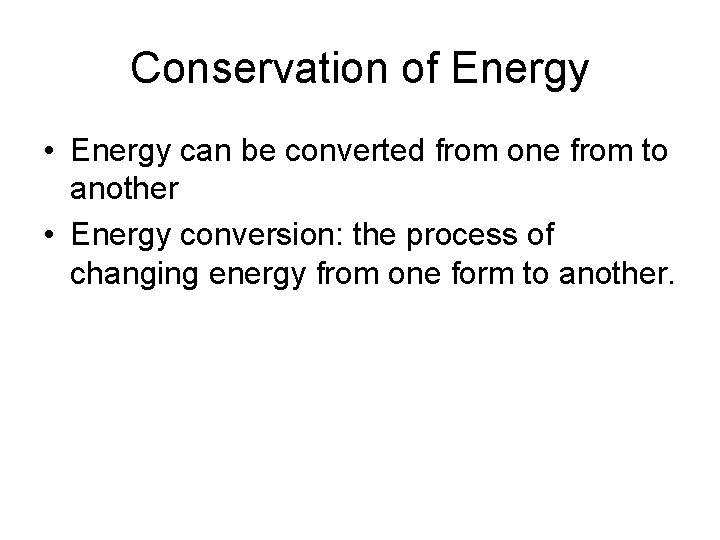

Conservation of Energy • Energy can be converted from one from to another • Energy conversion: the process of changing energy from one form to another.

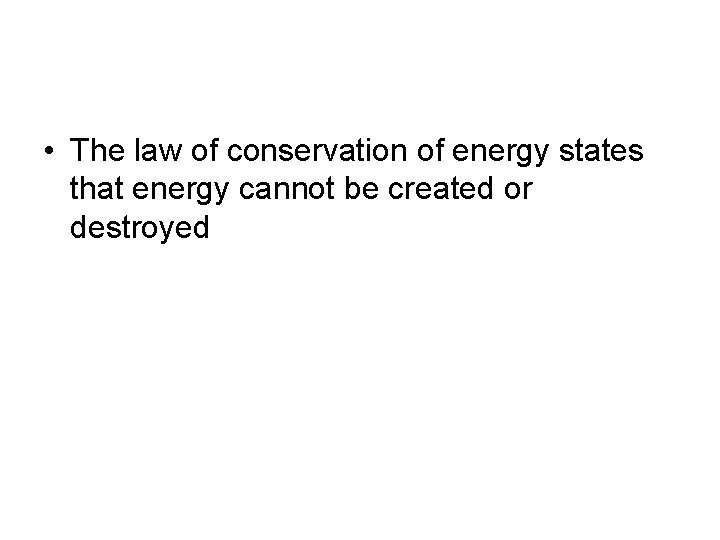

• The law of conservation of energy states that energy cannot be created or destroyed

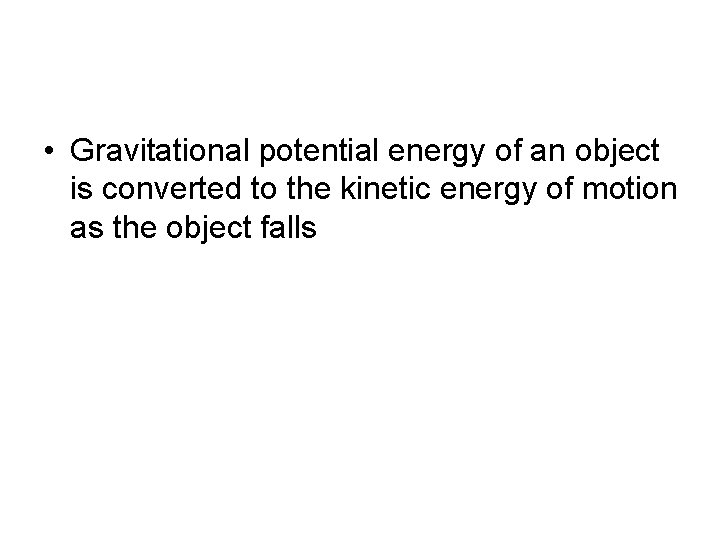

• Gravitational potential energy of an object is converted to the kinetic energy of motion as the object falls

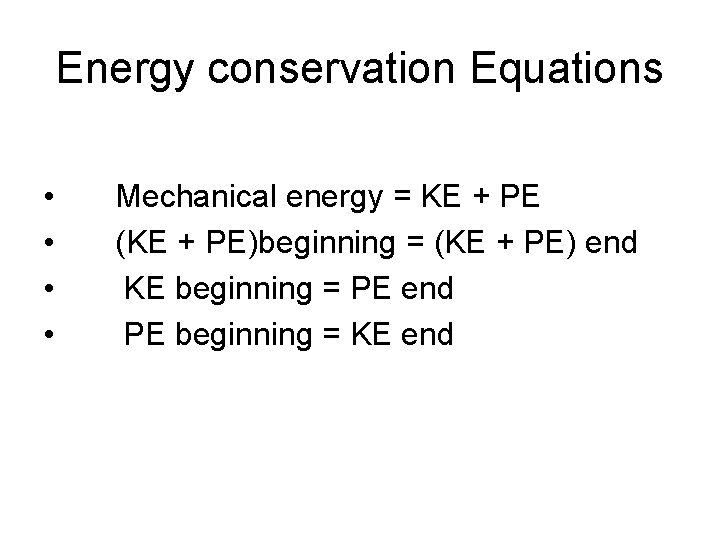

Energy conservation Equations • • Mechanical energy = KE + PE (KE + PE)beginning = (KE + PE) end KE beginning = PE end PE beginning = KE end

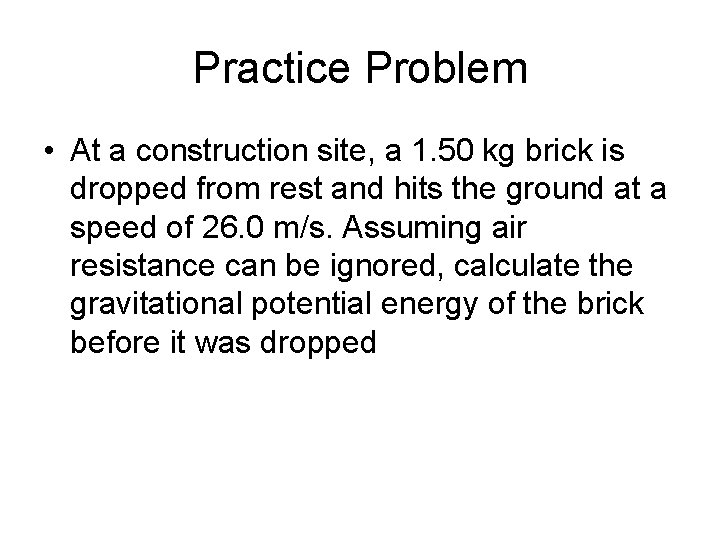

Practice Problem • At a construction site, a 1. 50 kg brick is dropped from rest and hits the ground at a speed of 26. 0 m/s. Assuming air resistance can be ignored, calculate the gravitational potential energy of the brick before it was dropped

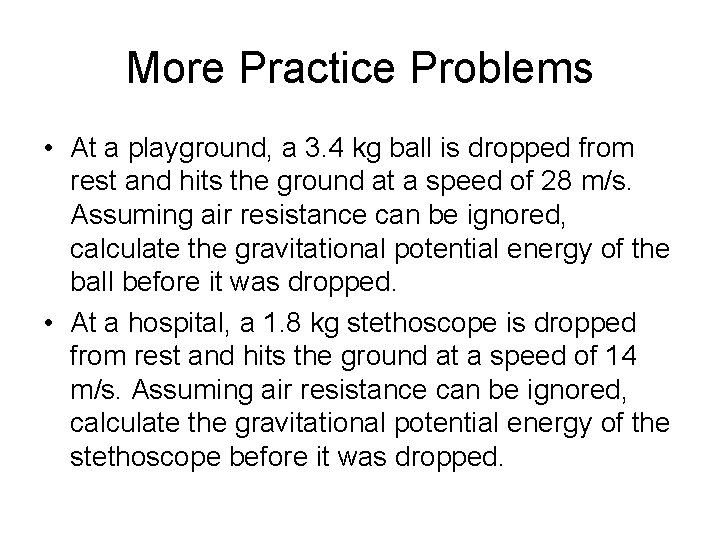

More Practice Problems • At a playground, a 3. 4 kg ball is dropped from rest and hits the ground at a speed of 28 m/s. Assuming air resistance can be ignored, calculate the gravitational potential energy of the ball before it was dropped. • At a hospital, a 1. 8 kg stethoscope is dropped from rest and hits the ground at a speed of 14 m/s. Assuming air resistance can be ignored, calculate the gravitational potential energy of the stethoscope before it was dropped.

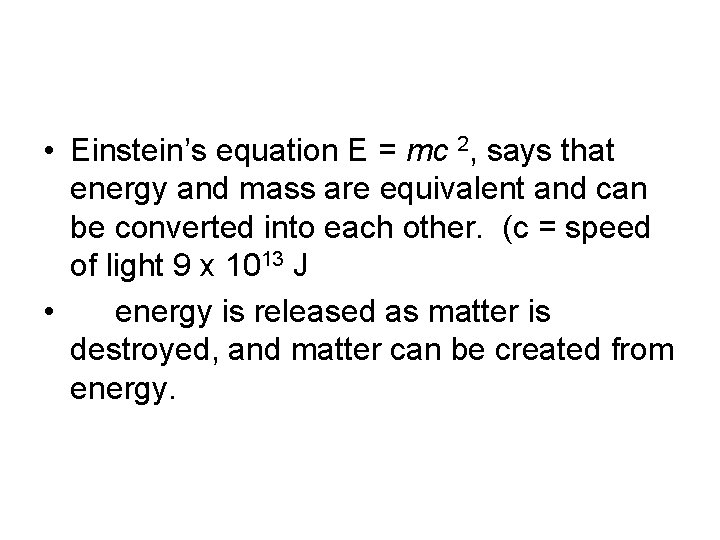

• Einstein’s equation E = mc 2, says that energy and mass are equivalent and can be converted into each other. (c = speed of light 9 x 1013 J • energy is released as matter is destroyed, and matter can be created from energy.

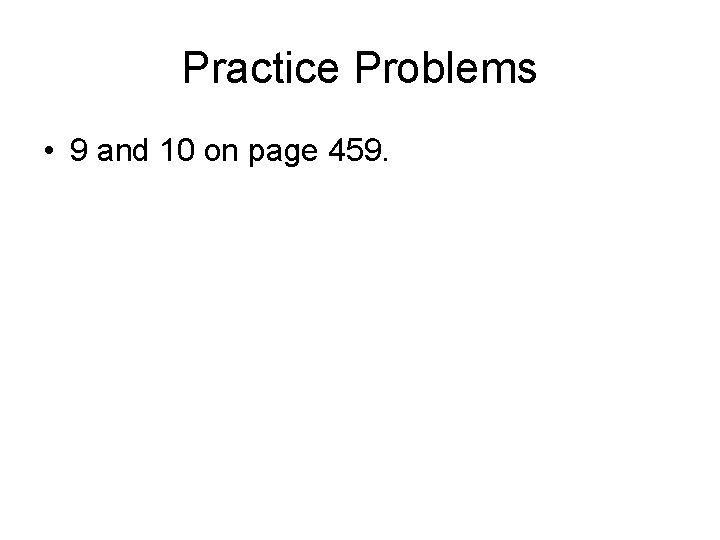

Practice Problems • 9 and 10 on page 459.

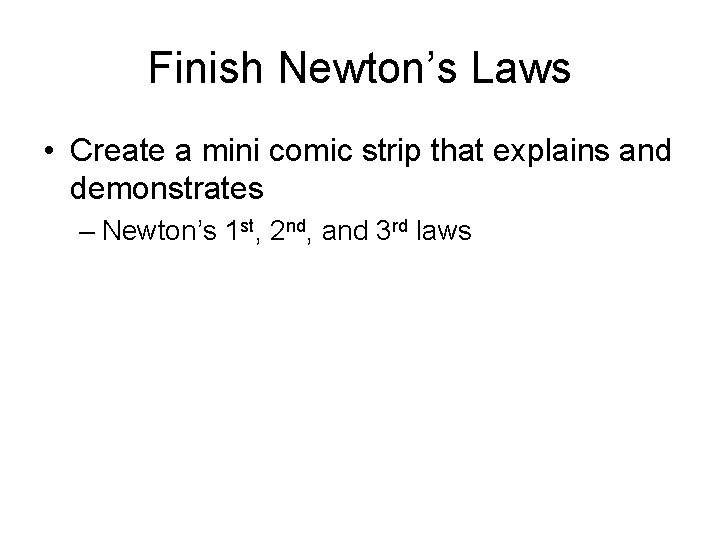

Finish Newton’s Laws • Create a mini comic strip that explains and demonstrates – Newton’s 1 st, 2 nd, and 3 rd laws
