CASUALTY EVACUATION OPERATIONS

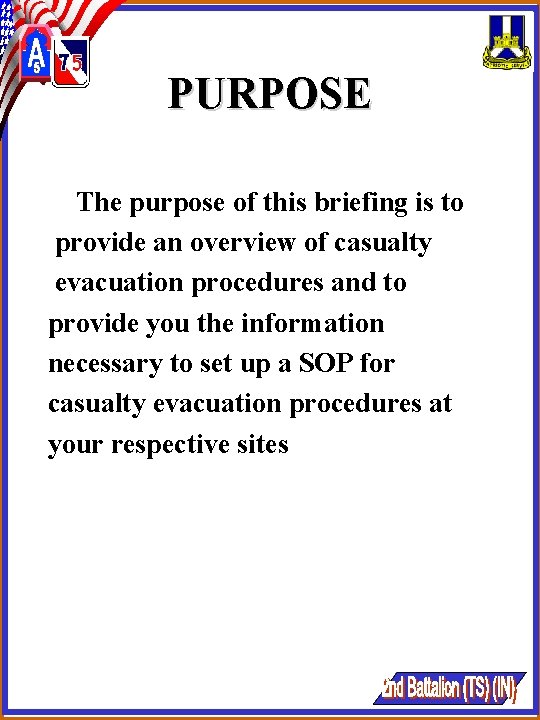

PURPOSE The purpose of this briefing is to provide an overview of casualty evacuation procedures and to provide you the information necessary to set up a SOP for casualty evacuation procedures at your respective sites

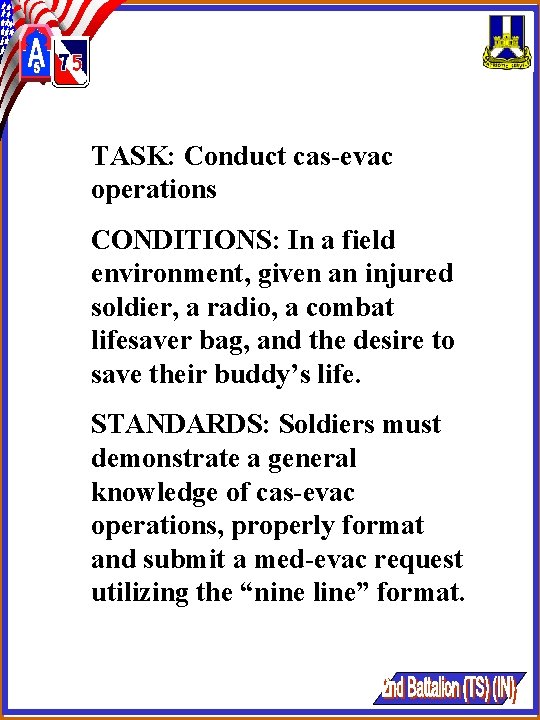

TASK: Conduct cas-evac operations CONDITIONS: In a field environment, given an injured soldier, a radio, a combat lifesaver bag, and the desire to save their buddy’s life. STANDARDS: Soldiers must demonstrate a general knowledge of cas-evac operations, properly format and submit a med-evac request utilizing the “nine line” format.

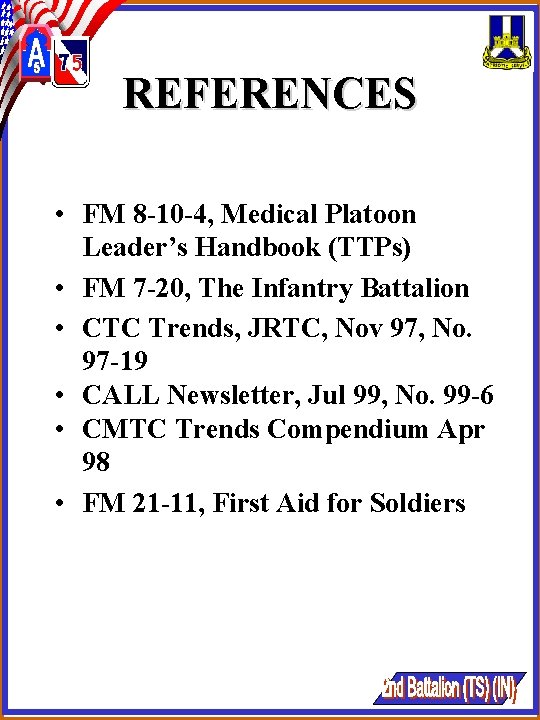

REFERENCES • FM 8 -10 -4, Medical Platoon Leader’s Handbook (TTPs) • FM 7 -20, The Infantry Battalion • CTC Trends, JRTC, Nov 97, No. 97 -19 • CALL Newsletter, Jul 99, No. 99 -6 • CMTC Trends Compendium Apr 98 • FM 21 -11, First Aid for Soldiers

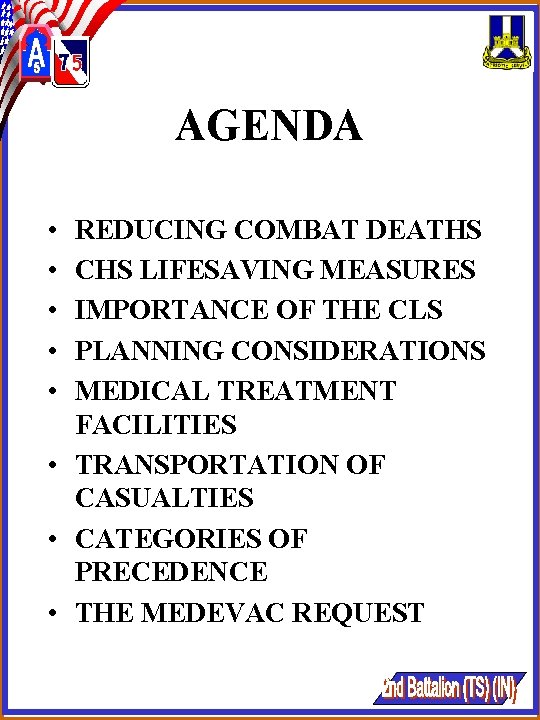

AGENDA • • • REDUCING COMBAT DEATHS CHS LIFESAVING MEASURES IMPORTANCE OF THE CLS PLANNING CONSIDERATIONS MEDICAL TREATMENT FACILITIES • TRANSPORTATION OF CASUALTIES • CATEGORIES OF PRECEDENCE • THE MEDEVAC REQUEST

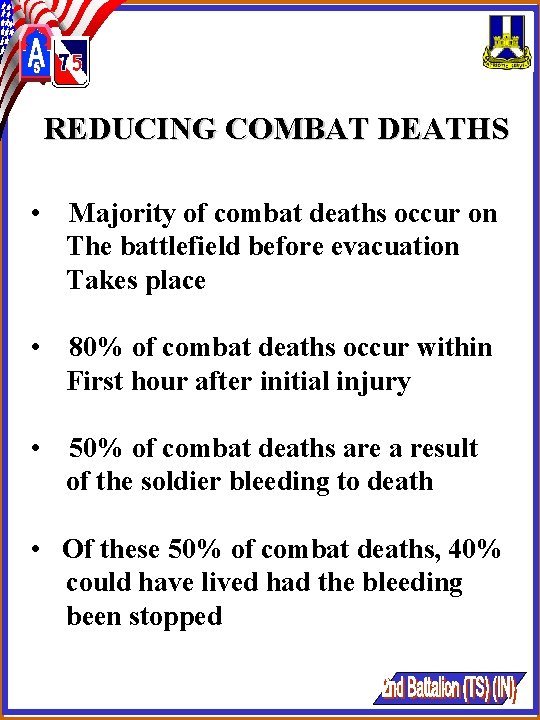

REDUCING COMBAT DEATHS • Majority of combat deaths occur on The battlefield before evacuation Takes place • 80% of combat deaths occur within First hour after initial injury • 50% of combat deaths are a result of the soldier bleeding to death • Of these 50% of combat deaths, 40% could have lived had the bleeding been stopped

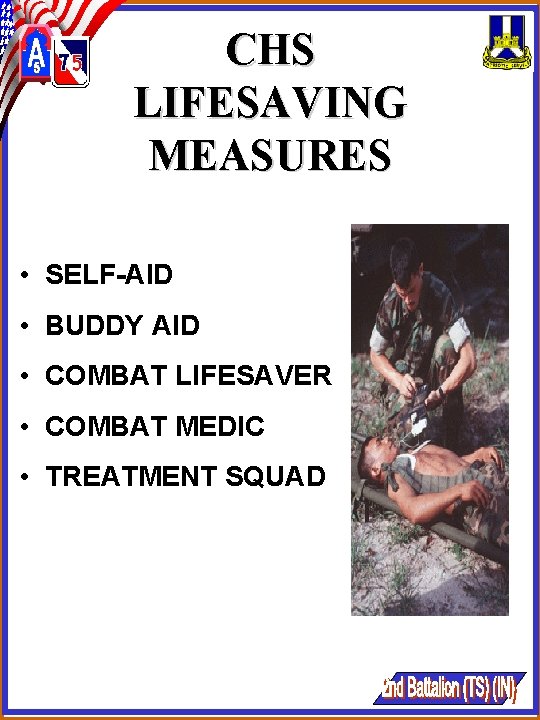

CHS LIFESAVING MEASURES • SELF-AID • BUDDY AID • COMBAT LIFESAVER • COMBAT MEDIC • TREATMENT SQUAD

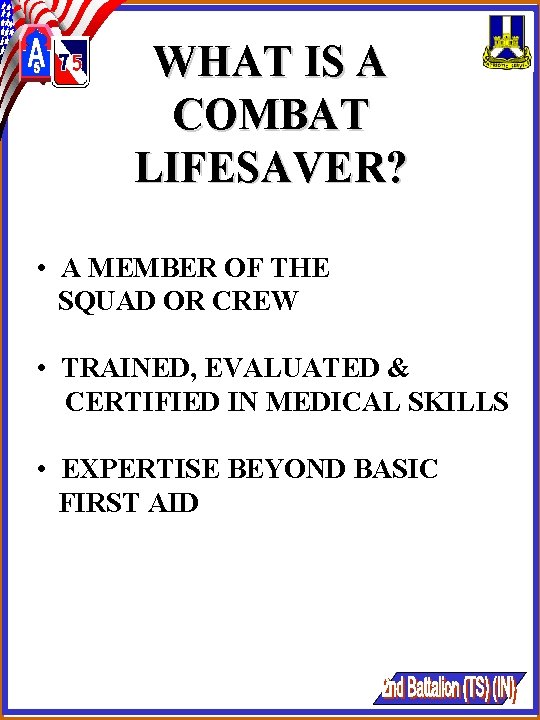

WHAT IS A COMBAT LIFESAVER? • A MEMBER OF THE SQUAD OR CREW • TRAINED, EVALUATED & CERTIFIED IN MEDICAL SKILLS • EXPERTISE BEYOND BASIC FIRST AID

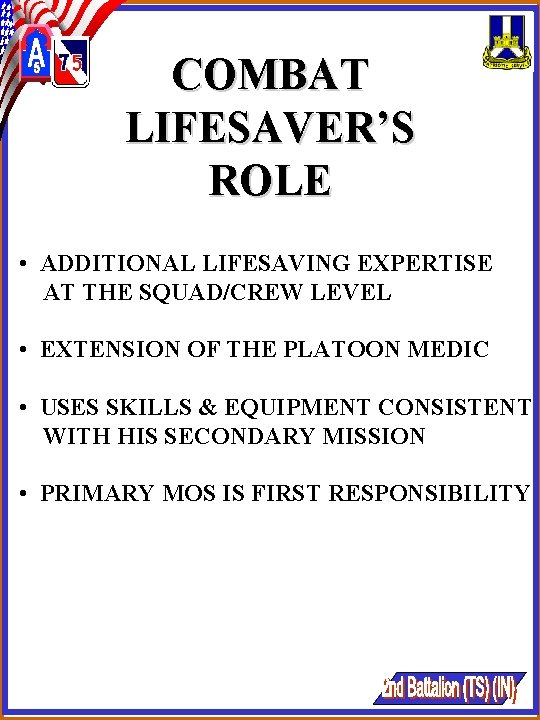

COMBAT LIFESAVER’S ROLE • ADDITIONAL LIFESAVING EXPERTISE AT THE SQUAD/CREW LEVEL • EXTENSION OF THE PLATOON MEDIC • USES SKILLS & EQUIPMENT CONSISTENT WITH HIS SECONDARY MISSION • PRIMARY MOS IS FIRST RESPONSIBILITY

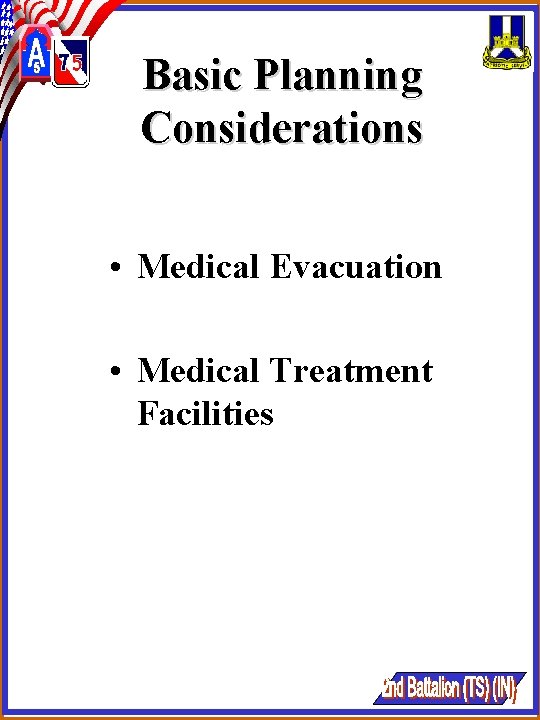

Basic Planning Considerations • Medical Evacuation • Medical Treatment Facilities

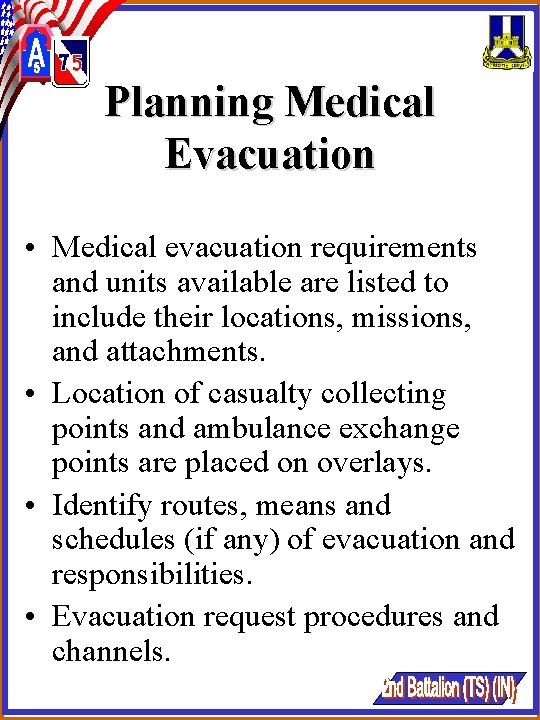

Planning Medical Evacuation • Medical evacuation requirements and units available are listed to include their locations, missions, and attachments. • Location of casualty collecting points and ambulance exchange points are placed on overlays. • Identify routes, means and schedules (if any) of evacuation and responsibilities. • Evacuation request procedures and channels.

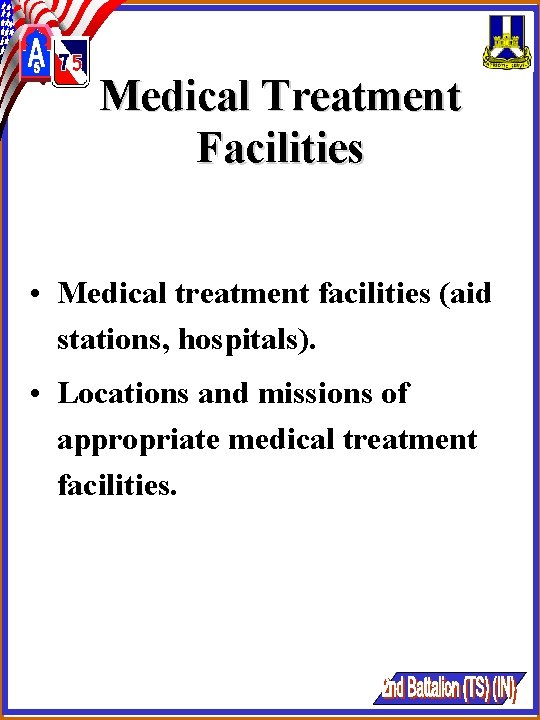

Medical Treatment Facilities • Medical treatment facilities (aid stations, hospitals). • Locations and missions of appropriate medical treatment facilities.

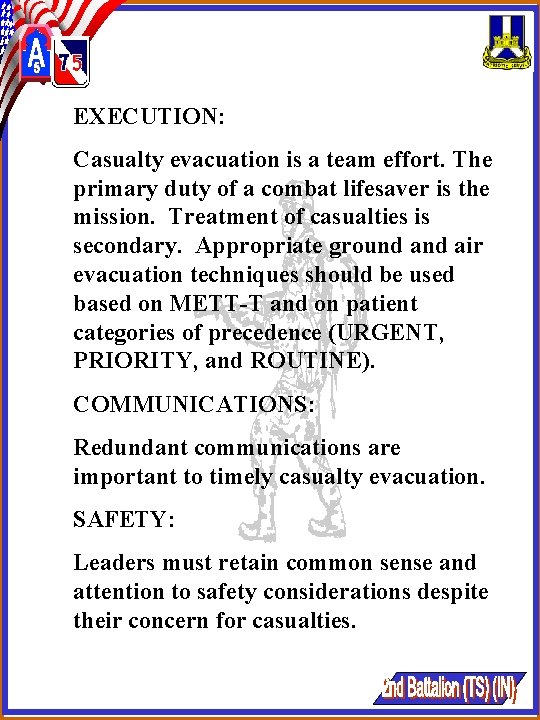

EXECUTION: Casualty evacuation is a team effort. The primary duty of a combat lifesaver is the mission. Treatment of casualties is secondary. Appropriate ground air evacuation techniques should be used based on METT-T and on patient categories of precedence (URGENT, PRIORITY, and ROUTINE). COMMUNICATIONS: Redundant communications are important to timely casualty evacuation. SAFETY: Leaders must retain common sense and attention to safety considerations despite their concern for casualties.

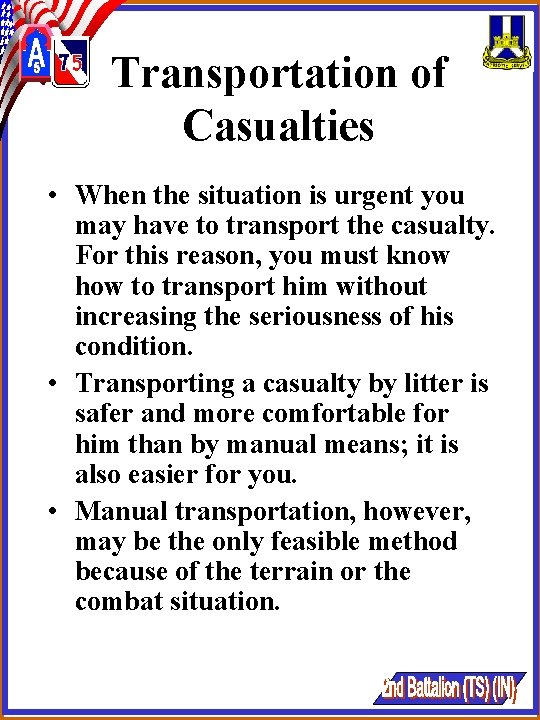

Transportation of Casualties • When the situation is urgent you may have to transport the casualty. For this reason, you must know how to transport him without increasing the seriousness of his condition. • Transporting a casualty by litter is safer and more comfortable for him than by manual means; it is also easier for you. • Manual transportation, however, may be the only feasible method because of the terrain or the combat situation.

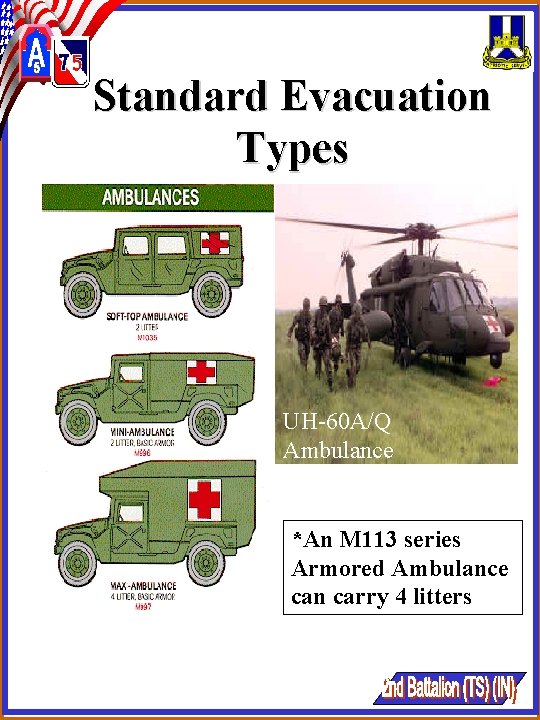

Standard Evacuation Types UH-60 A/Q Ambulance *An M 113 series Armored Ambulance can carry 4 litters

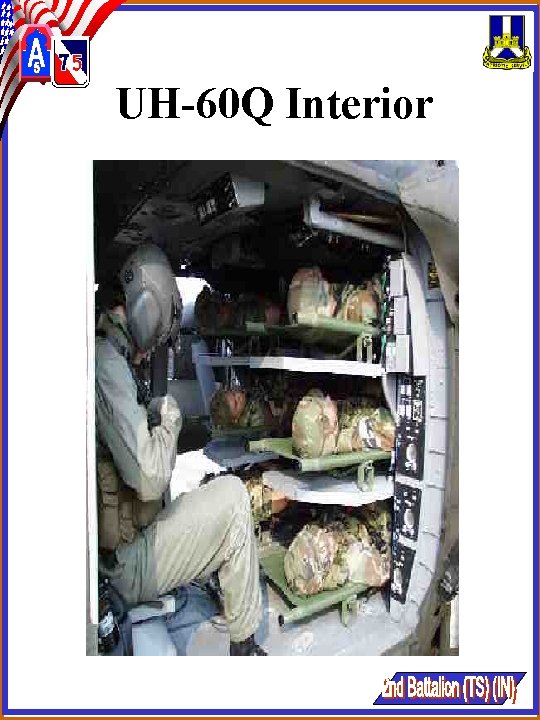

UH-60 Q Interior

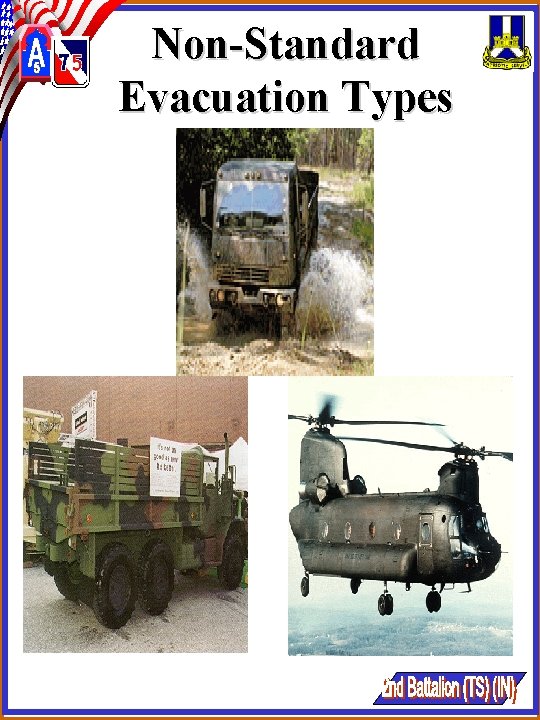

Non-Standard Evacuation Types

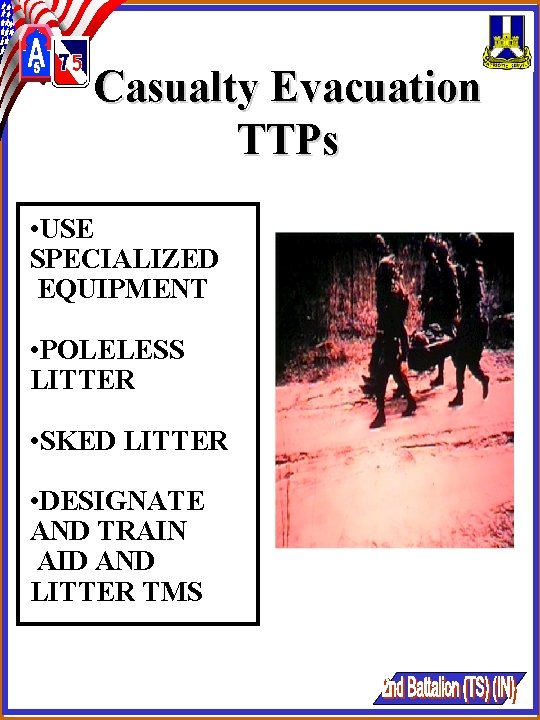

Casualty Evacuation TTPs • USE SPECIALIZED EQUIPMENT • POLELESS LITTER • SKED LITTER • DESIGNATE AND TRAIN AID AND LITTER TMS

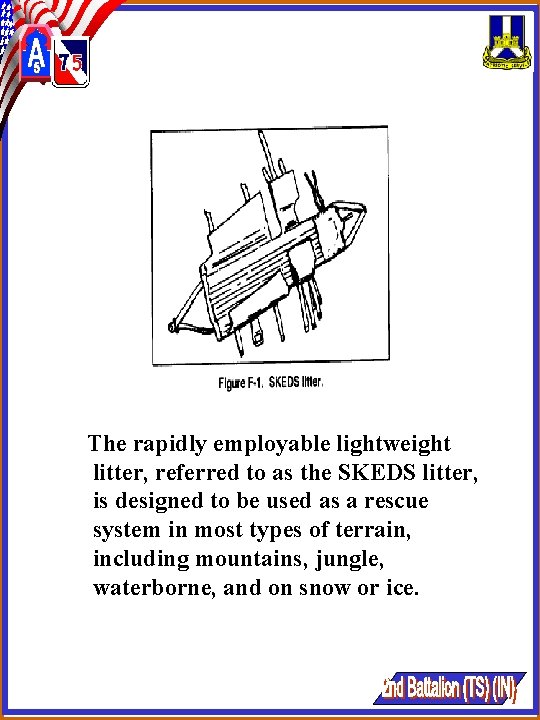

The rapidly employable lightweight litter, referred to as the SKEDS litter, is designed to be used as a rescue system in most types of terrain, including mountains, jungle, waterborne, and on snow or ice.

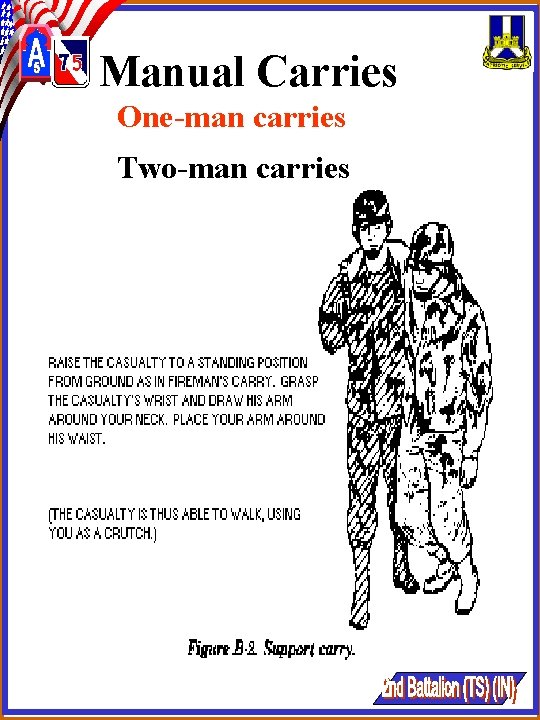

Manual Carries One-man carries Two-man carries

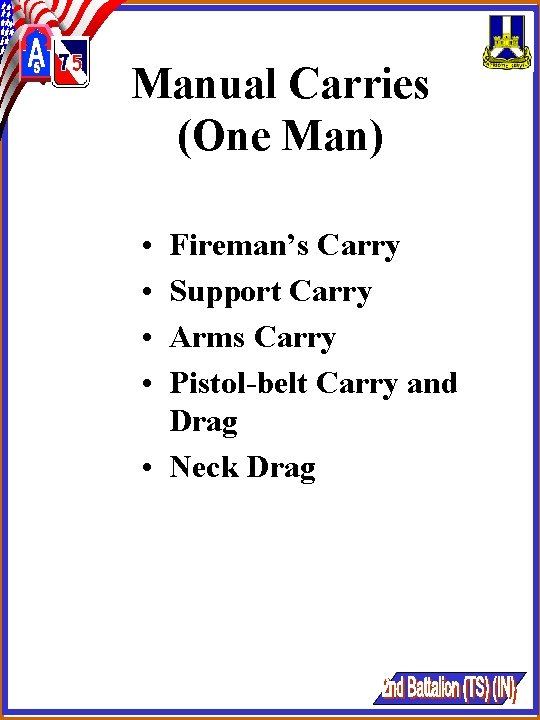

Manual Carries (One Man) • • Fireman’s Carry Support Carry Arms Carry Pistol-belt Carry and Drag • Neck Drag

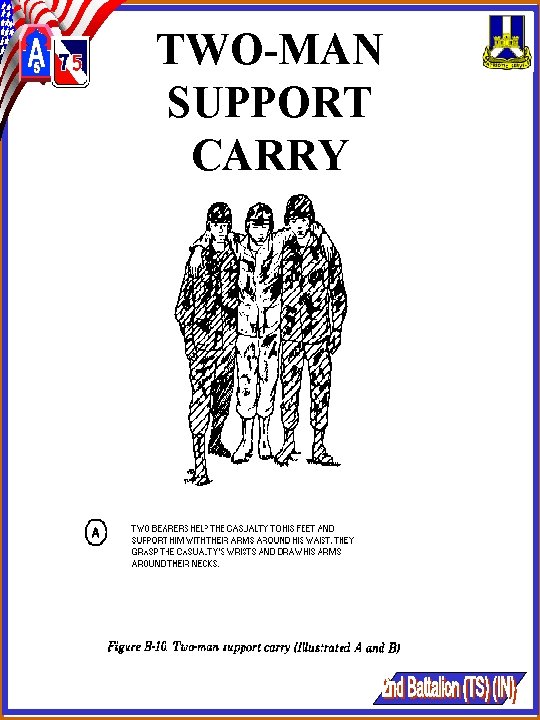

TWO-MAN SUPPORT CARRY

TWO-MAN SUPPORT CARRY (cont)

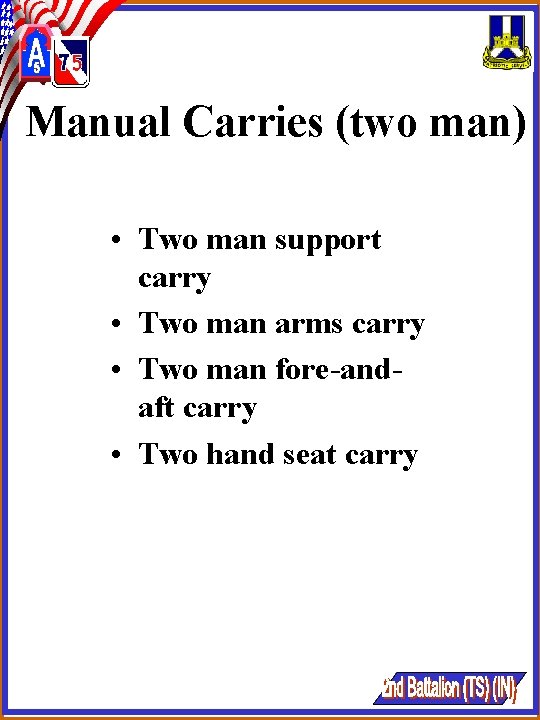

Manual Carries (two man) • Two man support carry • Two man arms carry • Two man fore-andaft carry • Two hand seat carry

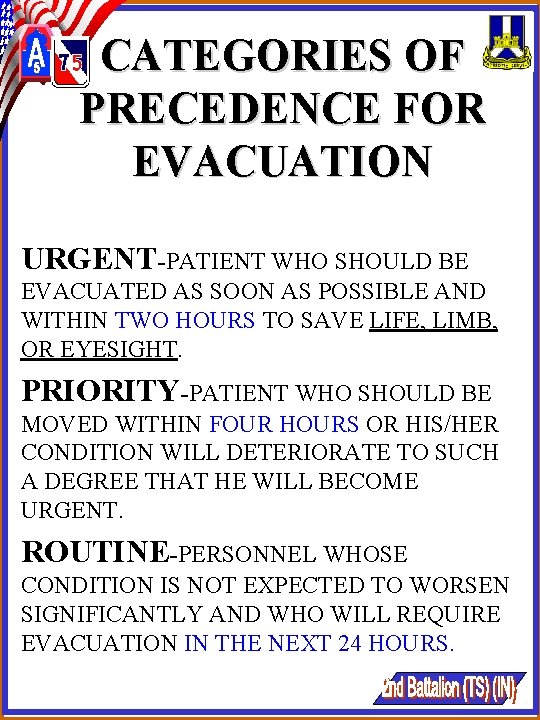

CATEGORIES OF PRECEDENCE FOR EVACUATION URGENT-PATIENT WHO SHOULD BE EVACUATED AS SOON AS POSSIBLE AND WITHIN TWO HOURS TO SAVE LIFE, LIMB, OR EYESIGHT. PRIORITY-PATIENT WHO SHOULD BE MOVED WITHIN FOUR HOURS OR HIS/HER CONDITION WILL DETERIORATE TO SUCH A DEGREE THAT HE WILL BECOME URGENT. ROUTINE-PERSONNEL WHOSE CONDITION IS NOT EXPECTED TO WORSEN SIGNIFICANTLY AND WHO WILL REQUIRE EVACUATION IN THE NEXT 24 HOURS.

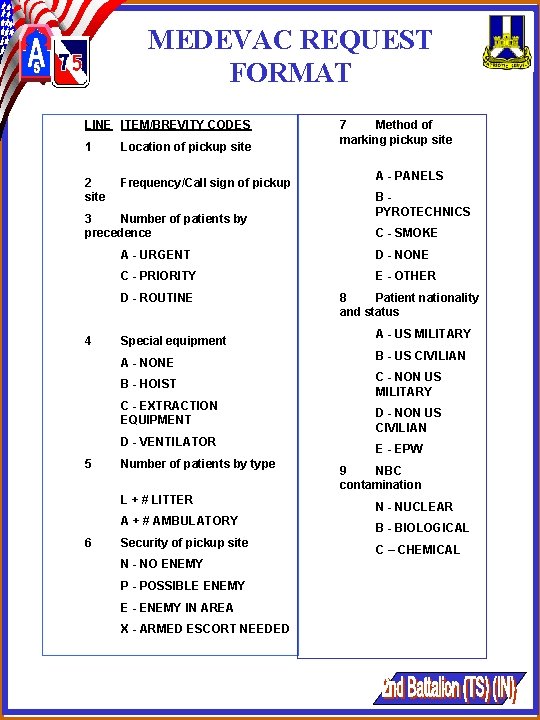

MEDEVAC REQUEST FORMAT LINE ITEM/BREVITY CODES 1 Location of pickup site 2 site Frequency/Call sign of pickup 3 Number of patients by precedence 4 BPYROTECHNICS C - SMOKE D - NONE C - PRIORITY E - OTHER D - ROUTINE 8 Patient nationality and status Special equipment B - HOIST C - EXTRACTION EQUIPMENT D - VENTILATOR Number of patients by type L + # LITTER A + # AMBULATORY 6 A - PANELS A - URGENT A - NONE 5 7 Method of marking pickup site Security of pickup site N - NO ENEMY P - POSSIBLE ENEMY E - ENEMY IN AREA X - ARMED ESCORT NEEDED A - US MILITARY B - US CIVILIAN C - NON US MILITARY D - NON US CIVILIAN E - EPW 9 NBC contamination N - NUCLEAR B - BIOLOGICAL C – CHEMICAL

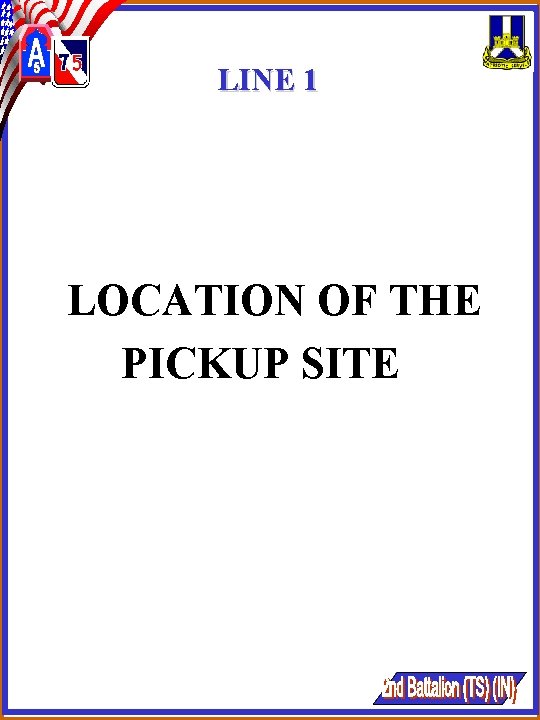

LINE 1 LOCATION OF THE PICKUP SITE

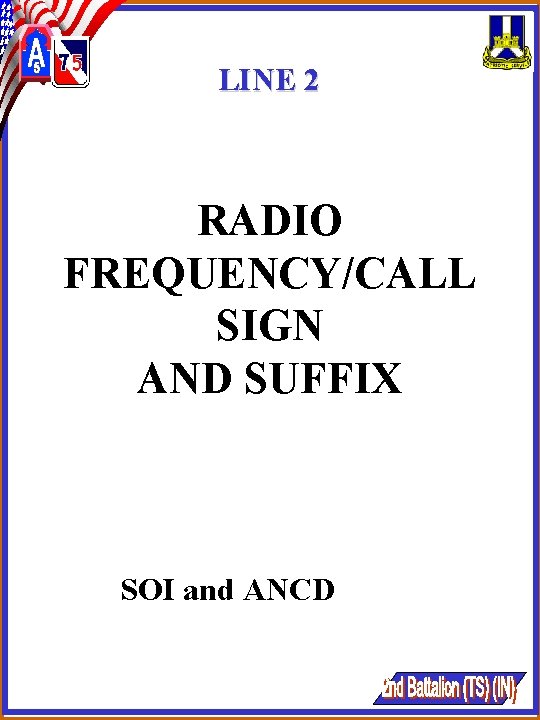

LINE 2 RADIO FREQUENCY/CALL SIGN AND SUFFIX SOI and ANCD

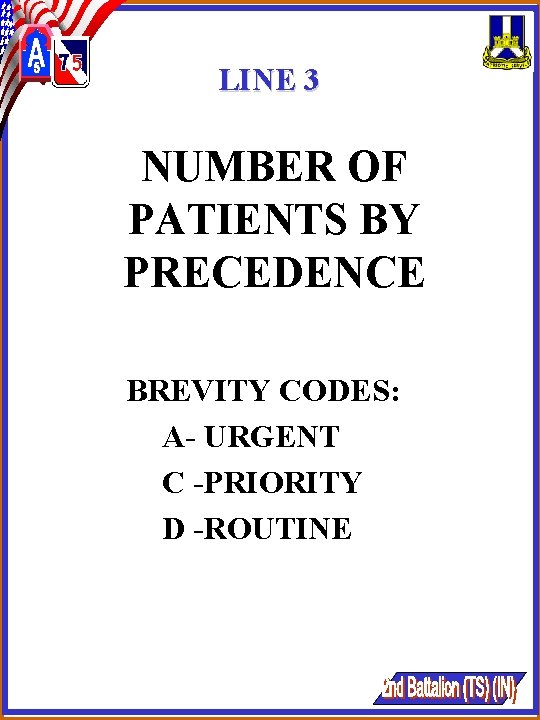

LINE 3 NUMBER OF PATIENTS BY PRECEDENCE BREVITY CODES: A- URGENT C -PRIORITY D -ROUTINE

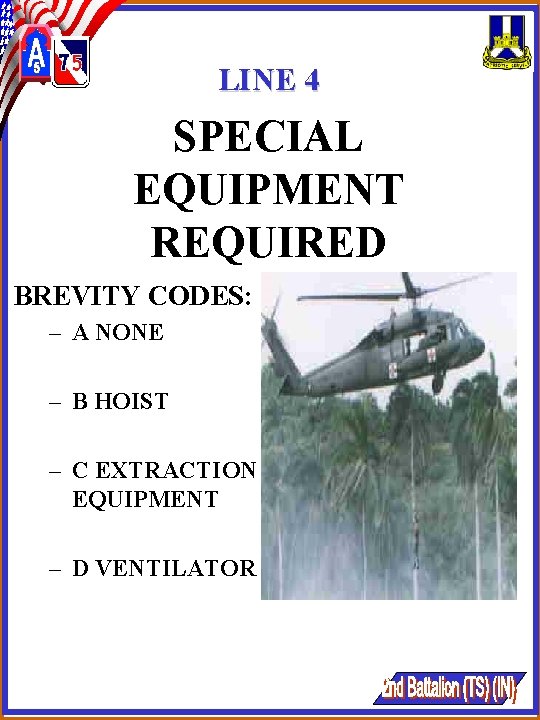

LINE 4 SPECIAL EQUIPMENT REQUIRED BREVITY CODES: – A NONE – B HOIST – C EXTRACTION EQUIPMENT – D VENTILATOR

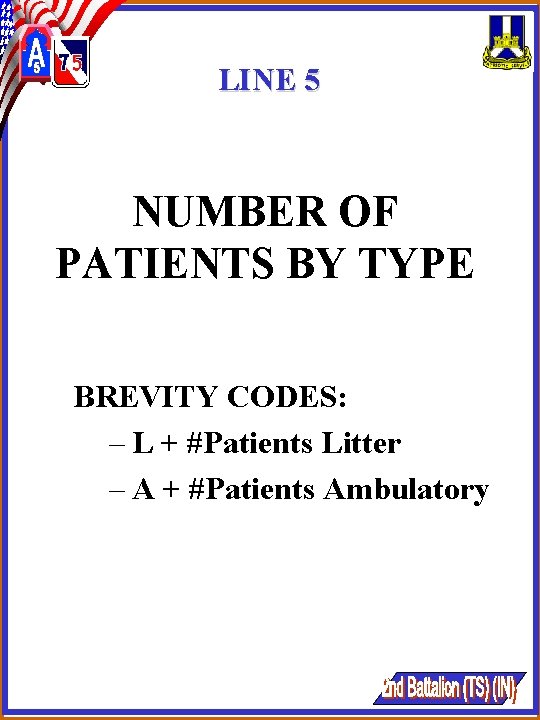

LINE 5 NUMBER OF PATIENTS BY TYPE BREVITY CODES: – L + #Patients Litter – A + #Patients Ambulatory

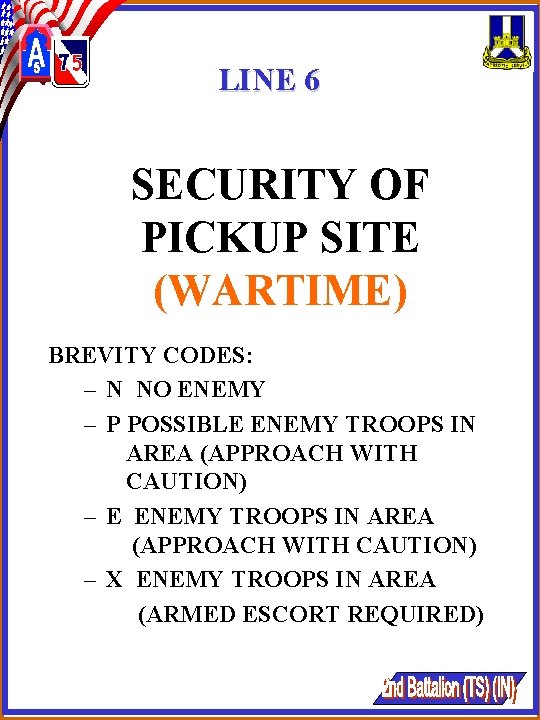

LINE 6 SECURITY OF PICKUP SITE (WARTIME) BREVITY CODES: – N NO ENEMY – P POSSIBLE ENEMY TROOPS IN AREA (APPROACH WITH CAUTION) – X ENEMY TROOPS IN AREA (ARMED ESCORT REQUIRED)

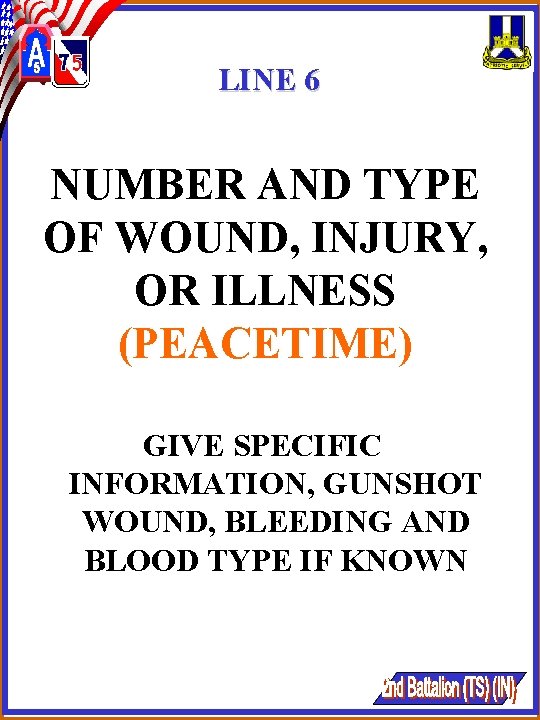

LINE 6 NUMBER AND TYPE OF WOUND, INJURY, OR ILLNESS (PEACETIME) GIVE SPECIFIC INFORMATION, GUNSHOT WOUND, BLEEDING AND BLOOD TYPE IF KNOWN

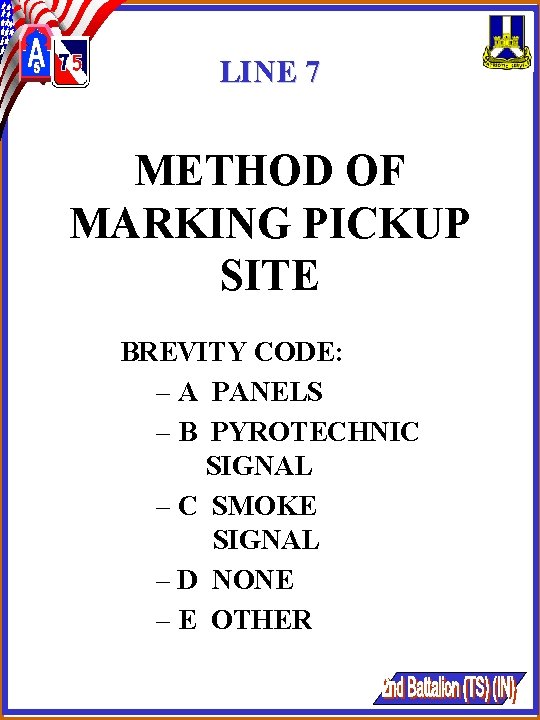

LINE 7 METHOD OF MARKING PICKUP SITE BREVITY CODE: – A PANELS – B PYROTECHNIC SIGNAL – C SMOKE SIGNAL – D NONE – E OTHER

LINE 8 PATIENT NATIONALITY AND STATUS ENCRYPT BREVITY CODE: – A US MILITARY – B US CIVILIAN – C NON-US MILITARY – D NON-US CIVILIAN – E EPW (Detainee)

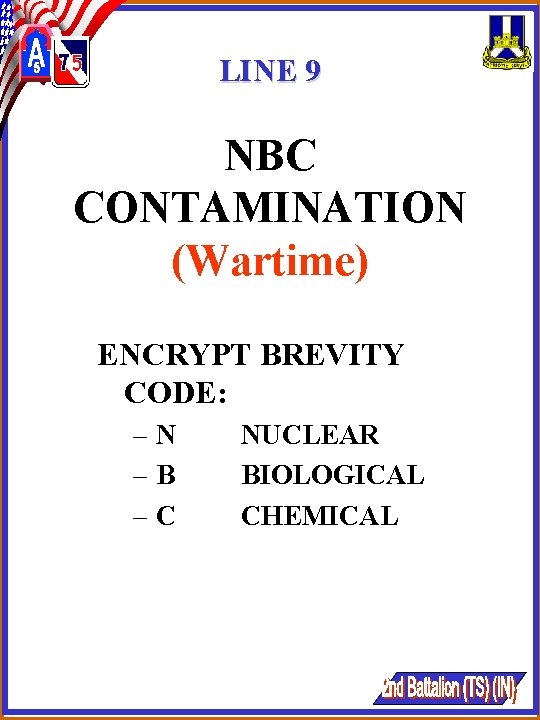

LINE 9 NBC CONTAMINATION (Wartime) ENCRYPT BREVITY CODE: –N –B –C NUCLEAR BIOLOGICAL CHEMICAL

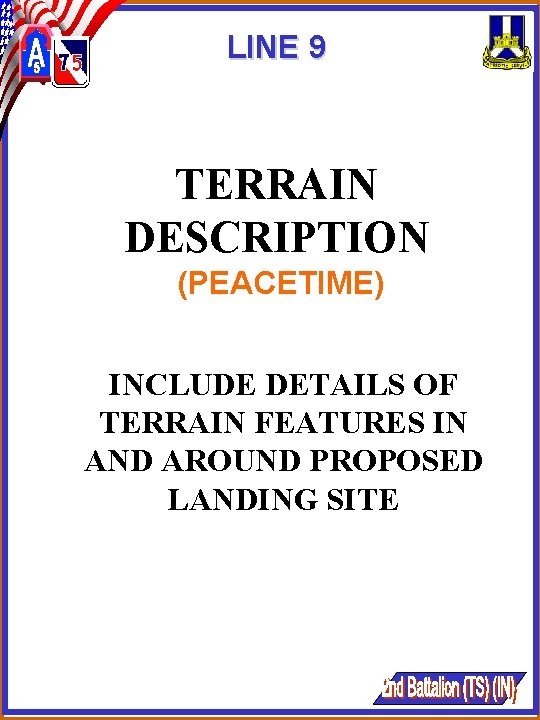

LINE 9 TERRAIN DESCRIPTION (PEACETIME) INCLUDE DETAILS OF TERRAIN FEATURES IN AND AROUND PROPOSED LANDING SITE

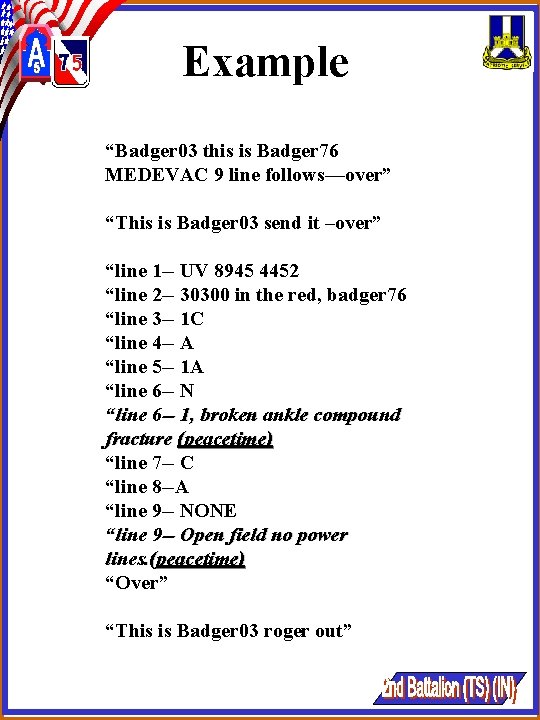

Example “Badger 03 this is Badger 76 MEDEVAC 9 line follows—over” “This is Badger 03 send it –over” “line 1 -- UV 8945 4452 “line 2 -- 30300 in the red, badger 76 “line 3 -- 1 C “line 4 -- A “line 5 -- 1 A “line 6 -- N “line 6 -- 1, broken ankle compound fracture (peacetime) “line 7 -- C “line 8 --A “line 9 -- NONE “line 9 -- Open field no power lines. (peacetime) “Over” “This is Badger 03 roger out”

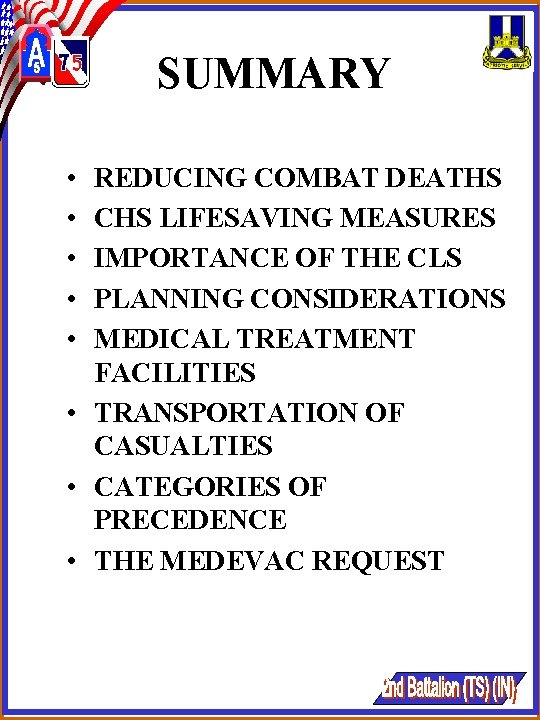

SUMMARY • • • REDUCING COMBAT DEATHS CHS LIFESAVING MEASURES IMPORTANCE OF THE CLS PLANNING CONSIDERATIONS MEDICAL TREATMENT FACILITIES • TRANSPORTATION OF CASUALTIES • CATEGORIES OF PRECEDENCE • THE MEDEVAC REQUEST
