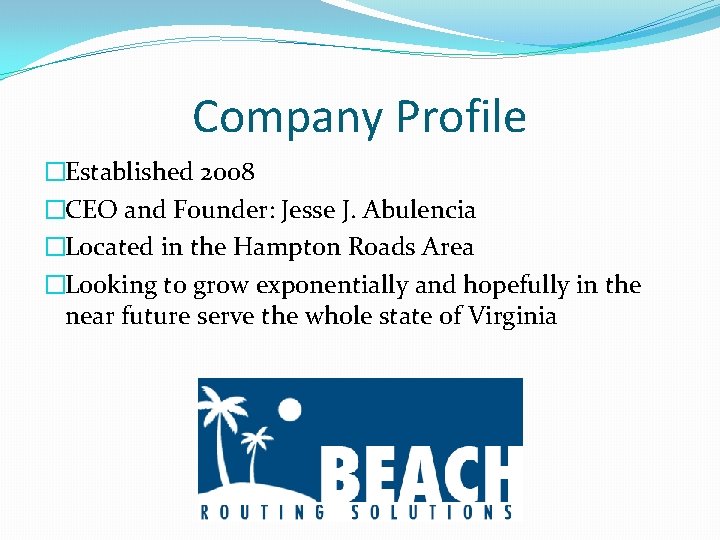

Company Profile �Established 2008 �CEO and Founder: Jesse J. Abulencia �Located in the Hampton Roads Area �Looking to grow exponentially and hopefully in the near future serve the whole state of Virginia

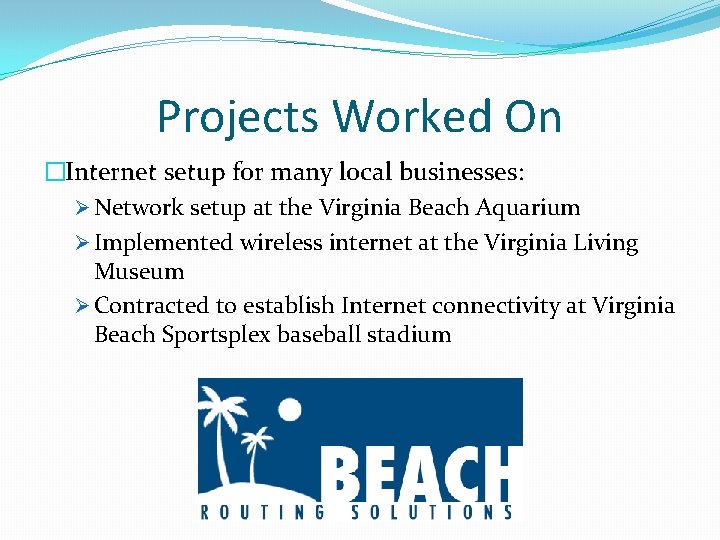

Projects Worked On �Internet setup for many local businesses: Ø Network setup at the Virginia Beach Aquarium Ø Implemented wireless internet at the Virginia Living Museum Ø Contracted to establish Internet connectivity at Virginia Beach Sportsplex baseball stadium

Our Friendly Staff

Jesse Abulencia • Chief Executive Officer • Network Management Technician

Ben Salter • Wireless Technician • Voice and Quality of Service Technician

Lance Price • Local Area Network (LAN) Routing and Switching • IP Addressing Technician

Robert Southard • Security and Virtual Private Networks Technician • Support Specialist

Seth Houston • Sales Representative

Evan Paige • Wide Area Network Technician • Servers and Workstations Technician

Nicholas Woods • Onsite Supervisor

Work with Caspian �Needed: An online gaming network spanning 5 cities. �Solution: A combination of Cisco devices and networking technology as implemented by Beach Routing Solutions will provide a quality gaming experience. �Estimated installation time: 2 weeks/90 hours

Wide Area Network (WAN)

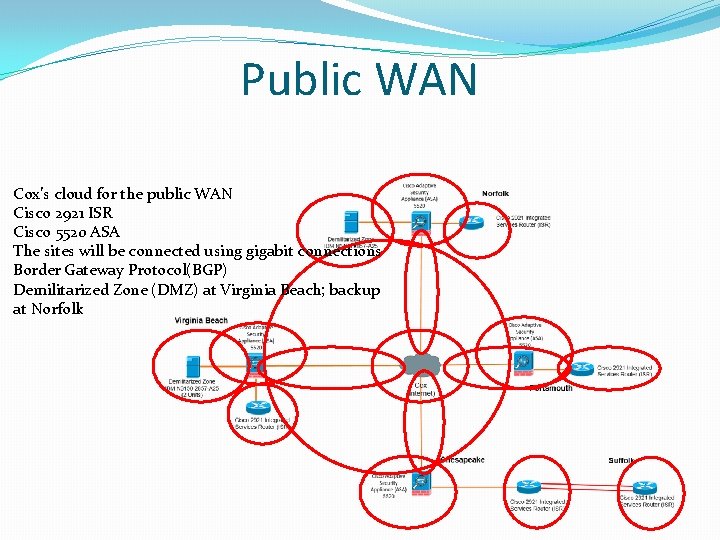

Public WAN Cox’s cloud for the public WAN Cisco 2921 ISR Cisco 5520 ASA The sites will be connected using gigabit connections Border Gateway Protocol(BGP) Demilitarized Zone (DMZ) at Virginia Beach; backup at Norfolk

Private WAN Open to Shortest Path First (OSPF) Verizon’s cloud for the Private WAN Point Protocol (PPP) connections Connected to Verizon's 2 backbone T 1 T 1 Connections Multi-Area OSPF; Virginia cloud; Beach isfor (Area 0) with CHAP authentication

Security and Virtual Private Networks (VPNs)

Physical Security Biometric Fingerprint Scanner Locks Swann 700 TVL Security Camera (Trinity System 788) with DVR

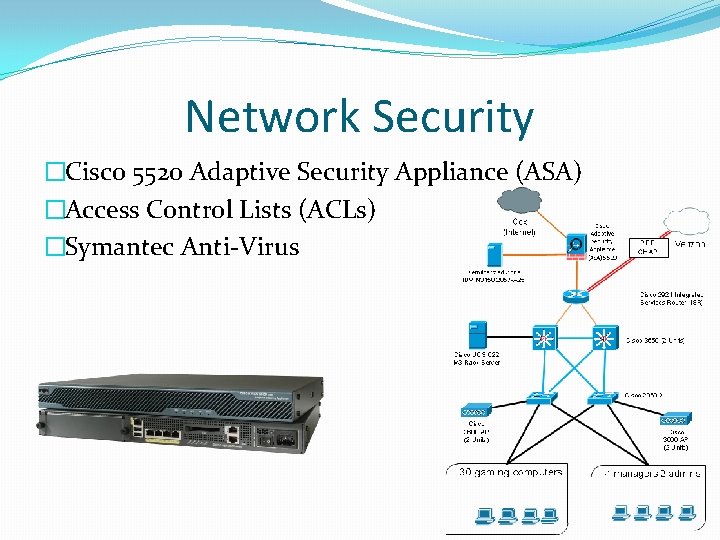

Network Security �Cisco 5520 Adaptive Security Appliance (ASA) �Access Control Lists (ACLs) �Symantec Anti-Virus

Local Area Network (LAN) Routing and Switching

LAN Routing and Switching (Virginia Beach) Enhanced Interior Gateway Routing Protocol VLANs (EIGRP) Border Gateway Protocol(BGP) VLAN 10 Gamers VLAN 15 - Managers Open Shortest Path and First. Administrators (OSPF) VLAN 20 - Servers Default route information through VLAN 99 Network Management redistribution VLAN 110 - VPN VLAN 2921 150 -Integrated Voice Cisco Service Router Cisco 3650 Cisco Stack. Wise 2960 -X switches Cisco Stack. Wise VLAN trunking Etherchannel

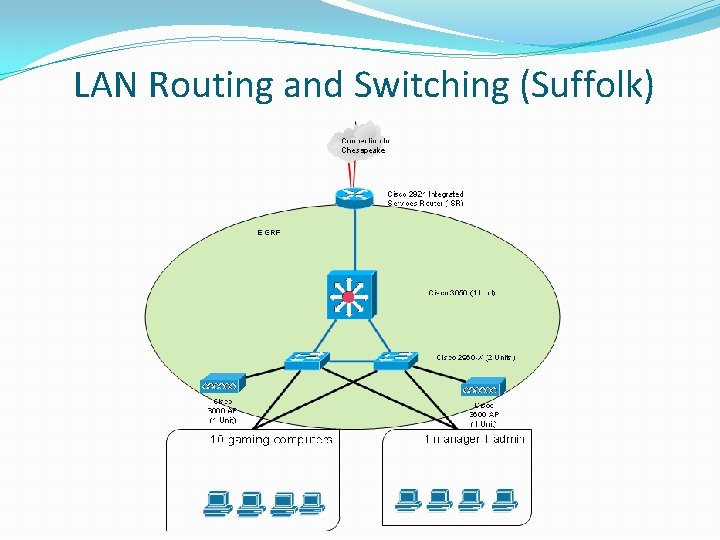

LAN Routing and Switching (Suffolk)

IP Addressing and Network Address Translation (NAT)

IP Addressing Example (Virginia Beach) VLAN Private Address L 3 Switches to Router Public Addresses 40. 1. 2. 0 /24 172. 16. 0. 0 -3 /30 N/A Gamer Computers Manager & Admin Workstations 10 172. 16. 10. 0 -63 /26 40. 1. 2. 0 -63 /26 15 172. 16. 15. 0 -15 /28 40. 1. 2. 0 -63 /26 Servers 20 172. 16. 20. 0 -7 /29 40. 1. 2. 64 -71 /29 Management VLAN 99 172. 16. 99. 0 -15 /28 N/A VPN Connections 110 172. 16. 110. 0 -15 /28 N/A IP Phones (Voice) Connection to Cox (Internet) 150 172. 16. 150. 0 -15 /28 N/A N/A Connection to Verizon N/A 10. 0. 0. 1 /30 N/A IPv 6 Addresses 2001: acad: 40: 2: : Cox NAT /64 Connection 2001: acad: 40: 2: : 8 a N/A /127 N/A 2001: acad: 40: 2: : Dynamic Pool /122 N/A 2001: acad: 40: 2: : 40 Dynamic Pool /124 N/A 2001: acad: 40: 2: : 80 Static (one-to-one) /125 N/A 2001: acad: 40: 2: : 50 N/A /124 N/A 2001: acad: 40: 2: : 60 N/A /124 N/A 2001: acad: 40: 2: : 70 N/A /124 N/A 2001: acad: 40: 1: : N/A /127 40. 1. 1. 1 /30 2001: acad: 40: 2: : 8 c N/A /127 N/A VLANs subnetted Virtual IPv 6 Local toand support Area IPv 4 each will Networks site’s utilized (VLANs) number Remaining Public NAT Addresses on Cisco 2921 =be Future ISR Growthof users

Voice and Quality of Service (Qo. S)

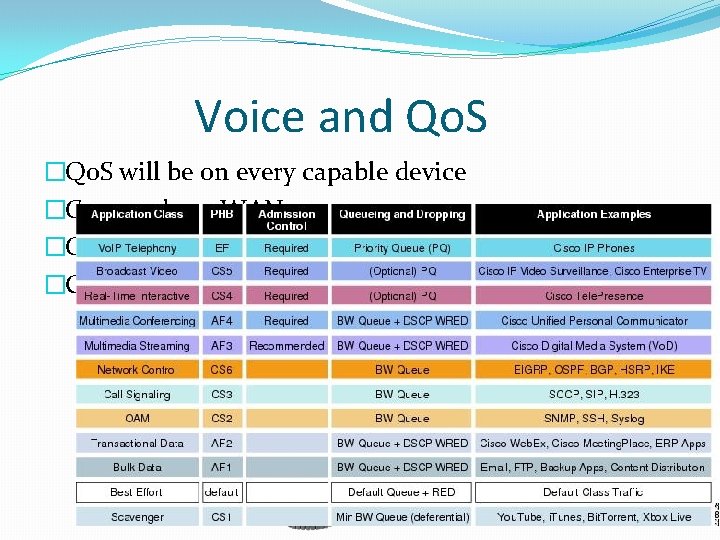

Voice and Qo. S �Qo. S will be on every capable device �G 729 codec – WAN �G 711 codec - LAN �Cisco 7962 G IP phones

Wireless

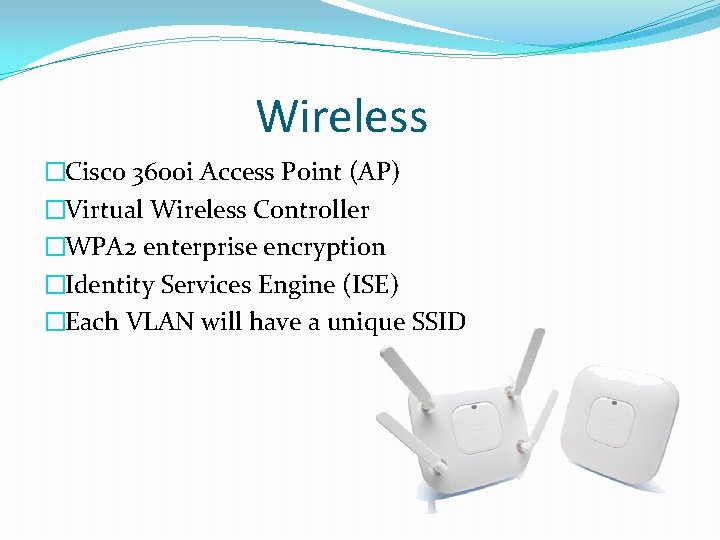

Wireless �Cisco 3600 i Access Point (AP) �Virtual Wireless Controller �WPA 2 enterprise encryption �Identity Services Engine (ISE) �Each VLAN will have a unique SSID

Network Management

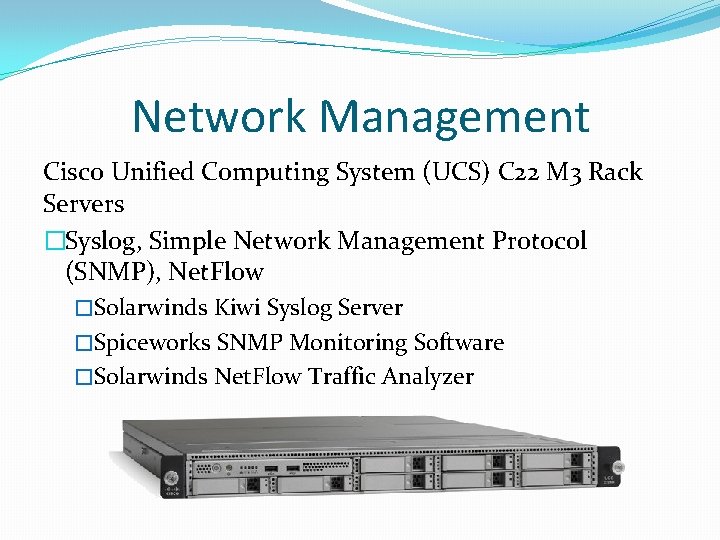

Network Management Cisco Unified Computing System (UCS) C 22 M 3 Rack Servers �Syslog, Simple Network Management Protocol (SNMP), Net. Flow �Solarwinds Kiwi Syslog Server �Spiceworks SNMP Monitoring Software �Solarwinds Net. Flow Traffic Analyzer

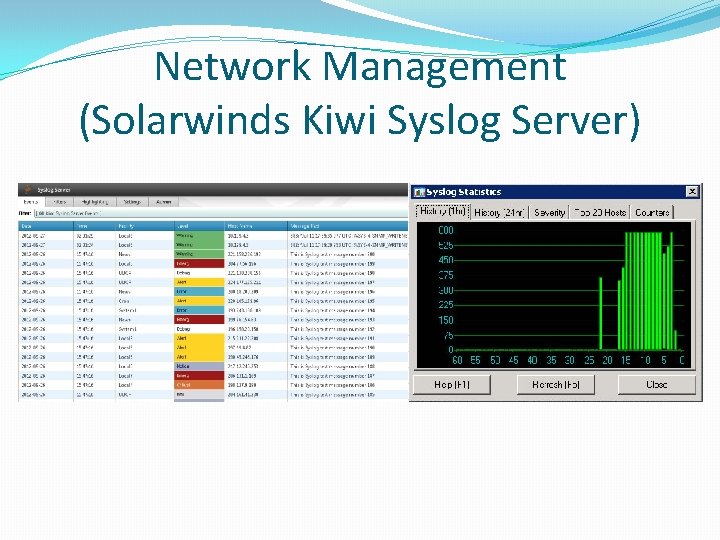

Network Management (Solarwinds Kiwi Syslog Server)

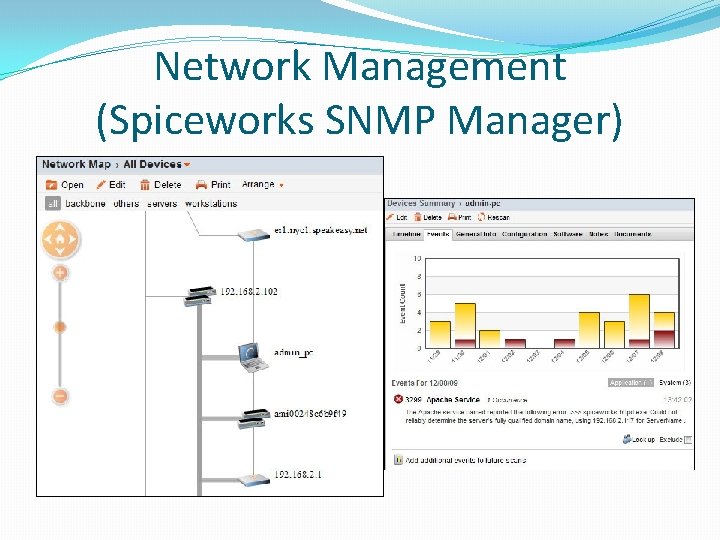

Network Management (Spiceworks SNMP Manager)

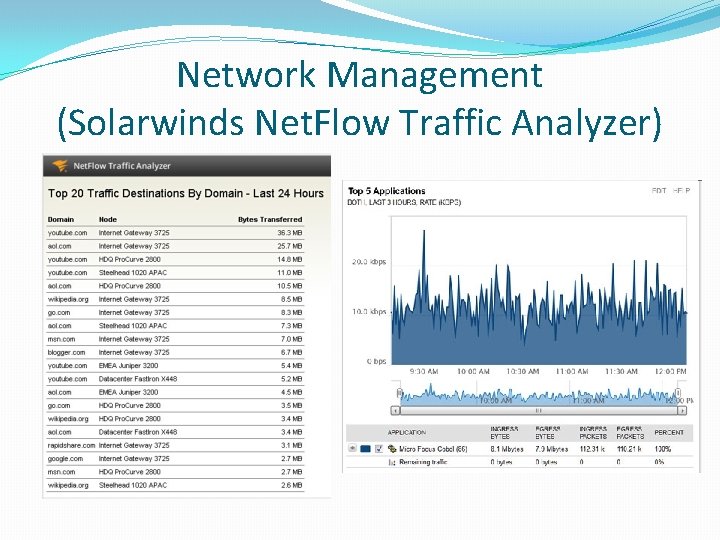

Network Management (Solarwinds Net. Flow Traffic Analyzer)

Servers and Workstations

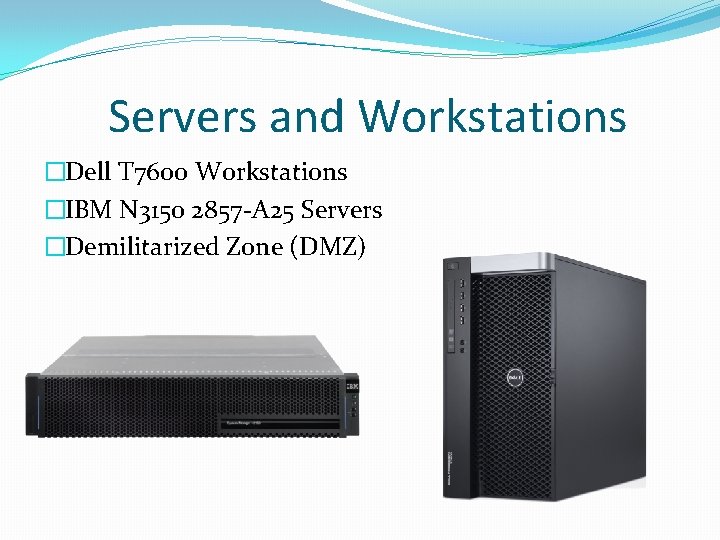

Servers and Workstations �Dell T 7600 Workstations �IBM N 3150 2857 -A 25 Servers �Demilitarized Zone (DMZ)

Support After Installation

Support After Installation � 40 day “grace period” �Beach Routing Solutions on-site and telephone support �Cisco SMARTNet � 8 x 5 x. NBD � 24 x 7 x 2 �Dell and IBM 3 Year Warranties

Pricing

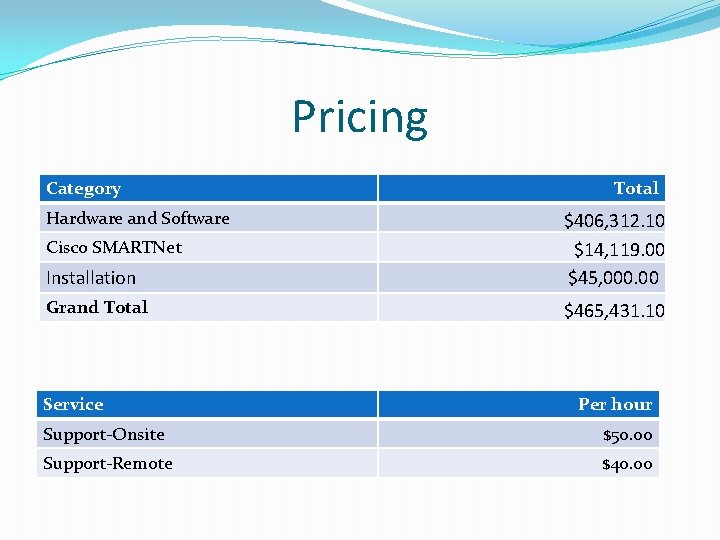

Pricing Category Hardware and Software Total Installation $406, 312. 10 $14, 119. 00 $45, 000. 00 Grand Total $465, 431. 10 Cisco SMARTNet Service Per hour Support-Onsite $50. 00 Support-Remote $40. 00
