CASIO IT9000 Dan IORDACHE EUROIMPACT Sales Manager All

CASIO IT-9000 Dan IORDACHE – EUROIMPACT Sales Manager All specifications in this document might be modified without notice.

History of printer built in terminals IT-3100 IT-3000 IT-2000 DT-9000 1. 000 pcs. 1995 2. 100 pcs. 1997 17. 000 pcs. 2003 6. 000 pcs. 2004

Target markets IT-3100 • Public transport • Delivery / route sales

Target markets IT-9000 • Public transport • Delivery / route sales • • • SFA / FFA Mobile POS Meter reading Parking enforcement Traffic citation

All functions in one terminal 2 D imager Thermal Printer • Scan 1 D & 2 D symbologies • Paper width: 58 mm/80 mm/82, 55 mm • Backward transport Contactless IC reader/writer Color Camera (Model option) • NFC ISO 14443 type A/B (Mifare …) Felica ISO 15693 RFID tag SAM module • 2 MP with flash and auto focus GPS (Model option) • Get the location at outside Magnetic Card Reader Wireless Communication (Model option) • Read magnetic stripe cards. (Credit card, ID card, Royalty card) OS • Windows Embedded Handheld 6. 5 • Windows CE 6. 0 R 3 • Bluetooth • WLAN (IEEE 802. 11 b/g) (Model option) • WWAN : (Model GSM/GPRS/EDGE/UMTS/HSDPA option)

Printer improvements Printer Cover Improved the mechanism of paper ejection which avoid to get wet in the rainy condition. New model IT-9000 Printer Cover Previous Model (IT-3100) Slide up and down Closed Opened Realized IP 54 when the cover is closed. Additionally: • Backward transport • Printing speed increasing • Ticket length decreasing Paper ejection area

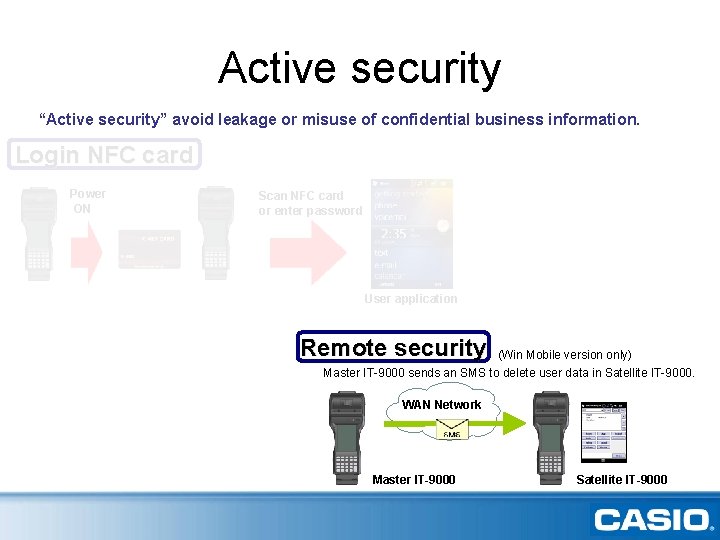

Active security “Active security” avoid leakage or misuse of confidential business information. Login NFC card Power ON Scan NFC card or enter password User application Remote security (Win Mobile version only) Master IT-9000 sends an SMS to delete user data in Satellite IT-9000. WAN Network Master IT-9000 Satellite IT-9000

Active security Back-side block code reader IT-9000 can read block codes in the back-side of roll paper. Back side of paper Reading block codes gets the relativity between ticket content and printed paper. Block code Printing side Target application: Train ticket, Event ticket… E. g. Train officer cannot illegally print out free tickets. The illegal usage will be impossible. SAM slot SAM card including encryption keys enable higher security system. WLAN: WWAN: SAM – SAM SIM – SAM

Specifications 1

Specifications 2

System Configuration W-WAN Network AD-S 42120 B-N (AC adaptor) GPS W-WAN (GSM/GPRS/EGPRS/ UMTS/ HSDPA) HA-G 20 BAT (Battery pack) Direct charging SD card 802. 11 b/g HA-G 32 DCHG (Dual battery charger) SAM card SIM card Access Point Bluetooth HA-L 80 USBH (USB host cable) HA-L 81 USBC (USB client cable) PC DT-380 USB-A (USB cable) AD-S 42120 B-N (AC adaptor) USB peripherals AD-S 42120 C-N 5 (AC adaptor) HA-L 35 CHG (Car mounted-type battery charger) HA-L 30 CHG (Cradle type charger) HA-L 60 IO (USB cradle) HA-L 62 IO (USB/Ethernet cradle) HA-C 90 PS 5 (Screen Protect sheet)

Pictures

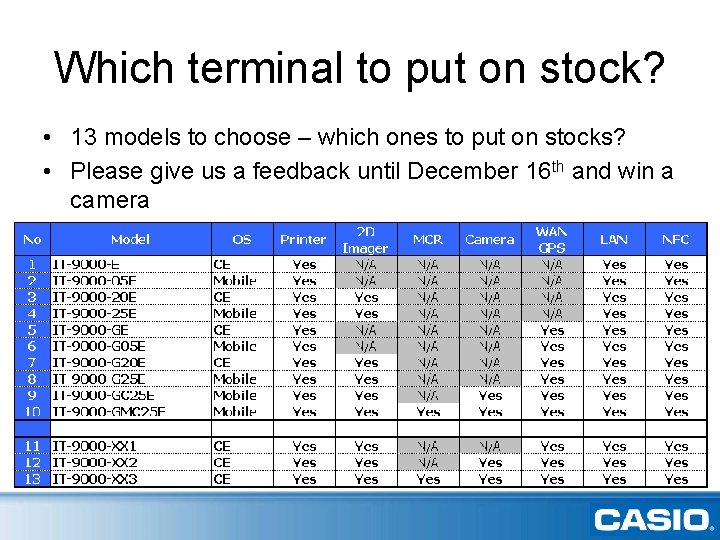

Which terminal to put on stock? • 13 models to choose – which ones to put on stocks? • Please give us a feedback until December 16 th and win a camera

Key Features • • Win Mobile + CE Camera Contactless IC incl. SAM modules PIN Pad + Printer mobile POS All functions in one terminal!

Target markets IT-9000 • Public transport • Delivery / route sales • • • SFA / FFA Mobile POS Meter reading Parking enforcement Traffic citation
