Case Study University of Southampton Dr Neil Smith
- Slides: 24
Case Study: University of Southampton Dr Neil Smith Environment Manager 16 th October 2007
Aims è Resource v waste management è Big v small projects è Share experience to date è What’s next
Resource v waste Design & procurement Pre-design Postconstruction Key project phases Pre-construction Construction
Estates & Facilities Kevin Monaghan Neil Smith (Environment Manager) PMU Steve Parker Ian Carroll (Buildings Programmes manager) (H&S Manager)
Capital programme Programme Management Unit è £ 234 M programme è Mountbatten è Boldrewood è If. LS è Faraday è è Sustainable Buildings Policy Sustainable Buildings Briefing note è Guidance to Project Managers on waste è Route map è
Framework Sustainable Buildings Policy: 5. 2 Promote and adopt best practice: 5. 2. 2 Ensure the specification for new build, refurbishment and maintenance projects… sets targets for key performance indicators, such as energy and water use and waste production. 5. 2. 7 Ensure waste produced during building projects is minimised and that all projects have a site waste management plan that incorporates the requirements of the Demolition Protocol. 5. 2. 8 Ensure materials have a minimal impact on the environment and set a target of at least 10% of the materials value of projects is derived from recycled content. 5. 2. 9 Set a target for all new buildings and major refurbishments to achieve an “Excellent” BREEAM rating with a minimum rating of “Very Good” where there are good and explicit reasons why an excellent rating could not be achieved.
Framework Sustainable Buildings Policy: 5. 3 Maintain and develop the University in a sustainable manner: 5. 3. 4 Ensure there are sufficient recycling facilities available and they are clearly marked. 5. 3. 5 Ensure there adequate storage and collection facilities for other wastes, such as chemicals, and clinical, radioactive and other hazardous wastes.
Case Study: Mountbatten • ECS/ORC • Major fire (Nov 05) • Completion date: Summer 2008 Site management: • Costain § Demolition (about 5, 000 t reused on site) • Bovis § Environment management plan § Environmental Aspects & Impacts Register § KPIs § Considerate Contractors Scheme § Site audit
Mountbatten KPI Waste Purpose KPI Target Score To measure the amount of waste removed from site during the construction process so that we can target reductions in wastage Construction: <10 Waste Removed (m 3) / £ 100 k spent 7. 6 Targets also for: • Energy use (Amount of CO 2 Produced (kg) / £ 100 k spent) • Water use (Amount of Water Used (m 3) / £ 100 k spent) • Timber use (% FSC Timber Used) • Commercial vehicle movement (Total Number Commercial Vehicle Movements / £ 100 k spent) • CCS (Average Score)
Mountbatten Considerate contractor scheme audit Environment (4/5) • Noise restriction • Hoarding • Risk assessments & induction • Waste monitored & segregated • Environmental policy working well • No energy saving measures on site (although corporately energy use is well controlled) Score per section Score references 1 Major noncompliance 4 High level beyond compliance 2 Minor noncompliance 5 Exceptional measures taken 3 Compliance
Case study: Faraday • 1950 s iconic building • £ 20 M refurbishment • School of Civil Engineering & Environment • BREEAM ‘Excellent’
Faraday Gentle Associates • Decant • Asbestos strip out (Windsor waste mgmt) LA Moore • Enabling works (? ) Morgan Ashurst • Main contractor (? )
Faraday
Faraday: BREEAM Management Commissioning (9): M 4 – M 5 – M 12 – Considerate Contractors (2) Construction site impacts (4) - monitor construction waste - Sort & recycle construction waste Users guide (1) Materials (12): MWI – Material spec (4) MW 5 – Reuse of façade (1) MW 6 – Reuse of structure (1) MW 7 – Recycled aggregate (1) MW 8 – Responsible sourcing of materials (3) MW 12 – Storage of recyclable waste (1) BREEAM rating % benchmark Unclassified <25 Pass ≥ 25 - <40 Good ≥ 40 - <55 Very Good ≥ 55 - <70 Excellent ≥ 70
Faraday Post completion recycling: • Heelis Building • George Thomas Building

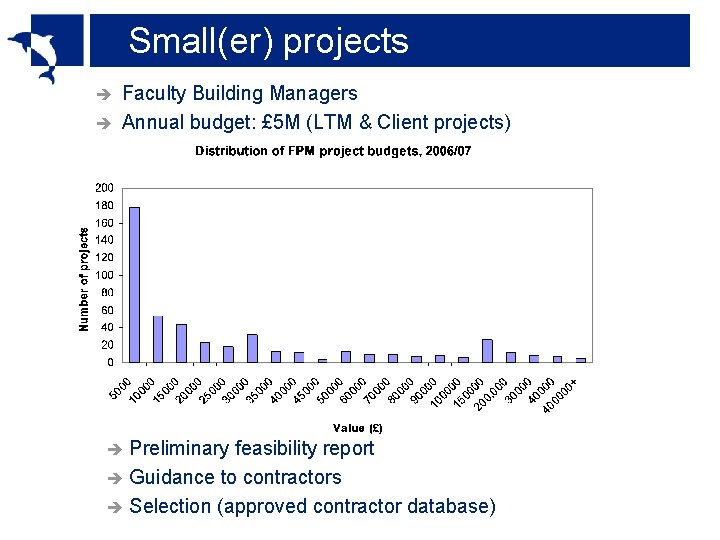

Small(er) projects Faculty Building Managers è Annual budget: £ 5 M (LTM & Client projects) è Preliminary feasibility report è Guidance to contractors è Selection (approved contractor database) è
Framework Guidance to contractors: è Selection of contractors è è Sustainable buildings è è Environment policy, EMS etc Planning, design etc On-site management è Site RA, waste etc
SU Shop refit £ 150 k refit in summer 2007 è Flair shopfittings Ltd è Select-A-Skip UK Ltd è
SU Shop refit Total Waste & Recycling Summary for Southampton University (SUSU) Weight (Tonnes) % Materials Incineration (Flair) 0. 8 6 Timber, MDF Landfill 2. 7 20. 3 Flooring materials, rubble Recycling (re-condition & Re-use) 6. 5 48. 9 Card racks, Refrigeration, Shelving Recycling (Environmental disposal) 3. 3 24. 8 Refrigeration, metalwork 13. 3 100 All weights are approximate.
University Road car park £ 230 k è Demolish building & provide 65 car park spaces è PT Contractors è è Pollution prevention procedure è Site environmental risk assessment è Waste management procedure è SWMP

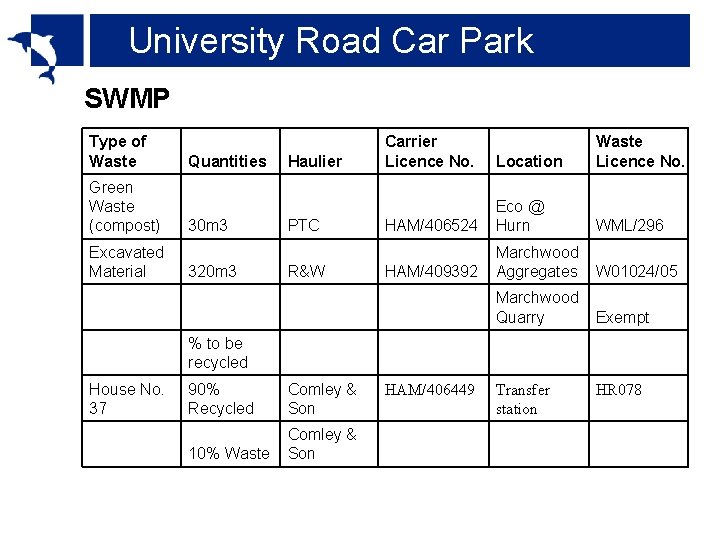

University Road Car Park SWMP Type of Waste Green Waste (compost) Excavated Material Quantities 30 m 3 320 m 3 Haulier PTC R&W Carrier Licence No. Location Waste Licence No. HAM/406524 Eco @ Hurn WML/296 HAM/409392 Marchwood Aggregates W 01024/05 Marchwood Quarry Exempt % to be recycled House No. 37 90% Recycled Comley & Son 10% Waste Comley & Son HAM/406449 Transfer station HR 078
Sources of information • WRAP § www. wrap. org. uk/construction/index. html § www. wrap. org. uk/construction/materials_recycling/index. html • Netregs § www. netregs. gov. uk § www. netregs. wastedirectory. org. uk/Index. aspx • Considerate contractor § www. ccscheme. org. uk/ • BRE § www. bre. co. uk/ • Smartwaste § www. smartwaste. co. uk/ § www. bremap. co. uk/bremap/about. jsp
What’s next? è Influence capital/FPM colleagues è Audit & verification è FPM workshop è Finalise FPM SWMP è Work with term contractors è Review guidance
Review & Any questions? § Resource v waste management § Big v small projects § Share experience to date § What’s next § Any questions?
