CASE STUDY ANNS RENDEZVOUS Section 3 2 Network

CASE STUDY : ANN’S RENDEZVOUS Section 3. 2 Network Forensics TRACKING HACKERS THROUGH CYBERSPACE

THE MISSION The case: After being released on bail, Ann Dercover disappears! Fortunately, investigators were carefully monitoring her network activity before she skipped town. “We believe Ann may have communicated with her secret lover, Mr. X, before she left, ” says the police chief. “The packet capture may contain clues to her whereabouts. ” Challenge: You are the forensic investigator. Your mission is to analyze the packet capture and gather information about Ann’s activities and plans. The following questions will help guide your investigation: • Provide any online aliases or addresses and corresponding account credentials that may be used by the suspect under investigation. • Who did Ann communicate with? Provide a list of email addresses and any other identifying information. • Extract any transcripts of Ann’s conversations and present them to investigators. • If Ann transferred or received any files of interest, recover them. • Are there any indications of Ann’s physical whereabouts? If so, provide supporting evidence.

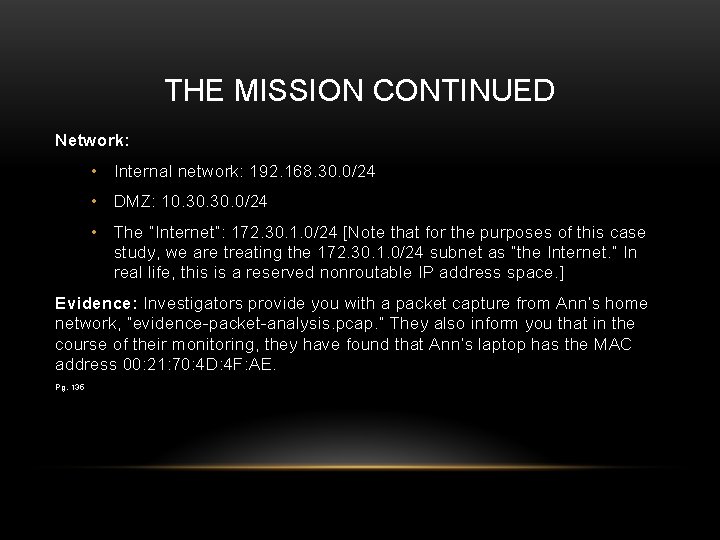

THE MISSION CONTINUED Network: • Internal network: 192. 168. 30. 0/24 • DMZ: 10. 30. 0/24 • The “Internet”: 172. 30. 1. 0/24 [Note that for the purposes of this case study, we are treating the 172. 30. 1. 0/24 subnet as “the Internet. ” In real life, this is a reserved nonroutable IP address space. ] Evidence: Investigators provide you with a packet capture from Ann’s home network, “evidence-packet-analysis. pcap. ” They also inform you that in the course of their monitoring, they have found that Ann’s laptop has the MAC address 00: 21: 70: 4 D: 4 F: AE. Pg. 135

ANALYSIS: PROTOCOL SUMMARY • Begin by taking a high-level look at the packet • Wireshark > Statistics > Protocol Hierarchy • Notice the presence of “Bootstrap Protocol” • Used for DHCP request and response

DHCP TRAFFIC • Examine using Wireshark Display Filter • “eth. addr == 00: 21: 70: 4 d: 4 f: ae and bootp • Wireshark automatically looks up the registered OUI, “ 00: 21: 70, ” and displays the corresponding manufacturer, Dell. • Can be verified using IEEE • Request address is 192. 168. 30. 108 • Host name matches Ann • Router 192. 168. 31. 10 • DNS 10. 30. 20

DHCP CONTINUED • Router 192. 168. 31. 10 • DNS 10. 30. 20 • Renewal Time Value of 30 minutes

KEYWORD SEARCH • Matches seven packets • Three contain a conversation with 64. 12. 168. 40 TCP port 587 (SMTP) • Four contain a conversation with 205. 188. 58. 10 TCP port 143 (IMAP)

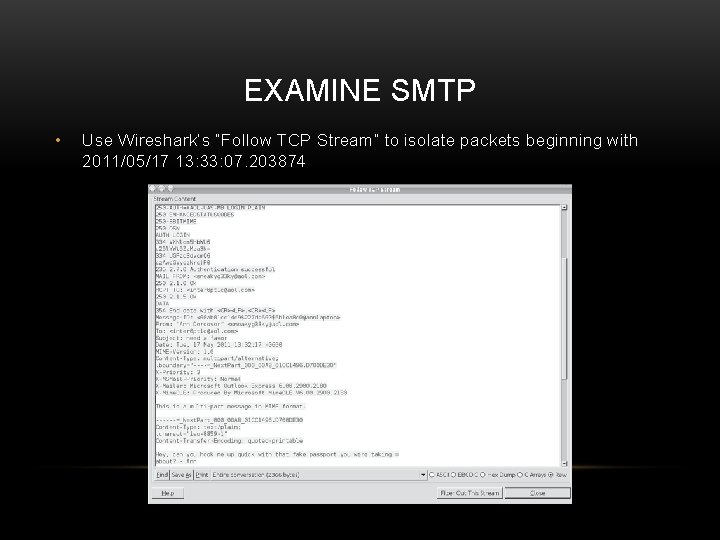

EXAMINE SMTP • Use Wireshark’s “Follow TCP Stream” to isolate packets beginning with 2011/05/17 13: 33: 07. 203874

EXAMINATION CONTINUED • Notice Ann’s authentication is in plain text: • Her credentials are only Base-64 -encoded, not encrypted • Take note of the sender and receiver: • Look at the body of the email: • Next look at the SMTP packet • • 2011/05/17 13: 34: 16. 481132 User: sneakyg 33 ky@aol. com Receiver: d 4 rktangent@gmail. com

EXAMINATION CONTINUED AGAIN • Examination of the third packet matching SMTP using command line • Look at the content from 192. 168. 30. 108 (Ann’s computer) to remote server 64. 12. 168. 40 • We are interested in the outbound content reconstruction • Notice the From: ID, the To: ID and the body of the email • As the message suggests there is an

SMTP ANALYSIS – ATTACHMENT FILE CARVING • $ bless 192. 168. 030. 108. 01689 -064. 012. 168. 040. 00587 • Cut the SMTP and MIME protocol information • Attachment of greatest interest is labeled • Start carving • After set of 0 x 0 D & 0 x 0 A CRLF • Carriage-return/linefeed • Finish carving • Just before the second set • Save file as “evidence-packet-analysis-smtp 3 -attachment”

ATTACHMENT FILE CARVING CONTINUED • We need to remove the line breaks before decoding the Base 64 encoding • Use “fromdos” which is part of the “tofrodos” Debian package • $ fromdos -b evidence -packet -analysis -smtp 3 –attachment • Decode • $ base 64 -d evidence -packet -analysis -smtp 3 -attachment > secretrendezvous. docx • Check file type • • $ file secretrendezvous. docx: Zip archive data , at least v 2. 0 to extract Make cryptographic checksums

VIEW THE ATTACHMENT • Always work with a copy

MORE CARVING • Lets carve the image out of the. docx file • Start by unzipping the file • Notice the. png file • Take the cryptographic checksum • View a copy of the image

FINDING ANN THE EASY WAY • Use Network. Miner

EASY WAY CONTINUED • “Network. Miner automatically parses headers and displays them along with the body of each SMTP message. It can also show other types of messages, such as IMs. ” Pg 151 • “The “Files” tab displays files that Network. Miner automatically carved out of the packet capture. ” Pg 151

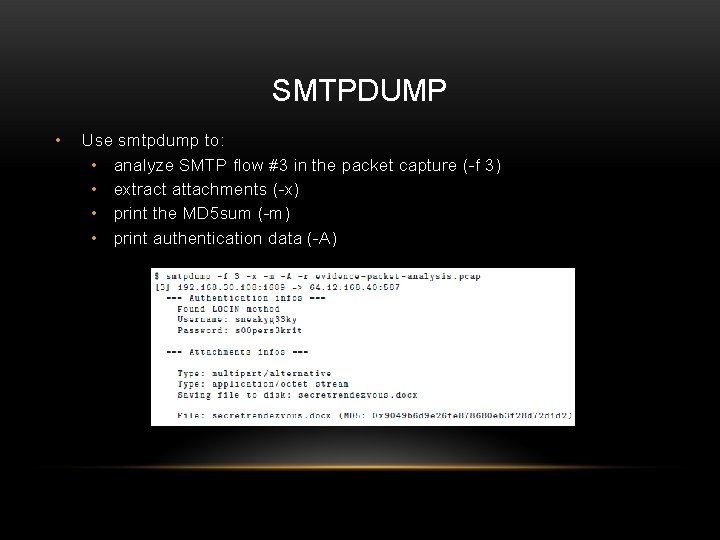

SMTPDUMP • Use smtpdump to: • analyze SMTP flow #3 in the packet capture (-f 3) • extract attachments (-x) • print the MD 5 sum (-m) • print authentication data (-A)

DOCXTRACT • Use docxtract to: • extract all images from the carved. docx attachment (-x -i) • print the corresponding cryptographic checksum (-m)

FINDSMTPINFO. PY • Can be used to : • Print SMTP authentication information • Extract all messages from the packet capture • Extract all attachments from the messages • Print the MD 5 sums for each of the attachments • Extract the files embedded within the. docx file • Print the MD 5 sums for each of the embedded files • Produces reports suitable for professional forensic reports Pg. 152

FINDSMTPINFO. PY CONTINUED • Example:

FINDSMTPINFO. PY CONTINUED AGAIN • Tool will: • automatically unzip attached. docx file • Extract embedded files • MD 5 sums

TIMELINE • All times listed below occurred on May 17, 2011. • 13: 32: 01. 419886—Packet capture begins • 13: 32: 03. 166396—First DHCP Request from 00: 21: 70: 4 d: 4 f: ae (Ann’s computer) • 13: 32: 03. 167145—DHCP ACK from 192. 168. 30. 10 to Ann’s computer, assigning 00: 21: 70: 4 d: 4 f: ae the IP address 192. 168. 1. 108 with a 1 -hour lease time. • 13: 33: 05. 834649 --13: 33: 07. 847758—First SMTP conversation. Email sent from Ann’s computer with sender sneakyg 33 ky@aol. com and recipient inter 0 pt 1 c@aol. com. • 13: 34: 15. 110657 --13: 34: 17. 204721—Second SMTP conversation. Email sent from Ann’s computer with sender sneakyg 33 ky@aol. com and recipient d 4 rktangent@gmail. com. • 13: 35: 15. 504697 --13: 35: 23. 263802—Third SMTP conversation. Email sent from Ann’s computer with sender sneakyg 33 ky@aol. com and recipient mistersekritx@aol. com. • 13: 35: 23. 263802—Packet capture ends

THE CASE THEORY • Ann Dercover connected her laptop (“ann-laptop”) to the network on May 17, 2011, at 13: 32: 03. Her computer was probably manufactured by Dell. • At 13: 33: 05, Ann sent email from her AOL account, sneakyg 33 ky@aol. com, to inter 0 pt 1 c@aol. com, asking the recipient, “Hey, can you hook me up quick with that fake passport you were talking about? ” • At 13: 34: 15, Ann sent email from her AOL account, sneakyg 33 ky@aol. com, to d 4 rktangent@gmail. com, informing the recipient, “Sorry—I can’t do lunch next week after all. Heading out of town. Another time!” • At 13: 35: 15, Ann sent email from her AOL account, sneakyg 33 ky@aol. com, to mistersekritx@ aol. com, with the message, “Hi sweetheart! Bring your fake passport and a bathing suit. Address attached. love, Ann. ” The email had a. docx attachment that contained an address and a map. Pg 155

CHALLENGE QUESTION RESPONSES • Provide any online aliases or addresses and corresponding account credentials that may be used by the suspect under investigation. • Based on our SMTP analysis, there are indications that Ann Dercover uses the email address sneakyg 33 ky@aol. com, and that her password is “s 00 pers 3 kr 1 t. ” • Who did Ann communicate with? Provide a list of email addresses and any other identifying information. • We have seen that sneakyg 33 ky@aol. com sent emails to the following recipients: • inter 0 pt 1 c@aol. com • d 4 rktangent@gmail. com • mistersekritx@aol. com

RESPONSES CONTINUED • Extract any transcripts of Ann’s conversations and present them to investigators. • Here is a quick summary of Ann’s conversations, sent via SMTP: SMTP Message #1 Sender: sneakyg 33 ky@aol. com Recipient: inter 0 pt 1 c@aol. com Date [beginning of SMTP conversation]: May 17, 2011 13: 33: 05 Subject: need a favor Message [formatting removed]: Hey, can you hook me up quick with that fake passport you were talking about? - Ann Attachments of interest: None Pg. 155

RESPONSES CONTINUED AGAIN • • SMTP Message #2 Sender: sneakyg 33 ky@aol. com Recipient: d 4 rktangent@gmail. com Date [beginning of SMTP conversation]: May 17, 2011 13: 34: 15 Subject: lunch next week Message [formatting removed]: Sorry—I can’t do lunch next week after all. Heading out of town. Another time! - Ann Attachments of interest: None SMTP Message #3 Sender: sneakyg 33 ky@aol. com Recipient: mistersekritx@aol. com Date [beginning of SMTP conversation]: May 17, 2011 13: 35: 15 Subject: rendezvous Message [formatting removed]: Hi sweetheart! Bring your fake passport and a bathing suit. Address attached. love, Ann Attachments of interest: secretrendezvous. docx Pg. 156

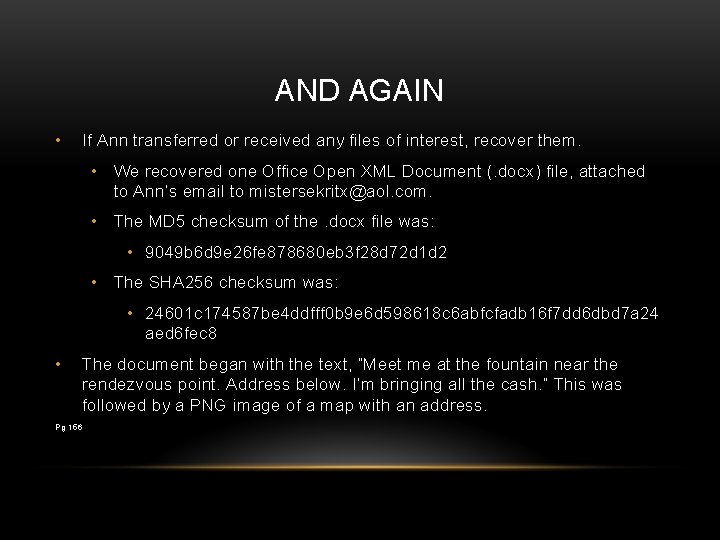

AND AGAIN • If Ann transferred or received any files of interest, recover them. • We recovered one Office Open XML Document (. docx) file, attached to Ann’s email to mistersekritx@aol. com. • The MD 5 checksum of the. docx file was: • 9049 b 6 d 9 e 26 fe 878680 eb 3 f 28 d 72 d 1 d 2 • The SHA 256 checksum was: • 24601 c 174587 be 4 ddfff 0 b 9 e 6 d 598618 c 6 abfcfadb 16 f 7 dd 6 dbd 7 a 24 aed 6 fec 8 • Pg 156 The document began with the text, “Meet me at the fountain near the rendezvous point. Address below. I’m bringing all the cash. ” This was followed by a PNG image of a map with an address.

AND AGAIN • Are there any indications of Ann’s physical whereabouts? If so, provide supporting evidence. • The document that Ann sent to mistersecretx@aol. com indicates that she would like to meet him at the following address: Playa del Carmen 1 Av Constituyentes 1 Calle 10 x la 5 ta Avenida Playa del Carmen , 77780 , Mexico 01 984 873 4000 • Pg 156 Of course, there is no guarantee that Ann and/or the email recipient ever traveled to this location. Perhaps Ann was trying to throw us off her trail!

THE NEXT STEP • Conduct further analysis on the packet capture to see if there are more emails, web traffic, etc. • If there is sufficient evidence, a warrant might be in order to monitor Ann’s email account and / or open her account using her credentials and investigate her past email activity.
