Case Based Reasoning with Bayesian Model Averaging: an Improved Method for Survival Analysis on Microarray Data Isabelle Bichindaritz University of Washington Institute of Technology Tacoma, WA, USA Ecole des Hautes Etudes en Santé Publique Département Infobiostat Rennes, France

Purpose of this Talk Once upon a time … There was biology (~1800), and There were computers (~1920) Of their common interests was born bioinformatics (~1979) … Question: How can CBR contribute to bioinformatics research ? An example to microarray data analysis ICCBR '10

ICCBR '10

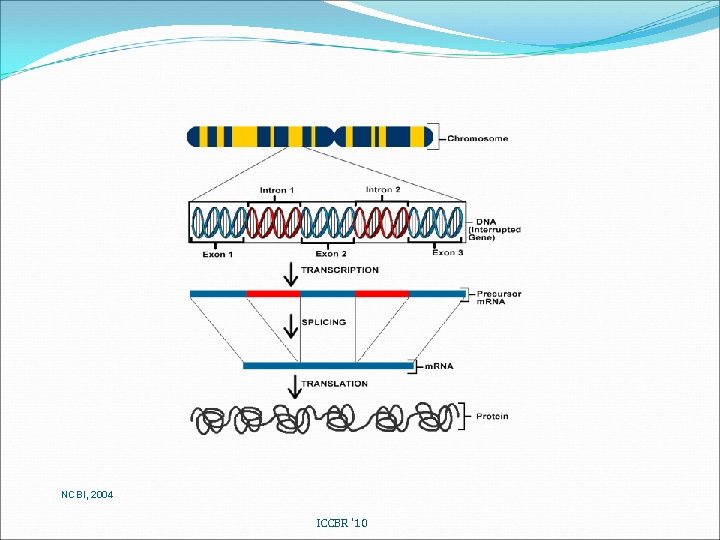

NCBI, 2004 ICCBR '10

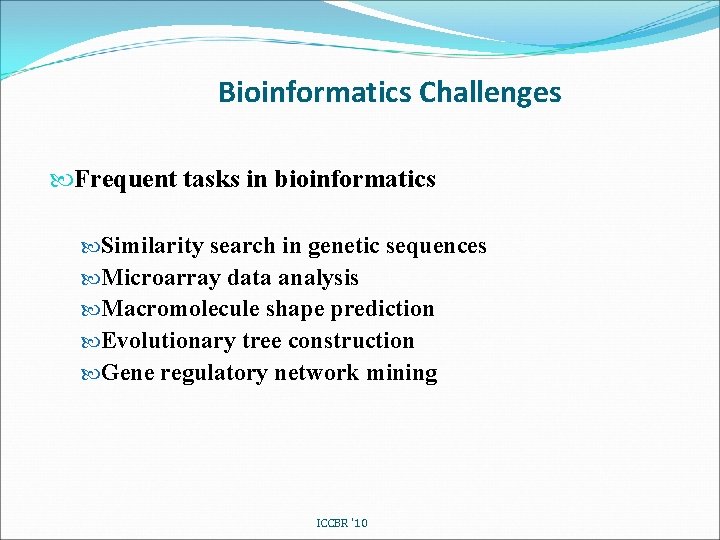

Bioinformatics Challenges Frequent tasks in bioinformatics Similarity search in genetic sequences Microarray data analysis Macromolecule shape prediction Evolutionary tree construction Gene regulatory network mining ICCBR '10

Bioinformatics Challenges Microarray data analysis Microarrays are made from a collection of purified DNA’s. A drop of each type of DNA in solution is placed onto a speciallyprepared glass microscope slide by an arraying machine. Please note that … … the human genome contains about 30, 000 genes. … a microarray can contain thousands or tens of thousands relatively short nucleotides of known sequences. ICCBR '10

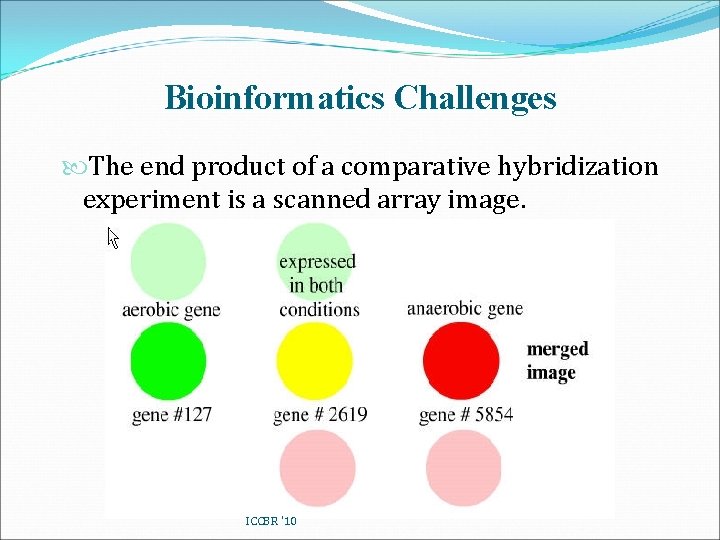

Bioinformatics Challenges The end product of a comparative hybridization experiment is a scanned array image. ICCBR '10

Bioinformatics Challenges ICCBR '10

Bioinformatics Challenges Microarray applications Determine relative DNA levels associated with huge number of known and predicted genes in a single experiment. The most attractive application of microarrays is in the study of differential gene expression in disease. The up– or down-regulation of gene activity can either be the cause of the pathophysiology or the result of the disease. Accurate measurement of every single gene is assessed. Sensitivity: very high – detect the presence of one transcript in one-tenth of a cell. ICCBR '10

Bioinformatics Challenges Data mining challenges Volume of data (Giga bytes, number of features) Characteristics of data (specific constraints) Domain specific knowledge (expert interpretation) ICCBR '10

BMA-CBR System Gene Expression Level Dataset Application of Feature Selection Algorithm Discrete Sample Output: Supervised Machine Learning and Model Construction through Classification Continuous Sample Output: Supervised Machine Lerning and Model Construction through Prediction Diagnosis Survival analysis ICCBR '10

BMA-CBR System BMA-CBR system performs feature selection through BMA before using CBR for microarray data classification and prediction (survival analysis) Introduction and motivation of variable selection What is Bayesian Model Averaging (BMA)? One approach: the iterative BMA algorithm Application 1: Chronic Myeloid Leukemia (CML) Application 2: Survival analysis Presentation of CBR ICCBR '10

Bayesian Model Averaging Feature selection Used to select a subset of relevant features for building robust learning models in machine learning. Often used in supervised learning. Select relevant features from the training set (for which class labels are known). Apply the selected features in the test set. ICCBR '10

Bayesian Model Averaging Feature selection A minimal set of relevant genes for future prediction or assay development ICCBR '10

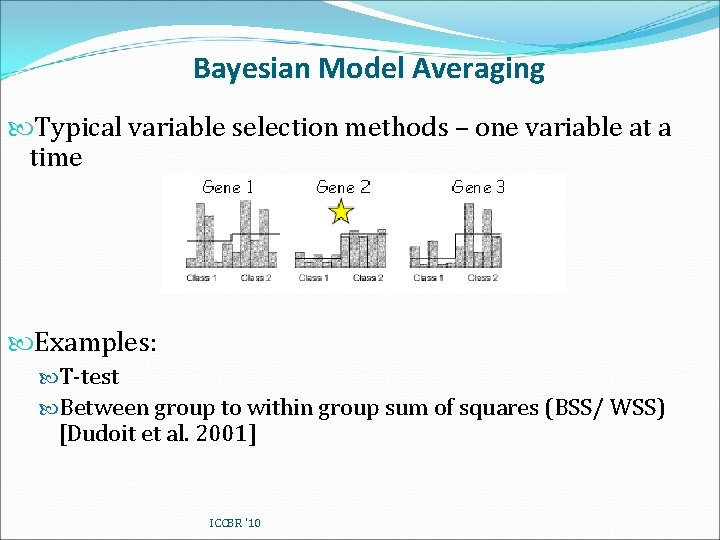

Bayesian Model Averaging Typical variable selection methods – one variable at a time Examples: T-test Between group to within group sum of squares (BSS/ WSS) [Dudoit et al. 2001] ICCBR '10

Bayesian Model Averaging Multivariate gene selection Our goal: consider multiple genes Simultaneously to exploit the interdependence between genes to reduce # relevant genes ICCBR '10

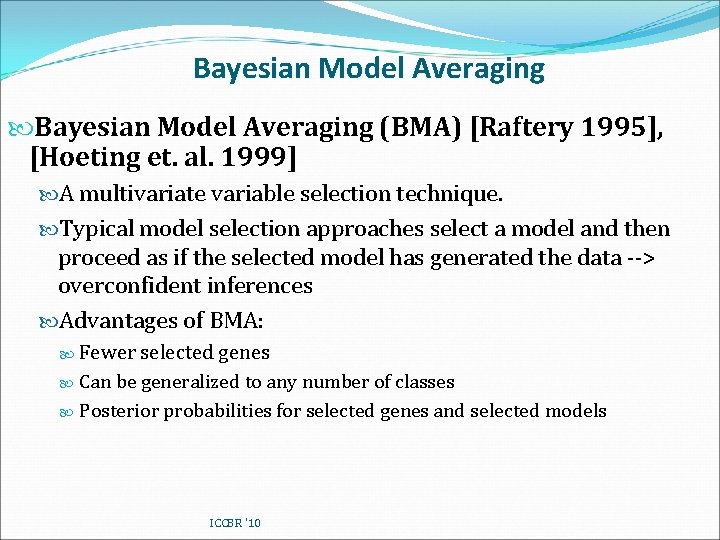

Bayesian Model Averaging (BMA) [Raftery 1995], [Hoeting et. al. 1999] A multivariate variable selection technique. Typical model selection approaches select a model and then proceed as if the selected model has generated the data --> overconfident inferences Advantages of BMA: Fewer selected genes Can be generalized to any number of classes Posterior probabilities for selected genes and selected models ICCBR '10

Bayesian Model Averaging BMA Average over predictions from several models What do we need? Prediction with a given model k --> logistic regression How to choose a set of “good” models? --> variable selection ICCBR '10

Bayesian Model Averaging What models to average over? All possible models --> way too many!! Eg. 2^30~1 billion, 2^50~10^15 etc… The BMA solution: 1. “leaps and bounds” [Furnival and Wilson 1974] : when #variables (genes) <= 30, we can efficiently produce a reduced set of good models (branch and bound). 2. Cut down the # models? Discard models that are much less likely than the best model. ICCBR '10

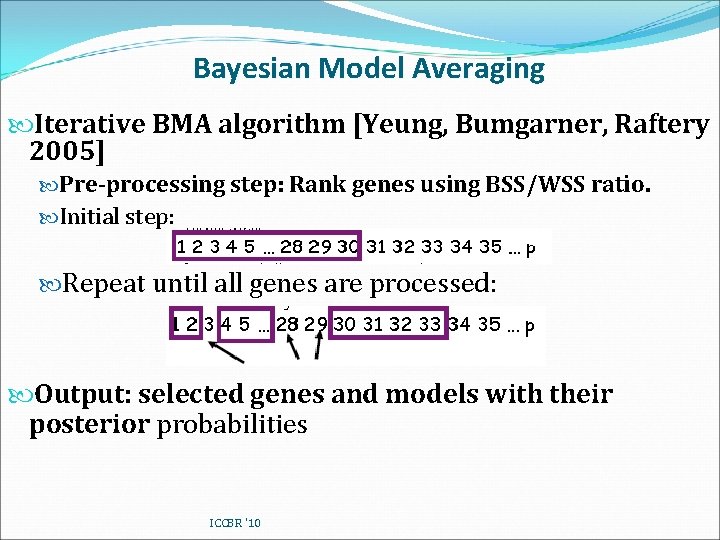

Bayesian Model Averaging Iterative BMA algorithm [Yeung, Bumgarner, Raftery 2005] Pre-processing step: Rank genes using BSS/WSS ratio. Initial step: Repeat until all genes are processed: Output: selected genes and models with their posterior probabilities ICCBR '10

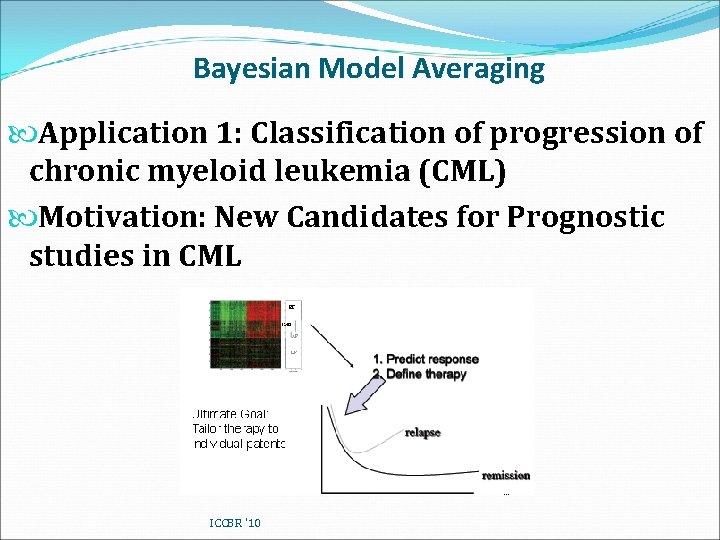

Bayesian Model Averaging Application 1: Classification of progression of chronic myeloid leukemia (CML) Motivation: New Candidates for Prognostic studies in CML ICCBR '10

Bayesian Model Averaging Progression of CML usually presents in chronic phase (CP), but in the absence of effective therapy, CP CML invariably transforms to accelerated phase (AP) disease, and then to an acute leukemia, blast crisis (BC). BC is highly resistant to treatment, and all treatments are more successful when administered during CP. Imatinib is most effective in early CP patients with excellent survival (86% at 7 years). Currently there are limited clinical markers and no molecular tests that can predict the “clock” of CML progression for individual patients at the time of CP diagnosis, making it difficult to adapt therapy to the risk level of each patient. ICCBR '10

Bayesian Model Averaging Why predictors for CML progression? ICCBR '10

Bayesian Model Averaging Identification of CML progression biomarkers ICCBR '10

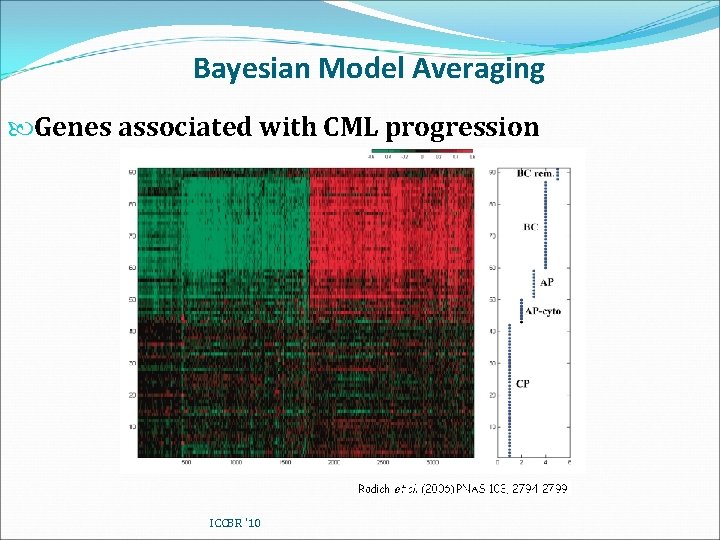

Bayesian Model Averaging Genes associated with CML progression ICCBR '10

Bayesian Model Averaging BMA selected genes using microarray data Selected 6 genes over 21 models Repeat CV 100 times Average Brier Score = 0. 21 Average prediction accuracy = 99. 17% ICCBR '10

Bayesian Model Averaging PCR data: CP-early vs CP-late ICCBR '10

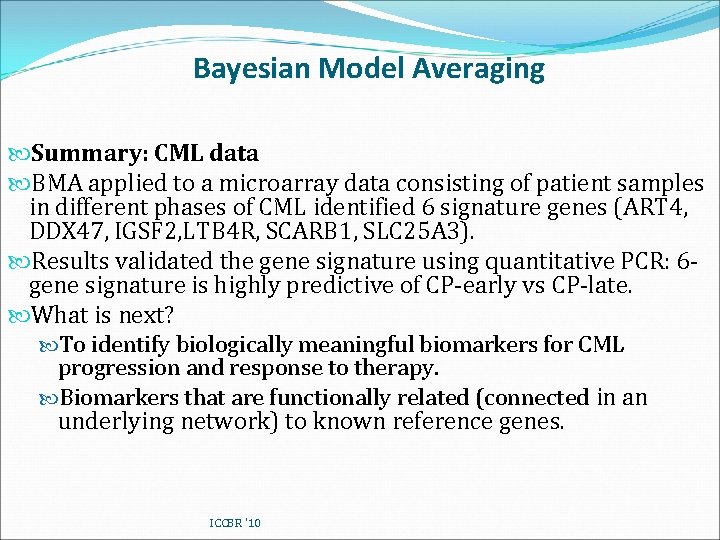

Bayesian Model Averaging Summary: CML data BMA applied to a microarray data consisting of patient samples in different phases of CML identified 6 signature genes (ART 4, DDX 47, IGSF 2, LTB 4 R, SCARB 1, SLC 25 A 3). Results validated the gene signature using quantitative PCR: 6 gene signature is highly predictive of CP-early vs CP-late. What is next? To identify biologically meaningful biomarkers for CML progression and response to therapy. Biomarkers that are functionally related (connected in an underlying network) to known reference genes. ICCBR '10

Bayesian Model Averaging Application 2: Survival analysis ICCBR '10

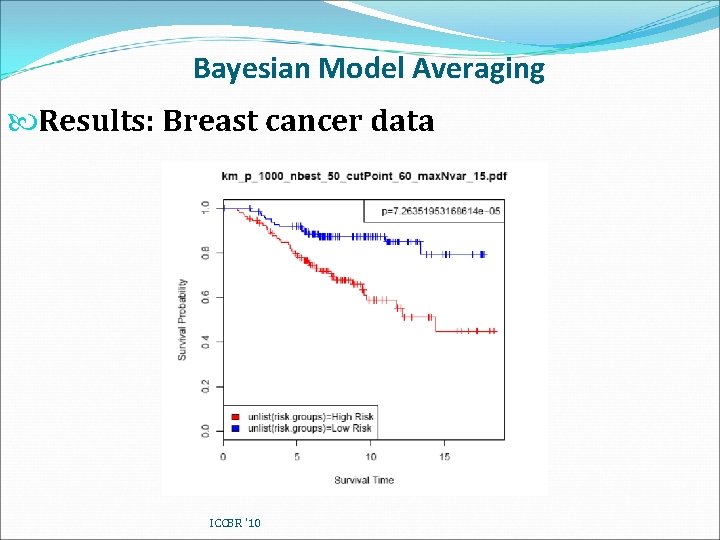

Bayesian Model Averaging Results: Breast cancer data ICCBR '10

Bayesian Model Averaging Results: Breast cancer data - Annest, Bumgarner, Raftery, Yeung. BMC Bioinformatics 2009 ICCBR '10

CBR Classification task Similarity measure Weights provided by BMA for selected features ICCBR '10

CBR Classification task Choose the class for which the average similar score is highest ICCBR '10

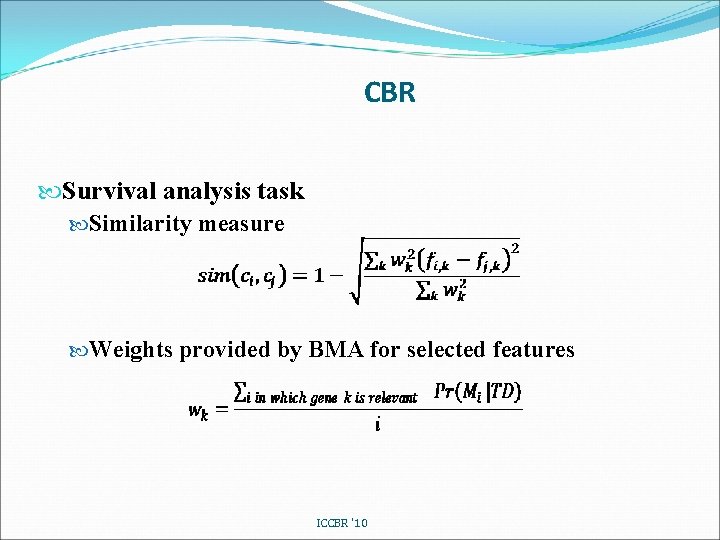

CBR Survival analysis task Similarity measure Weights provided by BMA for selected features ICCBR '10

CBR Survival analysis task Choose the class for which the average similar score is highest ICCBR '10

Evaluation / Classification Dataset Total Number of Samples # Training Samples # Validation Samples Number of Genes Leukemia 2 72 38 34 3051 Leukemia 3 72 38 34 3051 Dataset # classes BMA-CBR iterative. BMA Other published results Leukemia 2 2 #genes = 20 #errors = 1/34 #genes = 20 #errors = 2/34 #genes = 5 #errors = 1/34 Leukemia 3 3 #genes = 15 #errors = 1/34 #genes ~ 40 #errors = 1/34 ICCBR '10

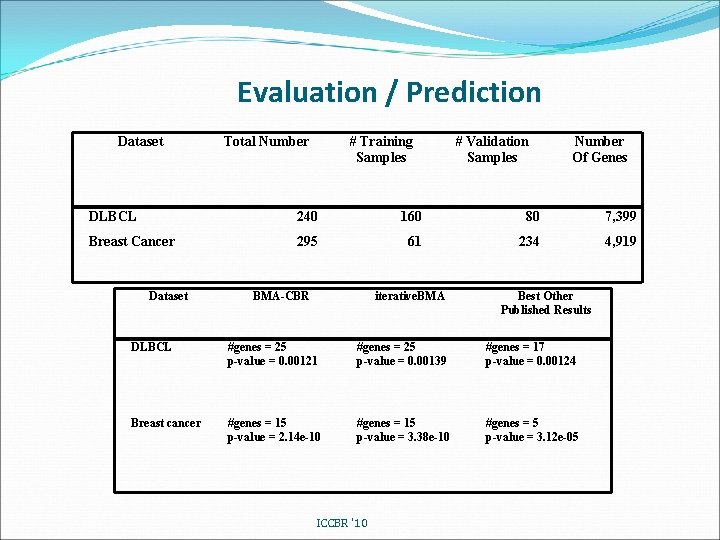

Evaluation / Prediction Dataset Total Number # Training Samples # Validation Samples Number Of Genes DLBCL 240 160 80 7, 399 Breast Cancer 295 61 234 4, 919 Dataset BMA-CBR iterative. BMA Best Other Published Results DLBCL #genes = 25 p-value = 0. 00121 #genes = 25 p-value = 0. 00139 #genes = 17 p-value = 0. 00124 Breast cancer #genes = 15 p-value = 2. 14 e-10 #genes = 15 p-value = 3. 38 e-10 #genes = 5 p-value = 3. 12 e-05 ICCBR '10

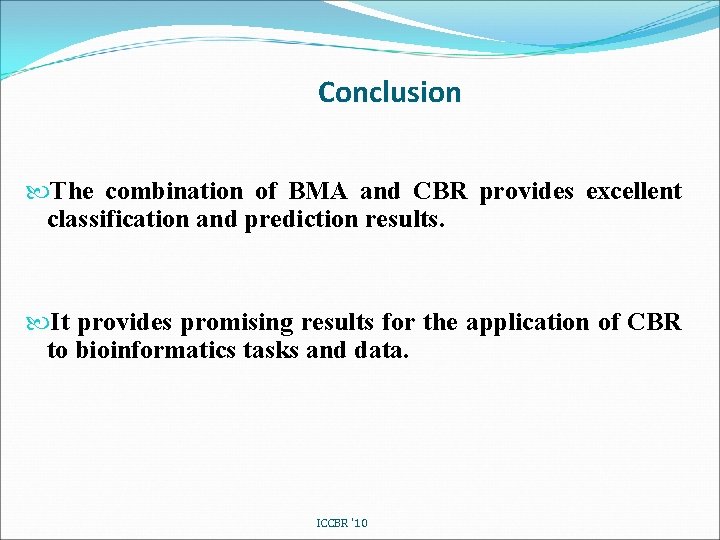

Conclusion The combination of BMA and CBR provides excellent classification and prediction results. It provides promising results for the application of CBR to bioinformatics tasks and data. ICCBR '10

Conclusion Future developments Refine risk classes into more than two risk groups. Refine CBR algorithm. Test on additional datasets. Provide automatic interpretation of the classification / prediction both for gene selection and for case-based reasoning. ICCBR '10

Thank you for your attention !!! Questions ? ICCBR '10
