Cardiovascular System Block Cardiac Arrhythmias Physiology Lecture Objectives

Cardiovascular System Block Cardiac Arrhythmias (Physiology)

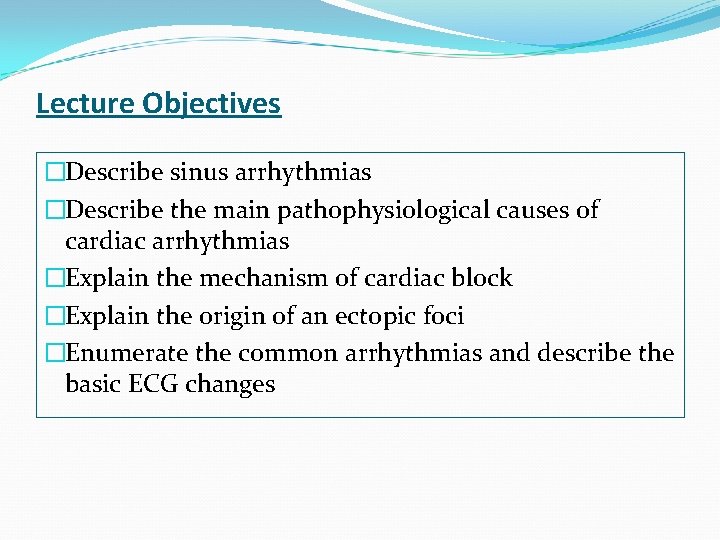

Lecture Objectives �Describe sinus arrhythmias �Describe the main pathophysiological causes of cardiac arrhythmias �Explain the mechanism of cardiac block �Explain the origin of an ectopic foci �Enumerate the common arrhythmias and describe the basic ECG changes

Normal Sinus Rhythm �Regular �Single p-wave precedes every QRS complex �P-R interval is constant and within normal range �P-P interval is constant

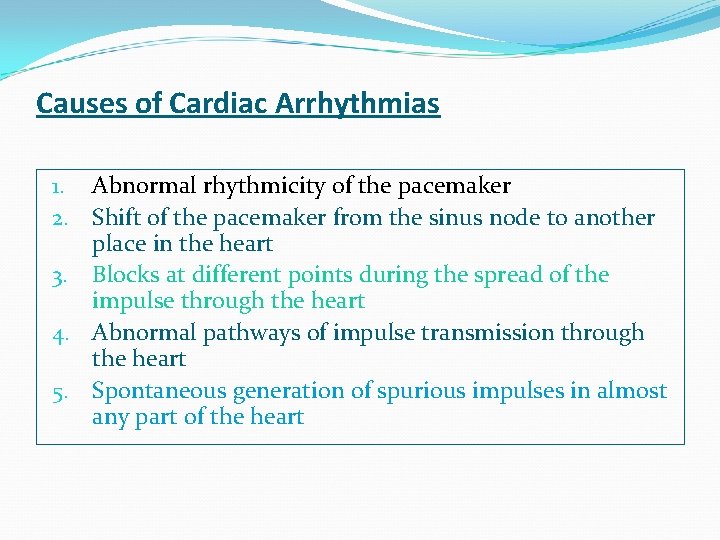

Causes of Cardiac Arrhythmias 1. Abnormal rhythmicity of the pacemaker 2. Shift of the pacemaker from the sinus node to another place in the heart 3. Blocks at different points during the spread of the impulse through the heart 4. Abnormal pathways of impulse transmission through the heart 5. Spontaneous generation of spurious impulses in almost any part of the heart

Causes of Cardiac Arrhythmias � � Rate above or below normal Regular or irregular rhythm Narrow or broad QRS complex Relation to P waves

Abnormal Sinus Rhythm �Tachycardia: an increase in the heart rate �Heart rate > 100 beats per minute �Causes: � Increased body temperature � Sympathetic stimulation � Drugs: digitalis � Inspiration

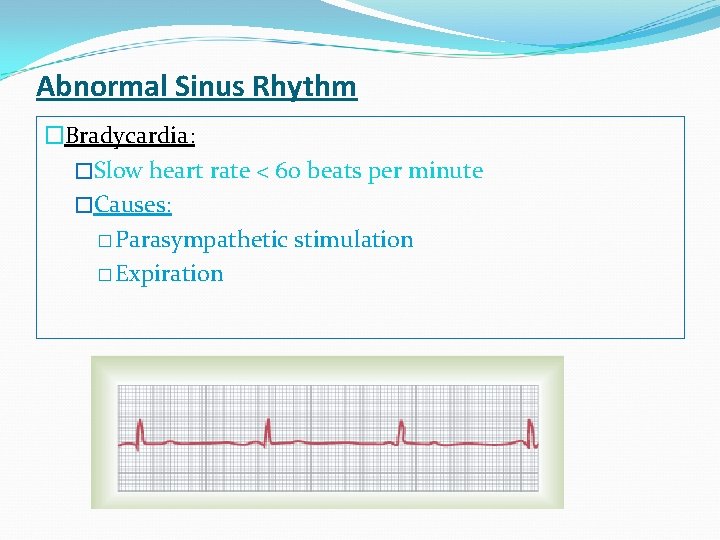

Abnormal Sinus Rhythm �Bradycardia: �Slow heart rate < 60 beats per minute �Causes: � Parasympathetic stimulation � Expiration

Abnormal Cardiac Rhythms that Result from Impulse Conduction Block �Sinoatrial Block � Blockasde of the S-A node impulse before entering atrial muscle �Cessation of P wave �Causes: �Ischemia of the A-V node �Compression of the A-V node by scar formation �Inflammation of the A-V node �Strong vagal stimulation

Abnormal Cardiac Rhythms that Result from Impulse Conduction Block �A-V Block �When impulse from the S-A node is blocked �Causes: � Ischemia of the A-V node � Compression of the A-V node by scar formation � Inflammation of the A-V node � Strong vagal stimulation

Types of the A-V Block �First degree block �Second degree block �Third degree block

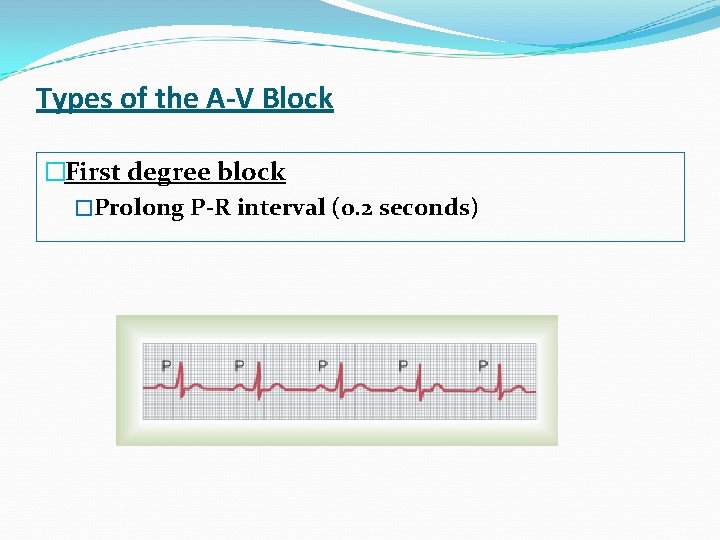

Types of the A-V Block �First degree block �Prolong P-R interval (0. 2 seconds)

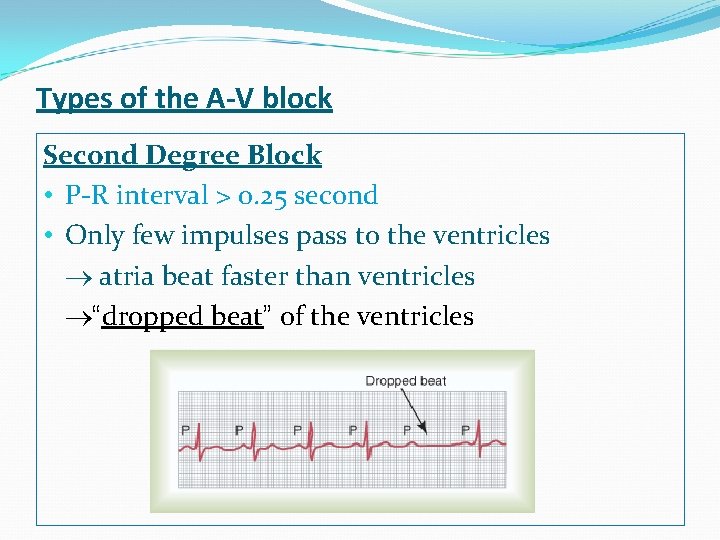

Types of the A-V block Second Degree Block • P-R interval > 0. 25 second • Only few impulses pass to the ventricles atria beat faster than ventricles “dropped beat” of the ventricles

Types of the A-V block Third degree block (complete) • Complete dissociation of P wave and QRS waves �Ventricle escape from the influence of S-A node �Atrial rate is 100 beats/min �Ventricular rate is 40 beats/min • Stokes-Adams Syndrome: AV block comes and goes

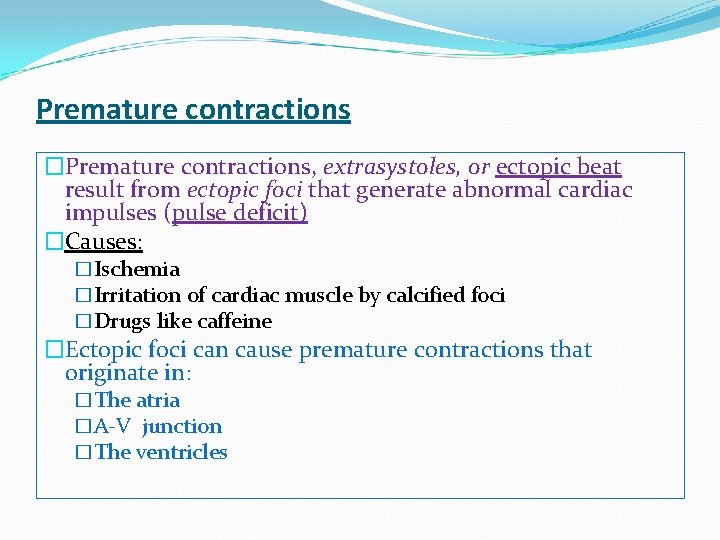

Premature contractions �Premature contractions, extrasystoles, or ectopic beat result from ectopic foci that generate abnormal cardiac impulses (pulse deficit) �Causes: �Ischemia �Irritation of cardiac muscle by calcified foci �Drugs like caffeine �Ectopic foci can cause premature contractions that originate in: �The atria �A-V junction �The ventricles

Premature Atrial Contractions �Short P-R interval depending on how far the ectopic foci from the AV node �Pulse deficit if there is no time for the ventricles to fill with blood �The time between the premature contraction and the succeeding beat is increased (Compensatory pause)

Premature Ventricular Contractions (PVCs) � Prolong QRS complex because the impulses are carried out with myocardial fibers with slower conduction rate than Purkinje fibers � Increase QRS complexes voltage because QRS wave from one ventricle can not neutralize the one from the other ventricle � After PVCs, the T wave has an electrical potential of opposite polarity of that of the QRS because of the slow conduction in the myocardial fibers, the fibers that depolarizes first will repolarize first � Causes: drugs, caffeine, smoking, lack of sleep, emotional irritations

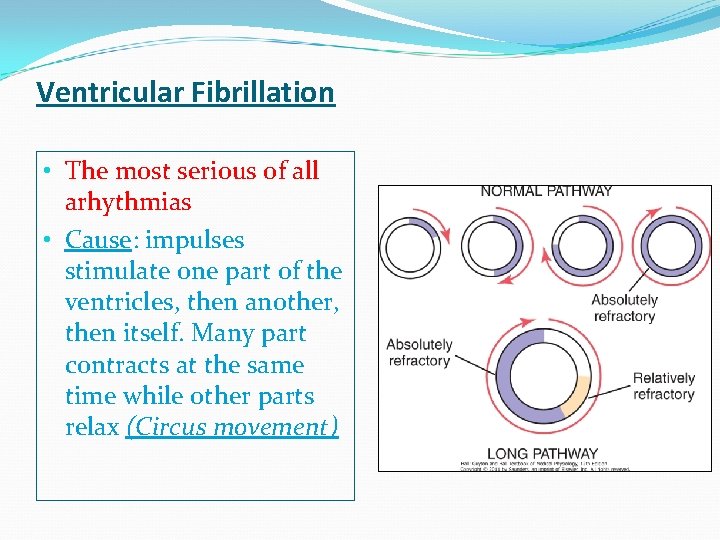

Ventricular Fibrillation • The most serious of all arhythmias • Cause: impulses stimulate one part of the ventricles, then another, then itself. Many part contracts at the same time while other parts relax (Circus movement)

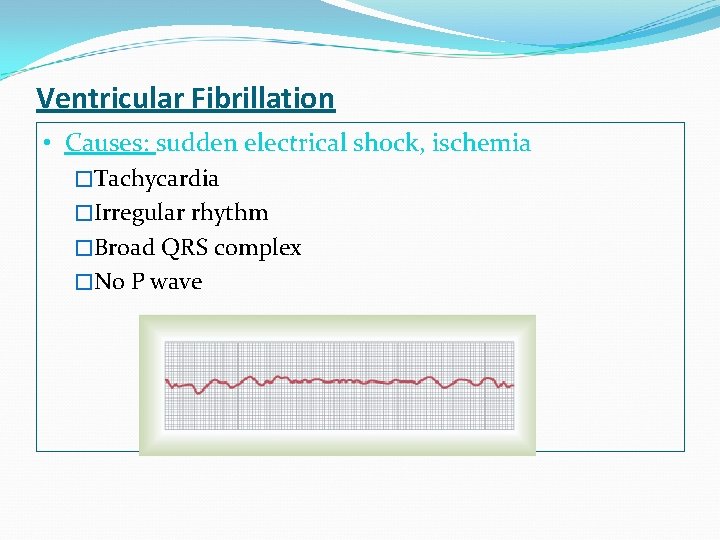

Ventricular Fibrillation • Causes: sudden electrical shock, ischemia �Tachycardia �Irregular rhythm �Broad QRS complex �No P wave

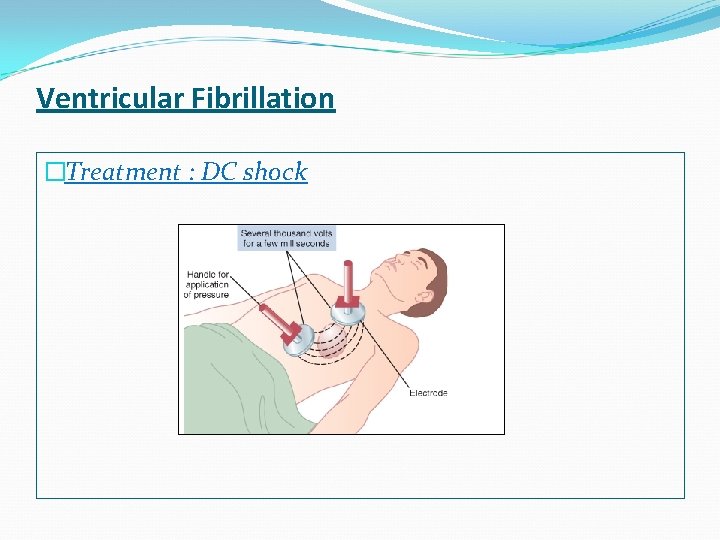

Ventricular Fibrillation �Treatment : DC shock

Atrial Fibrillation �Same mechanism as ventricular fibrillation. It can occur only in atria without affecting the ventricles �It occurs more frequently in patients with enlarged heart �The atria do not pump if they are fibrillating �The efficiency of ventricular filling is decreased 20 to 30% �No P wave, or high frequency of low voltage P wave �Treatment: DC shock

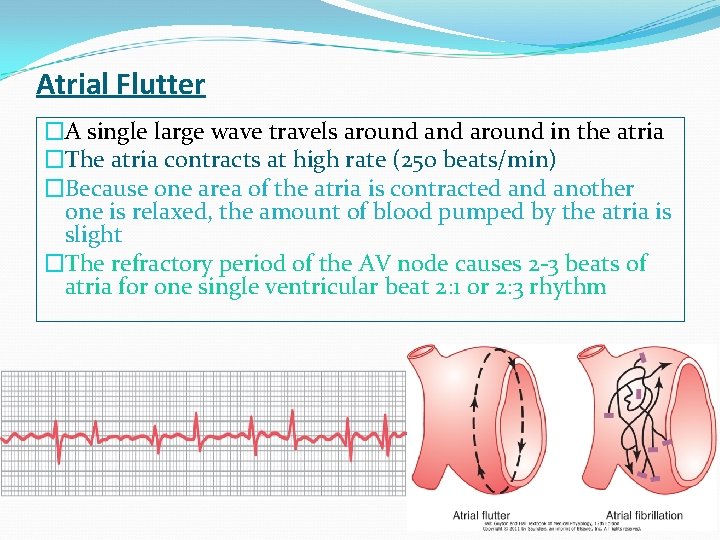

Atrial Flutter �A single large wave travels around in the atria �The atria contracts at high rate (250 beats/min) �Because one area of the atria is contracted another one is relaxed, the amount of blood pumped by the atria is slight �The refractory period of the AV node causes 2 -3 beats of atria for one single ventricular beat 2: 1 or 2: 3 rhythm

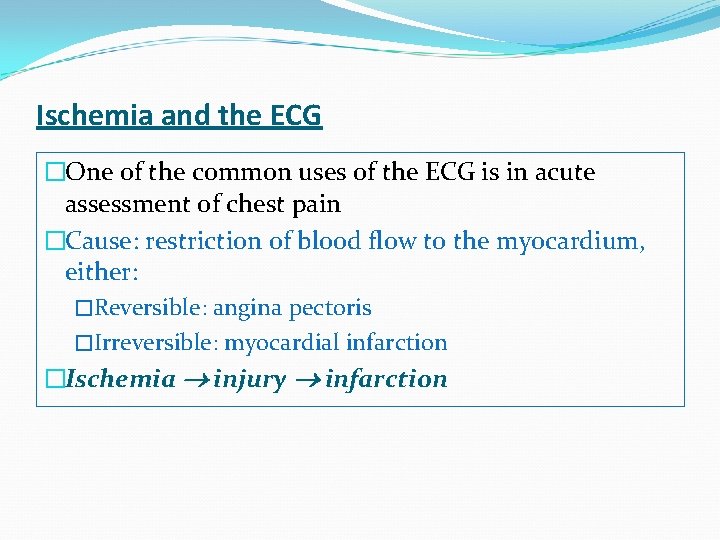

Ischemia and the ECG �One of the common uses of the ECG is in acute assessment of chest pain �Cause: restriction of blood flow to the myocardium, either: �Reversible: angina pectoris �Irreversible: myocardial infarction �Ischemia injury infarction

Reversible ischemia �Inverted T wave �ST segment depression

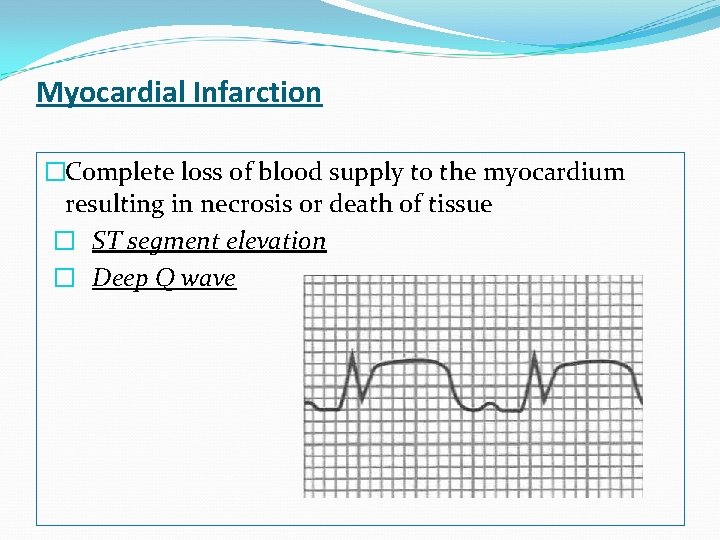

Myocardial Infarction �Complete loss of blood supply to the myocardium resulting in necrosis or death of tissue � ST segment elevation � Deep Q wave

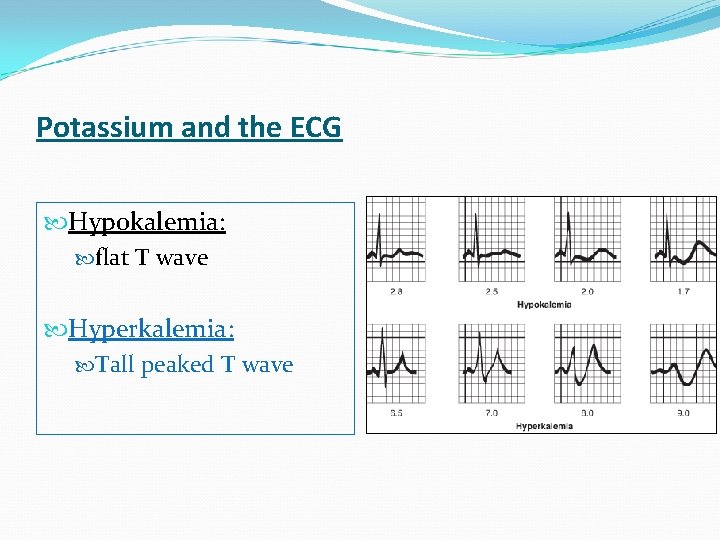

Potassium and the ECG Hypokalemia: flat T wave Hyperkalemia: Tall peaked T wave

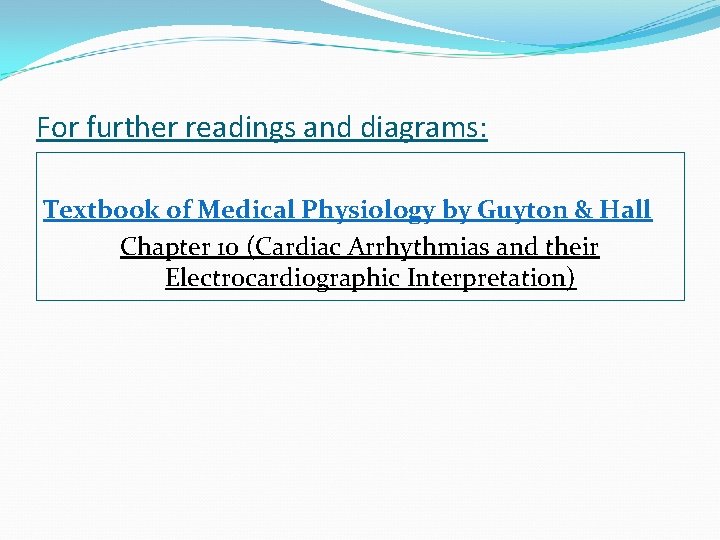

For further readings and diagrams: Textbook of Medical Physiology by Guyton & Hall Chapter 10 (Cardiac Arrhythmias and their Electrocardiographic Interpretation)
