CARDIOVASCULAR SYSTEM ALSO CALLED CIRCULATORY SYSTEM COMPONENTS OF

CARDIOVASCULAR SYSTEM ALSO CALLED CIRCULATORY SYSTEM

COMPONENTS OF CARDIOVASCULAR SYSTEM • Blood • Heart • Blood vessels – arteries, veins and capillaries

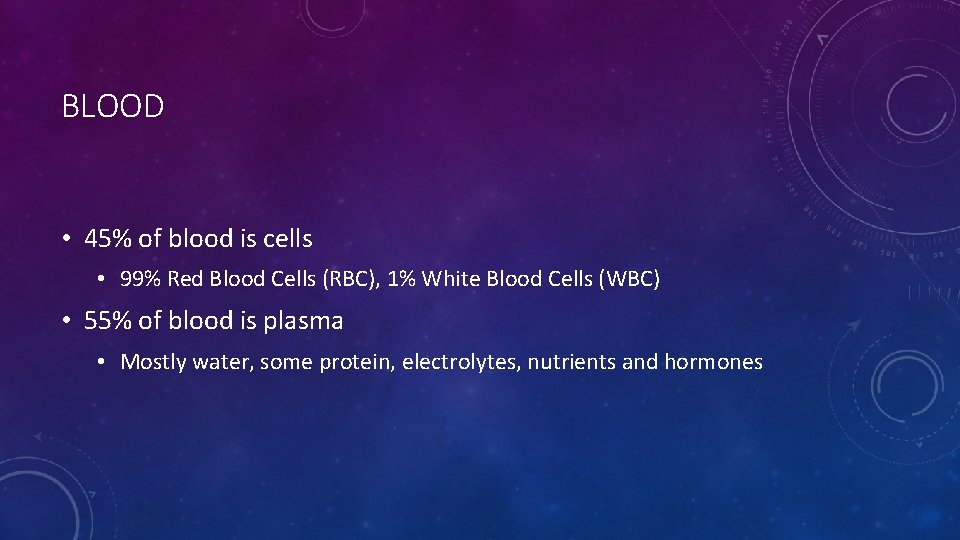

BLOOD • 45% of blood is cells • 99% Red Blood Cells (RBC), 1% White Blood Cells (WBC) • 55% of blood is plasma • Mostly water, some protein, electrolytes, nutrients and hormones

BLOOD FUNCTIONS • Transport • Regulation • Protection

BLOOD AS A TRANSPORTER • Transports: • Oxygen (O 2) to tissues from the lungs • Carbon dioxide (CO 2) removes CO 2 from tissues and transports to the lungs • Nutrients obtained from diet • From digestive tract to tissues • Hormones • Waste products

RED BLOOD CELLS (RBC) • Contain Hemoglobin • Each molecule carries one oxygen from the lungs, or one carbon dioxide to the lungs • Hemoglobin requires iron to function • 280 million hemoglobin molecules/cell • Lack mitochondria • So can not use oxygen up for energy

RED BLOOD CELLS • Lack a nucleus • Increases surface area to volume ratio • Allows it to fit through tight spaces and exchange lots of oxygen/carbon dioxide • Recycled every 120 days • Destroyed in the spleen, liver and red bone marrow

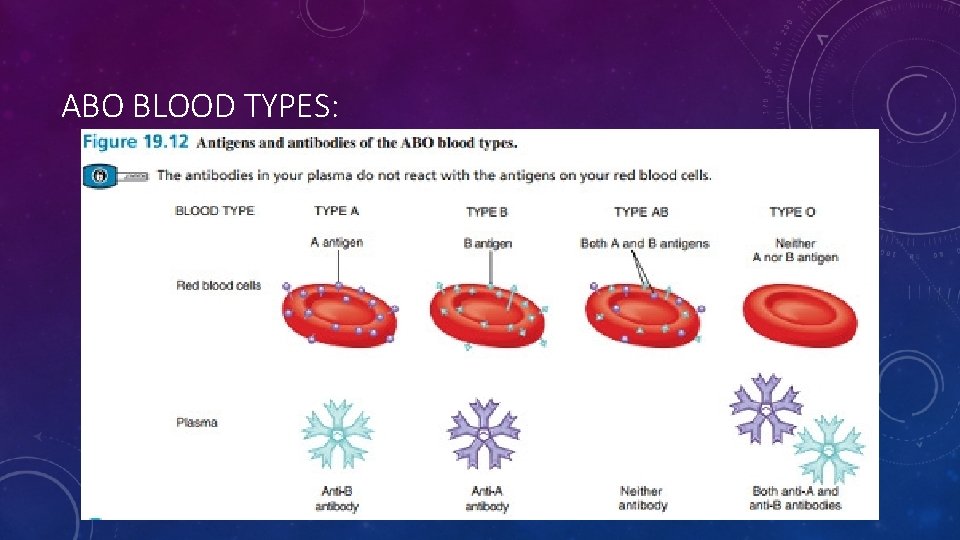

ABO BLOOD TYPES:

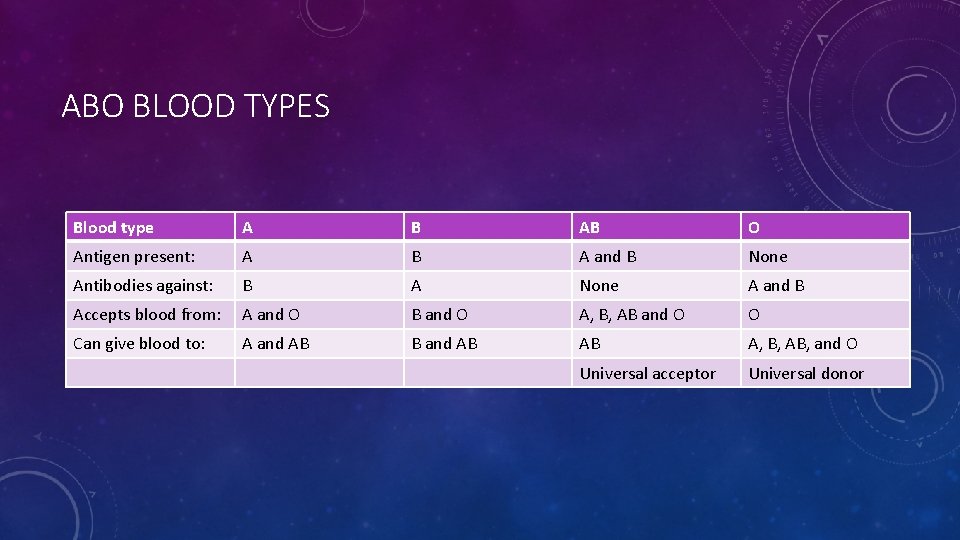

ABO BLOOD TYPES Blood type A B AB O Antigen present: A B A and B None Antibodies against: B A None A and B Accepts blood from: A and O B and O A, B, AB and O O Can give blood to: A and AB B and AB AB A, B, AB, and O Universal acceptor Universal donor

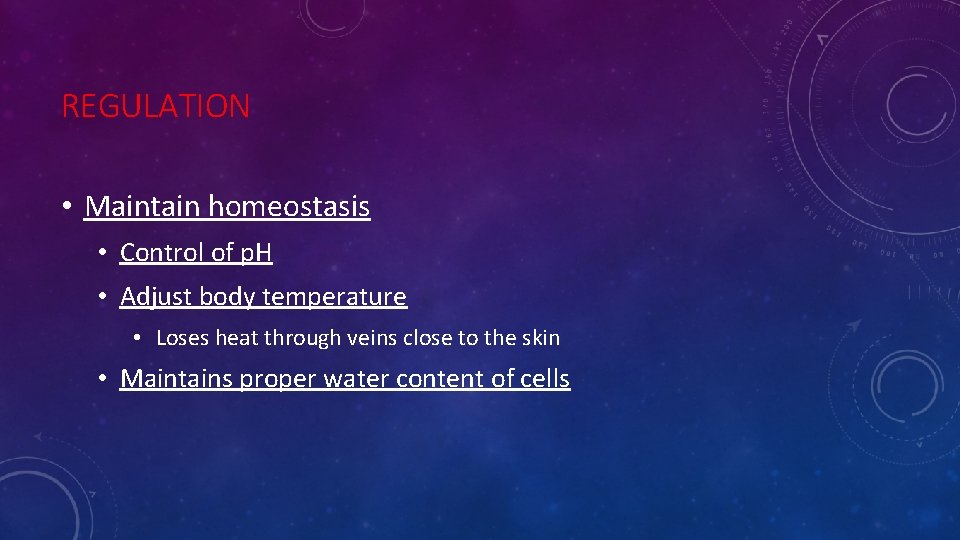

REGULATION • Maintain homeostasis • Control of p. H • Adjust body temperature • Loses heat through veins close to the skin • Maintains proper water content of cells

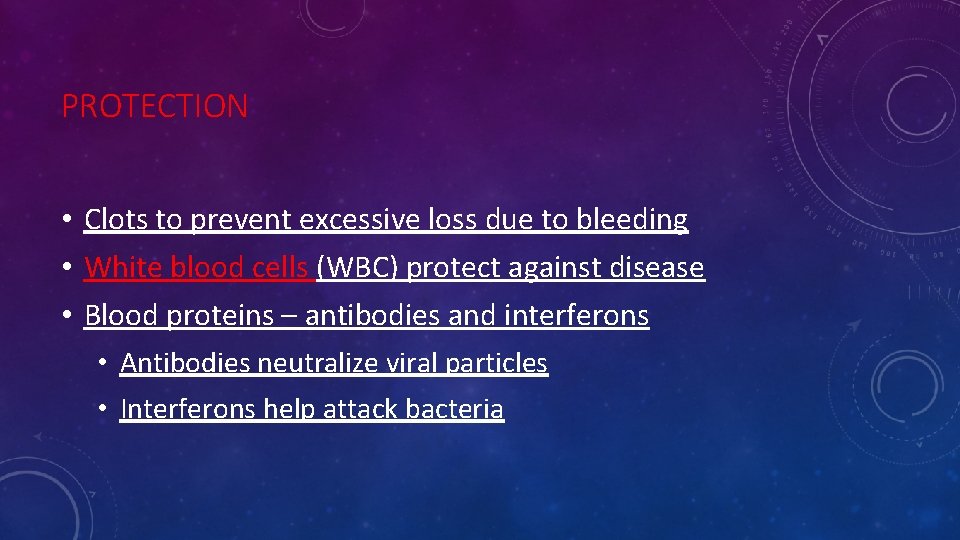

PROTECTION • Clots to prevent excessive loss due to bleeding • White blood cells (WBC) protect against disease • Blood proteins – antibodies and interferons • Antibodies neutralize viral particles • Interferons help attack bacteria

WHITE BLOOD CELLS - LEUKOCYTES • Several types of white blood cells with different properties • Neutrophils • Bacterial infections • Lymphocytes • Viral infections • Produce antibodies • Attack cancerous/tumor cells • Platelets • Cell fragments that Promote blood clotting

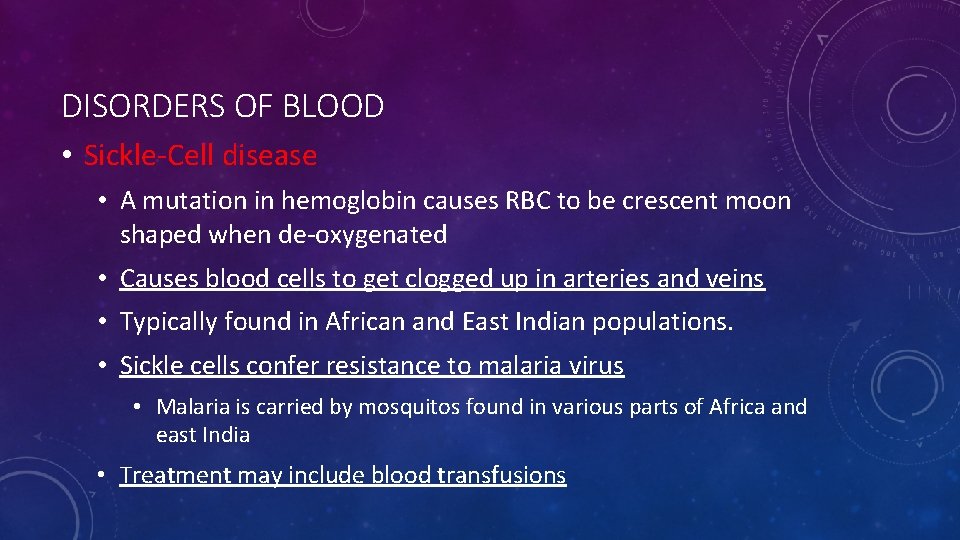

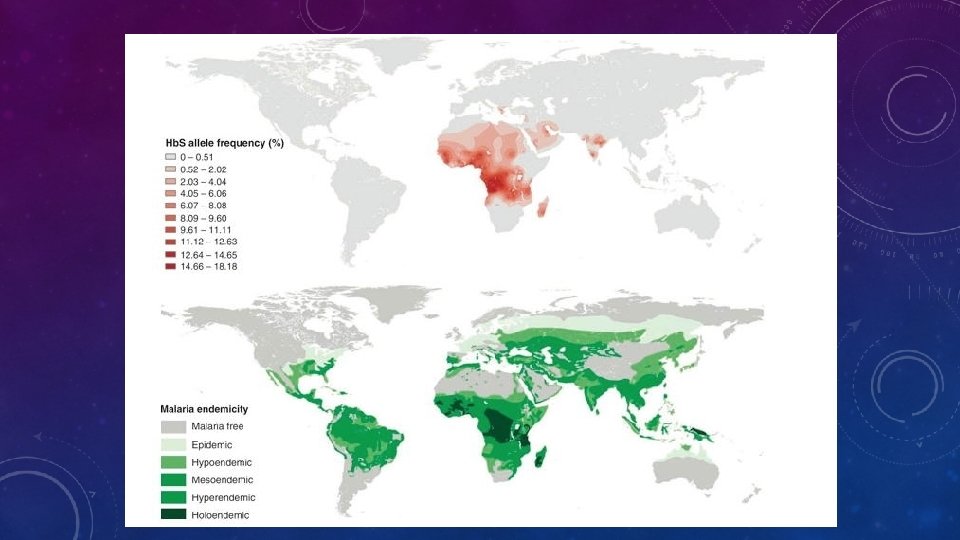

DISORDERS OF BLOOD • Sickle-Cell disease • A mutation in hemoglobin causes RBC to be crescent moon shaped when de-oxygenated • Causes blood cells to get clogged up in arteries and veins • Typically found in African and East Indian populations. • Sickle cells confer resistance to malaria virus • Malaria is carried by mosquitos found in various parts of Africa and east India • Treatment may include blood transfusions

LEUKEMIA – RED BONE MARROW CANCER • Cancer – cells which undergo uncontrolled replication • Abnormal WBC multiply uncontrollably resulting in issues producing enough RBC and WBC. • Causes Anemia • Insufficient RBC to deliver enough oxygen • Risk factors: • Chemotherapy, down syndrome, smoking, family history of leukemia (genetic predisposition) • Symptoms: • Fatigue, weight loss, frequent infections, frequent nosebleeds, bone pain • Diagnosis: • Physical Exam, blood tests looking for increased WBC counts, bone marrow tests (from hip bone)

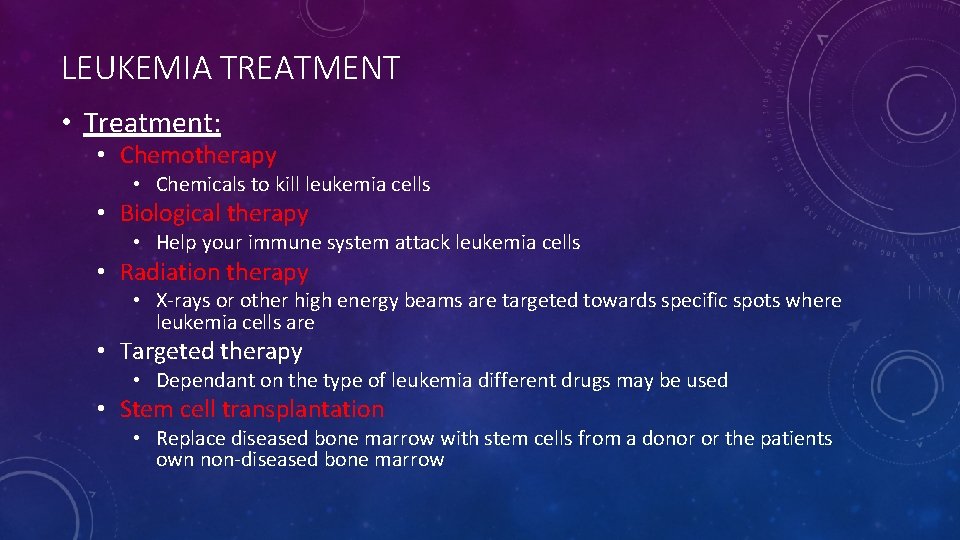

LEUKEMIA TREATMENT • Treatment: • Chemotherapy • Chemicals to kill leukemia cells • Biological therapy • Help your immune system attack leukemia cells • Radiation therapy • X-rays or other high energy beams are targeted towards specific spots where leukemia cells are • Targeted therapy • Dependant on the type of leukemia different drugs may be used • Stem cell transplantation • Replace diseased bone marrow with stem cells from a donor or the patients own non-diseased bone marrow

ETHICS IN HEALTH CARE • http: //www. foundhealth. com/blog/2011/11/fighting-leukemia-a-survivor-tells-her-story-of-integrative-medicine/ a personal story about leukemia and complementary treatment • http: //www. cancercenter. com/leukemia/naturopathic-medicine/ naturopathic oncology provider website • http: //www. cbc. ca/news/aboriginal/first-nations-girl-chooses-traditional-medicine-over-chemo-1. 2644637 • http: //www. dailymail. co. uk/news/article-3034491/She-baby-time-no-matter-happened-Family-defend-pregnant-Jehovah-s. Witness-died-baby-refusing-blood-transfusion-chemotherapy-C-section-religious-beliefs. html • http: //www. dailymail. co. uk/news/article-3027599/Jehovah-s-Witness-baby-die-refuses-blood-transfusion-seven-monthspregnant-cancer-80 -chance-surviving-treatment. html • Jehovah’s witness refuses blood transfusion • http: //www. wsj. com/articles/SB 121322824482066211 • Christian scientists refuse medical care – changes to laws.

RECAP OF WHERE WE ARE • Last week we began looking at the cardiovascular (circulatory) system • So far we’ve looked at blood and its components • The main functions of blood are: • Transport (oxygen, carbon dioxide, nutrients, waste products) • Protection (white blood cells, blood clotting) • Regulation (homeostasis- temperature, p. H and water balance) • Blood contains – plasma (water, proteins – antibodies in particular, nutrients) and cells (red and white). • Diseases involving blood • sickle cell disease (misshaped RBC, help protect against malaria) • Leukemia (risk factors, symptoms, diagnosis, treatment) • Up next the heart and blood vessels

Superior vena cava Inferior vena cava Pulmonary veins

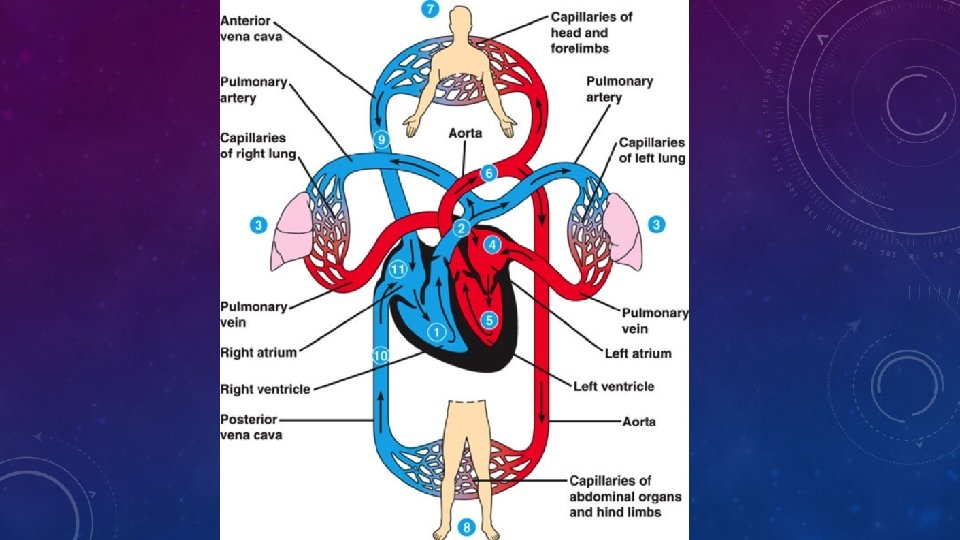

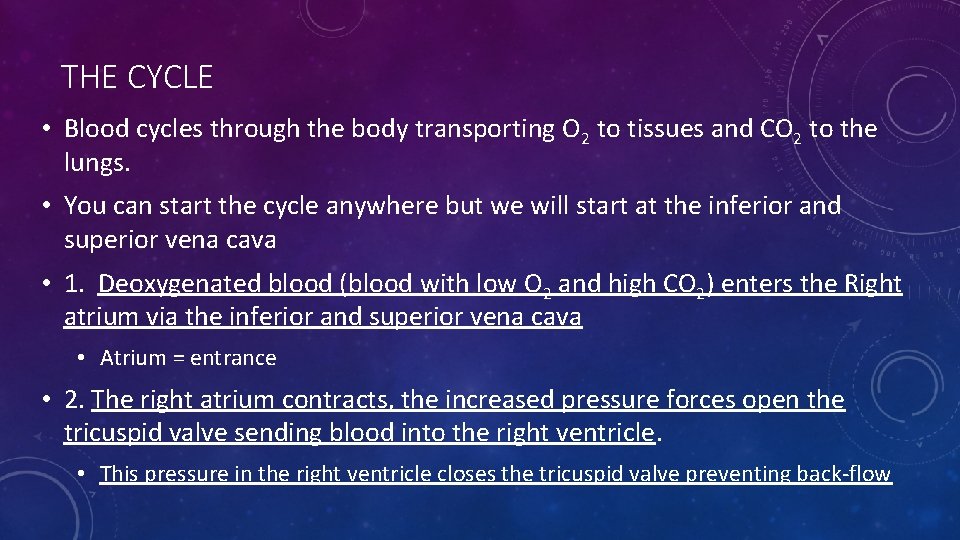

THE CYCLE • Blood cycles through the body transporting O 2 to tissues and CO 2 to the lungs. • You can start the cycle anywhere but we will start at the inferior and superior vena cava • 1. Deoxygenated blood (blood with low O 2 and high CO 2) enters the Right atrium via the inferior and superior vena cava • Atrium = entrance • 2. The right atrium contracts, the increased pressure forces open the tricuspid valve sending blood into the right ventricle. • This pressure in the right ventricle closes the tricuspid valve preventing back-flow

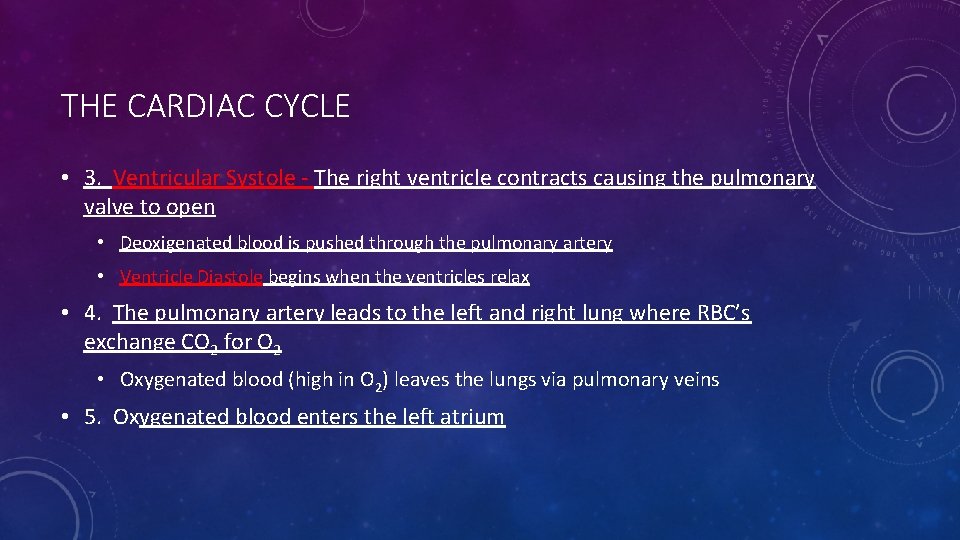

THE CARDIAC CYCLE • 3. Ventricular Systole - The right ventricle contracts causing the pulmonary valve to open • Deoxigenated blood is pushed through the pulmonary artery • Ventricle Diastole begins when the ventricles relax • 4. The pulmonary artery leads to the left and right lung where RBC’s exchange CO 2 for O 2 • Oxygenated blood (high in O 2) leaves the lungs via pulmonary veins • 5. Oxygenated blood enters the left atrium

THE CARDIAC CYCLE • 6. After filling, the left atrium then contracts forcing open the mitral valve and pushing blood into the left ventricle • The mitral valve closes and the pressure within the ventricle prevents back-flow • 7. Ventriclar Systole - The left ventricle contracts causing the aortic valve to open pushing oxygen rich blood into the aorta. • The aortic valve closes preventing back-flow of blood into the ventricle. • Ventricle Diastole begins when the ventricles relax • 8. Blood is dispersed throughout the body carrying nutrients and exchanging O 2 for CO 2 • Deoxygnated blood returns to the heart via the superior and inferior vena cava.

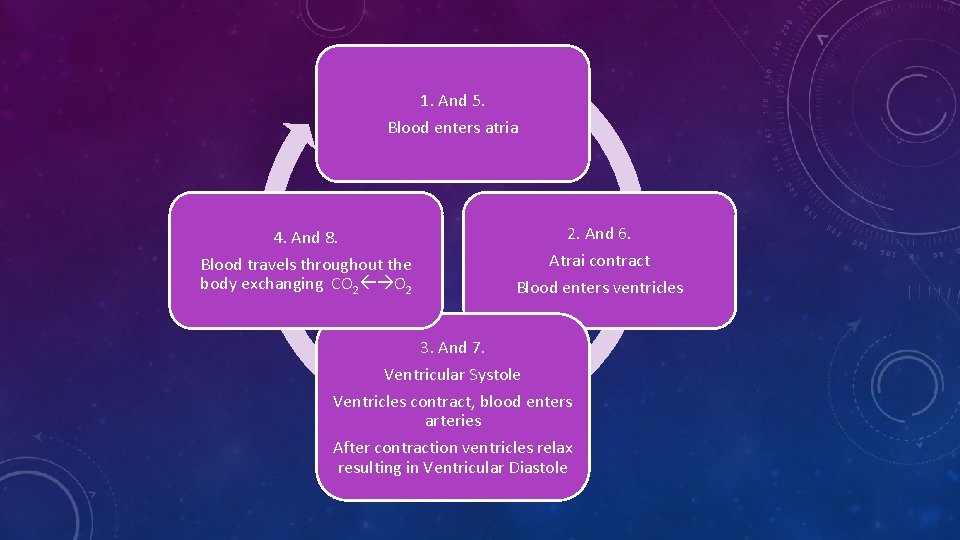

1. And 5. Blood enters atria 4. And 8. Blood travels throughout the body exchanging CO 2 2. And 6. Atrai contract Blood enters ventricles 3. And 7. Ventricular Systole Ventricles contract, blood enters arteries After contraction ventricles relax resulting in Ventricular Diastole

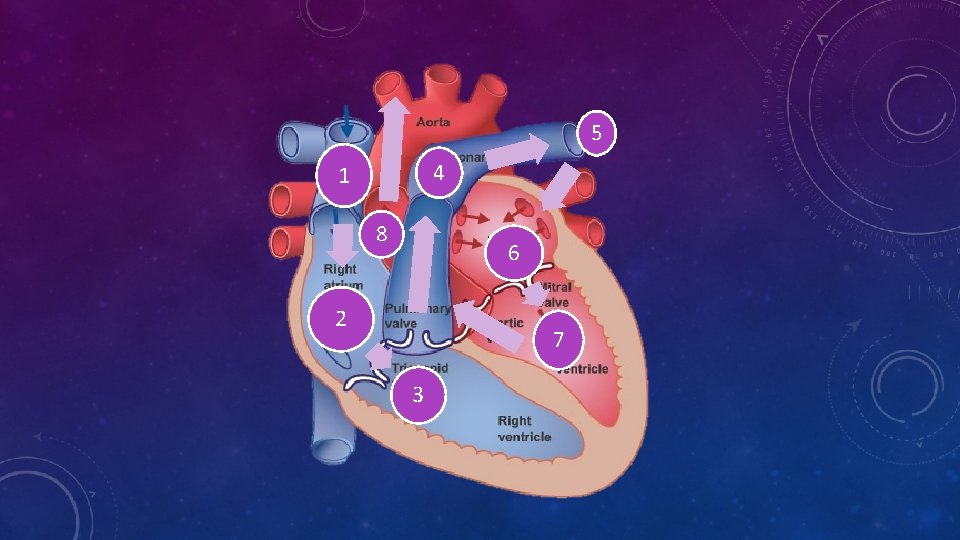

5 4 1 8 6 2 7 3

ARTERIES, CAPILLARIES AND VEINS • Blood exits the ventricles via arteries • Arteries have the highest blood pressure • Thick walls to handle the pressure • Pulmonary arteries have lower pressure than the aorta (an artery) • This is because of the aorta’s need to push blood to the brain and all other parts of the body • From arteries blood travels to arterioles, which are narrower • Pressure decreases as blood moves away from the heart

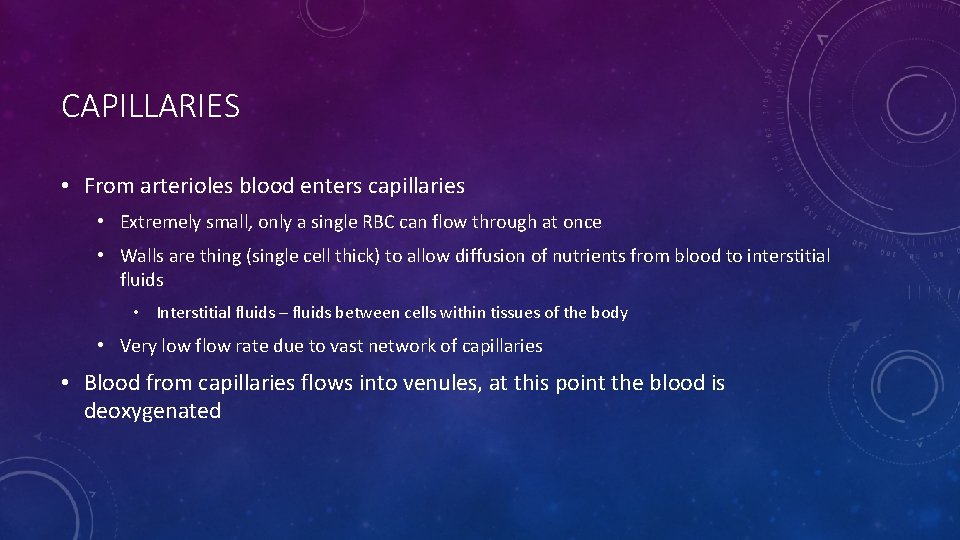

CAPILLARIES • From arterioles blood enters capillaries • Extremely small, only a single RBC can flow through at once • Walls are thing (single cell thick) to allow diffusion of nutrients from blood to interstitial fluids • Interstitial fluids – fluids between cells within tissues of the body • Very low flow rate due to vast network of capillaries • Blood from capillaries flows into venules, at this point the blood is deoxygenated

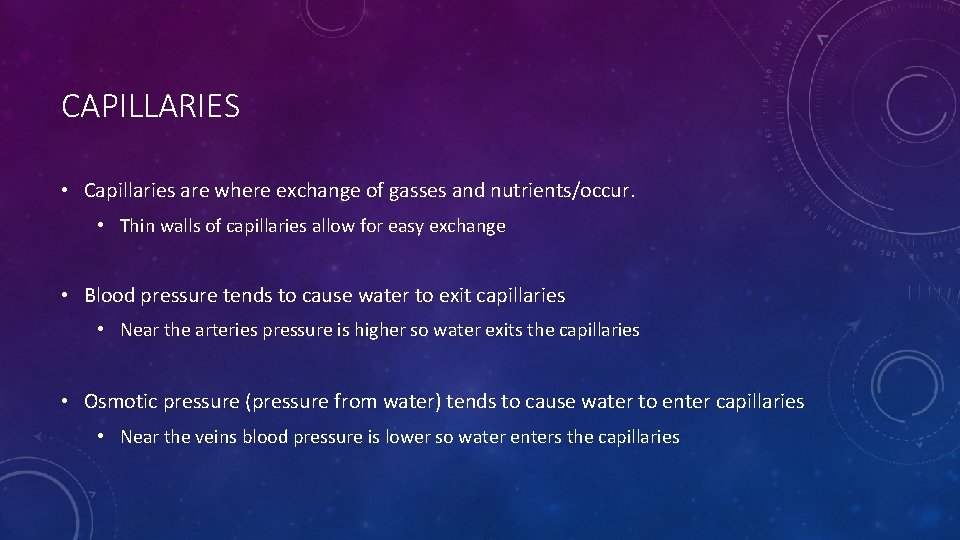

CAPILLARIES • Capillaries are where exchange of gasses and nutrients/occur. • Thin walls of capillaries allow for easy exchange • Blood pressure tends to cause water to exit capillaries • Near the arteries pressure is higher so water exits the capillaries • Osmotic pressure (pressure from water) tends to cause water to enter capillaries • Near the veins blood pressure is lower so water enters the capillaries

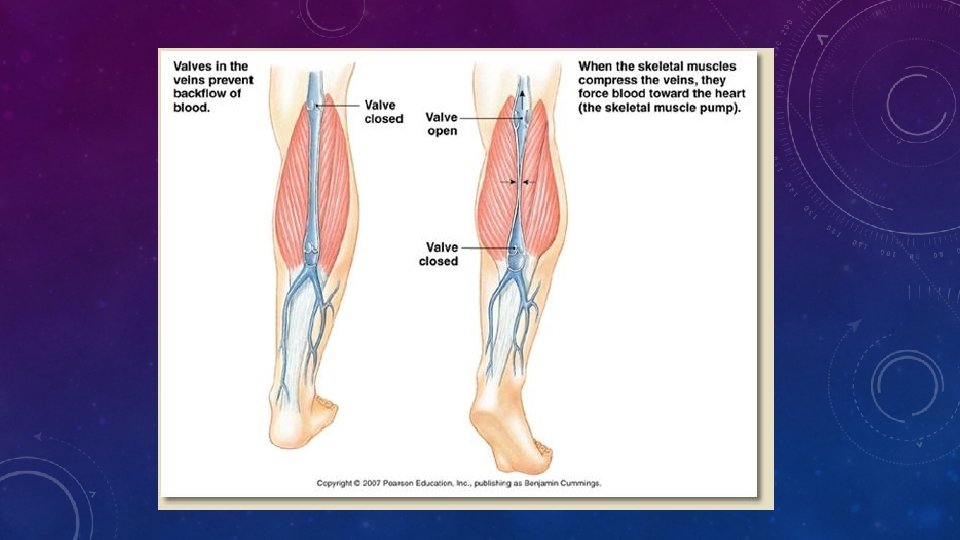

VENULES AND VEINS • Deoxygenated blood from capillaries flows to venules • Venules have slightly thicker walls and are wider than capillaries • From venules blood flows into veins • Veins have slightly thicker walls and are wider than venules • Both venules and veins have valves which prevent back-flow of blood • Low pressure in veins requires this as there is not enough force to keep blood flowing back to the heart. • https: //www. youtube. com/watch? v=HNu. PWdfj. Doc • Blood flows back to the heart via veins with the help of skeletal musclular pumps • As muscles move they compress the veins pushing blood up towards the heart

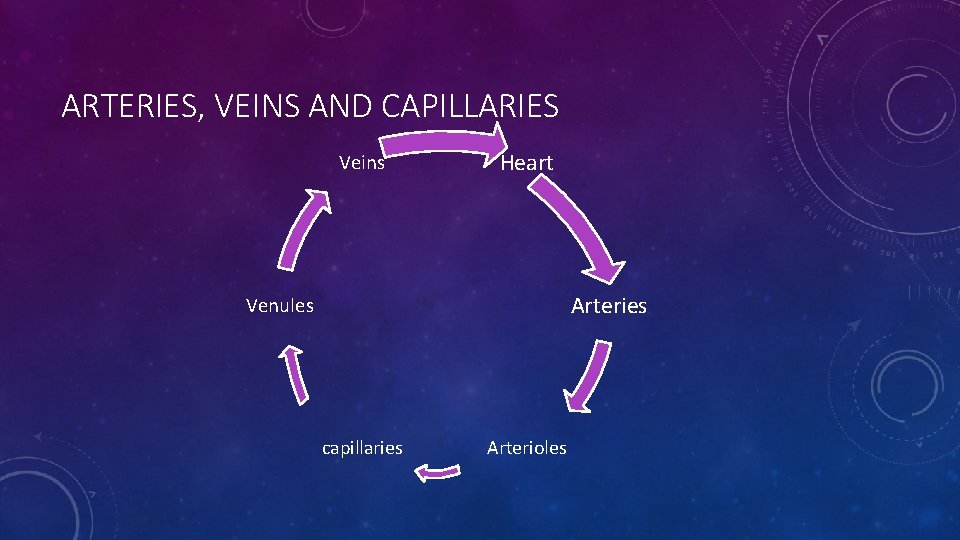

ARTERIES, VEINS AND CAPILLARIES Veins Heart Arteries Venules capillaries Arterioles

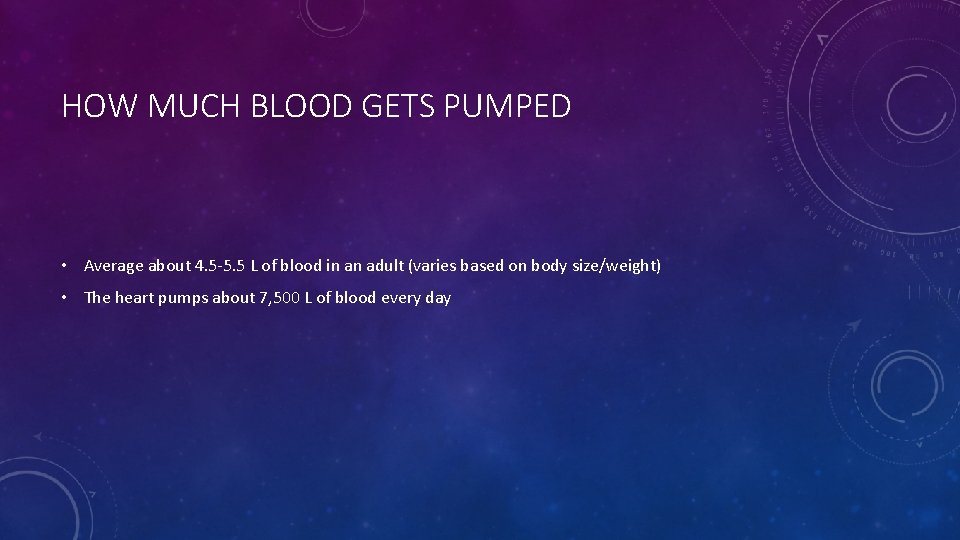

HOW MUCH BLOOD GETS PUMPED • Average about 4. 5 -5. 5 L of blood in an adult (varies based on body size/weight) • The heart pumps about 7, 500 L of blood every day

EXCHANGE OF GASSES/NUTRIENTS • When there is a lower amount of water in the capillaries the concentration of solutes (gasses, nutrients and waste products) is high inside the capillaries • This causes exchange of these solutes across the capillary walls • Solutes travel from low concentration to high concentration • 4 important areas where exchange occurs • Lungs, tissues, kidneys and small intestine

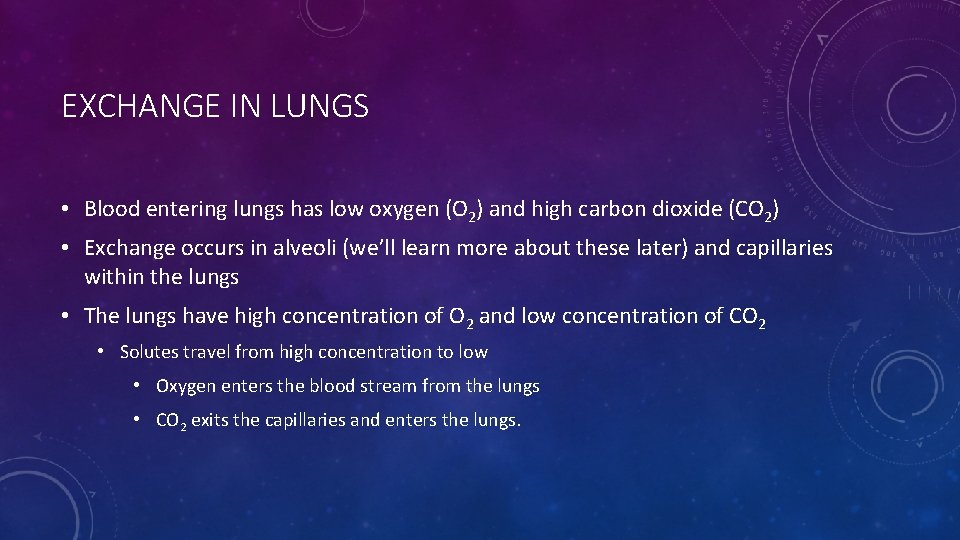

EXCHANGE IN LUNGS • Blood entering lungs has low oxygen (O 2) and high carbon dioxide (CO 2) • Exchange occurs in alveoli (we’ll learn more about these later) and capillaries within the lungs • The lungs have high concentration of O 2 and low concentration of CO 2 • Solutes travel from high concentration to low • Oxygen enters the blood stream from the lungs • CO 2 exits the capillaries and enters the lungs.

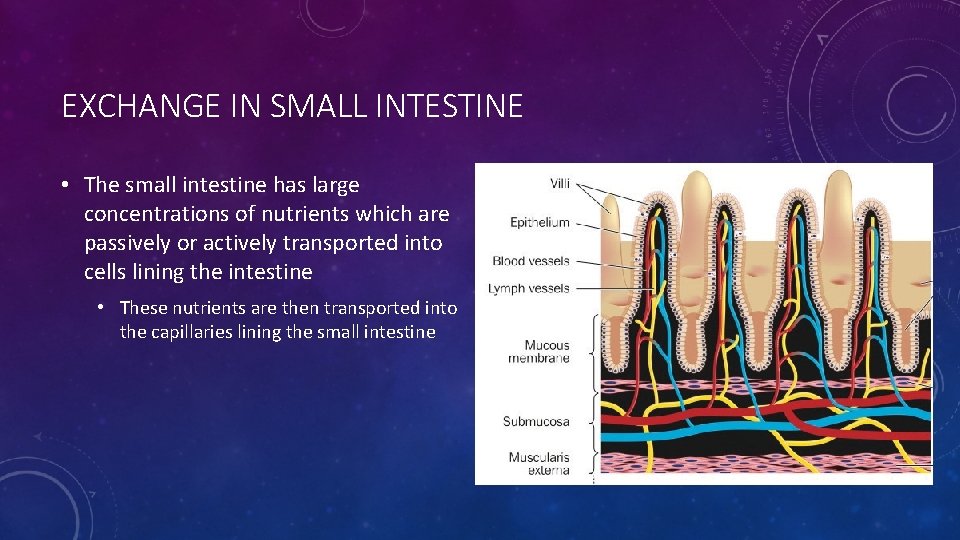

EXCHANGE IN SMALL INTESTINE • The small intestine has large concentrations of nutrients which are passively or actively transported into cells lining the intestine • These nutrients are then transported into the capillaries lining the small intestine

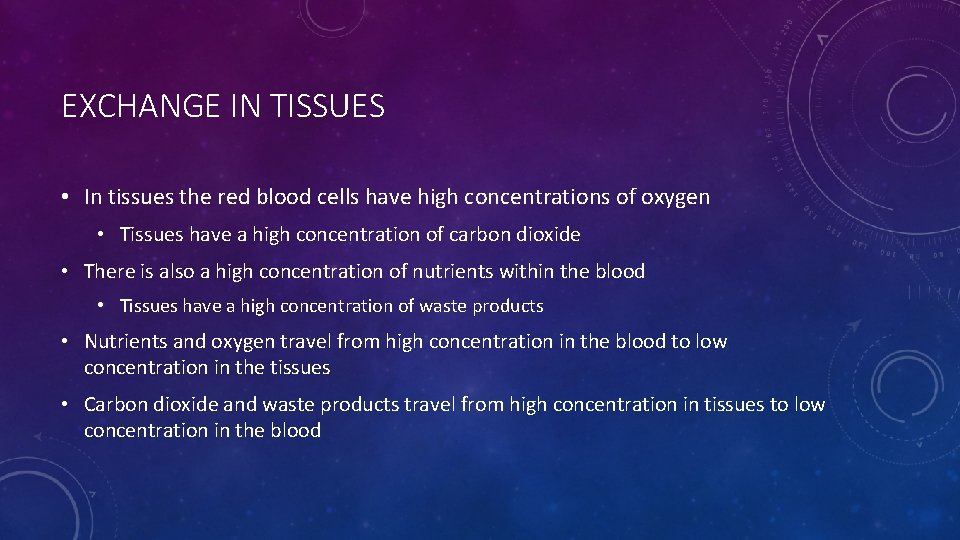

EXCHANGE IN TISSUES • In tissues the red blood cells have high concentrations of oxygen • Tissues have a high concentration of carbon dioxide • There is also a high concentration of nutrients within the blood • Tissues have a high concentration of waste products • Nutrients and oxygen travel from high concentration in the blood to low concentration in the tissues • Carbon dioxide and waste products travel from high concentration in tissues to low concentration in the blood

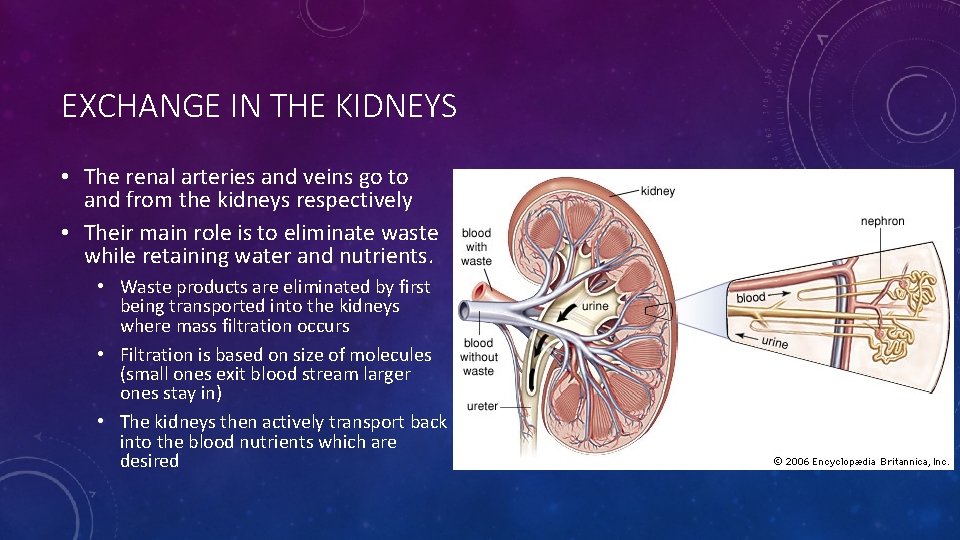

EXCHANGE IN THE KIDNEYS • The renal arteries and veins go to and from the kidneys respectively • Their main role is to eliminate waste while retaining water and nutrients. • Waste products are eliminated by first being transported into the kidneys where mass filtration occurs • Filtration is based on size of molecules (small ones exit blood stream larger ones stay in) • The kidneys then actively transport back into the blood nutrients which are desired

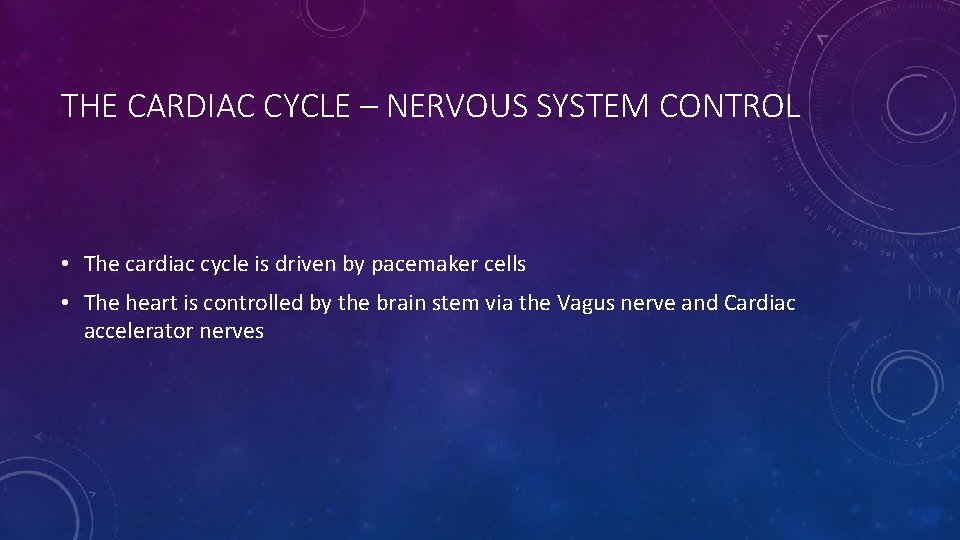

THE CARDIAC CYCLE – NERVOUS SYSTEM CONTROL • The cardiac cycle is driven by pacemaker cells • The heart is controlled by the brain stem via the Vagus nerve and Cardiac accelerator nerves

CONDUCTANCE OF CARDIAC CYCLE • The sinoatrial node (SA node) initiates electrical signal • Signals atria to contract • The signal travels to the Atrioventricular (AV node) • AV node delays the signal from getting to ventricles too quickly • Signal is sent along AV bundle and spreads out to the ventricles causing them to contract

CARDIAC CYCLE AND ECG/EKG • P – causes atria to contract • QRS complex – signals contraction of the ventricles • T – ventricle relaxes

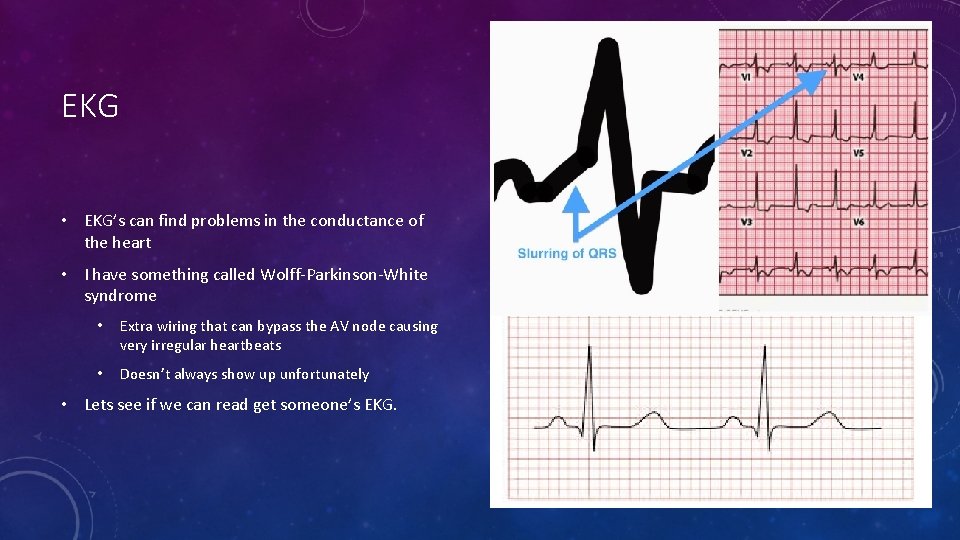

EKG • EKG’s can find problems in the conductance of the heart • I have something called Wolff-Parkinson-White syndrome • Extra wiring that can bypass the AV node causing very irregular heartbeats • Doesn’t always show up unfortunately • Lets see if we can read get someone’s EKG.

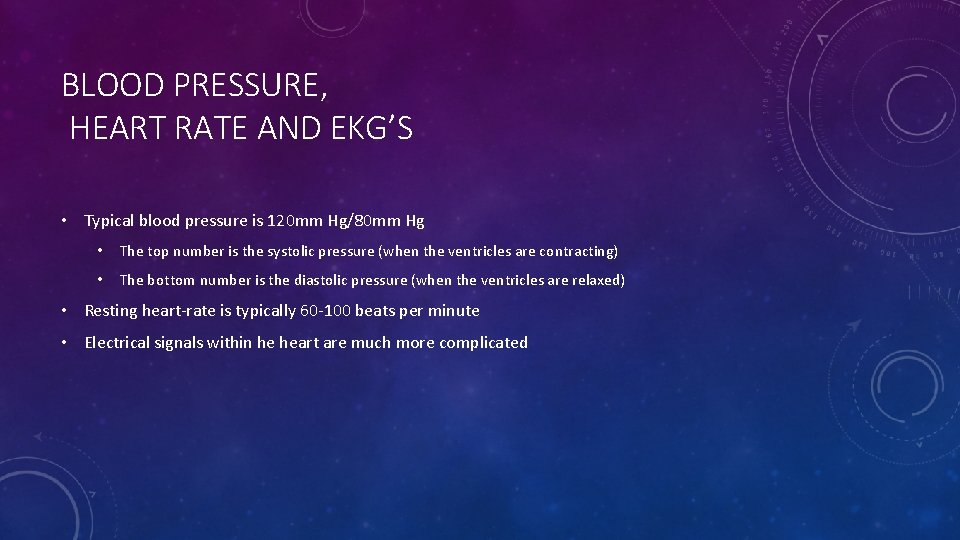

BLOOD PRESSURE, HEART RATE AND EKG’S • Typical blood pressure is 120 mm Hg/80 mm Hg • The top number is the systolic pressure (when the ventricles are contracting) • The bottom number is the diastolic pressure (when the ventricles are relaxed) • Resting heart-rate is typically 60 -100 beats per minute • Electrical signals within he heart are much more complicated

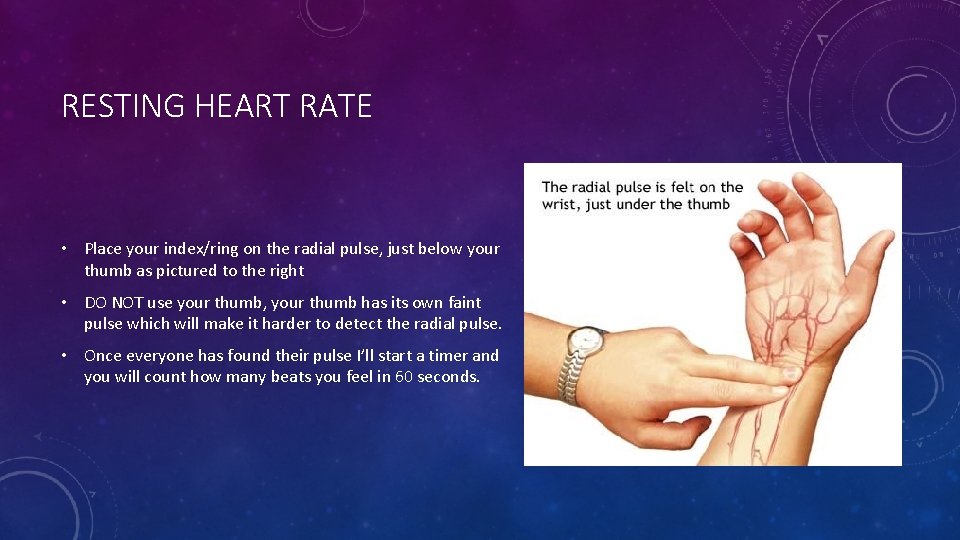

RESTING HEART RATE • Place your index/ring on the radial pulse, just below your thumb as pictured to the right • DO NOT use your thumb, your thumb has its own faint pulse which will make it harder to detect the radial pulse. • Once everyone has found their pulse I’ll start a timer and you will count how many beats you feel in 60 seconds.

CLASS DATA Heart rate 40 -50 (beats/60 seconds) Number of students 50 -60 60 -70 70 -80 80 -90 90 -100 100 -110 110+

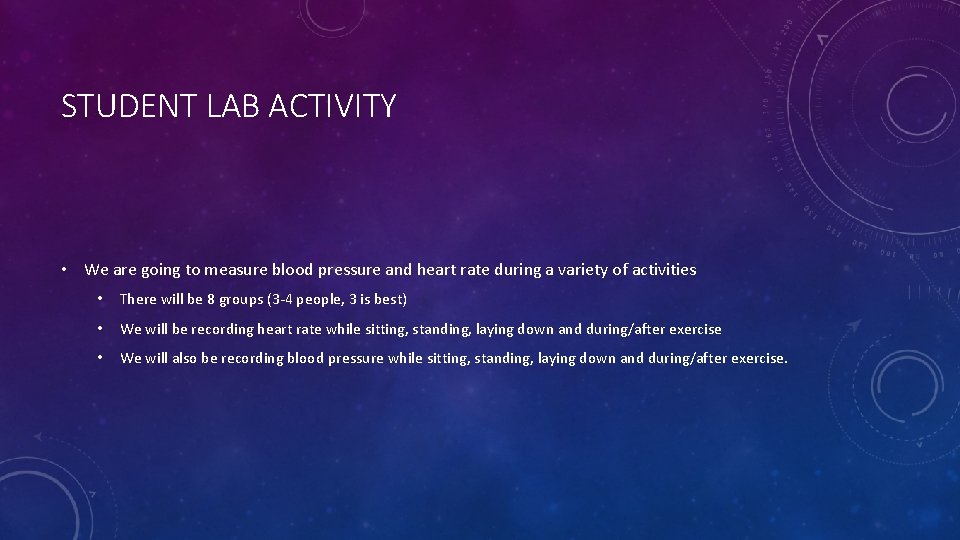

STUDENT LAB ACTIVITY • We are going to measure blood pressure and heart rate during a variety of activities • There will be 8 groups (3 -4 people, 3 is best) • We will be recording heart rate while sitting, standing, laying down and during/after exercise • We will also be recording blood pressure while sitting, standing, laying down and during/after exercise.

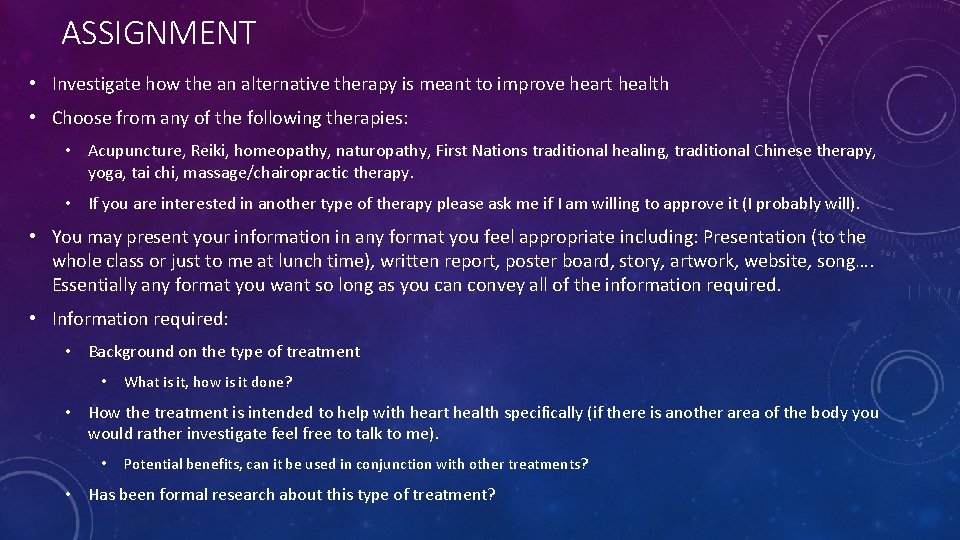

ASSIGNMENT • Investigate how the an alternative therapy is meant to improve heart health • Choose from any of the following therapies: • Acupuncture, Reiki, homeopathy, naturopathy, First Nations traditional healing, traditional Chinese therapy, yoga, tai chi, massage/chairopractic therapy. • If you are interested in another type of therapy please ask me if I am willing to approve it (I probably will). • You may present your information in any format you feel appropriate including: Presentation (to the whole class or just to me at lunch time), written report, poster board, story, artwork, website, song…. Essentially any format you want so long as you can convey all of the information required. • Information required: • Background on the type of treatment • What is it, how is it done? • How the treatment is intended to help with heart health specifically (if there is another area of the body you would rather investigate feel free to talk to me). • Potential benefits, can it be used in conjunction with other treatments? • Has been formal research about this type of treatment?
