CARDIOVASCULAR MAJOR ARTERIES Neck Head Brain Aorta Brachiocephalic

CARDIOVASCULAR: MAJOR ARTERIES

Neck, Head & Brain

Aorta

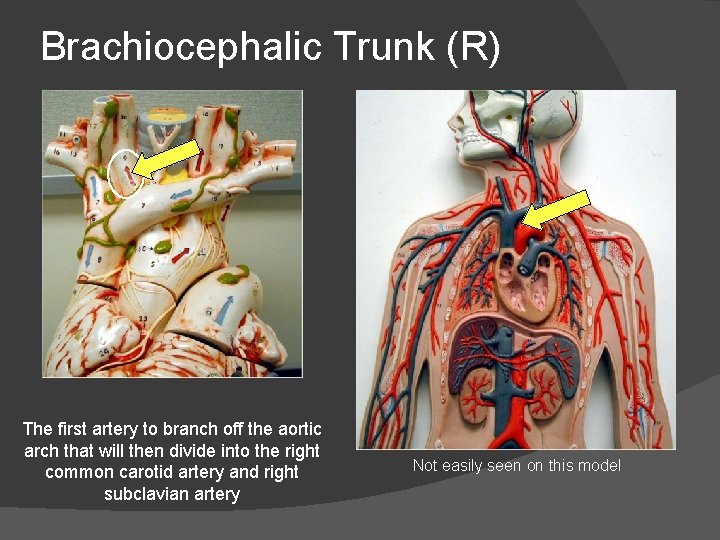

Brachiocephalic Trunk (R) The first artery to branch off the aortic arch that will then divide into the right common carotid artery and right subclavian artery Not easily seen on this model

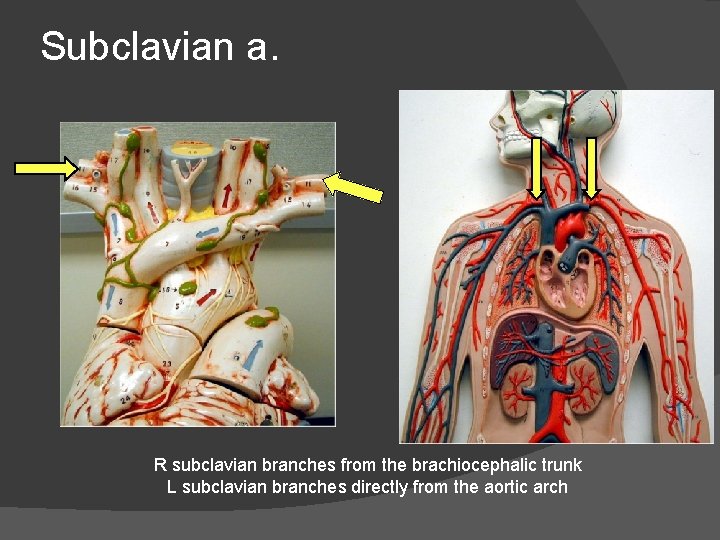

Subclavian a. R subclavian branches from the brachiocephalic trunk L subclavian branches directly from the aortic arch

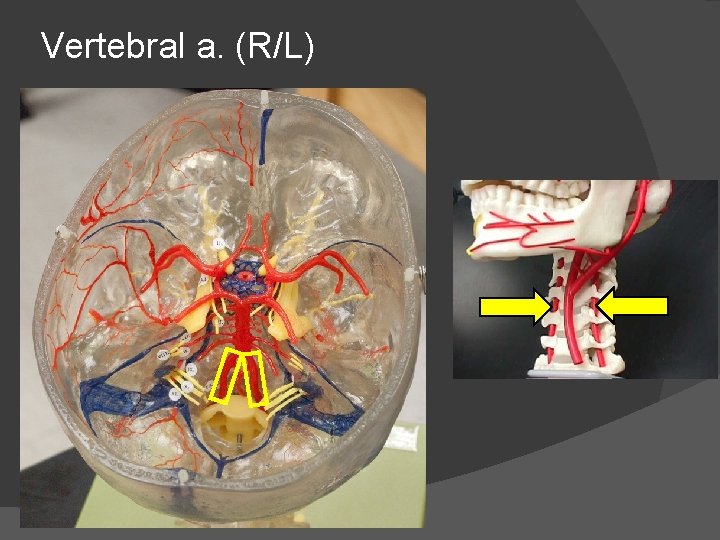

Vertebral a. (R/L)

Basilar a.

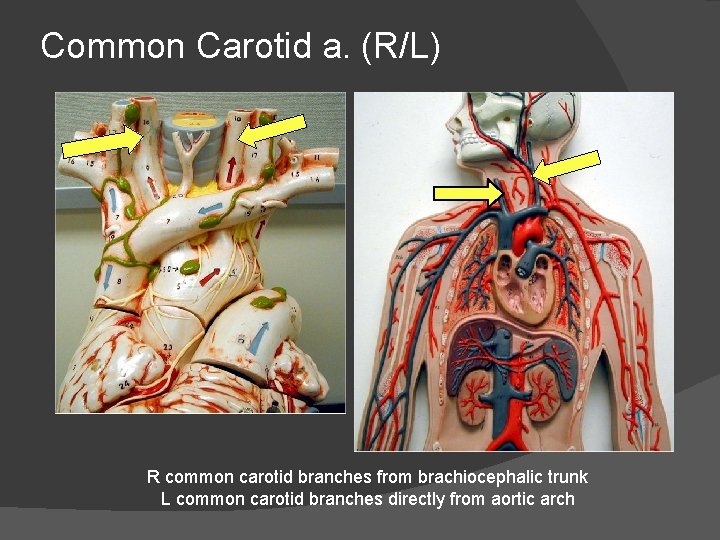

Common Carotid a. (R/L) R common carotid branches from brachiocephalic trunk L common carotid branches directly from aortic arch

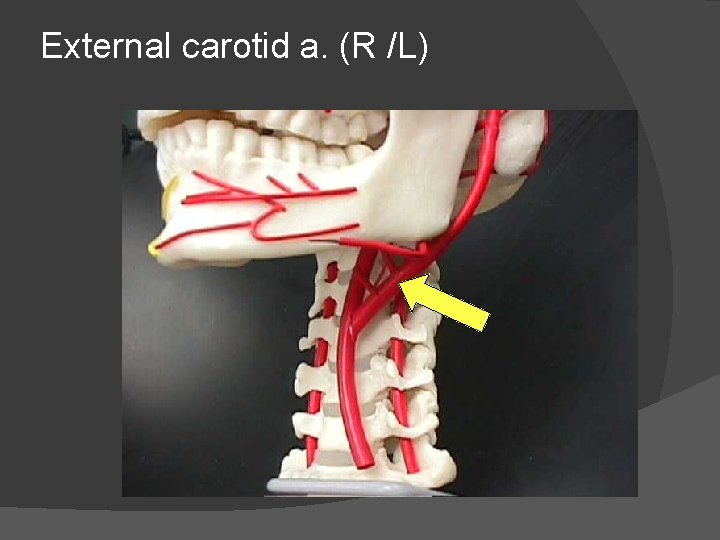

External carotid a. (R /L)

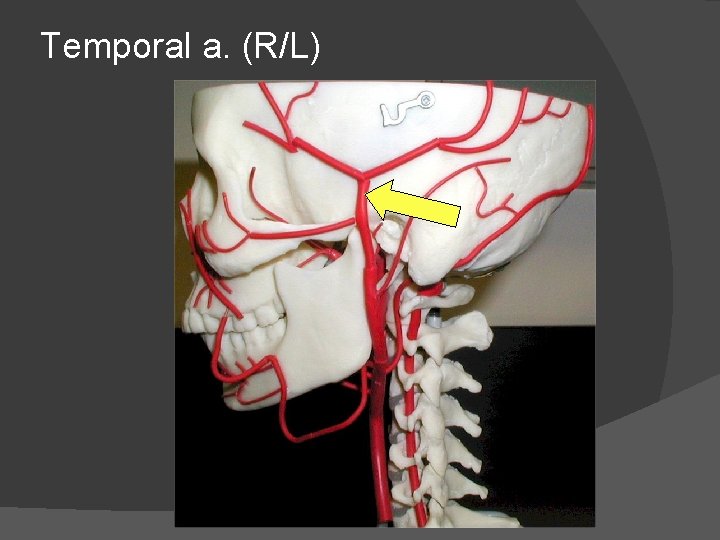

Temporal a. (R/L)

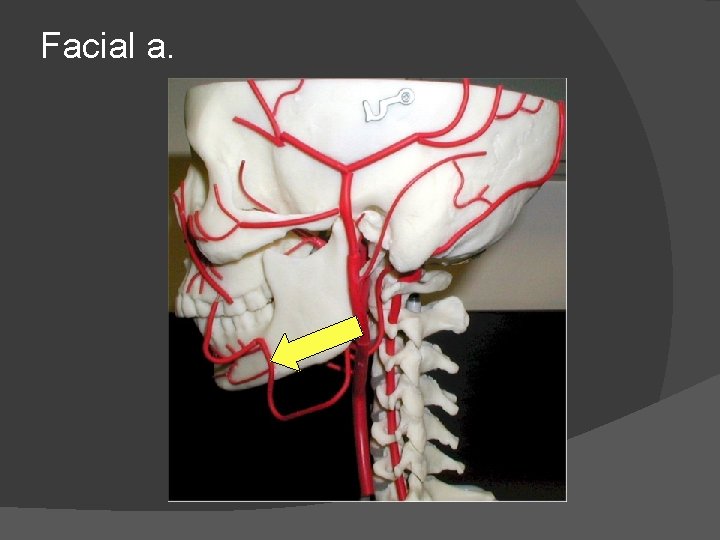

Facial a.

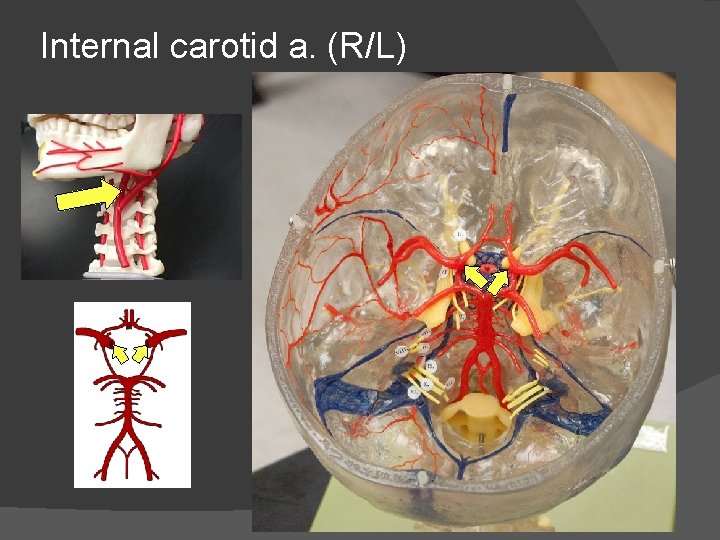

Internal carotid a. (R/L)

Anterior cerebral a (R/L)

Middle cerebral a.

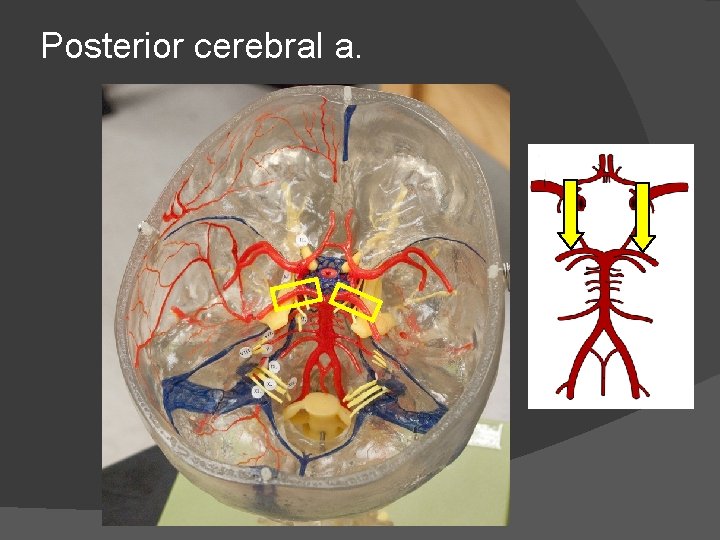

Posterior cerebral a.

Shoulder & Upper Limb

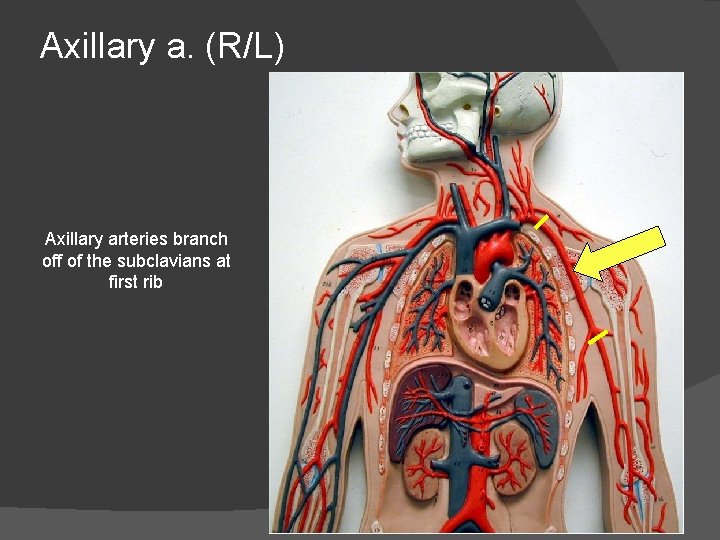

Axillary a. (R/L) Axillary arteries branch off of the subclavians at first rib

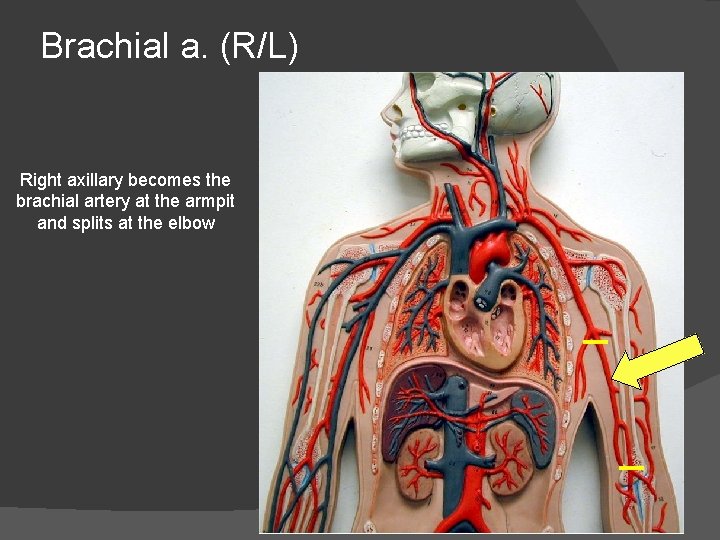

Brachial a. (R/L) Right axillary becomes the brachial artery at the armpit and splits at the elbow

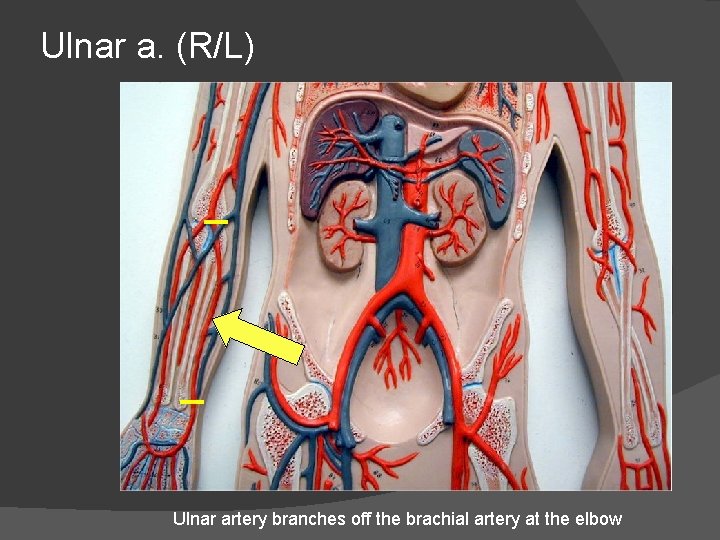

Ulnar a. (R/L) Ulnar artery branches off the brachial artery at the elbow

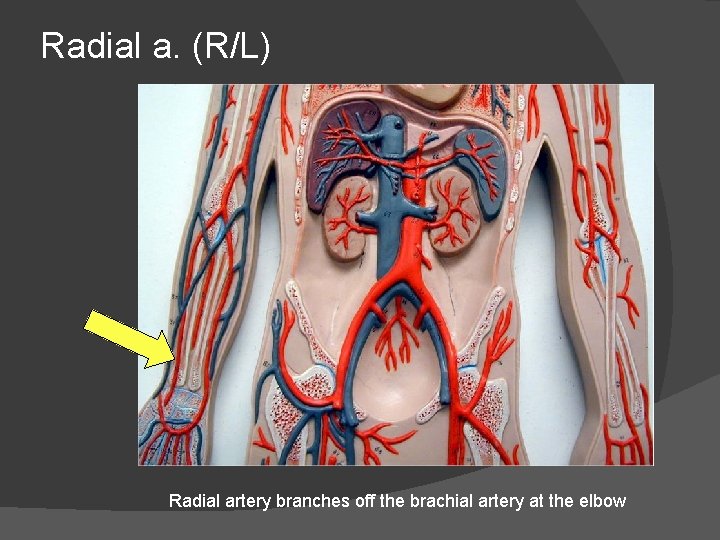

Radial a. (R/L) Radial artery branches off the brachial artery at the elbow

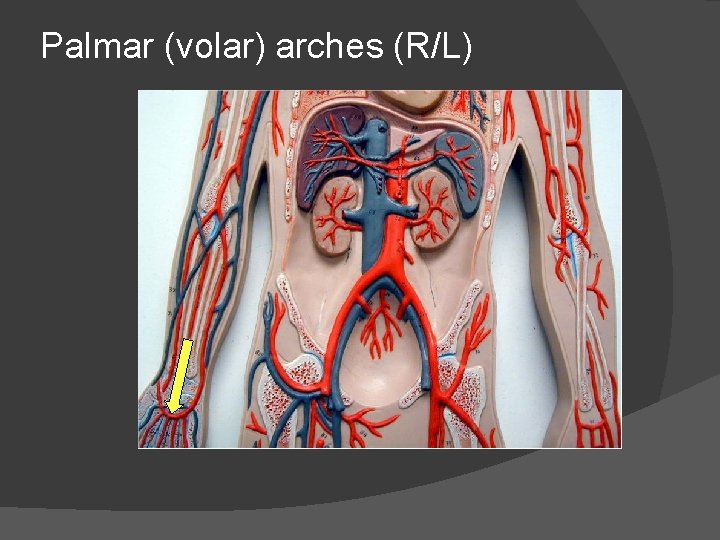

Palmar (volar) arches (R/L)

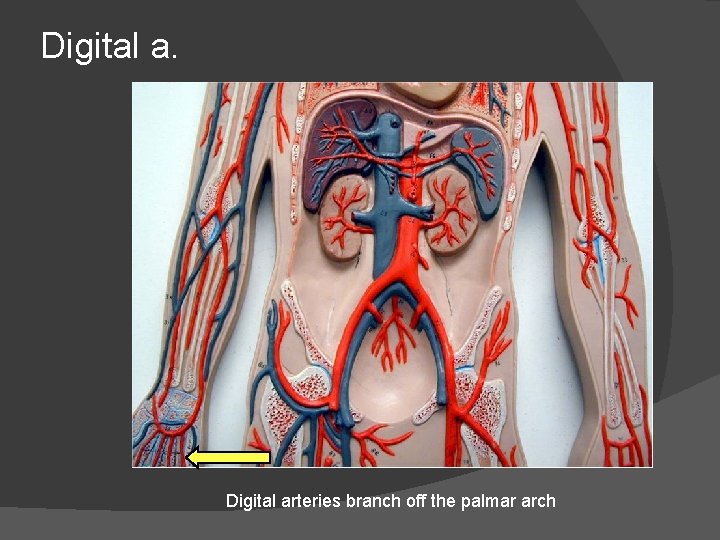

Digital a. Digital arteries branch off the palmar arch

Thoracic and Abdominal Walls

Intercostal a.

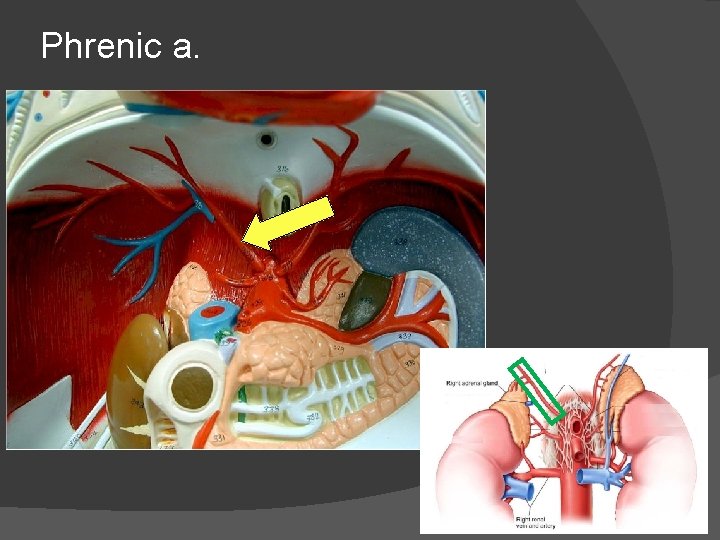

Phrenic a.

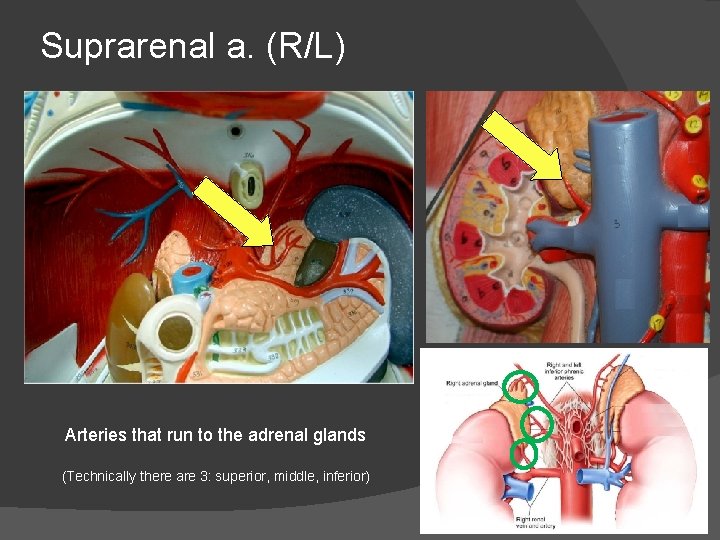

Suprarenal a. (R/L) Arteries that run to the adrenal glands (Technically there are 3: superior, middle, inferior)

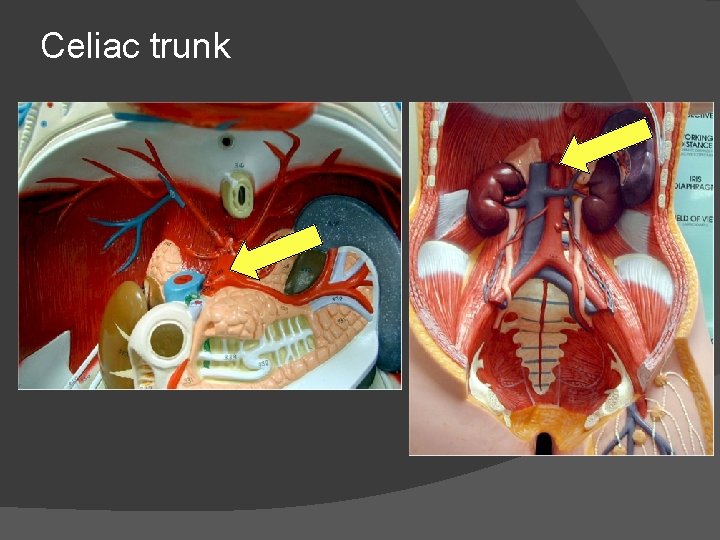

Celiac trunk

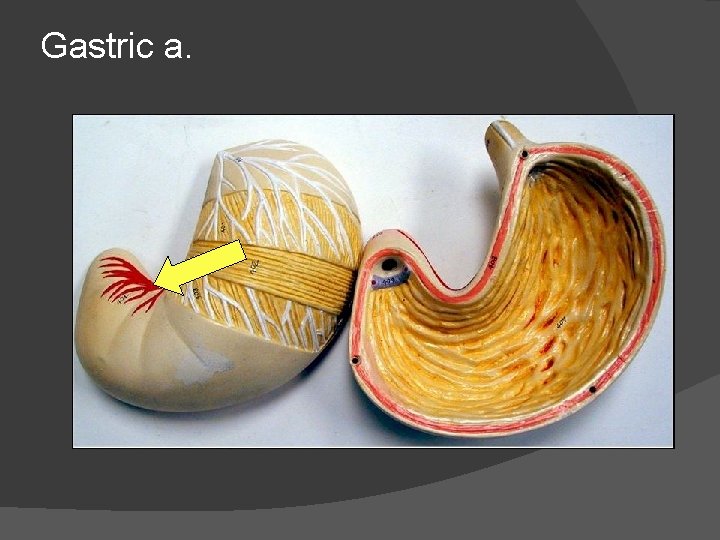

Gastric a.

Splenic a.

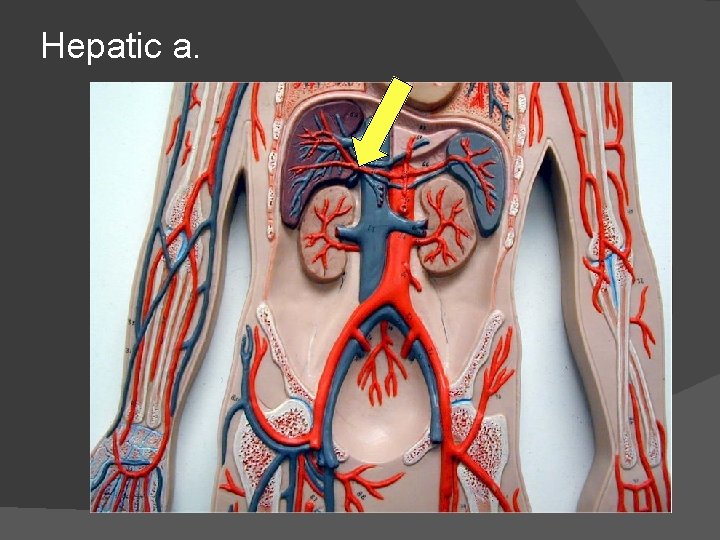

Hepatic a.

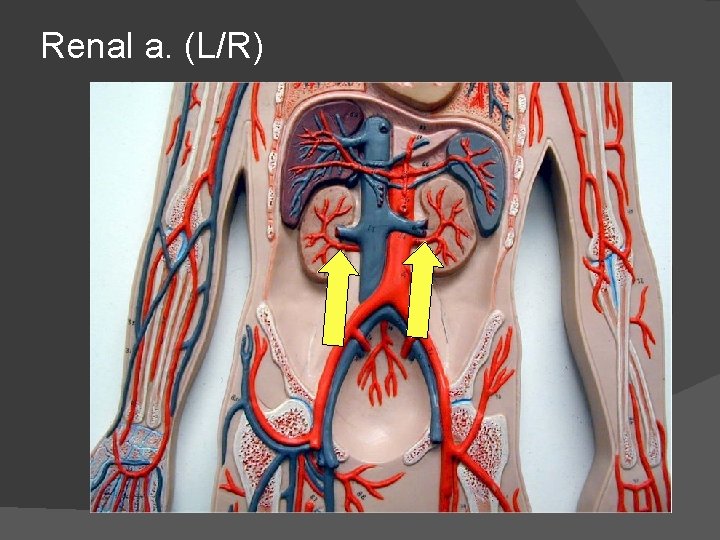

Renal a. (L/R)

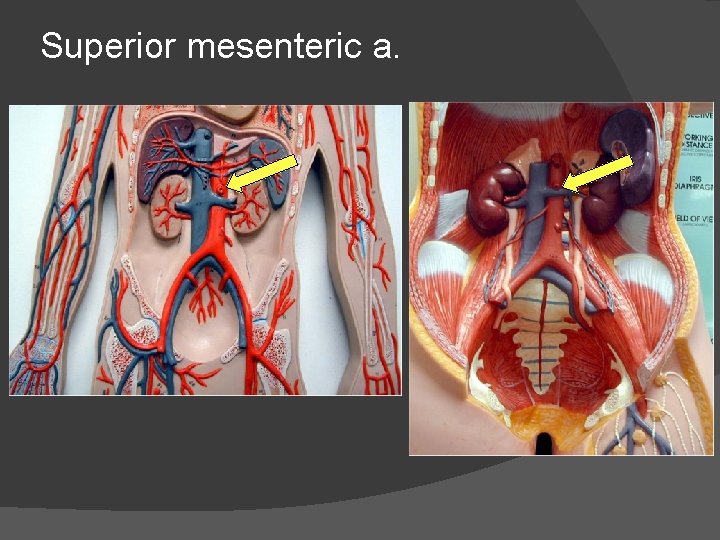

Superior mesenteric a.

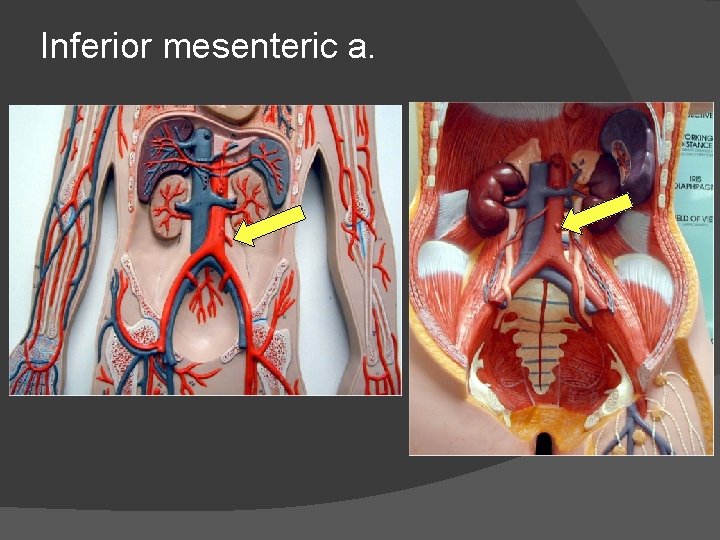

Inferior mesenteric a.

Pelvis & Lower Limb

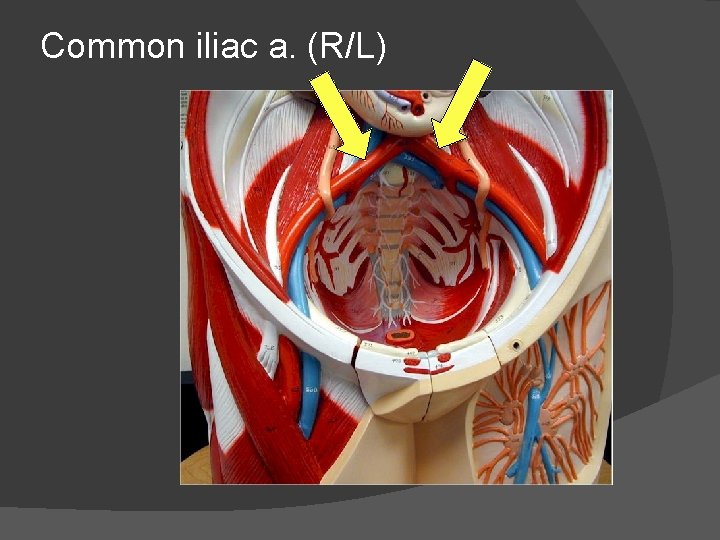

Common iliac a. (R/L)

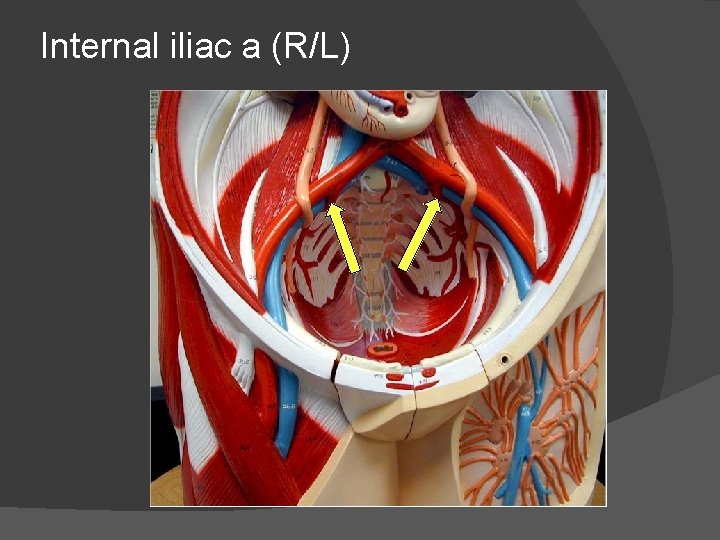

Internal iliac a (R/L)

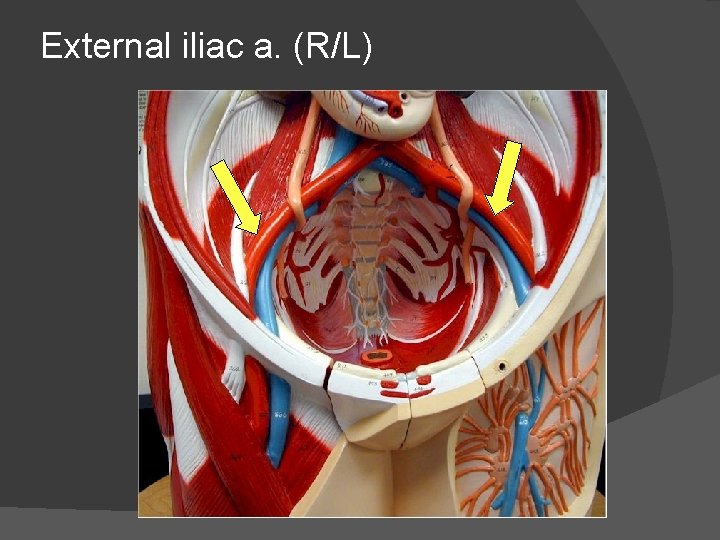

External iliac a. (R/L)

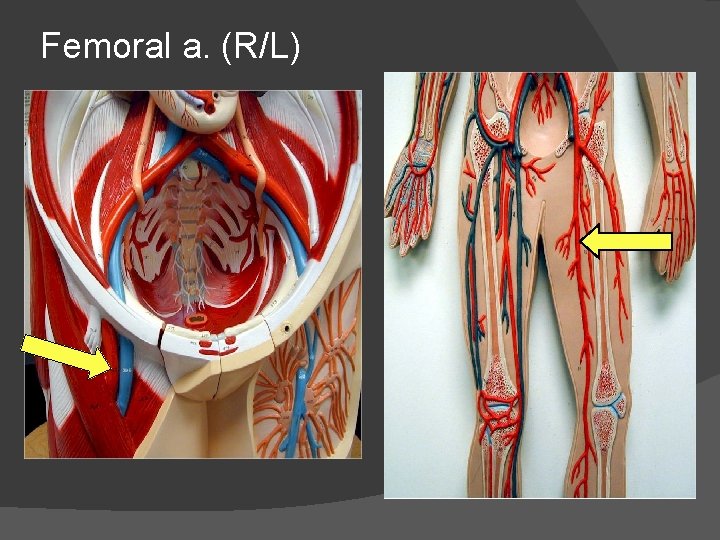

Femoral a. (R/L)

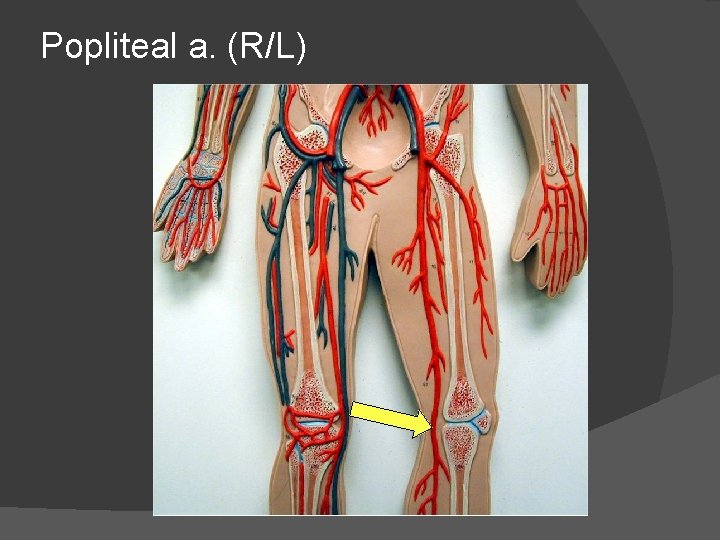

Popliteal a. (R/L)

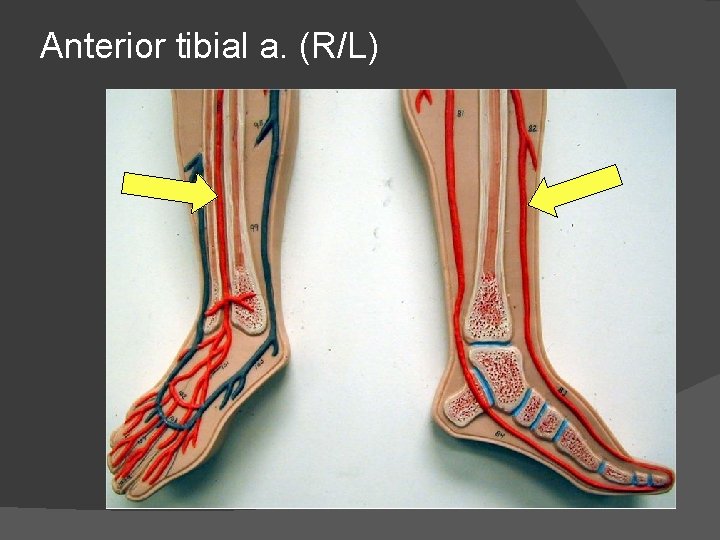

Anterior tibial a. (R/L)

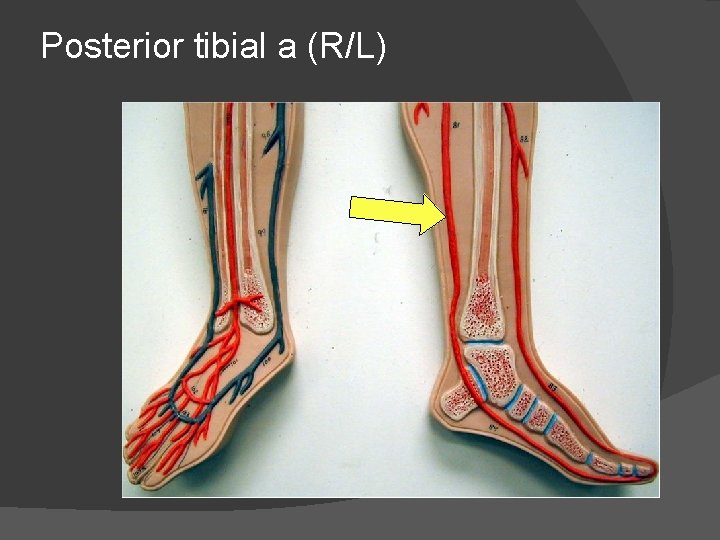

Posterior tibial a (R/L)

Dorsalis pedis a (R/L)
