Cardiopulmonary Exercise Testing MITCHELL HOROWITZ Outline Description of
- Slides: 43
Cardiopulmonary Exercise Testing MITCHELL HOROWITZ

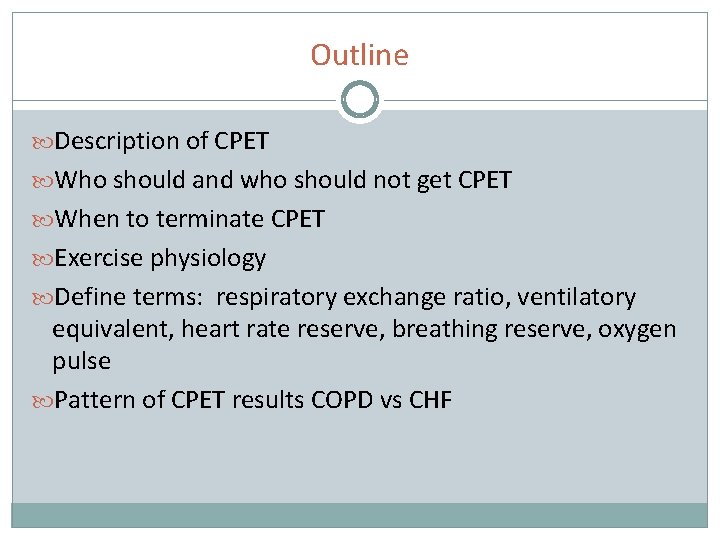

Outline Description of CPET Who should and who should not get CPET When to terminate CPET Exercise physiology Define terms: respiratory exchange ratio, ventilatory equivalent, heart rate reserve, breathing reserve, oxygen pulse Pattern of CPET results COPD vs CHF

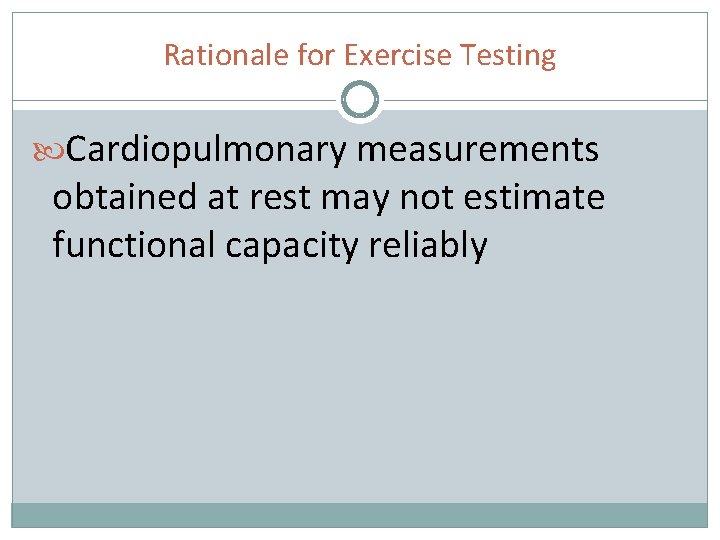

Rationale for Exercise Testing Cardiopulmonary measurements obtained at rest may not estimate functional capacity reliably
Clinical Exercise Tests 6 -min walk test Ø Submaximal Shuttle walk test Ø Incremental, maximal, symptom-limited Exercise bronchoprovocation Exertional oximetry Cardiac stress test CPET
Karlman Wasserman
Coupling of External Ventilation and Cellular Metabolism
Adaptations of Wasserman’s Gears
General Mechanisms of Exercise Limitation Pulmonary Ventilatory Respiratory muscle dysfunction Impaired gas exchange Cardiovascular Reduced stroke volume Abnormal HR response Circulatory abnormality Blood abnormality Peripheral Inactivity Atrophy Neuromuscular dysfunction Reduced oxidative capacity of skeletal muscle Malnutrition Perceptual Motivational Environmental

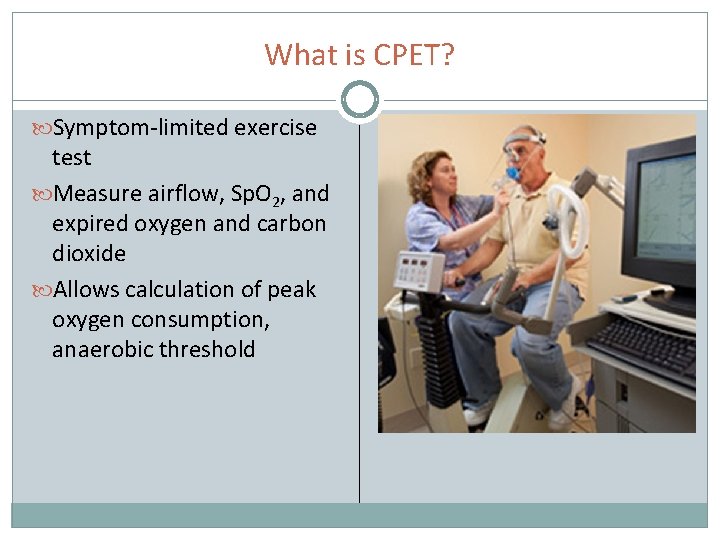

What is CPET? Symptom-limited exercise test Measure airflow, Sp. O 2, and expired oxygen and carbon dioxide Allows calculation of peak oxygen consumption, anaerobic threshold
Components of Integrated CPET Symptom-limited ECG Ø HR Measure expired gas Ø Ø Ø Oxygen consumption CO 2 production Minute ventilation Sp. O 2 or PO 2 Perceptual responses Ø Ø Breathlessness Leg discomfort
Modified Borg CR-10 Scale
Indications for CPET Evaluation of dyspnea Ø Ø Ø Distinguish cardiac vs pulmonary vs peripheral limitation vs other Detection of exercise-induced bronchoconstriction Detection of exertional desaturation Pulmonary rehabilitation Ø Ø Exercise intensity/prescription Response to participation Pre-op evaluation and risk stratification Prognostication of life expectancy Disability determination Fitness evaluation Diagnosis Assess response to therapy
Mortality in CF Patients Nixon et al; NEJM 327: 1785; 1992. Followed 109 patients with CF for 8 yrs from CPET Ø Ø Ø Peak VO 2 >81% predicted: 83% survival Peak VO 2 59 -81% predicted: 51% survival Peak VO 2 <59% predicted: 28% survival

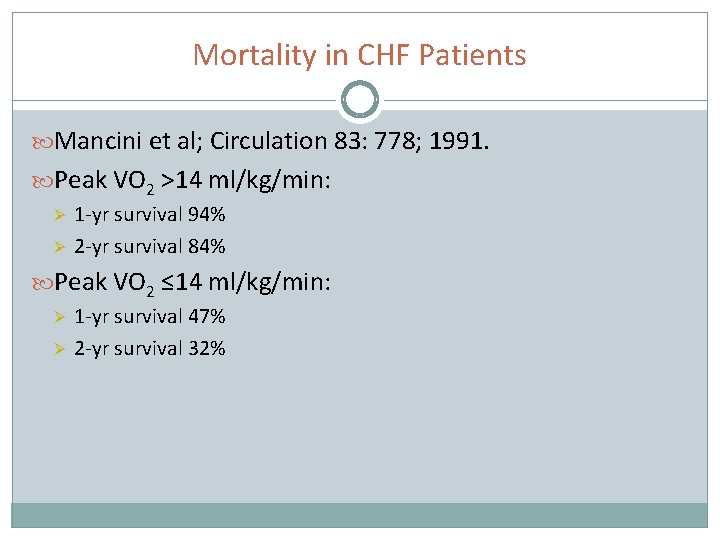

Mortality in CHF Patients Mancini et al; Circulation 83: 778; 1991. Peak VO 2 >14 ml/kg/min: Ø Ø 1 -yr survival 94% 2 -yr survival 84% Peak VO 2 ≤ 14 ml/kg/min: Ø Ø 1 -yr survival 47% 2 -yr survival 32%

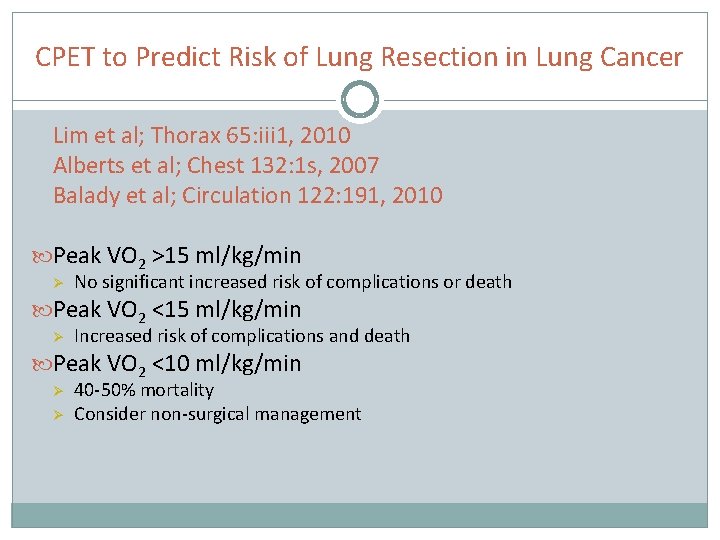

CPET to Predict Risk of Lung Resection in Lung Cancer Lim et al; Thorax 65: iii 1, 2010 Alberts et al; Chest 132: 1 s, 2007 Balady et al; Circulation 122: 191, 2010 Peak VO 2 >15 ml/kg/min Ø No significant increased risk of complications or death Peak VO 2 <15 ml/kg/min Ø Increased risk of complications and death Peak VO 2 <10 ml/kg/min Ø Ø 40 -50% mortality Consider non-surgical management
Absolute Contraindications to CPET Acute MI Unstable angina Unstable arrhythmia Acute endocarditis, myocarditis, pericarditis Syncope Severe, symptomatic AS Uncontrolled CHF Acute PE, DVT Respiratory failure Uncontrolled asthma Sp. O 2 <88% on RA Acute significant non-cardiopulmonary disorder that may affect or be adversely affected by exercise Significant psychiatric/cognitive impairment limiting cooperation
Relative Contraindications to CPET Left main or 3 -V CAD Severe arterial HTN (>200/120) Significant pulmonary HTN Tachyarrhythmia, bradyarrhythmia High degree AV block Hypertrophic cardiomyopathy Electrolyte abnormality Moderate stenotic valvular heart disease Advanced or complicated pregnancy Orthopedic impairment
Indications for Early Exercise Termination Patient request Ischemic ECG changes 2 mm ST depression Chest pain suggestive of ischemia Significant ectopy 2 nd or 3 rd degree heart block Bpsys >240 -250, Bpdias >110 -120 Fall in BPsys >20 mm. Hg Sp. O 2 <81 -85% Dizziness, faintness Onset confusion Onset pallor
CPET Measurements Work R VO 2 Sp. O 2 VCO 2 ABG AT Lactate HR CP ECG Dyspnea BP Leg fatigue
Exercise Modality Advantages of cycle ergometer Ø Ø Cheaper Safer § Less danger of fall/injury § Can stop anytime Direct power calculation § Independent of weight § Holding bars has no effect Little training needed Easier BP recording, blood draw Requires less space Less noise Ø Ø Attain higher VO 2 More functional Ø Ø Ø Advantages of treadmill
Incremental vs Ramp Exercise Test Protocol INCREMENTAL RAMP WORK TIME
Physiology and Chemistry Slow vs fast twitch fibers Buffering of lactic acid by bicarbonate CO 2 production from carbonic acid Respiratory exchange ratio Ventilatory equivalent of oxygen Ventilatory equivalent of carbon dioxide Graphical determination of AT Fick Equation Oxygen pulse
Properties of Skeletal Muscle Fibers Red = Slow twitch = Type I Sustained activity High mitochondrial density Metabolize glucose aerobically White = Fast twitch = Type II Rapid burst exercise Few mitochondria Metabolize glucose anaerobically 1 glucose yields 36 ATP Rapid recovery 1 glucose yields 2 ATP and 2 lactic acid Slow recovery
Lactic Acid is Buffered by Bicarbonate Lactic acid + HCO 3 → H 2 CO 3 + Lactate ↓ H 2 O + CO 2
Respiratory Exchange Ratio RER= CO 2 produced / O 2 consumed = VCO 2 / VO 2
Ventilatory Equivalents Ventilatory equivalent for carbon dioxide = Minute ventilation / VCO 2 Ø Efficiency of ventilation Ø Liters of ventilation to eliminate 1 L of CO 2 Ventilatory equivalent for oxygen = Minute ventilation / VO 2 Ø Liters of ventilation per L of oxygen uptake

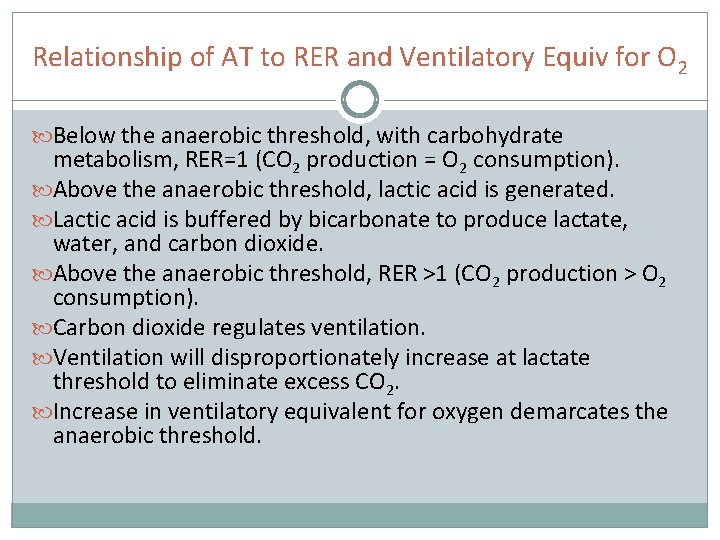

Relationship of AT to RER and Ventilatory Equiv for O 2 Below the anaerobic threshold, with carbohydrate metabolism, RER=1 (CO 2 production = O 2 consumption). Above the anaerobic threshold, lactic acid is generated. Lactic acid is buffered by bicarbonate to produce lactate, water, and carbon dioxide. Above the anaerobic threshold, RER >1 (CO 2 production > O 2 consumption). Carbon dioxide regulates ventilation. Ventilation will disproportionately increase at lactate threshold to eliminate excess CO 2. Increase in ventilatory equivalent for oxygen demarcates the anaerobic threshold.
Lactate Threshold
Determination of AT from RER Plot (V Slope Method)
Determination of AT from Ventilatory Equivalent Plot
Wasserman 9 -Panel Plot
Oxygen Consumption: Fick Equation: Arterial oxygen content = (1. 34)(Sa. O 2)(Hgb) Q = VO 2 / C(a-v)O 2 Venous oxygen content = (1. 34)(Sv. O )(Hgb) VO 2 = Q x C(a-v)O 2 VO 2 = SV x HR x C(a-v)O 2 2 Heart disease Lung disease Muscle disease Deconditioning Anemia Lung disease (low Sa. O 2)
Oxygen Pulse Oxygen Pulse: “. . . the amount of oxygen consumed by the body from the blood of one systolic discharge of the heart. ” Henderson and Prince Am J Physiol 35: 106, 1914 Oxygen Pulse = VO 2 / HR Fick Equation: VO 2 = SV x HR x C(a-v)O 2 VO 2/HR = SV x C(a-v)O 2 Oxygen Pulse ~ SV
Interpretation of CPET Peak oxygen consumption Peak HR Peak work Peak ventilation Anaerobic threshold Heart rate reserve Breathing reserve

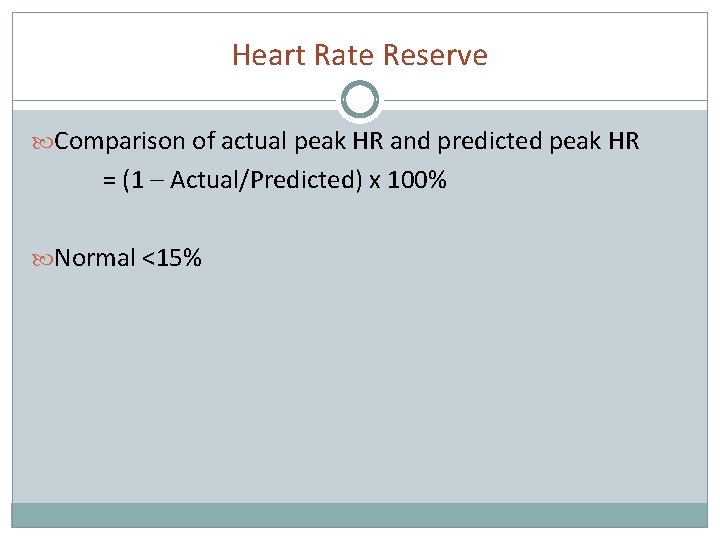

Heart Rate Reserve Comparison of actual peak HR and predicted peak HR = (1 – Actual/Predicted) x 100% Normal <15%
Estimation of Predicted Peak HR 220 – age Ø Ø For age 40: 220 - 40 = 180 For age 70: 220 - 70 = 150 210 – (age x 0. 65) Ø Ø For age 40: 210 - (40 x 0. 65) = 184 For age 70: 210 - (70 x 0. 65) = 164
Breathing Reserve Comparison of actual peak ventilation and predicted peak ventilation Ø Predicted peak ventilation = MVV, or FEV 1 x 35 = (1 – Actual/Predicted) x 100% Normal >30%
Comparison CPET results Predicted Peak HR MVV Peak VO 2 AT Peak VE Breathing Reserve HR Reserve Borg Breathlessness Borg Leg Discomfort Normal 150 100 2. 0 1. 0 60 40% 0% 5 8 CHF 150 140 100 1. 2 0. 6 40 60% 7% 4 8 COPD 150 120 50 1. 2 1. 0 49 2% 20% 8 5
Cardiac vs Pulmonary Limitation Heart Disease Ø Ø Breathing reserve >30% Heart rate reserve <15% Pulmonary Disease Ø Ø Breathing reserve <30% Heart rate reserve >15%
CPET Interpretation Peak VO 2 HRR Normal >80% Heart disease <80% Pulm vasc dis <80% Pulm mech dis <80% Deconditioning <80% <15% >15% BR AT/VO 2 max A-a >30% <30% >40% <40% >40% normal increased normal
SUMMARY Cardiopulmonary measurements obtained at rest may not estimate functional capacity reliably. CPET includes the measurement of expired oxygen and carbon dioxide. The Borg scale is a validated instrument for measurement of perceptual responses. CPET may assist in pre-op evaluation and risk stratification, prognostication of life expectancy, and disability determination.

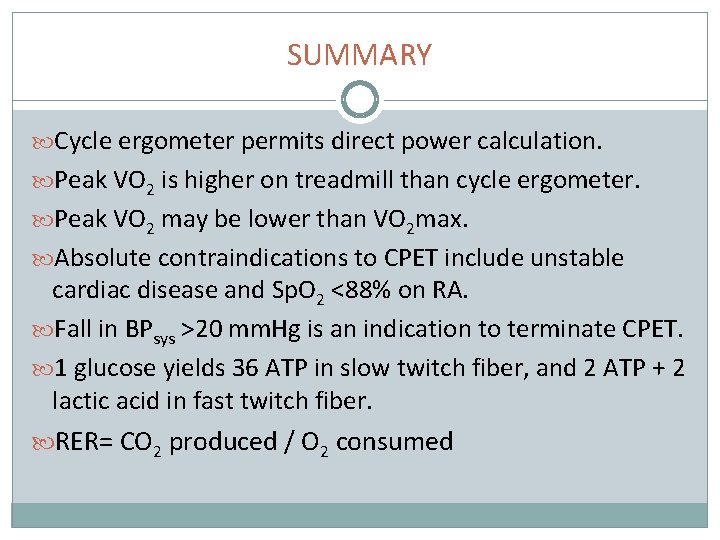

SUMMARY Cycle ergometer permits direct power calculation. Peak VO 2 is higher on treadmill than cycle ergometer. Peak VO 2 may be lower than VO 2 max. Absolute contraindications to CPET include unstable cardiac disease and Sp. O 2 <88% on RA. Fall in BPsys >20 mm. Hg is an indication to terminate CPET. 1 glucose yields 36 ATP in slow twitch fiber, and 2 ATP + 2 lactic acid in fast twitch fiber. RER= CO 2 produced / O 2 consumed
SUMMARY Above the anaerobic threshold, CO 2 production exceeds O 2 consumption. Ventilation will disproportionately increase at lactate threshold to eliminate excess CO 2. AT may be determined graphically from V slope method or from ventilatory equivalent for CO 2. Derived from the Fick equation, Oxygen Pulse = VO 2 / HR, and is proportional to stroke volume. In pure heart disease, BR is >30% and HRR <15%. In pure pulmonary disease, BR is <30% and HRR >15%.
