• Involves the introduction of hollow shaped plastic tubes into the chambers of the heart and surrounding vessels • Under x-ray control • Aim – to diagnose & treat heart disease
Procedures • Angiography – injection radio-opaque dye to establish blood flow, contractility and establish anatomical stenosis and abnormalities • Intra-cardiac pressure recordings – to establish pressure status within individual chambers/vessels • Oximetry – to establish level of oxygen saturation across chambers/vessels • Cardiac output measurements – to establish cardiac output and calculation of shunts and vascular resistances
Techniques - LHC • Sones – Brachial artery ‘cut-down’ – Bed rest not required • Judkins – Seldinger method – Vessel/nerve damage less likely – Femoral or radial
Technicians Role • What are the common duties carried out by the technician for diagnostic/intervention procedures within the catheter laboratory?
Catheter definitions • • • Catheter French size Lumen Length Guide wire Bolus Flow Radio-opaque Radio-translucent

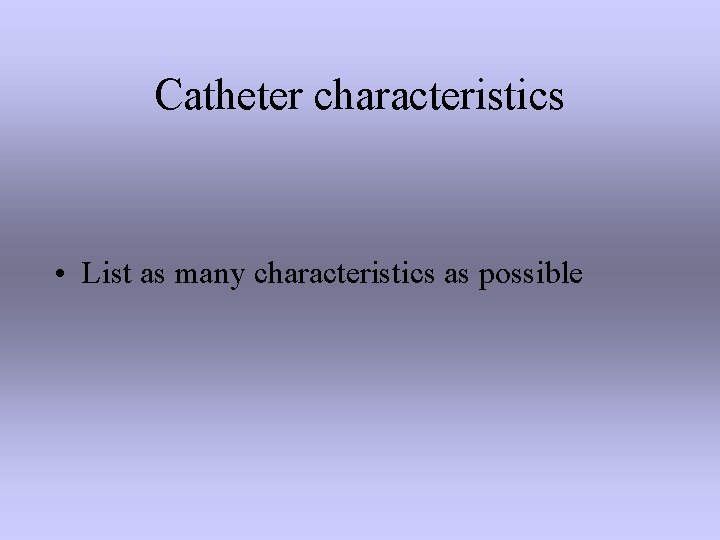

Catheter characteristics • List as many characteristics as possible
Instrumentation system • Catheter • Pressure line • Transducer • Pressure monitoring system
System criteria • Stability • Sensitivity • Adequate frequency response
Pressure line & transducer kit • • • Heparinised 0. 9% saline Maintain sterility fluid filled – air free Zero & calibration Prevents backflow of blood
Transducer • Mechanical to electrical • Strain gauge – wheatstone bridge technology • Strain defined as fractional change in length RESISTANCE LENGTH
Pressure Vent to air
Electrical circuit R 1 R 3 R 4 R 2 V Resistances are equal – no current flows R 1 & R 2 and R 3 & R 4 - current flows

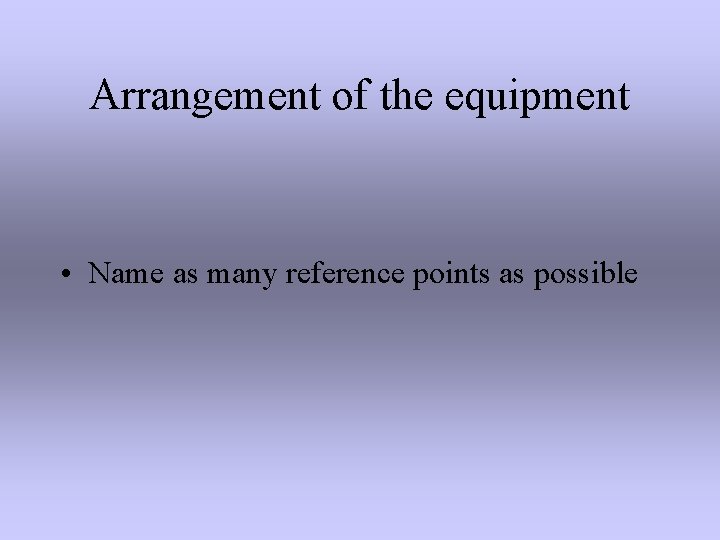

Arrangement of the equipment • Name as many reference points as possible
Pressure ranges • Left sided pressures what range? • Right sided pressures what range?
calibration • Ensure scale and linked sensitivity is correct calibration zero INCORRECT ADJUSTED
Damping • Reduction in amplitude & frequency of pressure waveform UNDERDAMPED OVERDAMPED CORRECT
Causes of Damping • List the reasons for damping during cardiac catheterisation • (1) • (2) • (3)
Overshoot & Sensitivity • Caused by compliance characteristics of the pressure system • Inclusion of ROSE will eliminate overshoot • ROSE ?
• ANY QUESTIONS?
