Carbon Atomic Bond Structure What is DLC Amorphous

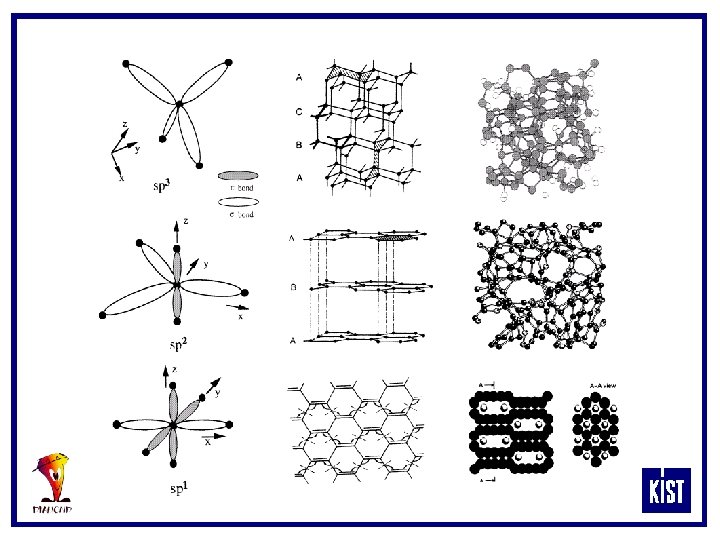

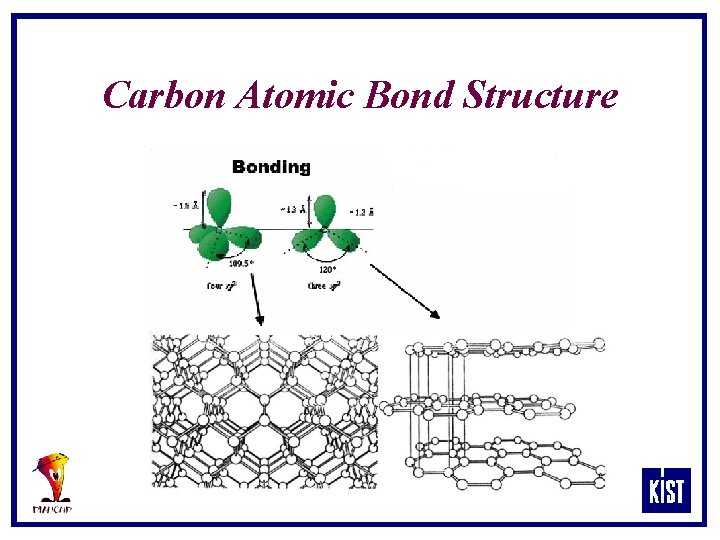

Carbon Atomic Bond Structure

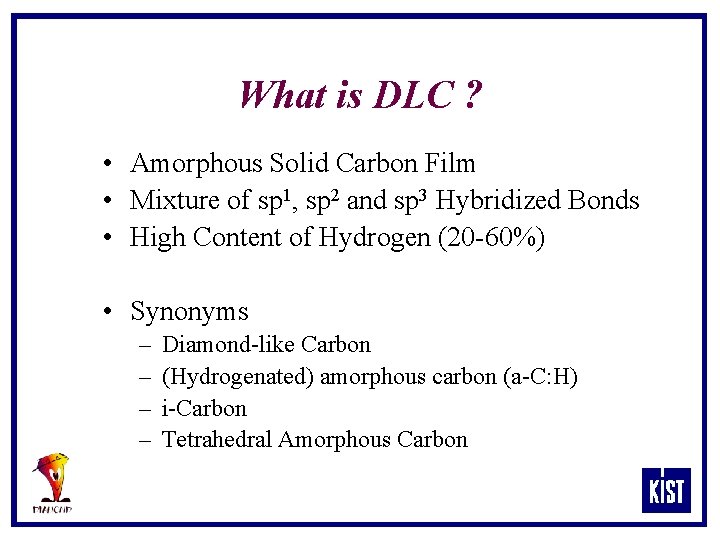

What is DLC ? • Amorphous Solid Carbon Film • Mixture of sp 1, sp 2 and sp 3 Hybridized Bonds • High Content of Hydrogen (20 -60%) • Synonyms – – Diamond-like Carbon (Hydrogenated) amorphous carbon (a-C: H) i-Carbon Tetrahedral Amorphous Carbon

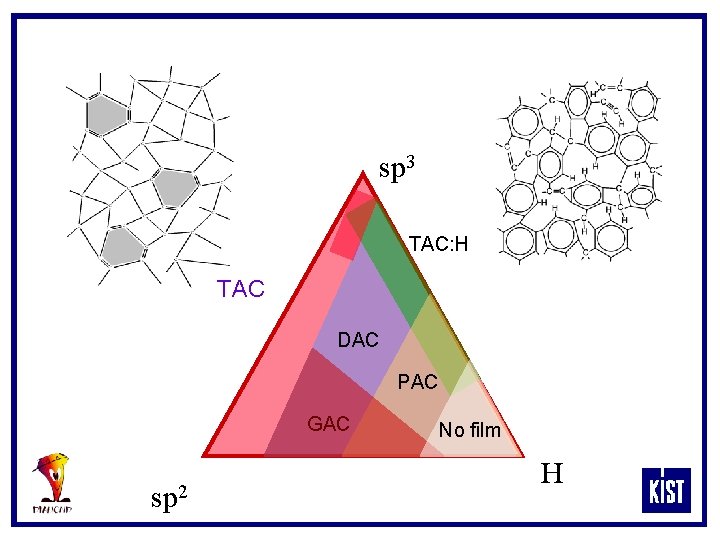

sp 3 TAC: H TAC DAC PAC GAC sp 2 No film H

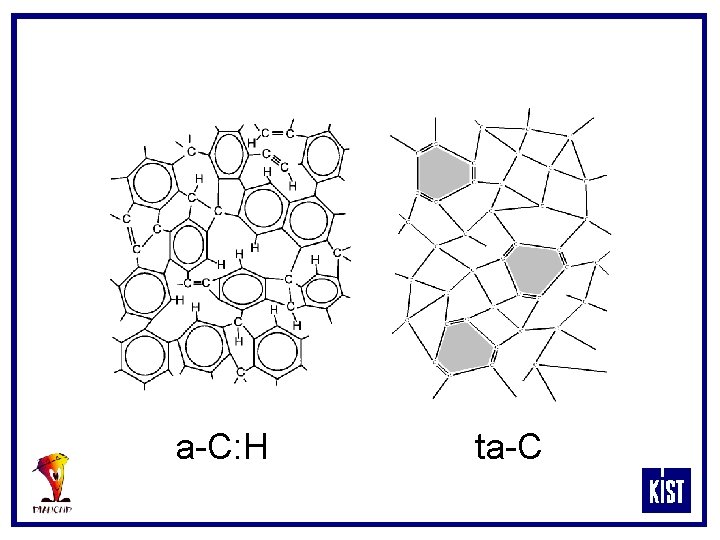

a-C: H ta-C

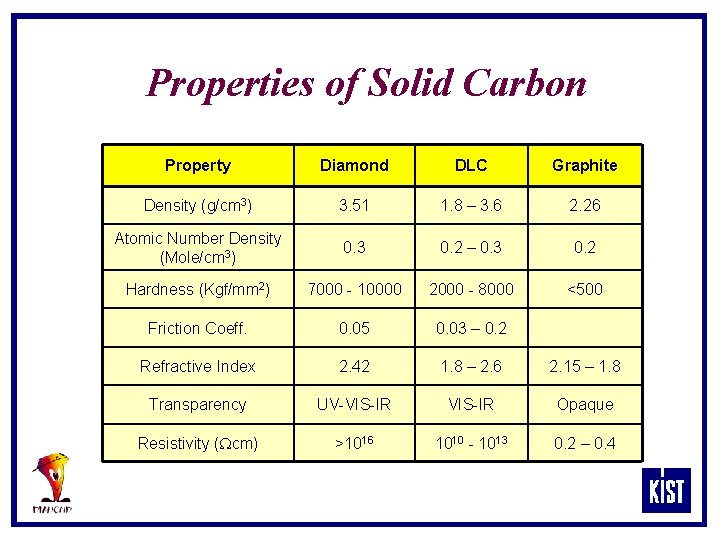

Properties of Solid Carbon Property Diamond DLC Graphite Density (g/cm 3) 3. 51 1. 8 – 3. 6 2. 26 Atomic Number Density (Mole/cm 3) 0. 3 0. 2 – 0. 3 0. 2 Hardness (Kgf/mm 2) 7000 - 10000 2000 - 8000 <500 Friction Coeff. 0. 05 0. 03 – 0. 2 Refractive Index 2. 42 1. 8 – 2. 6 2. 15 – 1. 8 Transparency UV-VIS-IR Opaque Resistivity (Wcm) >1016 1010 - 1013 0. 2 – 0. 4

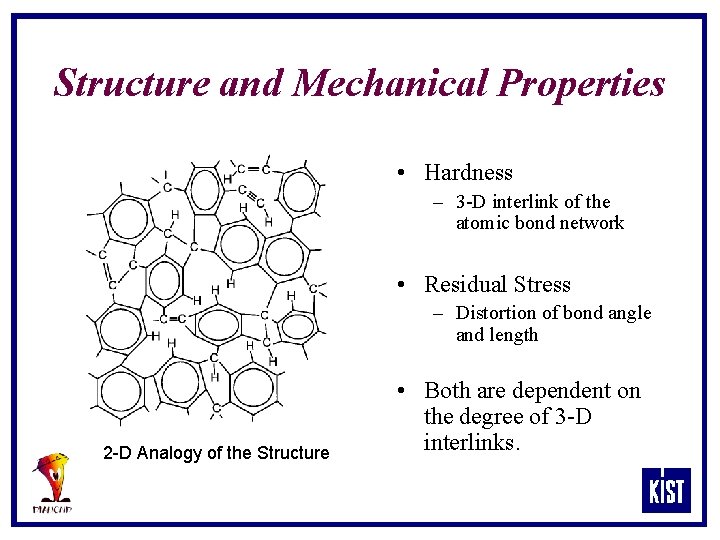

Structure and Mechanical Properties • Hardness – 3 -D interlink of the atomic bond network • Residual Stress – Distortion of bond angle and length 2 -D Analogy of the Structure • Both are dependent on the degree of 3 -D interlinks.

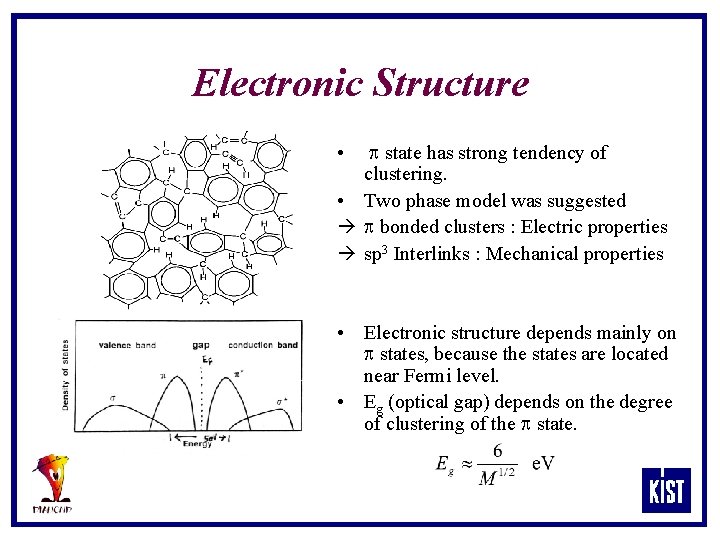

Electronic Structure p state has strong tendency of clustering. • Two phase model was suggested p bonded clusters : Electric properties sp 3 Interlinks : Mechanical properties • • Electronic structure depends mainly on p states, because the states are located near Fermi level. • Eg (optical gap) depends on the degree of clustering of the p state.

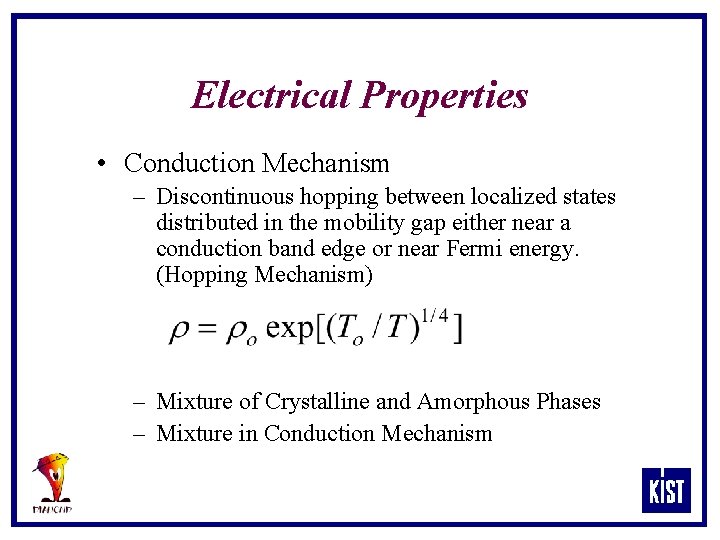

Electrical Properties • Conduction Mechanism – Discontinuous hopping between localized states distributed in the mobility gap either near a conduction band edge or near Fermi energy. (Hopping Mechanism) – Mixture of Crystalline and Amorphous Phases – Mixture in Conduction Mechanism

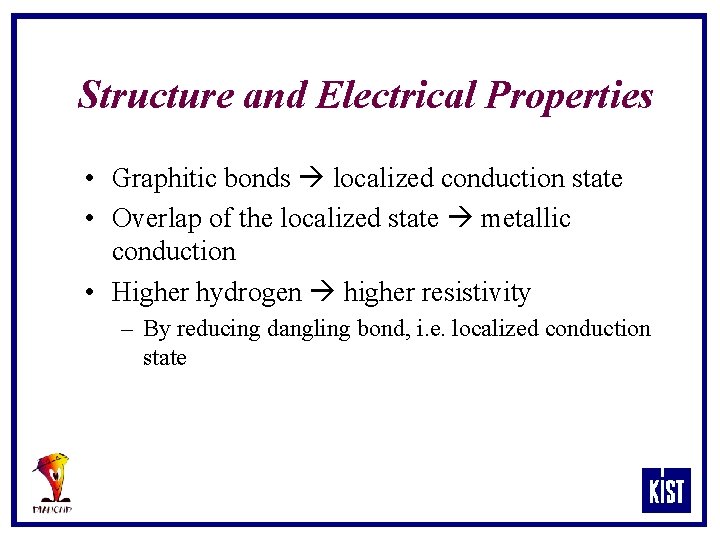

Structure and Electrical Properties • Graphitic bonds localized conduction state • Overlap of the localized state metallic conduction • Higher hydrogen higher resistivity – By reducing dangling bond, i. e. localized conduction state

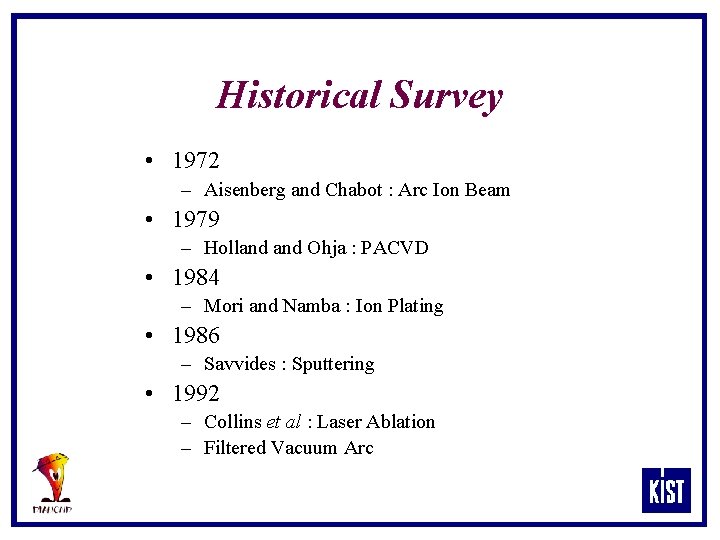

Historical Survey • 1972 – Aisenberg and Chabot : Arc Ion Beam • 1979 – Holland Ohja : PACVD • 1984 – Mori and Namba : Ion Plating • 1986 – Savvides : Sputtering • 1992 – Collins et al : Laser Ablation – Filtered Vacuum Arc

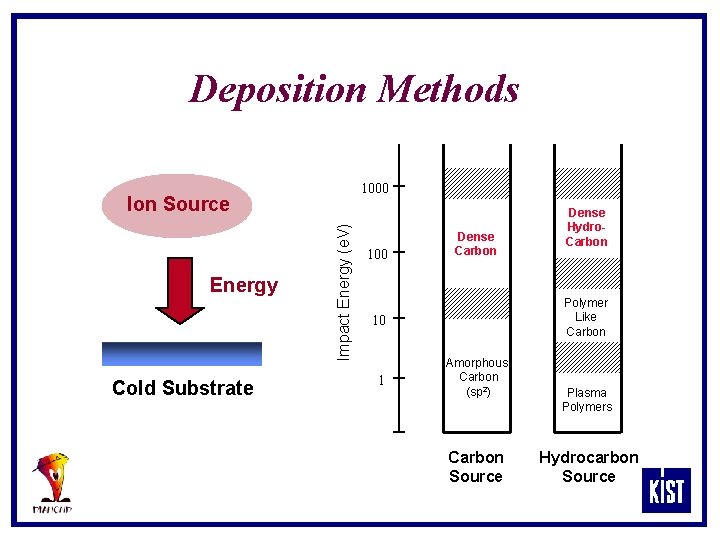

Deposition Methods 1000 Energy Cold Substrate Impact Energy (e. V) Ion Source 100 Dense Carbon Polymer Like Carbon 10 1 Dense Hydro. Carbon Amorphous Carbon (sp 2) Carbon Source Plasma Polymers Hydrocarbon Source

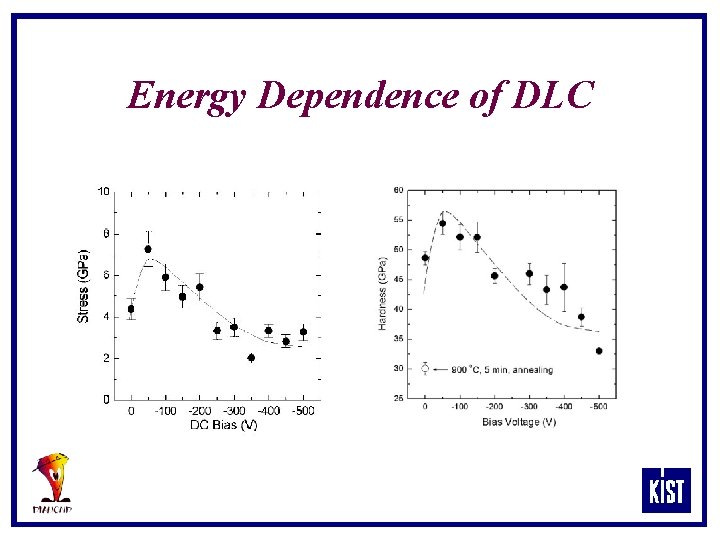

Energy Dependence of DLC

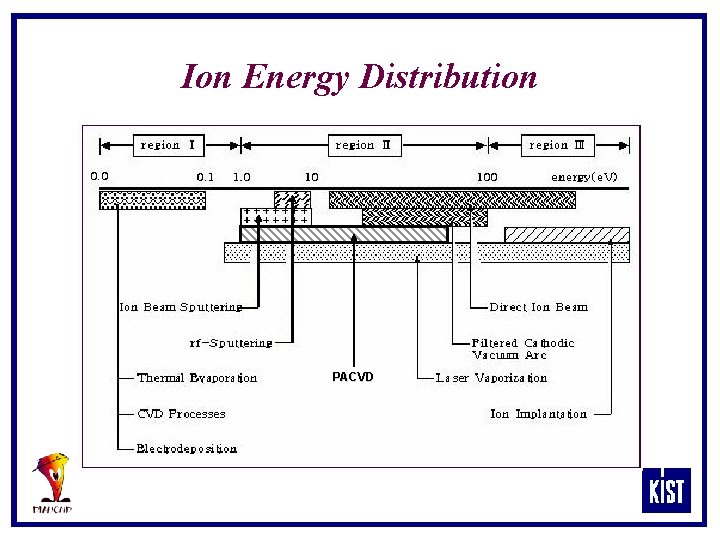

Ion Energy Distribution PACVD

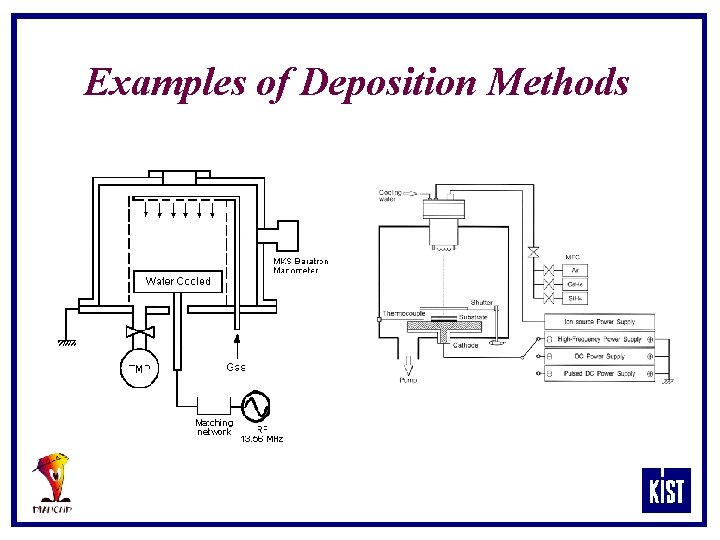

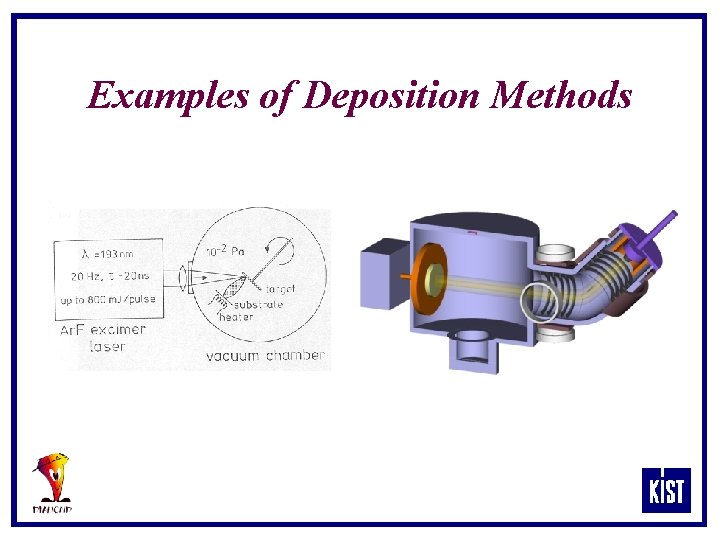

Examples of Deposition Methods

Examples of Deposition Methods

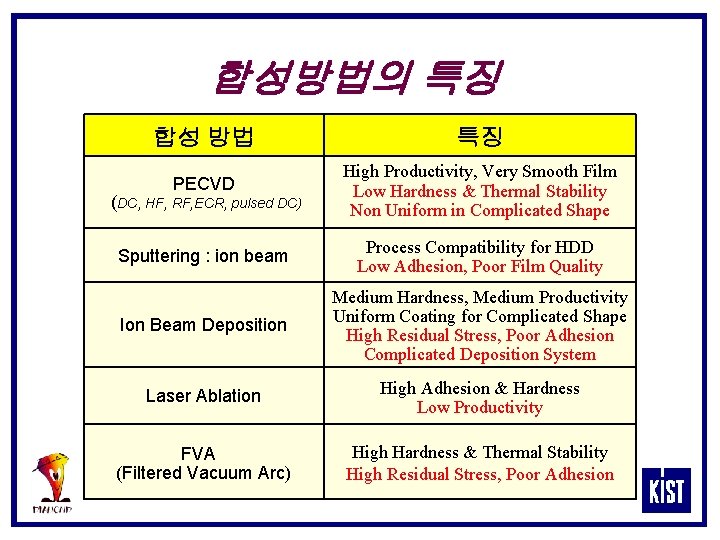

합성방법의 특징 합성 방법 특징 PECVD High Productivity, Very Smooth Film Low Hardness & Thermal Stability Non Uniform in Complicated Shape Sputtering : ion beam Process Compatibility for HDD Low Adhesion, Poor Film Quality Ion Beam Deposition Medium Hardness, Medium Productivity Uniform Coating for Complicated Shape High Residual Stress, Poor Adhesion Complicated Deposition System Laser Ablation High Adhesion & Hardness Low Productivity FVA (Filtered Vacuum Arc) High Hardness & Thermal Stability High Residual Stress, Poor Adhesion (DC, HF, RF, ECR, pulsed DC)

Properties of Solid Carbon Property Diamond DLC Graphite Density (g/cm 3) 3. 51 1. 8 – 3. 6 2. 26 Atomic Number Density (Mole/cm 3) 0. 3 0. 2 – 0. 3 0. 2 Hardness (Kgf/mm 2) 7000 - 10000 2000 - 8000 <500 Friction Coeff. 0. 05 0. 03 – 0. 2 Refractive Index 2. 42 1. 8 – 2. 6 2. 15 – 1. 8 Transparency UV-VIS-IR Opaque Resistivity (Wcm) >1016 1010 - 1013 0. 2 – 0. 4

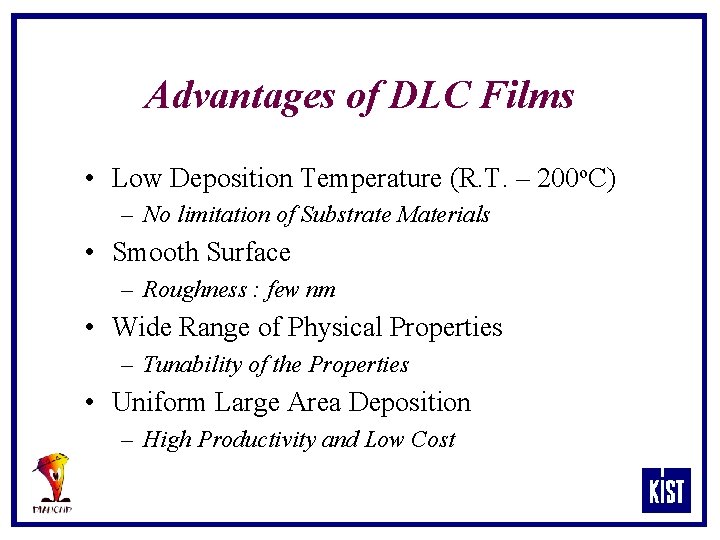

Advantages of DLC Films • Low Deposition Temperature (R. T. – 200 o. C) – No limitation of Substrate Materials • Smooth Surface – Roughness : few nm • Wide Range of Physical Properties – Tunability of the Properties • Uniform Large Area Deposition – High Productivity and Low Cost

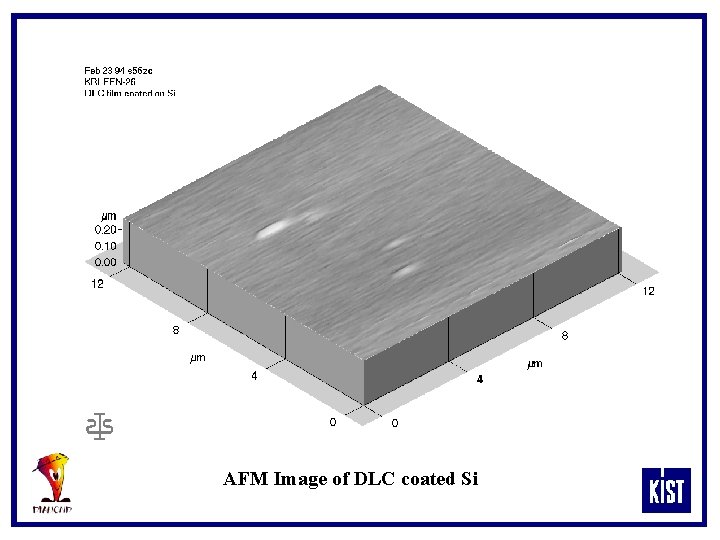

AFM Image of DLC coated Si

Advantages of DLC Films • Low Deposition Temperature (R. T. – 200 o. C) – No limitation of Substrate Materials • Smooth Surface – Roughness : few nm • Wide Range of Physical Properties – Tunability of the Properties • Uniform Large Area Deposition – High Productivity and Low Cost

Properties of Solid Carbon Property Diamond DLC Graphite Density (g/cm 3) 3. 51 1. 8 – 3. 6 2. 26 Atomic Number Density (Mole/cm 3) 0. 3 0. 2 – 0. 3 0. 2 Hardness (Kgf/mm 2) 7000 - 10000 2000 - 8000 <500 Friction Coeff. 0. 05 0. 03 – 0. 2 Refractive Index 2. 42 1. 8 – 2. 6 2. 15 – 1. 8 Transparency UV-VIS-IR Opaque Resistivity (Wcm) >1016 1010 - 1013 0. 2 – 0. 4

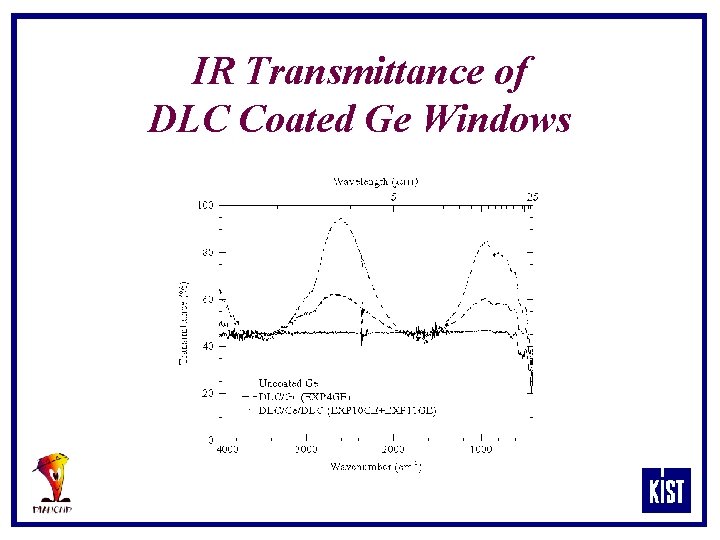

IR Transmittance of DLC Coated Ge Windows

Advantages of DLC Films • Low Deposition Temperature (R. T. – 200 o. C) – No limitation of Substrate Materials • Smooth Surface – Roughness : few nm • Wide Range of Physical Properties – Tunability of the Properties • Uniform Large Area Deposition – High Productivity and Low Cost

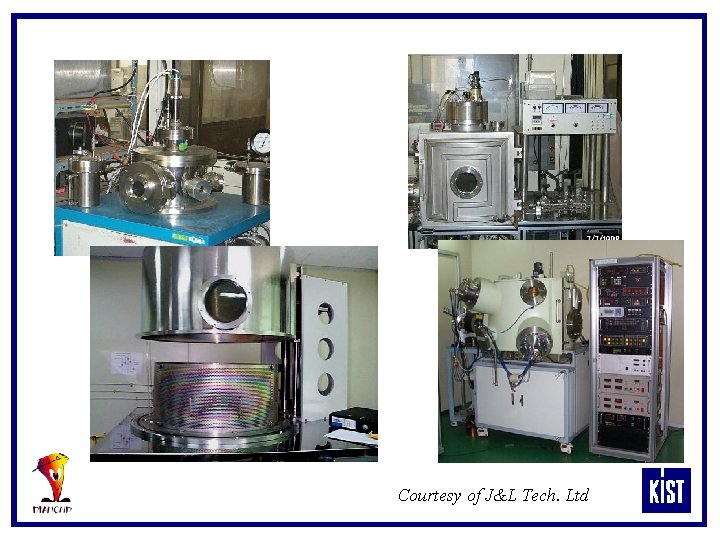

Courtesy of J&L Tech. Ltd

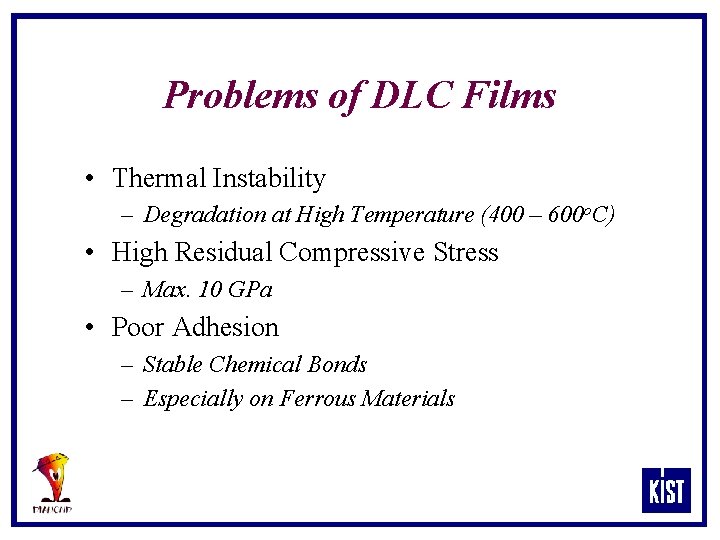

Problems of DLC Films • Thermal Instability – Degradation at High Temperature (400 – 600 o. C) • High Residual Compressive Stress – Max. 10 GPa • Poor Adhesion – Stable Chemical Bonds – Especially on Ferrous Materials

Structure and Mechanical Properties • Hardness – 3 -D interlink of the atomic bond network • Residual Stress – Distortion of bond angle and length 2 -D Analogy of the Structure • Both are dependent on the degree of 3 -D interlinks.

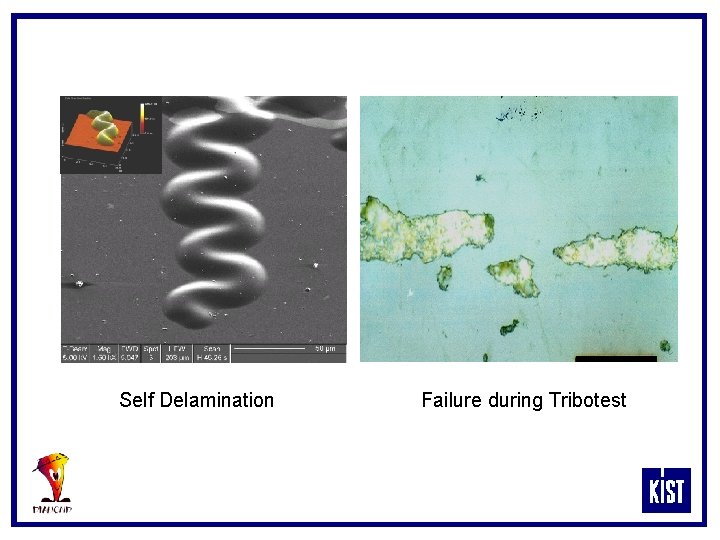

Self Delamination Failure during Tribotest

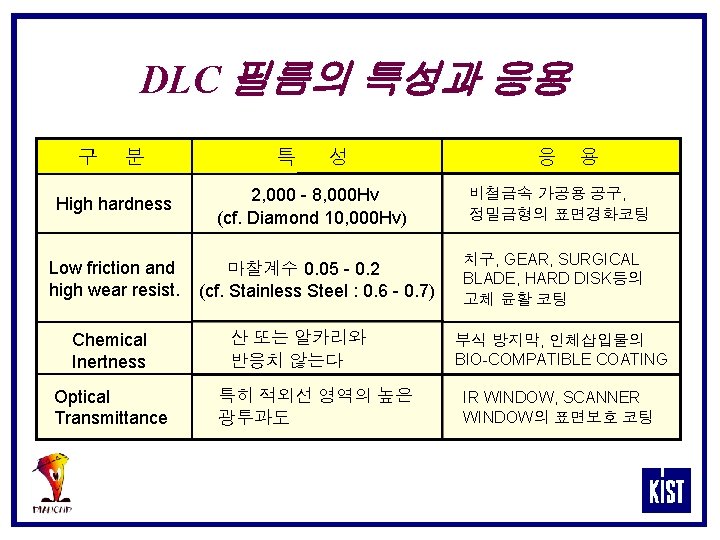

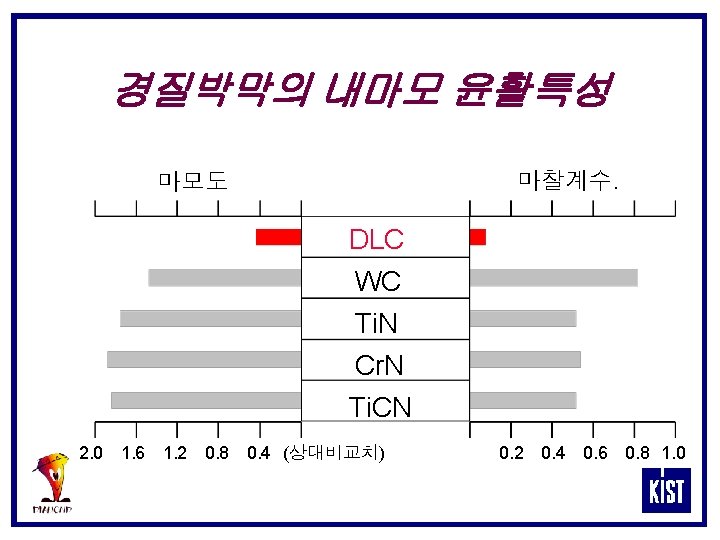

DLC 필름의 특성과 응용 구 분 특 성 High hardness 2, 000 - 8, 000 Hv (cf. Diamond 10, 000 Hv) Low friction and high wear resist. 마찰계수 0. 05 - 0. 2 (cf. Stainless Steel : 0. 6 - 0. 7) Chemical Inertness Optical Transmittance 산 또는 알카리와 반응치 않는다 특히 적외선 영역의 높은 광투과도 응 용 비철금속 가공용 공구, 정밀금형의 표면경화코팅 치구, GEAR, SURGICAL BLADE, HARD DISK등의 고체 윤활 코팅 부식 방지막, 인체삽입물의 BIO-COMPATIBLE COATING IR WINDOW, SCANNER WINDOW의 표면보호 코팅

DLC 필름의 특성과 응용 구 분 특 성 High hardness 2, 000 - 8, 000 Hv (cf. Diamond 10, 000 Hv) Low friction and high wear resist. 마찰계수 0. 05 - 0. 2 (cf. Stainless Steel : 0. 6 - 0. 7) Chemical Inertness Optical Transmittance 산 또는 알카리와 반응치 않는다 특히 적외선 영역의 높은 광투과도 응 용 비철금속 가공용 공구, 정밀금형의 표면경화코팅 치구, GEAR, SURGICAL BLADE, HARD DISK등의 고체 윤활 코팅 부식 방지막, 인체삽입물의 BIO-COMPATIBLE COATING IR WINDOW, SCANNER WINDOW의 표면보호 코팅

DLC 필름의 특성과 응용 구 분 특 성 High hardness 2, 000 - 8, 000 Hv (cf. Diamond 10, 000 Hv) Low friction and high wear resist. 마찰계수 0. 05 - 0. 2 (cf. Stainless Steel : 0. 6 - 0. 7) Chemical Inertness Optical Transmittance 산 또는 알카리와 반응치 않는다 특히 적외선 영역의 높은 광투과도 응 용 비철금속 가공용 공구, 정밀금형의 표면경화코팅 치구, GEAR, SURGICAL BLADE, HARD DISK등의 고체 윤활 코팅 부식 방지막, 인체삽입물의 BIO-COMPATIBLE COATING IR WINDOW, SCANNER WINDOW의 표면보호 코팅

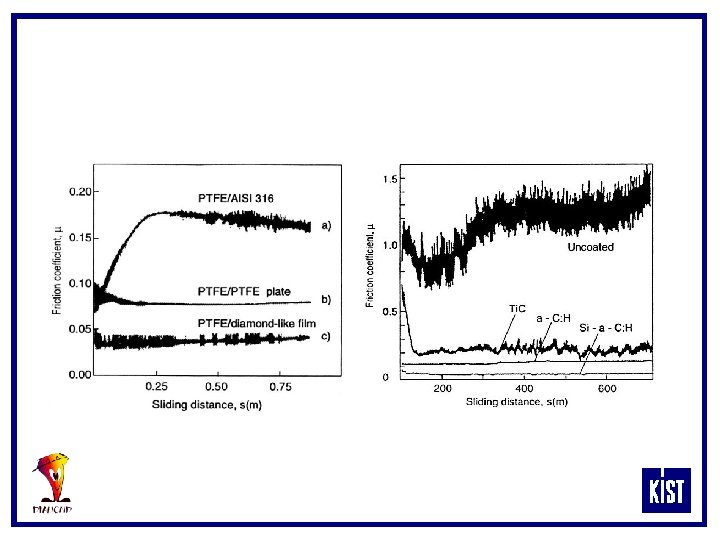

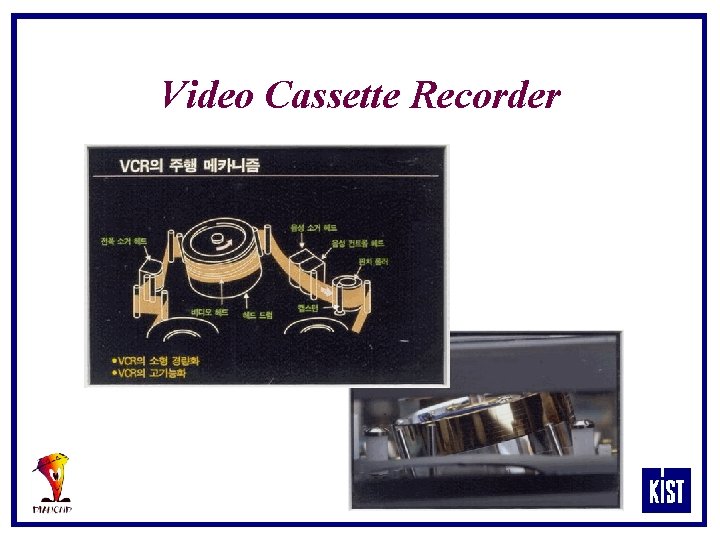

Video Cassette Recorder

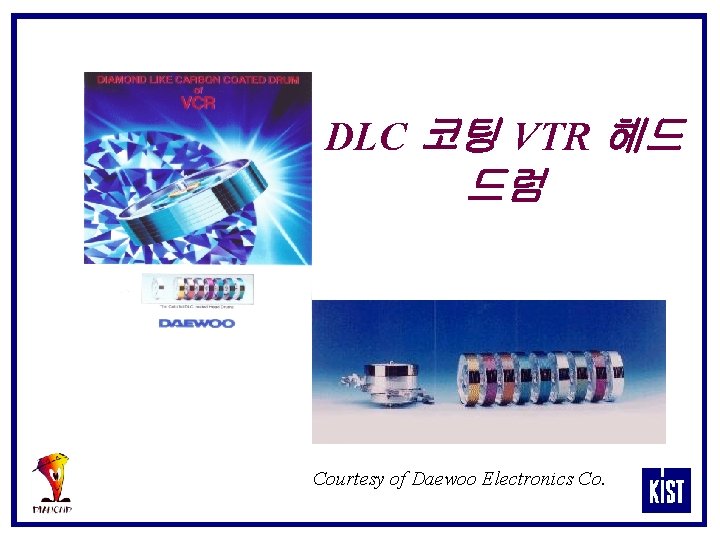

DLC 코팅 VTR 헤드 드럼 Courtesy of Daewoo Electronics Co.

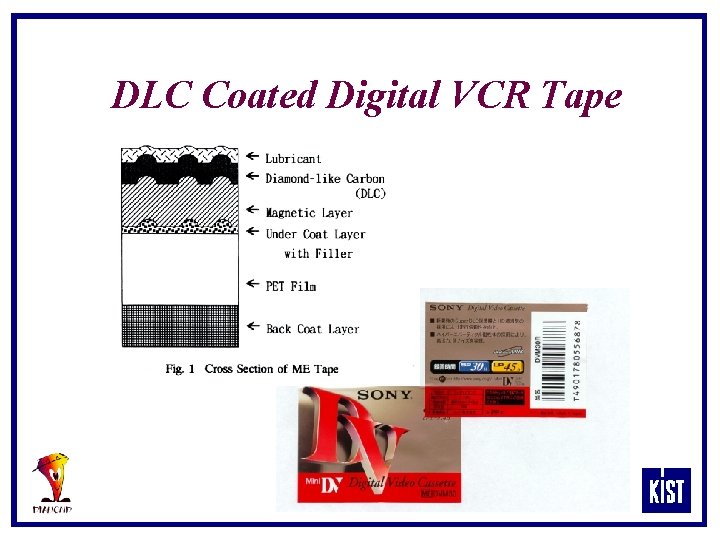

DLC Coated Digital VCR Tape

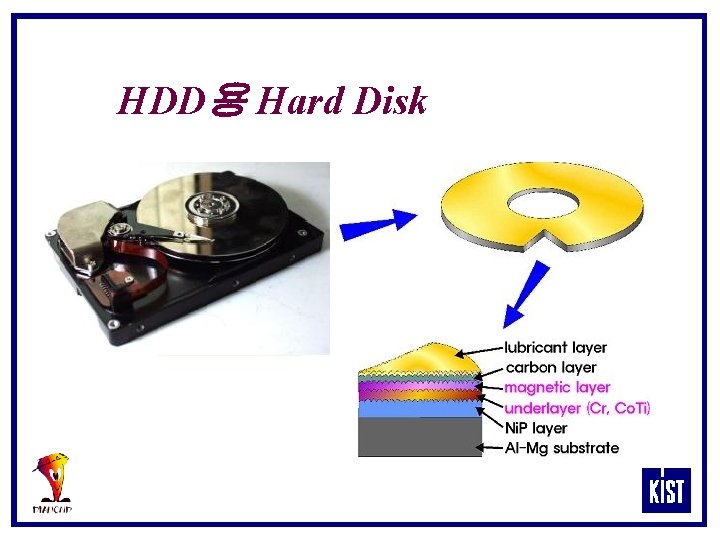

HDD용 Hard Disk

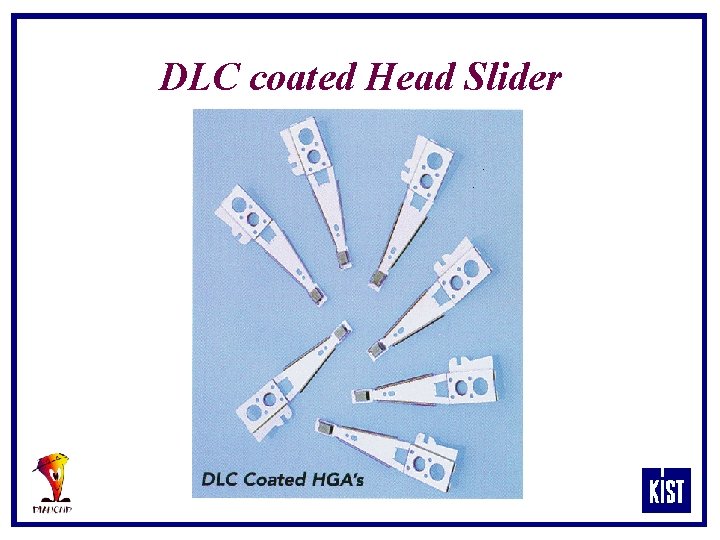

DLC coated Head Slider

DLC 필름의 특성과 응용 구 분 특 성 High hardness 2, 000 - 8, 000 Hv (cf. Diamond 10, 000 Hv) Low friction and high wear resist. 마찰계수 0. 05 - 0. 2 (cf. Stainless Steel : 0. 6 - 0. 7) Chemical Inertness Optical Transmittance 산 또는 알카리와 반응치 않는다 특히 적외선 영역의 높은 광투과도 응 용 비철금속 가공용 공구, 정밀금형의 표면경화코팅 치구, GEAR, SURGICAL BLADE, HARD DISK등의 고체 윤활 코팅 부식 방지막, 인체삽입물의 BIO-COMPATIBLE COATING IR WINDOW, SCANNER WINDOW의 표면보호 코팅

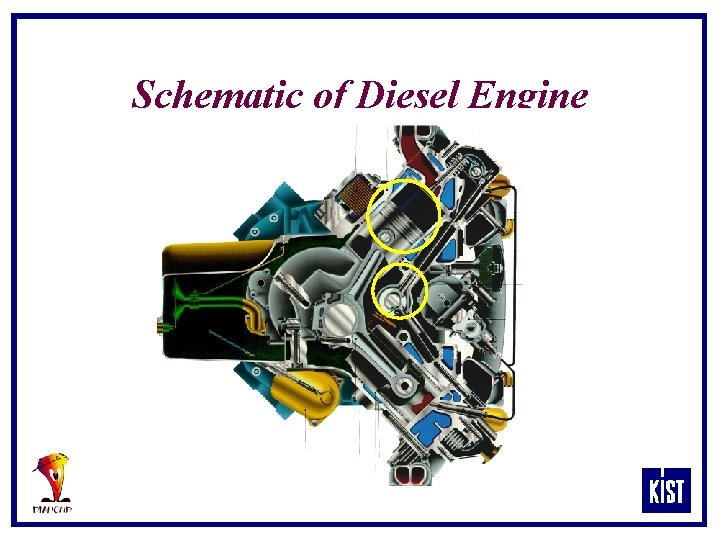

Schematic of Diesel Engine

Results of Wear Test under Dry Lubrication Conditions

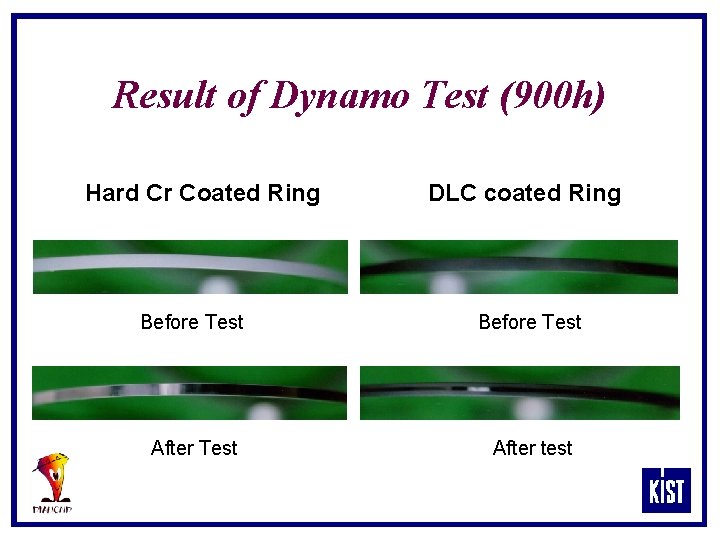

Result of Dynamo Test (900 h) Hard Cr Coated Ring DLC coated Ring Before Test After test

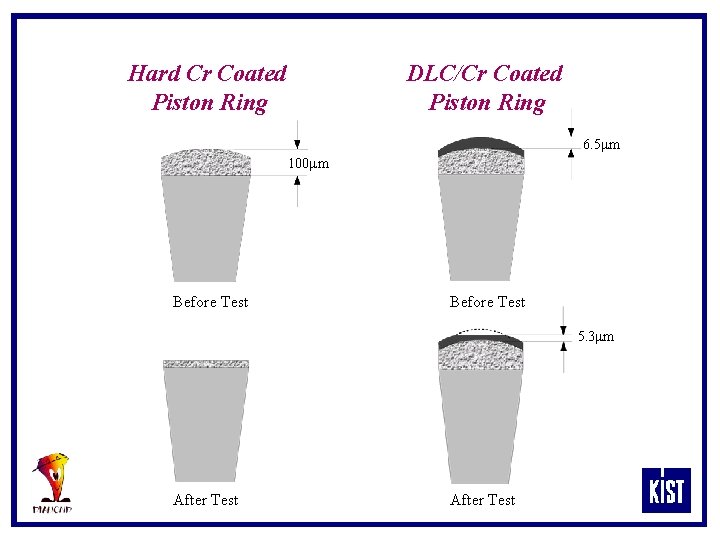

Hard Cr Coated Piston Ring DLC/Cr Coated Piston Ring 6. 5 mm 100 mm Before Test 5. 3 mm After Test

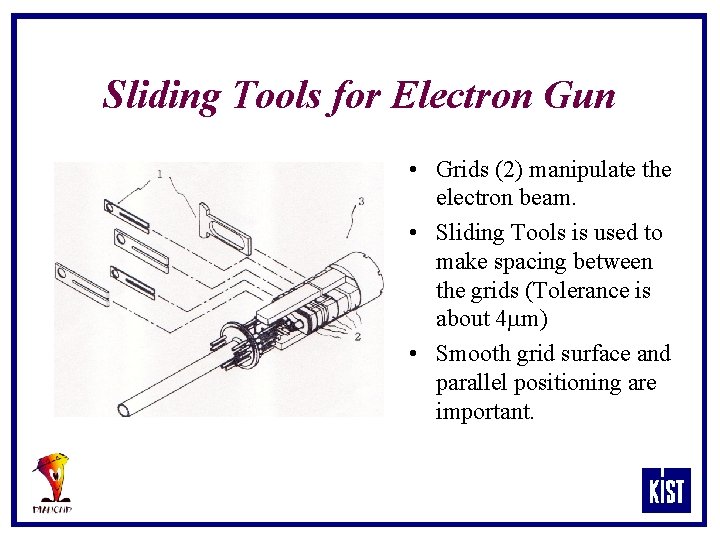

Sliding Tools for Electron Gun • Grids (2) manipulate the electron beam. • Sliding Tools is used to make spacing between the grids (Tolerance is about 4 mm) • Smooth grid surface and parallel positioning are important.

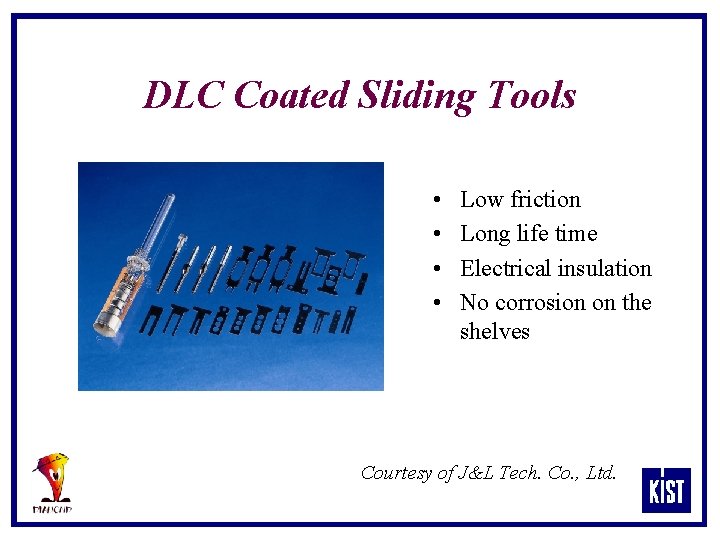

DLC Coated Sliding Tools • • Low friction Long life time Electrical insulation No corrosion on the shelves Courtesy of J&L Tech. Co. , Ltd.

DLC 필름의 특성과 응용 구 분 특 성 High hardness 2, 000 - 8, 000 Hv (cf. Diamond 10, 000 Hv) Low friction and high wear resist. 마찰계수 0. 05 - 0. 2 (cf. Stainless Steel : 0. 6 - 0. 7) Chemical Inertness Optical Transmittance 산 또는 알카리와 반응치 않는다 특히 적외선 영역의 높은 광투과도 응 용 비철금속 가공용 공구, 정밀금형의 표면경화코팅 치구, GEAR, SURGICAL BLADE, HARD DISK등의 고체 윤활 코팅 부식 방지막, 인체삽입물의 BIO-COMPATIBLE COATING IR WINDOW, SCANNER WINDOW의 표면보호 코팅

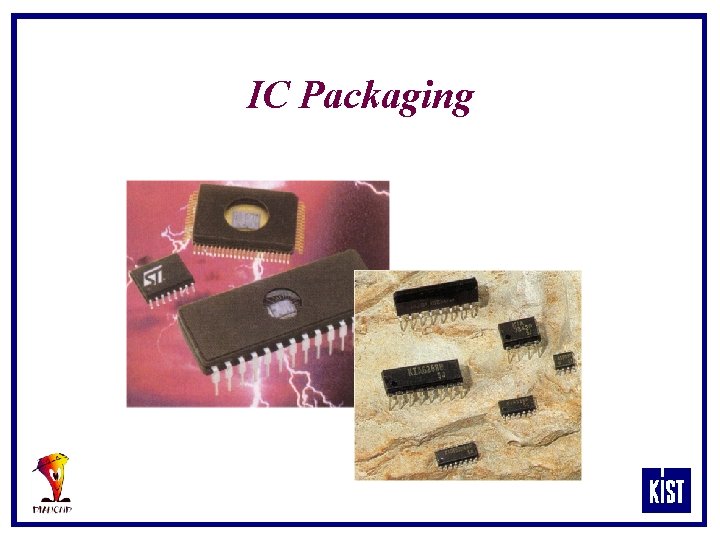

IC Packaging

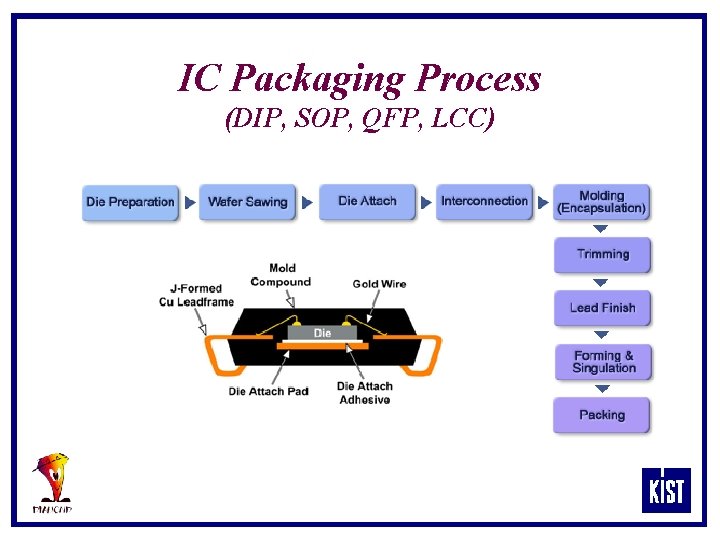

IC Packaging Process (DIP, SOP, QFP, LCC)

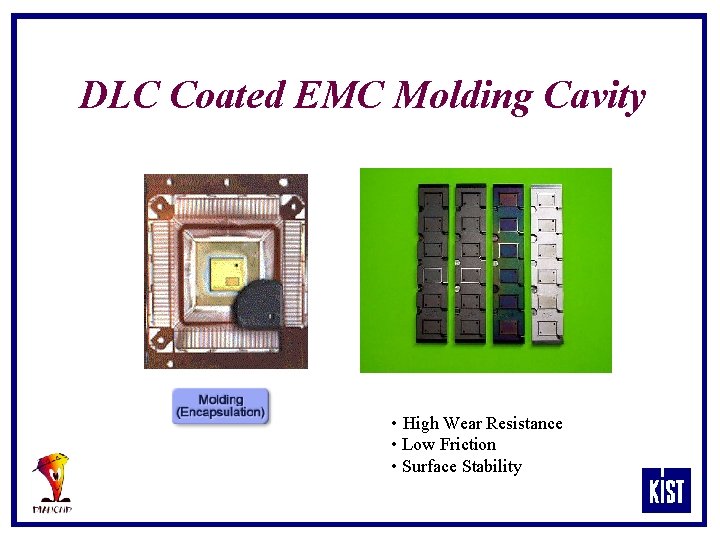

DLC Coated EMC Molding Cavity • High Wear Resistance • Low Friction • Surface Stability

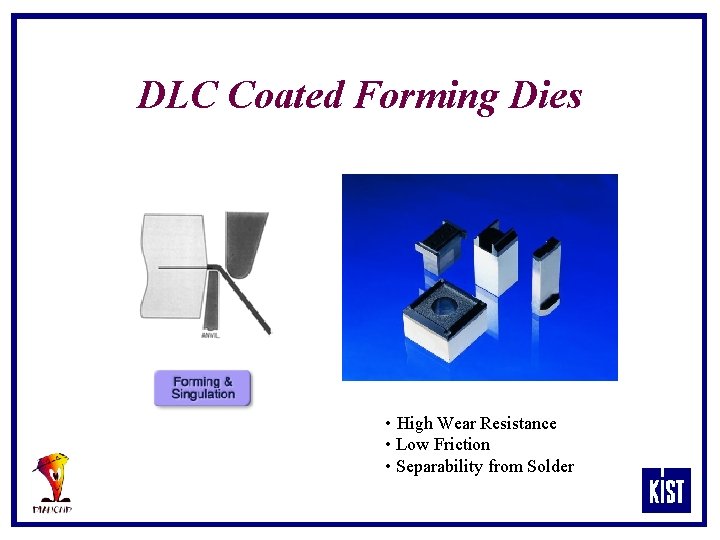

DLC Coated Forming Dies • High Wear Resistance • Low Friction • Separability from Solder

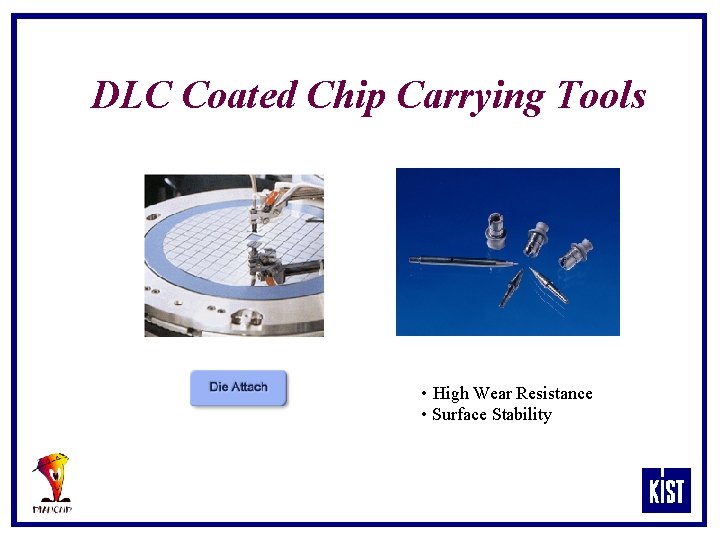

DLC Coated Chip Carrying Tools • High Wear Resistance • Surface Stability

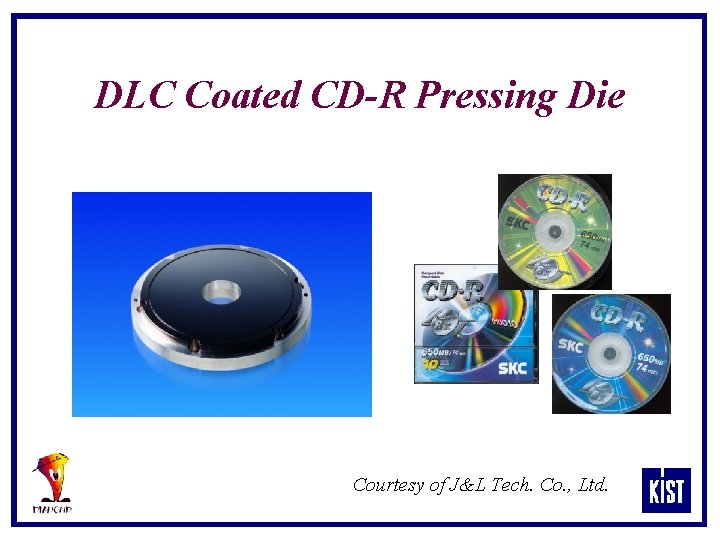

DLC Coated CD-R Pressing Die Courtesy of J&L Tech. Co. , Ltd.

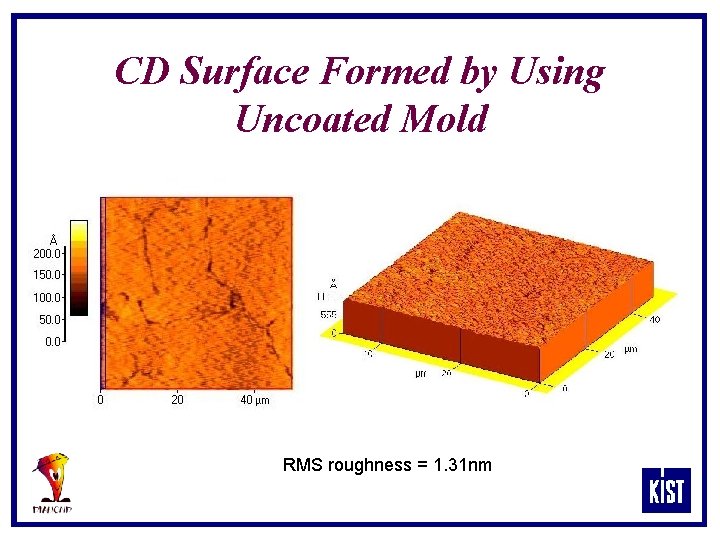

CD Surface Formed by Using Uncoated Mold RMS roughness = 1. 31 nm

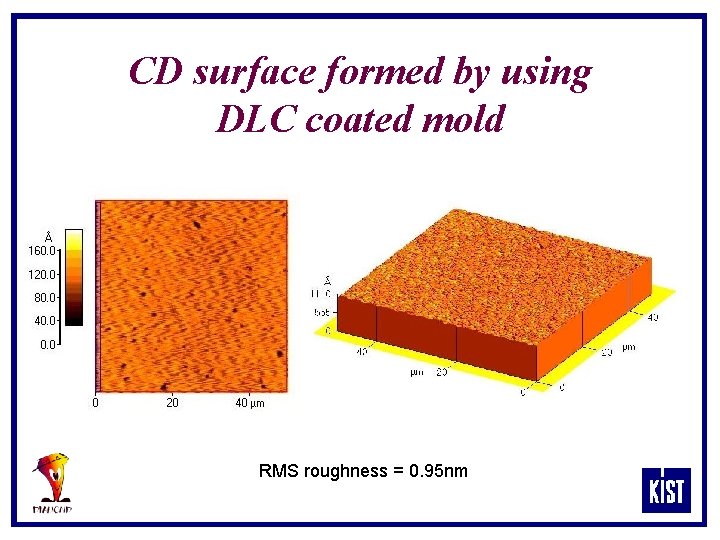

CD surface formed by using DLC coated mold RMS roughness = 0. 95 nm

DLC 필름의 특성과 응용 구 분 특 성 High hardness 2, 000 - 8, 000 Hv (cf. Diamond 10, 000 Hv) Low friction and high wear resist. 마찰계수 0. 05 - 0. 2 (cf. Stainless Steel : 0. 6 - 0. 7) Chemical Inertness Optical Transmittance 산 또는 알카리와 반응치 않는다 특히 적외선 영역의 높은 광투과도 응 용 비철금속 가공용 공구, 정밀금형의 표면경화코팅 치구, GEAR, SURGICAL BLADE, HARD DISK등의 고체 윤활 코팅 부식 방지막, 인체삽입물의 BIO-COMPATIBLE COATING IR WINDOW, SCANNER WINDOW의 표면보호 코팅

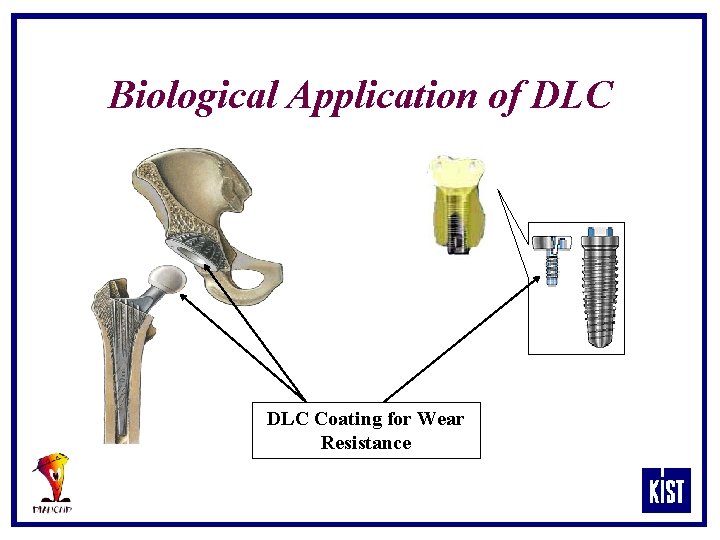

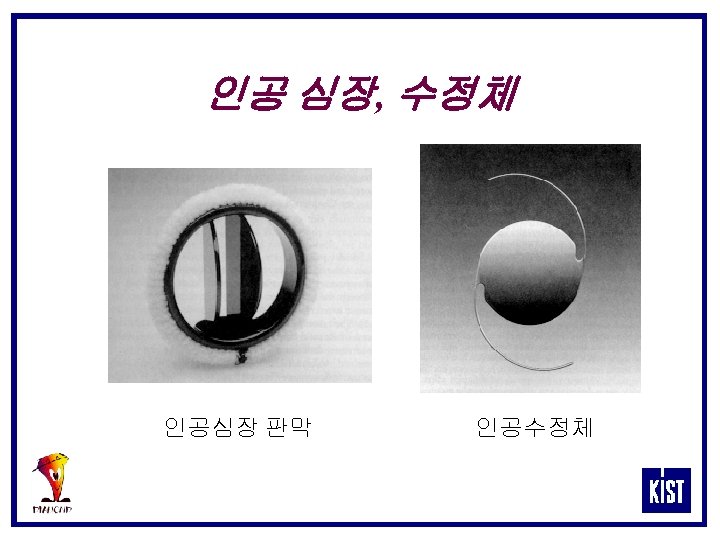

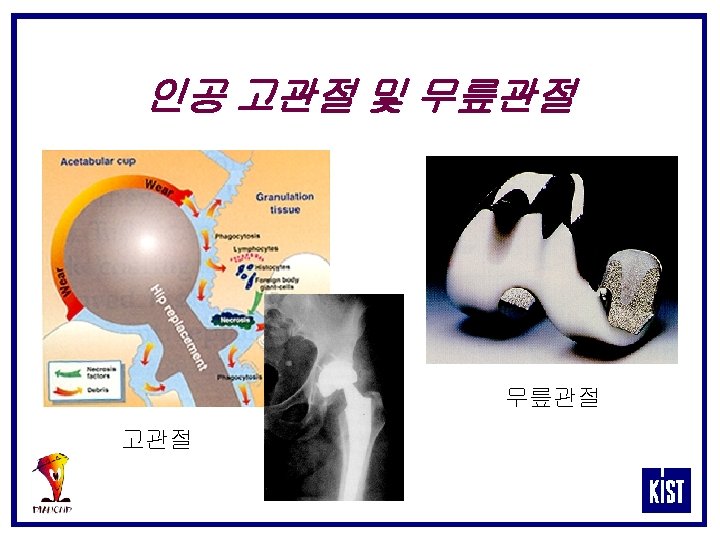

Biological Application of DLC Coating for Wear Resistance

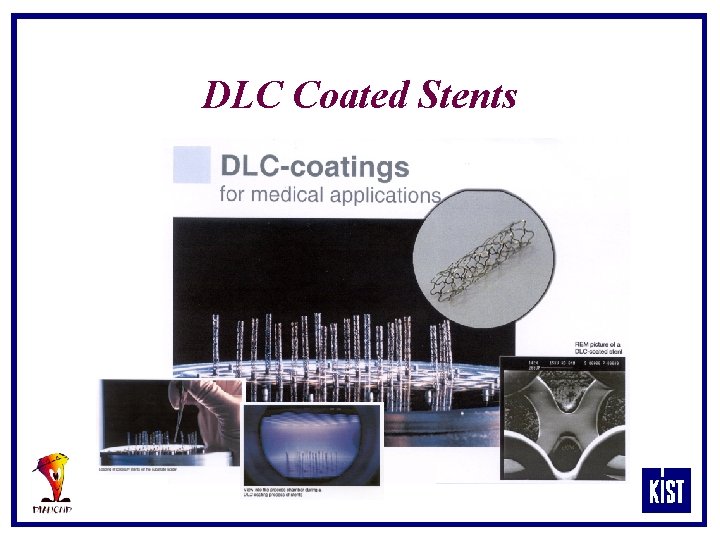

DLC Coated Stents

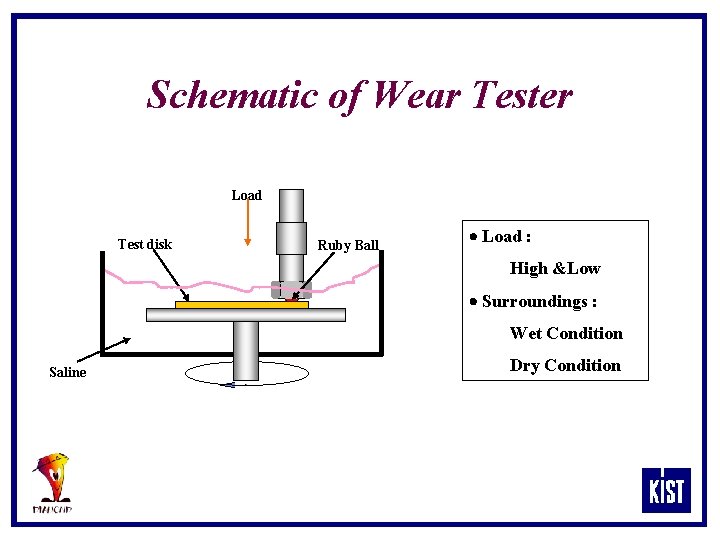

Schematic of Wear Tester Load Test disk Ruby Ball Load : High &Low Surroundings : Wet Condition Saline Dry Condition

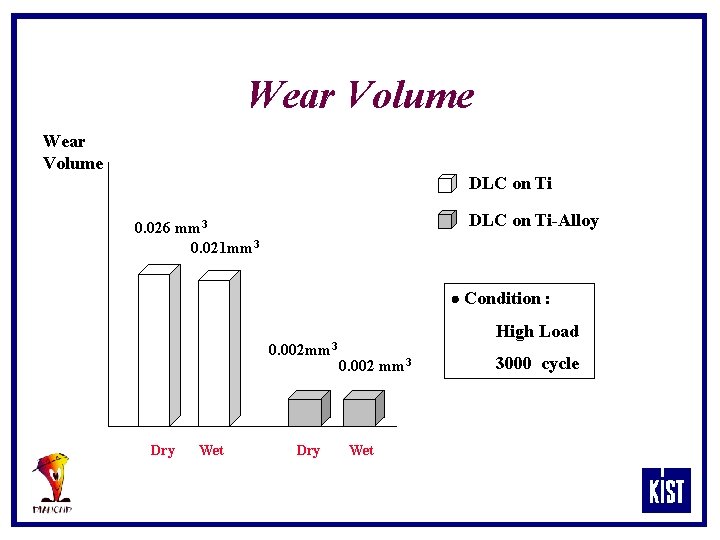

Wear Volume DLC on Ti-Alloy 0. 026 mm 3 0. 021 mm 3 Condition : High Load 0. 002 mm 3 Dry Wet Dry 0. 002 mm 3 Wet 3000 cycle

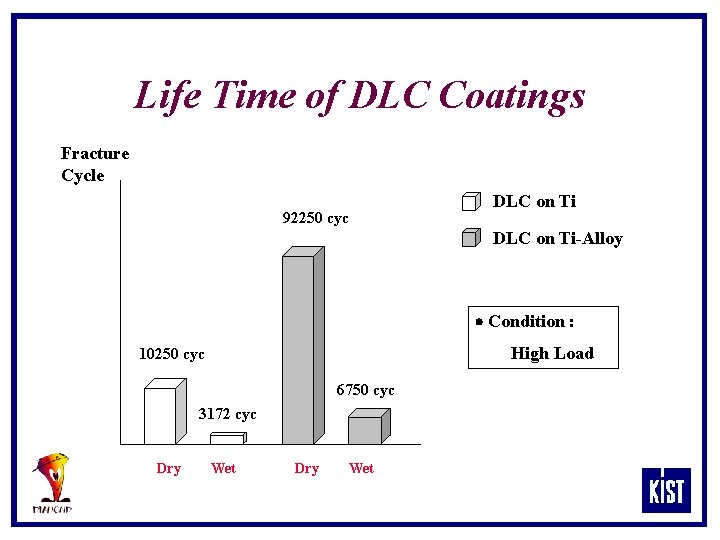

Life Time of DLC Coatings Fracture Cycle 92250 cyc DLC on Ti-Alloy Condition : High Load 10250 cyc 6750 cyc 3172 cyc Dry Wet

DLC 필름의 특성과 응용 구 분 특 성 High hardness 2, 000 - 8, 000 Hv (cf. Diamond 10, 000 Hv) Low friction and high wear resist. 마찰계수 0. 05 - 0. 2 (cf. Stainless Steel : 0. 6 - 0. 7) Chemical Inertness Optical Transmittance 산 또는 알카리와 반응치 않는다 특히 적외선 영역의 높은 광투과도 응 용 비철금속 가공용 공구, 정밀금형의 표면경화코팅 치구, GEAR, SURGICAL BLADE, HARD DISK등의 고체 윤활 코팅 부식 방지막, 인체삽입물의 BIO-COMPATIBLE COATING IR WINDOW, SCANNER WINDOW의 표면보호 코팅

IR Windows for Missile and Night Vision System

IR Transmittance of DLC Coated Ge Windows

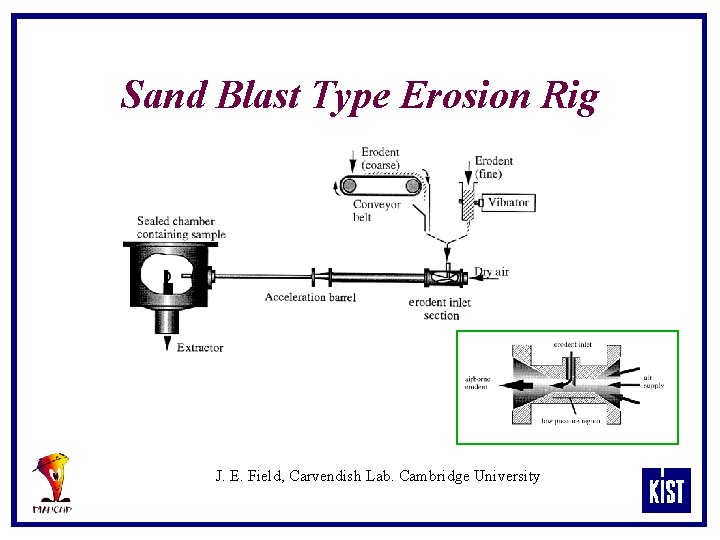

Sand Blast Type Erosion Rig J. E. Field, Carvendish Lab. Cambridge University

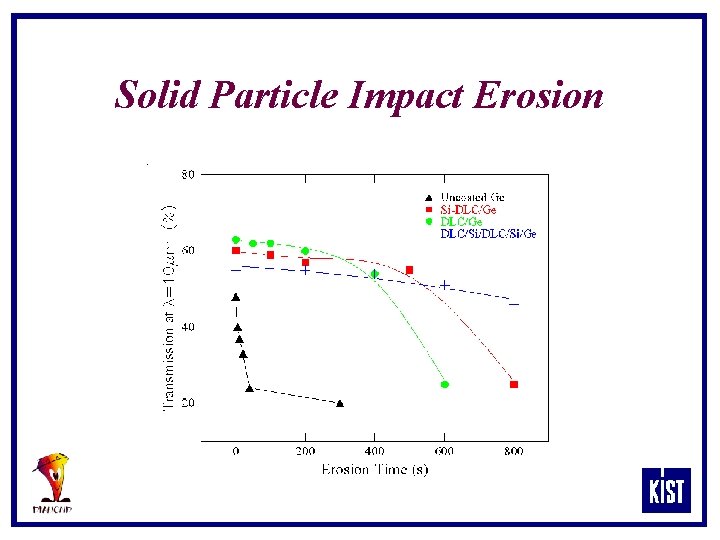

Solid Particle Impact Erosion

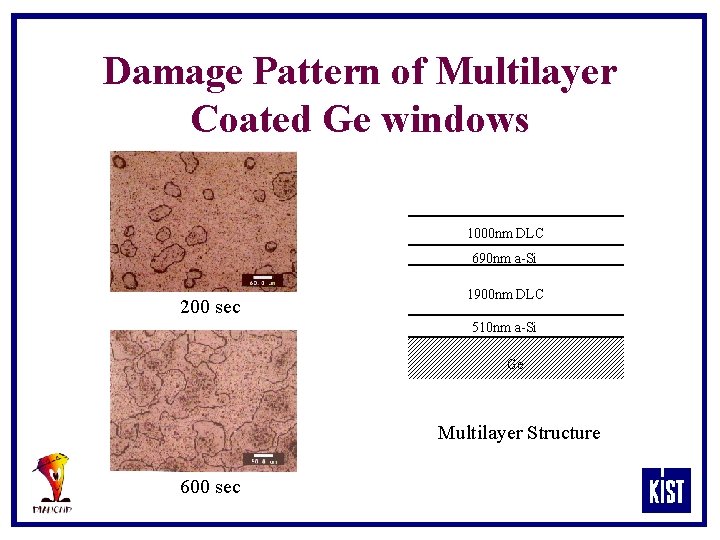

Damage Pattern of Multilayer Coated Ge windows 1000 nm DLC 690 nm a-Si 200 sec 1900 nm DLC 510 nm a-Si Ge Multilayer Structure 600 sec

DLC 필름의 특성과 응용 구 분 특 성 High hardness 2, 000 - 8, 000 Hv (cf. Diamond 10, 000 Hv) Low friction and high wear resist. 마찰계수 0. 05 - 0. 2 (cf. Stainless Steel : 0. 6 - 0. 7) Chemical Inertness Optical Transmittance 산 또는 알카리와 반응치 않는다 특히 적외선 영역의 높은 광투과도 응 용 비철금속 가공용 공구, 정밀금형의 표면경화코팅 치구, GEAR, SURGICAL BLADE, HARD DISK등의 고체 윤활 코팅 부식 방지막, 인체삽입물의 BIO-COMPATIBLE COATING IR WINDOW, SCANNER WINDOW의 표면보호 코팅

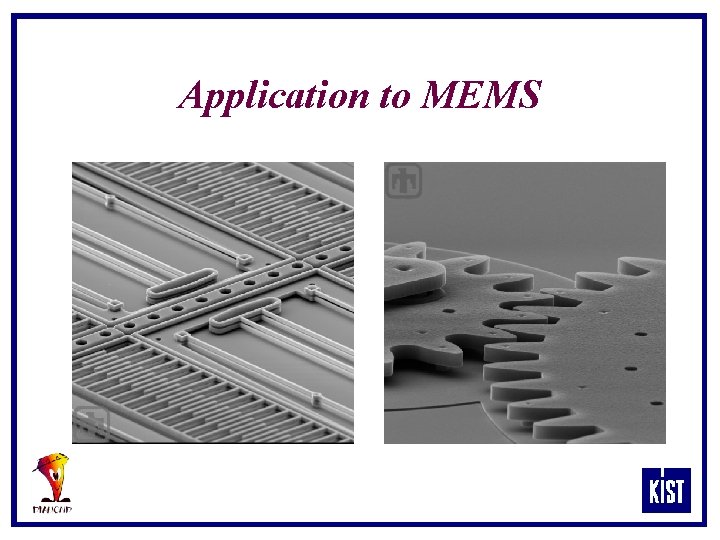

Application to MEMS

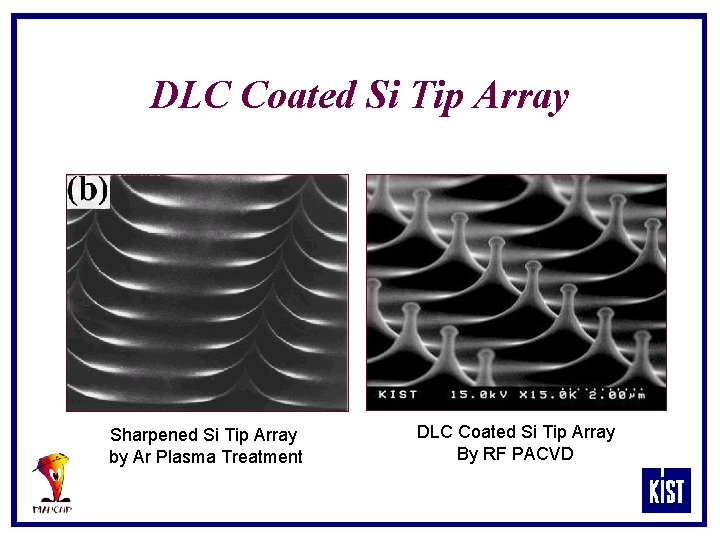

DLC Coated Si Tip Array Sharpened Si Tip Array by Ar Plasma Treatment DLC Coated Si Tip Array By RF PACVD

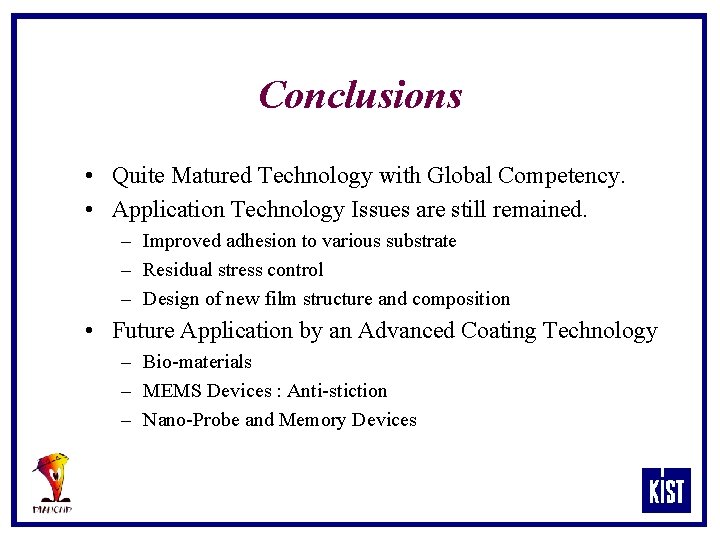

Conclusions • Quite Matured Technology with Global Competency. • Application Technology Issues are still remained. – Improved adhesion to various substrate – Residual stress control – Design of new film structure and composition • Future Application by an Advanced Coating Technology – Bio-materials – MEMS Devices : Anti-stiction – Nano-Probe and Memory Devices
