CARBOHYDRATES CLASSIFICATION AND PROPERTIES LECTURE NO 4 LECTURE

CARBOHYDRATES CLASSIFICATION AND PROPERTIES LECTURE NO 4

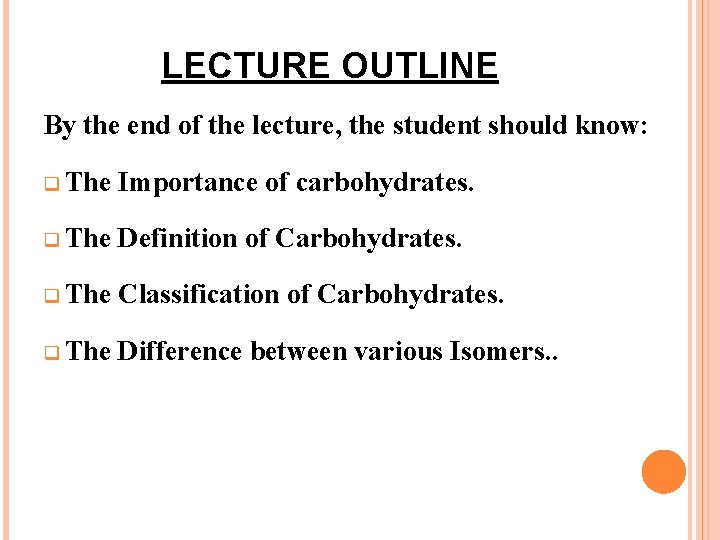

LECTURE OUTLINE By the end of the lecture, the student should know: q The Importance of carbohydrates. q The Definition of Carbohydrates. q The Classification of Carbohydrates. q The Difference between various Isomers. .

CARBOHYDRATE: IMPORTANCE Most Abundant Class of Biomolecules. An Important Macronutrient. Performs important physiological functions in the body. Associated with Pathological Conditions (Diabetes Mellitus, Lactose Intolerance).

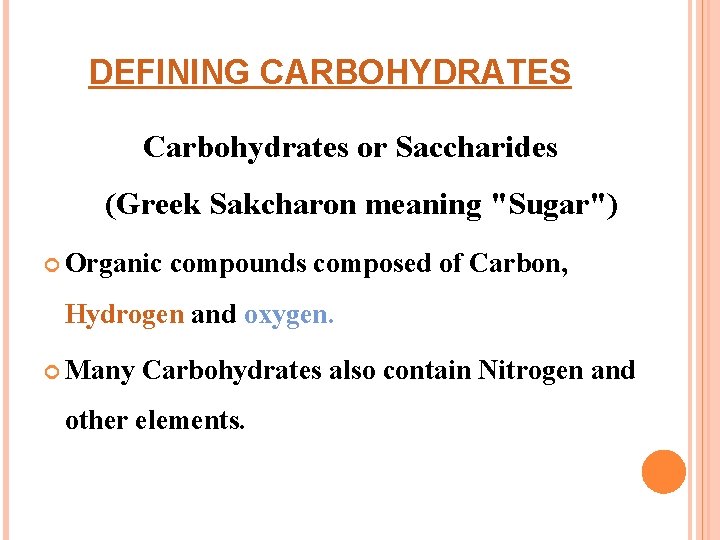

DEFINING CARBOHYDRATES Carbohydrates or Saccharides (Greek Sakcharon meaning "Sugar") Organic compounds composed of Carbon, Hydrogen and oxygen. Many Carbohydrates also contain Nitrogen and other elements.

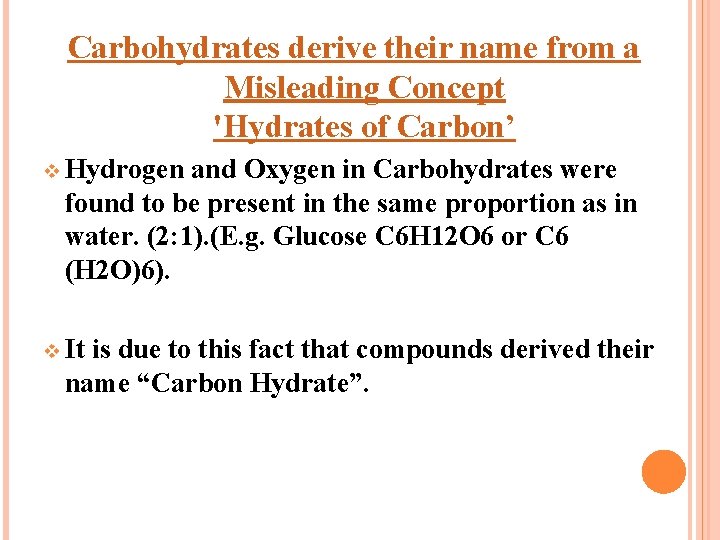

Carbohydrates derive their name from a Misleading Concept 'Hydrates of Carbon’ v Hydrogen and Oxygen in Carbohydrates were found to be present in the same proportion as in water. (2: 1). (E. g. Glucose C 6 H 12 O 6 or C 6 (H 2 O)6). v It is due to this fact that compounds derived their name “Carbon Hydrate”.

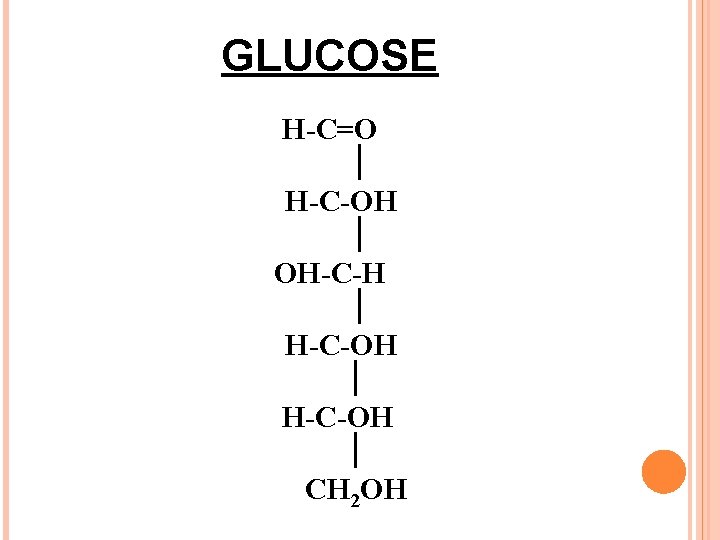

GLUCOSE H-C=O H-C-OH OH-C-H H-C-OH CH 2 OH

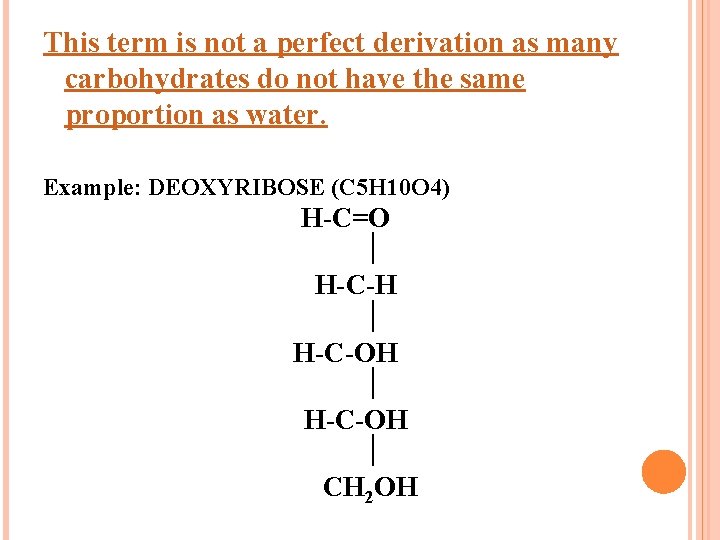

This term is not a perfect derivation as many carbohydrates do not have the same proportion as water. Example: DEOXYRIBOSE (C 5 H 10 O 4) H-C=O H-C-H H-C-OH CH 2 OH

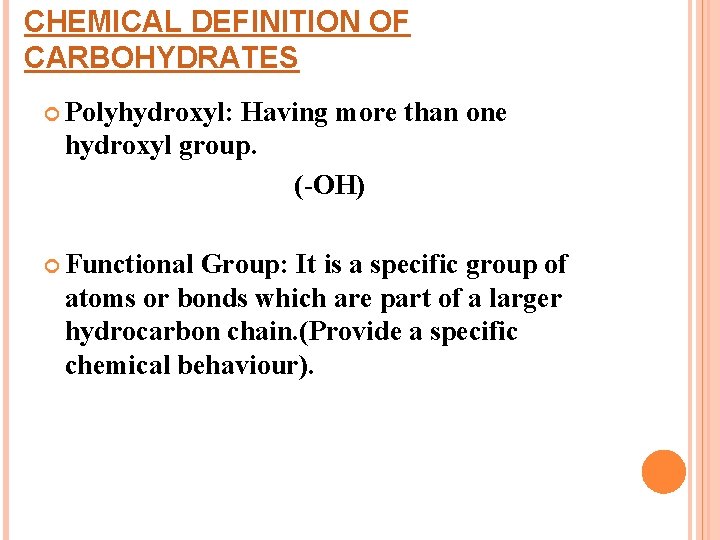

CHEMICAL DEFINITION OF CARBOHYDRATES Polyhydroxyl: Having more than one hydroxyl group. (-OH) Functional Group: It is a specific group of atoms or bonds which are part of a larger hydrocarbon chain. (Provide a specific chemical behaviour).

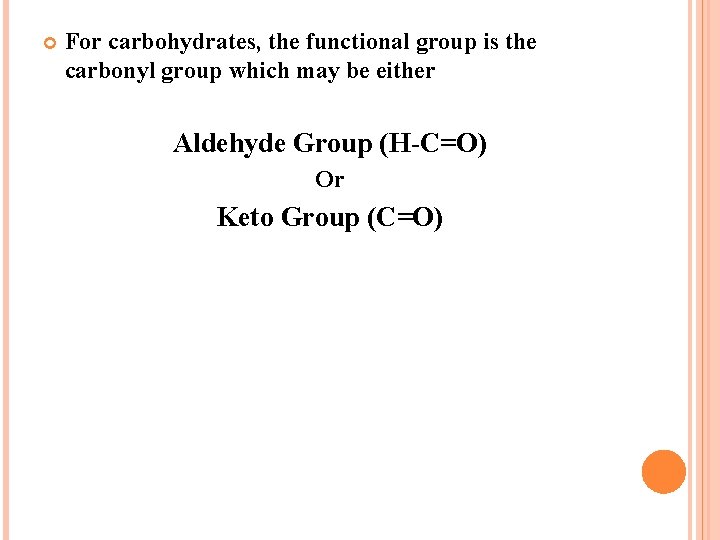

For carbohydrates, the functional group is the carbonyl group which may be either Aldehyde Group (H-C=O) Or Keto Group (C=O)

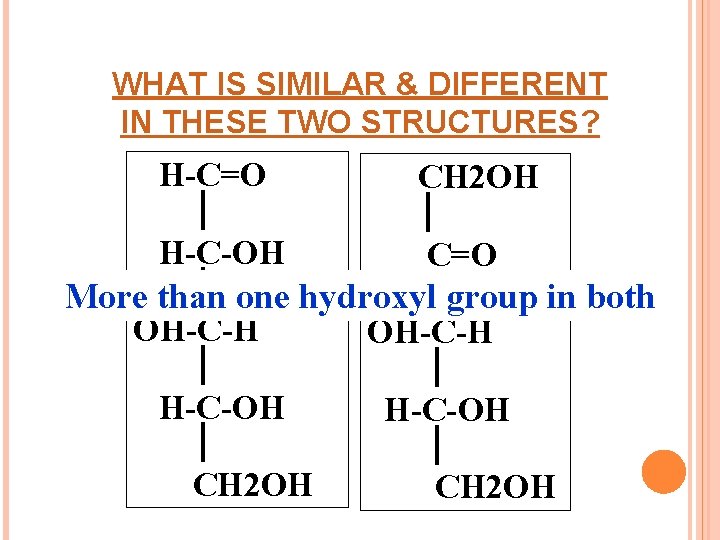

WHAT IS SIMILAR & DIFFERENT IN THESE TWO STRUCTURES? H-C=O CH 2 OH H-C-OH C=O More than one hydroxyl group in both OH-C-H H-C-OH CH 2 OH

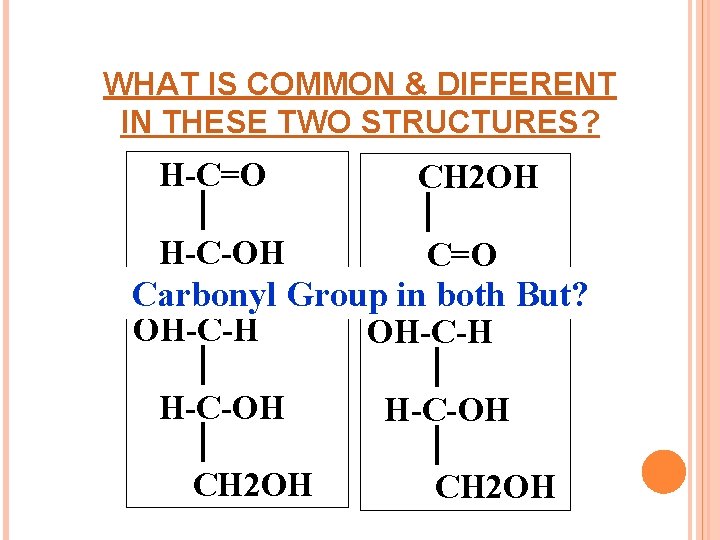

WHAT IS COMMON & DIFFERENT IN THESE TWO STRUCTURES? H-C=O CH 2 OH H-C-OH C=O Carbonyl Group in both But? OH-C-H H-C-OH CH 2 OH

WHAT IS COMMON & DIFFERENT IN THESE TWO STRUCTURES? H-C=O CH 2 OH H-C-OH C=O Aldehyde in 1 and Ketone in 2 OH-C-H H-C-OH CH 2 OH

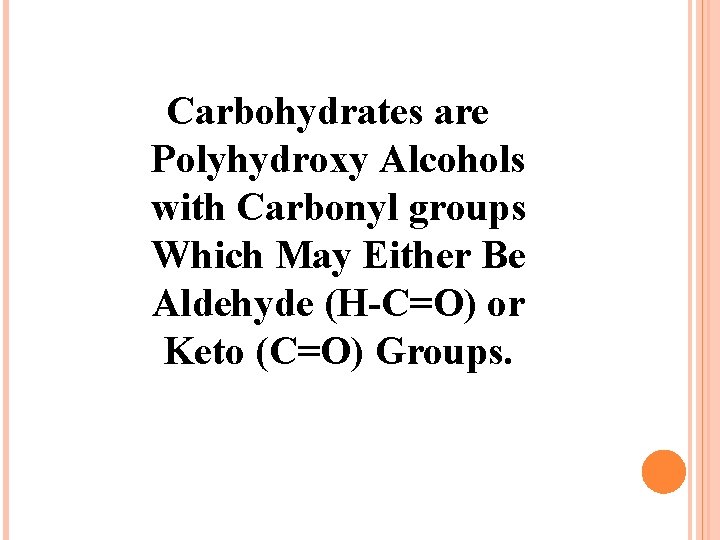

Carbohydrates are Polyhydroxy Alcohols with Carbonyl groups Which May Either Be Aldehyde (H-C=O) or Keto (C=O) Groups.

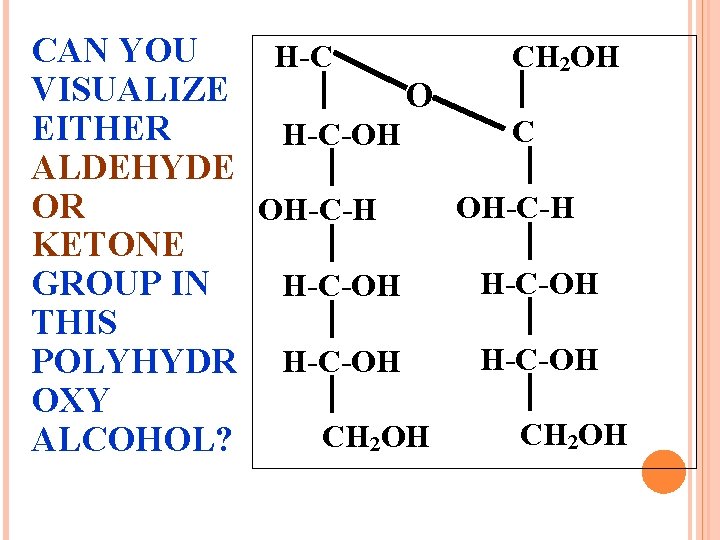

CAN YOU VISUALIZE EITHER ALDEHYDE OR KETONE GROUP IN THIS POLYHYDR OXY ALCOHOL? H-C CH 2 OH O H-C-OH C OH-C-H H-C-OH CH 2 OH

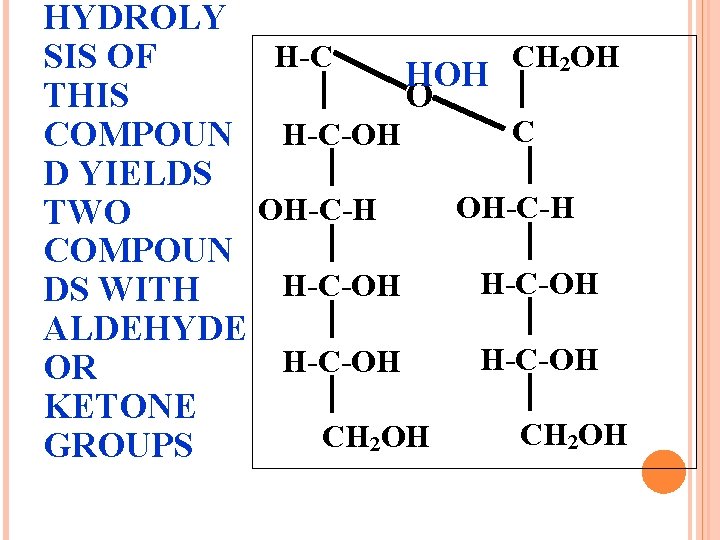

HYDROLY H-C CH 2 OH SIS OF HOH O THIS COMPOUN H-C-OH C D YIELDS OH-C-H TWO COMPOUN DS WITH H-C-OH ALDEHYDE H-C-OH OR KETONE CH 2 OH GROUPS

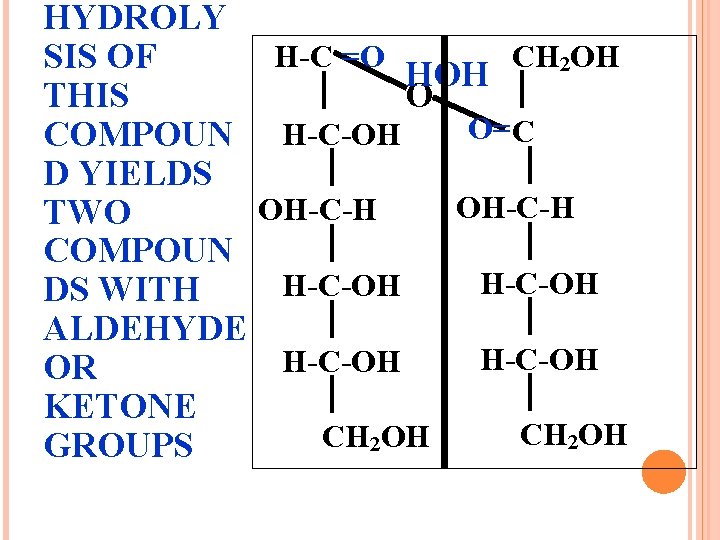

HYDROLY H-C =O CH 2 OH SIS OF HOH O THIS O= COMPOUN H-C-OH C D YIELDS OH-C-H TWO COMPOUN DS WITH H-C-OH ALDEHYDE H-C-OH OR KETONE CH 2 OH GROUPS

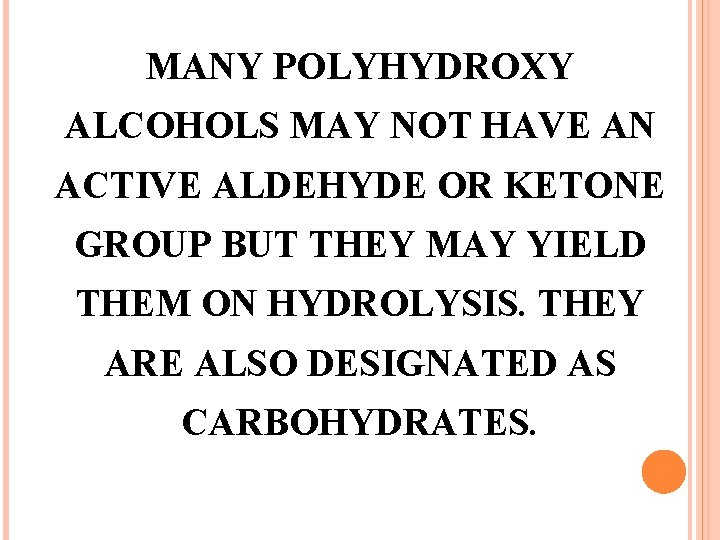

MANY POLYHYDROXY ALCOHOLS MAY NOT HAVE AN ACTIVE ALDEHYDE OR KETONE GROUP BUT THEY MAY YIELD THEM ON HYDROLYSIS. THEY ARE ALSO DESIGNATED AS CARBOHYDRATES.

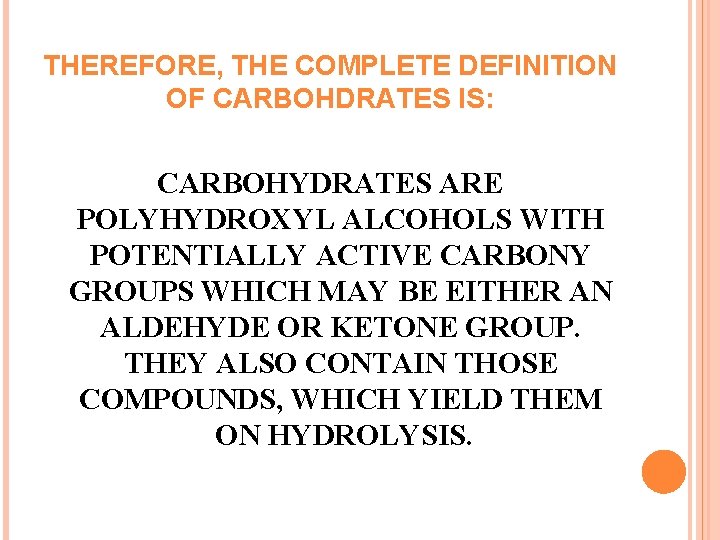

THEREFORE, THE COMPLETE DEFINITION OF CARBOHDRATES IS: CARBOHYDRATES ARE POLYHYDROXYL ALCOHOLS WITH POTENTIALLY ACTIVE CARBONY GROUPS WHICH MAY BE EITHER AN ALDEHYDE OR KETONE GROUP. THEY ALSO CONTAIN THOSE COMPOUNDS, WHICH YIELD THEM ON HYDROLYSIS.

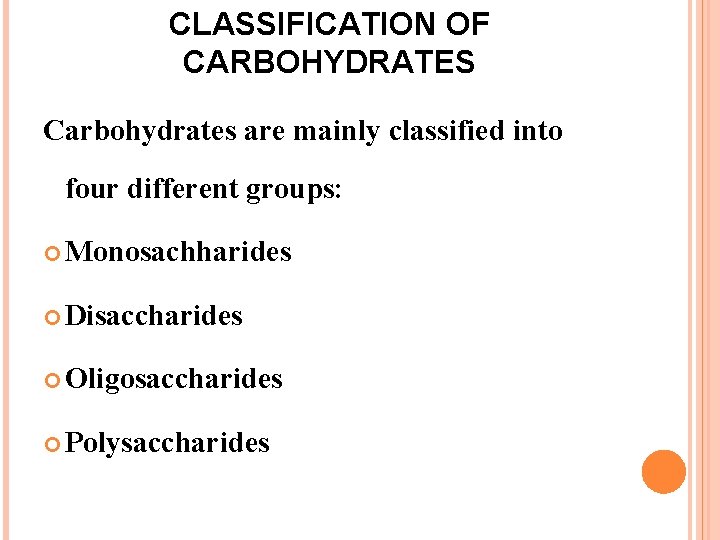

CLASSIFICATION OF CARBOHYDRATES Carbohydrates are mainly classified into four different groups: Monosachharides Disaccharides Oligosaccharides Polysaccharides

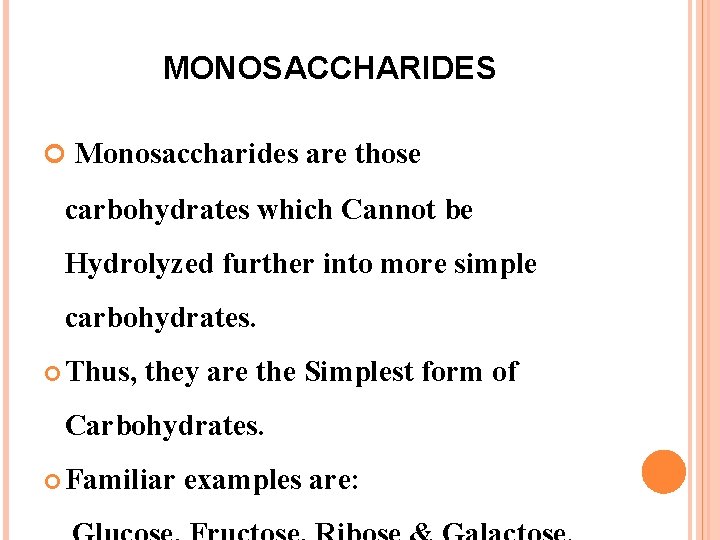

MONOSACCHARIDES Monosaccharides are those carbohydrates which Cannot be Hydrolyzed further into more simple carbohydrates. Thus, they are the Simplest form of Carbohydrates. Familiar examples are:

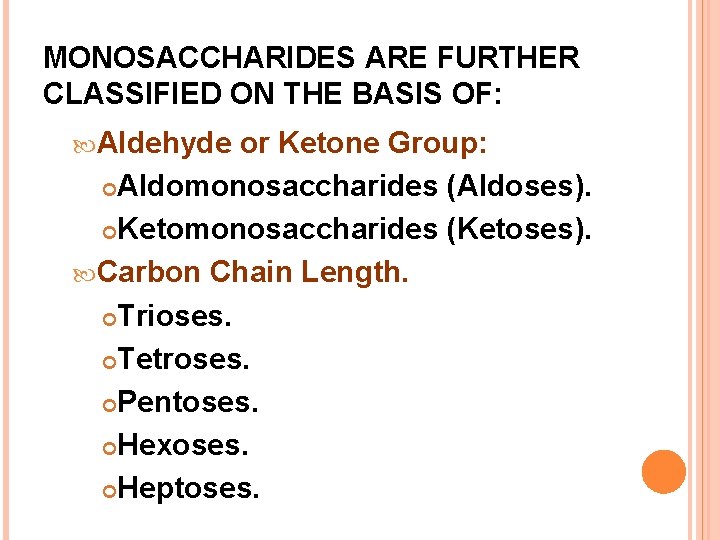

MONOSACCHARIDES ARE FURTHER CLASSIFIED ON THE BASIS OF: Aldehyde or Ketone Group: Aldomonosaccharides (Aldoses). Ketomonosaccharides (Ketoses). Carbon Chain Length. Trioses. Tetroses. Pentoses. Hexoses. Heptoses.

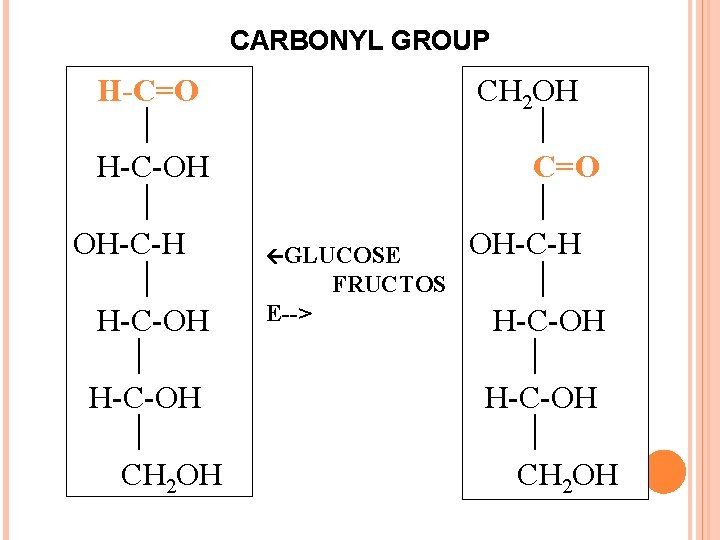

CARBONYL GROUP H-C=O H-C-OH OH-C-H H-C-OH CH 2 OH GLUCOSE FRUCTOS E--> CH 2 OH C=O OH-C-H H-C-OH CH 2 OH

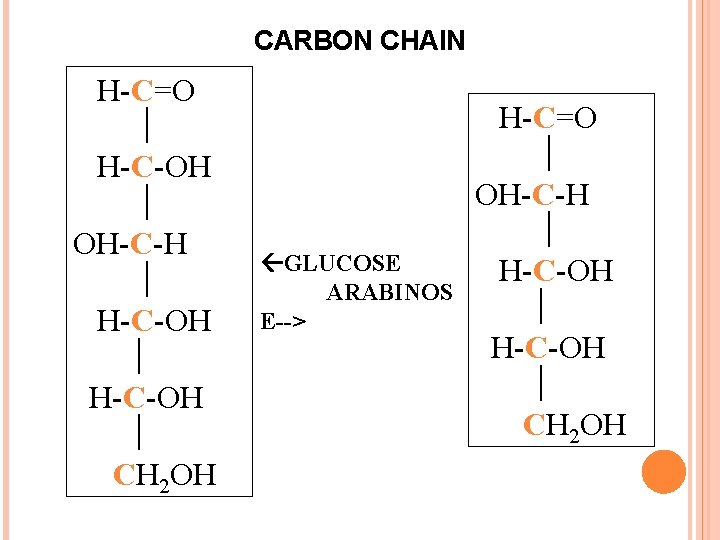

CARBON CHAIN H-C=O H-C-OH OH-C-H H-C-OH CH 2 OH GLUCOSE ARABINOS E--> H-C=O OH-C-H H-C-OH CH 2 OH

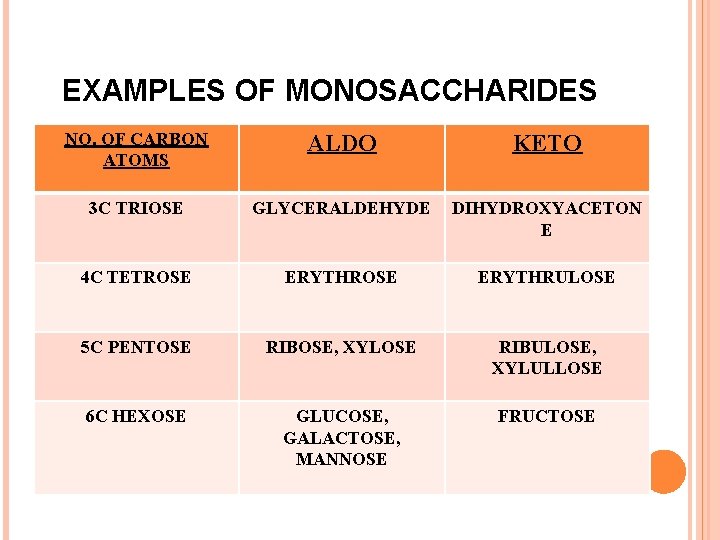

EXAMPLES OF MONOSACCHARIDES NO. OF CARBON ATOMS ALDO KETO 3 C TRIOSE GLYCERALDEHYDE DIHYDROXYACETON E 4 C TETROSE ERYTHRULOSE 5 C PENTOSE RIBOSE, XYLOSE RIBULOSE, XYLULLOSE 6 C HEXOSE GLUCOSE, GALACTOSE, MANNOSE FRUCTOSE

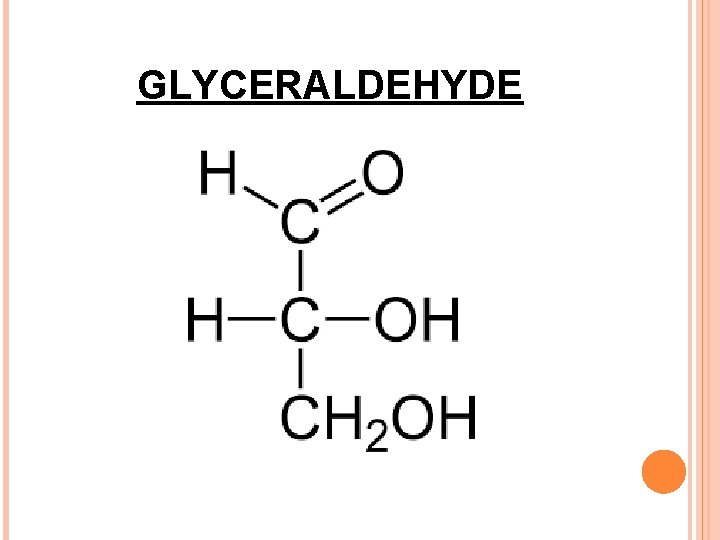

GLYCERALDEHYDE

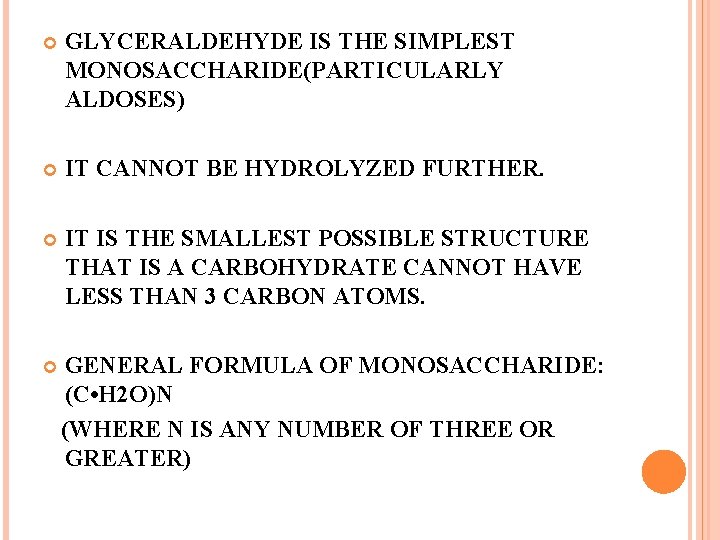

GLYCERALDEHYDE IS THE SIMPLEST MONOSACCHARIDE(PARTICULARLY ALDOSES) IT CANNOT BE HYDROLYZED FURTHER. IT IS THE SMALLEST POSSIBLE STRUCTURE THAT IS A CARBOHYDRATE CANNOT HAVE LESS THAN 3 CARBON ATOMS. GENERAL FORMULA OF MONOSACCHARIDE: (C • H 2 O)N (WHERE N IS ANY NUMBER OF THREE OR GREATER)

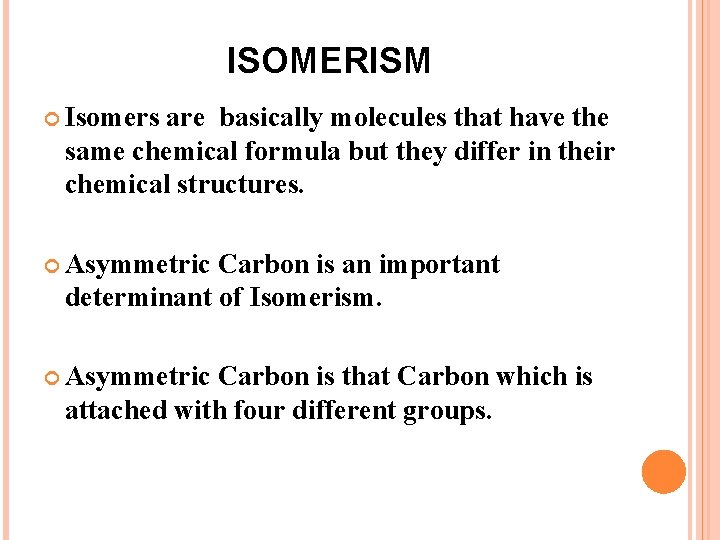

ISOMERISM Isomers are basically molecules that have the same chemical formula but they differ in their chemical structures. Asymmetric Carbon is an important determinant of Isomerism. Asymmetric Carbon is that Carbon which is attached with four different groups.

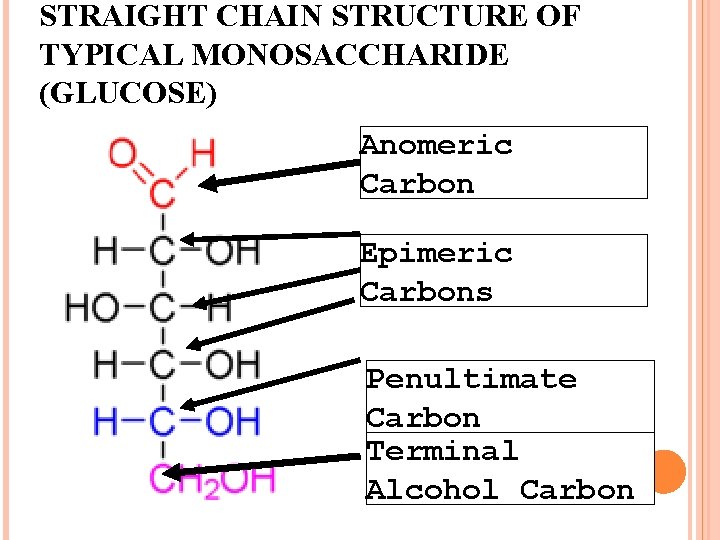

STRAIGHT CHAIN STRUCTURE OF TYPICAL MONOSACCHARIDE (GLUCOSE) Anomeric Carbon Epimeric Carbons Penultimate Carbon Terminal Alcohol Carbon

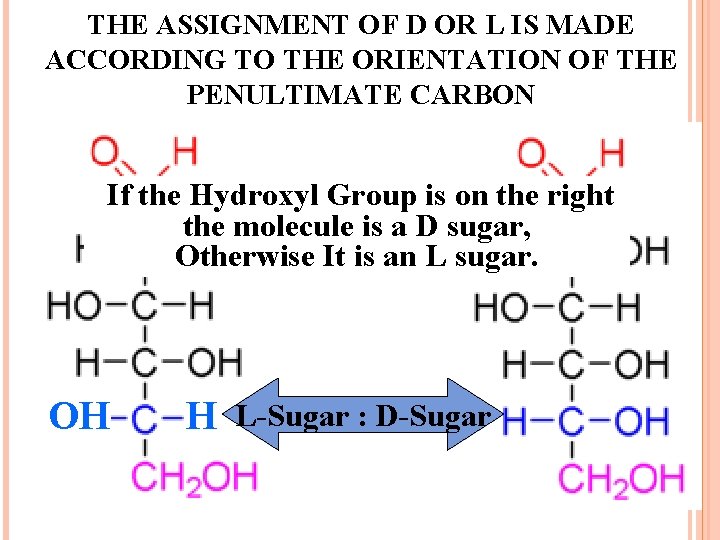

THE ASSIGNMENT OF D OR L IS MADE ACCORDING TO THE ORIENTATION OF THE PENULTIMATE CARBON If the Hydroxyl Group is on the right the molecule is a D sugar, Otherwise It is an L sugar. OH H L-Sugar : D-Sugar

D AND L ISOMERISM PRODUCE MIRROR IMAGES

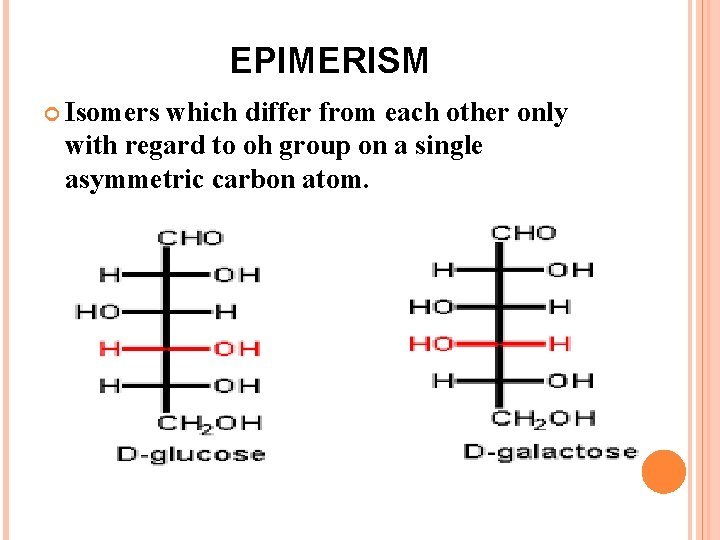

EPIMERISM Isomers which differ from each other only with regard to oh group on a single asymmetric carbon atom.

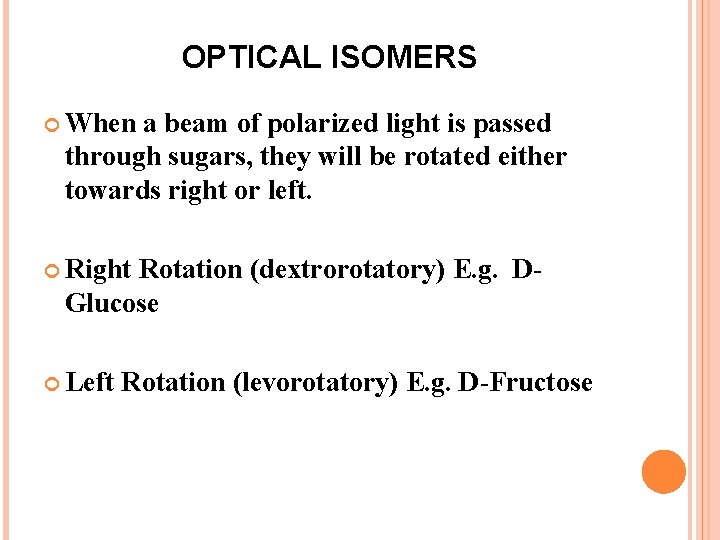

OPTICAL ISOMERS When a beam of polarized light is passed through sugars, they will be rotated either towards right or left. Right Rotation (dextrorotatory) E. g. D- Glucose Left Rotation (levorotatory) E. g. D-Fructose

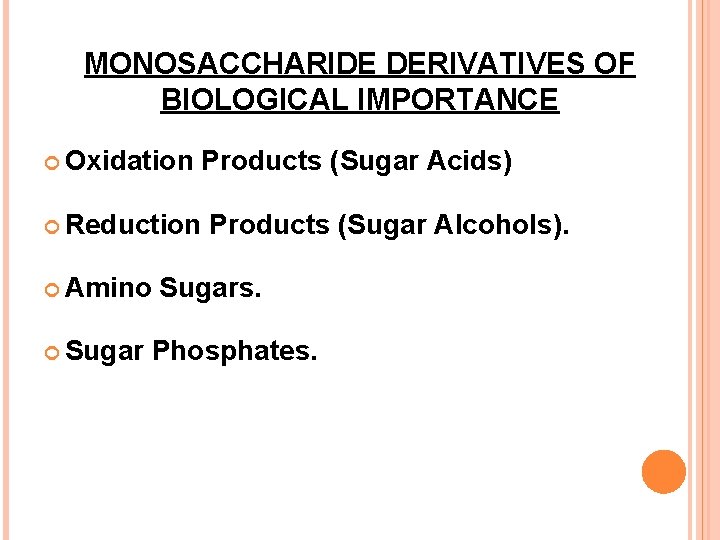

MONOSACCHARIDE DERIVATIVES OF BIOLOGICAL IMPORTANCE Oxidation Products (Sugar Acids) Reduction Amino Sugar Products (Sugar Alcohols). Sugars. Phosphates.

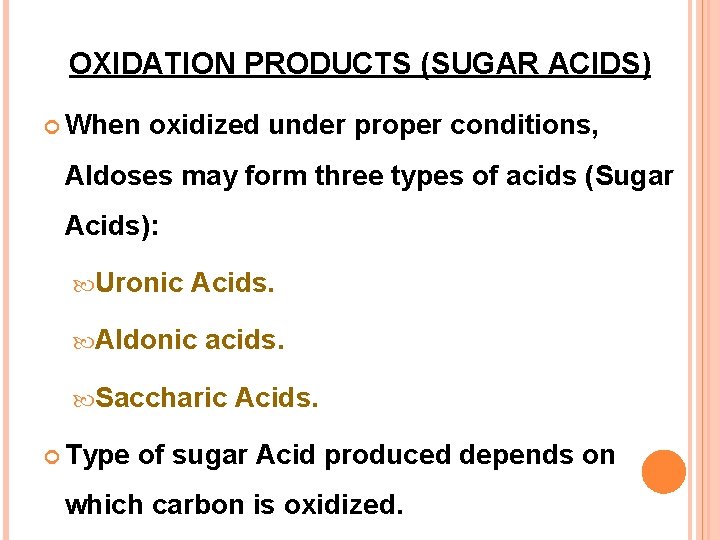

OXIDATION PRODUCTS (SUGAR ACIDS) When oxidized under proper conditions, Aldoses may form three types of acids (Sugar Acids): Uronic Acids. Aldonic acids. Saccharic Type Acids. of sugar Acid produced depends on which carbon is oxidized.

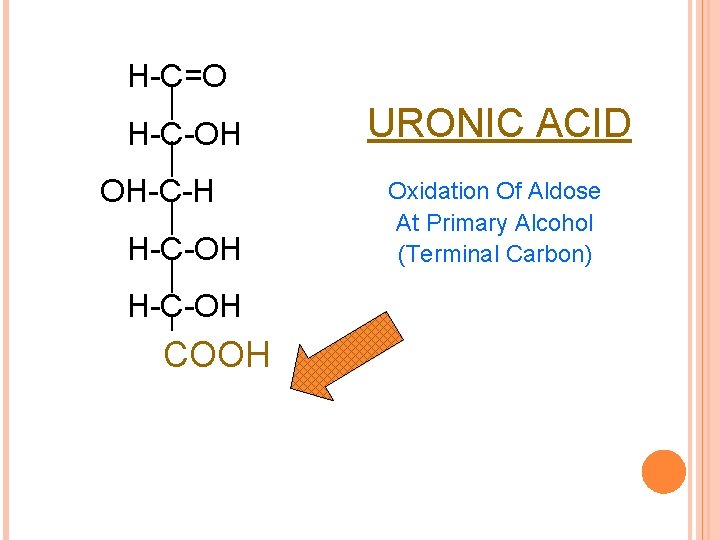

H-C=O H-C-OH OH-C-H H-C-OH COOH CH 2 OH URONIC ACID Oxidation Of Aldose At Primary Alcohol (Terminal Carbon)

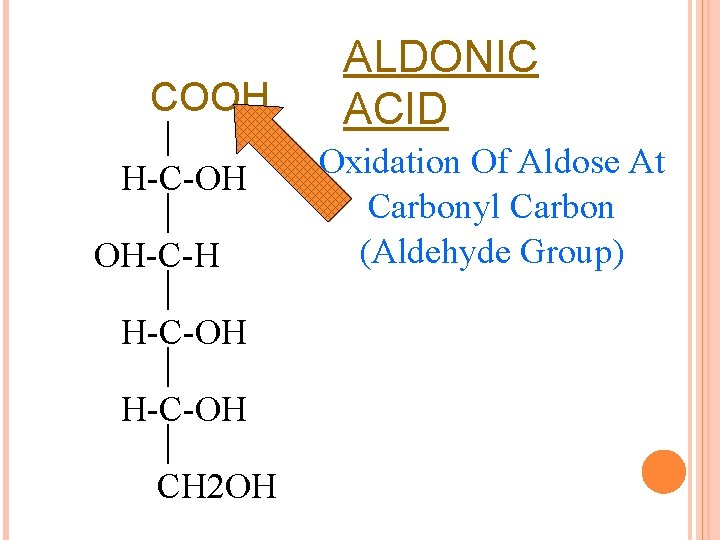

COOH H-C=O H-C-OH OH-C-H H-C-OH CH 2 OH ALDONIC ACID Oxidation Of Aldose At Carbonyl Carbon (Aldehyde Group)

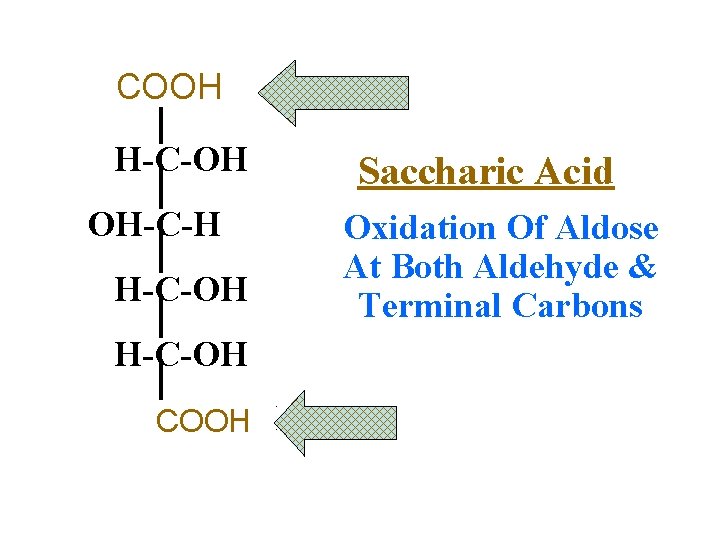

COOH H-C=O H-C-OH Saccharic Acid OH-C-H Oxidation Of Aldose At Both Aldehyde & H-C-OH Terminal Carbons H-C-OH CH 2 OH COOH

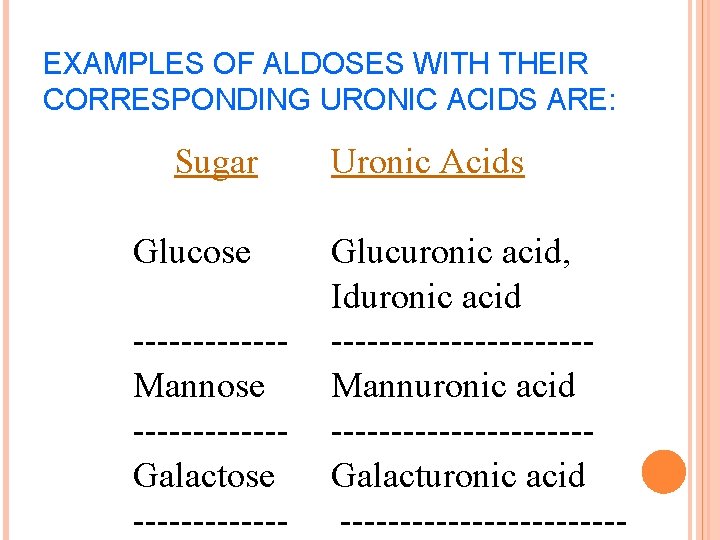

EXAMPLES OF ALDOSES WITH THEIR CORRESPONDING URONIC ACIDS ARE: Sugar Glucose ------Mannose ------Galactose ------- Uronic Acids Glucuronic acid, Iduronic acid -----------Mannuronic acid -----------Galacturonic acid ------------

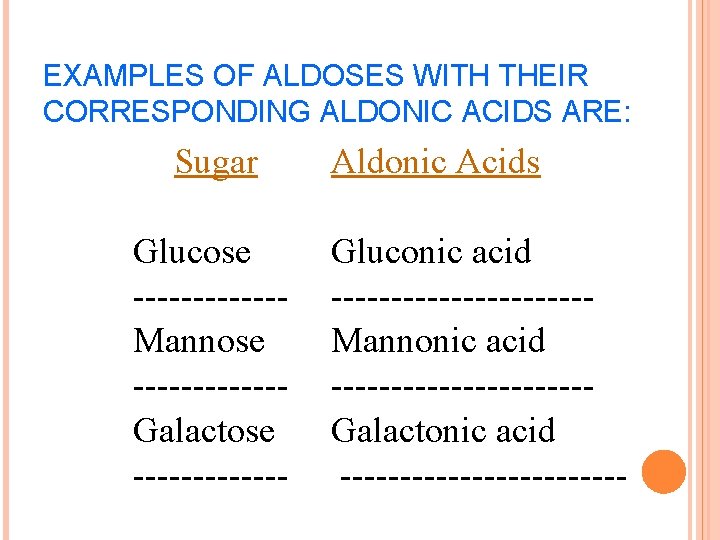

EXAMPLES OF ALDOSES WITH THEIR CORRESPONDING ALDONIC ACIDS ARE: Sugar Glucose ------Mannose ------Galactose ------- Aldonic Acids Gluconic acid -----------Mannonic acid -----------Galactonic acid ------------

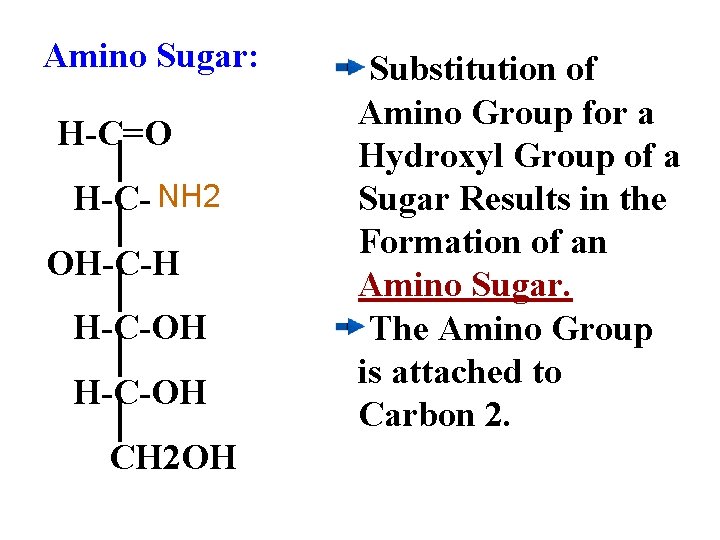

Amino Sugar: H-C=O NH 2 H-C-OH OH-C-H H-C-OH CH 2 OH Substitution of Amino Group for a Hydroxyl Group of a Sugar Results in the Formation of an Amino Sugar. The Amino Group is attached to Carbon 2.

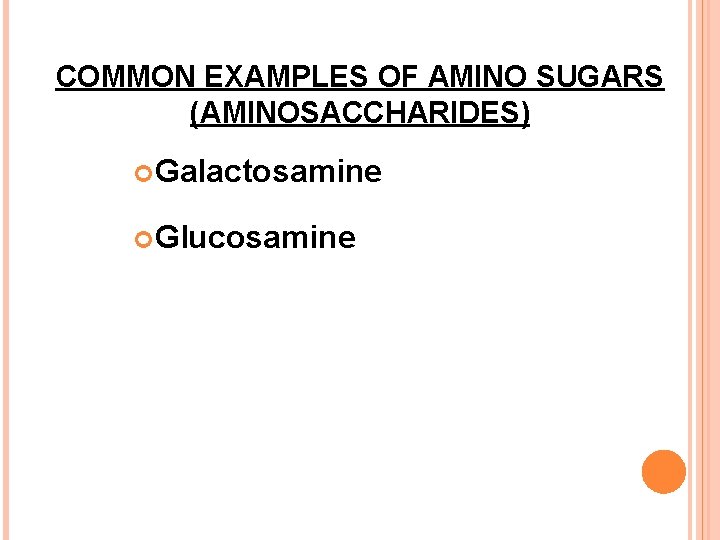

COMMON EXAMPLES OF AMINO SUGARS (AMINOSACCHARIDES) Galactosamine Glucosamine

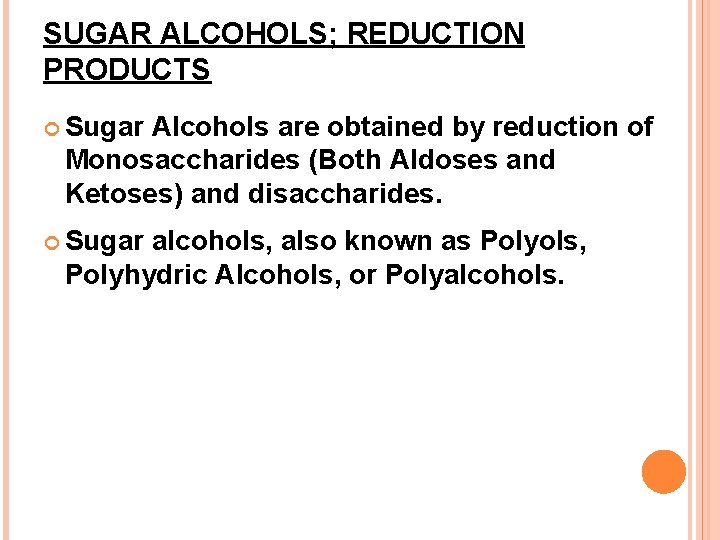

SUGAR ALCOHOLS; REDUCTION PRODUCTS Sugar Alcohols are obtained by reduction of Monosaccharides (Both Aldoses and Ketoses) and disaccharides. Sugar alcohols, also known as Polyols, Polyhydric Alcohols, or Polyalcohols.

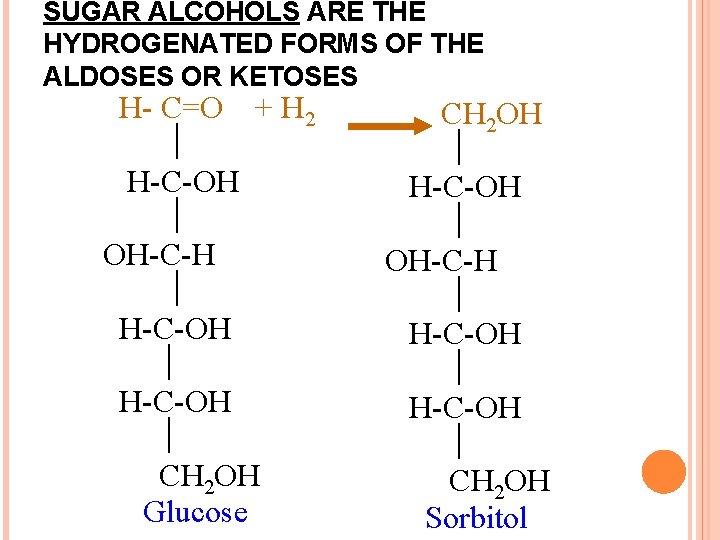

SUGAR ALCOHOLS ARE THE HYDROGENATED FORMS OF THE ALDOSES OR KETOSES H- C=O + H 2 H-C-OH OH-C-H H-C-OH CH 2 OH Glucose CH 2 OH H-C-OH OH-C-H H-C-OH CH 2 OH Sorbitol

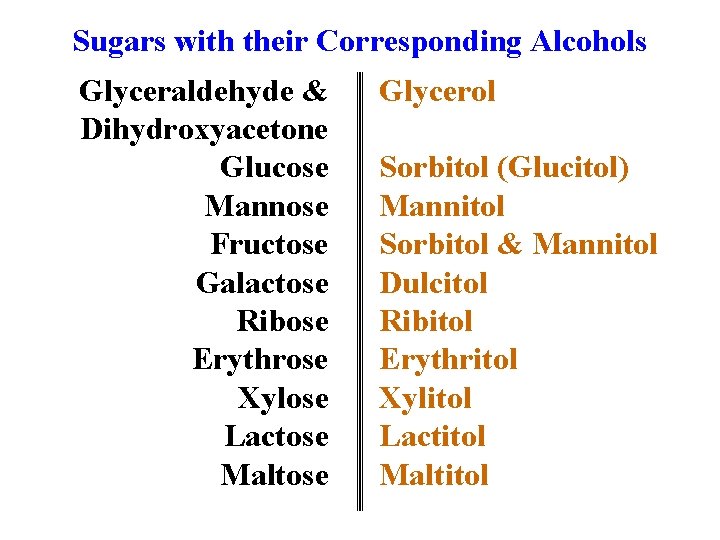

Sugars with their Corresponding Alcohols Glyceraldehyde & Dihydroxyacetone Glucose Mannose Fructose Galactose Ribose Erythrose Xylose Lactose Maltose Glycerol Sorbitol (Glucitol) Mannitol Sorbitol & Mannitol Dulcitol Ribitol Erythritol Xylitol Lactitol Maltitol

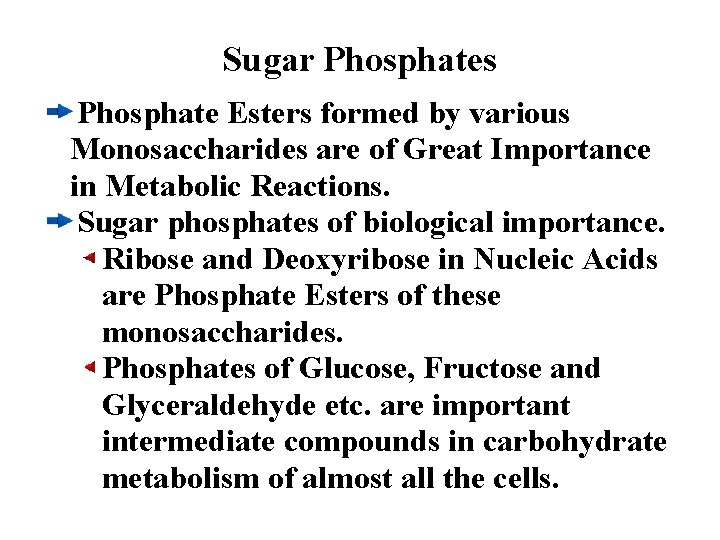

Sugar Phosphates Phosphate Esters formed by various Monosaccharides are of Great Importance in Metabolic Reactions. Sugar phosphates of biological importance. Ribose and Deoxyribose in Nucleic Acids are Phosphate Esters of these monosaccharides. Phosphates of Glucose, Fructose and Glyceraldehyde etc. are important intermediate compounds in carbohydrate metabolism of almost all the cells.

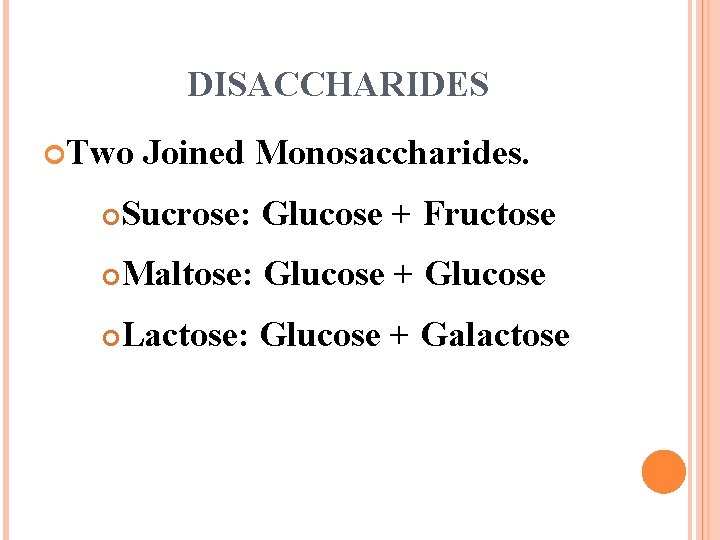

DISACCHARIDES Two Joined Monosaccharides. Sucrose: Glucose + Fructose Maltose: Glucose + Glucose Lactose: Glucose + Galactose

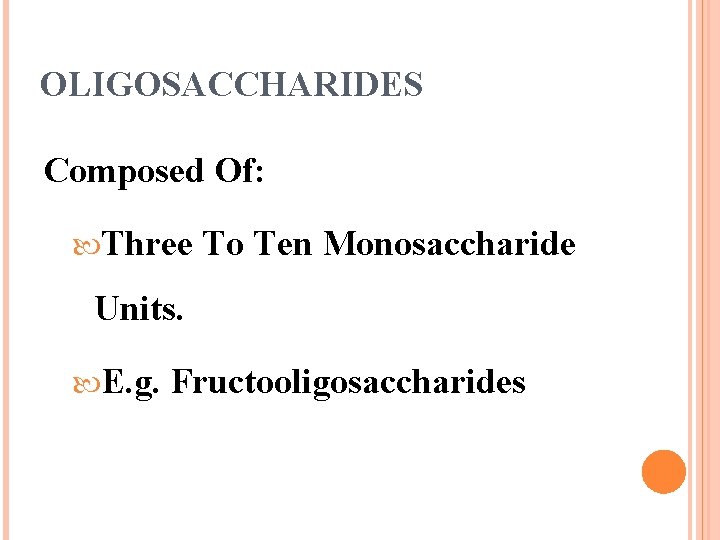

OLIGOSACCHARIDES Composed Of: Three To Ten Monosaccharide Units. E. g. Fructooligosaccharides

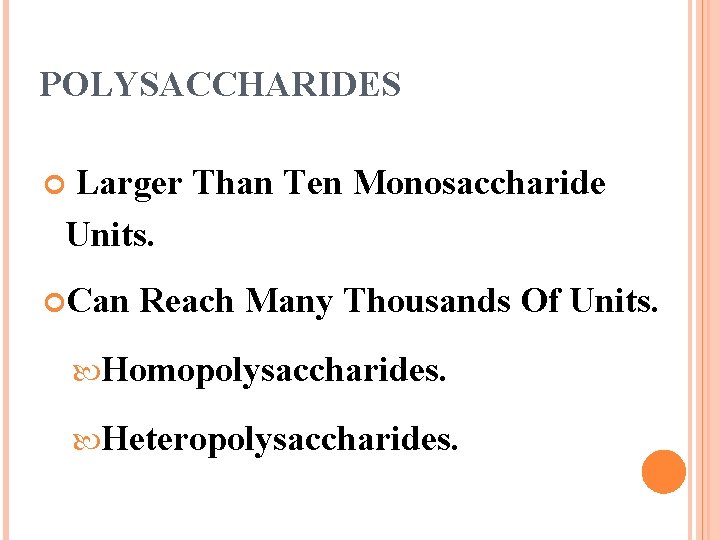

POLYSACCHARIDES Larger Than Ten Monosaccharide Units. Can Reach Many Thousands Of Units. Homopolysaccharides. Heteropolysaccharides.

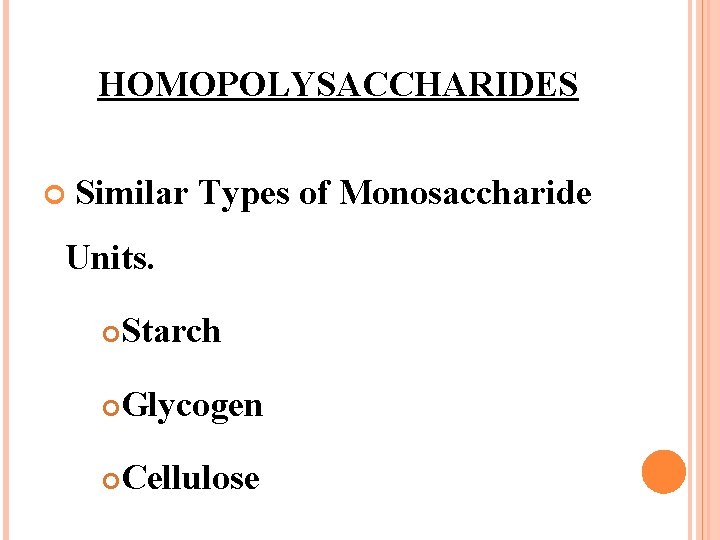

HOMOPOLYSACCHARIDES Similar Types of Monosaccharide Units. Starch Glycogen Cellulose

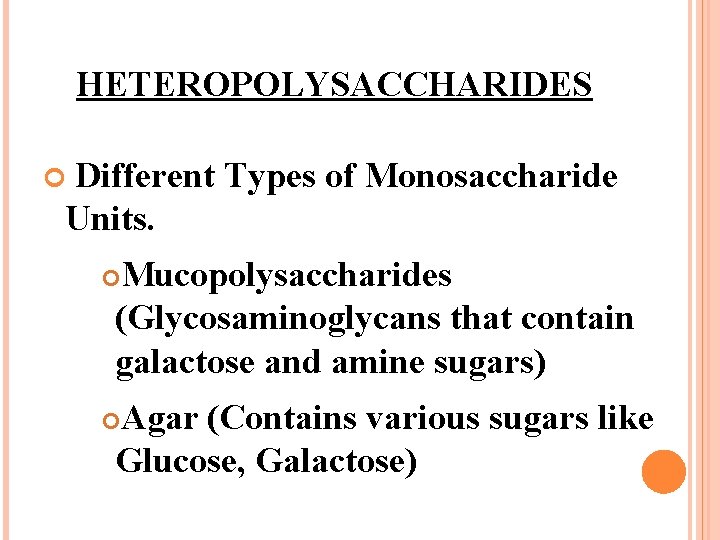

HETEROPOLYSACCHARIDES Different Types of Monosaccharide Units. Mucopolysaccharides (Glycosaminoglycans that contain galactose and amine sugars) Agar (Contains various sugars like Glucose, Galactose)
