Car Selling Service Input Car Output Price Input
- Slides: 7

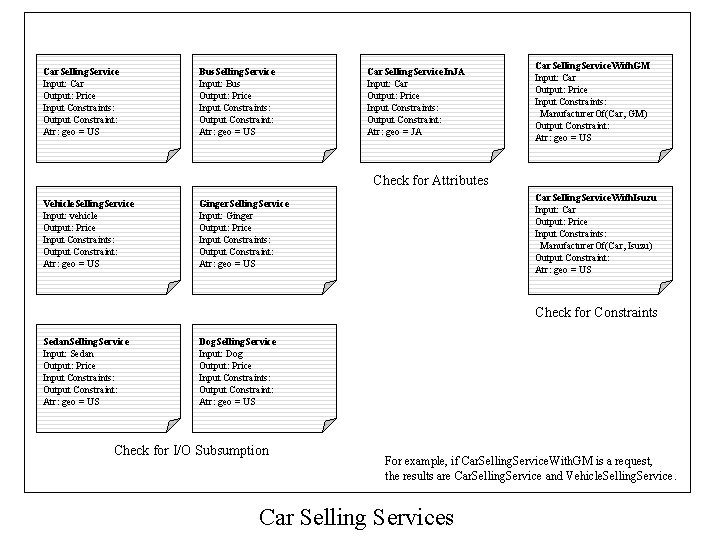

Car. Selling. Service Input: Car Output: Price Input Constraints: Output Constraint: Atr: geo = US Bus. Selling. Service Input: Bus Output: Price Input Constraints: Output Constraint: Atr: geo = US Car. Selling. Service. In. JA Input: Car Output: Price Input Constraints: Output Constraint: Atr: geo = JA Car. Selling. Service. With. GM Input: Car Output: Price Input Constraints: Manufacturer. Of(Car, GM) Output Constraint: Atr: geo = US Check for Attributes Vehicle. Selling. Service Input: vehicle Output: Price Input Constraints: Output Constraint: Atr: geo = US Car. Selling. Service. With. Isuzu Input: Car Output: Price Input Constraints: Manufacturer. Of(Car, Isuzu) Output Constraint: Atr: geo = US Ginger. Selling. Service Input: Ginger Output: Price Input Constraints: Output Constraint: Atr: geo = US Check for Constraints Sedan. Selling. Service Input: Sedan Output: Price Input Constraints: Output Constraint: Atr: geo = US Dog. Selling. Service Input: Dog Output: Price Input Constraints: Output Constraint: Atr: geo = US Check for I/O Subsumption For example, if Car. Selling. Service. With. GM is a request, the results are Car. Selling. Service and Vehicle. Selling. Service. Car Selling Services
Vehicle Animal Ginger Bus Car Dog Sedan Vehicle Animal Country US GM JA Afghanistan Isuzu Car Maker Location (Terms inside circle mean instances) Related Ontologies
Adv. A Input: Screw, Num Output: lead times Input Constraints: Manufacturer. Of(Screw, Toshiba) Num > 100 Output Constraint: if Num < 1000, then lead times < 7 days Atr: geo = US Adv. D Input: Buhin, Num Output: lead times, price Input Constraints: Manufacturer. Of(Buhin, IBM) Num > 80 Output Constraint: if Num < 1500, then lead times < 5 days Atr: geo = US Req. 1 Input: Neji, Num Output: lead times Input Constraints: Manufacturer. Of(Neji, Toshiba TEC) Num > 50 Output Constraint: if Num < 1000, then lead times < 7 days Atr: geo = US. . should have B with Plug-In match. Adv. B Input: Assemble , Num Output: lead times Input Constraints: Manufacturer. Of(Assemble, Toshiba) Num > 50 Output Constraint: if Num < 1000, then lead times < 5 days Atr: geo = US Adv. E Input: Neji Output: lead times Input Constraints: Manufacturer. Of(Neji, IBM) Output Constraint: lead times < 10 days Atr: geo = US Req. 2 Input: Screw , Num Output: lead times Input Constraints: Manufacturer. Of(Screw, TIBCO) Num > 100 Output Constraint: if Num < 1000, then lead times < 7 days Atr: geo = US . . . should have D with Plug-In match. Adv. C Input: Parts , Num Output: lead times, price Input Constraints: Manufacturer. Of(Parts, Toshiba TEC) Num > 30 Output Constraint: if Num < 1000, then lead times < 7 days Atr: geo = JA Parts Ordering Services
Parts Assemble Screw same. As Buhin same. As Bolt Neji Bisu Nut US JP Products Country US IBM Toshiba JA Afghanistan TIBCO Toshiba TEC Parts Maker Location (Terms inside circle mean instances) Related Ontologies
Client User Client Program Service Provider & Requester UDDI-compliant program Web Browser HTTP+ACL+DAMLS includes: DAML+OIL Ontology Rule. ML Rules HTTP+SOAP+{UDDI/XML | DAMLS} DAMLS Parsers Communicator & Protocol Handler Internet DAML+OIL Ontology DAMLS UDDI Translator DAMLS Matchmaking Engine Web Application Server HTTP+SOAP+UDDI/XML UDDI API UDDI Registry Back End DAMLS UDDI Semantic Matchmaking System

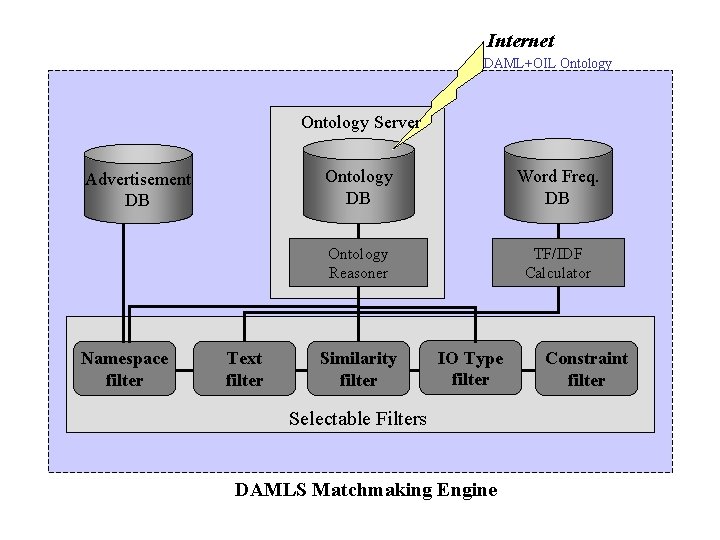

Internet DAML+OIL Ontology Server Advertisement DB Namespace filter Text filter Ontology DB Word Freq. DB Ontology Reasoner TF/IDF Calculator Similarity filter IO Type filter Selectable Filters DAMLS Matchmaking Engine Constraint filter
DAMLS Profile Description DAMLS API Internal Text form DAML+OIL API Internal Ontology objects Rule. ML API Internal Rule objects DAMLS Profile Object DAMLS Parsers
