Capacity Planning Facility Location 1 Capacity planning n

Capacity Planning & Facility Location 1

Capacity planning n n Capacity is the maximum output rate of a production or service facility Capacity planning is the process of establishing the output rate that may be needed at a facility: n Capacity is usually purchased in “chunks” n Strategic issues: how much and when to spend capital for additional facility & equipment n Tactical issues: workforce & inventory levels, & day-to-day use of equipment 2

Measuring Capacity Examples n n n There is no one best way to measure capacity Output measures like kegs per day are easier to understand With multiple products, inputs measures work better 3

Capacity Information Needed n Design capacity: n n n Maximum output rate under ideal conditions A bakery can make 30 custom cakes per day when pushed at holiday time Effective capacity: n n Maximum output rate under normal (realistic) conditions On the average this bakery can make 20 custom cakes per day 4

Calculating Capacity Utilization n Measures how much of the available capacity is actually being used: n n Measures effectiveness Use either effective or design capacity in denominator 5

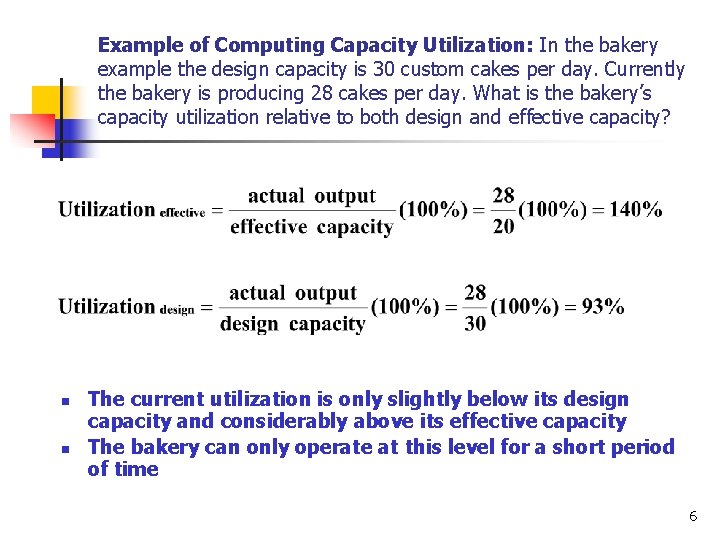

Example of Computing Capacity Utilization: In the bakery example the design capacity is 30 custom cakes per day. Currently the bakery is producing 28 cakes per day. What is the bakery’s capacity utilization relative to both design and effective capacity? n n The current utilization is only slightly below its design capacity and considerably above its effective capacity The bakery can only operate at this level for a short period of time 6

How Much Capacity Is Best? n n The Best Operating Level is the output than results in the lowest average unit cost Economies of Scale: n n n Where the cost per unit of output drops as volume of output increases Spread the fixed costs of buildings & equipment over multiple units, allow bulk purchasing & handling of material Diseconomies of Scale: n n Where the cost per unit rises as volume increases Often caused by congestion (overwhelming the process with too much work-in-process) and scheduling complexity 7

Best Operating Level and Size n n Alternative 1: Purchase one large facility, requiring one large initial investment Alternative 2: Add capacity incrementally in smaller chunks as needed 8

Other Capacity Considerations n Focused factories: n n Plant within a plant (PWP): n n Segmenting larger operations into smaller operating units with focused objectives Subcontractor networks: n n Small, specialized facilities with limited objectives Outsource non-core items to free up capacity for what you do well Capacity cushions: n Plan to underutilize capacity to provide flexibility 9

Making Capacity Planning Decisions n The three-step procedure for making capacity planning decisions is as follows: n Step 1: Identify Capacity Requirements n Step 2: Develop Capacity Alternatives n Step 3: Evaluate Capacity Alternatives 10

Evaluating Capacity Alternatives n n Could do nothing, or expand large now, or expand small now with option to add later Use Decision Trees analysis tool: n n A modeling tool for evaluating sequential decisions Identify the alternatives at each point in time (decision points), estimate probable consequences of each decision (chance events) & the ultimate outcomes (e. g. : profit or loss) 11

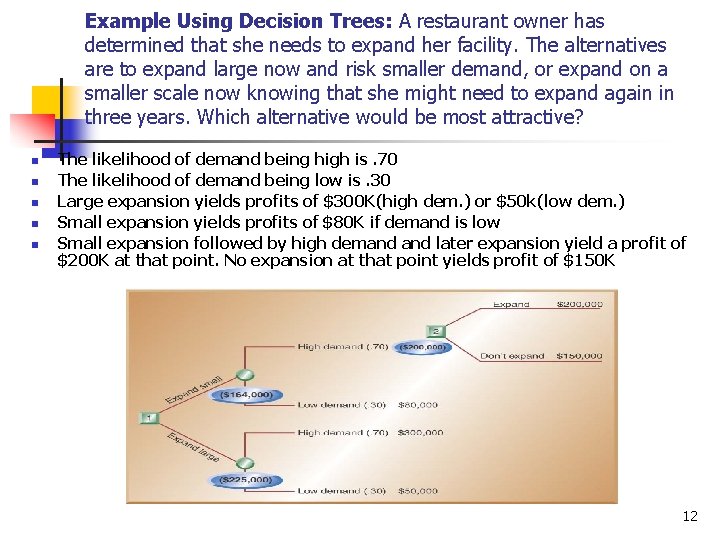

Example Using Decision Trees: A restaurant owner has determined that she needs to expand her facility. The alternatives are to expand large now and risk smaller demand, or expand on a smaller scale now knowing that she might need to expand again in three years. Which alternative would be most attractive? n n n The likelihood of demand being high is. 70 The likelihood of demand being low is. 30 Large expansion yields profits of $300 K(high dem. ) or $50 k(low dem. ) Small expansion yields profits of $80 K if demand is low Small expansion followed by high demand later expansion yield a profit of $200 K at that point. No expansion at that point yields profit of $150 K 12

Evaluating the Decision Tree n n At decision point 2, choose to expand to maximize profits ($200, 000 > $150, 000) Calculate expected value of small expansion: n n Calculate expected value of large expansion: n n EVlarge = 0. 30($50, 000) + 0. 70($300, 000) = $225, 000 At decision point 1, compare alternatives & choose the large expansion to maximize the expected profit: n n EVsmall = 0. 30($80, 000) + 0. 70($200, 000) = $164, 000 $225, 000 > $164, 000 Choose large expansion despite the fact that there is a 30% chance it’s the worst decision n What % chance breaks-even? App. 77% (use Excel) 13

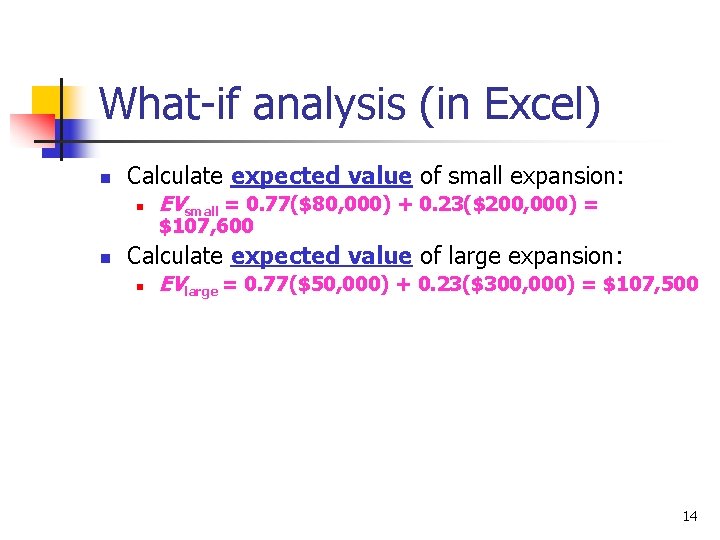

What-if analysis (in Excel) n Calculate expected value of small expansion: n n EVsmall = 0. 77($80, 000) + 0. 23($200, 000) = $107, 600 Calculate expected value of large expansion: n EVlarge = 0. 77($50, 000) + 0. 23($300, 000) = $107, 500 14

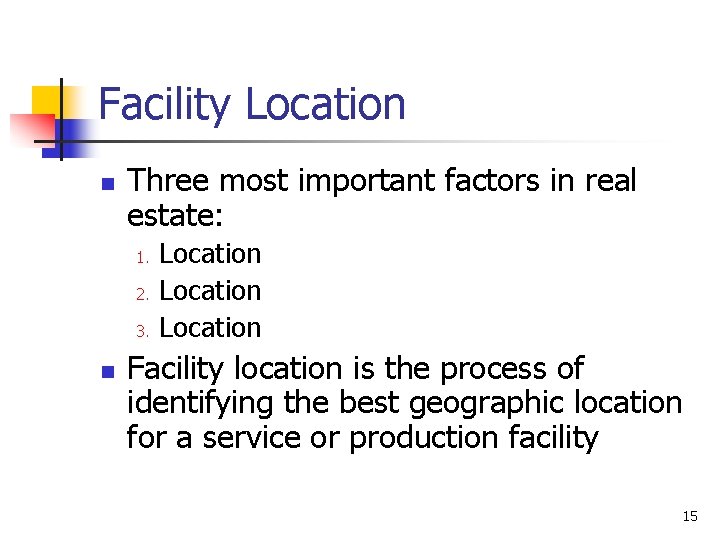

Facility Location n Three most important factors in real estate: 1. 2. 3. n Location Facility location is the process of identifying the best geographic location for a service or production facility 15

Location Factors n Proximity to suppliers: n n Proximity to customers: n n Reduce transportation costs of perishable or bulky raw materials E. g. : high population areas, close to JIT partners Proximity to labor: n Local wage rates, attitude toward unions, availability of special skills (e. g. : silicon valley) 16

More Location Factors n Community considerations: n n Site considerations: n n Local zoning & taxes, access to utilities, etc. Quality-of-life issues: n n Local community’s attitude toward the facility (e. g. : prisons, utility plants, etc. ) Climate, cultural attractions, commuting time, etc. Other considerations: n Options for future expansion, local competition, etc. 17

Should Firm Go Global? n Potential advantages: n n Potential disadvantages: n n Inside track to foreign markets, avoid trade barriers, gain access to cheaper labor Political risks may increase, loss of control of proprietary technology, local infrastructure (roads & utilities) may be inadequate, high inflation Other issues: n Language barriers, different laws & regulations, different business cultures 18

Location Analysis Methods n Analysis should follow 3 step process: n n n n Step 1: Identify dominant location factors Step 2: Develop location alternatives Step 3: Evaluate locations alternatives Factor rating method Load-distance model Center of gravity approach Break-even analysis Transportation method 19

Factor Rating Example 20

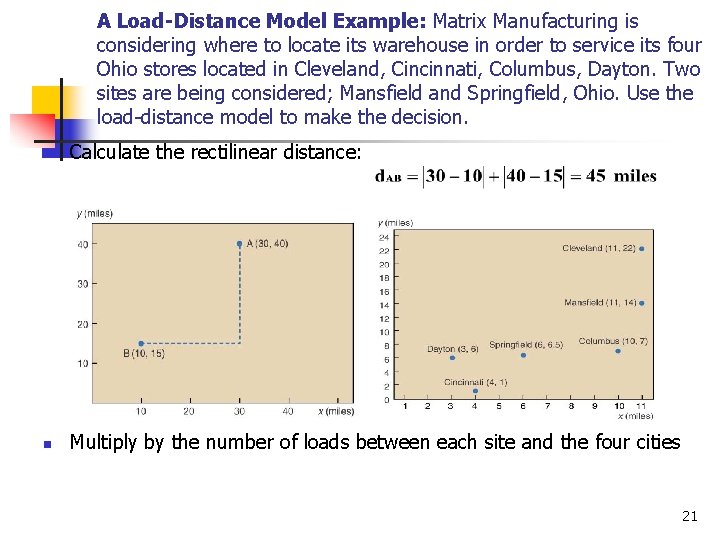

A Load-Distance Model Example: Matrix Manufacturing is considering where to locate its warehouse in order to service its four Ohio stores located in Cleveland, Cincinnati, Columbus, Dayton. Two sites are being considered; Mansfield and Springfield, Ohio. Use the load-distance model to make the decision. n Calculate the rectilinear distance: n Multiply by the number of loads between each site and the four cities 21

Calculating the Load-Distance Score for Springfield vs. Mansfield n n The load-distance score for Mansfield is higher than for Springfield. The warehouse should be located in Springfield. 22

The Center of Gravity Approach n n n This approach requires that the analyst find the center of gravity of the geographic area being considered Computing the Center of Gravity for Matrix Manufacturing Is there another possible warehouse location closer to the C. G. 23 that should be considered? ? Why?

Break-Even Analysis n Break-even analysis can be used for location analysis especially when the costs of each location are known n n Step 1: For each location, determine the fixed and variable costs Step 2: Plot the total costs for each location on one graph Step 3: Identify ranges of output for which each location has the lowest total cost Step 4: Solve algebraically for the break-even points over the identified ranges Remember the break even equations used for calculation total cost of each location and for calculating the breakeven quantity Q. n Total cost = F + c. Q n n Total revenue = p. Q Break-even is where Total Revenue = Total Cost 24

The Transportation Method n n The transportation method of linear programming can be used to solve specific location problems It is discussed in detail in the supplement to this text It could be used to evaluate the cost impact of adding potential location sites to the network of existing facilities It could also be used to evaluate adding multiple new sites or completely redesigning the network 25
