Cap Probe A Simple and Accurate Capacity Estimation

Cap. Probe: A Simple and Accurate Capacity Estimation Technique Kapoor et al. , SIGCOMM ‘ 04

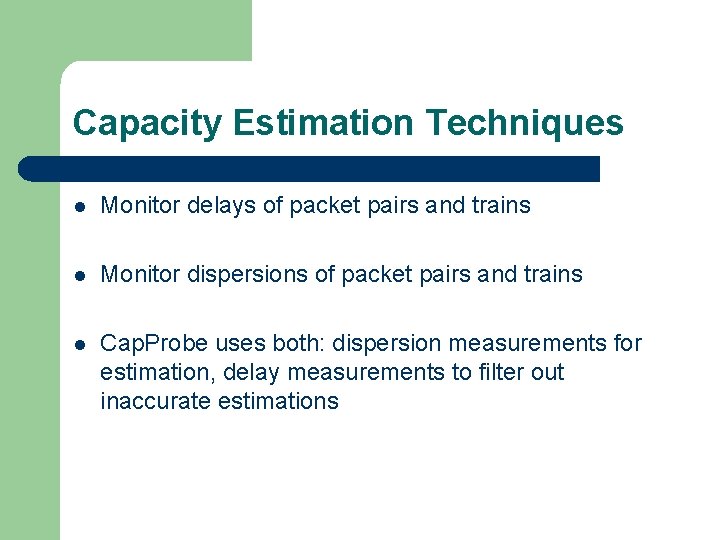

Capacity Estimation Techniques l Monitor delays of packet pairs and trains l Monitor dispersions of packet pairs and trains l Cap. Probe uses both: dispersion measurements for estimation, delay measurements to filter out inaccurate estimations

Dispersion – The Packet Pair Algorithm If two packets sent back-toback are queued one after the other at a narrow link, they will exit the link with dispersion T given by: T = L / B, L = size of second packet, B = bandwidth of narrow link l

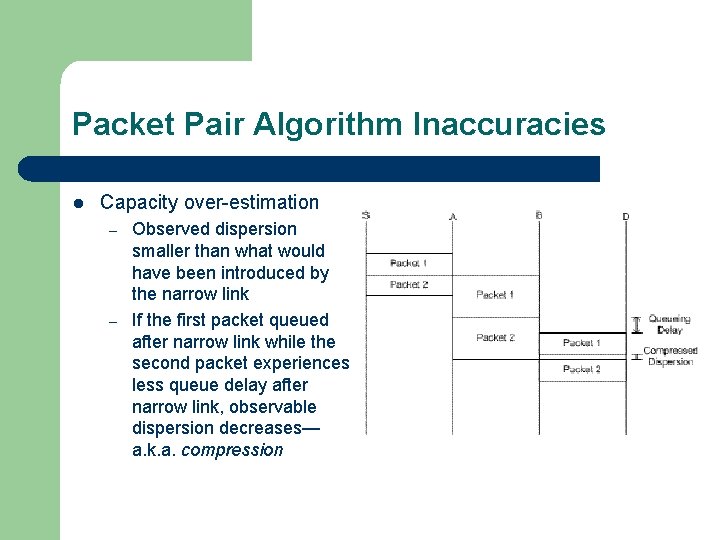

Packet Pair Algorithm Inaccuracies l Capacity over-estimation – – Observed dispersion smaller than what would have been introduced by the narrow link If the first packet queued after narrow link while the second packet experiences less queue delay after narrow link, observable dispersion decreases— a. k. a. compression

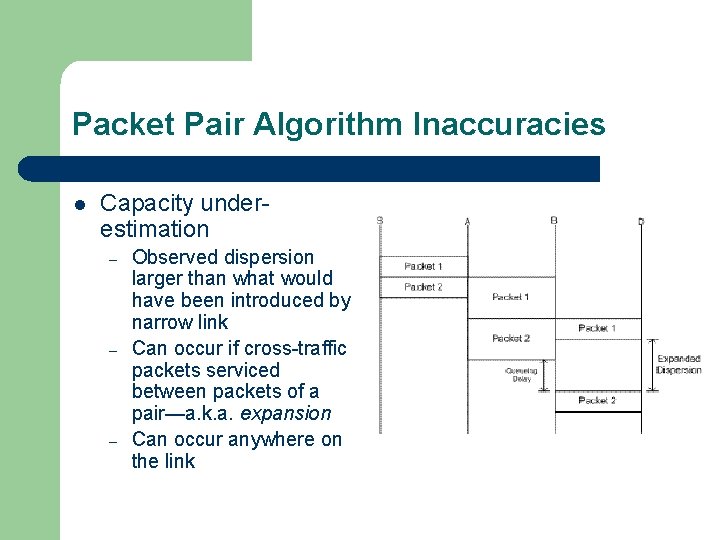

Packet Pair Algorithm Inaccuracies l Capacity underestimation – – – Observed dispersion larger than what would have been introduced by narrow link Can occur if cross-traffic packets serviced between packets of a pair—a. k. a. expansion Can occur anywhere on the link

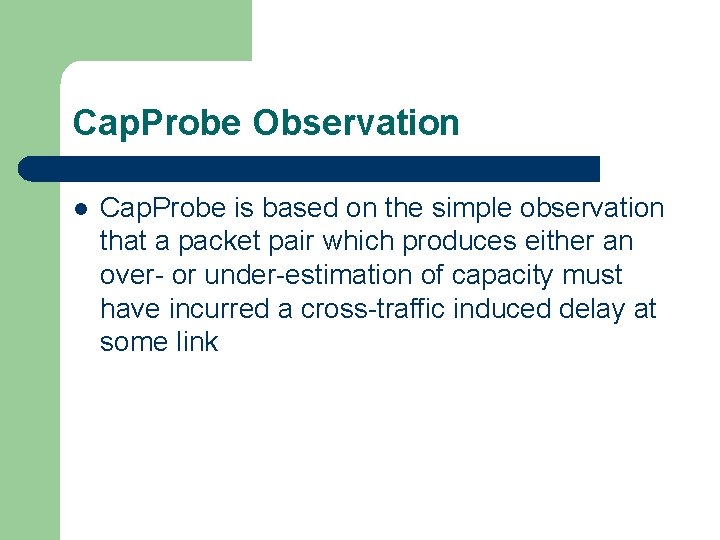

Cap. Probe Observation l Cap. Probe is based on the simple observation that a packet pair which produces either an over- or under-estimation of capacity must have incurred a cross-traffic induced delay at some link

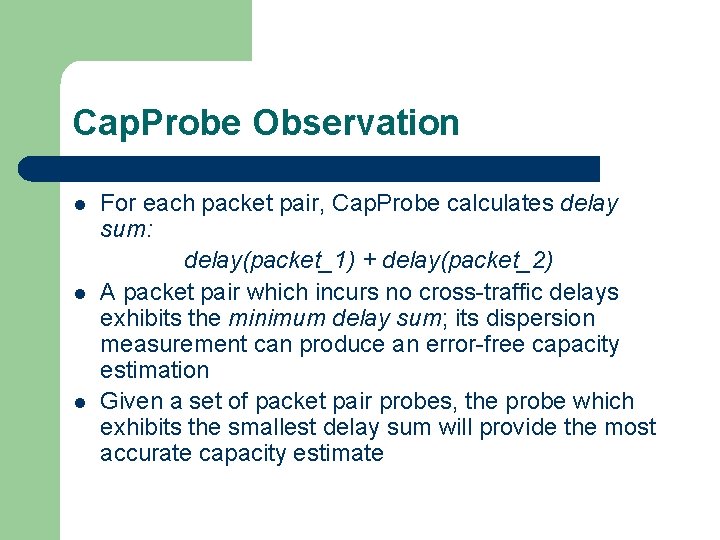

Cap. Probe Observation l l l For each packet pair, Cap. Probe calculates delay sum: delay(packet_1) + delay(packet_2) A packet pair which incurs no cross-traffic delays exhibits the minimum delay sum; its dispersion measurement can produce an error-free capacity estimation Given a set of packet pair probes, the probe which exhibits the smallest delay sum will provide the most accurate capacity estimate

Effect of Packet Size l l Decreasing probability of cross-traffic induced delays will improve Cap. Probe’s effectiveness Want to consider the relationship between probe packets’ sizes and probability of delay

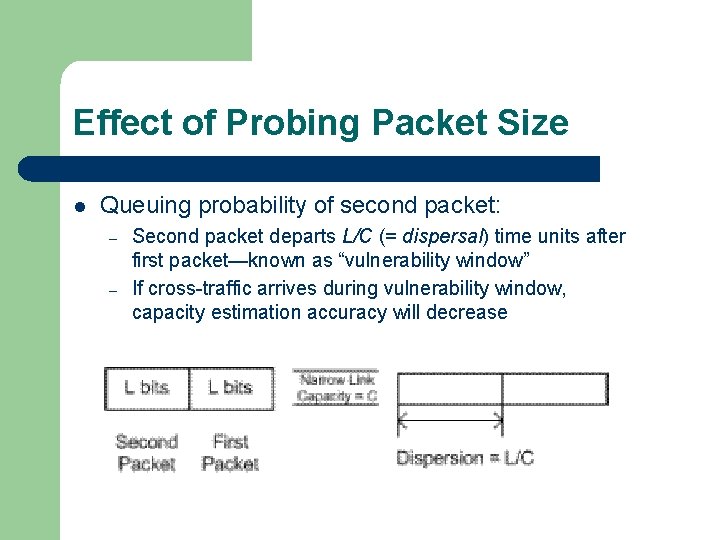

Effect of Probing Packet Size l Queuing probability of second packet: – – Second packet departs L/C (= dispersal) time units after first packet—known as “vulnerability window” If cross-traffic arrives during vulnerability window, capacity estimation accuracy will decrease

Effect of Probing Packet Size l Queuing probability of second packet: – Can be reduced by decreasing probe packet sizes l Eg: halving the packet size shrinks the vulnerability window, which reduces the probability that the second packet will incur a delay, thereby decreasing the probability of capacity under-estimation

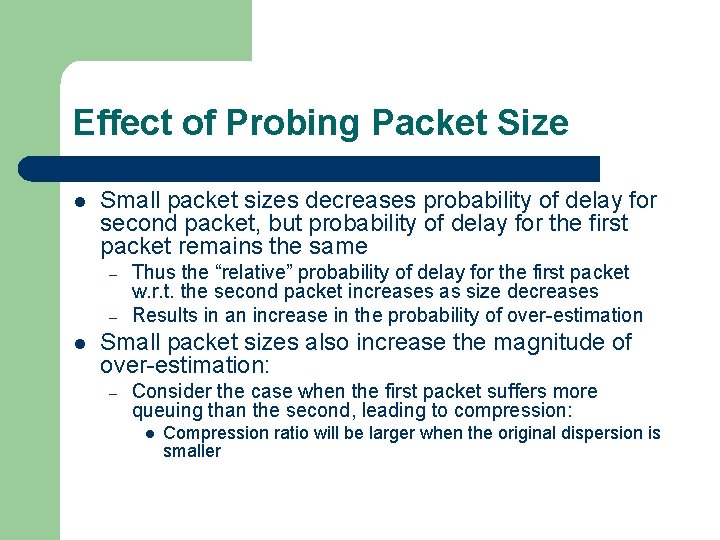

Effect of Probing Packet Size l Small packet sizes decreases probability of delay for second packet, but probability of delay for the first packet remains the same – – l Thus the “relative” probability of delay for the first packet w. r. t. the second packet increases as size decreases Results in an increase in the probability of over-estimation Small packet sizes also increase the magnitude of over-estimation: – Consider the case when the first packet suffers more queuing than the second, leading to compression: l Compression ratio will be larger when the original dispersion is smaller

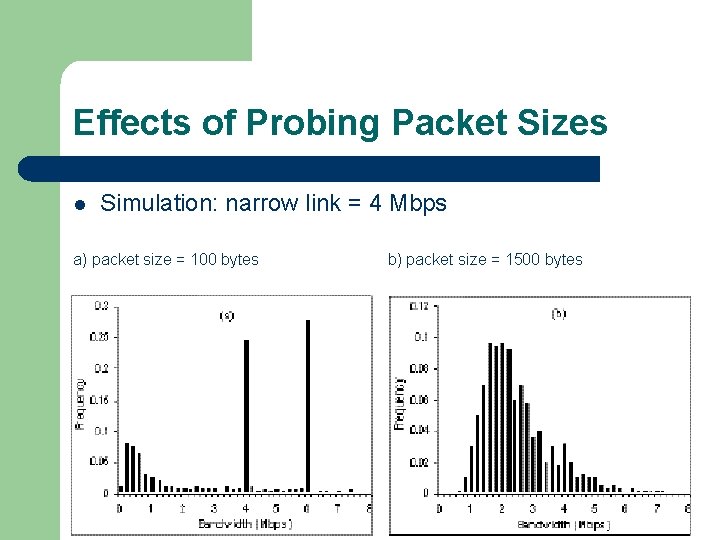

Effects of Probing Packet Sizes l Simulation: narrow link = 4 Mbps a) packet size = 100 bytes b) packet size = 1500 bytes

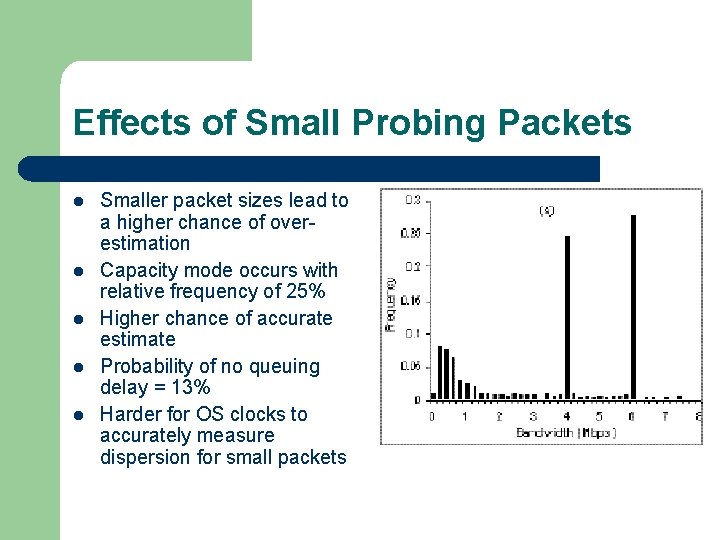

Effects of Small Probing Packets l l l Smaller packet sizes lead to a higher chance of overestimation Capacity mode occurs with relative frequency of 25% Higher chance of accurate estimate Probability of no queuing delay = 13% Harder for OS clocks to accurately measure dispersion for small packets

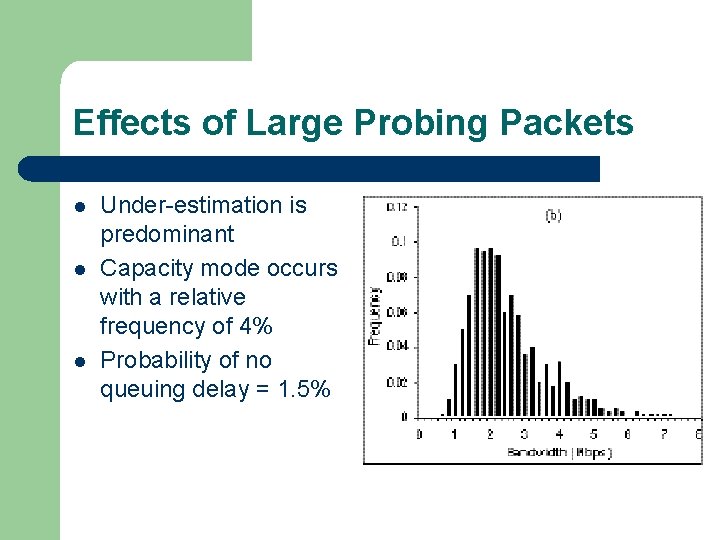

Effects of Large Probing Packets l l l Under-estimation is predominant Capacity mode occurs with a relative frequency of 4% Probability of no queuing delay = 1. 5%

Effect of Probing Packet Size on Cross. Traffic Queuing Effect of probe size on the probability of not queuing when cross-traffic size 550 bytes

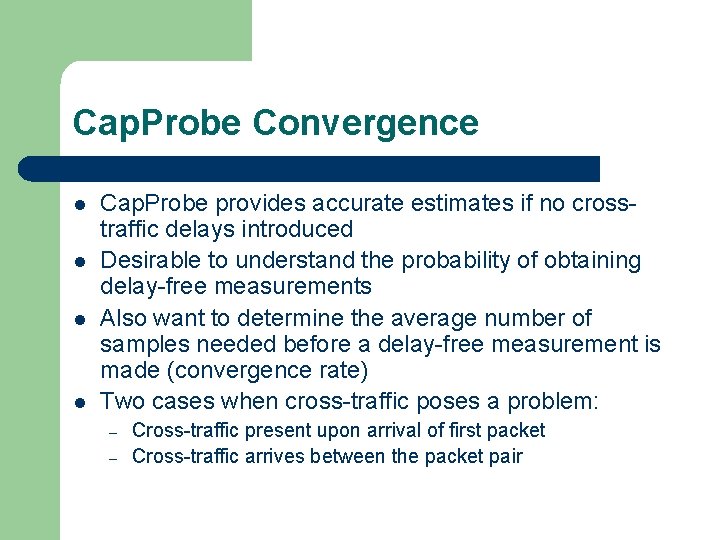

Cap. Probe Convergence l l Cap. Probe provides accurate estimates if no crosstraffic delays introduced Desirable to understand the probability of obtaining delay-free measurements Also want to determine the average number of samples needed before a delay-free measurement is made (convergence rate) Two cases when cross-traffic poses a problem: – – Cross-traffic present upon arrival of first packet Cross-traffic arrives between the packet pair

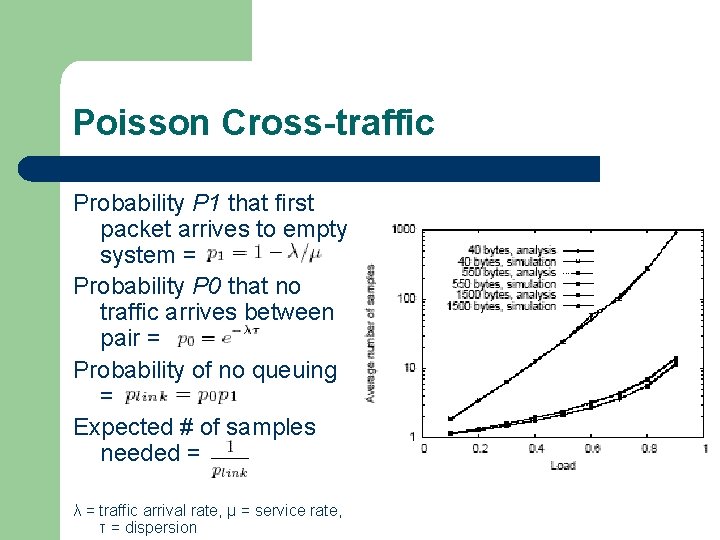

Poisson Cross-traffic Probability P 1 that first packet arrives to empty system = Probability P 0 that no traffic arrives between pair = Probability of no queuing = Expected # of samples needed = λ = traffic arrival rate, μ = service rate, τ = dispersion

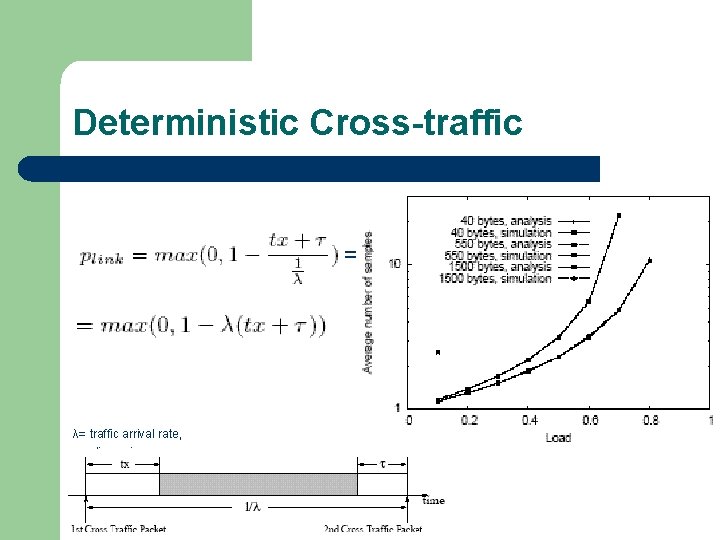

Deterministic Cross-traffic Probability of no queuing = λ= traffic arrival rate, τ = dispersion, tx = transmission time of cross-traffic packet

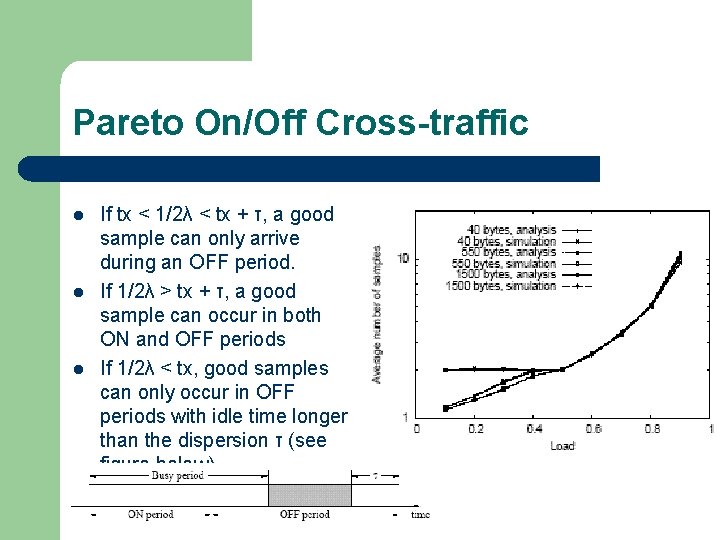

Pareto On/Off Cross-traffic l l l If tx < 1/2λ < tx + τ, a good sample can only arrive during an OFF period. If 1/2λ > tx + τ, a good sample can occur in both ON and OFF periods If 1/2λ < tx, good samples can only occur in OFF periods with idle time longer than the dispersion τ (see figure below)

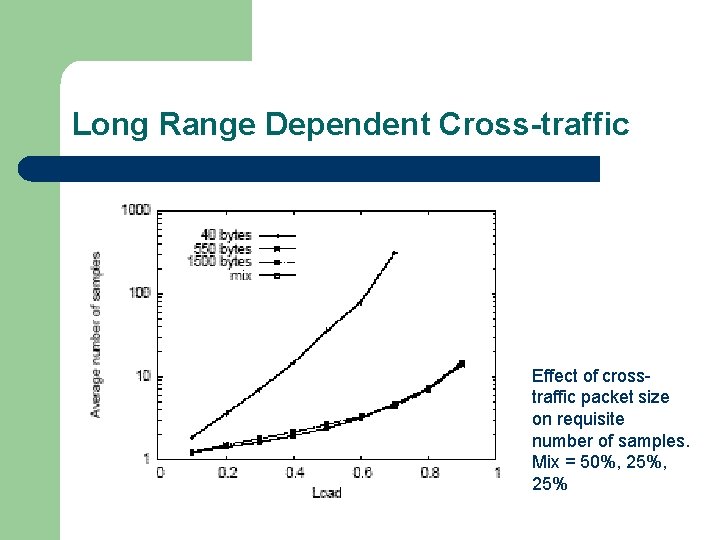

Long Range Dependent Cross-traffic Effect of crosstraffic packet size on requisite number of samples. Mix = 50%, 25%

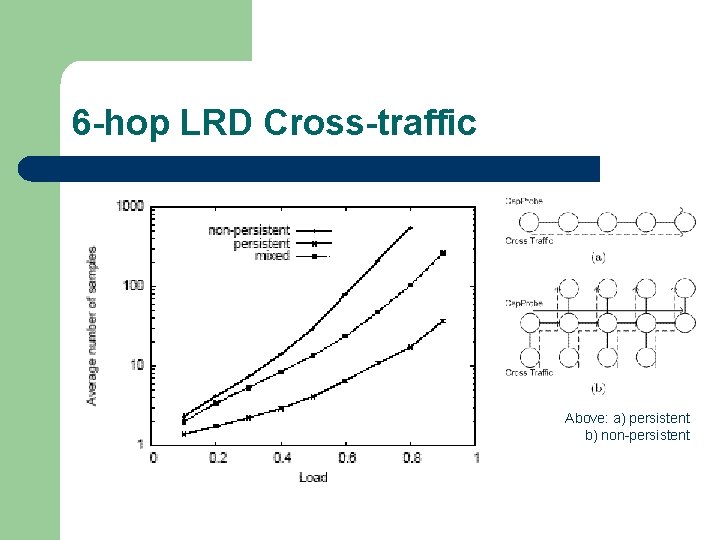

6 -hop LRD Cross-traffic Above: a) persistent b) non-persistent

Minimum Delay Sum Condition l Want to determine accuracy of estimations – – – Accuracy based on absence of delay—best estimate comes from probe pair w/ minimum delay sum = delay(P_first) + delay(P_second) It is more likely that a single packet will not experience queuing than it is that neither of a pair of packets will experience queuing If the observed minimum delay sum is greater than the observed minimum possible delay, i. e. the minimum delay sum is greater than the sum of the minimum delays of individual packets, then the probe incurred some delay and is not as accurate as possible

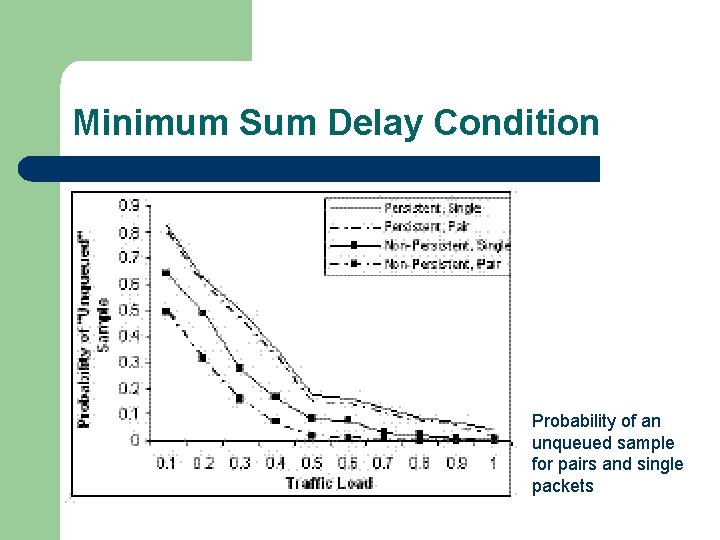

Minimum Sum Delay Condition Probability of an unqueued sample for pairs and single packets

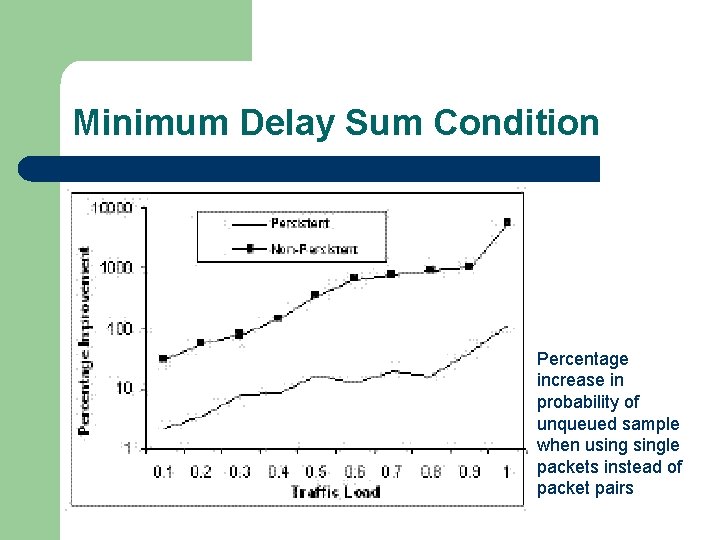

Minimum Delay Sum Condition Percentage increase in probability of unqueued sample when usingle packets instead of packet pairs

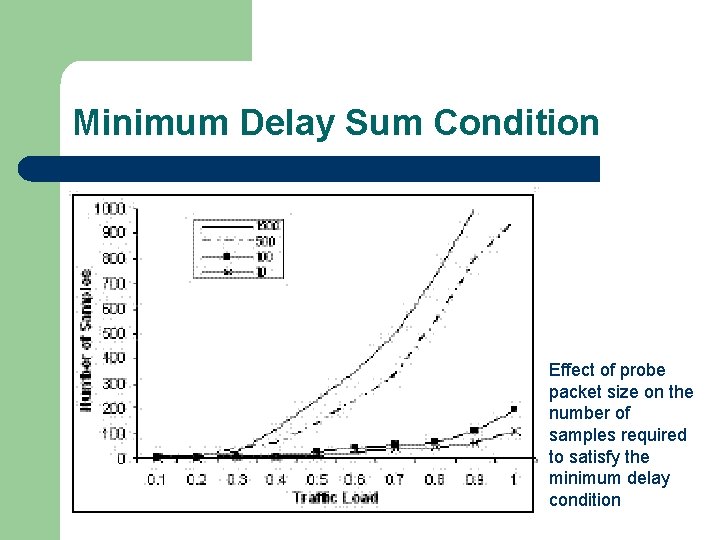

Minimum Delay Sum Condition Effect of probe packet size on the number of samples required to satisfy the minimum delay condition

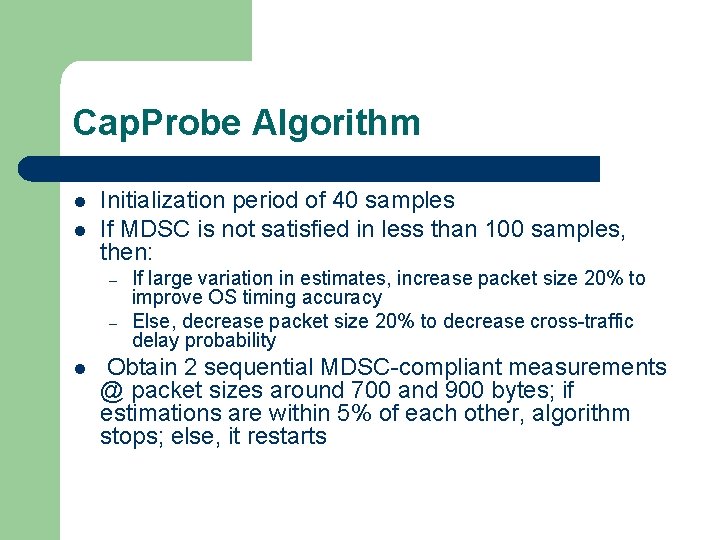

Cap. Probe Algorithm l l Initialization period of 40 samples If MDSC is not satisfied in less than 100 samples, then: – – l If large variation in estimates, increase packet size 20% to improve OS timing accuracy Else, decrease packet size 20% to decrease cross-traffic delay probability Obtain 2 sequential MDSC-compliant measurements @ packet sizes around 700 and 900 bytes; if estimations are within 5% of each other, algorithm stops; else, it restarts

Simulation Results

Simulation Results

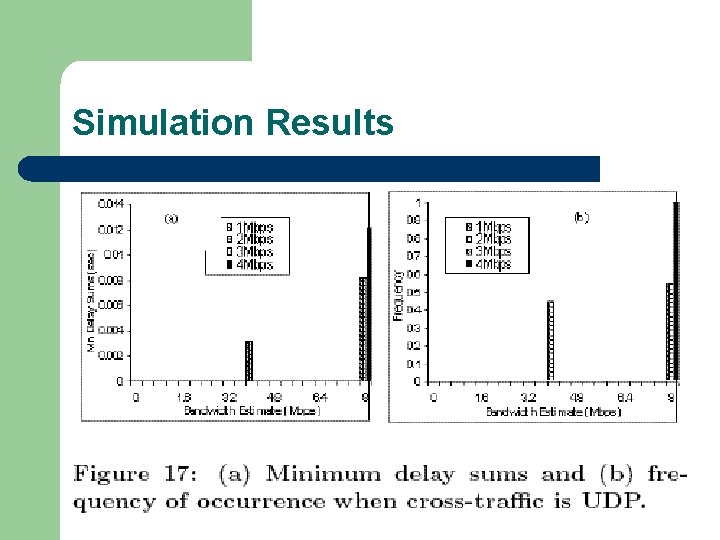

Simulation Results

Simulation Results

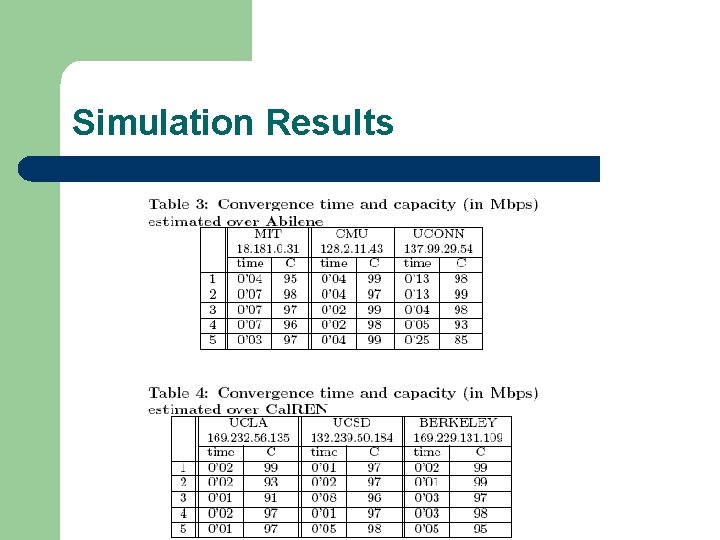

Simulation Results

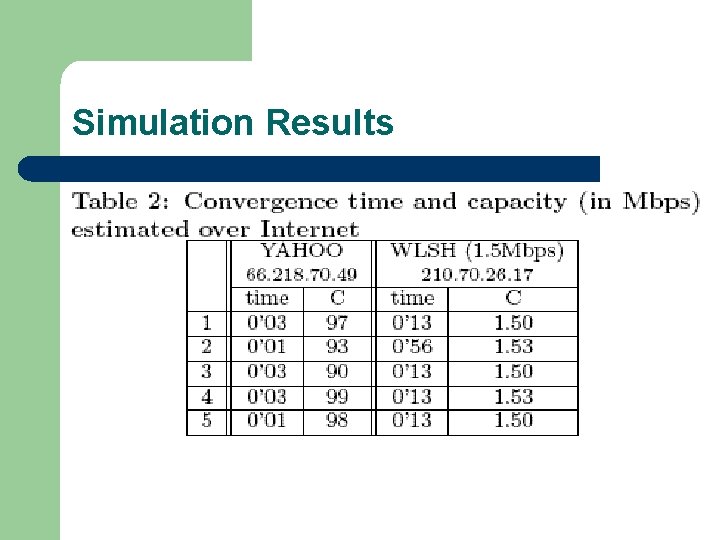

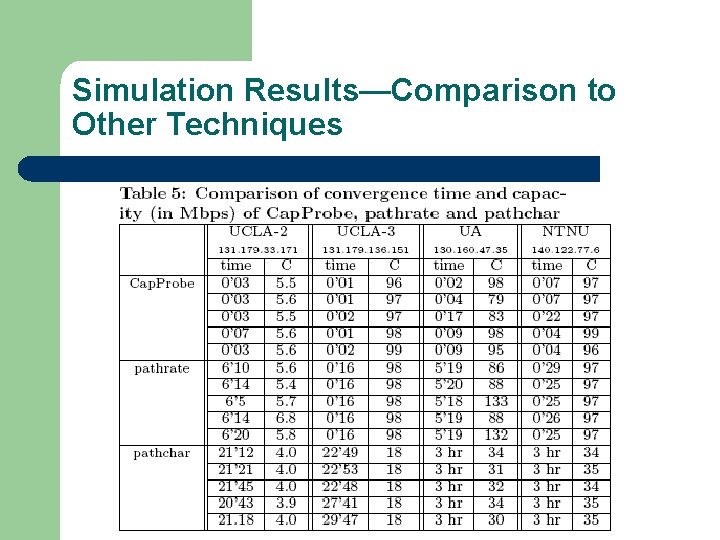

Simulation Results—Comparison to Other Techniques

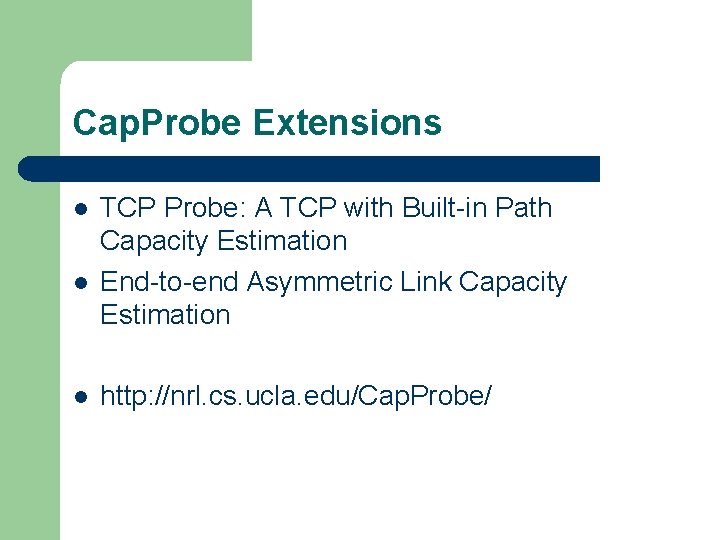

Cap. Probe Extensions l l l TCP Probe: A TCP with Built-in Path Capacity Estimation End-to-end Asymmetric Link Capacity Estimation http: //nrl. cs. ucla. edu/Cap. Probe/

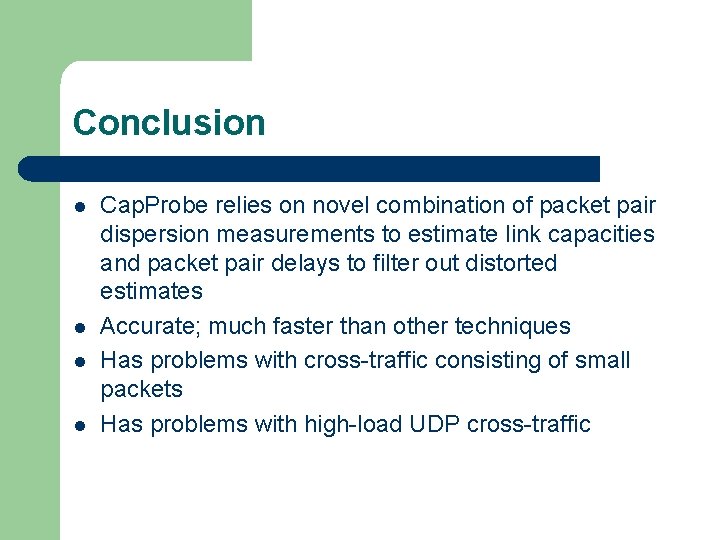

Conclusion l l Cap. Probe relies on novel combination of packet pair dispersion measurements to estimate link capacities and packet pair delays to filter out distorted estimates Accurate; much faster than other techniques Has problems with cross-traffic consisting of small packets Has problems with high-load UDP cross-traffic
