Canal AVIST a Digital Media Channel on TEIN

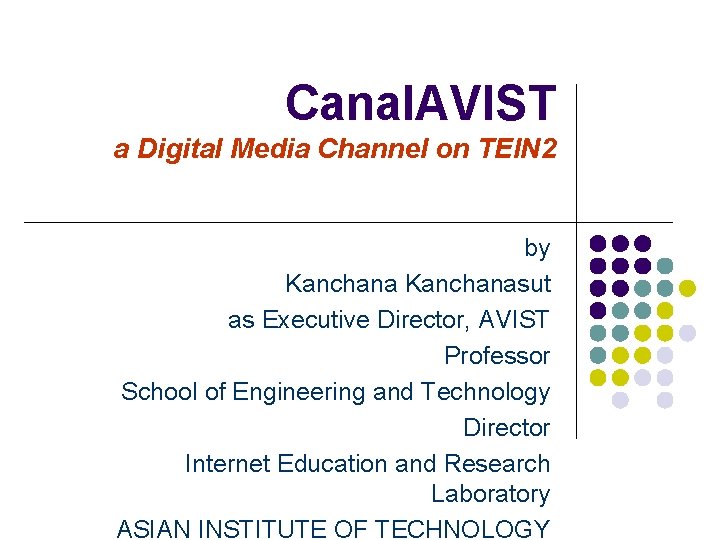

Canal. AVIST a Digital Media Channel on TEIN 2 by Kanchanasut as Executive Director, AVIST Professor School of Engineering and Technology Director Internet Education and Research Laboratory ASIAN INSTITUTE OF TECHNOLOGY

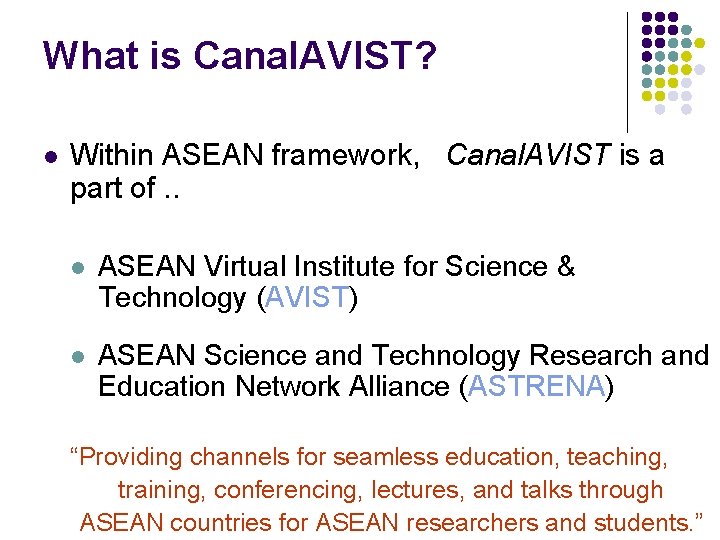

What is Canal. AVIST? l Within ASEAN framework, Canal. AVIST is a part of. . l ASEAN Virtual Institute for Science & Technology (AVIST) l ASEAN Science and Technology Research and Education Network Alliance (ASTRENA) “Providing channels for seamless education, teaching, training, conferencing, lectures, and talks through ASEAN countries for ASEAN researchers and students. ”

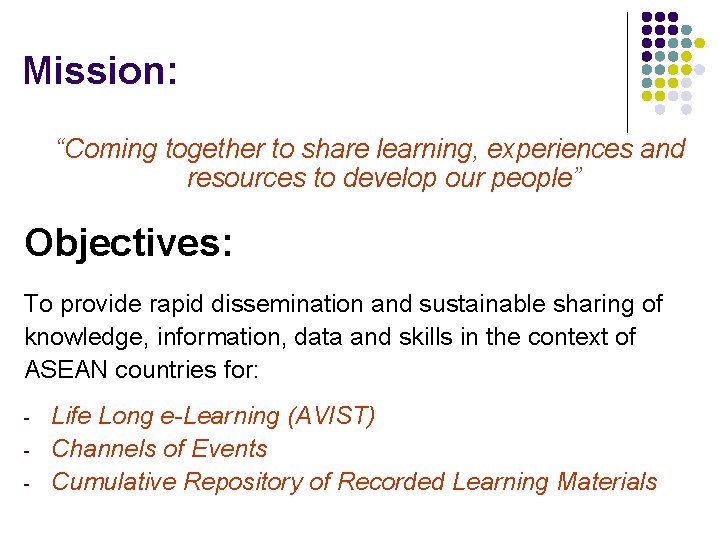

Mission: “Coming together to share learning, experiences and resources to develop our people” Objectives: To provide rapid dissemination and sustainable sharing of knowledge, information, data and skills in the context of ASEAN countries for: - Life Long e-Learning (AVIST) Channels of Events Cumulative Repository of Recorded Learning Materials

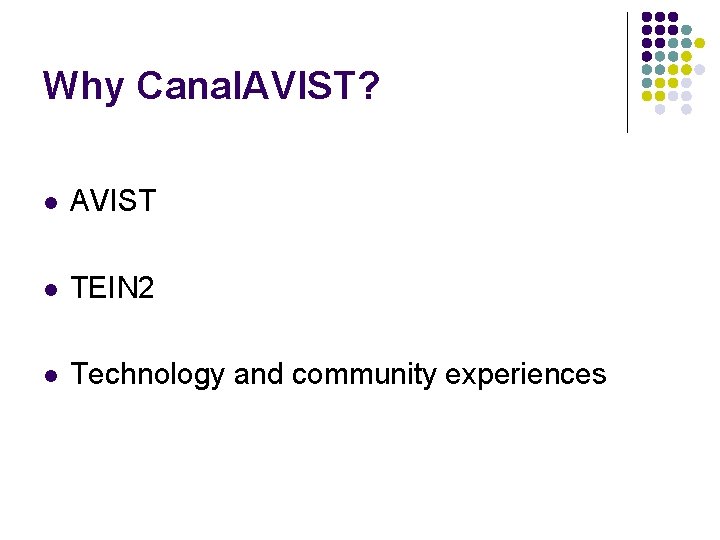

Why Canal. AVIST? l AVIST l TEIN 2 l Technology and community experiences

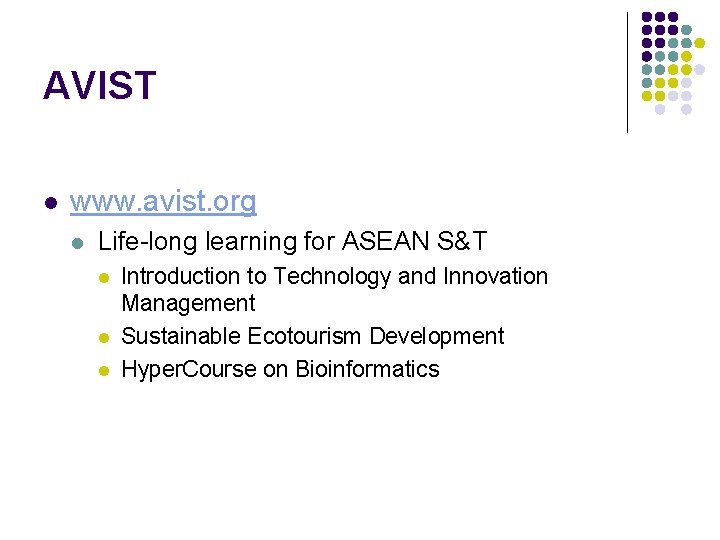

AVIST l www. avist. org l Life-long learning for ASEAN S&T l l l Introduction to Technology and Innovation Management Sustainable Ecotourism Development Hyper. Course on Bioinformatics

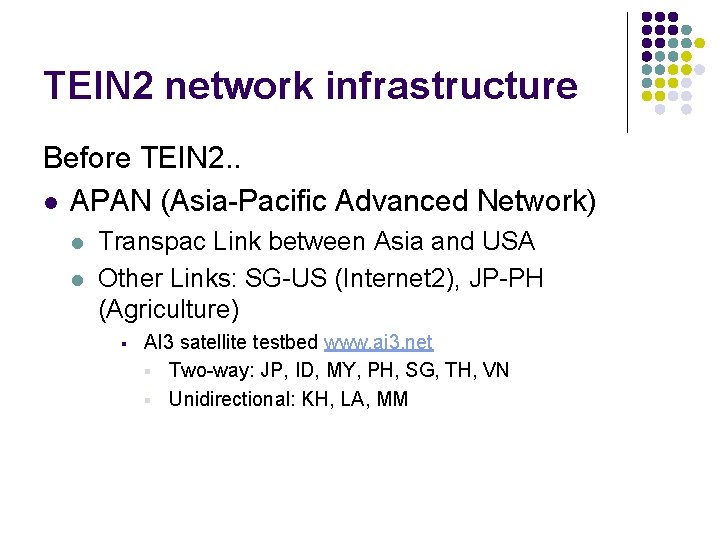

TEIN 2 network infrastructure Before TEIN 2. . l APAN (Asia-Pacific Advanced Network) l l Transpac Link between Asia and USA Other Links: SG-US (Internet 2), JP-PH (Agriculture) § AI 3 satellite testbed www. ai 3. net § Two-way: JP, ID, MY, PH, SG, TH, VN § Unidirectional: KH, LA, MM

Trans Eurasia Information Network 1 st link: Korea- France 2001 (2 Mbps)

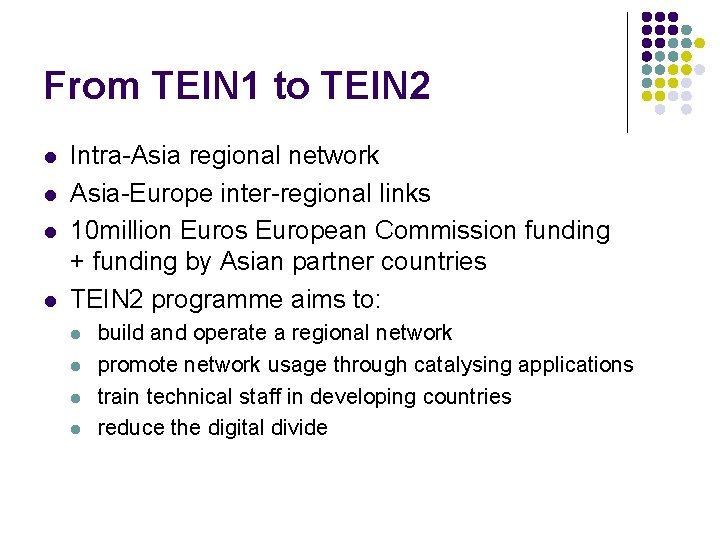

From TEIN 1 to TEIN 2 l l Intra-Asia regional network Asia-Europe inter-regional links 10 million Euros European Commission funding + funding by Asian partner countries TEIN 2 programme aims to: l l build and operate a regional network promote network usage through catalysing applications train technical staff in developing countries reduce the digital divide

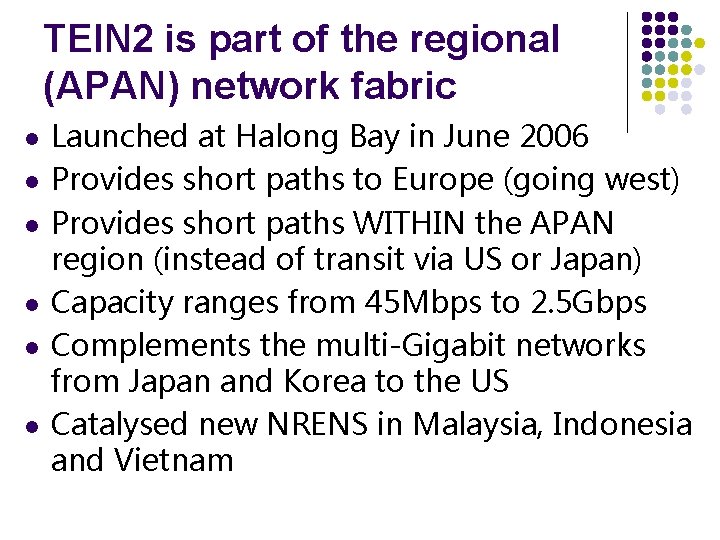

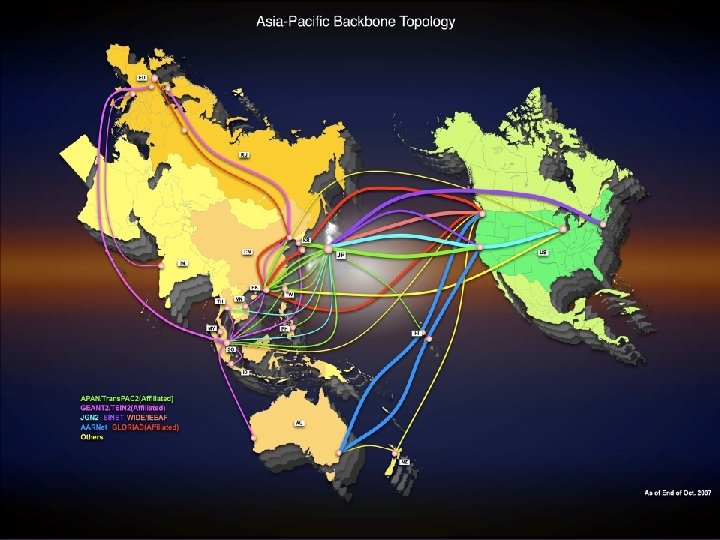

TEIN 2 is part of the regional (APAN) network fabric l l l Launched at Halong Bay in June 2006 Provides short paths to Europe (going west) Provides short paths WITHIN the APAN region (instead of transit via US or Japan) Capacity ranges from 45 Mbps to 2. 5 Gbps Complements the multi-Gigabit networks from Japan and Korea to the US Catalysed new NRENS in Malaysia, Indonesia and Vietnam

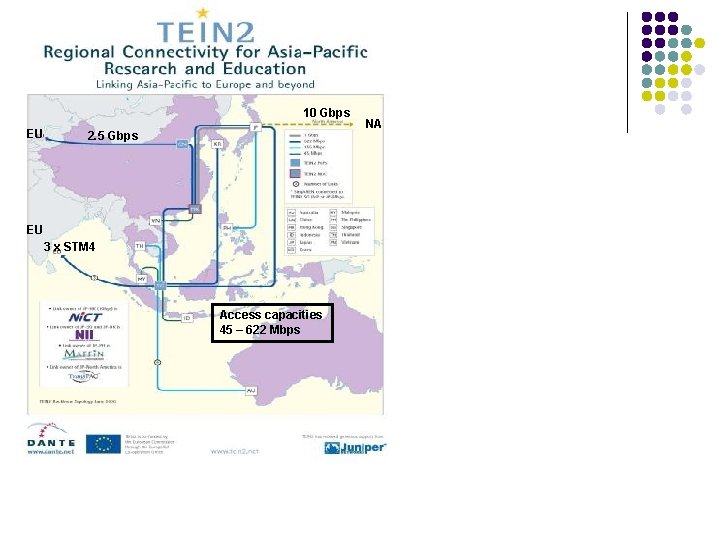

10 Gbps EU 2. 5 Gbps EU 3 x STM 4 Access capacities 45 – 622 Mbps NA TEIN 2 network started Jan 2006, now connects: • 30 million researchers and students • 4000 institutions • 10 countries Po. Ps in Singapore, HK and Beijing; NOC in HK Funded to Sept 2008, then……

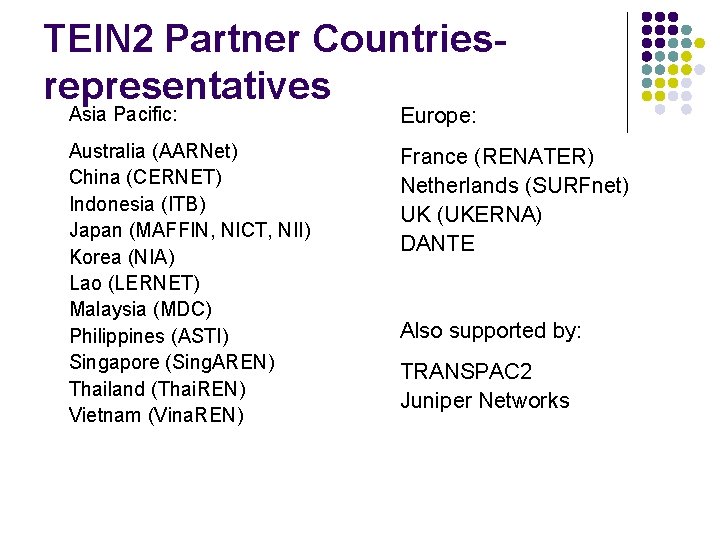

TEIN 2 Partner Countriesrepresentatives Asia Pacific: Europe: Australia (AARNet) China (CERNET) Indonesia (ITB) Japan (MAFFIN, NICT, NII) Korea (NIA) Lao (LERNET) Malaysia (MDC) Philippines (ASTI) Singapore (Sing. AREN) Thailand (Thai. REN) Vietnam (Vina. REN) France (RENATER) Netherlands (SURFnet) UK (UKERNA) DANTE Also supported by: TRANSPAC 2 Juniper Networks

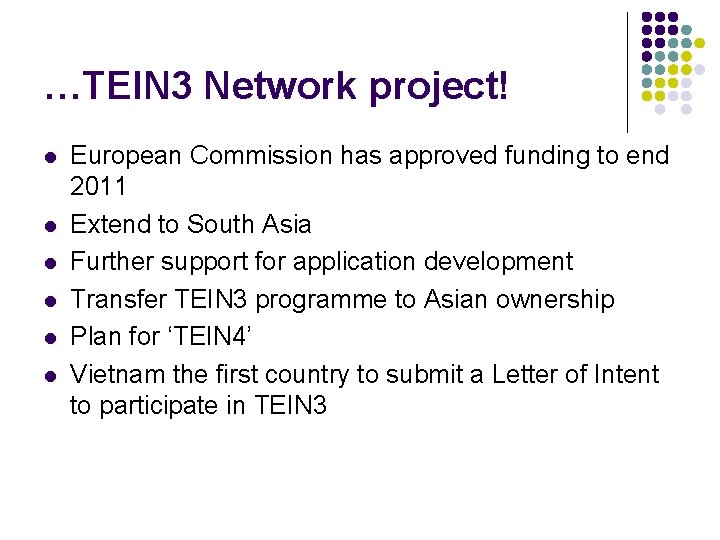

…TEIN 3 Network project! l l l European Commission has approved funding to end 2011 Extend to South Asia Further support for application development Transfer TEIN 3 programme to Asian ownership Plan for ‘TEIN 4’ Vietnam the first country to submit a Letter of Intent to participate in TEIN 3

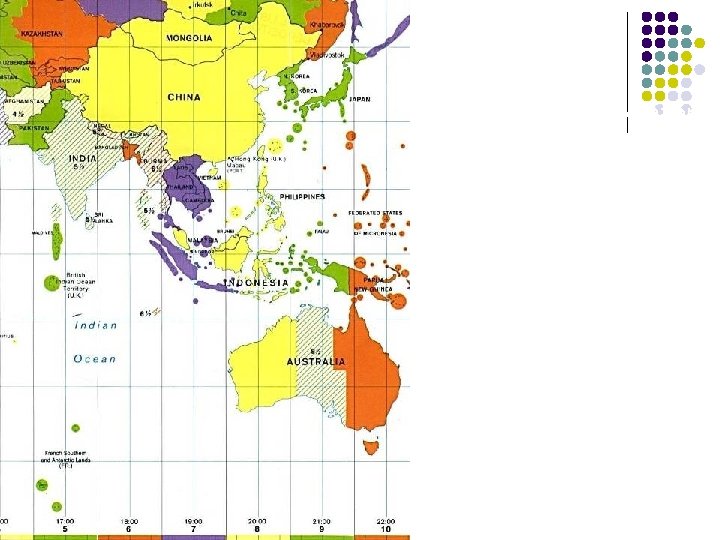

Timezones and Populations TEIN 2: Member countries represent 1/3 of the world’s population in a timezone range spanning only 3 hours TEIN 3 Potential member countries represent almost 60% of the world’s population in a timezone range spanning only 5 hours Small timezone range is critical for interactive collaboration

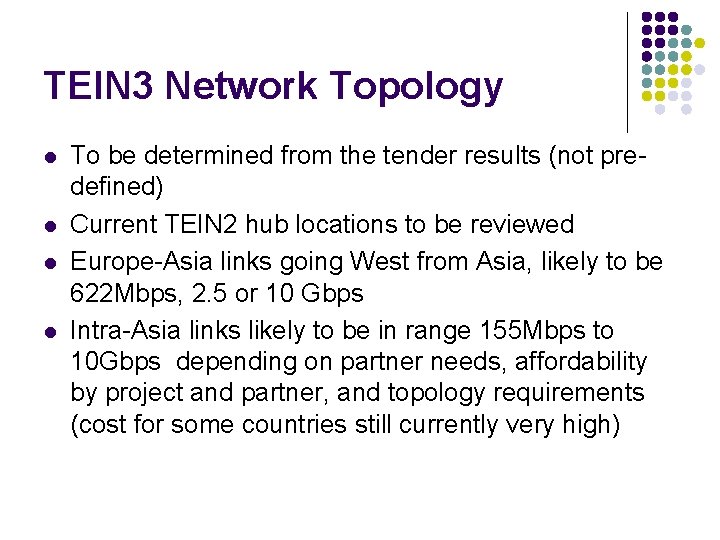

TEIN 3 Network Topology l l To be determined from the tender results (not predefined) Current TEIN 2 hub locations to be reviewed Europe-Asia links going West from Asia, likely to be 622 Mbps, 2. 5 or 10 Gbps Intra-Asia links likely to be in range 155 Mbps to 10 Gbps depending on partner needs, affordability by project and partner, and topology requirements (cost for some countries still currently very high)

Technology and AP community experiences Towards open teaching and learning space

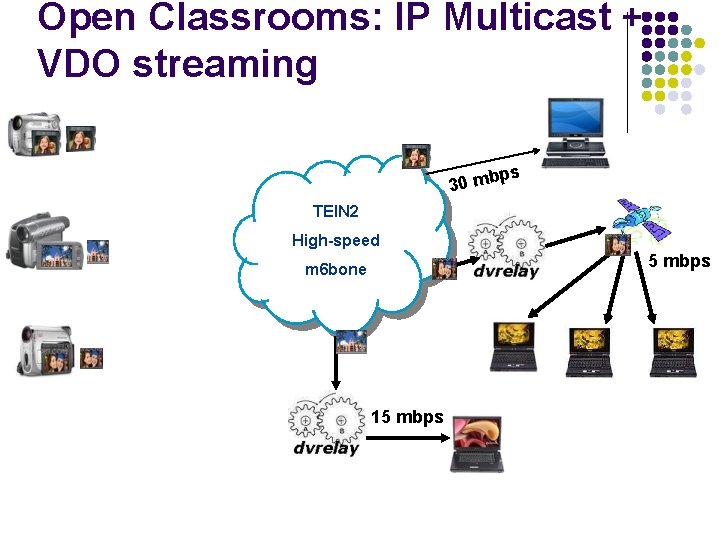

Open Classrooms: IP Multicast + VDO streaming ps 30 mb TEIN 2 High-speed 5 mbps m 6 bone 15 mbps

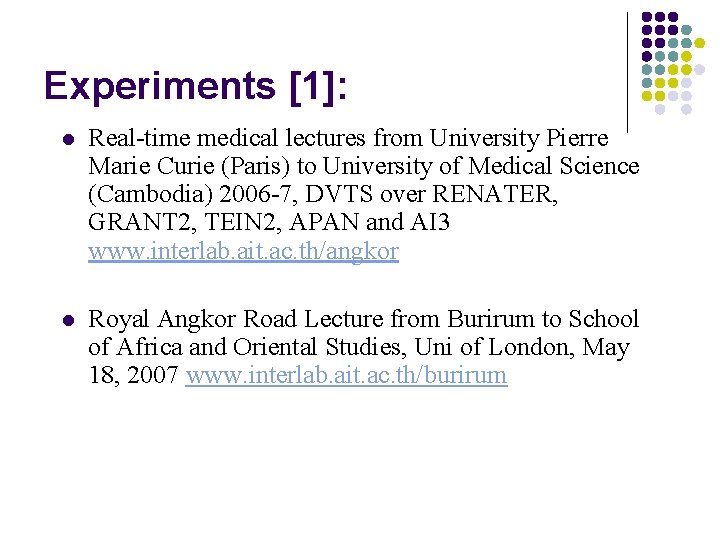

Experiments [1]: l Real-time medical lectures from University Pierre Marie Curie (Paris) to University of Medical Science (Cambodia) 2006 -7, DVTS over RENATER, GRANT 2, TEIN 2, APAN and AI 3 www. interlab. ait. ac. th/angkor l Royal Angkor Road Lecture from Burirum to School of Africa and Oriental Studies, Uni of London, May 18, 2007 www. interlab. ait. ac. th/burirum

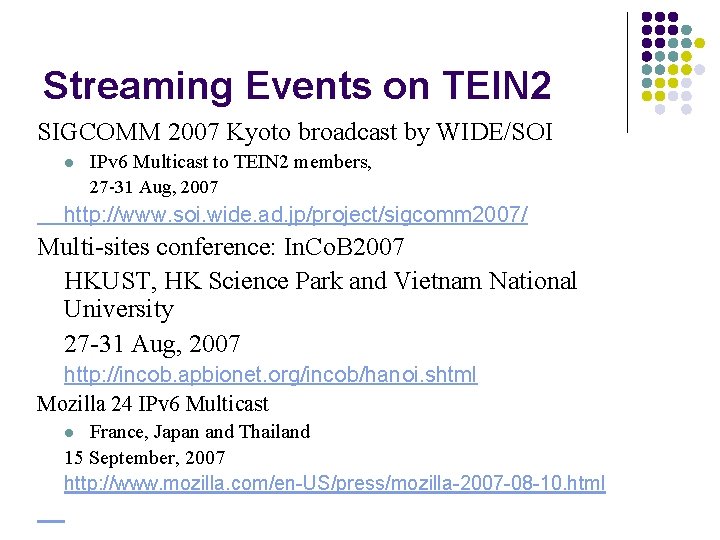

Streaming Events on TEIN 2 SIGCOMM 2007 Kyoto broadcast by WIDE/SOI l IPv 6 Multicast to TEIN 2 members, 27 -31 Aug, 2007 http: //www. soi. wide. ad. jp/project/sigcomm 2007/ Multi-sites conference: In. Co. B 2007 HKUST, HK Science Park and Vietnam National University 27 -31 Aug, 2007 http: //incob. apbionet. org/incob/hanoi. shtml Mozilla 24 IPv 6 Multicast France, Japan and Thailand 15 September, 2007 http: //www. mozilla. com/en-US/press/mozilla-2007 -08 -10. html l

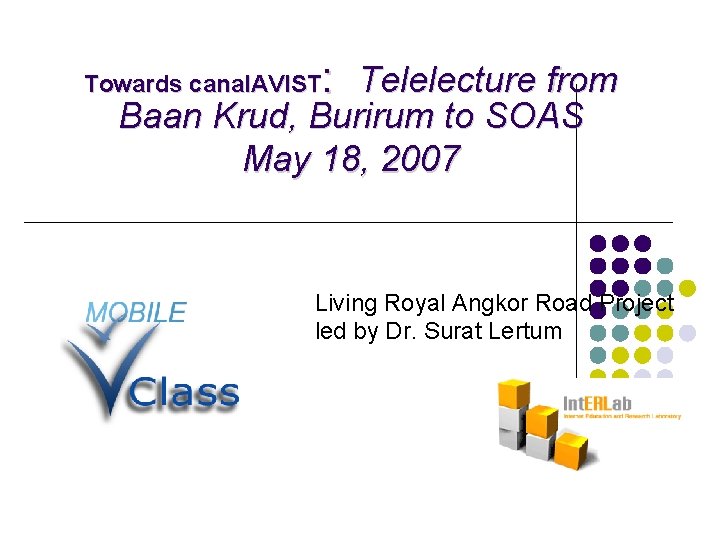

: Telelecture from Towards canal. AVIST Baan Krud, Burirum to SOAS May 18, 2007 Living Royal Angkor Road Project led by Dr. Surat Lertum

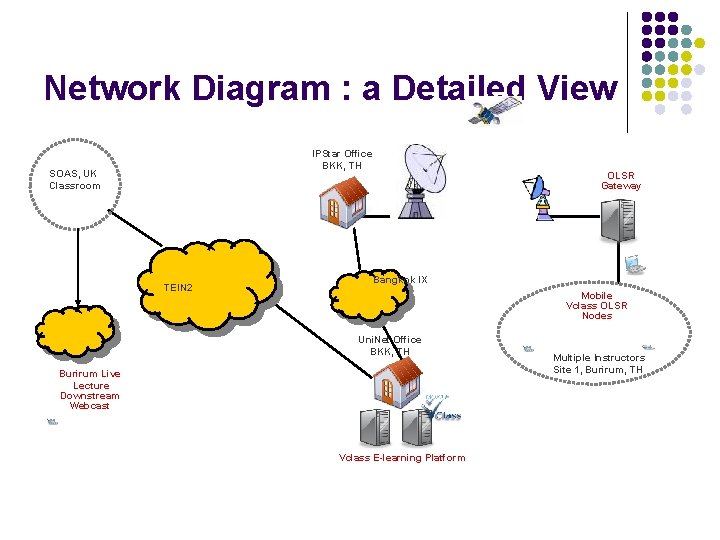

Network Diagram : a Detailed View IPStar Office BKK, TH SOAS, UK Classroom TEIN 2 OLSR Gateway Bangkok IX Mobile Vclass OLSR Nodes Uni. Net Office BKK, TH Burirum Live Lecture Downstream Webcast Vclass E-learning Platform Multiple Instructors Site 1, Burirum, TH

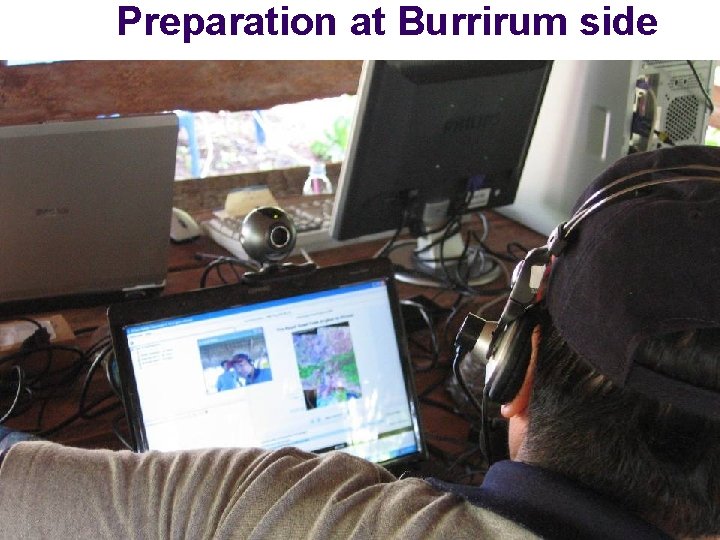

Preparation at Burrirum side

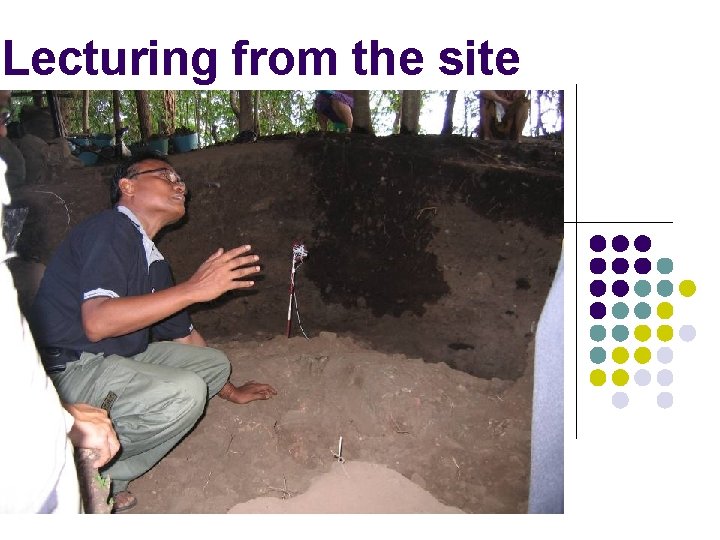

Lecturing from the site

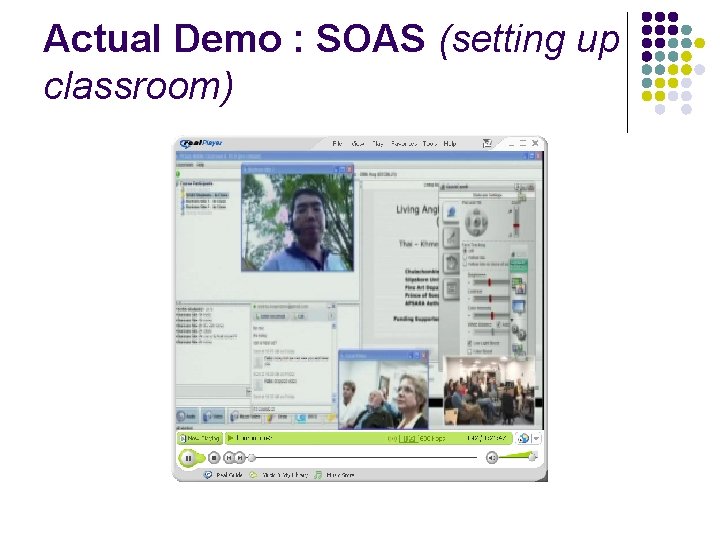

Actual Demo : SOAS (setting up classroom)

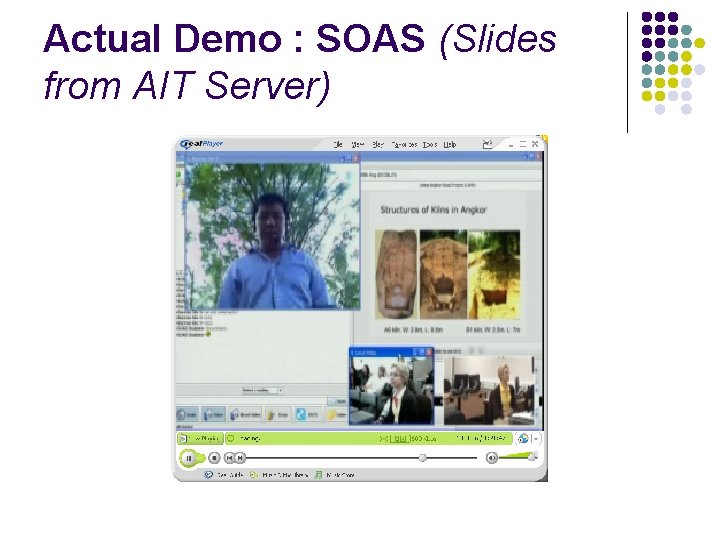

Actual Demo : SOAS (Slides from AIT Server)

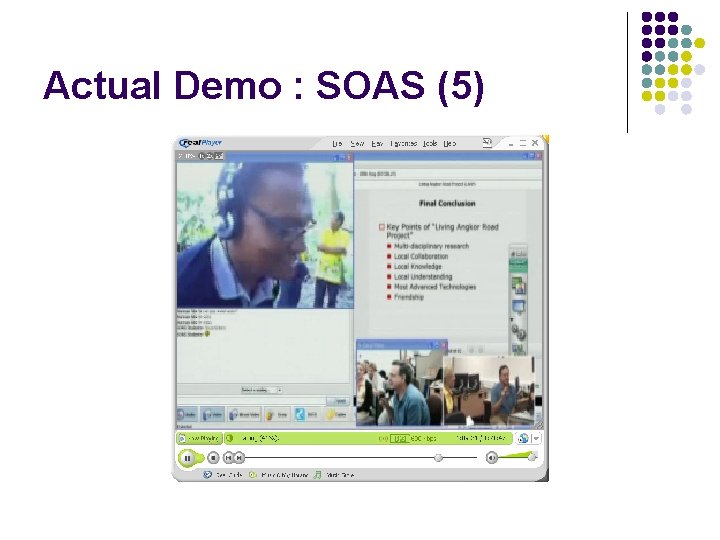

Actual Demo : SOAS (5)

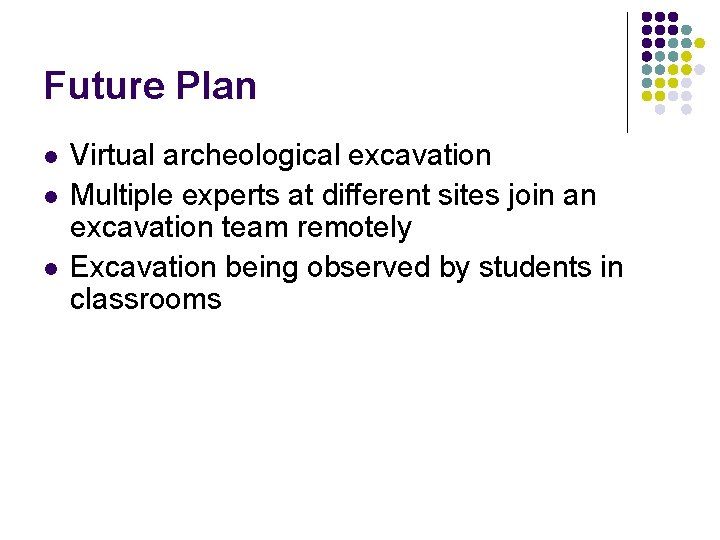

Future Plan l l l Virtual archeological excavation Multiple experts at different sites join an excavation team remotely Excavation being observed by students in classrooms

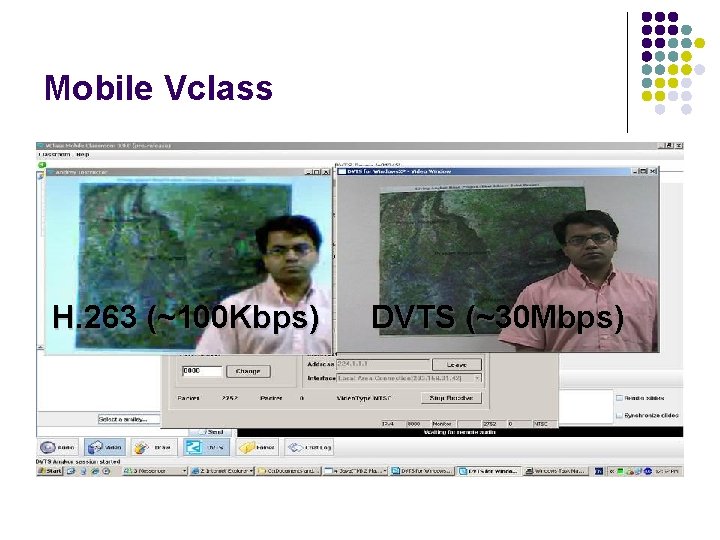

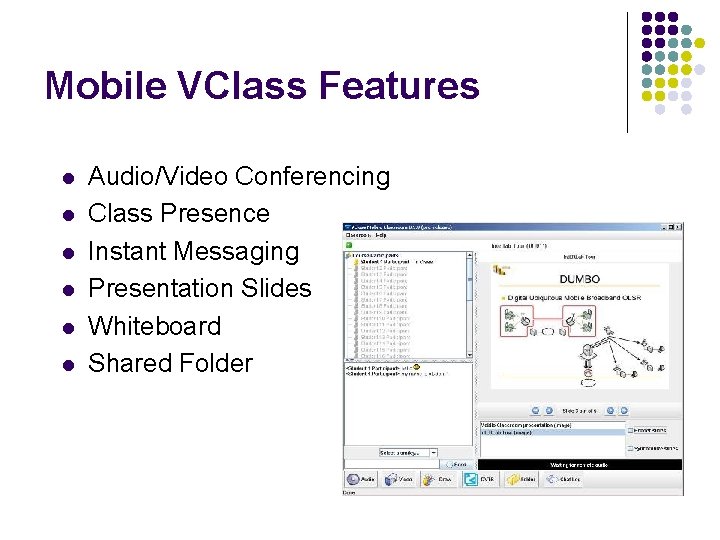

Mobile VClass Features l l l Audio/Video Conferencing Class Presence Instant Messaging Presentation Slides Whiteboard Shared Folder

Mobile Vclass H. 263 (~100 Kbps) DVTS (~30 Mbps)

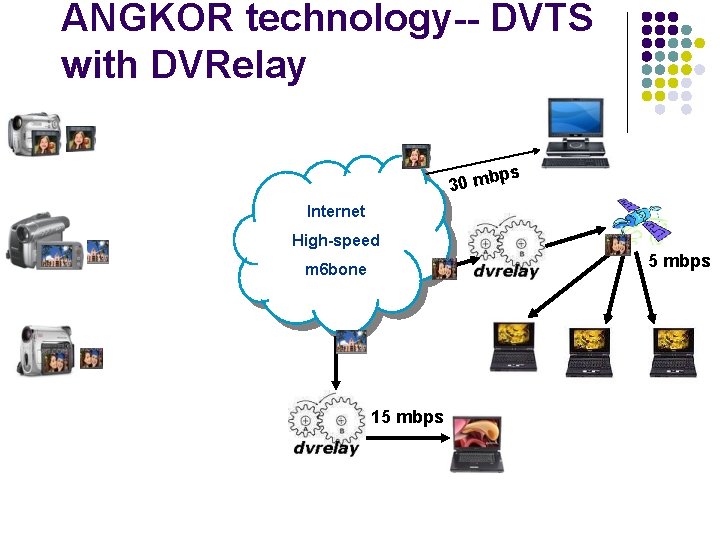

ANGKOR technology-- DVTS with DVRelay ps 30 mb Internet High-speed 5 mbps m 6 bone 15 mbps

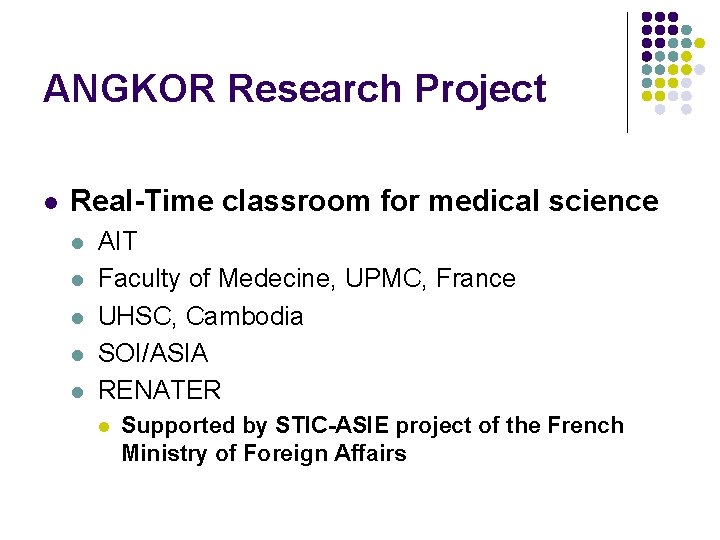

ANGKOR Research Project l Real-Time classroom for medical science l l l AIT Faculty of Medecine, UPMC, France UHSC, Cambodia SOI/ASIA RENATER l Supported by STIC-ASIE project of the French Ministry of Foreign Affairs

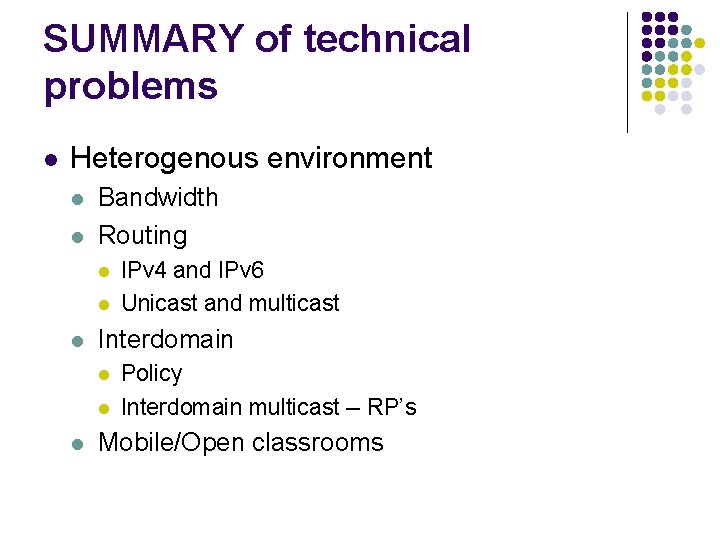

SUMMARY of technical problems l Heterogenous environment l l Bandwidth Routing l l l Interdomain l l l IPv 4 and IPv 6 Unicast and multicast Policy Interdomain multicast -- RP’s Mobile/Open classrooms

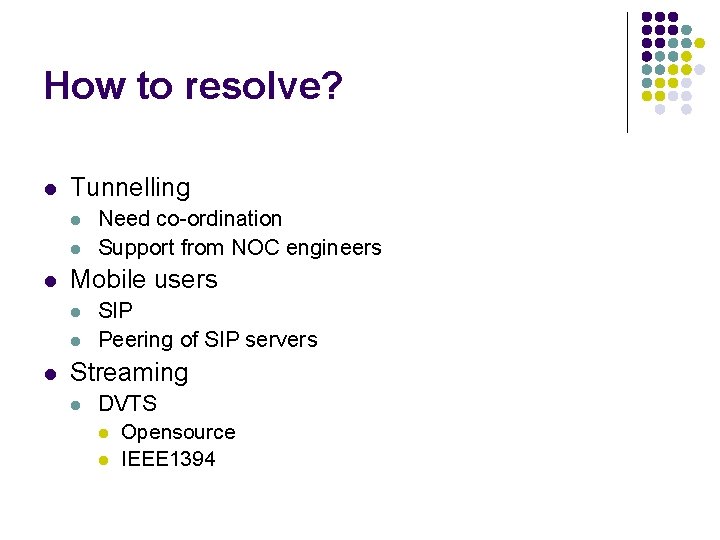

How to resolve? l Tunnelling l l l Mobile users l l l Need co-ordination Support from NOC engineers SIP Peering of SIP servers Streaming l DVTS l Opensource l IEEE 1394

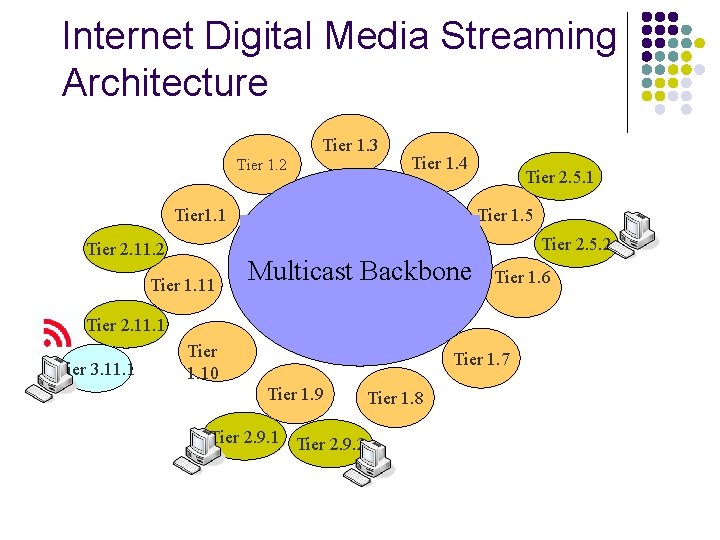

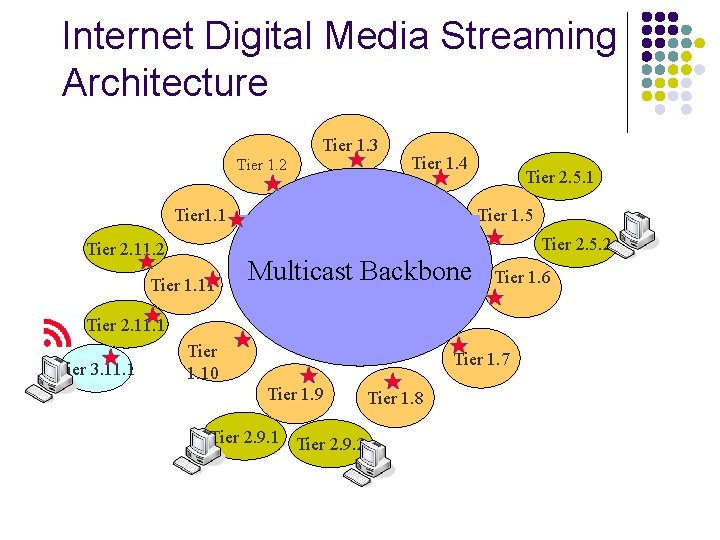

Internet Digital Media Streaming Architecture Tier 1. 3 Tier 1. 2 Tier 1. 4 Tier 1. 1 Tier 2. 5. 1 Tier 1. 5 Tier 2. 5. 2 Tier 2. 11. 2 Tier 1. 11 Multicast Backbone Tier 1. 6 Tier 2. 11. 1 Tier 3. 11. 1 Tier 1. 10 Tier 1. 7 Tier 1. 9 Tier 2. 9. 1 Tier 2. 9. 2 Tier 1. 8

Internet Digital Media Streaming Architecture Tier 1. 3 Tier 1. 2 Tier 1. 4 Tier 1. 1 Tier 2. 5. 1 Tier 1. 5 Tier 2. 5. 2 Tier 2. 11. 2 Tier 1. 11 Multicast Backbone Tier 1. 6 Tier 2. 11. 1 Tier 3. 11. 1 Tier 1. 10 Tier 1. 7 Tier 1. 9 Tier 2. 9. 1 Tier 2. 9. 2 Tier 1. 8

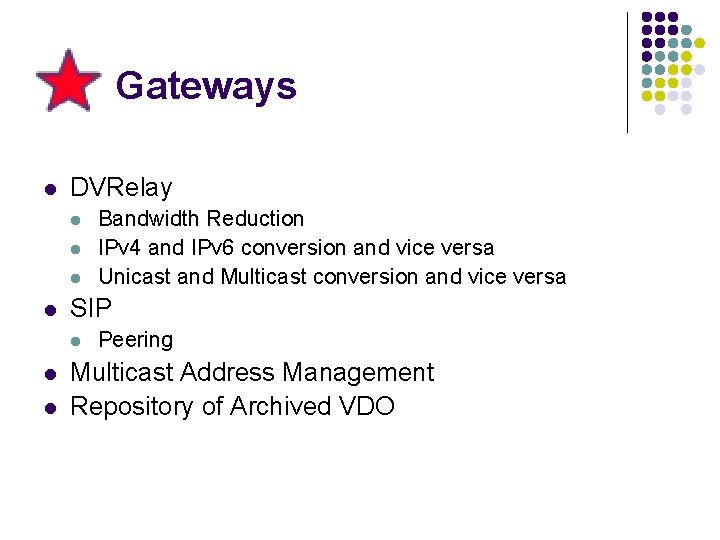

Gateways l DVRelay l l SIP l l l Bandwidth Reduction IPv 4 and IPv 6 conversion and vice versa Unicast and Multicast conversion and vice versa Peering Multicast Address Management Repository of Archived VDO

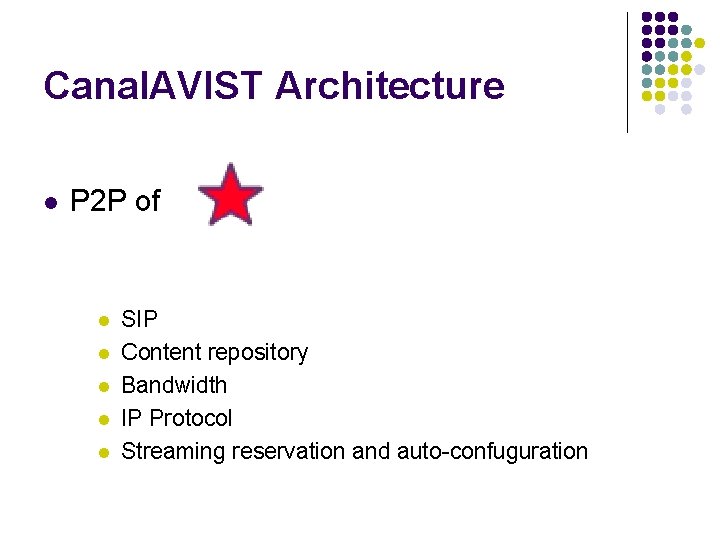

Canal. AVIST Architecture l P 2 P of l l l SIP Content repository Bandwidth IP Protocol Streaming reservation and auto-confuguration

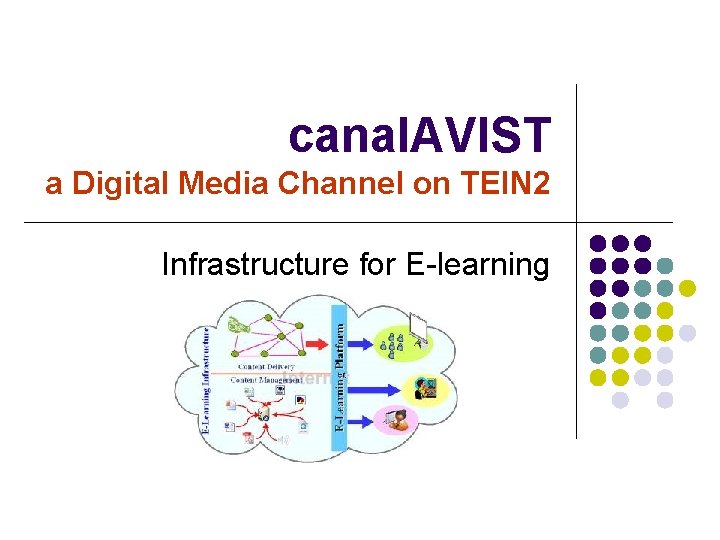

canal. AVIST a Digital Media Channel on TEIN 2 Infrastructure for E-learning

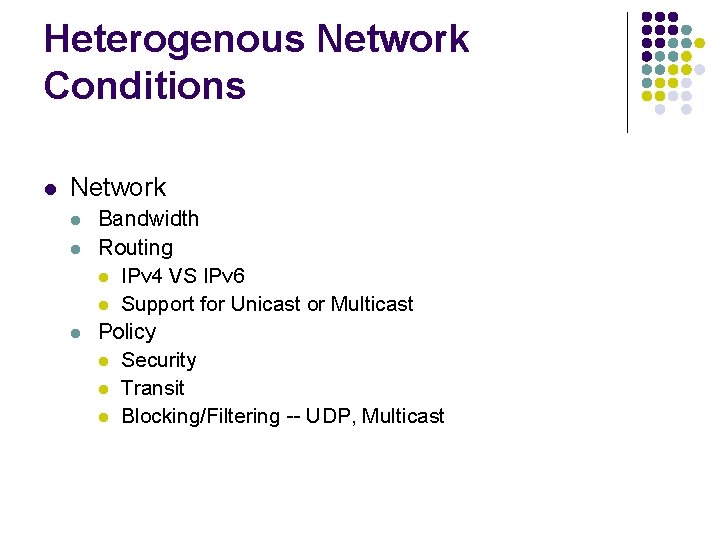

Heterogenous Network Conditions l Network l l l Bandwidth Routing l IPv 4 VS IPv 6 l Support for Unicast or Multicast Policy l Security l Transit l Blocking/Filtering -- UDP, Multicast

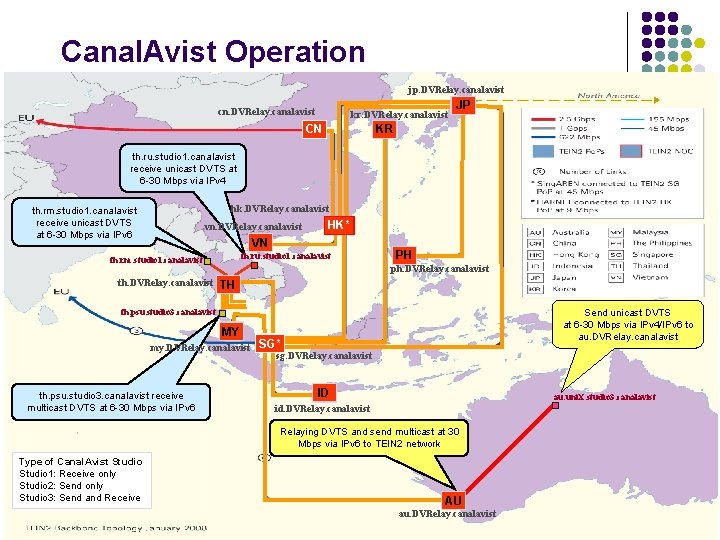

Canal. Avist Operation jp. DVRelay. canalavist cn. DVRelay. canalavist kr. DVRelay. canalavist CN JP KR th. ru. studio 1. canalavist receive unicast DVTS at 6 -30 Mbps via IPv 4 hk. DVRelay. canalavist th. rm. studio 1. canalavist receive unicast DVTS at 6 -30 Mbps via IPv 6 vn. DVRelay. canalavist HK* VN th. ru. studio 1. canalavist th. rm. studio 1. canalavist th. DVRelay. canalavist PH ph. DVRelay. canalavist TH th. psu. studio 3. canalavist MY my. DVRelay. canalavist th. psu. studio 3. canalavist receive multicast DVTS at 6 -30 Mbps via IPv 6 Send unicast DVTS at 6 -30 Mbps via IPv 4/IPv 6 to au. DVRelay. canalavist SG* sg. DVRelay. canalavist ID au. uni. X. studio 3. canalavist id. DVRelay. canalavist Relaying DVTS and send multicast at 30 Mbps via IPv 6 to TEIN 2 network Type of Canal. Avist Studio 1: Receive only Studio 2: Send only Studio 3: Send and Receive AU au. DVRelay. canalavist

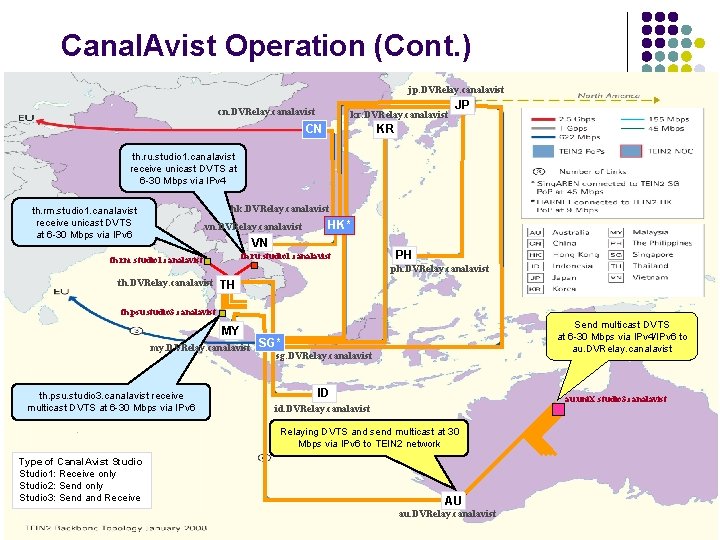

Canal. Avist Operation (Cont. ) jp. DVRelay. canalavist cn. DVRelay. canalavist kr. DVRelay. canalavist CN JP KR th. ru. studio 1. canalavist receive unicast DVTS at 6 -30 Mbps via IPv 4 hk. DVRelay. canalavist th. rm. studio 1. canalavist receive unicast DVTS at 6 -30 Mbps via IPv 6 vn. DVRelay. canalavist HK* VN th. ru. studio 1. canalavist th. rm. studio 1. canalavist th. DVRelay. canalavist PH ph. DVRelay. canalavist TH th. psu. studio 3. canalavist MY my. DVRelay. canalavist th. psu. studio 3. canalavist receive multicast DVTS at 6 -30 Mbps via IPv 6 Send multicast DVTS at 6 -30 Mbps via IPv 4/IPv 6 to au. DVRelay. canalavist SG* sg. DVRelay. canalavist ID au. uni. X. studio 3. canalavist id. DVRelay. canalavist Relaying DVTS and send multicast at 30 Mbps via IPv 6 to TEIN 2 network Type of Canal. Avist Studio 1: Receive only Studio 2: Send only Studio 3: Send and Receive AU au. DVRelay. canalavist

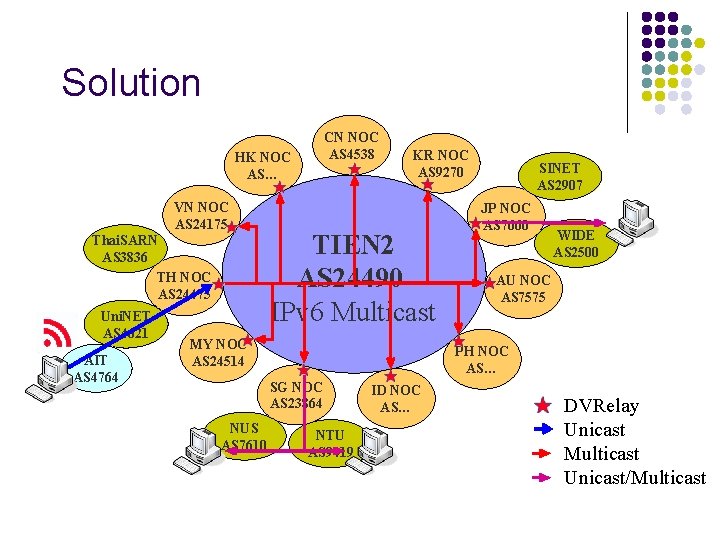

Solution CN NOC AS 4538 HK NOC AS… VN NOC AS 24175 Thai. SARN AS 3836 TH NOC AS 24475 Uni. NET AS 4621 AIT AS 4764 KR NOC AS 9270 TIEN 2 AS 24490 IPv 6 Multicast MY NOC AS 24514 JP NOC AS 7660 WIDE AS 2500 AU NOC AS 7575 PH NOC AS… SG NOC AS 23864 NUS AS 7610 SINET AS 2907 NTU AS 9419 ID NOC AS… DVRelay Unicast Multicast Unicast/Multicast

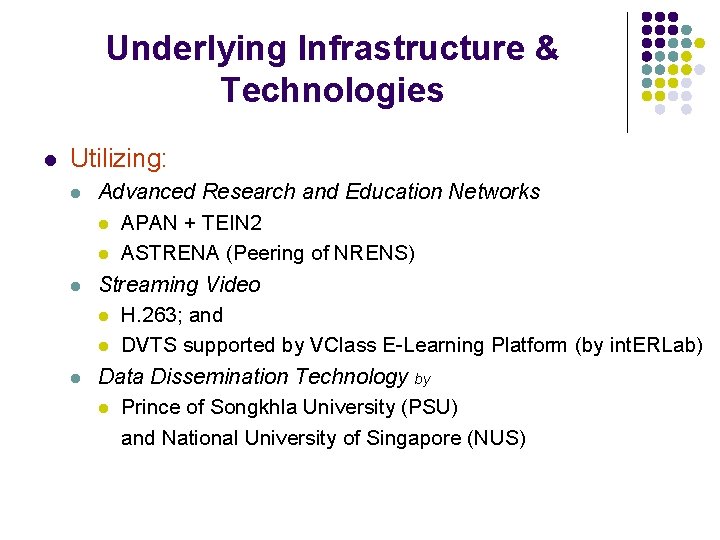

Underlying Infrastructure & Technologies l Utilizing: l l l Advanced Research and Education Networks l APAN + TEIN 2 l ASTRENA (Peering of NRENS) Streaming Video l H. 263; and l DVTS supported by VClass E-Learning Platform (by int. ERLab) Data Dissemination Technology by l Prince of Songkhla University (PSU) and National University of Singapore (NUS)

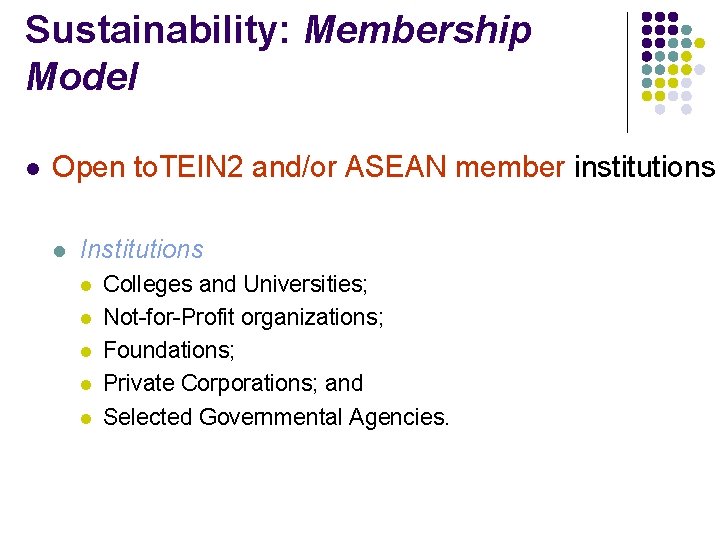

Sustainability: Membership Model l Open to. TEIN 2 and/or ASEAN member institutions l Institutions l l l Colleges and Universities; Not-for-Profit organizations; Foundations; Private Corporations; and Selected Governmental Agencies.

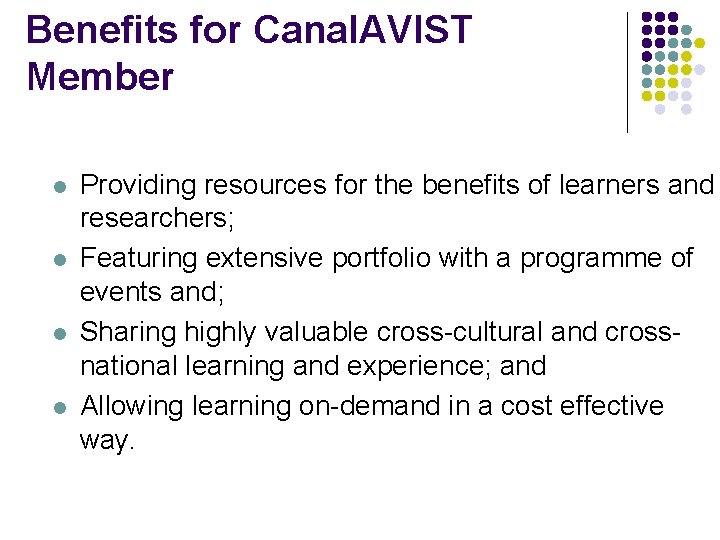

Benefits for Canal. AVIST Member l l Providing resources for the benefits of learners and researchers; Featuring extensive portfolio with a programme of events and; Sharing highly valuable cross-cultural and crossnational learning and experience; and Allowing learning on-demand in a cost effective way.

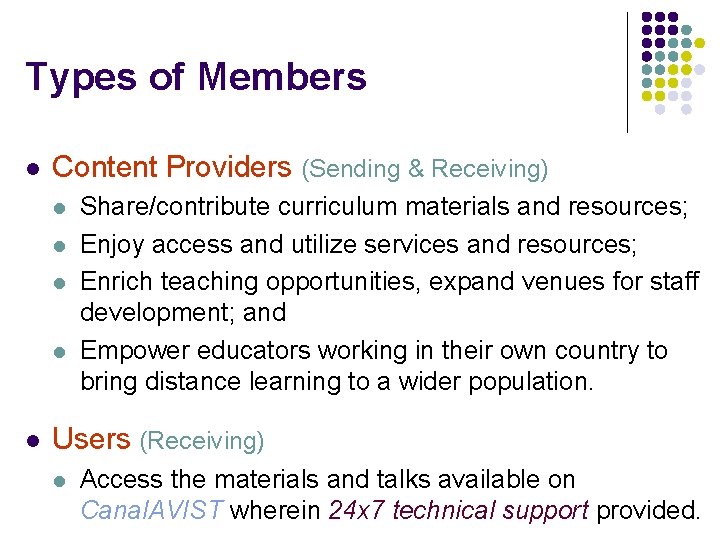

Types of Members l Content Providers (Sending & Receiving) l l l Share/contribute curriculum materials and resources; Enjoy access and utilize services and resources; Enrich teaching opportunities, expand venues for staff development; and Empower educators working in their own country to bring distance learning to a wider population. Users (Receiving) l Access the materials and talks available on Canal. AVIST wherein 24 x 7 technical support provided.

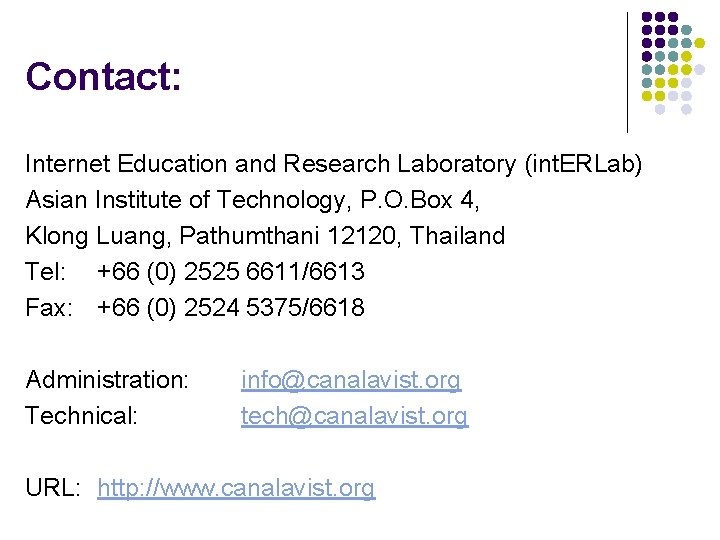

Contact: Internet Education and Research Laboratory (int. ERLab) Asian Institute of Technology, P. O. Box 4, Klong Luang, Pathumthani 12120, Thailand Tel: +66 (0) 2525 6611/6613 Fax: +66 (0) 2524 5375/6618 Administration: Technical: info@canalavist. org tech@canalavist. org URL: http: //www. canalavist. org

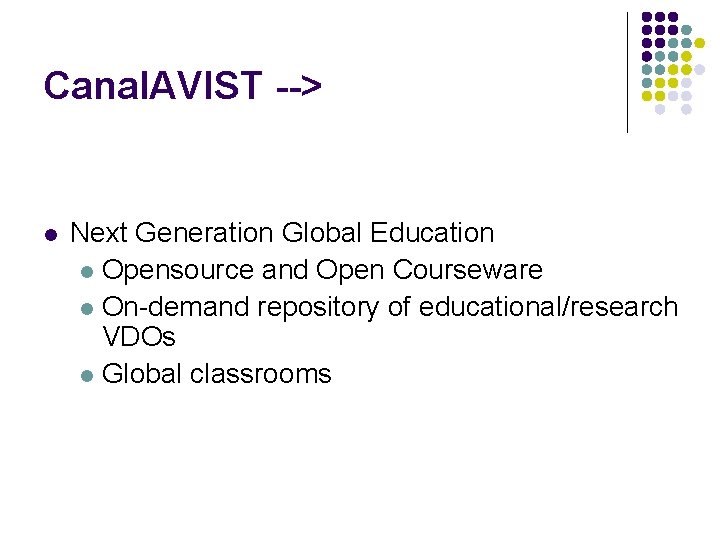

Canal. AVIST --> l Next Generation Global Education l Opensource and Open Courseware l On-demand repository of educational/research VDOs l Global classrooms

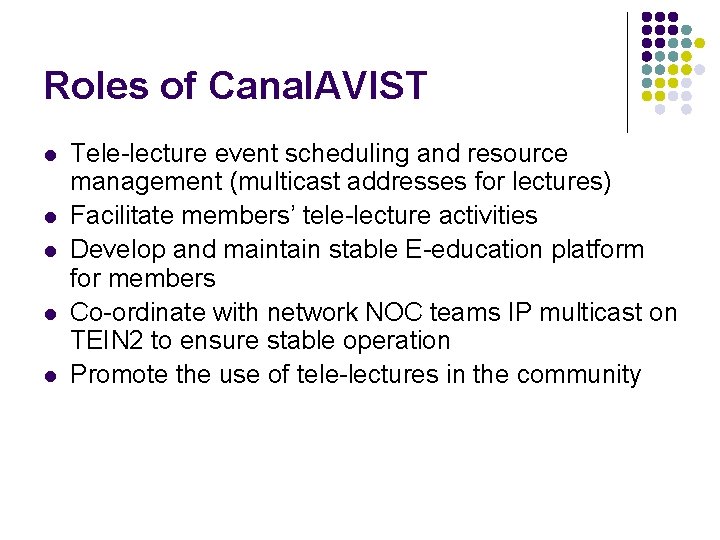

Roles of Canal. AVIST l l l Tele-lecture event scheduling and resource management (multicast addresses for lectures) Facilitate members’ tele-lecture activities Develop and maintain stable E-education platform for members Co-ordinate with network NOC teams IP multicast on TEIN 2 to ensure stable operation Promote the use of tele-lectures in the community

ENST, France Stanford, USA AIT, Thailand Keio U, Japan Mozilla Event, 15/09/07
