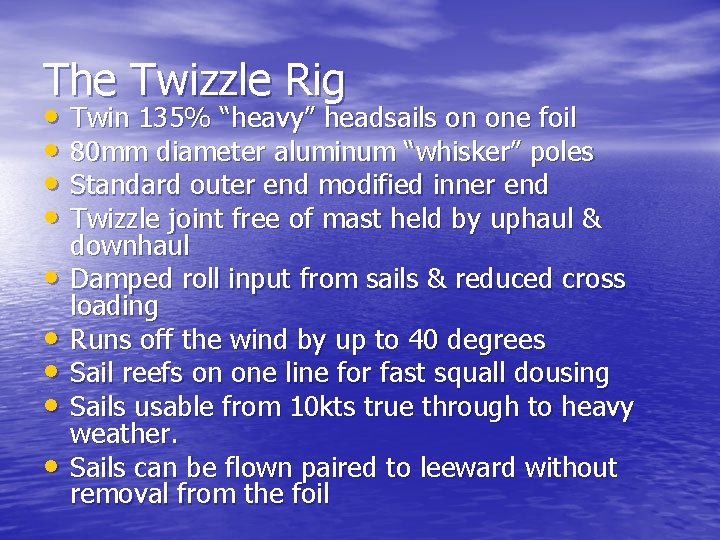

The Twizzle Rig • Twin 135% “heavy” headsails on one foil • 80 mm diameter aluminum “whisker” poles • Standard outer end modified inner end • Twizzle joint free of mast held by uphaul & • • • downhaul Damped roll input from sails & reduced cross loading Runs off the wind by up to 40 degrees Sail reefs on one line for fast squall dousing Sails usable from 10 kts true through to heavy weather. Sails can be flown paired to leeward without removal from the foil

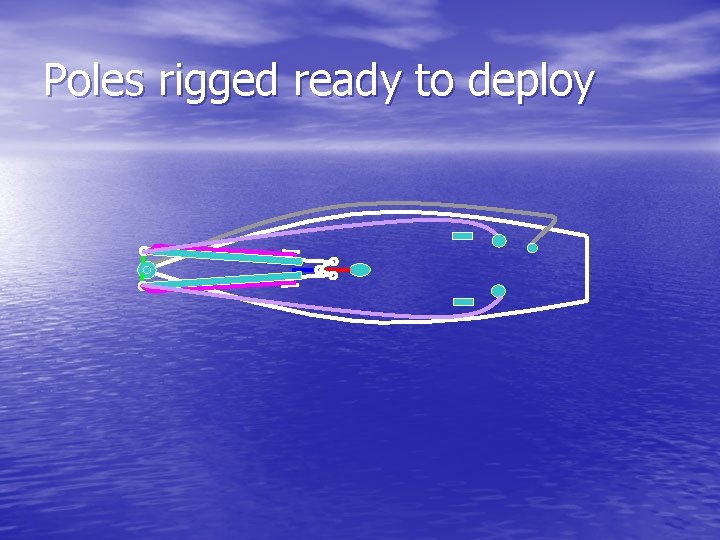

Poles rigged ready to deploy

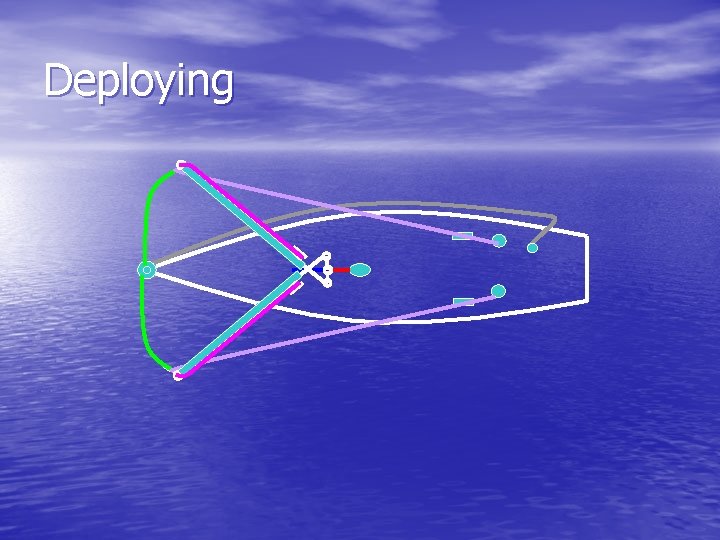

Deploying

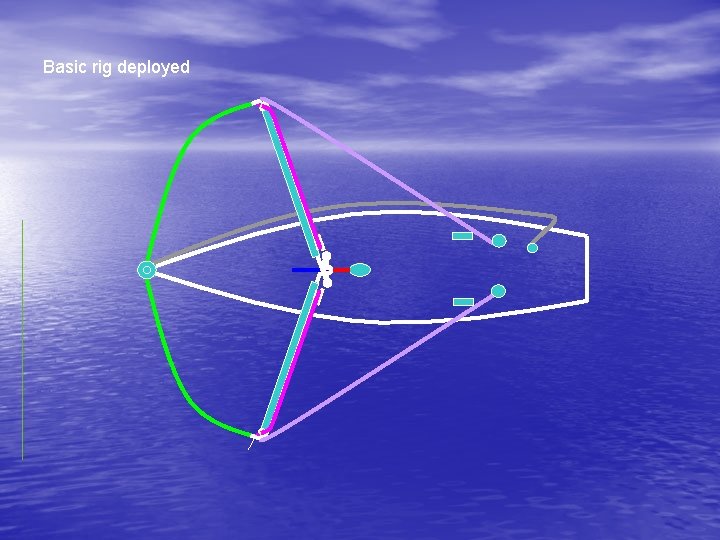

Basic rig deployed

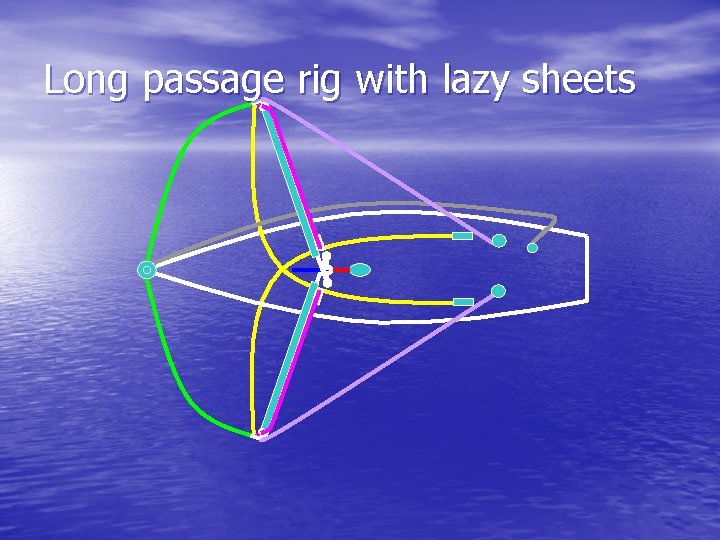

Long passage rig with lazy sheets

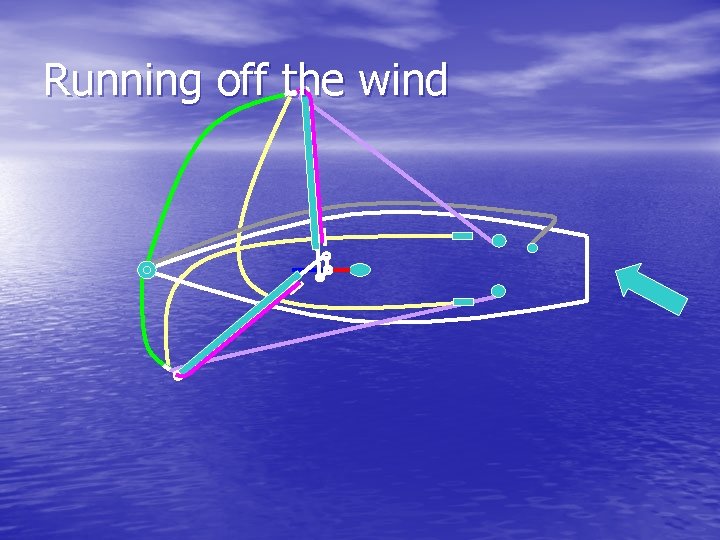

Running off the wind

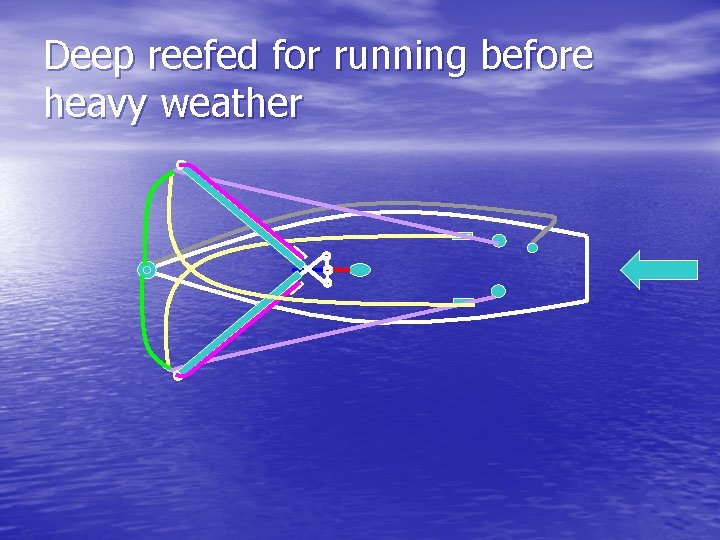

Deep reefed for running before heavy weather

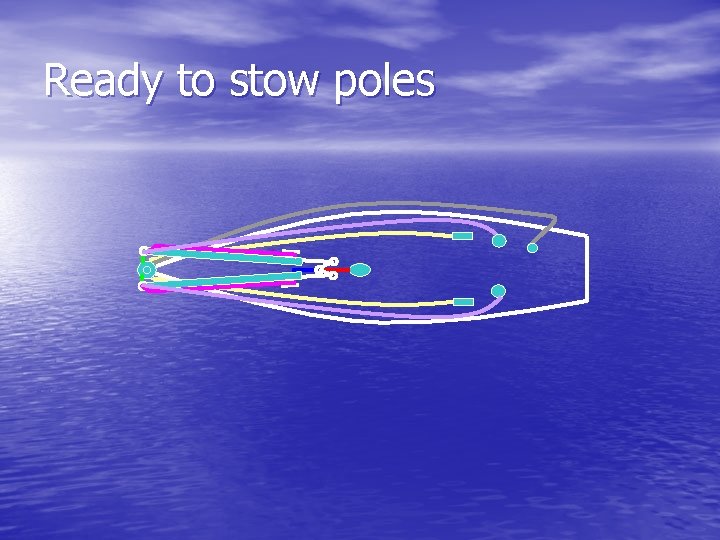

Ready to stow poles

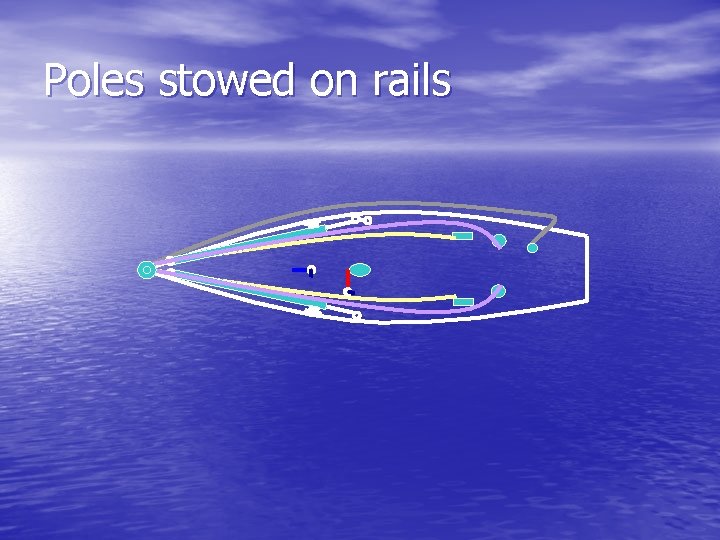

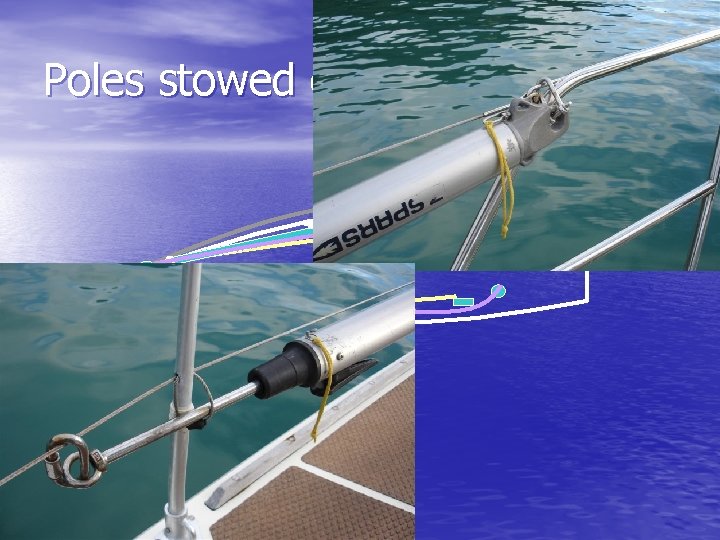

Poles stowed on rails

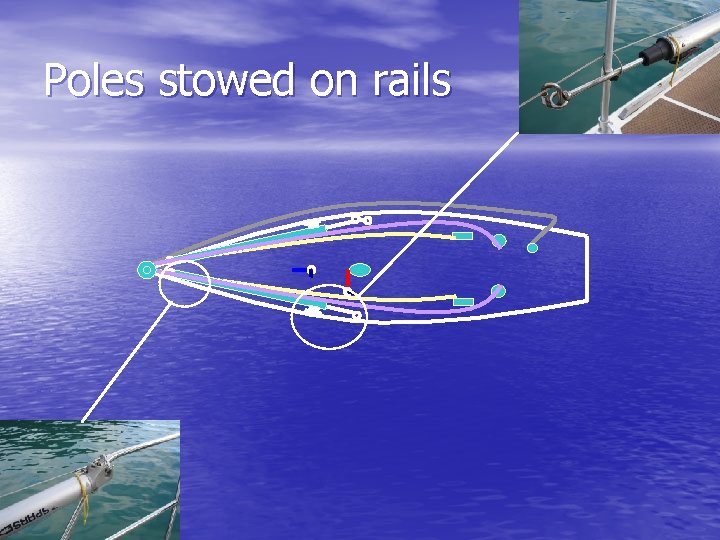

Poles stowed on rails

Poles stowed on rails

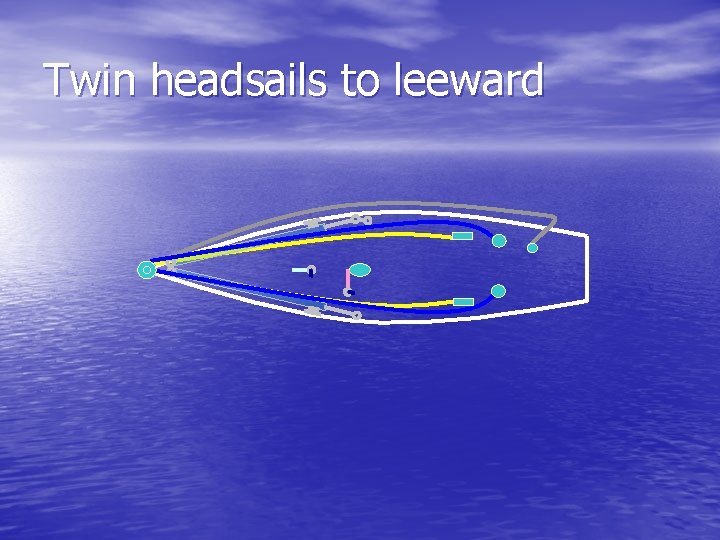

Twin headsails to leeward

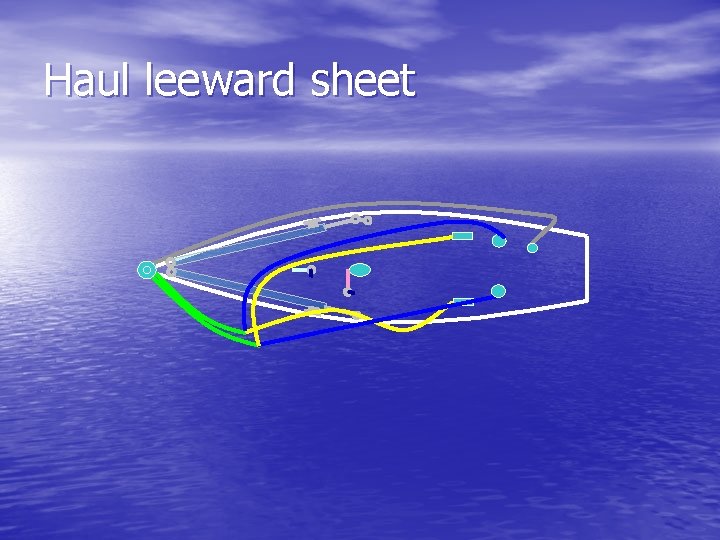

Haul leeward sheet

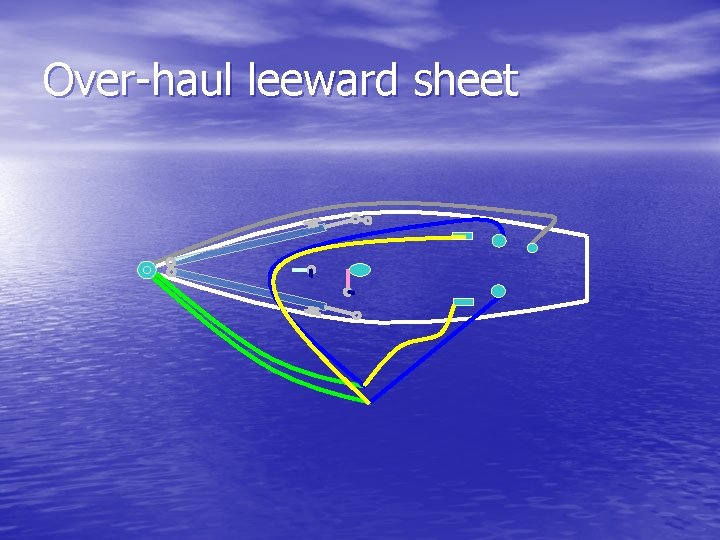

Over-haul leeward sheet

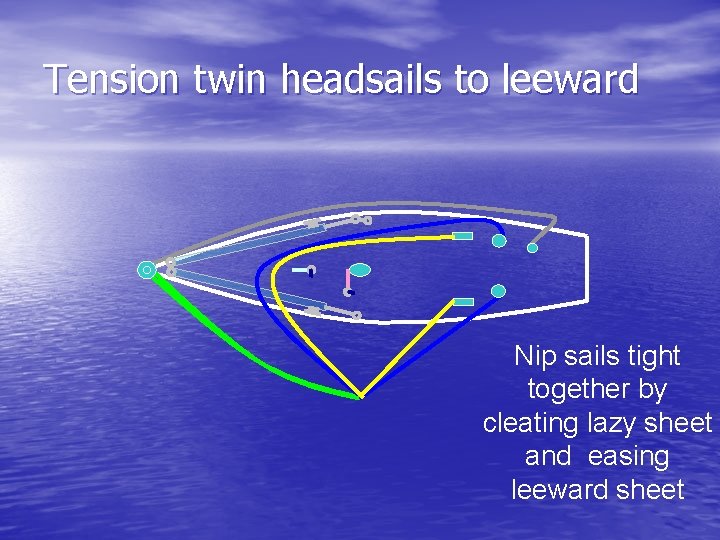

Tension twin headsails to leeward Nip sails tight together by cleating lazy sheet and easing leeward sheet

The Key Components

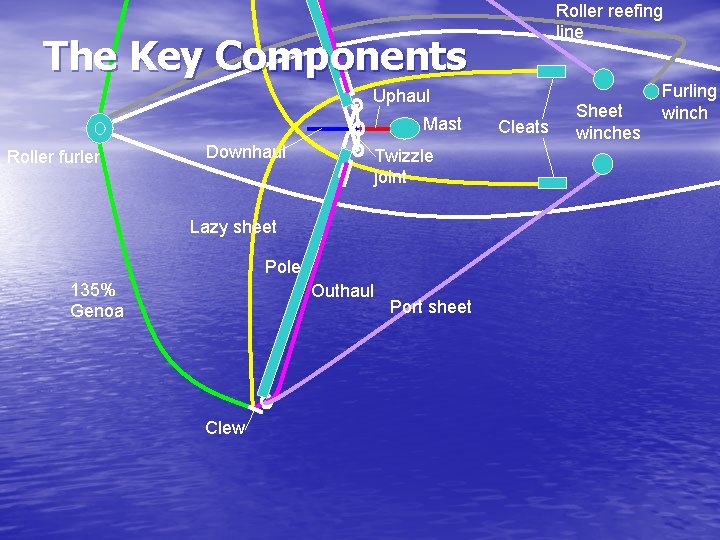

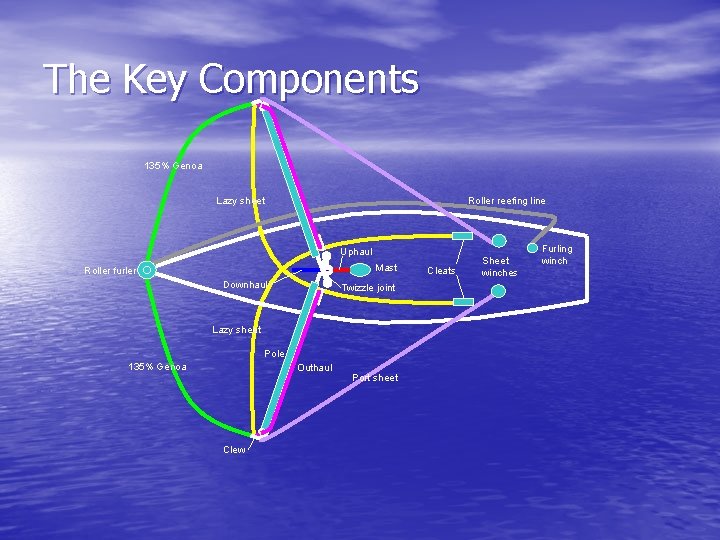

The Key Components 135% Genoa Lazy sheet Roller reefing line Uphaul Mast Roller furler Downhaul Twizzle joint Lazy sheet Pole 135% Genoa Outhaul Clew Port sheet Cleats Sheet winches Furling winch

Roller reefing line The Key Components Uphaul Mast Roller furler Downhaul Twizzle joint Lazy sheet Pole 135% Genoa Outhaul Clew Port sheet Cleats Sheet winches Furling winch

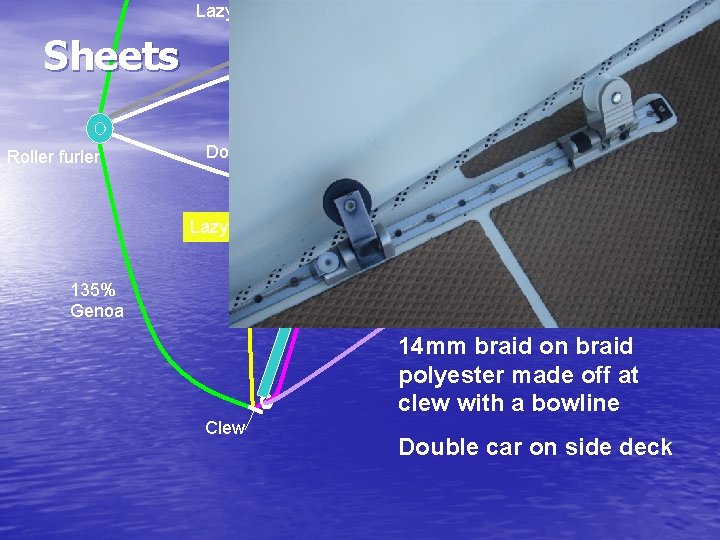

Lazy sheet Roller reefing line Sheets Uphaul Mast Roller furler Downhaul Cleats Sheet winches Furling winch Twizzle joint Lazy sheet Pole 135% Genoa Outhaul Port sheet 14 mm braid on braid polyester made off at clew with a bowline Clew Double car on side deck

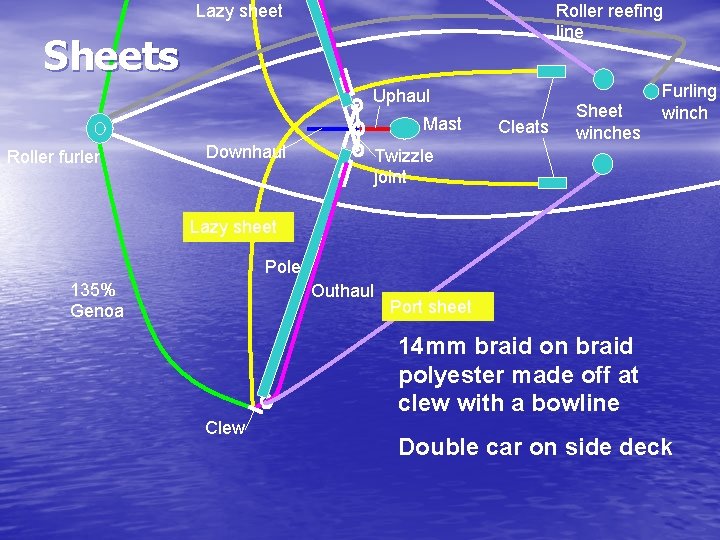

Lazy sheet Roller reefing line Sheets Uphaul Mast Roller furler Downhaul Cleats Sheet winches Furling winch Twizzle joint Lazy sheet Pole 135% Genoa Outhaul Port sheet 14 mm braid on braid polyester made off at clew with a bowline Clew Double car on side deck

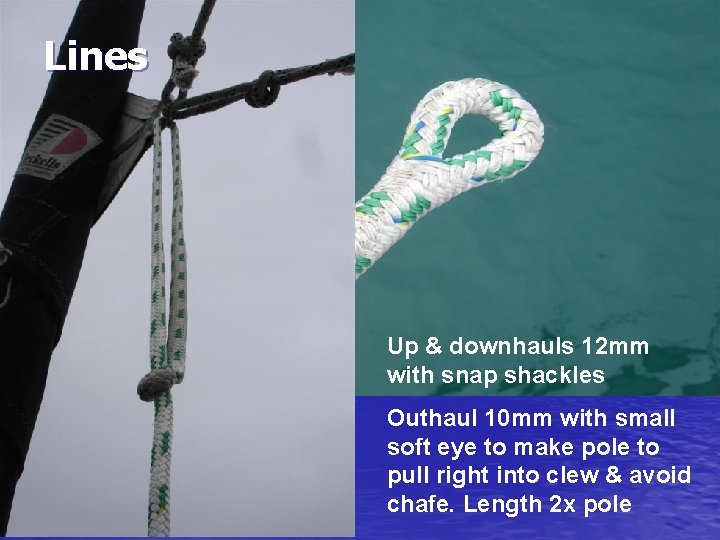

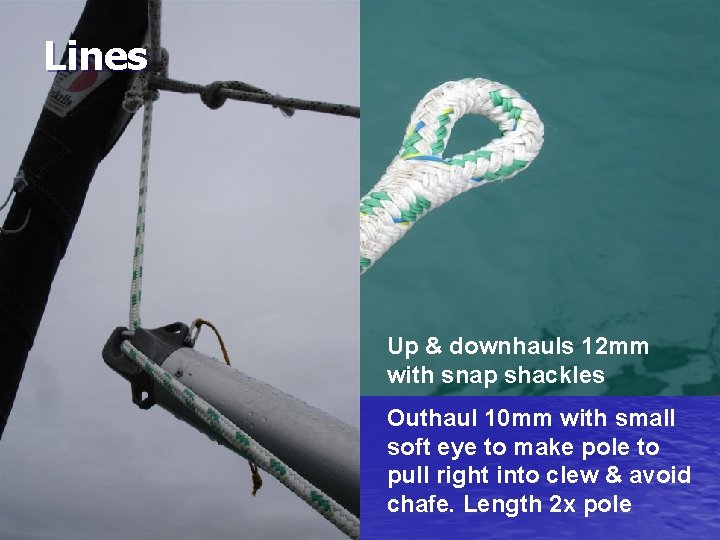

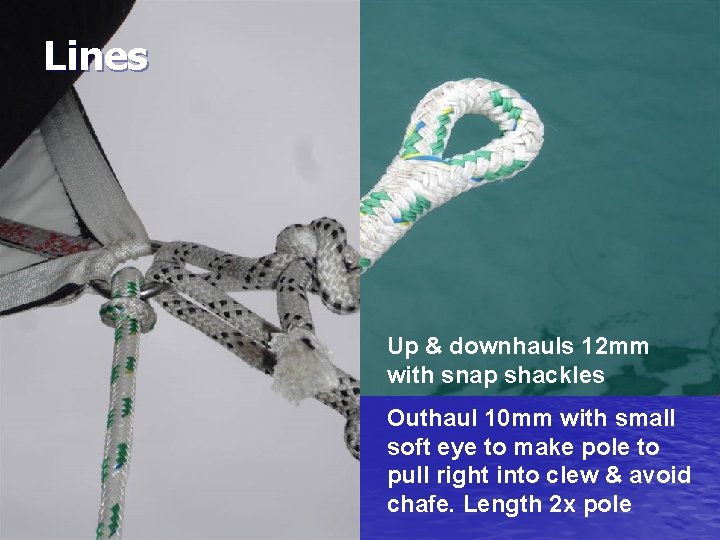

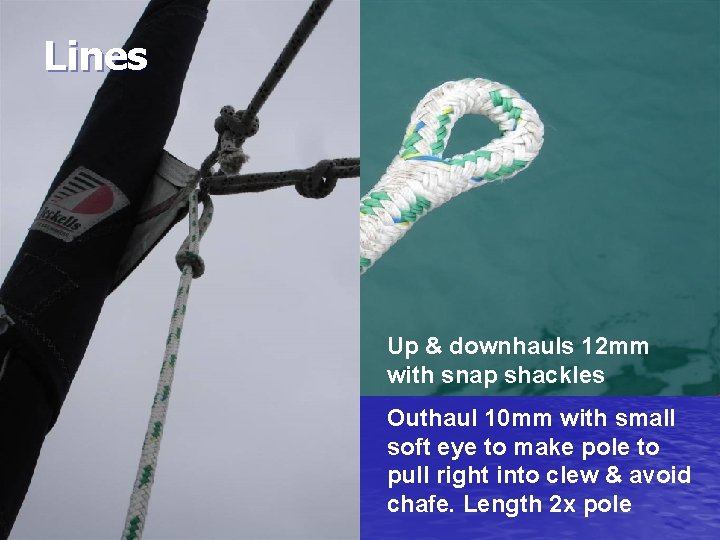

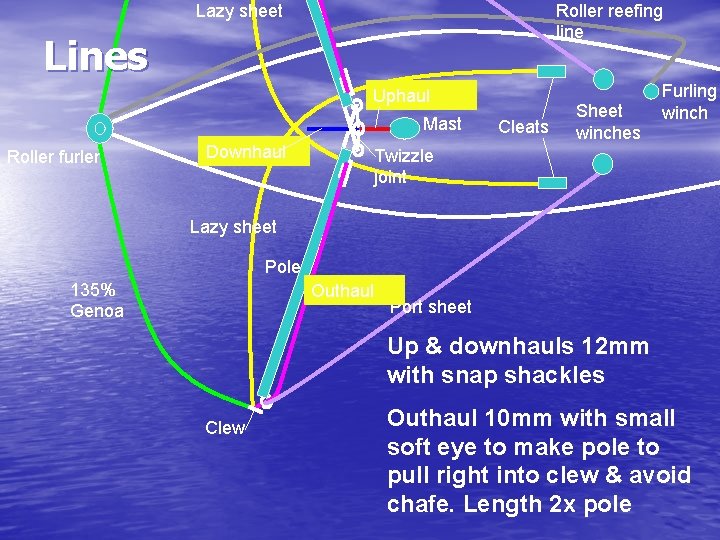

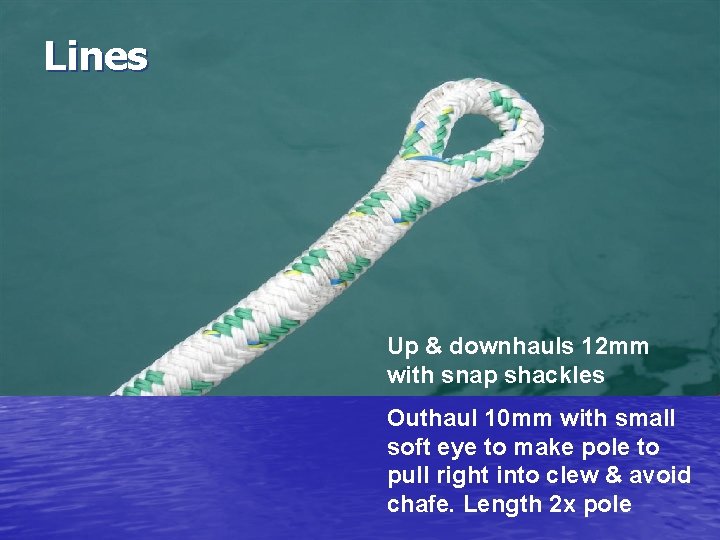

Lazy sheet Roller reefing line Lines Uphaul Mast Roller furler Downhaul Cleats Sheet winches Furling winch Twizzle joint Lazy sheet Pole 135% Genoa Outhaul Port sheet Up & downhauls 12 mm with snap shackles Clew Outhaul 10 mm with small soft eye to make pole to pull right into clew & avoid chafe. Length 2 x pole

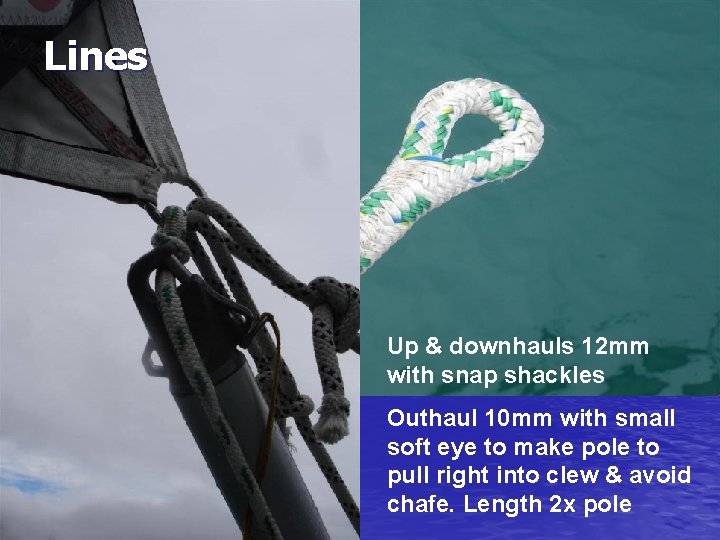

Lines Up & downhauls 12 mm with snap shackles Outhaul 10 mm with small soft eye to make pole to pull right into clew & avoid chafe. Length 2 x pole

Lines Up & downhauls 12 mm with snap shackles Outhaul 10 mm with small soft eye to make pole to pull right into clew & avoid chafe. Length 2 x pole

Lines Up & downhauls 12 mm with snap shackles Outhaul 10 mm with small soft eye to make pole to pull right into clew & avoid chafe. Length 2 x pole

Lines Up & downhauls 12 mm with snap shackles Outhaul 10 mm with small soft eye to make pole to pull right into clew & avoid chafe. Length 2 x pole

Lines Up & downhauls 12 mm with snap shackles Outhaul 10 mm with small soft eye to make pole to pull right into clew & avoid chafe. Length 2 x pole

Lines Up & downhauls 12 mm with snap shackles Outhaul 10 mm with small soft eye to make pole to pull right into clew & avoid chafe. Length 2 x pole

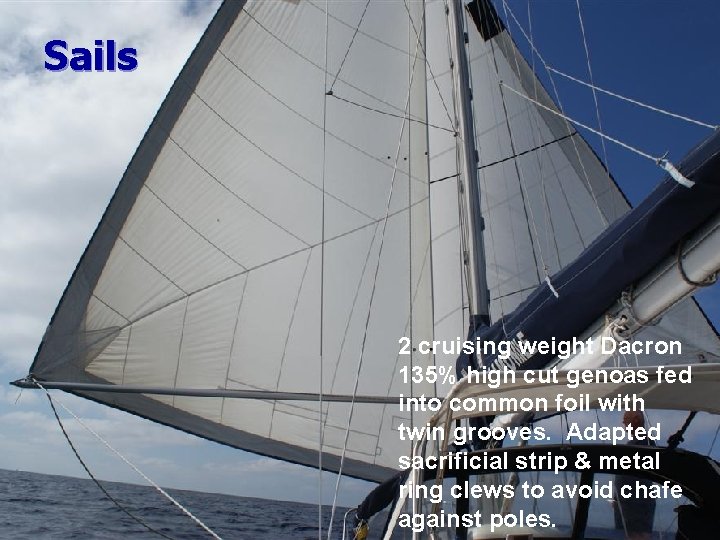

Lazy sheet Roller reefing line Sails Uphaul Mast Roller furler Downhaul Cleats Sheet winches Furling winch Twizzle joint Lazy sheet Pole 135% Genoa Outhaul Clew Port sheet 2 cruising weight Dacron 135% high cut genoas fed into common foil with twin grooves. Adapted sacrificial strip & metal ring clews to avoid chafe against poles.

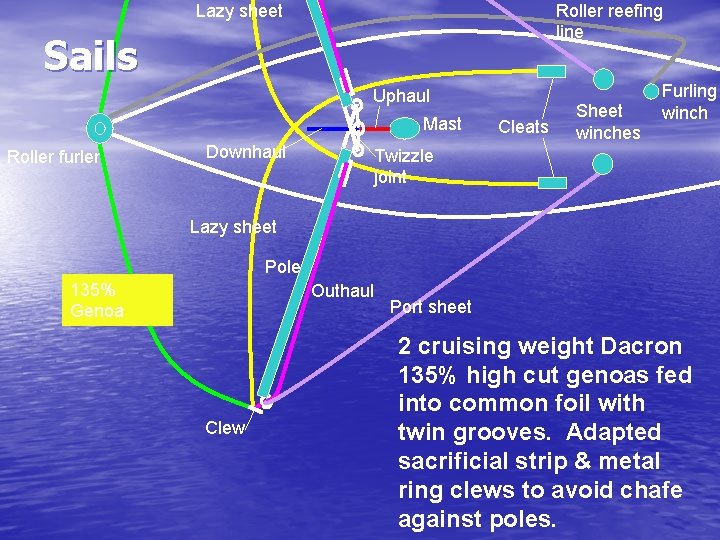

Sails 2 cruising weight Dacron 135% high cut genoas fed into common foil with twin grooves. Adapted sacrificial strip & metal ring clews to avoid chafe against poles.

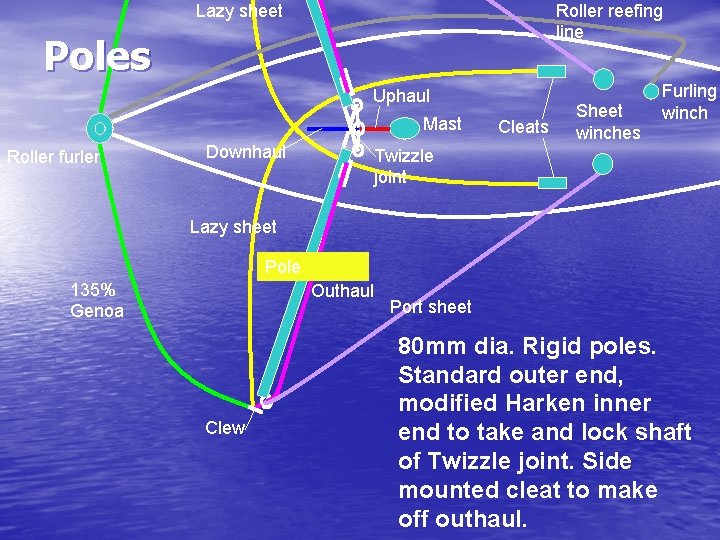

Lazy sheet Roller reefing line Poles Uphaul Mast Roller furler Downhaul Cleats Sheet winches Furling winch Twizzle joint Lazy sheet Pole 135% Genoa Outhaul Clew Port sheet 80 mm dia. Rigid poles. Standard outer end, modified Harken inner end to take and lock shaft of Twizzle joint. Side mounted cleat to make off outhaul.

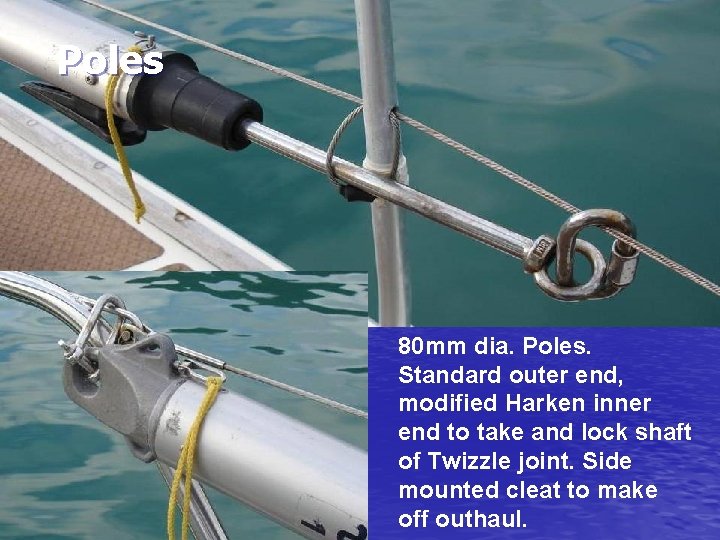

Poles 80 mm dia. Poles. Standard outer end, modified Harken inner end to take and lock shaft of Twizzle joint. Side mounted cleat to make off outhaul.

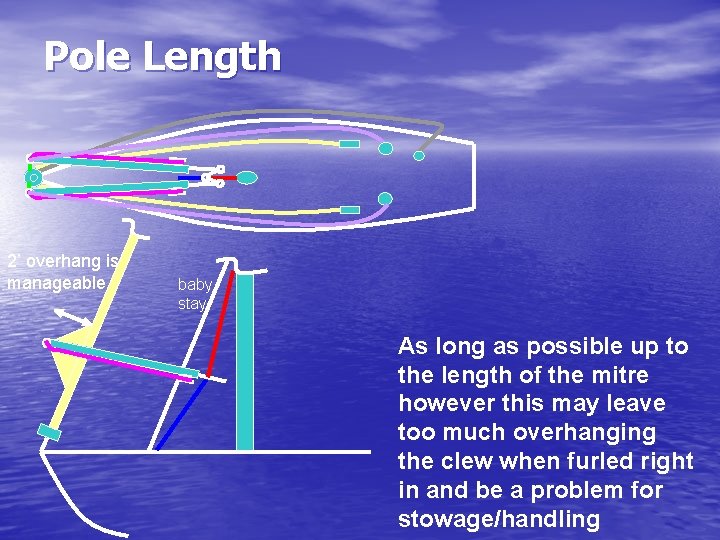

Pole Length 2’ overhang is manageable baby stay As long as possible up to the length of the mitre however this may leave too much overhanging the clew when furled right in and be a problem for stowage/handling

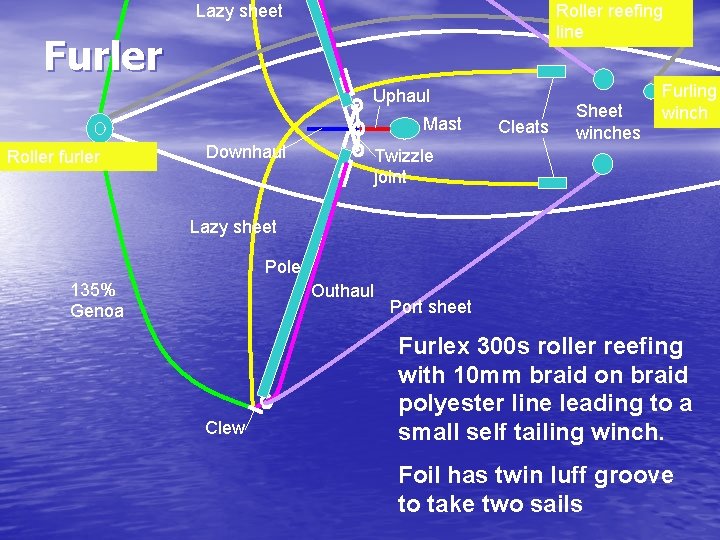

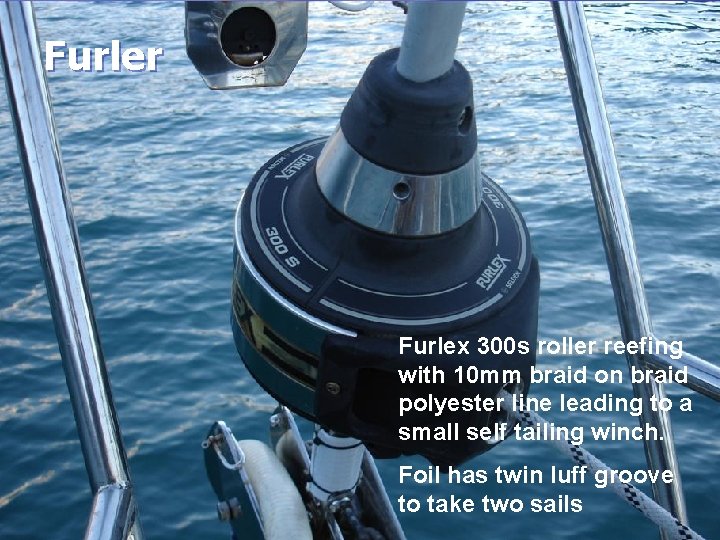

Lazy sheet Roller reefing line Furler Uphaul Mast Roller furler Downhaul Cleats Sheet winches Furling winch Twizzle joint Lazy sheet Pole 135% Genoa Outhaul Clew Port sheet Furlex 300 s roller reefing with 10 mm braid on braid polyester line leading to a small self tailing winch. Foil has twin luff groove to take two sails

Furler Furlex 300 s roller reefing with 10 mm braid on braid polyester line leading to a small self tailing winch. Foil has twin luff groove to take two sails

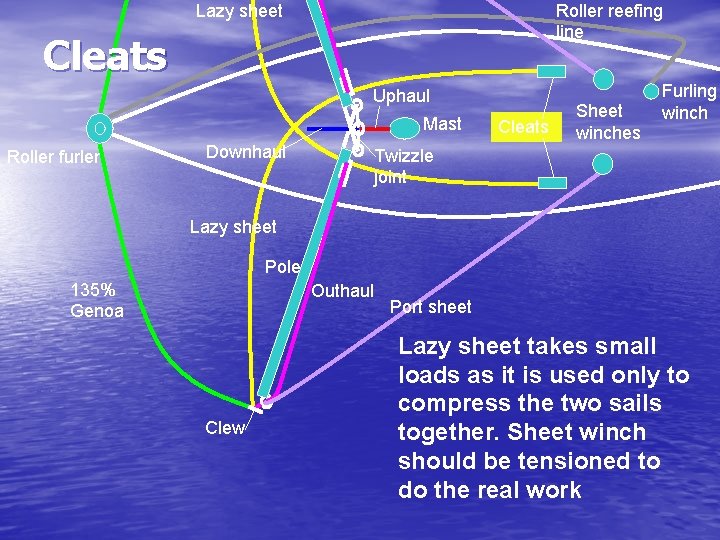

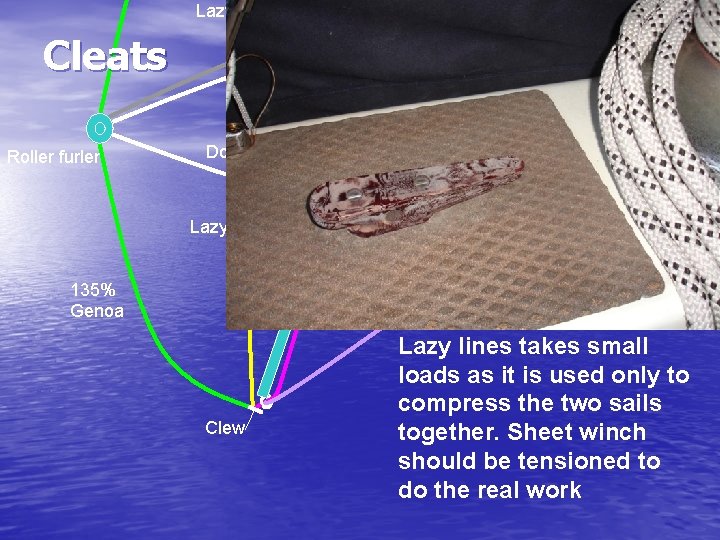

Lazy sheet Roller reefing line Cleats Uphaul Mast Roller furler Downhaul Cleats Sheet winches Furling winch Twizzle joint Lazy sheet Pole 135% Genoa Outhaul Clew Port sheet Lazy sheet takes small loads as it is used only to compress the two sails together. Sheet winch should be tensioned to do the real work

Lazy sheet Roller reefing line Cleats Uphaul Mast Roller furler Downhaul Cleats Sheet winches Furling winch Twizzle joint Lazy sheet Pole 135% Genoa Outhaul Clew Port sheet Lazy lines takes small loads as it is used only to compress the two sails together. Sheet winch should be tensioned to do the real work

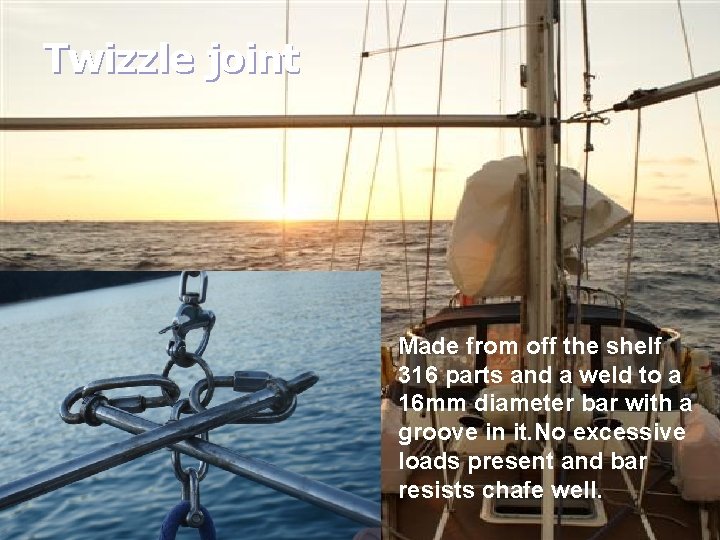

Lazy sheet Roller reefing line Twizzle joint Uphaul Mast Roller furler Downhaul Cleats Sheet winches Furling winch Twizzle joint Lazy sheet Pole 135% Genoa Outhaul Clew Port sheet Made from off the shelf 316 parts and a weld to a 16 mm diameter bar with a groove in it. No excessive loads present and bar resists chafe well.

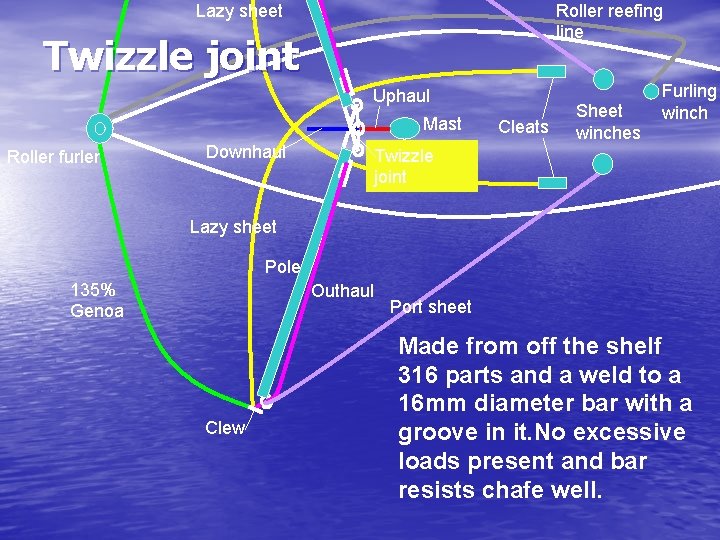

Twizzle joint 135% Genoa Made from off the shelf 316 parts and a weld to a 16 mm diameter bar with a groove in it. No excessive loads present and bar resists chafe well.
