Camera Calibration Image Alignment Augmented Reality 2 CV

主要内容摄像机标定（Camera Calibration）图像对准(Image Alignment) 位姿估计-增强现实（Augmented Reality） 2 CV: Calibration 2021/2/20

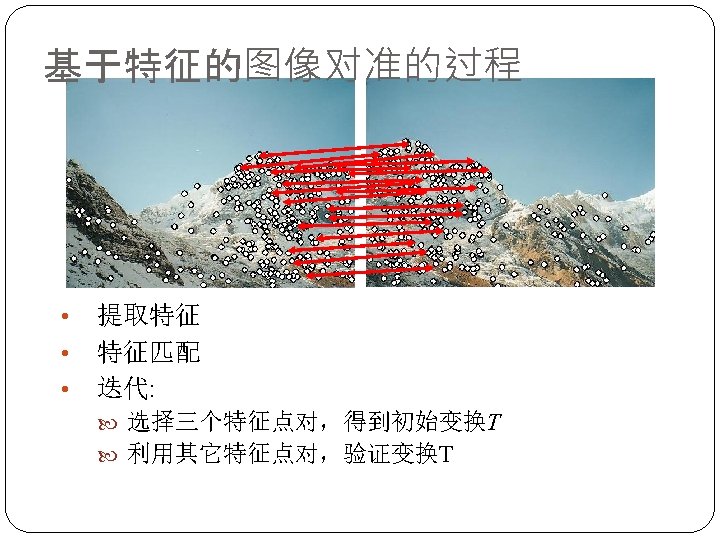

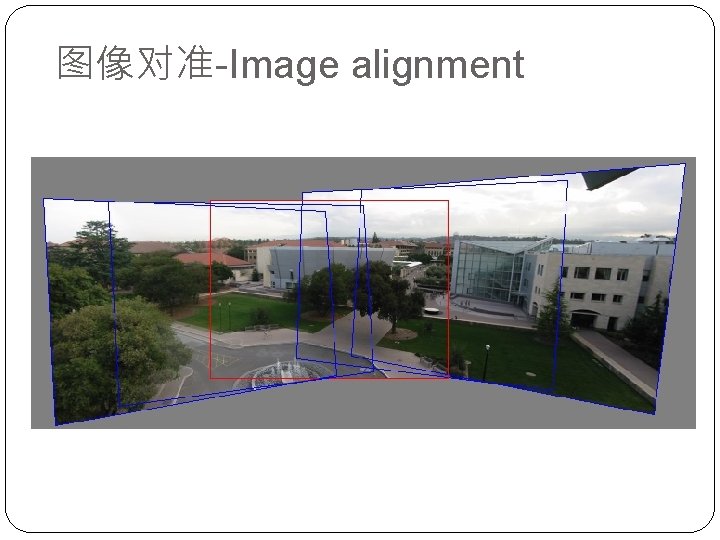

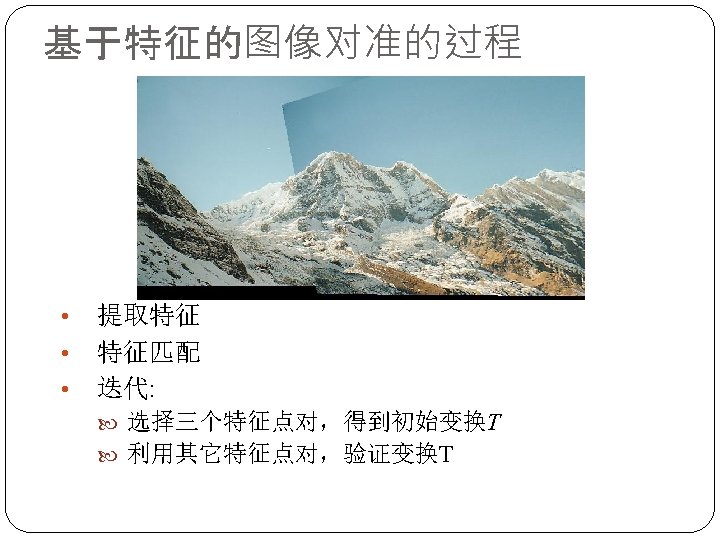

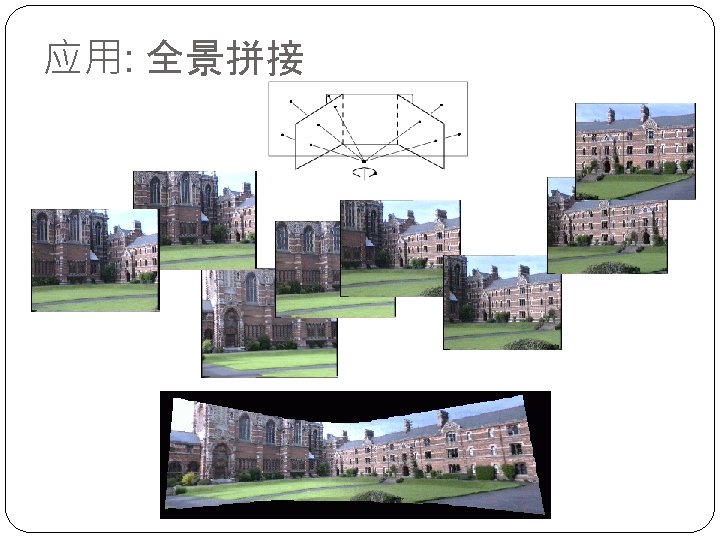

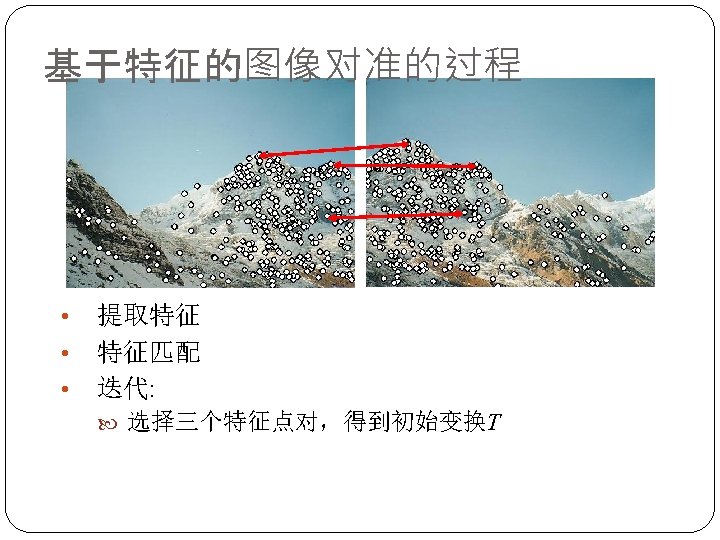

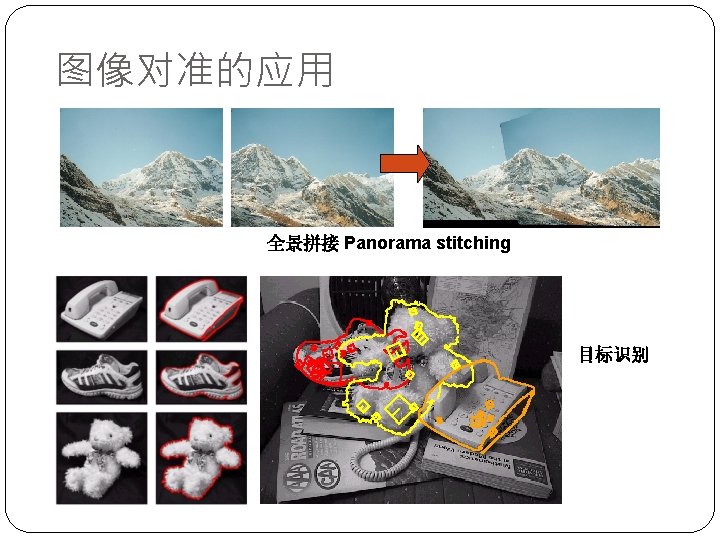

图像对准-Image alignment

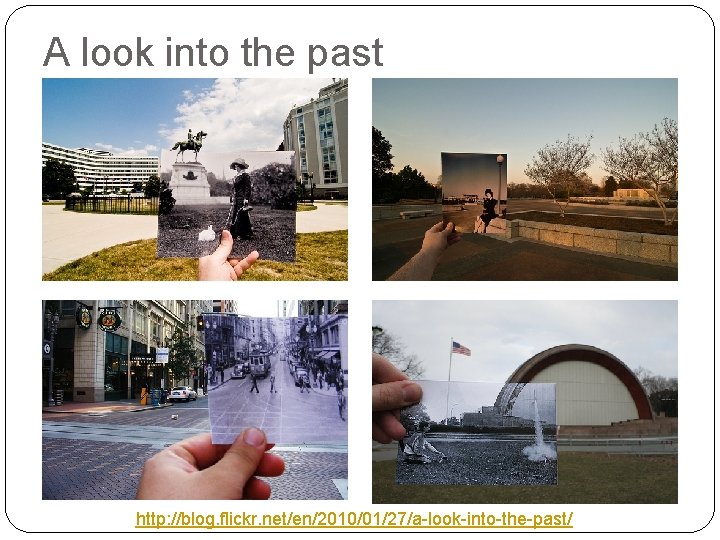

A look into the past http: //blog. flickr. net/en/2010/01/27/a-look-into-the-past/

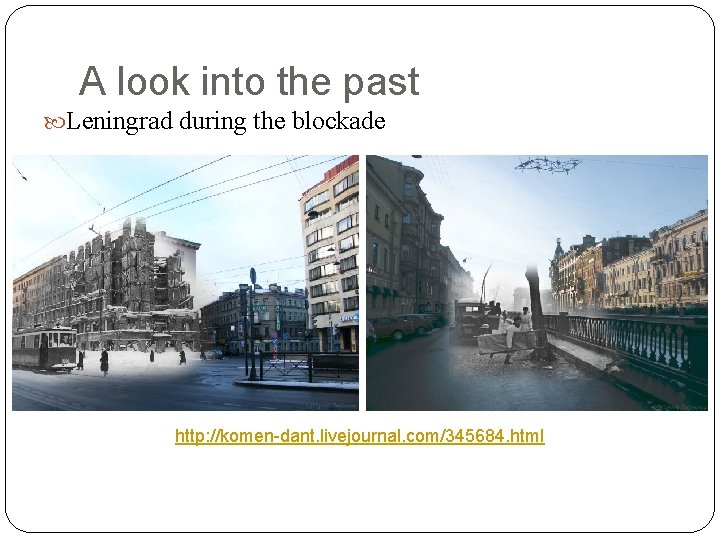

A look into the past Leningrad during the blockade http: //komen-dant. livejournal. com/345684. html

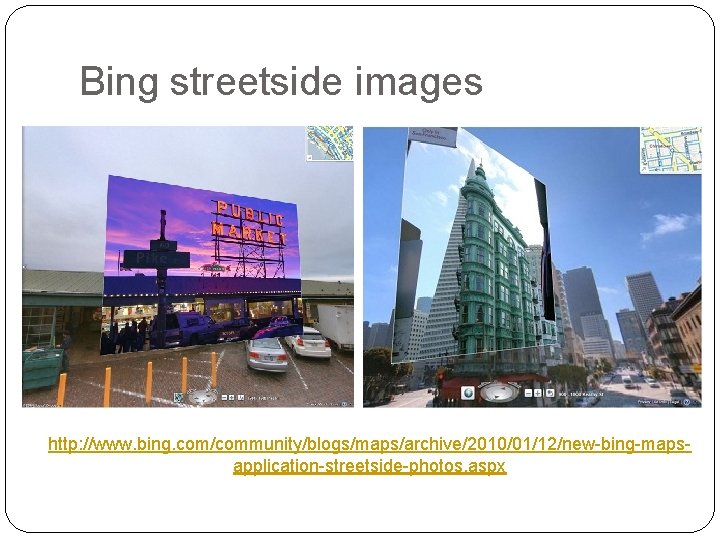

Bing streetside images http: //www. bing. com/community/blogs/maps/archive/2010/01/12/new-bing-mapsapplication-streetside-photos. aspx

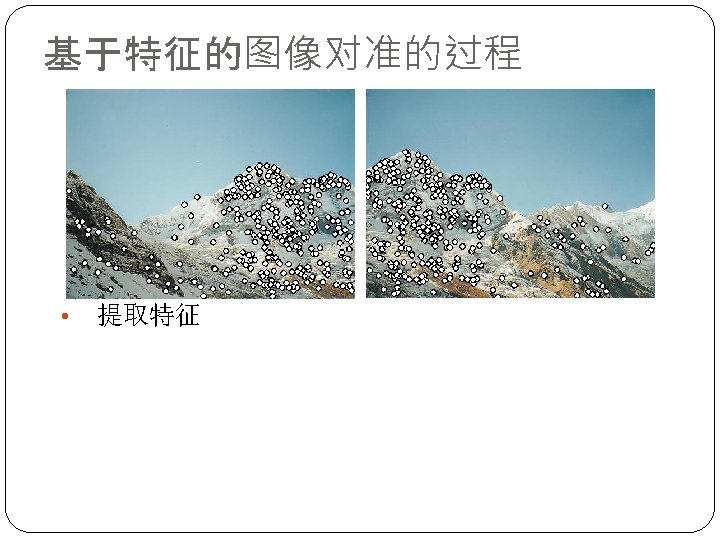

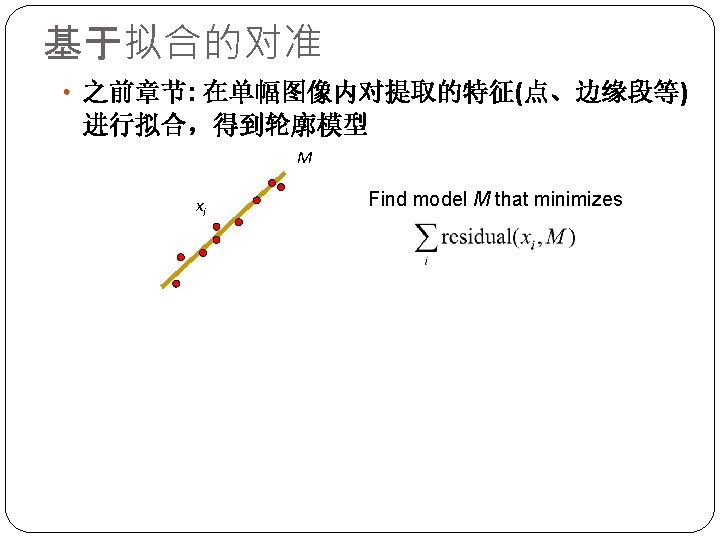

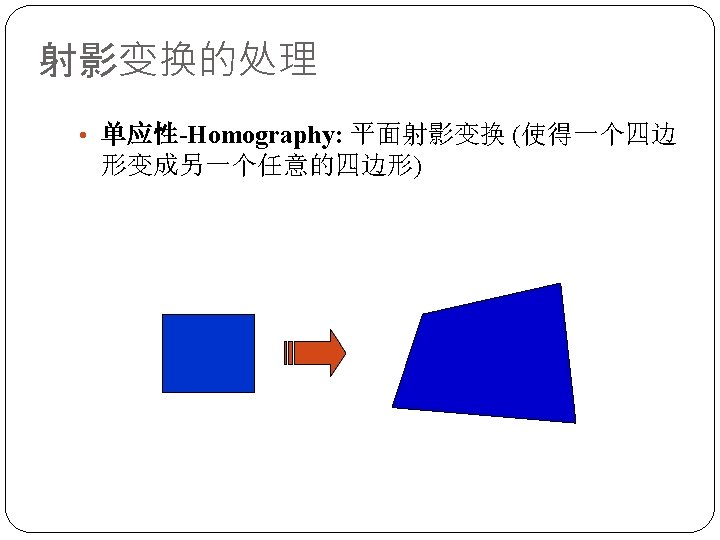

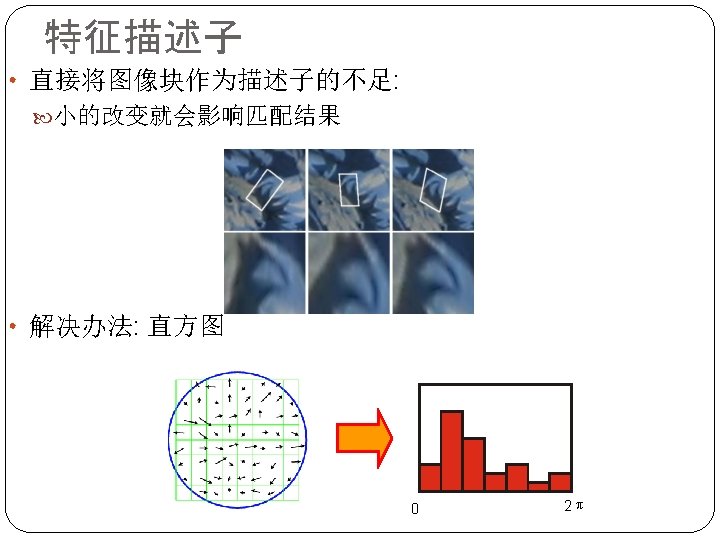

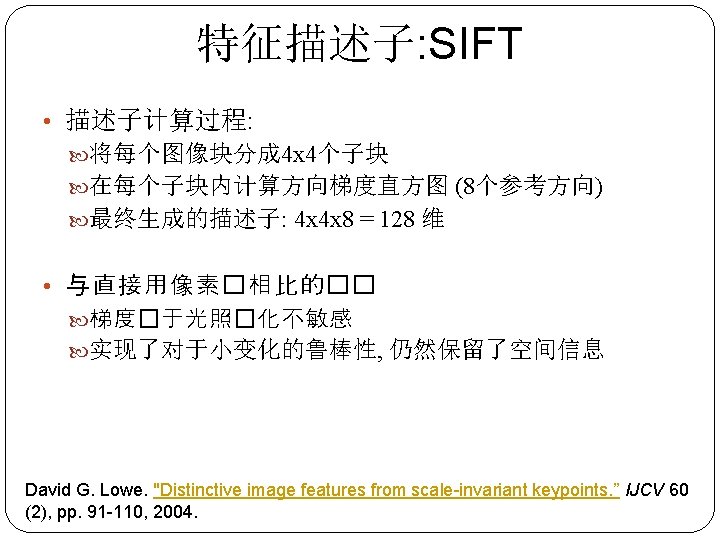

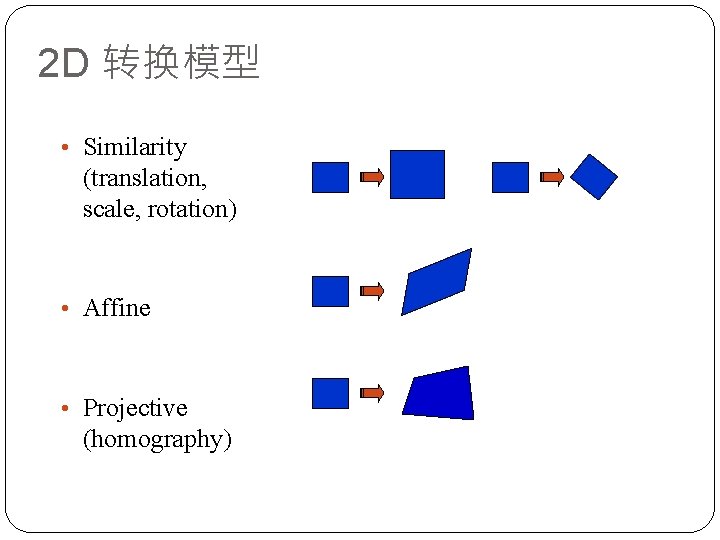

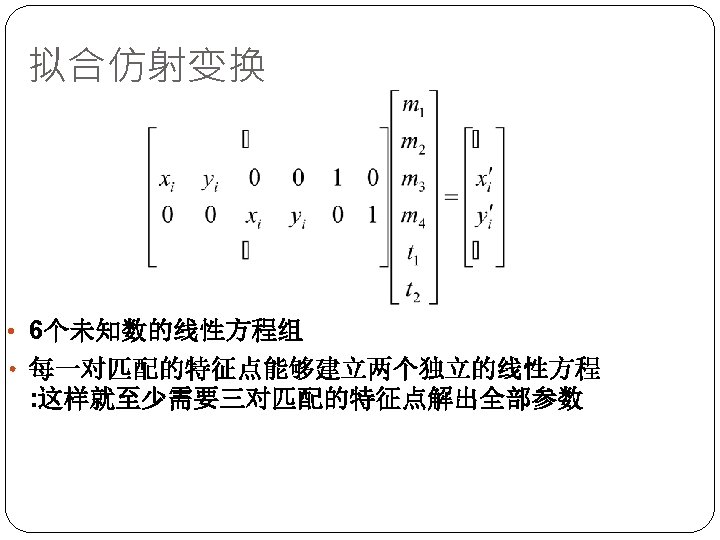

2 D 转换模型 • Similarity (translation, scale, rotation) • Affine • Projective (homography)

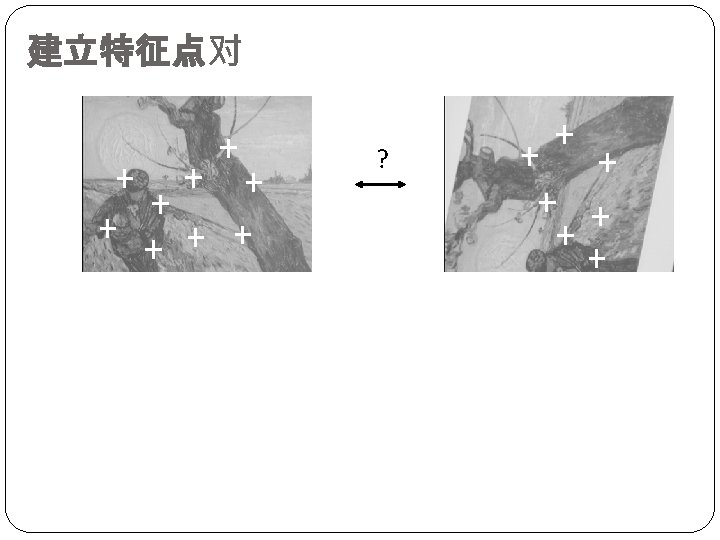

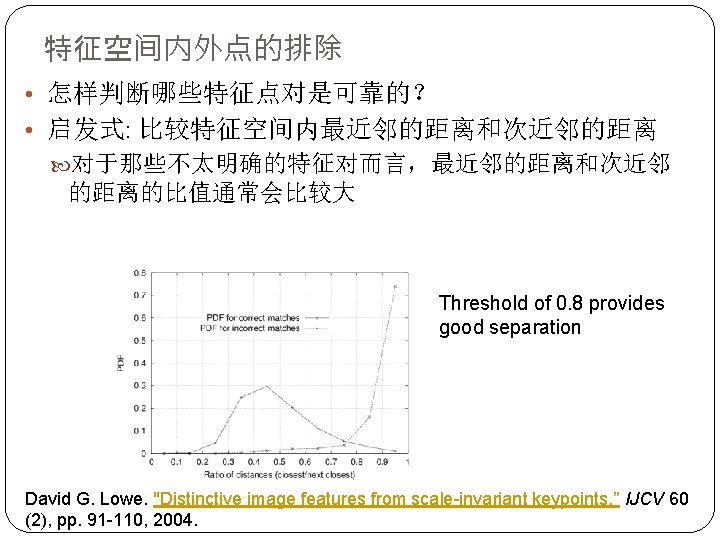

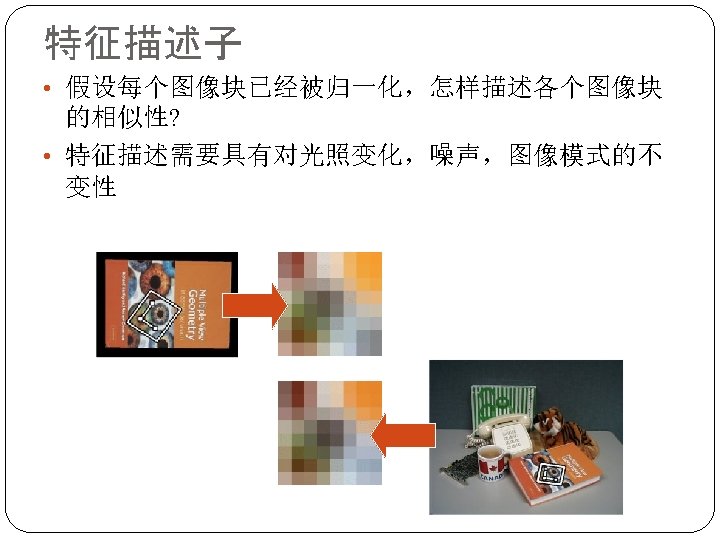

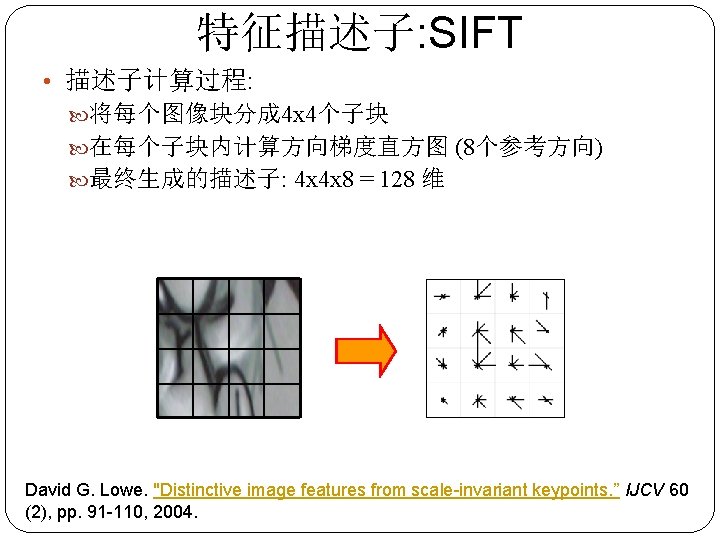

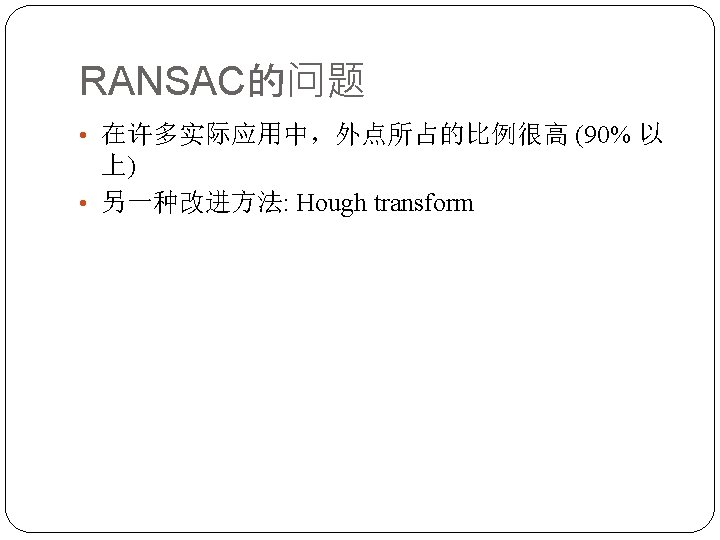

外点的处理 • 几何拟合方法: RANSAC Hough transform

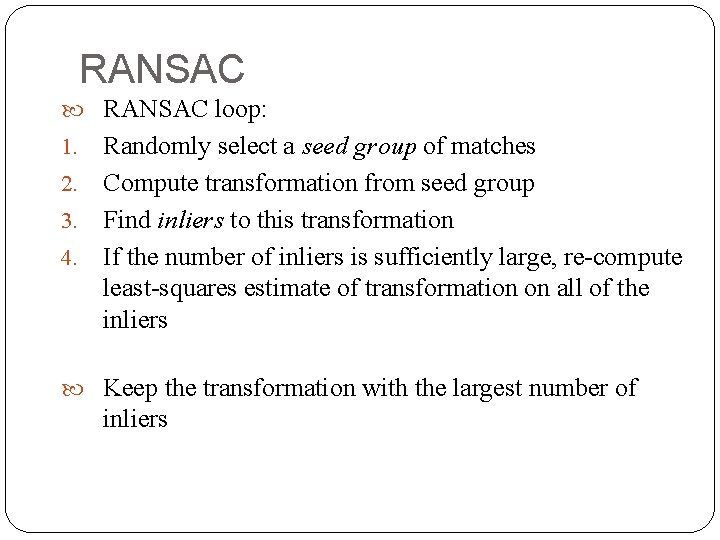

RANSAC loop: Randomly select a seed group of matches 2. Compute transformation from seed group 3. Find inliers to this transformation 4. If the number of inliers is sufficiently large, re-compute least-squares estimate of transformation on all of the inliers 1. Keep the transformation with the largest number of inliers

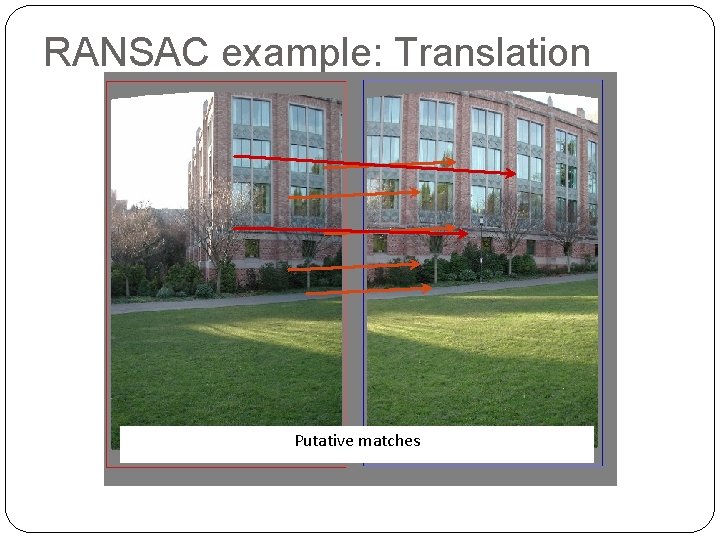

RANSAC example: Translation Putative matches

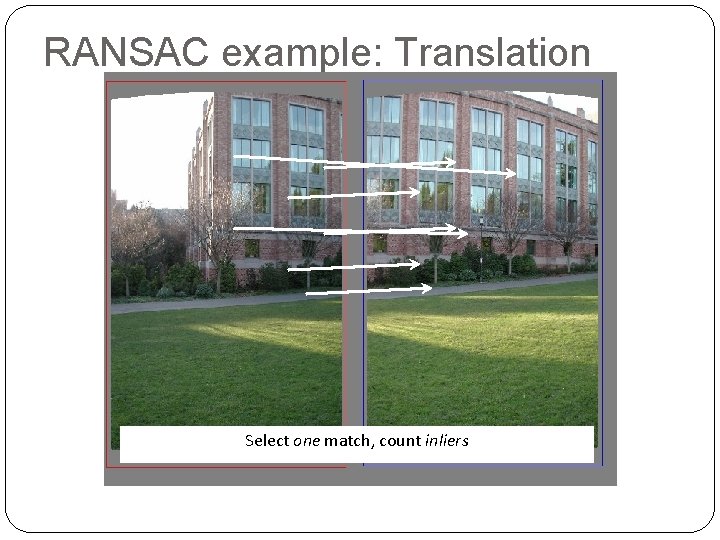

RANSAC example: Translation Select one match, count inliers

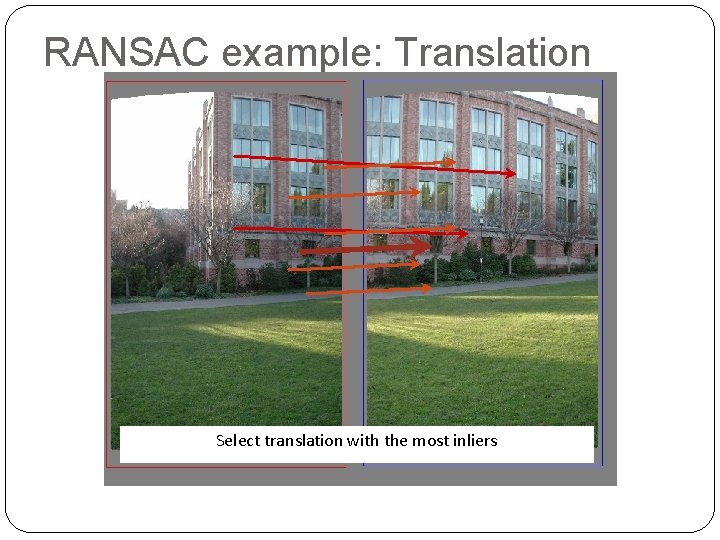

RANSAC example: Translation Select translation with the most inliers

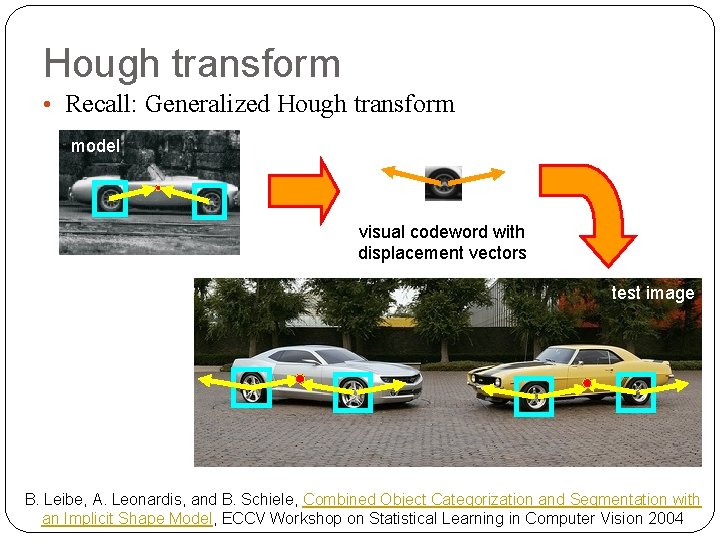

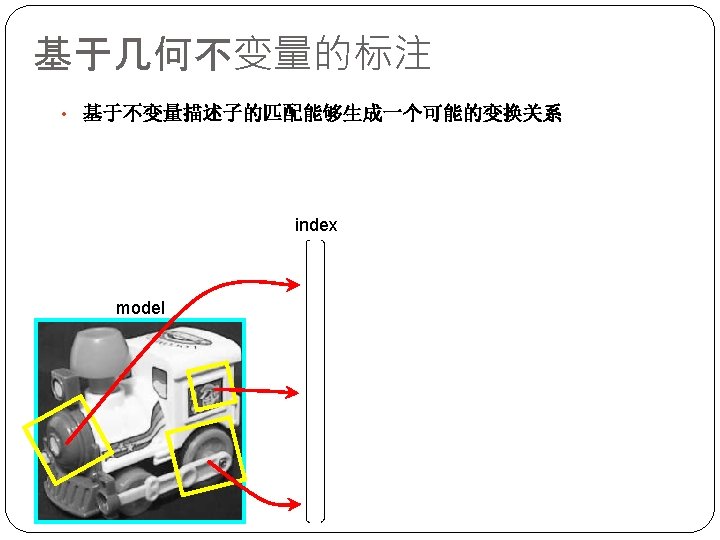

Hough transform • Recall: Generalized Hough transform model visual codeword with displacement vectors test image B. Leibe, A. Leonardis, and B. Schiele, Combined Object Categorization and Segmentation with an Implicit Shape Model, ECCV Workshop on Statistical Learning in Computer Vision 2004

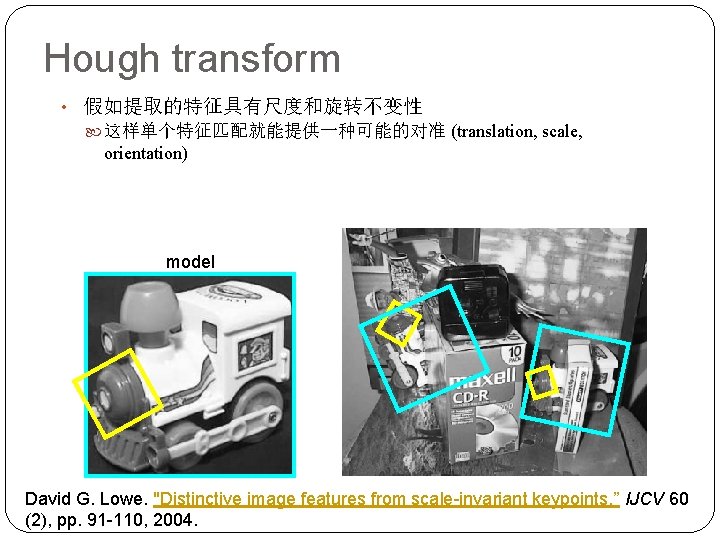

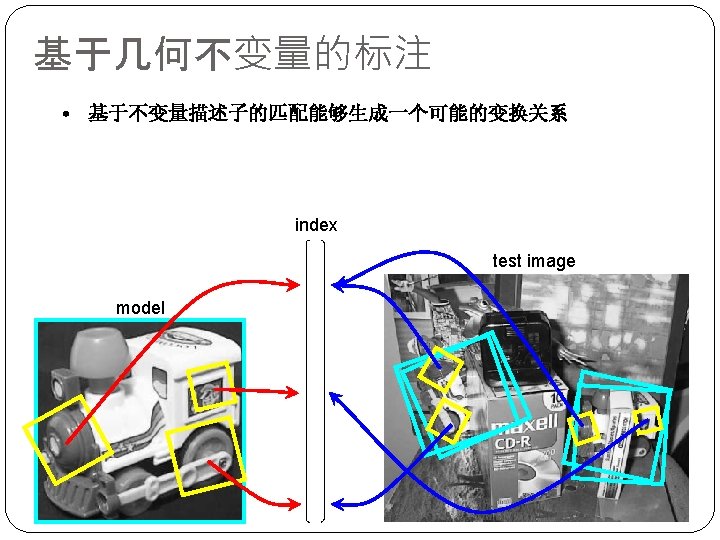

Hough transform • 假如提取的特征具有尺度和旋转不变性这样单个特征匹配就能提供一种可能的对准 (translation, scale, orientation) model David G. Lowe. "Distinctive image features from scale-invariant keypoints. ” IJCV 60 (2), pp. 91 -110, 2004.

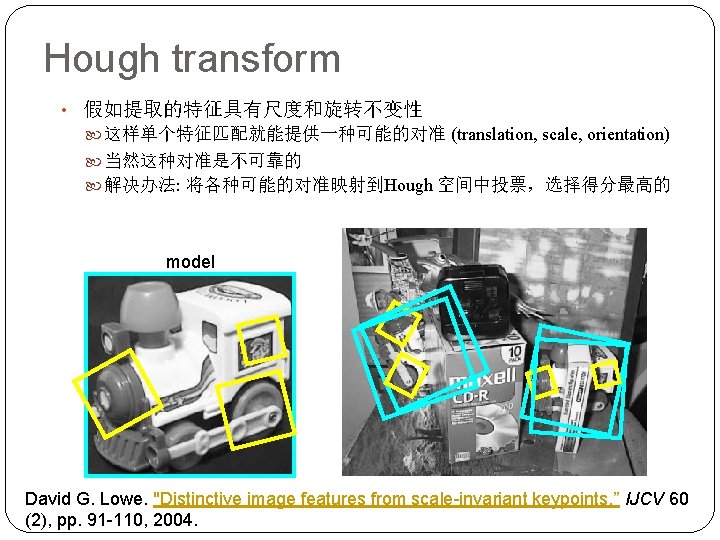

Hough transform • 假如提取的特征具有尺度和旋转不变性这样单个特征匹配就能提供一种可能的对准 (translation, scale, orientation) 当然这种对准是不可靠的解决办法: 将各种可能的对准映射到Hough 空间中投票，选择得分最高的 model David G. Lowe. "Distinctive image features from scale-invariant keypoints. ” IJCV 60 (2), pp. 91 -110, 2004.

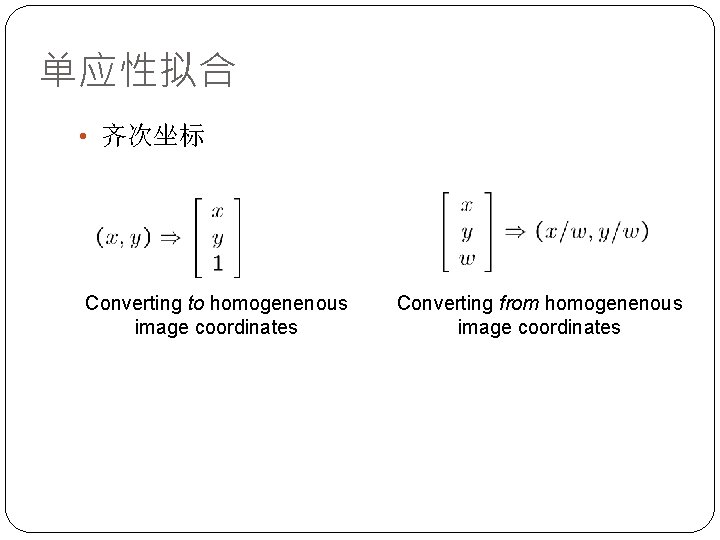

单应性拟合 • 齐次坐标 Converting to homogenenous image coordinates Converting from homogenenous image coordinates

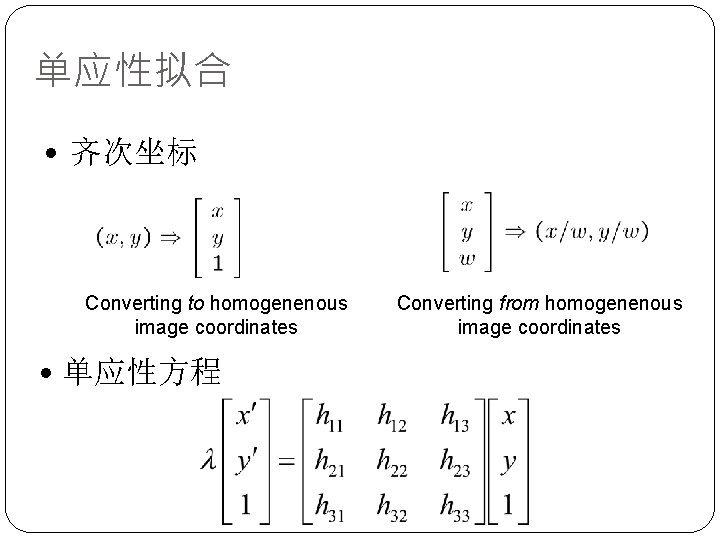

单应性拟合 • 齐次坐标 Converting to homogenenous image coordinates • 单应性方程 Converting from homogenenous image coordinates

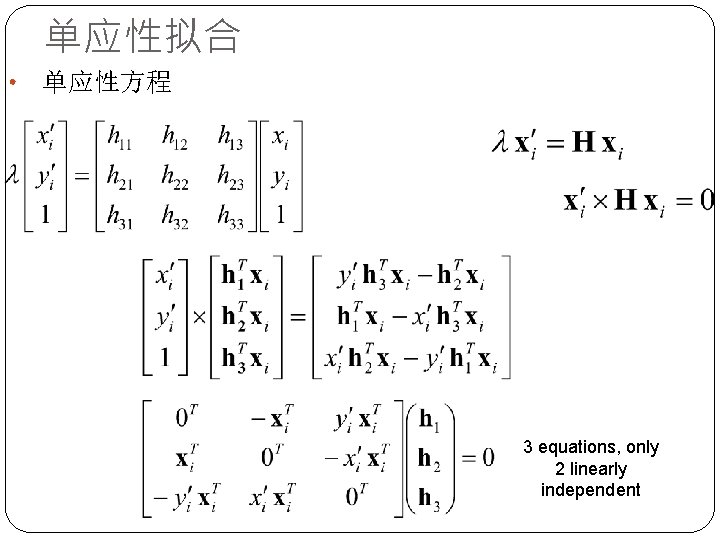

单应性拟合 • 单应性方程 3 equations, only 2 linearly independent

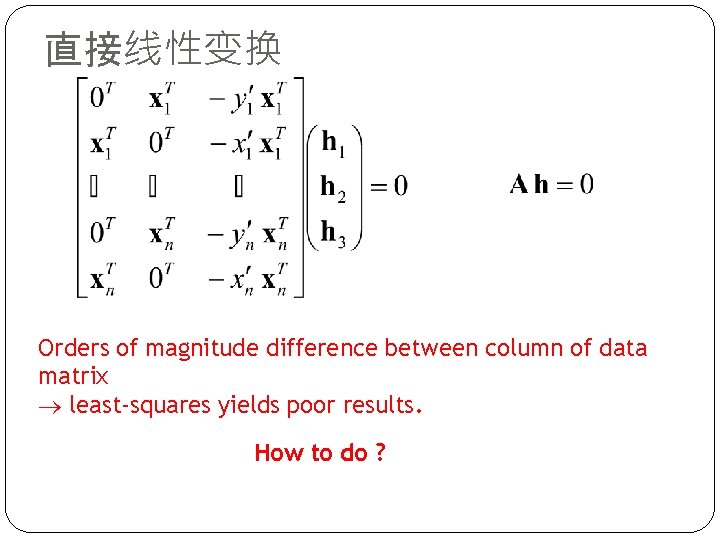

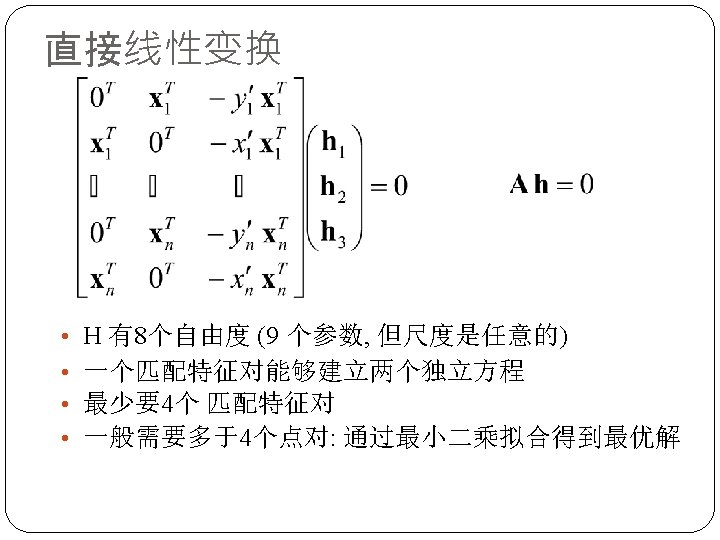

直接线性变换 Orders of magnitude difference between column of data matrix least-squares yields poor results. How to do ?

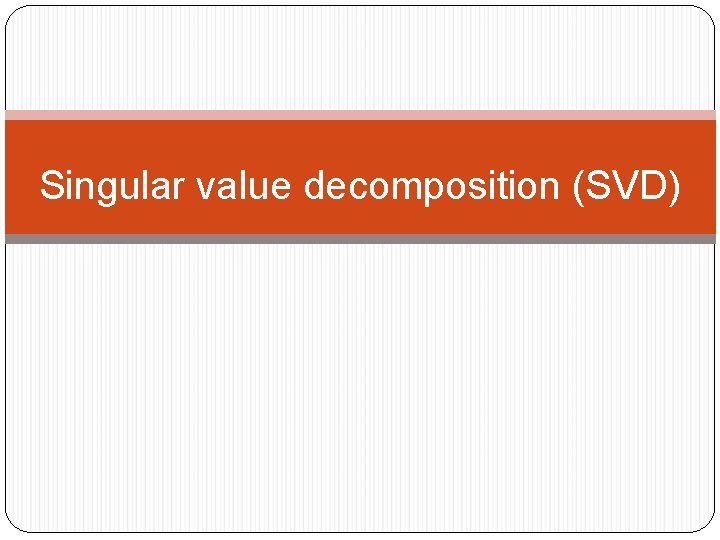

Singular value decomposition (SVD)

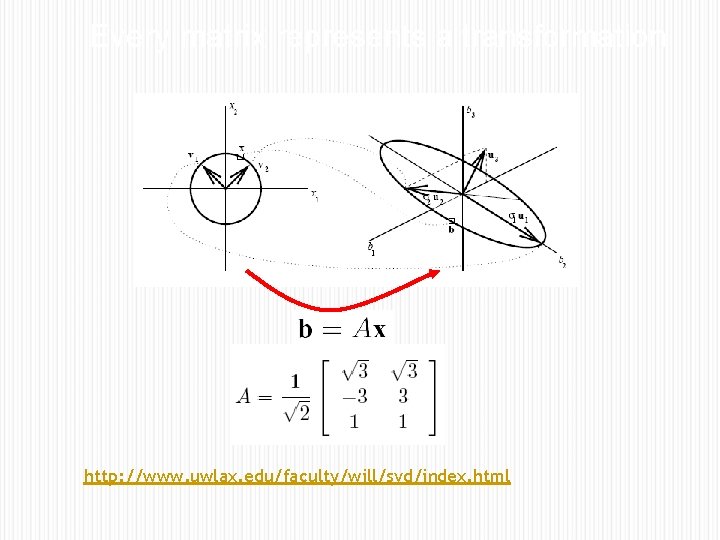

Every matrix represents a transformation http: //www. uwlax. edu/faculty/will/svd/index. html

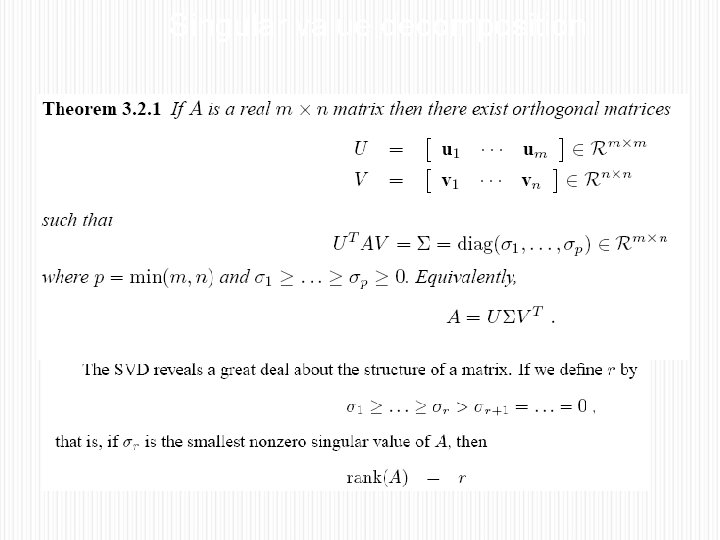

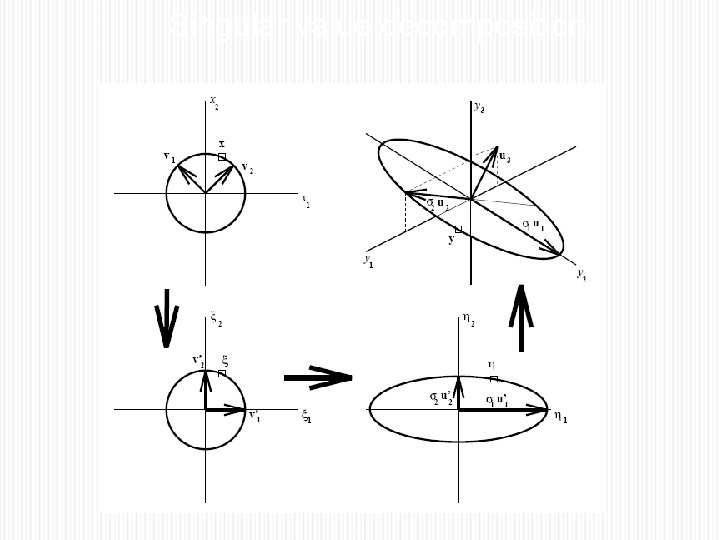

Singular value decomposition

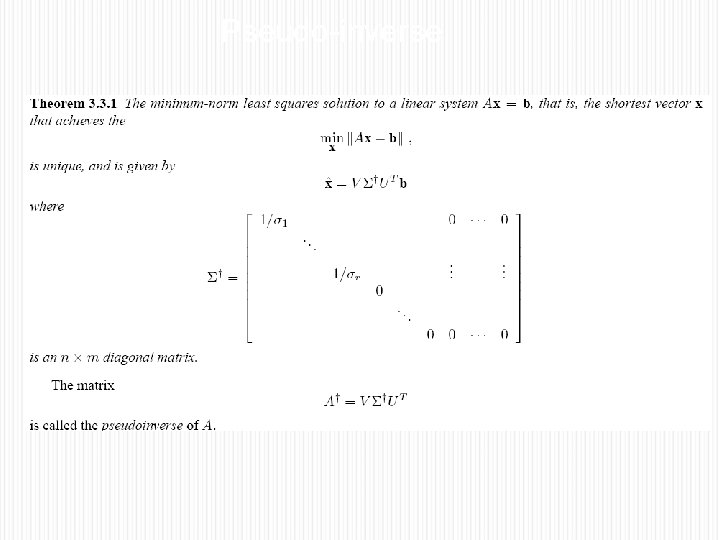

Pseudo-inverse

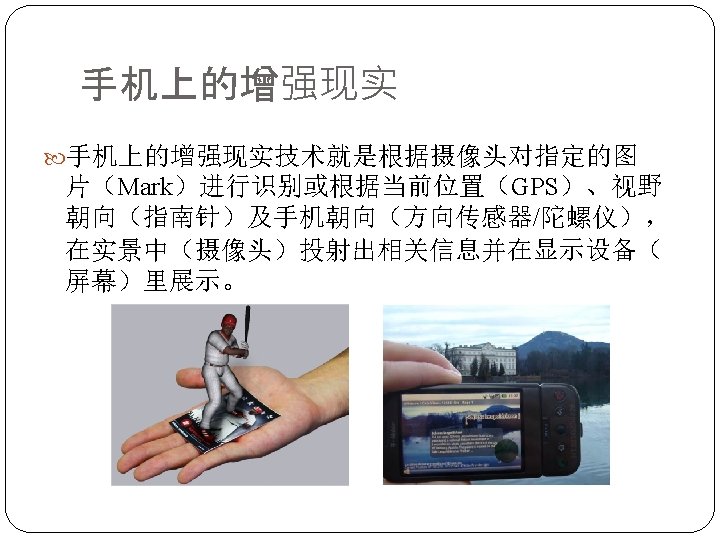

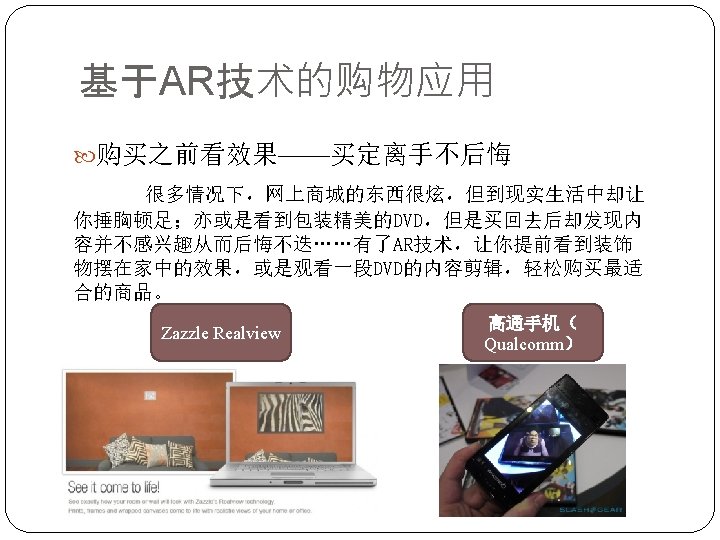

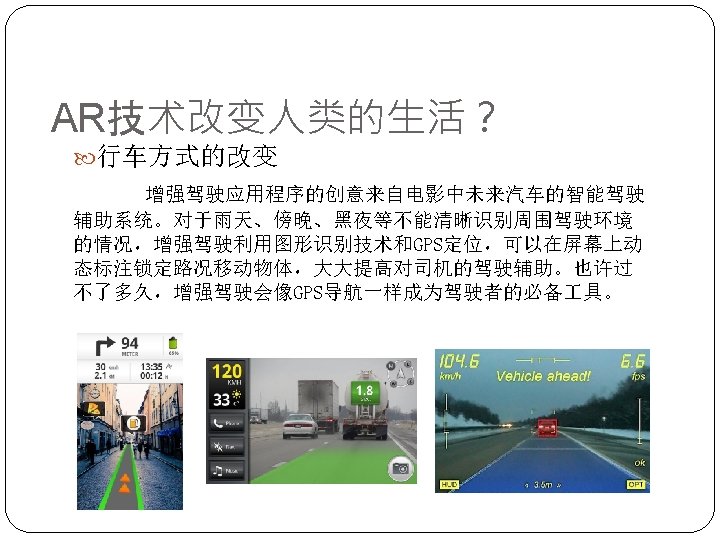

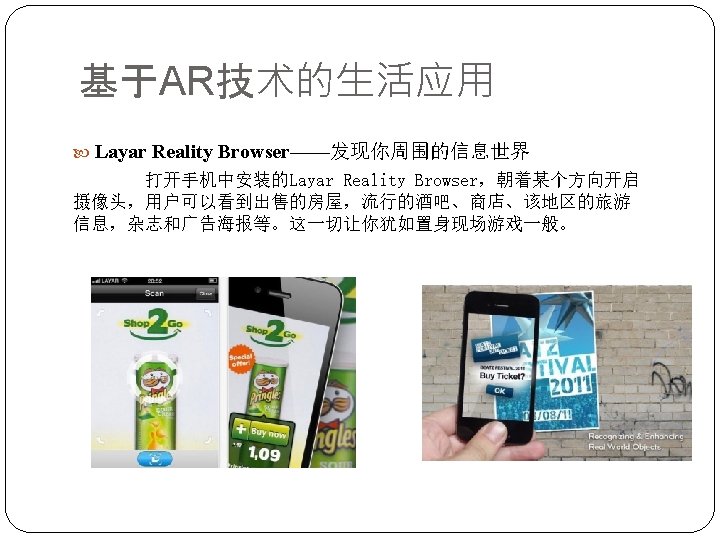

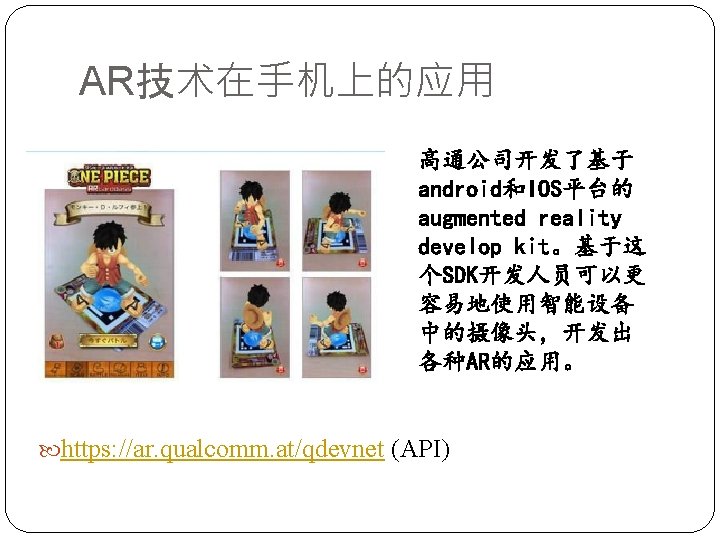

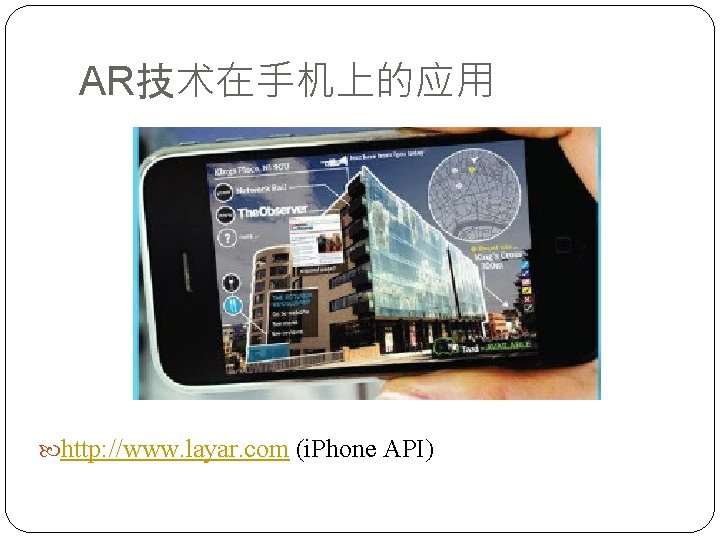

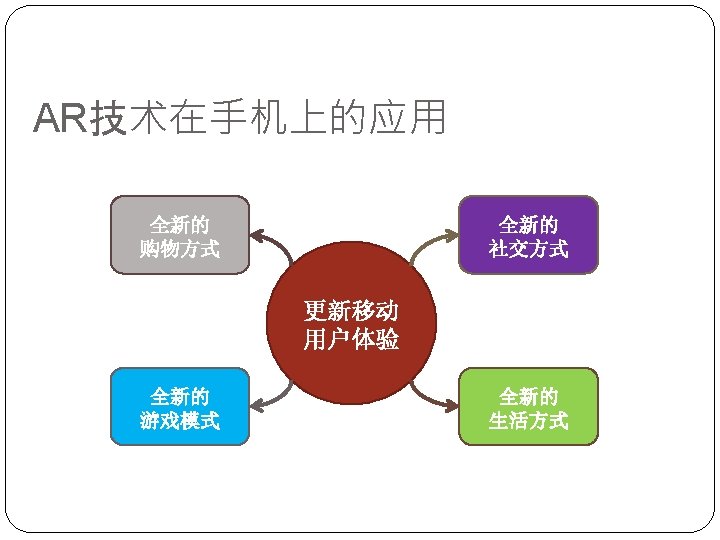

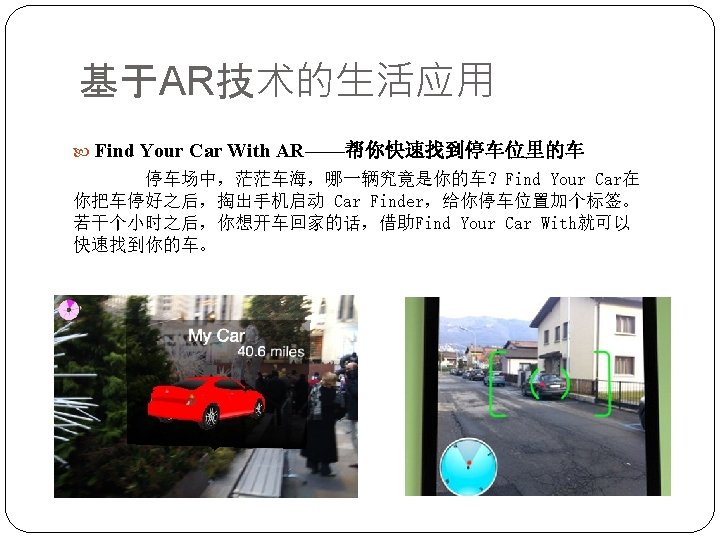

AR技术在手机上的应用 http: //www. layar. com (i. Phone API)

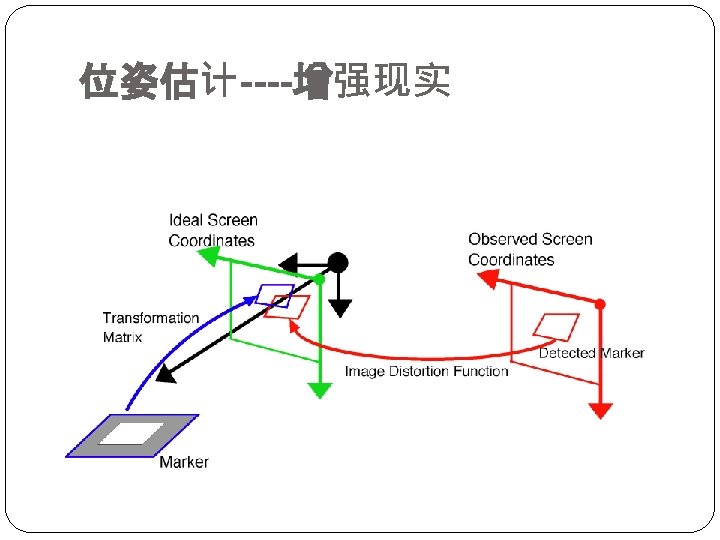

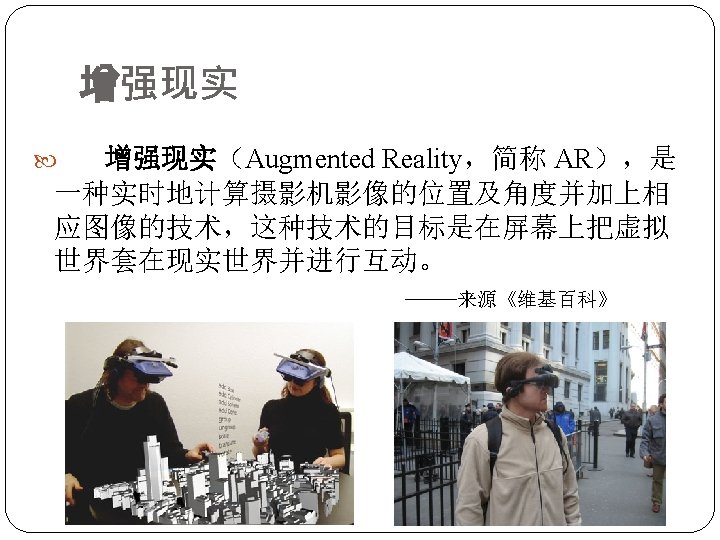

增强现实 68 CV: Calibration 2021/2/20

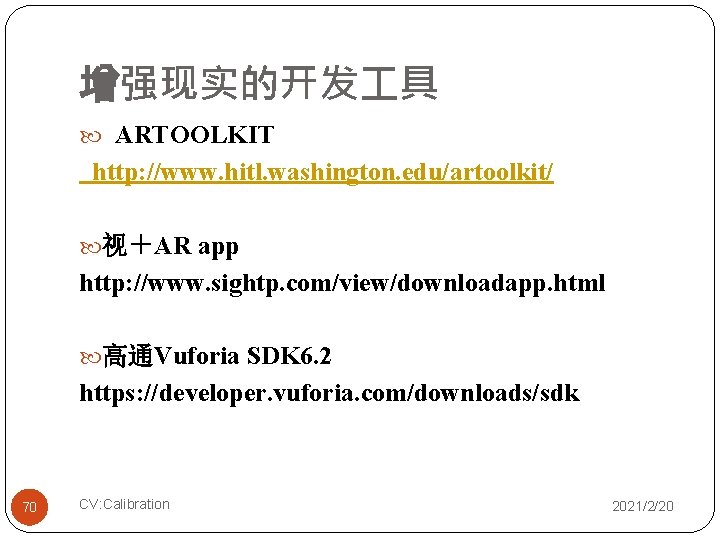

增强现实的开发具 ARTOOLKIT http: //www. hitl. washington. edu/artoolkit/ 视＋AR app http: //www. sightp. com/view/downloadapp. html 高通Vuforia SDK 6. 2 https: //developer. vuforia. com/downloads/sdk 70 CV: Calibration 2021/2/20

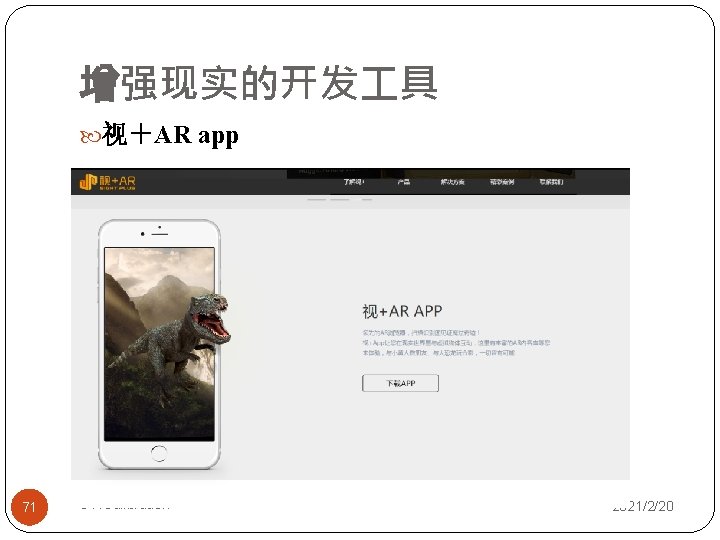

增强现实的开发具视＋AR app 71 CV: Calibration 2021/2/20

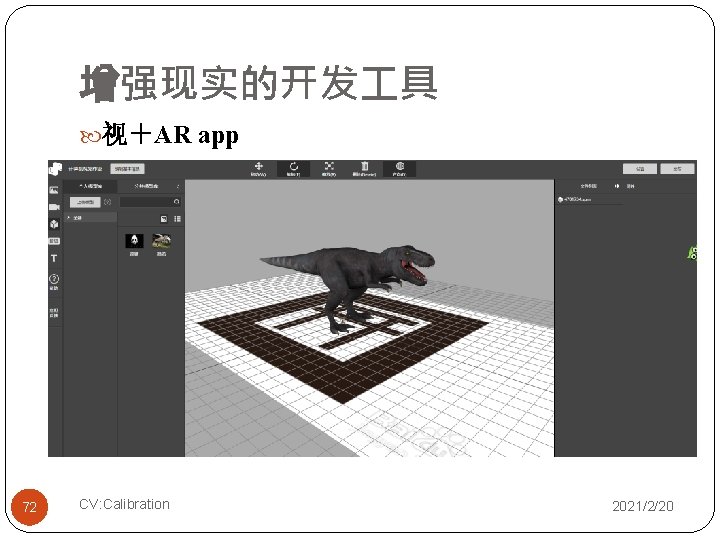

增强现实的开发具视＋AR app 72 CV: Calibration 2021/2/20

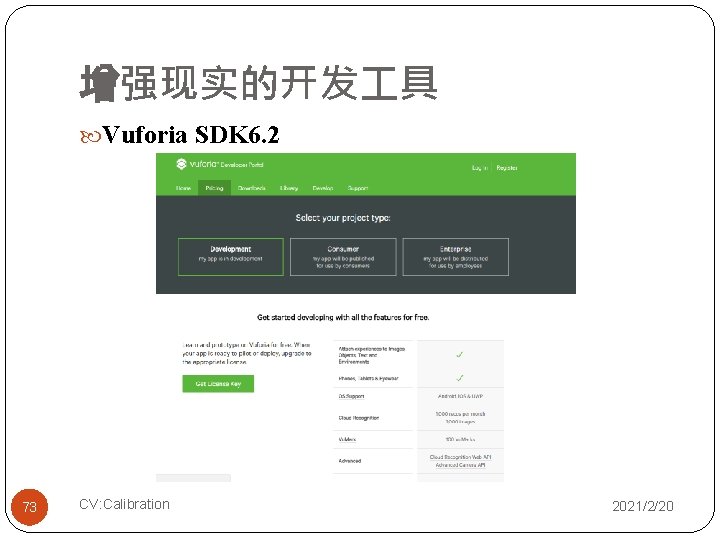

增强现实的开发具 Vuforia SDK 6. 2 73 CV: Calibration 2021/2/20
