California Science Olympiad Summer Institute Scrambler C ALEX
California Science Olympiad Summer Institute Scrambler C ALEX CHAO
Warning This presentation was prepared using draft rules. There may be some changes in the final copy of the rules. The rules which will be in your Coaches Manual and Student Manuals will be the official rules. 2/26/2021 California Science Olympiad Summer Institute

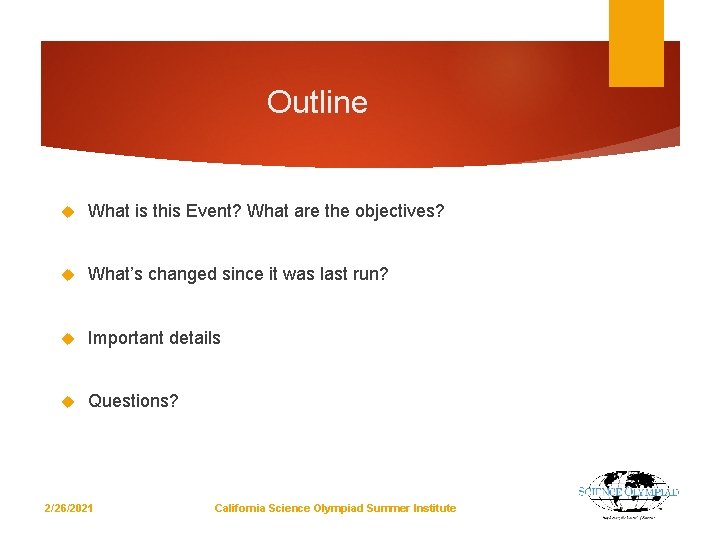

Outline What is this Event? What are the objectives? What’s changed since it was last run? Important details Questions? 2/26/2021 California Science Olympiad Summer Institute
What is Scrambler? Event Description: Competitors must design, build, and test a mechanical device, which uses the energy from a falling mass to transport an egg along a straight track as quickly as possible and stop as close to the center of a terminal barrier without breaking the egg. Most ideal situation is for Scrambler to go straight center and touch the wall without breaking the egg as quickly as possible Scrambler = egg transport + mass Mass does not need to travel with the egg transport 2/26/2021 California Science Olympiad Summer Institute

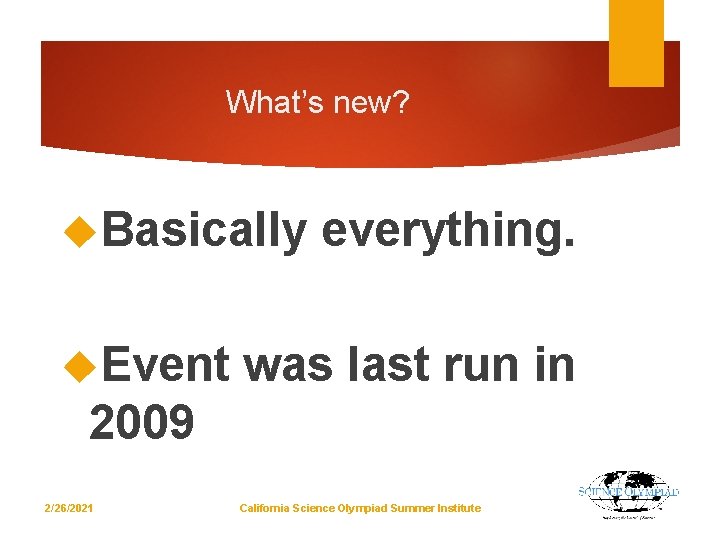

What’s new? Basically Event everything. was last run in 2009 2/26/2021 California Science Olympiad Summer Institute

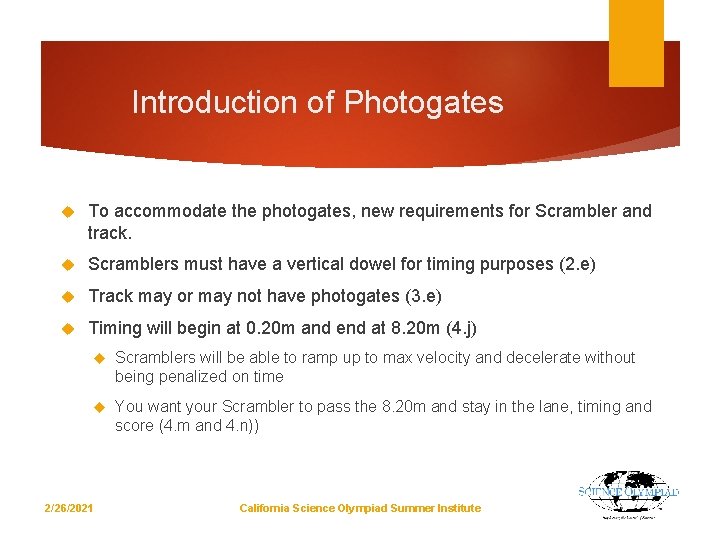

Introduction of Photogates To accommodate the photogates, new requirements for Scrambler and track. Scramblers must have a vertical dowel for timing purposes (2. e) Track may or may not have photogates (3. e) Timing will begin at 0. 20 m and end at 8. 20 m (4. j) Scramblers will be able to ramp up to max velocity and decelerate without being penalized on time You want your Scrambler to pass the 8. 20 m and stay in the lane, timing and score (4. m and 4. n)) 2/26/2021 California Science Olympiad Summer Institute
Brand New Backstop details listed in 2. e Egg must rest on wooden dowels Backstop includes the vertical dowel 2/26/2021 California Science Olympiad Summer Institute
Scrambler Diagram 2/26/2021 California Science Olympiad Summer Institute
Starting Scrambler Competitors must start their Scrambler using #2 pencils (2. g) New standard for starting vehicular events The Scrambler MUST remain in place before launch, no holding (4. h) 2/26/2021 California Science Olympiad Summer Institute
Important details Scrambler device needs to be impounded, certain exceptions listed in 4. a Competitors will select their egg, however, they will only be allowed one egg per team (2. f) If the egg breaks, you are done. Go conservative 1 st run and all out on 2 nd run (4. o) 2/26/2021 California Science Olympiad Summer Institute

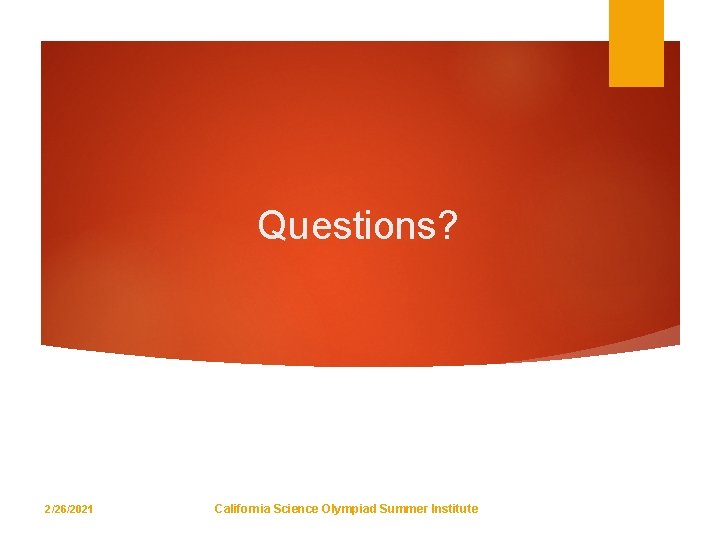

Questions? 2/26/2021 California Science Olympiad Summer Institute
