CAGD history and outlook Gerald Farin Arizona State

CAGD history and outlook Gerald Farin Arizona State University

Ben Jakober

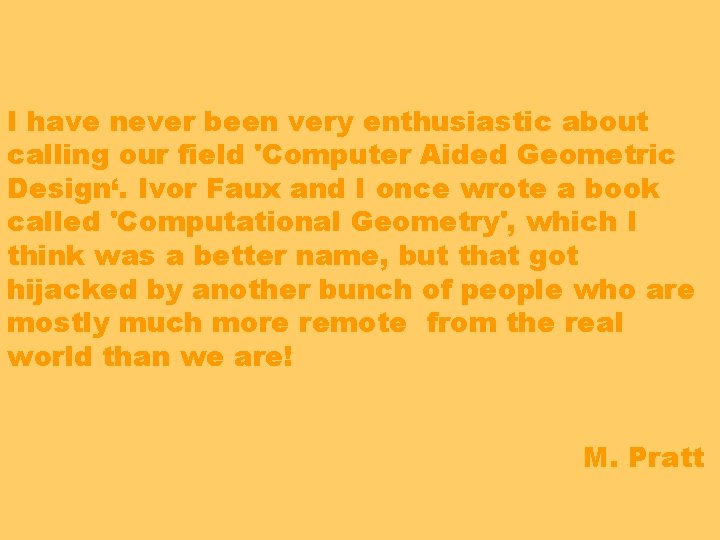

I have never been very enthusiastic about calling our field 'Computer Aided Geometric Design‘. Ivor Faux and I once wrote a book called 'Computational Geometry', which I think was a better name, but that got hijacked by another bunch of people who are mostly much more remote from the real world than we are! M. Pratt

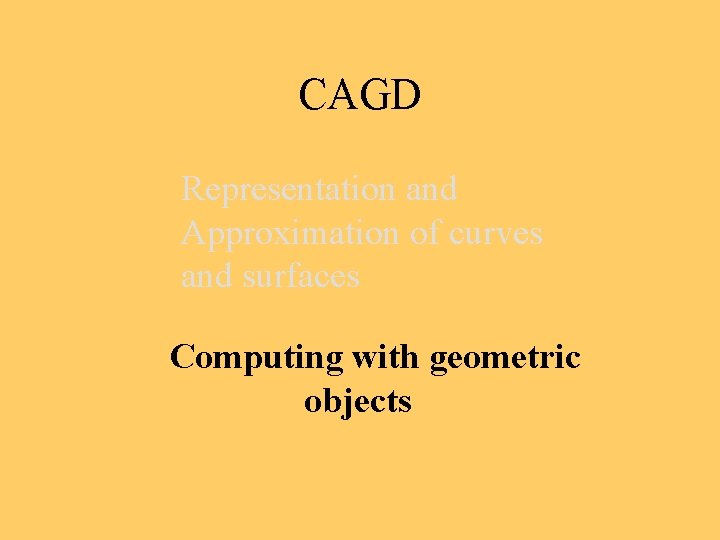

CAGD Representation and Approximation of curves and surfaces Computing with geometric objects

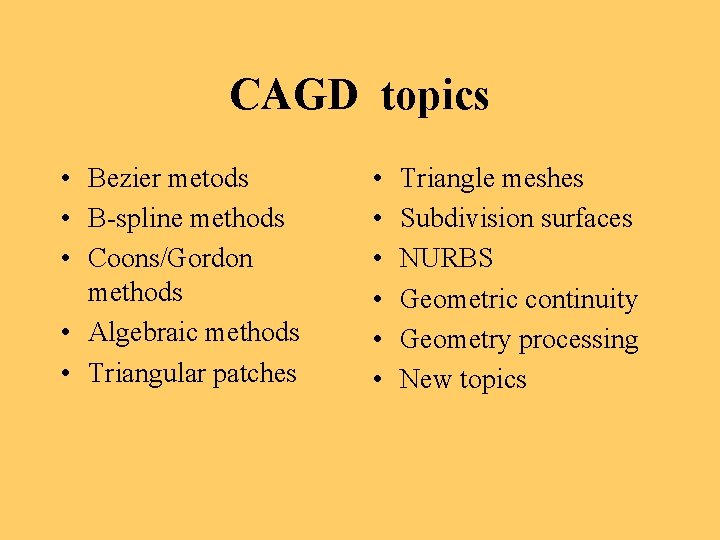

CAGD topics • Bezier metods • B-spline methods • Coons/Gordon methods • Algebraic methods • Triangular patches • • • Triangle meshes Subdivision surfaces NURBS Geometric continuity Geometry processing New topics

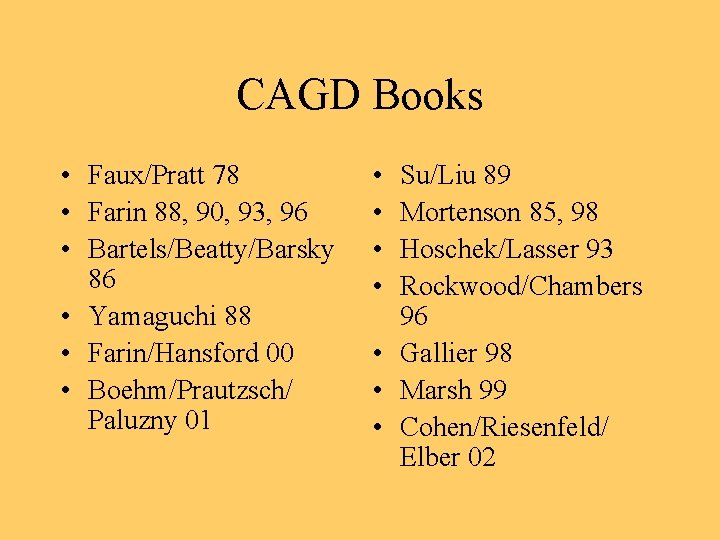

CAGD Books • Faux/Pratt 78 • Farin 88, 90, 93, 96 • Bartels/Beatty/Barsky 86 • Yamaguchi 88 • Farin/Hansford 00 • Boehm/Prautzsch/ Paluzny 01 • • Su/Liu 89 Mortenson 85, 98 Hoschek/Lasser 93 Rockwood/Chambers 96 • Gallier 98 • Marsh 99 • Cohen/Riesenfeld/ Elber 02

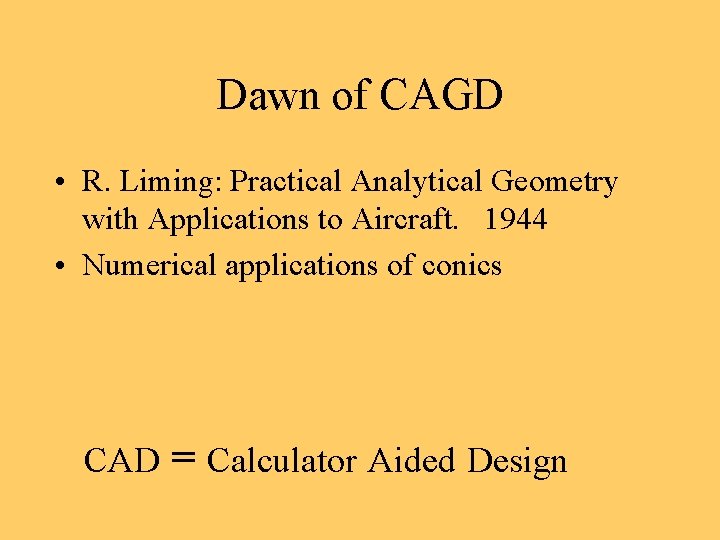

Dawn of CAGD • R. Liming: Practical Analytical Geometry with Applications to Aircraft. 1944 • Numerical applications of conics CAD = Calculator Aided Design

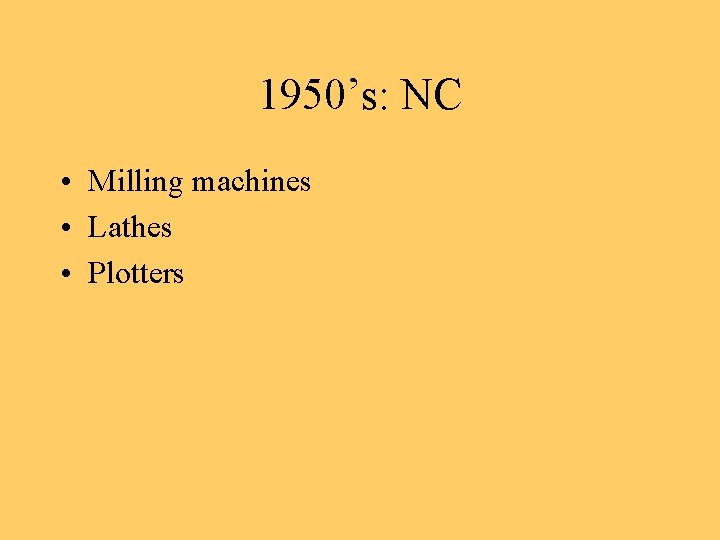

1950’s: NC • Milling machines • Lathes • Plotters

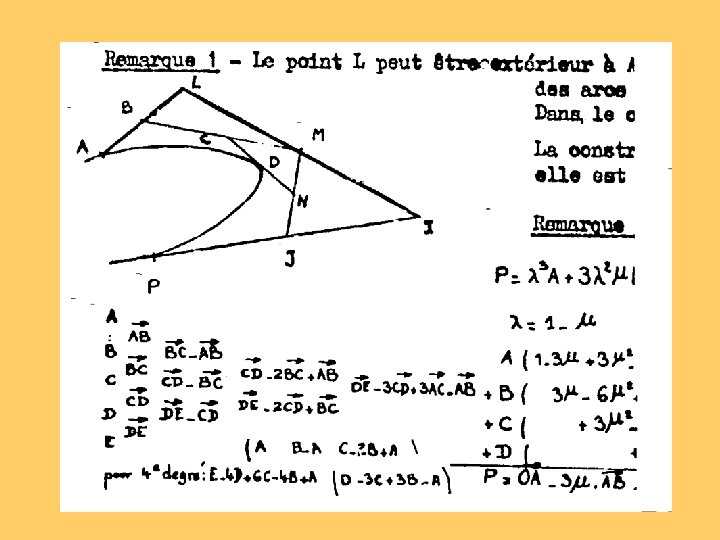

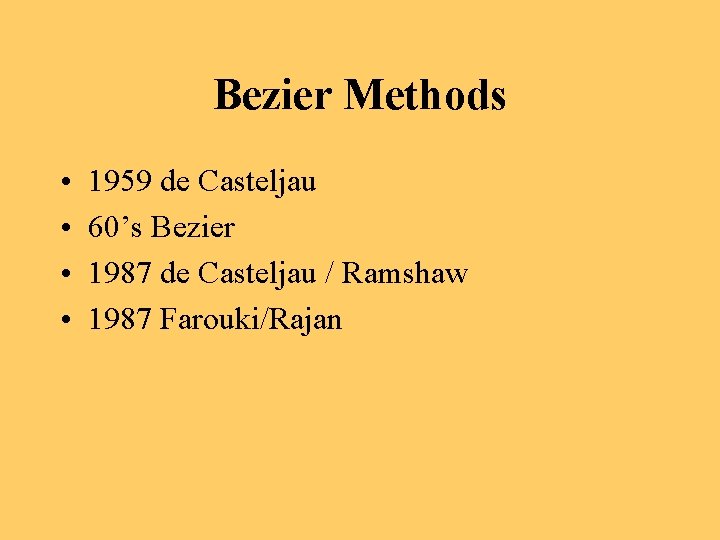

Bezier Methods • • 1959 de Casteljau 60’s Bezier 1987 de Casteljau / Ramshaw 1987 Farouki/Rajan

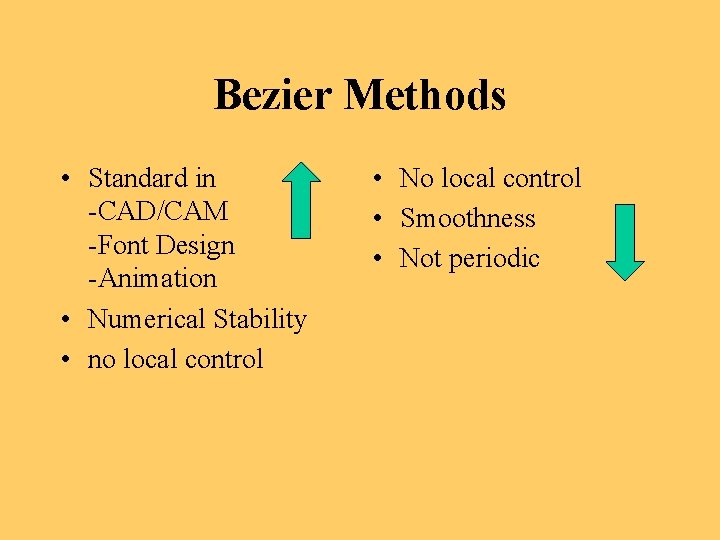

Bezier Methods • Standard in -CAD/CAM -Font Design -Animation • Numerical Stability • no local control • No local control • Smoothness • Not periodic

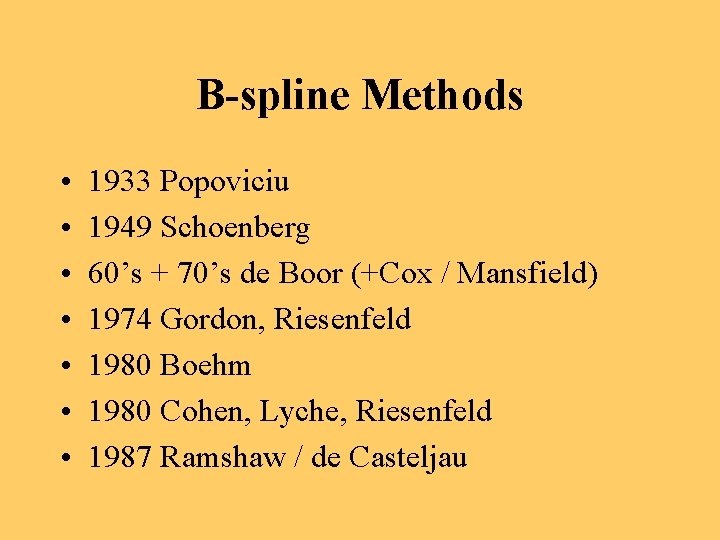

B-spline Methods • • 1933 Popoviciu 1949 Schoenberg 60’s + 70’s de Boor (+Cox / Mansfield) 1974 Gordon, Riesenfeld 1980 Boehm 1980 Cohen, Lyche, Riesenfeld 1987 Ramshaw / de Casteljau

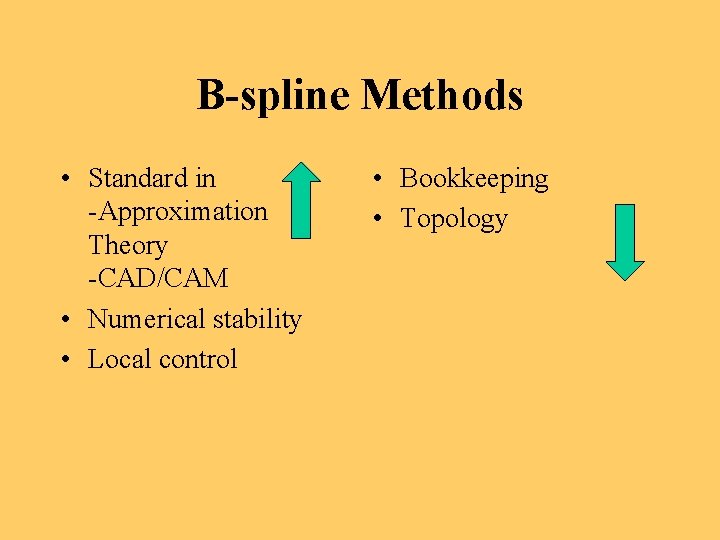

B-spline Methods • Standard in -Approximation Theory -CAD/CAM • Numerical stability • Local control • Bookkeeping • Topology

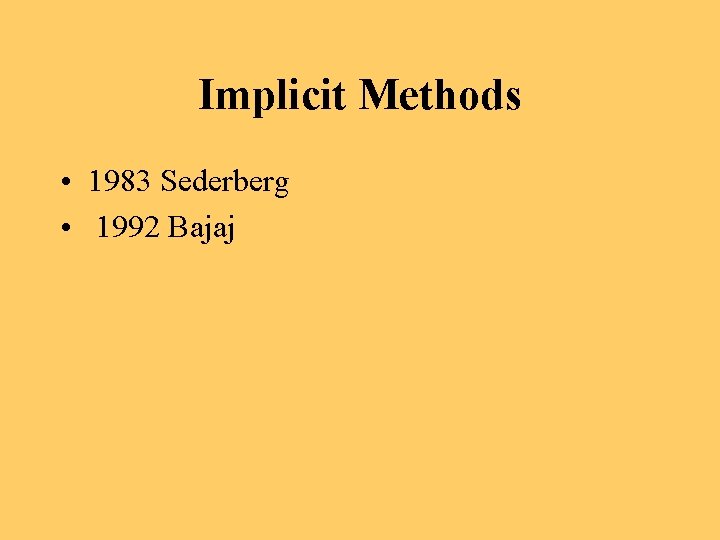

Implicit Methods • 1983 Sederberg • 1992 Bajaj

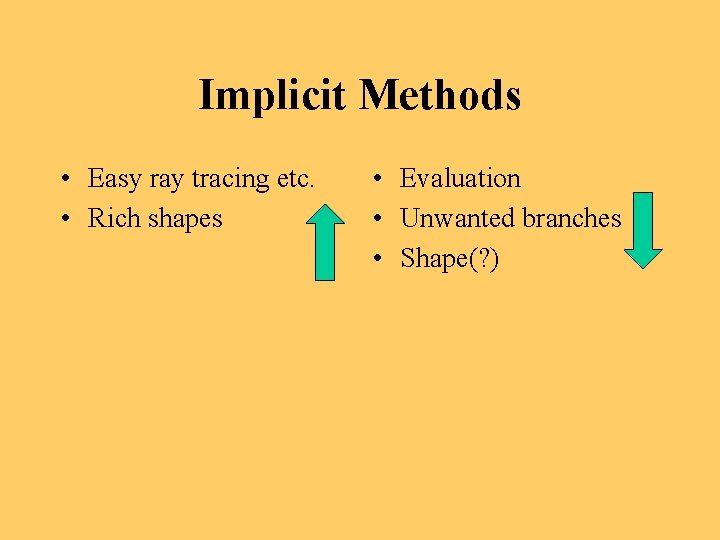

Implicit Methods • Easy ray tracing etc. • Rich shapes • Evaluation • Unwanted branches • Shape(? )

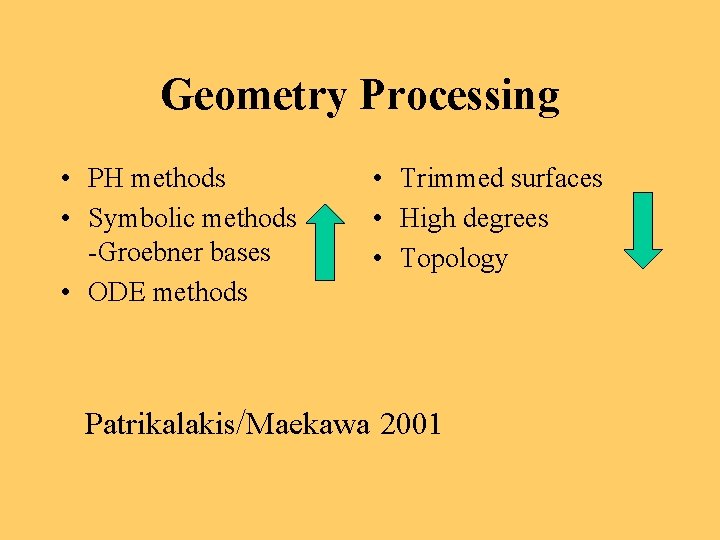

Geometry Processing • PH methods • Symbolic methods -Groebner bases • ODE methods • Trimmed surfaces • High degrees • Topology Patrikalakis/Maekawa 2001

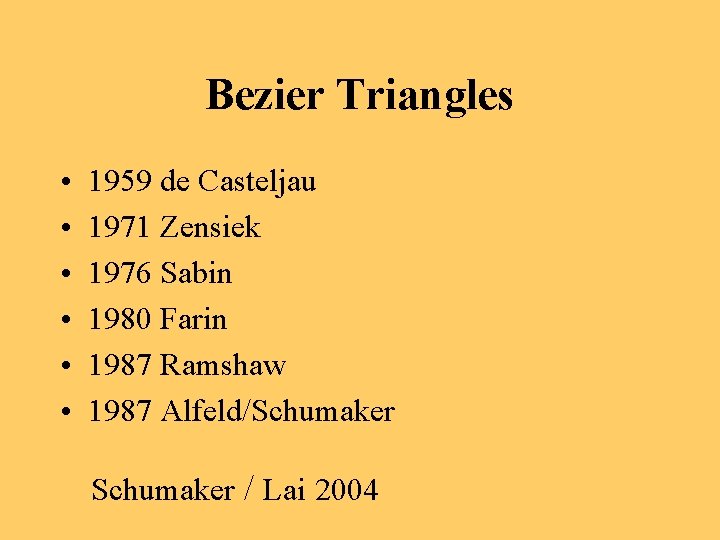

Bezier Triangles • • • 1959 de Casteljau 1971 Zensiek 1976 Sabin 1980 Farin 1987 Ramshaw 1987 Alfeld/Schumaker / Lai 2004

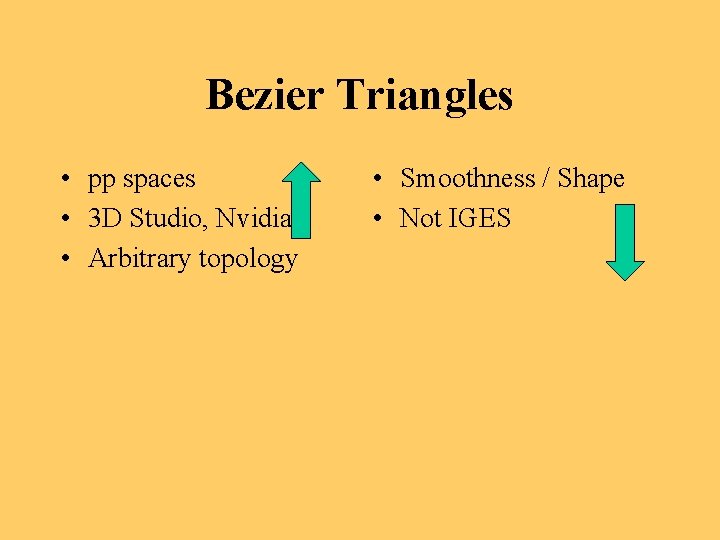

Bezier Triangles • pp spaces • 3 D Studio, Nvidia, • Arbitrary topology • Smoothness / Shape • Not IGES

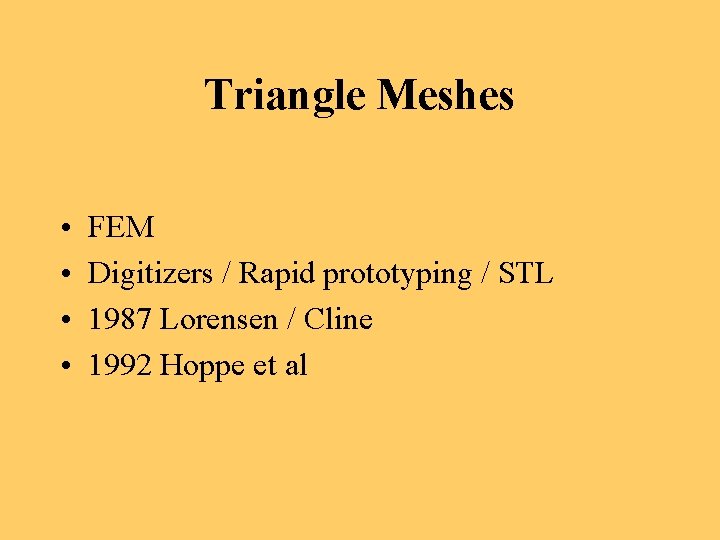

Triangle Meshes • • FEM Digitizers / Rapid prototyping / STL 1987 Lorensen / Cline 1992 Hoppe et al

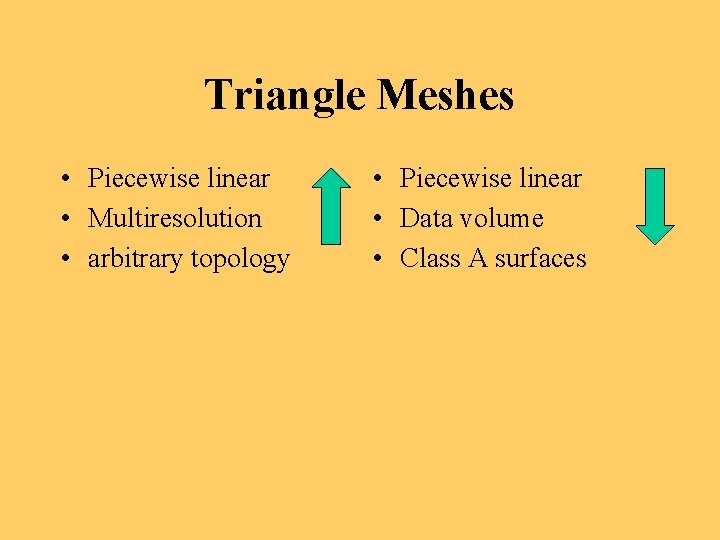

Triangle Meshes • Piecewise linear • Multiresolution • arbitrary topology • Piecewise linear • Data volume • Class A surfaces

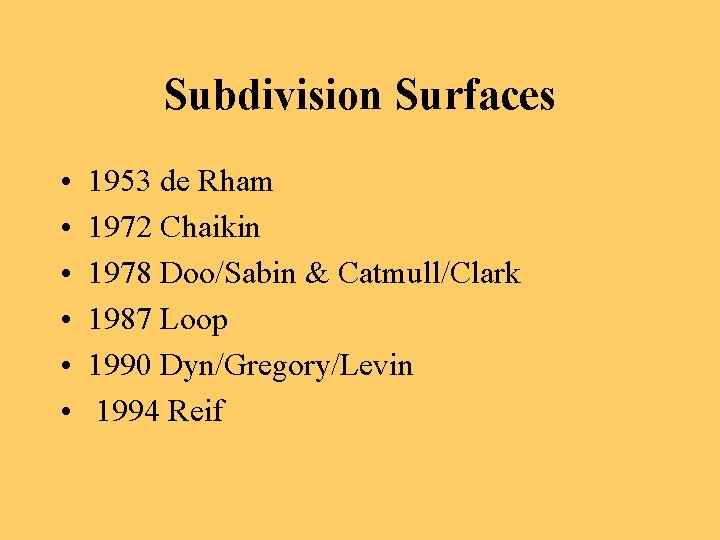

Subdivision Surfaces • • • 1953 de Rham 1972 Chaikin 1978 Doo/Sabin & Catmull/Clark 1987 Loop 1990 Dyn/Gregory/Levin 1994 Reif

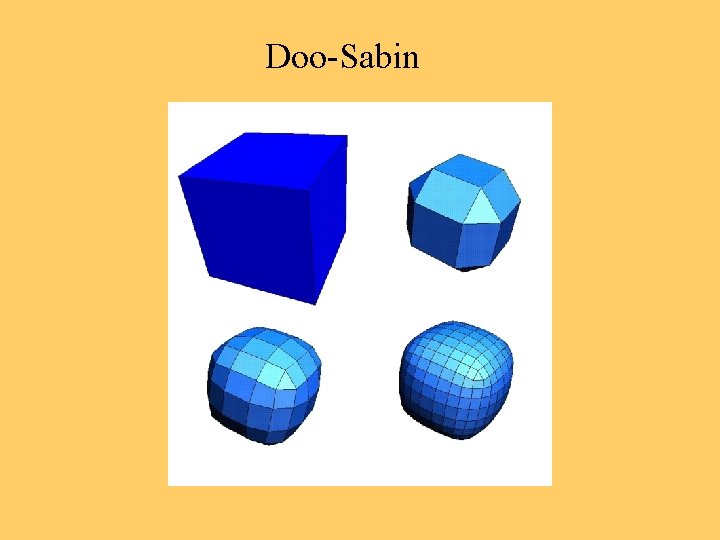

Doo-Sabin

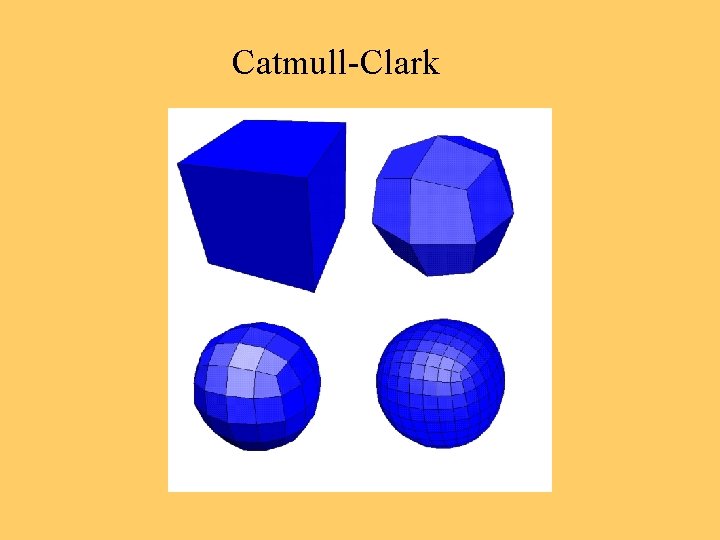

Catmull-Clark

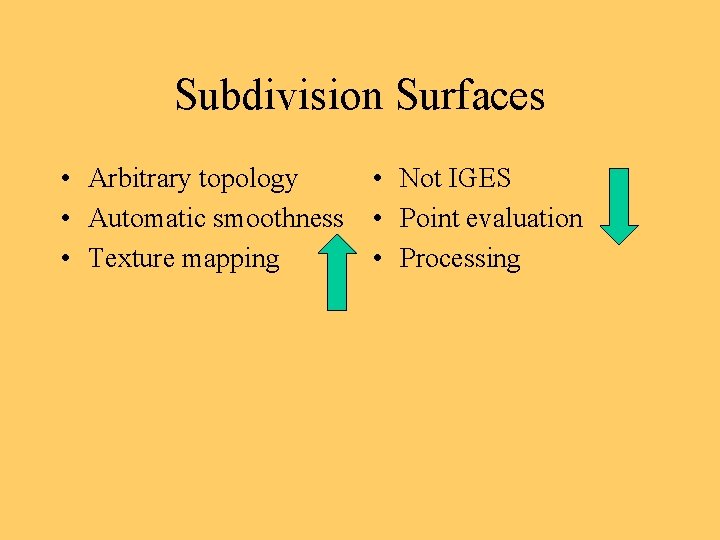

Subdivision Surfaces • Arbitrary topology • Automatic smoothness • Texture mapping • Not IGES • Point evaluation • Processing

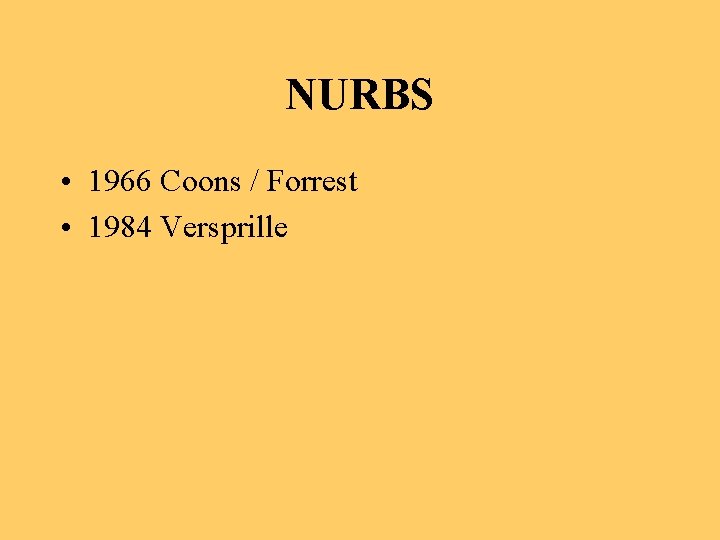

NURBS • 1966 Coons / Forrest • 1984 Versprille

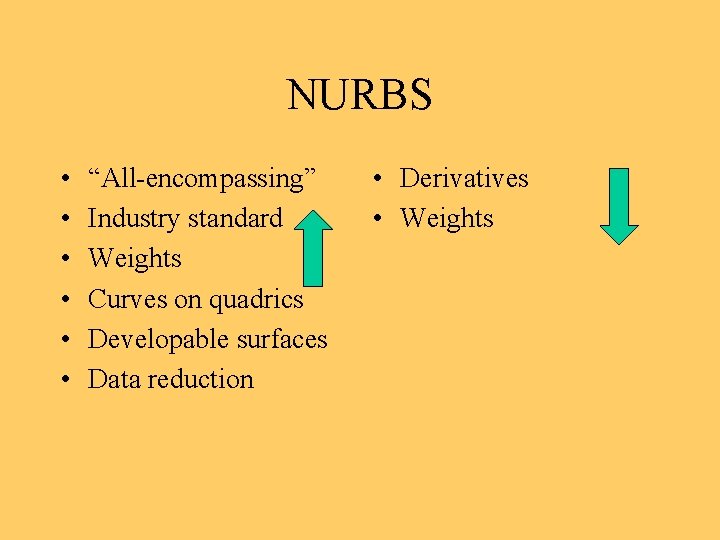

NURBS • • • “All-encompassing” Industry standard Weights Curves on quadrics Developable surfaces Data reduction • Derivatives • Weights

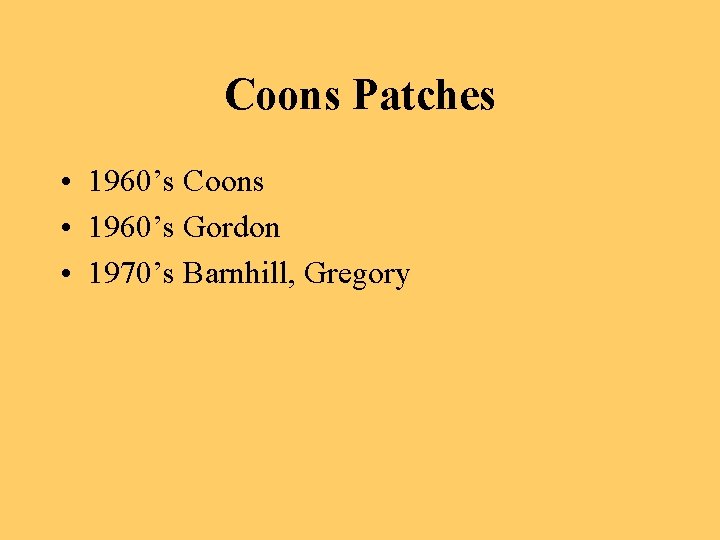

Coons Patches • 1960’s Coons • 1960’s Gordon • 1970’s Barnhill, Gregory

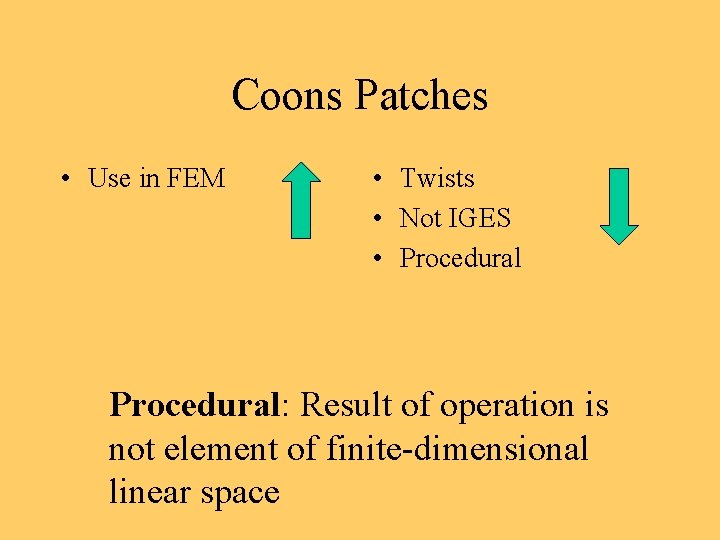

Coons Patches • Use in FEM • Twists • Not IGES • Procedural: Result of operation is not element of finite-dimensional linear space

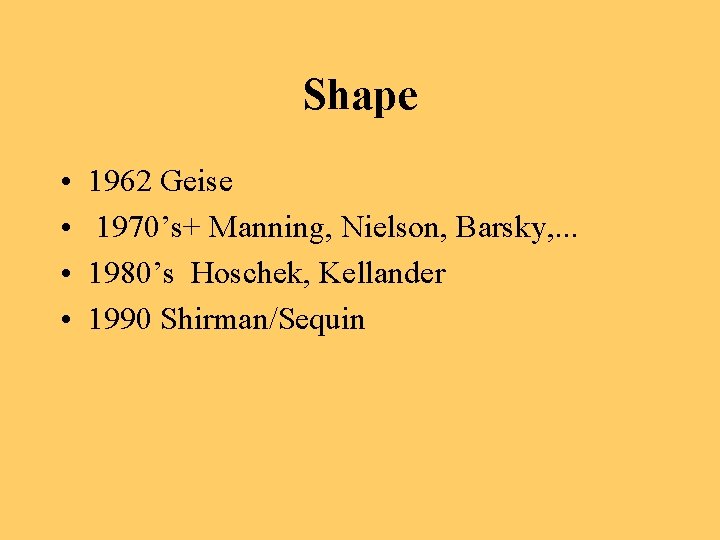

Shape • • 1962 Geise 1970’s+ Manning, Nielson, Barsky, . . . 1980’s Hoschek, Kellander 1990 Shirman/Sequin

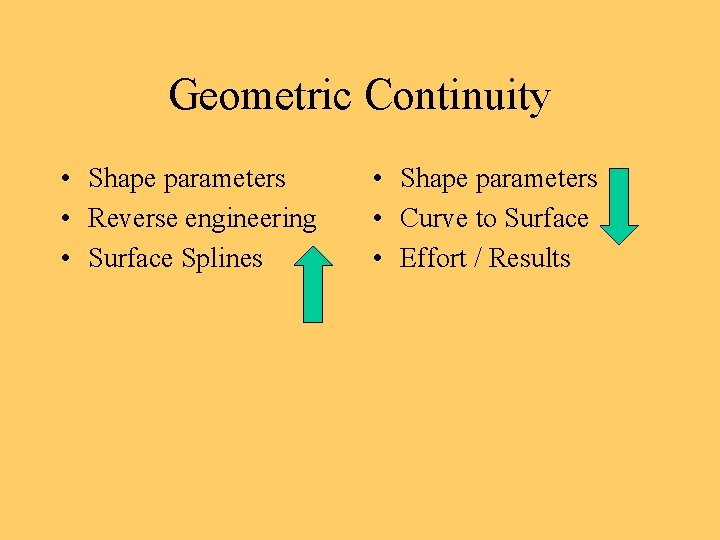

Geometric Continuity • Shape parameters • Reverse engineering • Surface Splines • Shape parameters • Curve to Surface • Effort / Results

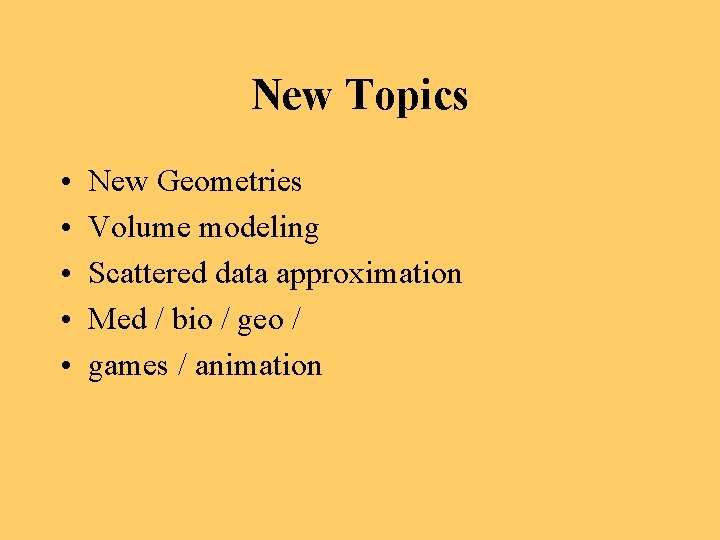

New Topics • • • New Geometries Volume modeling Scattered data approximation Med / bio / geo / games / animation

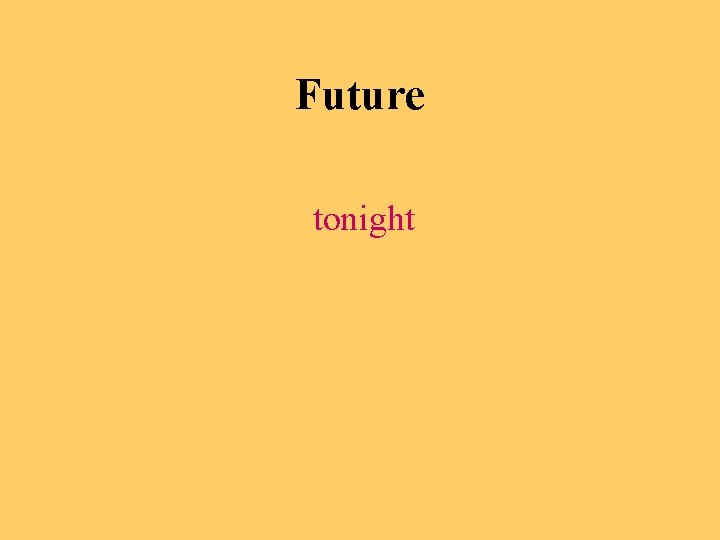

Future tonight
