CAE Computeraided engineering CAE is the broad usage

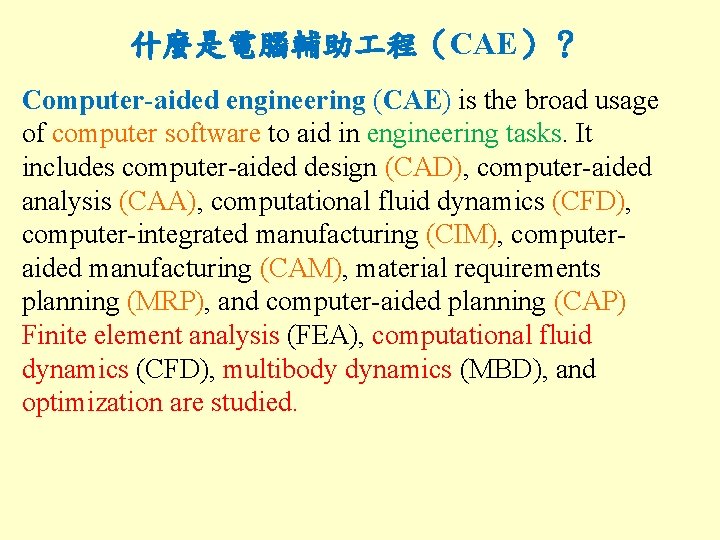

什麼是電腦輔助 程（CAE）？ Computer-aided engineering (CAE) is the broad usage of computer software to aid in engineering tasks. It includes computer-aided design (CAD), computer-aided analysis (CAA), computational fluid dynamics (CFD), computer-integrated manufacturing (CIM), computeraided manufacturing (CAM), material requirements planning (MRP), and computer-aided planning (CAP) Finite element analysis (FEA), computational fluid dynamics (CFD), multibody dynamics (MBD), and optimization are studied.

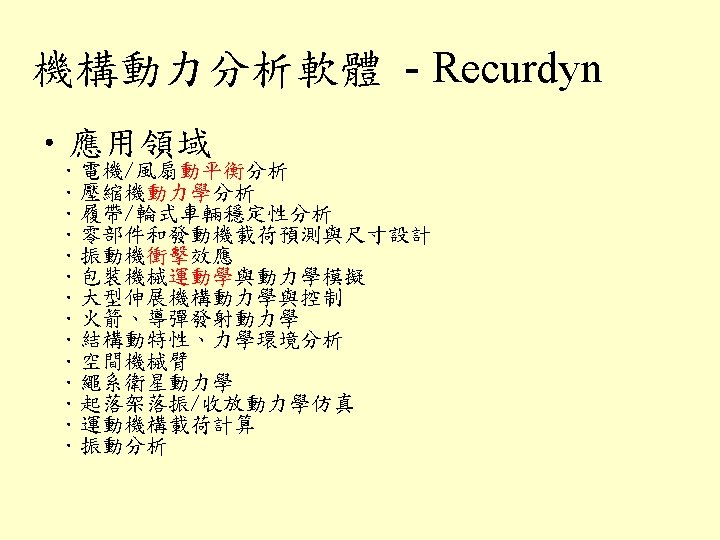

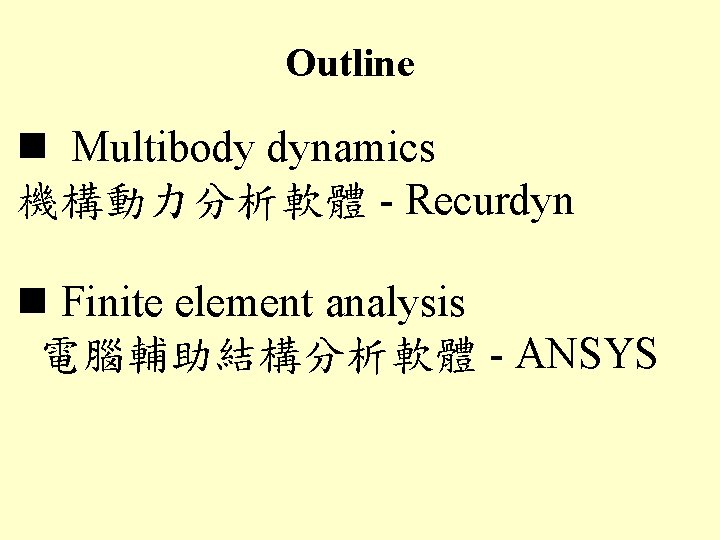

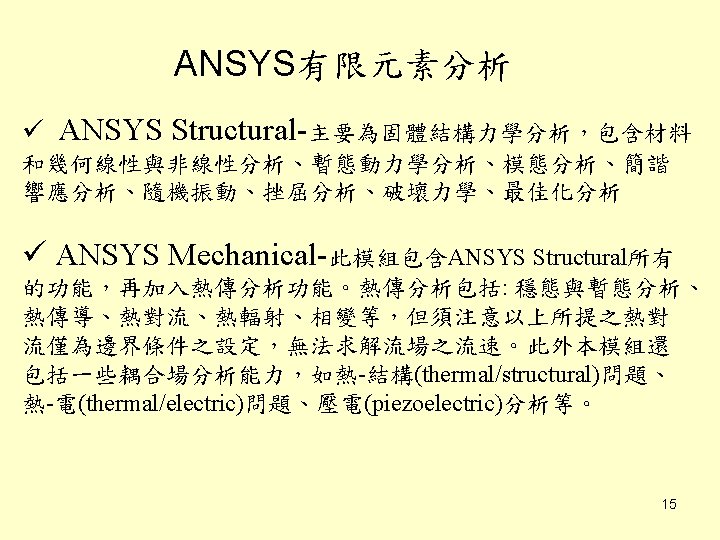

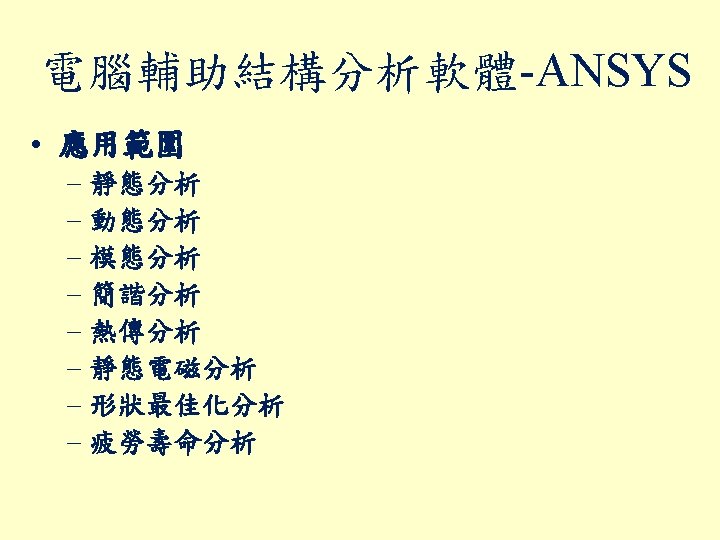

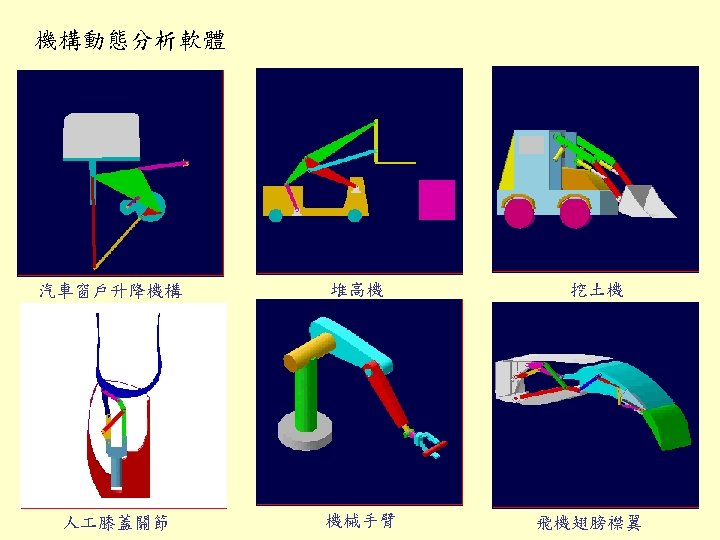

Outline Multibody dynamics 機構動力分析軟體 - Recurdyn Finite element analysis 電腦輔助結構分析軟體 - ANSYS

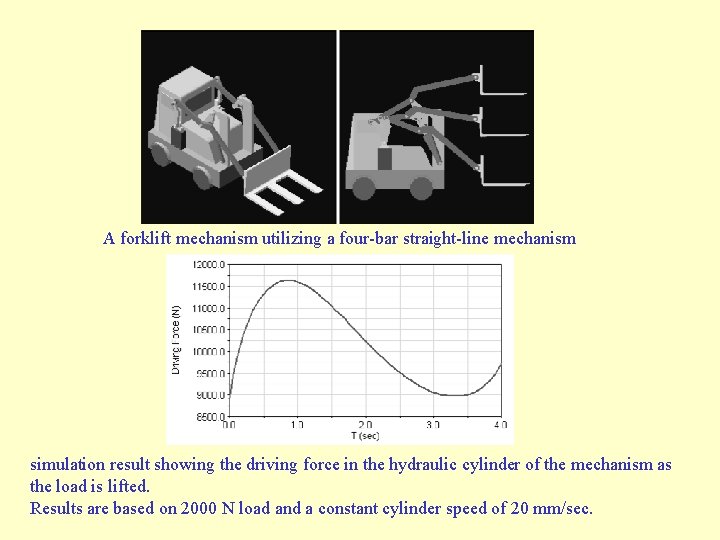

A forklift mechanism utilizing a four-bar straight-line mechanism simulation result showing the driving force in the hydraulic cylinder of the mechanism as the load is lifted. Results are based on 2000 N load and a constant cylinder speed of 20 mm/sec.

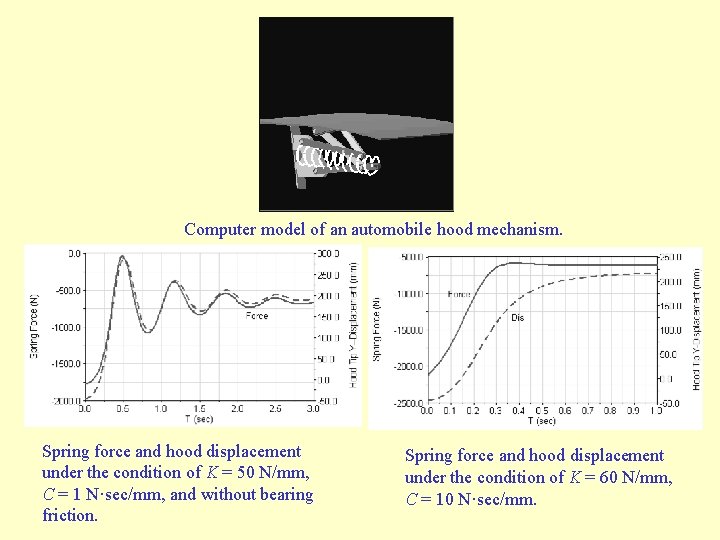

Computer model of an automobile hood mechanism. Spring force and hood displacement under the condition of K = 50 N/mm, C = 1 N·sec/mm, and without bearing friction. Spring force and hood displacement under the condition of K = 60 N/mm, C = 10 N·sec/mm.

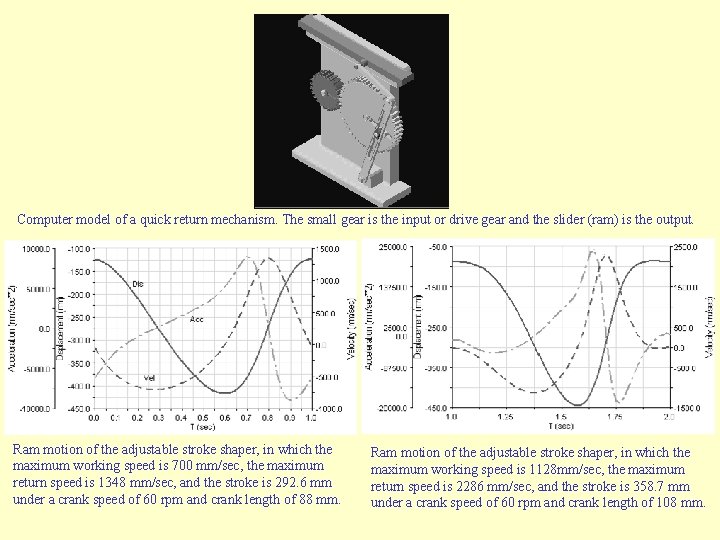

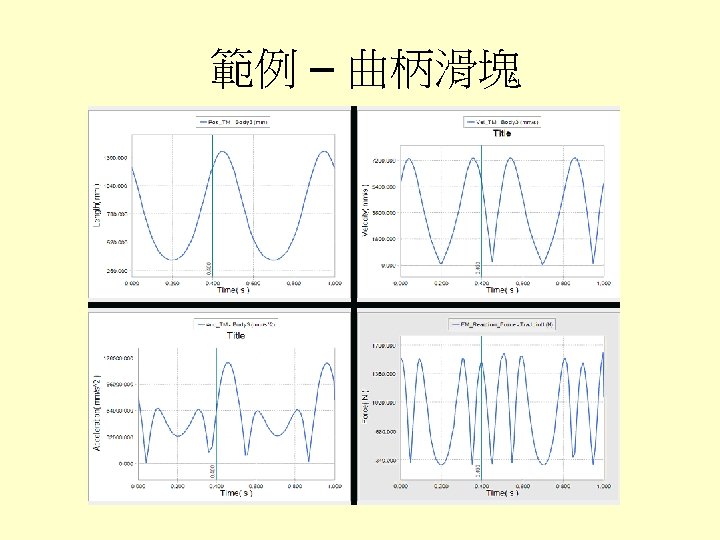

Computer model of a quick return mechanism. The small gear is the input or drive gear and the slider (ram) is the output. Ram motion of the adjustable stroke shaper, in which the maximum working speed is 700 mm/sec, the maximum return speed is 1348 mm/sec, and the stroke is 292. 6 mm under a crank speed of 60 rpm and crank length of 88 mm. Ram motion of the adjustable stroke shaper, in which the maximum working speed is 1128 mm/sec, the maximum return speed is 2286 mm/sec, and the stroke is 358. 7 mm under a crank speed of 60 rpm and crank length of 108 mm.

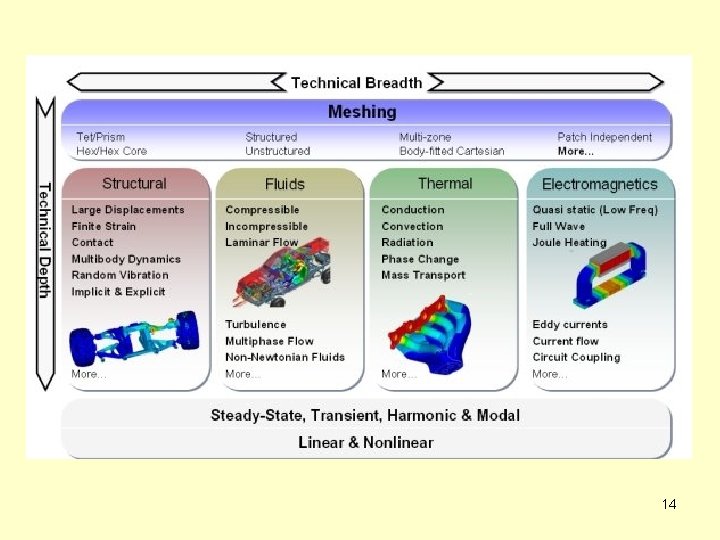

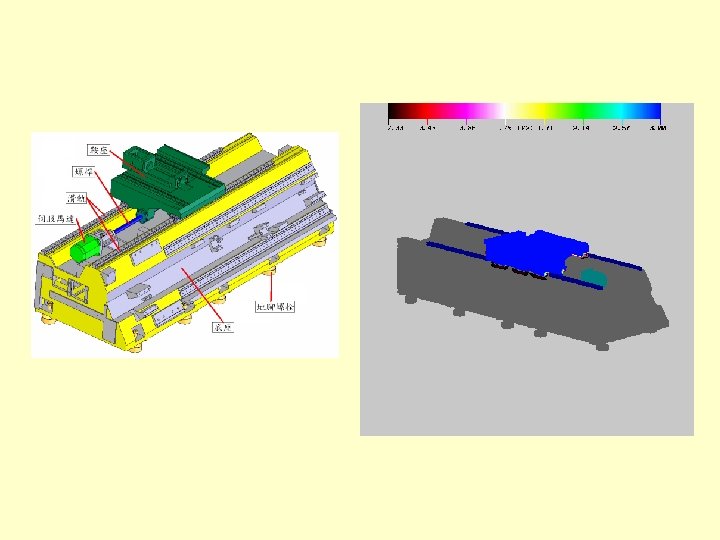

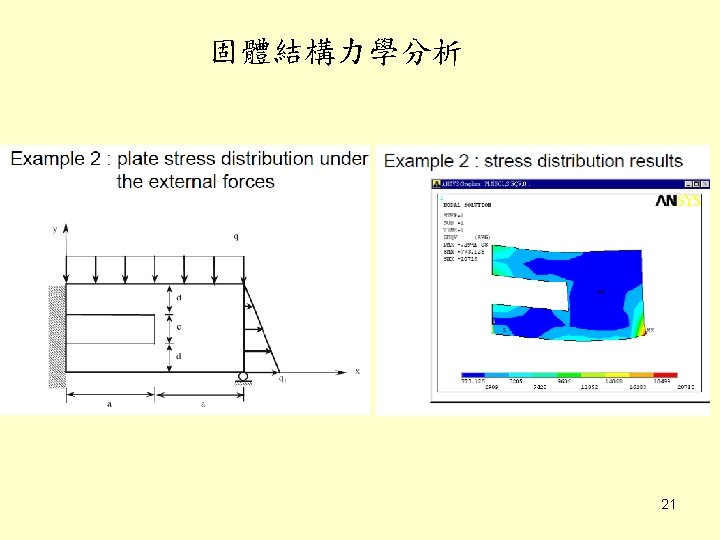

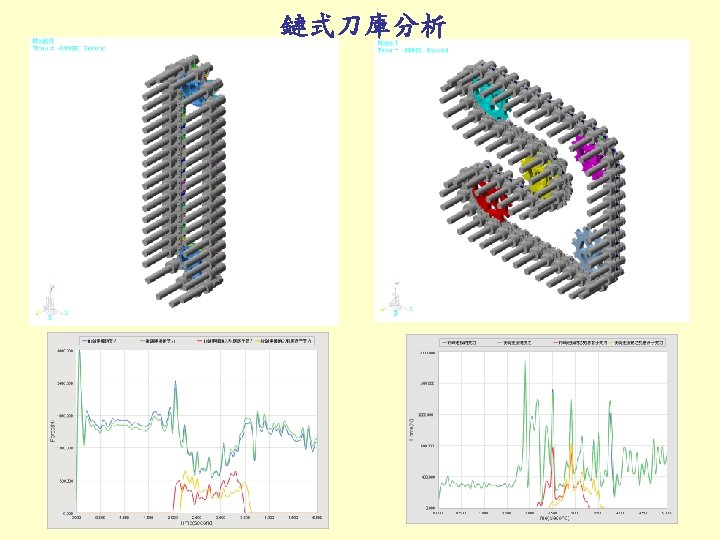

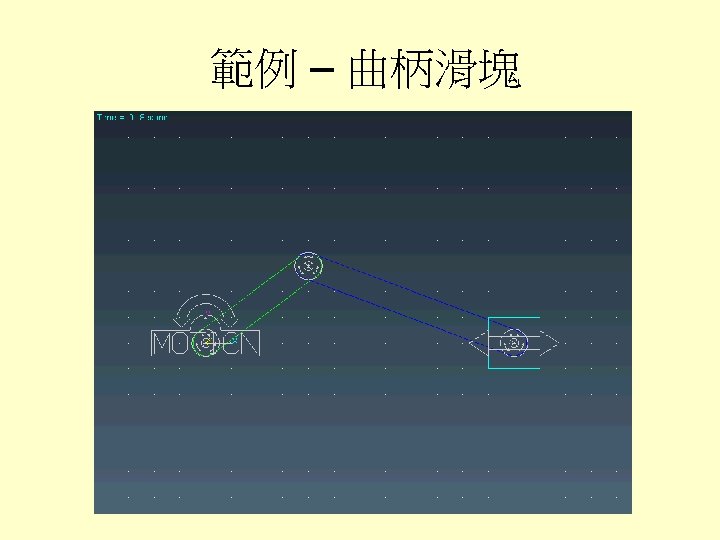

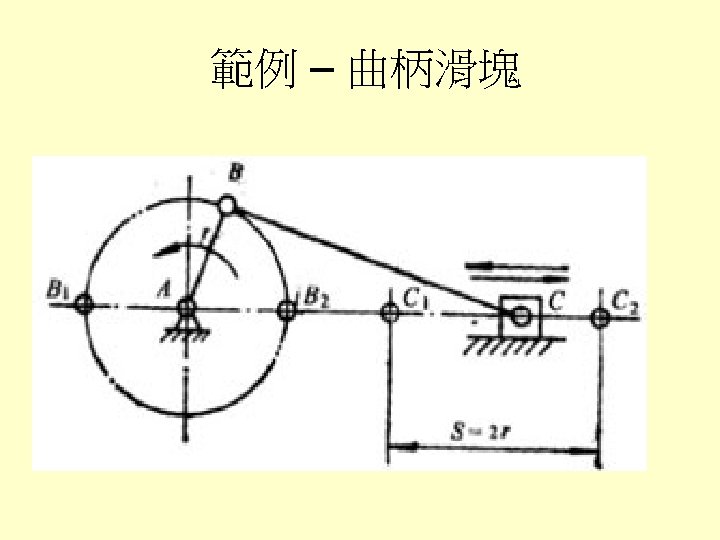

14

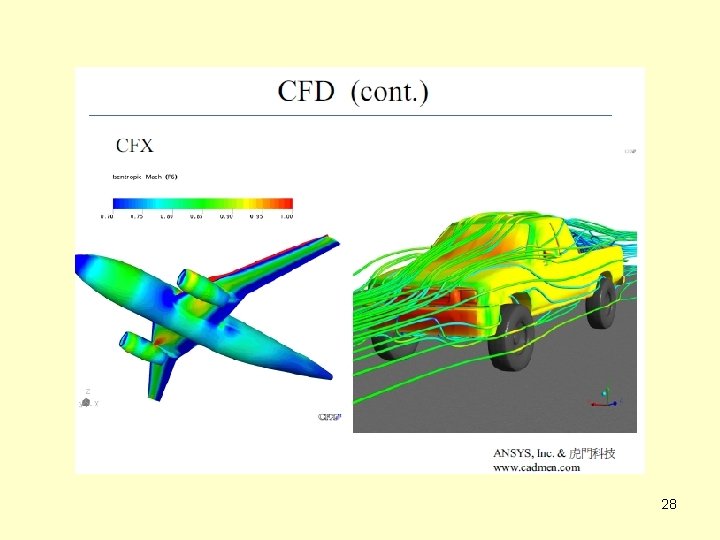

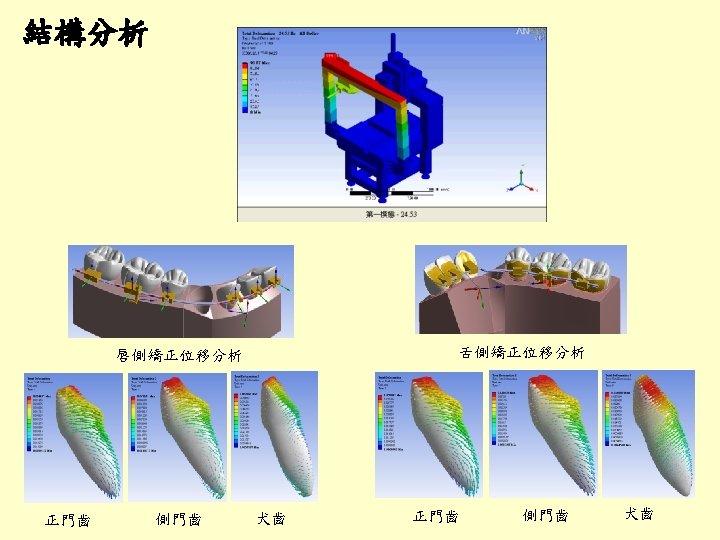

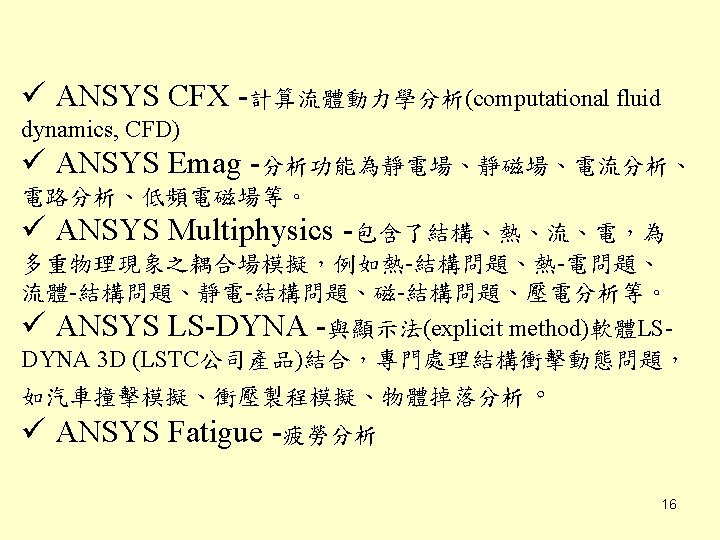

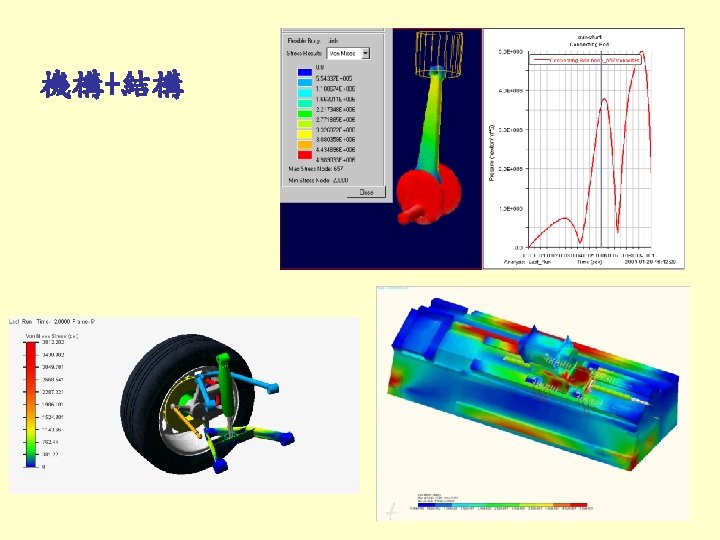

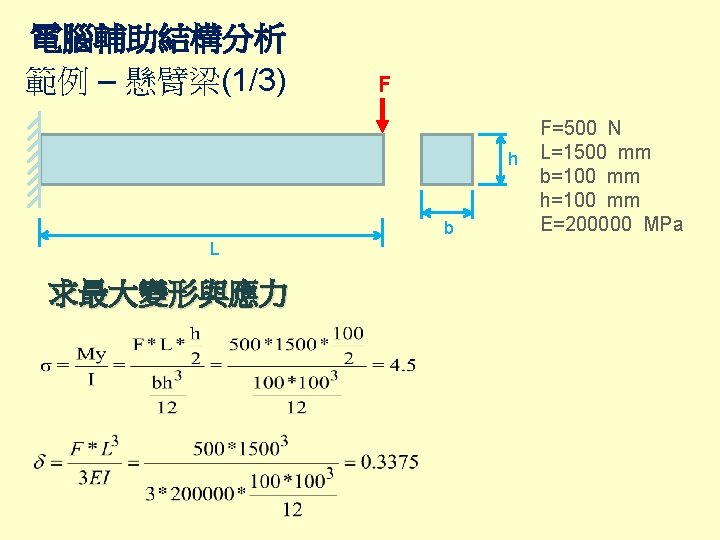

28

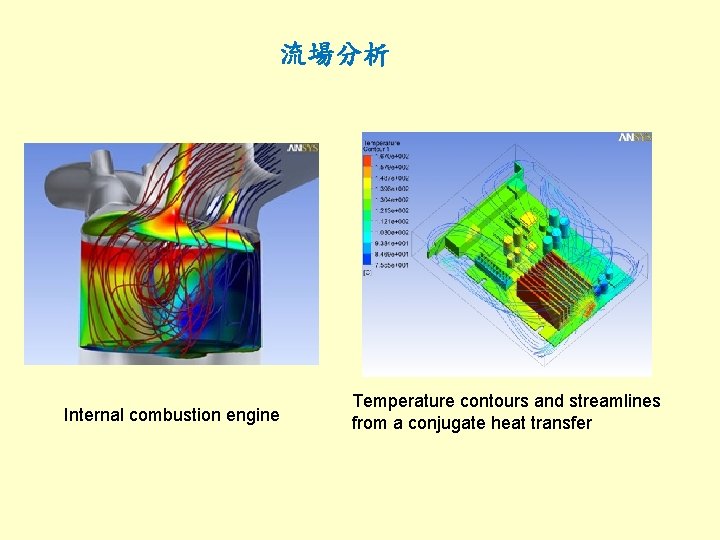

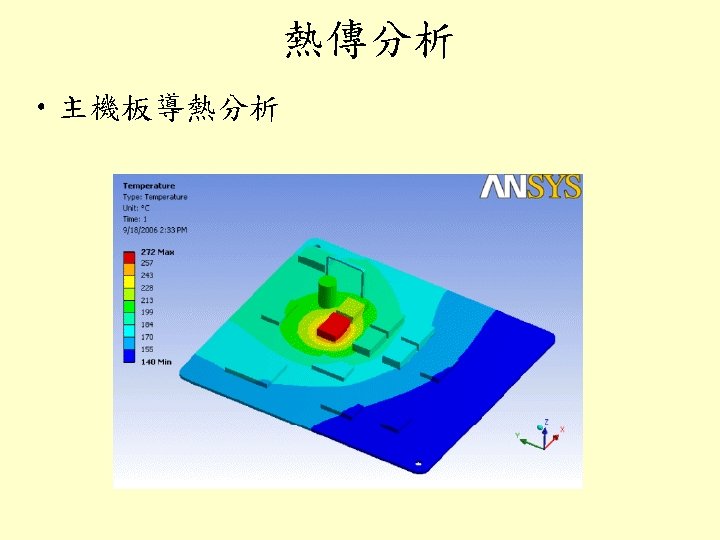

流場分析 Internal combustion engine Temperature contours and streamlines from a conjugate heat transfer

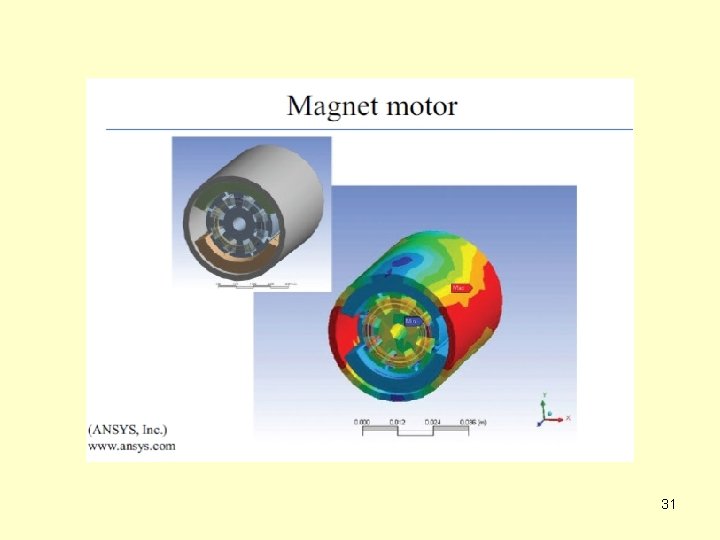

31

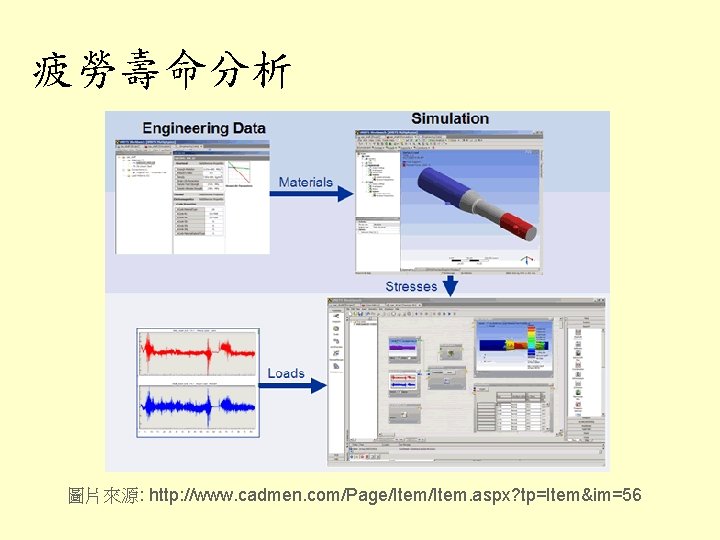

疲勞壽命分析 圖片來源: http: //www. cadmen. com/Page/Item. aspx? tp=Item&im=56

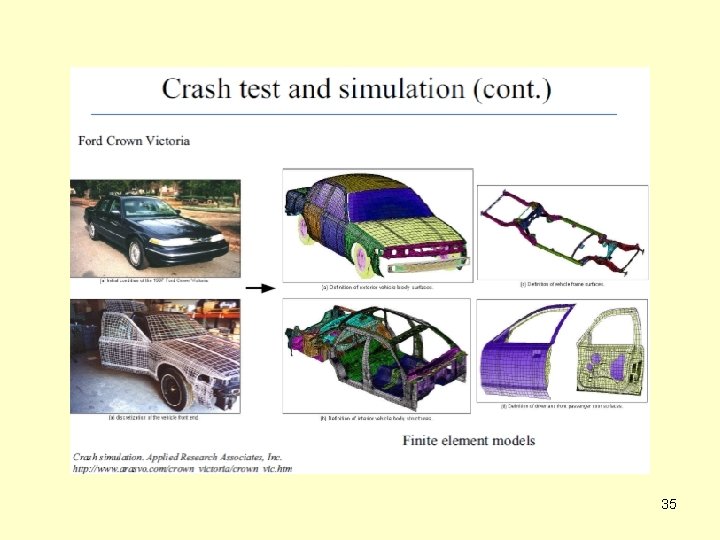

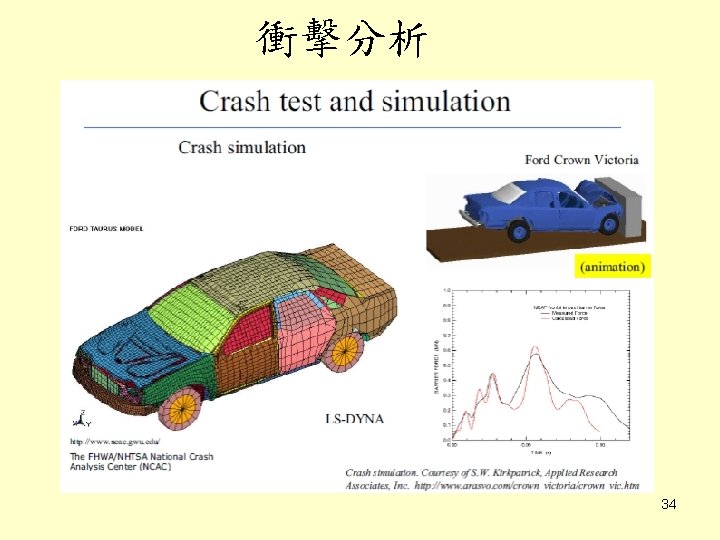

35

36

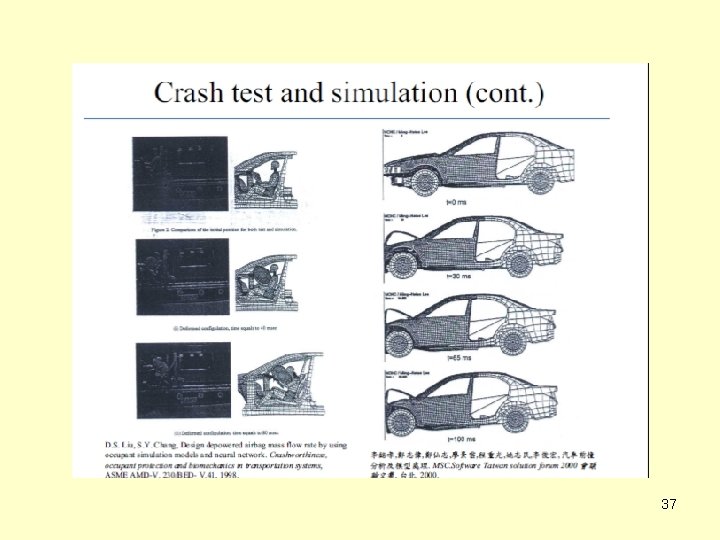

37

Computer-aided engineering (CAE) includes finite element analysis (FEA), computational fluid dynamics (CFD), multibody dynamics (MBD), and optimization

Thank you for your attention
