CADD Solis Portable Pump Medication Administration Training Video

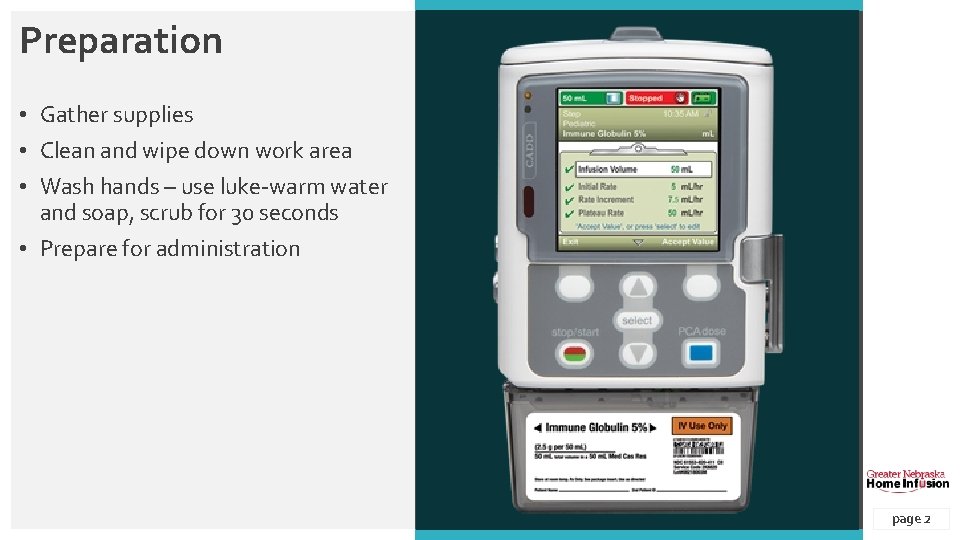

Preparation • Gather supplies • Clean and wipe down work area • Wash hands – use luke-warm water and soap, scrub for 30 seconds • Prepare for administration Preparation Contoso Pharmaceuticals page 2

Step 1 - Gather Supplies q q q q Medication Guide Saline Flushes Heparin Lock Solution (if indicated) CADD Pump Tubing Medication Carrying Pouch CADD Solis Portable Pump Alcohol Wipes Contoso Pharmaceuticals page 3

Step 2 – Thoroughly Clean and Wipe Your Work Area Contoso Pharmaceuticals page 4

Step 3 – Wash your hands for 15 -30 seconds with luke-warm water and soap Contoso Pharmaceuticals page 5

Step 4 – Use Medication Guide to Lay Out Supplies q q q Alcohol Wipe Saline Flush Alcohol Wipe CADD Solis Portable Pump Medication CADD Solis Portable Pump Tubing Alcohol Wipe Saline Flush Alcohol Wipe Heparin Lock Solution (if indicated) Carrying Pouch Contoso Pharmaceuticals page 6

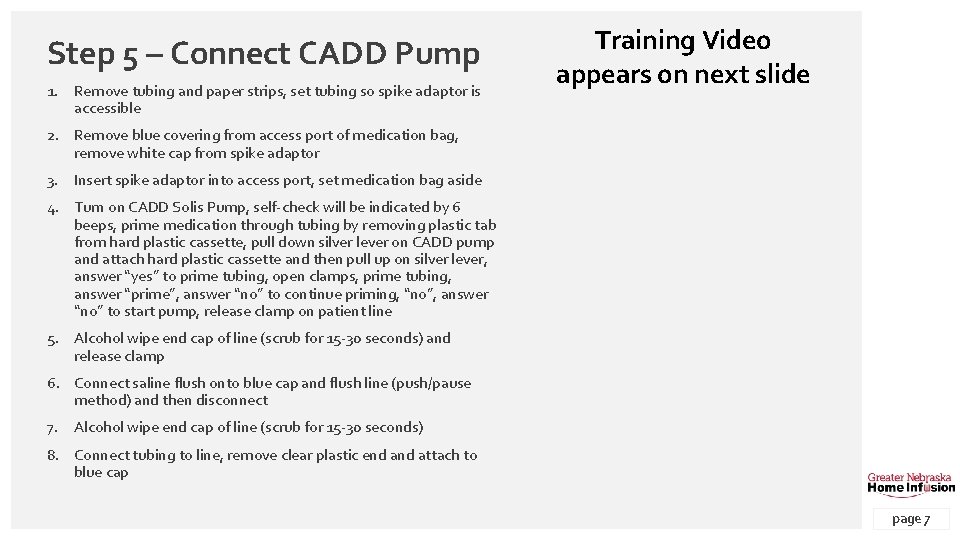

Step 5 – Connect CADD Pump 1. Remove tubing and paper strips, set tubing so spike adaptor is accessible Training Video appears on next slide 2. Remove blue covering from access port of medication bag, remove white cap from spike adaptor 3. Insert spike adaptor into access port, set medication bag aside 4. Turn on CADD Solis Pump, self-check will be indicated by 6 beeps, prime medication through tubing by removing plastic tab from hard plastic cassette, pull down silver lever on CADD pump and attach hard plastic cassette and then pull up on silver lever, answer “yes” to prime tubing, open clamps, prime tubing, answer “prime”, answer “no” to continue priming, “no”, answer “no” to start pump, release clamp on patient line 5. Alcohol wipe end cap of line (scrub for 15 -30 seconds) and release clamp 6. Connect saline flush onto blue cap and flush line (push/pause method) and then disconnect 7. Alcohol wipe end cap of line (scrub for 15 -30 seconds) 8. Connect tubing to line, remove clear plastic end attach to blue cap Contoso Pharmaceuticals page 7

Step 5 – Connect CADD Pump Training Video (for video purposes, the alcohol wipe cleaning was shortened in length) Contoso Pharmaceuticals page 8

Step 5 – Connect CADD Pump 1. Push start button on CADD Pump, answer “yes” to start pump Training Video appears on next slide 2. Place medication and pump into carrying pouch 3. CADD Pump will alert when infusion is complete, push stop button on CADD Pump, answer “yes” to stop pump 4. Wash your hands 5. Clamp the tubing and unscrew from line 6. Alcohol wipe end cap of line (scrub for 15 -30 seconds) 7. Flush line with saline (push/pause method) 8. Clamp patient line and unscrew saline flush 9. Dispose of supplies Contoso Pharmaceuticals page 9

Step 5 – Continued…Connect CADD Pump Training Video (for video purposes, the alcohol wipe cleaning was shortened in length) Contoso Pharmaceuticals page 10

Greater Nebraska Home Infusion That completes our training video, thank you. Located at: 2604 St. Patrick Ave. , Suite 2 Grand Island, NE 68803 Hours of Operation: Mon. -Fri. , 8: 00 -5: 00 Contact #s: Office: 308 -398 -4663 Fax: 308 -398 -4664 Toll Free: 844 -225 -0918 TTY Shortcut 771 / 800 -833 -7352 Website: gnhinfusion. com Facebook: facebook. com/GNHInfusion Locally owned and operated Contoso Pharmaceuticals page 11
