Agenda • Introduction • Belgium • FPS Finance • History • Timeline • Map & registries evolution • Cad. Map • STIPAD • Cad. GIS • Introduction • Expected benefits • Realization approach & results • Conclusions Cad. GIS 15/05/2013 2

The Kingdom of Belgium Cad. GIS 15/05/2013 3

Belgium : the Federal State structure and the levels of power At the top-level, a three-level structure • the Federal State • the Communities • the Regions They are on an equal footing but have powers and responsibilities for different fields. At the intermediate level, the provinces • They are supervised by all the higher government authorities, in the context of the federal, community or regional powers. At the bottom level, the cities • It’s the level of administration that is closest to the people, under the supervision of the higher authorities Cad. GIS 15/05/2013 4

Belgium : additional details • • Capital : Brussels Population : 10 839 905 inhabitants (2010) Area : 30 528 km² Population density : 349 people per km 2 Official languages : Dutch, French and German GDP : 368 bn € Currency : Euro www. belgium. be Cad. GIS 15/05/2013 5

FPS Finance - Belgium Cad. GIS 15/05/2013 6

FPS Finance – Patrimonial Documentation Cad. GIS 15/05/2013 7

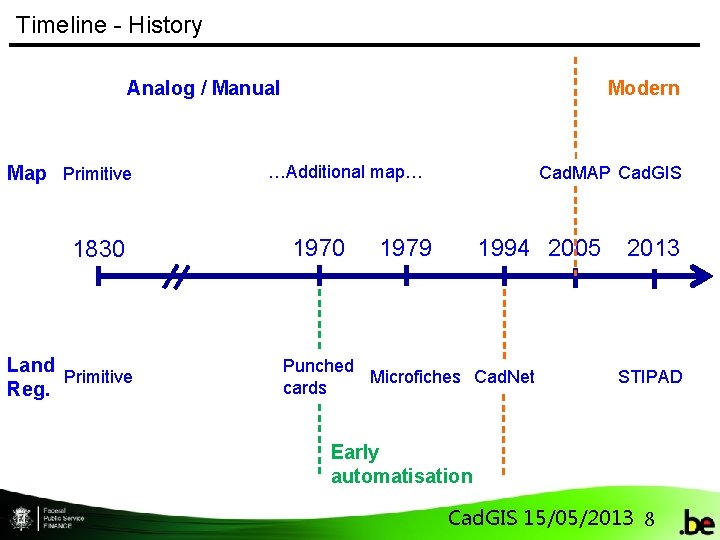

Timeline - History Analog / Manual Map Primitive 1830 Land Primitive Reg. Modern …Additional map… 1970 Cad. MAP Cad. GIS 1979 1994 2005 Punched Microfiches Cad. Net cards 2013 STIPAD Early automatisation Cad. GIS 15/05/2013 8

Analog sheets : Primitive Cad. GIS 15/05/2013 9

Analog sheets : Assembly Cad. GIS 15/05/2013 10

Analog sheets : Additional Map (from 1830) paper since 1830 film from 1960 Cad. GIS 15/05/2013 11

Analog sheets : Manuel update Cad. GIS 15/05/2013 12

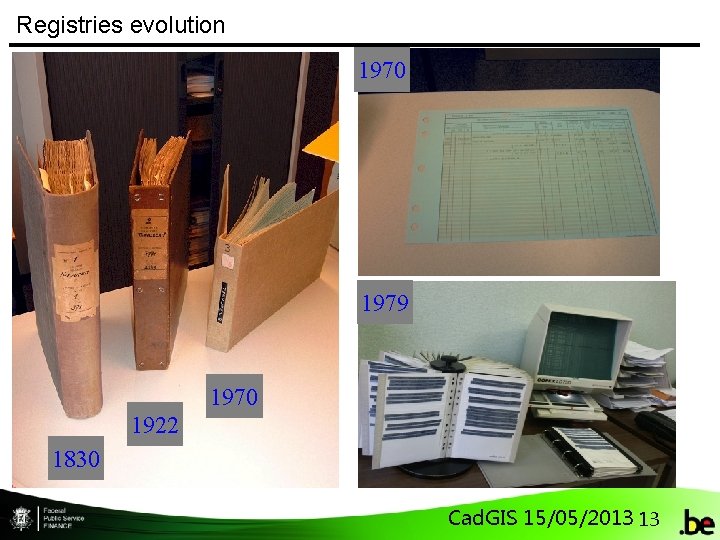

Registries evolution 1970 1979 1970 1922 1830 Cad. GIS 15/05/2013 13

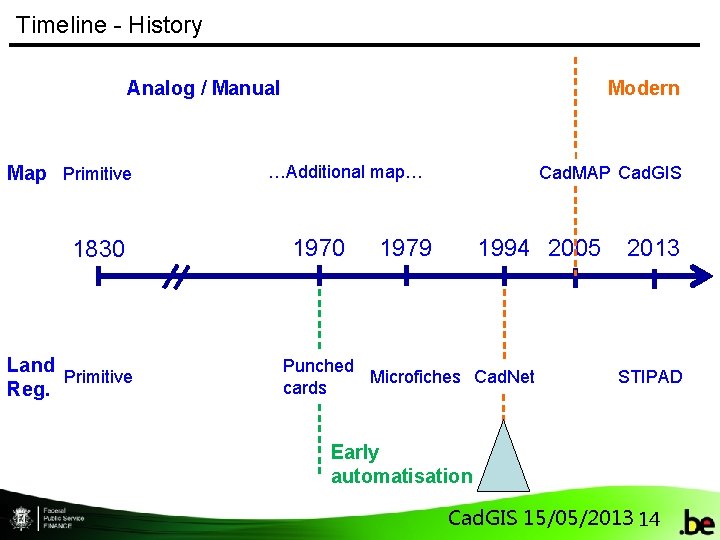

Timeline - History Analog / Manual Map Primitive 1830 Land Primitive Reg. Modern …Additional map… 1970 Cad. MAP Cad. GIS 1979 1994 2005 Punched Microfiches Cad. Net cards 2013 STIPAD Early automatisation Cad. GIS 15/05/2013 14

Cadnet 1994 Cad. GIS 15/05/2013 15

Cad. Map : a major step towards a cadastral GIS (1/2) • Main objective : manage and update the cadastral map under digital form • Achieved results : • 30. 000 sheets digitized (done in collaboration with the 3 Regions) • Integration of the 30. 000 digitized sheets into shapefiles, with recuperation of the intermediate updates based on the analogical sketches • Storage in a central electronic document management system • Update tools build on Arc. View by ourselves • Printing tools to provide official extracts of the cadastral map • 1/1/2006 : 1 st official version of the digital cadastral map Cad. GIS 15/05/2013 16

Cad. Map : a major step towards a cadastral GIS (2/2) Cad. GIS 15/05/2013 17

PATRIMONIUMDOCUMENTATIE DOCUMENTATION PATRIMONIALE STIPAD : schematic view REGISTRATION LAND REGISTRY PUBLIC PROPERTY MORTGAGE SERVICES ir Michel Van Acker 01/04/2011 - Slide 18 18

Cad. GIS : introduction • Is the ultimate result of the GAPD strategy concerning the cadastral map modernization • Is the cadastral Geographic Information System • Main objective is to manage the cadastral map and deliver the geographically referenced data in a more efficient and appropriate way Cad. GIS 15/05/2013 19

Cad. GIS : expected benefits • For GAPD agents : • An integrated tool relying on modern technologies that enables them to optimize the achievement of their mission • For GAPD partners and citizens : • Simple but fast ways to obtain the geographic data while ensuring privacy • For everyone : • Data intrinsic quality and legal certainty improvement Cad. GIS 15/05/2013 20

Cad. GIS : tender • Lot 1 : Implementation of the Patrimonial Documentation GIS Won by Capgemini in collaboration with CSC et ESRI Belux • Lot 2 : 100. 000 continuity problems resolution Won by Avineon Cad. GIS 15/05/2013 21

Cad. GIS : realisation approach • Project is divided into 2 sequential phases + preparation : • Preparation : • Geometrical improvement (continuity) • Consolidation (RUP based : processes, UC, …) • Release 1 (publication) : • 4 viewers • 3 INSPIRE related services • Release 2 (update tools) : • 2 main modules : light & heavy modifications Cad. GIS 15/05/2013 22

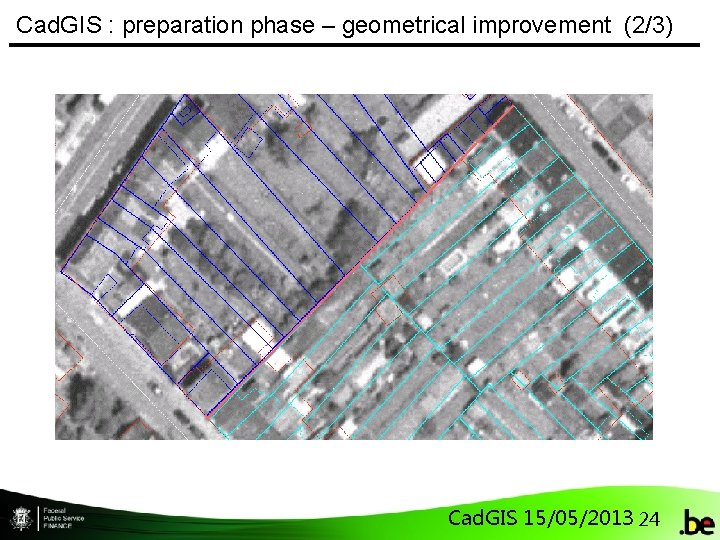

Cad. GIS : preparation phase – geometrical improvement (1/3) Cad. GIS 15/05/2013 23

Cad. GIS : preparation phase – geometrical improvement (2/3) Cad. GIS 15/05/2013 24

Cad. GIS : preparation phase – geometrical improvement (3/3) • Approximately 100. 000 continuity problems between the cadastral sheets had been detected and documented in order to be corrected via outsourcing • This work was completed at the end of 2011 • The geometrical improvement is being continued Cad. GIS 15/05/2013 25

Cad. GIS : preparation phase – consolidation phase • Methodology based on RUP • Business processes • UC • … Cad. GIS 15/05/2013 26

Cad. GIS : technological choices Release 1 • Implementation with the help of the Arc. GIS suite • Viewers in Flex (Adobe) with the Rest API • Business logic in java on the application server • Architecture : separate layers, near MVC model • Integrated within FPS Finance standards Release 2 • Light modifications tool will be implemented in Flex – Rich client • Heavy modifications tool will be based on an Arc. GIS customization (. Net – C#) • Common modules will be packaged in an atomic way Cad. GIS 15/05/2013 27

Cad. GIS Release 1 : viewers (1/3) • 4 viewers (adapted for specific groups of users) : • Any web user : free access (with basic functionalities) : http: //ccff 02. minfin. fgov. be/cadgisweb/ • Belgian residents : user is authenticated with the help of an electronic identity card (eid) http: //ccff 02. minfin. fgov. be/cadgiscitoyen/ • GAPD partners: extra functionalities with eid www. myminfinpro. be • FPS Finance employees: Intranet application with specific access to functionalities depending on their business role. Cad. GIS 15/05/2013 28

Cad. GIS Release 1 : viewers (2/3) Interface is quite the same in all versions • • BUT … Logout/help Overview map Situation Layers Functionalities Navigation Scale Coordinates Are specific to the users Cad. GIS 15/05/2013 29

Cad. GIS Release 1 : viewers (3/3) Main functionalities : • On-line consultation • Multi-criteria search tools (by address, by cadastral number, by coordinates) • Identification and measurement • Pdf print • On-line cadastral map extract request • On-line vectorial data copy request Cad. GIS 15/05/2013 30

Cad. GIS Release 1 : INSPIRE related services 2 WMS services : • Cadastral parcels : http: //ccff 02. minfin. fgov. be/cadgis. WMS/CP_Cadastral. Parcels/ Map. Server/WMSServer? request=Get. Capabilities&service=WM S • Administrative units: http: //ccff 02. minfin. fgov. be/cadgis. WMS/AU_Administrative. Units /Map. Server/WMSServer? request=Get. Capabilities&service=W MS 1 CSW service : http: //ccff 02. minfin. fgov. be/geoportalext/csw/discovery? Reques t=Get. Capabilities&Service=CSW&Version=2. 0. 2 Cad. GIS 15/05/2013 31

Cad. GIS Release 2 : current status & planning • Elaboration phase (ongoing September 2013) • Consolidation • Functional architecture • Technical architecture • Data model • … • Prototype • Cad. GIS Release 2 expected in July 2015 Cad. GIS 15/05/2013 32

Cad. GIS : perspectives & conclusions • Cad. GIS Release 1 is still fresh but a lot of users have been responding with interest and enthusiasm • Cad. GIS is already a privileged link between the Administration and the citizens / professionals / partners • Cad. GIS Release 2 will improve the cadastral map management and update rhythm • More challenges are yet to come : • A lot of documentation can still be integrated in the GIS (buildings description & plan, surveys description, …) • Cad. GIS – STPAD complete integration • Belgian Cadaster has been selected to receive a Special Achievement in GIS (SAG) award at the 2013 Esri International User Conference Cad. GIS 15/05/2013 33
