Cad Database Server Purchase Hardware Proposal Component Interaction

Cad Database Server Purchase Hardware Proposal

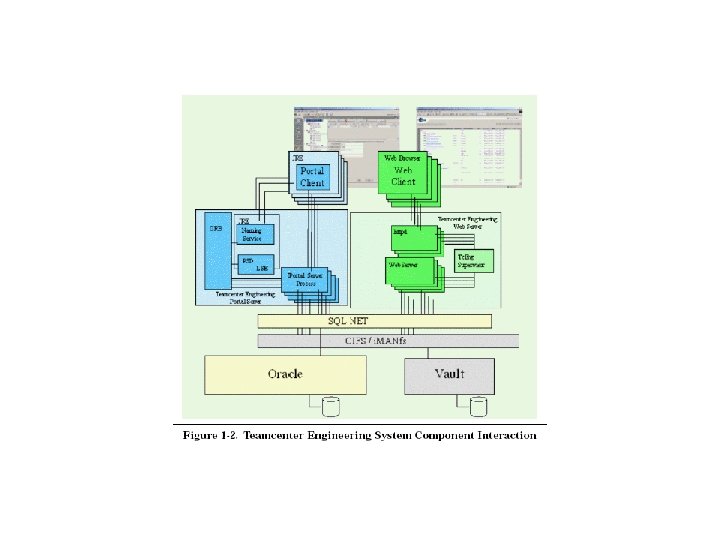

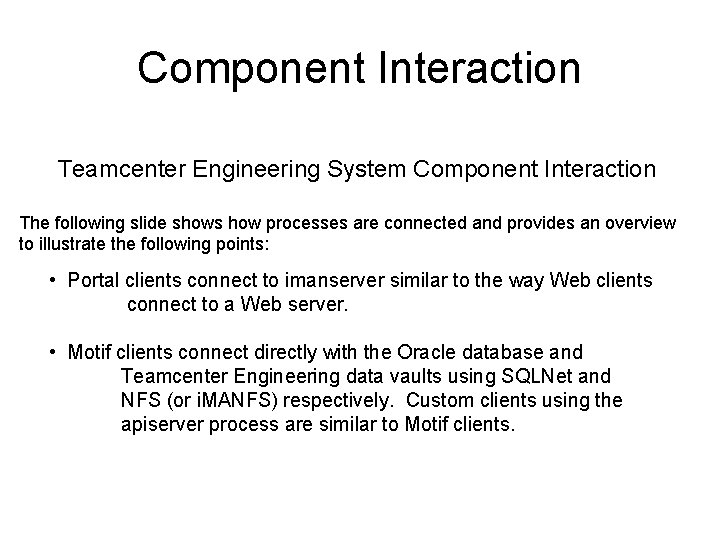

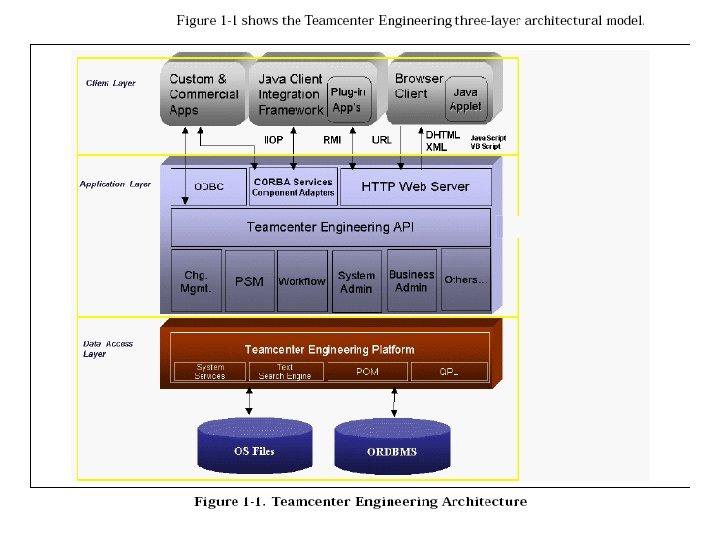

Component Interaction Teamcenter Engineering System Component Interaction The following slide shows how processes are connected and provides an overview to illustrate the following points: • Portal clients connect to imanserver similar to the way Web clients connect to a Web server. • Motif clients connect directly with the Oracle database and Teamcenter Engineering data vaults using SQLNet and NFS (or i. MANFS) respectively. Custom clients using the apiserver process are similar to Motif clients.

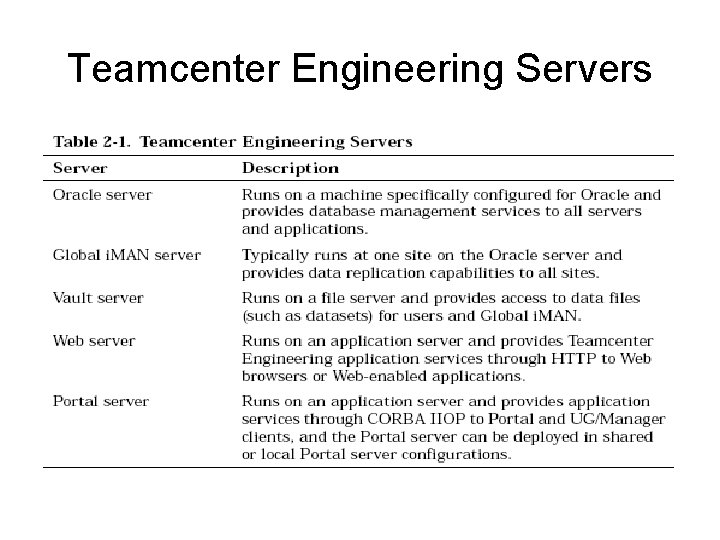

Teamcenter Engineering Servers

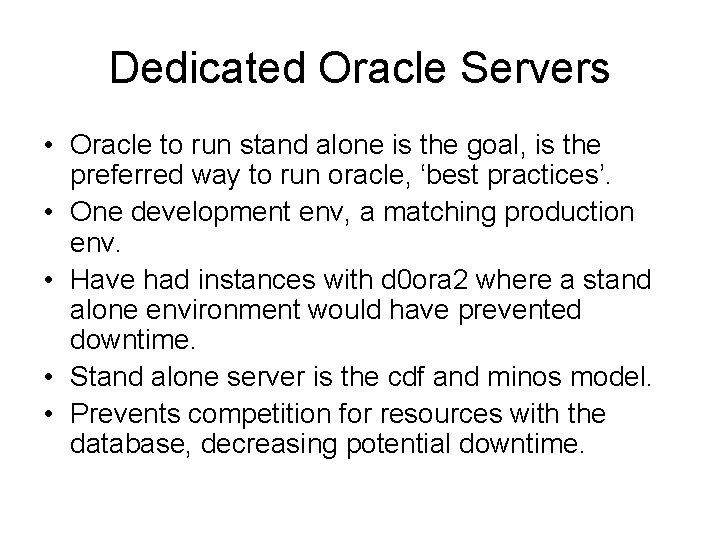

Dedicated Oracle Servers • Oracle to run stand alone is the goal, is the preferred way to run oracle, ‘best practices’. • One development env, a matching production env. • Have had instances with d 0 ora 2 where a stand alone environment would have prevented downtime. • Stand alone server is the cdf and minos model. • Prevents competition for resources with the database, decreasing potential downtime.

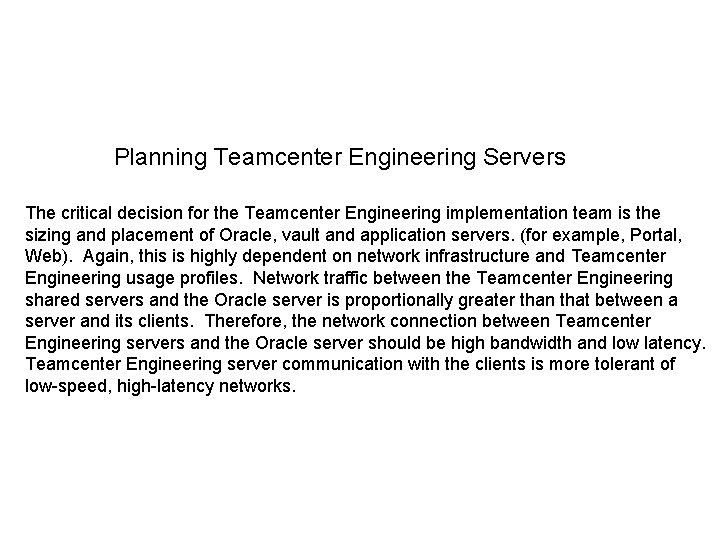

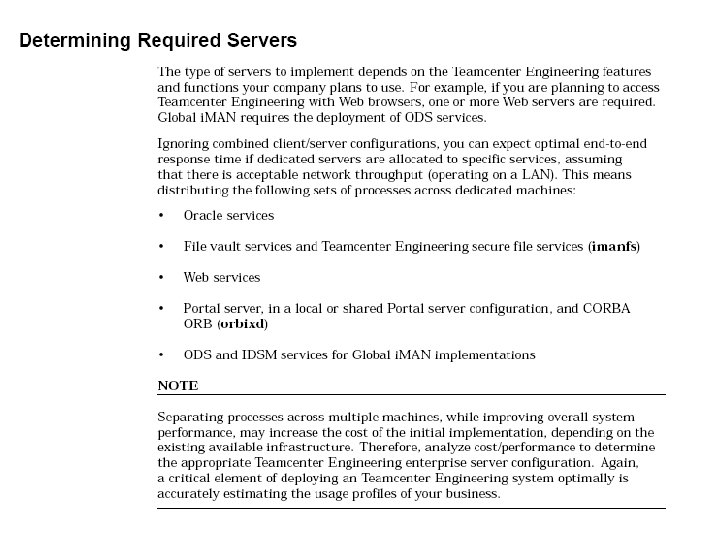

Planning Teamcenter Engineering Servers The critical decision for the Teamcenter Engineering implementation team is the sizing and placement of Oracle, vault and application servers. (for example, Portal, Web). Again, this is highly dependent on network infrastructure and Teamcenter Engineering usage profiles. Network traffic between the Teamcenter Engineering shared servers and the Oracle server is proportionally greater than that between a server and its clients. Therefore, the network connection between Teamcenter Engineering servers and the Oracle server should be high bandwidth and low latency. Teamcenter Engineering server communication with the clients is more tolerant of low-speed, high-latency networks.

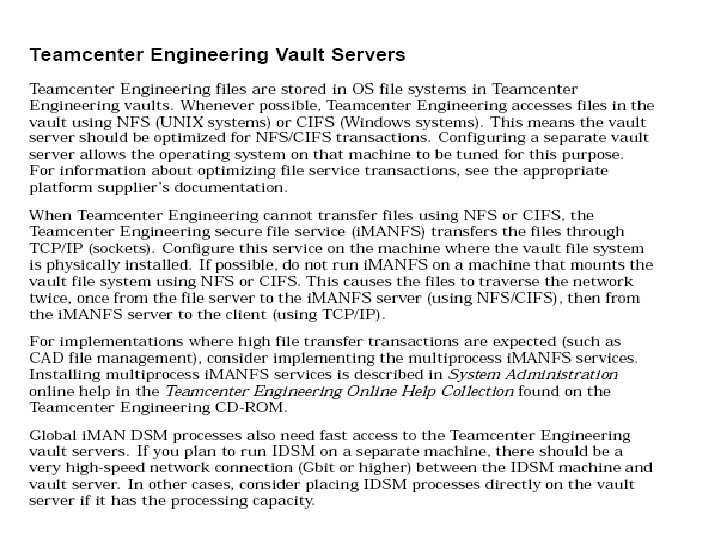

Vault Servers • The vault servers house the ‘real’ data, and will be supported by the cad divisions, not dsg.

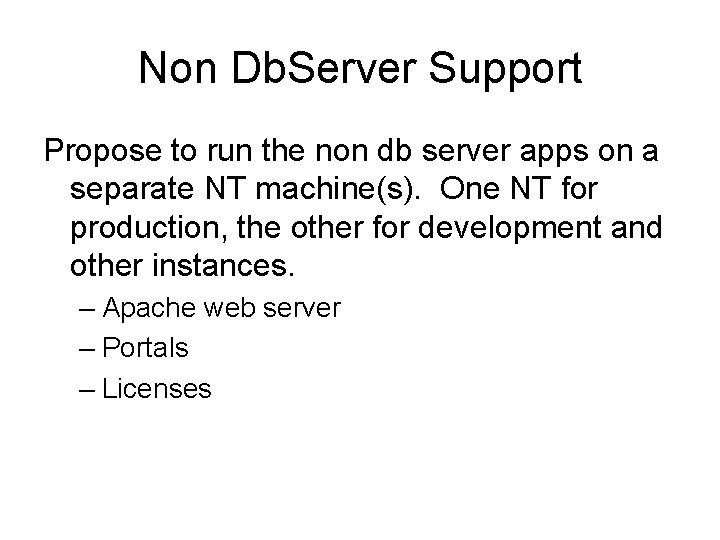

Non Db. Server Support Propose to run the non db server apps on a separate NT machine(s). One NT for production, the other for development and other instances. – Apache web server – Portals – Licenses

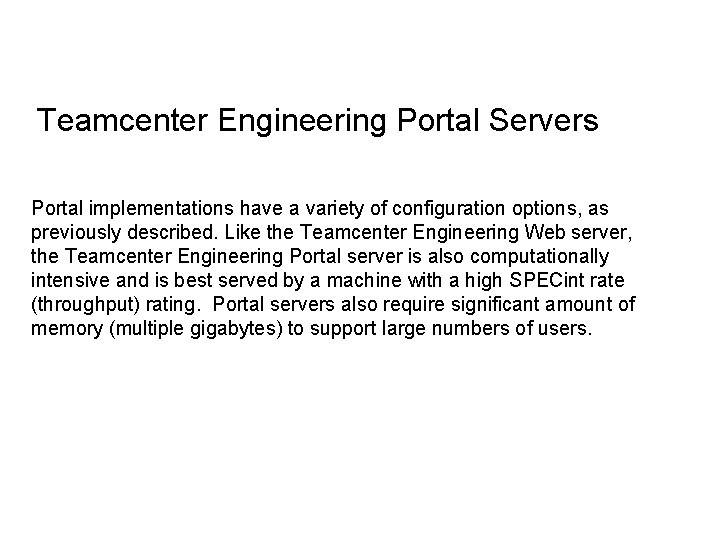

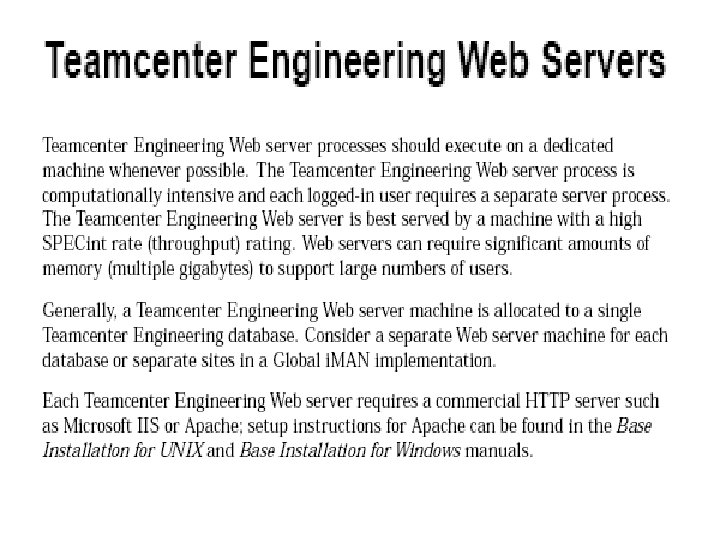

Teamcenter Engineering Portal Servers Portal implementations have a variety of configuration options, as previously described. Like the Teamcenter Engineering Web server, the Teamcenter Engineering Portal server is also computationally intensive and is best served by a machine with a high SPECint rate (throughput) rating. Portal servers also require significant amount of memory (multiple gigabytes) to support large numbers of users.

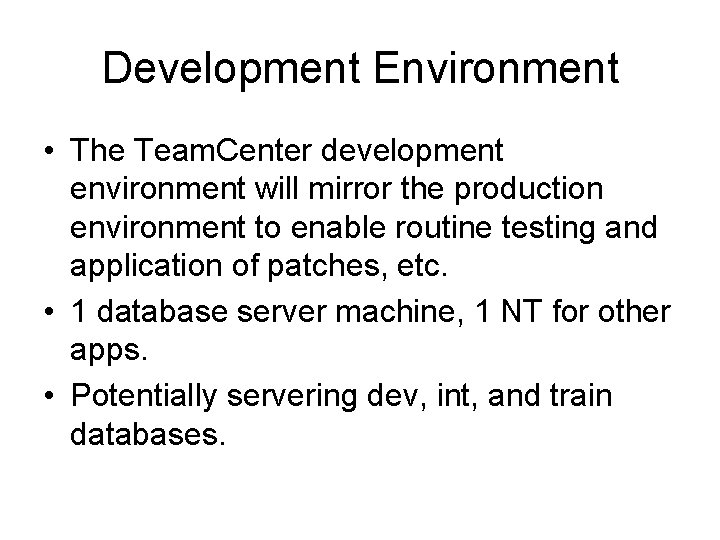

Development Environment • The Team. Center development environment will mirror the production environment to enable routine testing and application of patches, etc. • 1 database server machine, 1 NT for other apps. • Potentially servering dev, int, and train databases.

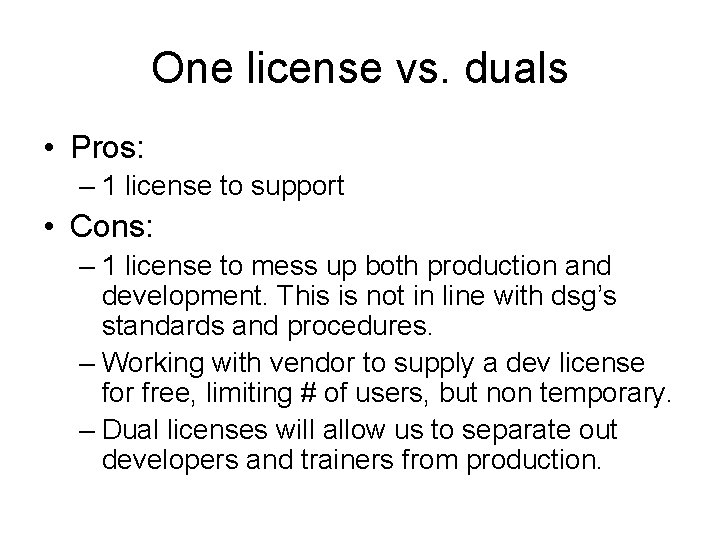

One license vs. duals • Pros: – 1 license to support • Cons: – 1 license to mess up both production and development. This is not in line with dsg’s standards and procedures. – Working with vendor to supply a dev license for free, limiting # of users, but non temporary. – Dual licenses will allow us to separate out developers and trainers from production.

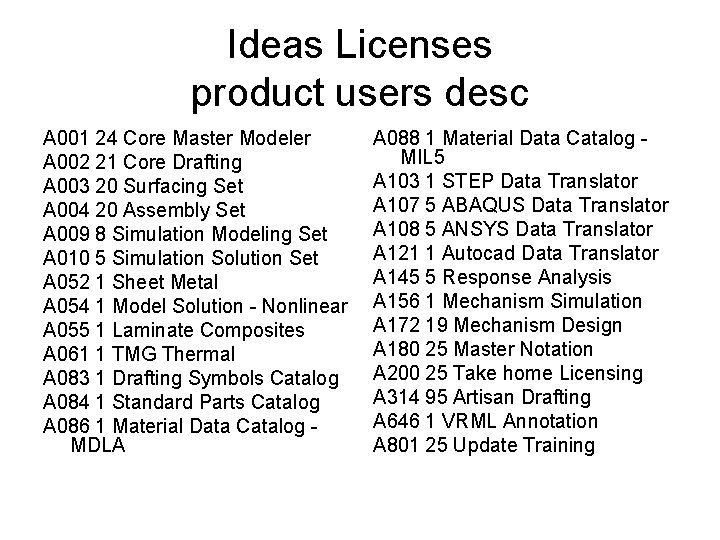

Ideas Licenses product users desc A 001 24 Core Master Modeler A 002 21 Core Drafting A 003 20 Surfacing Set A 004 20 Assembly Set A 009 8 Simulation Modeling Set A 010 5 Simulation Solution Set A 052 1 Sheet Metal A 054 1 Model Solution - Nonlinear A 055 1 Laminate Composites A 061 1 TMG Thermal A 083 1 Drafting Symbols Catalog A 084 1 Standard Parts Catalog A 086 1 Material Data Catalog MDLA A 088 1 Material Data Catalog MIL 5 A 103 1 STEP Data Translator A 107 5 ABAQUS Data Translator A 108 5 ANSYS Data Translator A 121 1 Autocad Data Translator A 145 5 Response Analysis A 156 1 Mechanism Simulation A 172 19 Mechanism Design A 180 25 Master Notation A 200 25 Take home Licensing A 314 95 Artisan Drafting A 646 1 VRML Annotation A 801 25 Update Training

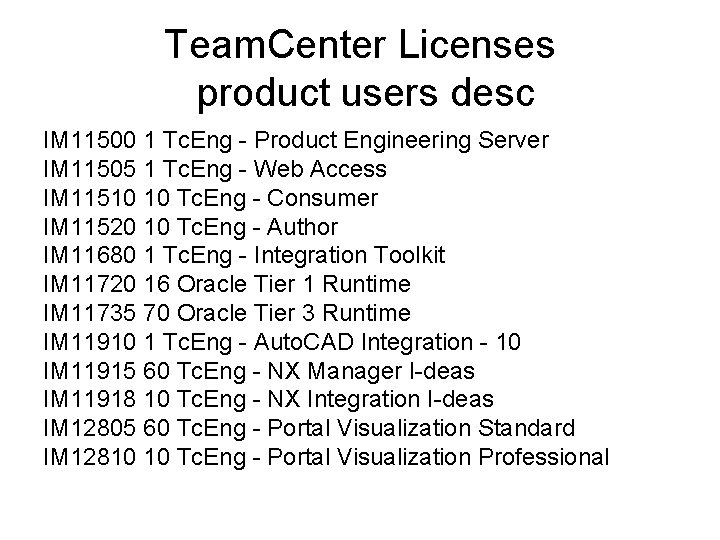

Team. Center Licenses product users desc IM 11500 1 Tc. Eng - Product Engineering Server IM 11505 1 Tc. Eng - Web Access IM 11510 10 Tc. Eng - Consumer IM 11520 10 Tc. Eng - Author IM 11680 1 Tc. Eng - Integration Toolkit IM 11720 16 Oracle Tier 1 Runtime IM 11735 70 Oracle Tier 3 Runtime IM 11910 1 Tc. Eng - Auto. CAD Integration - 10 IM 11915 60 Tc. Eng - NX Manager I-deas IM 11918 10 Tc. Eng - NX Integration I-deas IM 12805 60 Tc. Eng - Portal Visualization Standard IM 12810 10 Tc. Eng - Portal Visualization Professional

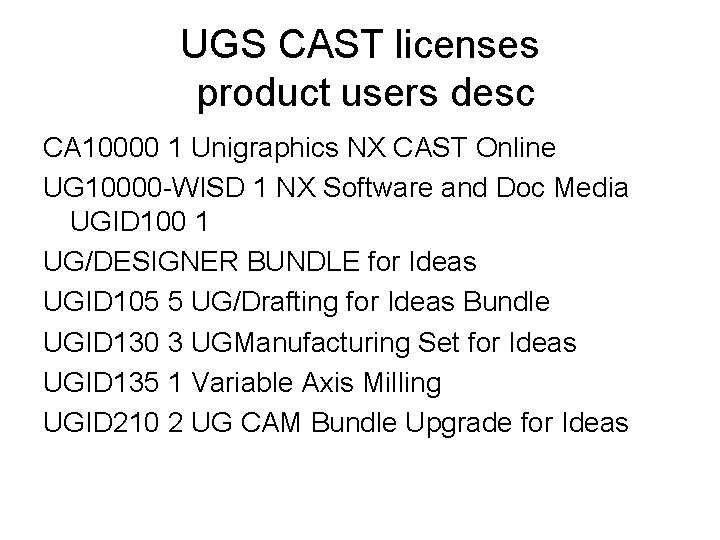

UGS CAST licenses product users desc CA 10000 1 Unigraphics NX CAST Online UG 10000 -WISD 1 NX Software and Doc Media UGID 100 1 UG/DESIGNER BUNDLE for Ideas UGID 105 5 UG/Drafting for Ideas Bundle UGID 130 3 UGManufacturing Set for Ideas UGID 135 1 Variable Axis Milling UGID 210 2 UG CAM Bundle Upgrade for Ideas

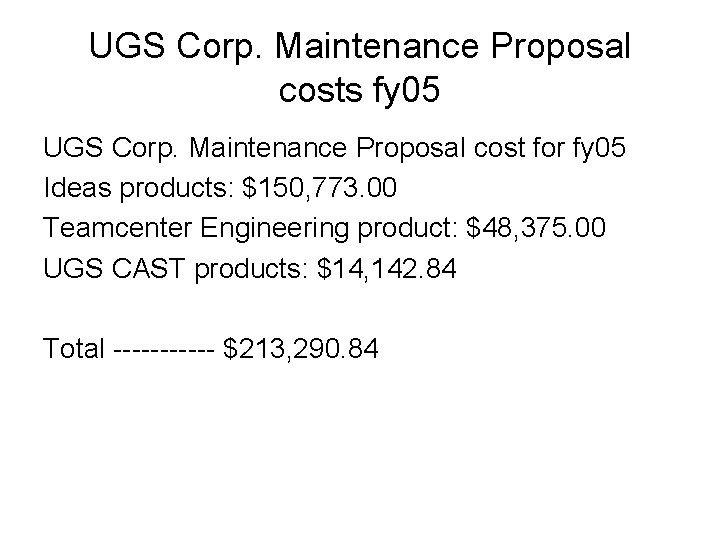

UGS Corp. Maintenance Proposal costs fy 05 UGS Corp. Maintenance Proposal cost for fy 05 Ideas products: $150, 773. 00 Teamcenter Engineering product: $48, 375. 00 UGS CAST products: $14, 142. 84 Total ------ $213, 290. 84
